Product Type	Aroma Diffuser
Model	INN-760
Brand	Innoliving
Power Supply	5V 1A via USB cable (included)
Power Consumption	4W
Water Tank Capacity	Approximately 100 ml
Mist Output	Ultrasonic nebulization
Operating Time	Up to 4 hours with automatic shut-off
Color Options	7-color changing LED light
Essential Oil Capacity	2-3 drops per use
Material	ABS plastic
Safety Features	Auto shut-off when water level low; requires water to operate
Usage	Indoor use only
Cleaning Method	Citric acid solution; clean tank regularly
Included Accessories	USB cable, user manual
Certification	CE marked
Country of Origin	China
Recommended Oils	100% natural essential oils only
Application	Room fragrance, aromatherapy
Storage	Keep away from heat, sunlight, humidity

Frequently Asked Questions - INN-760 Innoliving

How do I start using the INN-760 aroma diffuser?

Place the diffuser on a flat, stable surface. Remove the top cover, fill the water tank with water up to the MAX level, add 2-3 drops of 100% natural essential oil, replace the cover, connect the USB cable to a power source, and press the ON/OFF button.

Why is no mist coming out?

Check that there is enough water in the tank (water level may be too low). Also ensure the base of the tank is clean and both covers are correctly placed. If the problem persists, clean the product according to the cleaning instructions.

How long can I run the diffuser continuously?

Do not use the product for more than 4 consecutive hours. Wait at least 60 minutes before restarting to avoid damaging the product.

What type of essential oils can I use?

Only use 100% natural essential oils. Do not use solutions containing fragrances, spices, or impurities as they may damage the product.

How do I clean the diffuser?

Disconnect the power. Pour out any residual water, then add one teaspoon of citric acid and fill the tank with warm water. Let it sit for at least 5 minutes, empty, and dry with a soft cloth.

What should I do if the diffuser is overturned?

Disconnect from power, remove the cover, pour out residual water, gently shake the main unit to remove water inside the mechanism, and let it dry for at least 24 hours before using again.

Can I use the diffuser in a bathroom?

No, do not use in the bathroom or humid environments. Do not immerse in water. Keep away from moisture.

Why does the diffuser turn off automatically?

The diffuser has an auto shut-off feature that activates when there is no water or the water level is too low. It will turn off automatically to prevent damage.

Can I leave the diffuser on overnight?

It is not recommended to use the diffuser for more than 4 hours continuously. The auto shut-off will turn it off when water runs out, but for safety, avoid using it unattended for extended periods.

What does the 7-color light do?

The diffuser features a 7-color changing LED light that cycles through colors while operating, adding a relaxing ambiance. There is no specific control; the colors change automatically.

USER MANUAL INN-760 Innoliving

innoliving easy tech, easy life

DIFFUSORE DI AROMA

INN-760

MANUALE D'USO

USER MANUAL

DIFFUSORE DI AROMA

Simple line drawing of a bowl with an upward arrow, no text or symbols present

SCARICO ACQUA

Simple line drawing of a ring with an arrow indicating direction, no text or symbols present

Simple line drawing of concentric circles with a pointer, no text or symbols present

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Thank you for purchasing the aroma diffuser INNOLIVING INN-760. Read carefully the instruction manual and keep this manual safe for future reference.

IMPORTANT SAFETY INSTRUCTIONS

• The quantity and intensity of the mist emitted by the product may vary because of the type of water used, the humidity and the air temperature. This is quite normal and does not constitute a defect in production.
• If the device is operated without adding water to the tank, an acoustic signal will be sound. The product will not come into operation without first adding water to the tank.
• Only use 100% natural essential oils.
• Do not use solutions containing fragrances, spices or

GB

impurities as they may cause damage to the product. Add two or three drops of essential oil into the tank filled with water. Using an excessive amounts of essential oil could obstruct the air flow and cause damage to the product. We recommend cleaning the tank whenever you want to change essential oil.

- If the unit is overturned during use, follow these steps to avoid damage to the product:

• Disconnect the device from the power supply and remove the cover.
• Remove any residual water from the tank
• Gently shake the main unit to remove any residual water inside the mechanism and let it dry for at least 24 hours.

WARNINGS

• Before using the product make sure that it is intact without visible damages. If in doubt, contact the authorized after sales service.
• Do not use the product for purposes different from those described in this instruction manual, that is aroma diffuser. Any other use is considered improper and therefore dangerous.
• WARNING: This product is not a toy. Keep the product out of reach of children in order to avoid any damage or accident to them.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental

GB

capabilities, or lack of experience and knowledge, unless they are supervised or instructed about the use of the appliance by a person responsible for their safety. Children should be supervised to make sure they do not play with the appliance.

• Keep the product out of reach of children and pets.
• Charging, cleaning, and maintenance operation should not be carried out by children without the supervision of an adult.
• Do not use the product in the bathroom or in humid environments. Do not immerse it in water.
• Do not place the product behind furniture and curtains, do not cover it.

GB

• Keep the product away from heat sources, sunlight, humidity, sharp objects, and similar.
• In case of malfunctions, always contact the authorized after sales service and do not tamper with the product in an attempt to repair or replace damaged parts, this would invalidate the warranty. Only use the product indoor.
• Use only and exclusively the supplied USB cable.
• Packing items (plastic bags, cardboard, polystyrene etc.) should not be left in the reach of children as potential sources of danger and must be disposed of in accordance with the current law.
• Avoid filling the tank by exceeding the indicated MAX level
• Do not operate the product if the water tank is empty.

GB

• Essential oils could stain the main unit. In case of spills, wipe with a soft cloth.
• Do not let mist blow directing sunshine heat sources and air conditioners or fans
• Place the product on a flat and stable surface.
• Keep the product away from electronic products such as TVs or audio devices.
• Do not tilt the product. This could cause water to escape from the tank, compromising the internal mechanisms.
• Do not use the product for more than 4 consecutive hours.
• Wait 60 minutes before starting to use the product again.
• Do not move the device while it is in use.
• Do not touch the product and its parts with wet hands.

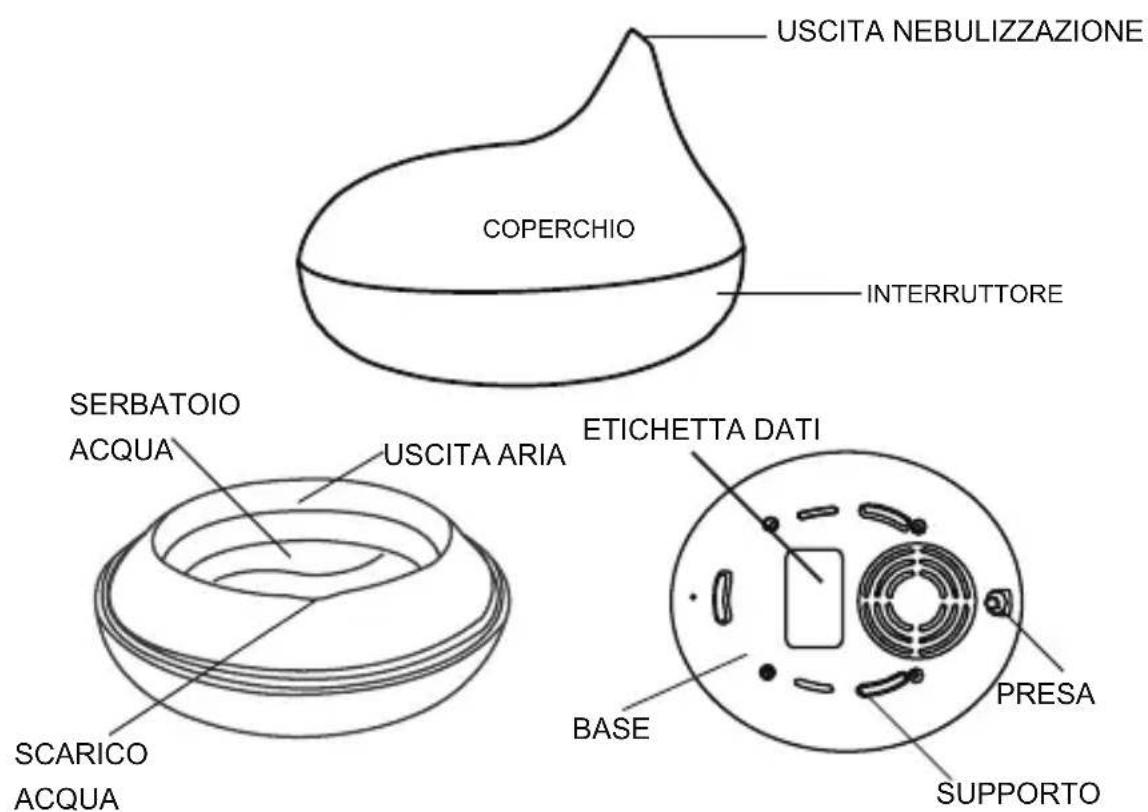

PRODUCT DESCRIPTION

FEATURES

The amount and intensity of the mist depend on several factors such as the internal environment and the amount of water used.

Influenced by external factors such as the water temperature and the type of water used, the amount of mist will be weaker as soon as the device is activated and will stabilise after a few minutes.

ACTIVATE THE AROMA DIFFUSER

Press the ON/OFF button

AUTO SHUT OFF

To turn off the device, press the ON / OFF button again.

When there is no more water or the water level in the tank is not enough, the device will turn off automatically.

HOW TO USE

• Place the product on a flat and stable surface
• Pour the water into the tank, making sure not to exceed the maximum level indicated.
• Connect USB cable port to the PC and the DC socket at the base of the product.

GB

• Press the power button to activate the aroma diffuser.
• After few seconds, the diffuser starts nebulizing the water and brights on changing 7 colours.

1. Connect the USB cable
2. Remove the top cover
3. Add water to the tank
4. Add 2-3 drops of essential oil
5. Replace the cover
6. Press the power button

IMPORTANT SAFETY INSTRUCTIONS

Do not exceed the max. level indicated in the water tank.

GB

Do not press the ON/OFF button before adding water to the tank.

Clean the product regularly according to the Cleaning and Maintenance instructions in this manual.

Disconnect the power cord before proceeding with any cleaning or maintenance operation.

Remove any residual water from the tank after each use and dry with a soft cloth.

Essential oils can stain. If leaking, clean the outside of the product with a soft cloth.

Do not let mist blow directing sunshine heat sources and air conditioners or fans

Keep away from electronic equipment such as TVs and

audio devices.

Do not overturn the product, this can cause the water to enter the mechanism and cause malfunctions.

Do not use for more than 4 consecutive hours. Wait 60 minutes before restarting to avoid damaging the product The amount and intensity of the mist produced may vary during operation, this is completely normal.

Never move the product when in use.

Do not touch any part of the product with wet hands.

Keep out of the reach of children and pets. Make sure children do not play with the product. The appliance should not be used by children or persons with reduced physical, sensory or mental abilities, or lack of experience

and knowledge, unless they have been adequately trained and supervised.

If a smell of smoke or burn is detected, disconnect immediately.

CLEANING AND MAINTENANCE

Disconnect the power cord before proceeding with any cleaning or maintenance operation. Remove any residual water from the tank.

Pour one teaspoon of citric acid into the tank and fill it with warm water.

Leave the solution of water and citric acid for at least 5 minutes, then empty the tank. Dry with a soft cloth.

Simple line drawing of a hand holding a bowl with an upward arrow above it (no text or symbols)

DRAIN SIDE

Simple line drawing of a ring with a checkmark (no text or symbols)

Simple line drawing of concentric circles with a pointer, no text or symbols present

If the unit is overturned during operation, follow these steps to avoid device malfunction.

Unplug the unit and remove the cover.

Pour residual water out of the water tank.

Shake the unit gently to drain the water inside the mechanism and let it dry for at least 24 hours.

TROBLESHOOTING

SYMPTOM	The product does not turn on	No mist/abnormal mist	Water leakage from the product
POSSIBLE CAUSE	·Check that there is enough water in the tank·Check that the product is plugged into the electrical outlet	·Check that there is enough water in the tank·Make sure the base of the tank is clean·Place both covers correctly	·Check that both covers have been placed correctly.·Do not move the product while in use.
SOLUTION · Add water to the tank·Disconnect the product from the socket, check the integrity of the cable and connect the device to the mains again.		·Add water to the tank ensuring that it does not exceed the specified maximum limit.·Check that there are no residues on the air outlet. If this is not the case, we recommend that you clean the product according to the Cleaning and Maintenance instructions in this manual.	·Remove and reposition the covers correctly·Make sure the product is not moved during use.

RATING LABEL

innoliving - - easy tech, easy life

Innoliving Spa

Via Merloni 9 - 60131 Ancona - Italy

INN-760 DIFFUSORE AROMA - AROMA DIFFUSER

5V 1A 4W

MADE IN CHINA

LOT n.

CE

This product complies with all the appliacable EU Directives.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.
