INN-762 - Scent diffuser Innoliving - Free user manual and instructions

Product Type	Aroma diffuser / Scent diffuser
Brand	Innoliving
Model	INN-762 (INN-762NEW)
Power Supply	External adapter, input 100-240V~ 50/60Hz 0.3A, output 24V---0.5A
Power Consumption	12W
Mist Modes	3 modes: intermittent (10s on/20s off), continuous, continuous 3h timer
LED Light	Multicolor LED with auto cycle and fixed color selection
Auto Shut-off	Yes, when water tank empty (acoustic signal and no operation)
Water Tank Capacity	Not specified (fill to MAX level)
Recommended Oils	100% natural essential oils only, 2-3 drops per use
Cleaning	Every 5-6 uses with citric acid solution (1 tsp citric acid in warm water at 70°C, leave 5 min)
Safety Features	Do not immerse, keep away from children and pets, do not exceed 6h continuous use, wait 60 min before restart, use on flat surface
Repair / Service	Contact authorized after-sales service; do not tamper internally
Manufacturer	Innoliving Spa, Via Merloni 2/B-60131 Ancona, Italy
Country of Origin	Made in China
Compliance	CE, Class II insulation, WEEE directive
Packaging Contents	Diffuser unit, power adapter, user manual

Frequently Asked Questions - INN-762 Innoliving

How do I turn on the Innoliving INN-762 diffuser?

Place the diffuser on a flat surface, remove the cover, fill the tank with clean water up to the MAX level, add 2-3 drops of essential oil, replace the cover, insert the power adapter, and press the LIGHT/MIST button to start.

What are the different mist modes?

There are three mist modes: Intermittent (10 seconds on, 20 seconds off) – green indicator; Continuous – red indicator; Continuous for 3 hours – orange indicator. Press the MIST button repeatedly to cycle through modes.

How do I use the LED light?

Press the LIGHT button to turn on the light. Press and hold for 2 seconds to activate multicolor auto cycle. Press again to fix a single color. The light can be used independently of the mist.

What kind of essential oils can I use?

Only use 100% natural essential oils. Do not use synthetic fragrances, spices, or solutions with impurities as they may damage the product. Add only 2-3 drops per tank.

Why is the diffuser not producing mist?

Ensure the water tank is filled to at least the minimum level. The device will not operate without water. Also check that the cover is properly placed and the power adapter is connected. If still not working, clean the tank as per the manual.

How should I clean the diffuser?

Clean every 5-6 uses. Disconnect power, empty residual water, fill tank with warm water (70°C) and add 1 teaspoon of citric acid. Let stand for 5 minutes, then empty and wipe dry with a soft cloth. Do not use other acids or detergents.

Can I leave the diffuser on overnight?

It is recommended not to use the diffuser for more than 6 consecutive hours. After that, wait 60 minutes before restarting. Continuous use may overheat the device or damage internal components.

What should I do if the diffuser tips over?

Disconnect from power immediately. Remove the cover and empty any water. Gently shake the main unit to remove water inside, then let it dry for at least 24 hours before using again.

Is the diffuser safe to use around children and pets?

The diffuser is not a toy. Keep out of reach of children and pets. Children aged 8+ can use it only under supervision. The essential oils may be harmful if ingested; ensure the device is placed in a safe location.

What is the power adapter specification?

The external power adapter model is XCJ-W63240050BE (Shenzhen Xinchenjia). Input: 100-240V~ 50/60Hz 0.3A, Output: 24V---0.5A 12W. Only use the supplied adapter.

USER MANUAL INN-762 Innoliving

White conical thread spool with wooden base, no visible text or symbols

INN-762NEW

MANUALE D'USO

USER MANUAL

NAVODILA ZA UPORABO

PRIRUČNIK ZA UPOTREBU

MANUALE D'ISTRUZIONE

Line drawings of four different types of household appliances or devices, showing a drop and recovery process (no text or symbols)

MODO D'USO

Simple geometric diagram with two concentric squares (no text or symbols)

LOT n.

DATI TECNICI ERP DELL'ALIMENTATORE ESTERNO

Nome del fabbricante: SHENZHEN XINCHENJIA ELECTRONIC TECHNOLOGY CO.,LTD

Modello: XCJ-W63240050BE

Thank you for purchasing the aroma diffuser INN-762NEW. Read carefully the instruction manual and keep this manual safe for future references.

IMPORTANT SAFETY NORMS

• The quantity and intensity of the mist emitted by the product may vary because of the type of water used, the humidity and the air temperature. This is quite normal and does not constitute a defect in production.
• If the device is operated without adding water to the tank, an acoustic signal will be sound. The product will not come into operation without first adding water to the tank.
  • Only use 100% natural essential oils.
• Do not use solutions containing fragrances, spices or impurities as they may cause damage to the product. Add two or three drops of essential oil into the tank filled with water. Using an excessive amounts of essential oil could obstruct the air flow and cause damage to the product. We recommend cleaning the tank whenever you want to change essential oil.
• If the unit is overturned during use, follow these steps to avoid damage to the product:
• Disconnect the device from the power supply and remove the

cover.

• Remove any residual water from the tank.
• Gently shake the main unit to remove any residual water inside the mechanism and let it dry for at least 24 hours.

WARNINGS

• Before using the product make sure that it is intact without visible damages. If in doubt, contact the authorized after sales service.
• Do not use the product for purposes different from those described in this instruction manual, that is aroma diffuser. Any other use is considered improper and therefore dangerous.
• WARNING: This product is not a toy. Keep the product out of reach of children in order to avoid any damage or accident to them.
• This appliance can be used by children 8 years old and by persons with reduced physical abilities, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or instructed about the use of the appliance by a person responsible for their safety and understand the associated dangers. Children should be supervised to make

sure that they do not play with the appliance.

• Keep the product out of reach of children and pets.
• Charging, cleaning, and maintenance operation should not be carried out by children without the supervision of an adult.
• Do not use the product in the bathroom or in humid environments. Do not immerse the product in water or other liquids.
• Do not place the product behind furniture and curtains, do not cover it.
• Keep the product away from heat sources, sunlight, humidity, sharp objects, and similar.
• In case of malfunctions, always contact the authorized after sales service and do not tamper with the product in an attempt to repair or replace damaged parts, this would invalidate the warranty. Only use the product indoor.
• Only use the supplied power cable.
• Packing materials (plastic bags, cardboard, polystyrene etc.) should not be left in the reach of children as potential sources of danger and must be disposed of in accordance with the current law.

• Avoid filling the tank by exceeding the indicated MAX level

• Do not operate the product if the water tank is empty.

• Essential oils could stain the main unit. In case of spills, wipe with a soft cloth.
• Do not let mist blow directing sunshine heat sources and air conditioners or fans
• Place the product on a flat and stable surface.
• Keep the product away from electronic products such as TVs or audio devices.
• Do not tilt the product. This could cause water to escape from the tank, compromising the internal mechanisms.
• Do not use the product for more than six consecutive hours.
• Wait 60 minutes before starting to use the product again.
• Do not move the device while it is in use.
  Do not touch the product and its parts with wet hands.

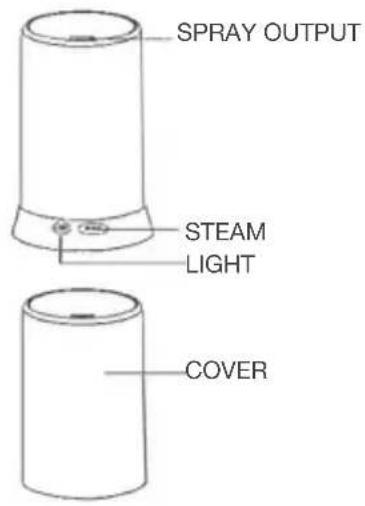

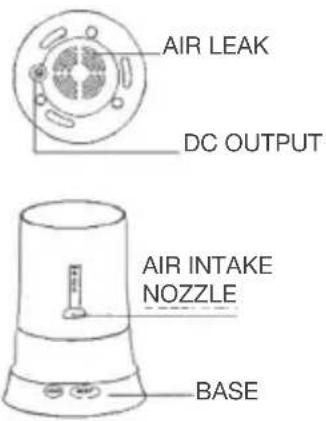

PRODUCT DESCRIPTION

BEFORE USE

1. Place the product on a flat and stable surface and remove the cover.
2. Fill the tank with water, making sure not to exceed the indicated MAX level.
3. Pour 2-3 drops of essential oil.
4. Replace the cover. Insert the plug of the power supply on the base of the product and the plug into the socket.

Press the LIGHT / MIST button to operate the product.

Line drawings of four different types of containers or devices, showing a drop and pouring process (no text or symbols)

HOW TO USE

Mist Mode

There are three nebulization modes. To activate the nebulization nebulization mode and 20 seconds of stop) press the MIST button once, a green light will be activated on the device to indicate the activation of this function. Press the MIST button a second time to activate the continuous spray mode; a red light will come on and the device will continue to emit steam until the water level drops below the minimum level indicated in the tank. Press the MIST button a third time to activate the continuous spray for three hours; an orange light will come on and the device will continue to emit steam until the water level drops below the minimum level indicated in the tank.

To activate the multicolor mode, press and hold the LIGHT button for two seconds.

With this mode, the colors will change automatically. Press the LIGHT button a second time to fix the color. The color mode can also be activated without using the nebulization mode at the same time.

To activate both light and nebulization functions, first press the LIGHT button to set the desired mode and then press the MIST button or vice versa.

CLEANING AND MAINTENANCE

It is advisable to clean the aroma diffuser every 5-6 uses by following these guidelines:

• Disconnect the power cord before proceeding with any cleaning or maintenance operation.
• Remove any residual water from the tank.
• Pour a teaspoon of citric acid into the tank filled with warm water at 70^ .
• Leave the solution of water and citric acid for at least 5 minutes, then empty the tank.
• Dry with a soft cloth. Never use other acids, enzymes or detergents, as this could lead to the creation of poisonous gases or cause malfunctions.

PRODUCT

Innoliving Spa

Via Merloni 2/B-60131 Ancona-Italy

INN-762NEW DIFFUSORE-DIFFUSER

24V --- 500 mA 12W

MADE IN CHINA

LOT n.

POWER SUPPLY

SHENZHEN XINCHENJIA

ELECTRONIC TECHNOLOGY CO.,LTD

SWITCH POWER SUPPLY

MODEL: XCJ-W63240050BE

INPUT: 100-240V\~50/60Hz 0.3 A

OUTPUT:24V---0.5A 12W

MADE IN CHINA

Simple geometric diagram with two concentric squares (no text or symbols)

LOT n.

ERP TECHNICAL DATA OF THE EXTERNAL POWER SUPPLY

Manufacturer's name: SHENZHEN XINCHENJIA ELECTRONIC TECHNOLOGY CO.,LTD

Model: XCJ-W63240050BE

Input voltage: 100-240V \~

Input frequency: 50/60 Hz

Output voltage: 24V ---

Output current: 0.5A

Output power: 12.0W

Average active yield: 83,61%

Power consumption in the vacuum condition: 0,09W

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)"The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 cm. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

This product complies with all the applicable EU Directives.

Class II insulated electrical appliance.

Line drawings of four different types of containers or devices, showing a drop and a plug (no text or symbols present)

NAČIN UPORABE

Način pršenja

Simple geometric diagram with two concentric squares (no text or symbols)

LOT n.

TEHNIČNI PODATKI ERP ZUNANJEGA NAPAJANJA

Ime proizvajalca: SHENZHEN XINCHENJIA ELECTRONIC TECHNOLOGY CO.,LTD

Model: XCJ-W63240050BE

Vhodna napetost: 100-240V \~

Vhodna frekvenca: 50/60 Hz

Izhodna napetost: 24V ---

Izhodni tok: 0.5A

Izhodna moč: 12.0W

Line drawings of four different types of containers or devices, showing a drop and pouring process (no text or symbols)

NAČIN UPOTREBE

Raspršivanje

Simple geometric diagram with two concentric squares (no text or symbols)

LOT n.

ERP TEHNIČKI PODACI VANJSKOG NAPAJANJA

Naziv proizvođača: SHENZHEN XINCHENJIA ELECTRONIC TECHNOLOGY CO.,LTD

Model: XCJ-W63240050BE

Ulazni napon: 100-240V \~

Simple gray rectangular shape with two vertical lines above it, no text or symbols present.

innoliving

Innoliving Spa

Via Merloni, 2/B

60131 Ancona Italy

Tel [phone]

www.innoliving.it

MADE IN CHINA

CE

Rev.04_06.2021
