USER MANUAL Secure 850 Oricom
User Guide
KEEP THIS USER GUIDE FOR FUTURE REFERENCE
Always retain your proof of purchase in case of warranty service and register your product on line at: AUSTRALIA: www.oricom.com.au NEW ZEALAND: www.oricom.co.nz
TABLE OF CONTENTS
SAFETY INFORMATION 1
OVERVIEW OF FUNCTIONAL COMPONENT POSITIONS 3
GETTING STARTED 5
USING THE BABY MONITOR 8
TROUBLE SHOOTING 13
CUSTOMER SUPPORT 16
EXPRESS WARRANTY 17
Need Help?
If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support.
Australia 1300 889 785 or 02 4574 8888
www.oricom.com.au
Mon-Fri 8am – 6pm AEST
New Zealand 0800 67 42 66
www.oricom.co.nz
Mon-Fri 10am – 8pm NZST
- It is very important that you read the User Guide carefully as it contains detailed information you will need to get the most from your Oricom baby monitor. If you have any issues setting up or using your Oricom baby monitor please call our Customer Support team. Our dedicated local team are more likely to be able to help you than the retailer where you made your purchase.
- Your Oricom baby monitor is designed to be an aid and should not be used as a substitute for responsible and proper adult supervision of a child.
- The baby monitor has been designed to provide some added reassurance in the form of sound transmission for those times when you are not in the same room as your baby provided you always stay within hearing range of the baby monitor during use. Your baby monitor is not a medical device, nor a device to prevent cases of Sudden Infant Death Syndrome (SIDS) or "cot death", and you should not rely on it for your baby's wellbeing. It is important that you regularly check on your baby personally.
-
Make sure the baby unit, parent unit and mains adaptor cables are kept out of reach of your baby and other young children at all times, at least one metre away.
-
Never place the baby unit or parent unit inside your baby's cot, bed or playpen.
- Never cover the parent or baby units with clothes, towels or blankets or any other item. Never use or place your parent or baby unit in or near moisture or water (e.g. near bath or pool). Immersing in water could cause electric shock and even death.
- The installation location plays an important role in ensuring proper operation. Therefore, maintain a distance of at least one metre from other electronic equipment, such as microwave ovens or hi-fi devices, otherwise they could cause interference. During continual use the baby unit power adaptors may become warm to the touch. This is normal and should not be a concern.
Warning
Risk of suffocation!
Keep all packaging materials and protective foils out of reach of children.
Warning
Do not place the AC Adaptor cable in a high "wear and tear" location. Never use a frayed or compromised cord.
Battery safety
- Batteries represent a hazard to health and the environment!
- They contain toxic, ecologically hazardous heavy metals. Do not dispose of batteries in a fire as they may explode. Dispose of batteries according to local regulations, never in your household rubbish.
- Do not dismantle, cut, open, crush, bend, puncture, or shred cells or batteries. If a battery leaks, do not let the battery liquid touch skin or eyes. If this happens, immediately flush the affected areas with water, and seek medical assistance.
- Do not modify, remanufacture, attempt to insert foreign objects into the battery, or immerse or expose it to water or other liquids. Batteries may explode if damaged.
- Use only the battery supplied with the product. Improper use, or use of unapproved batteries may present a risk of fire, explosion, or other hazard, and may invalidate any approval or warranty.
- If you believe the battery is damaged, remove product from the charger and stop using the product. Contact Oricom for assistance. Never use a damaged battery.
Disposal
Always dispose of your products at the end of their life in accordance with your local waste disposal requirements.
Packaging materials all cardboard and paper packaging should be recycled in accordance with your local council waste regulations.
OVERVIEW OF FUNCTIONAL COMPONENT POSITIONS
3
2 Overview of your Baby Monitor

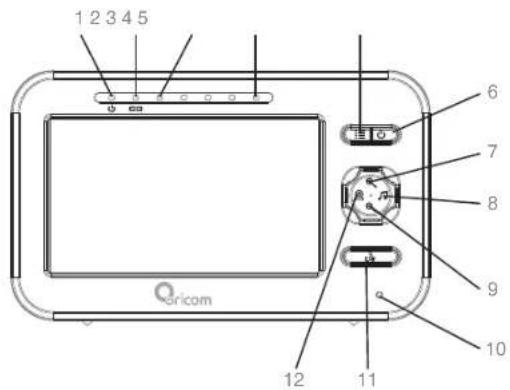

Your Parent Unit
1 Power LED
2 Link LED
3 Lowest level
4 Highest level
5 Menu (Pan/Tilt)
6 Power (Video) on/off
7VolumeUp
(Up Arrow) (x2 Zoom)
8Play/Stop
(Select Melody)
9VolumeDown
(Down Arrow) (x1 Zoom)
10 Microphone
11 Push To Talk
12 Change CAM#
Register CAM

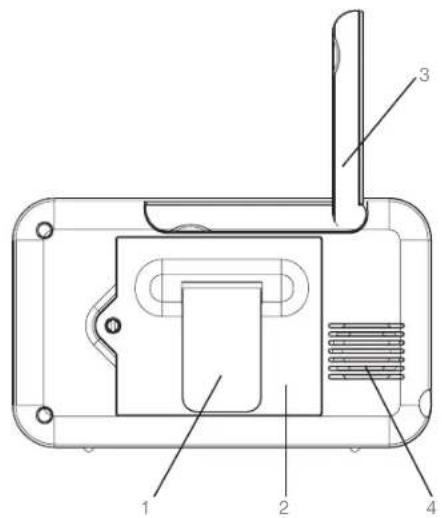

1 Stand
2 Battery compartment
3 Antenna
4 Speaker
4 OVERVIEW OF FUNCTIONAL COMPONENT POSITIONS

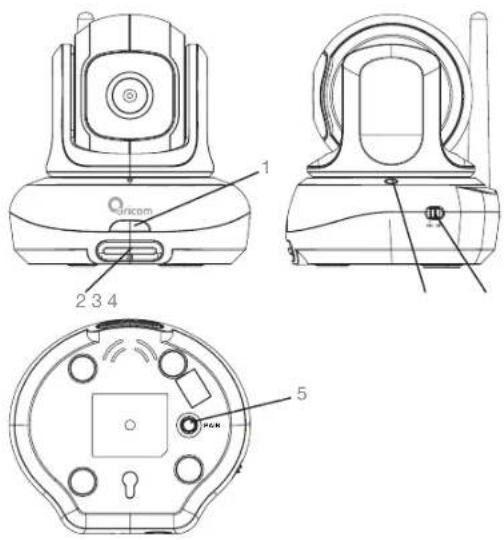

Your Camera Unit
1 Night Light
2 Speaker
3 Light Sensor
4 Power
5 Pair
Check pack contents
This pack should contain:
1 camera / baby unit
1 parent unit
1 Li-ion Polymer rechargeable battery pack for the parent unit
1 AC adaptor for the parent unit
1 AC adaptor for the baby unit
If any items are missing contact Oricom customer support
3 GETTING STARTED
3.1 Baby unit power supply
(1) Connect the small plug of the power adaptor to the baby unit and the other end to the electrical mains power outlet.
(2) Switch the unit to the ON position. The power LED will light up.
(3) To switch off the baby unit, slide the power switch to OFF position.
Warning
Only use the AC power adaptor supplied with the product as other power adaptors could damage the product. This product is designed for indoor use only.
3.2 Connecting and aligning the baby unit
Position the baby unit with a minimum distance of 1m to other electronic devices, otherwise there is a risk of mutual disturbance. Point the upper section of the baby unit towards the baby or object you want to monitor. Check that the baby or object is suitably displayed on the parent unit screen. Ensure the antenna is extended vertically for optimum range.
3.3 Parent unit battery installation
(1) Insert the battery pack into the parent unit ensuring the contacts match.
(2) Close the battery compartment.
(3) Press and hold key for 2 seconds to switch on the parent unit. It will take a few seconds for the unit to start up. The power LED will light up.
(4) If press and hold key for 2 seconds again to turn OFF the parent unit.
NOTE:
When the battery level is low, the power LED will flash slowly.
3.4 Charging the Parent unit
(1) Connect the small plug of the power adaptor to the parent unit and other end to the electrical mains power outlet.
(2) If the unit is powered off, the power LED will turn on steadily.
(3) If the unit is powered on, the battery level indicator will change to indicate the battery charging status.
NOTE:
YOU MUST INITIALLY CHARGE THE BATTERY FOR 12-14 HOURS BEFORE USE. THIS IS IMPORTANT TO MAINTAIN ADEQUATE BATTERY PERFORMANCE.
6 GETTING STARTED
IMPORTANT
The parent unit is powered by a rechargeable Lithium Battery Pack. The amber Power LED lights up on the parent unit when it is in the charger to indicate power is being supplied to the unit. In the case of a low battery the amber Power LED will flash. The parent unit should be returned to the cradle to recharge. The amber light will always be lit when the parent unit is in the charging cradle.
Switching the Baby Unit ON/OFF
Position the baby unit in a good position for the monitoring task required and align the camera lens to the area to be monitored.
Slide the switch to ON, the Power LED lights up. The baby unit is now ready to operate.
To switch the unit off, slide the switch to OFF.
In-use time and battery charging
Depending on the usage the parent unit will work for up to 8 hours on a fully charged battery with the VOX feature turned ON.
When the battery charge becomes low on the parent unit the amber power LED will flash slowly. At this point you need to connect the parent unit to the charger.
When charging, the battery status indicator on the parent unit screen will change to the charging icon 📄.
To speed up the charging process, turn the parent unit off when charging if it is not being used.
You can continue to use your parent unit to monitor your baby even when the battery is low, provided it remains on the charger to recharge the battery.
NOTE:
• The parent unit can be kept on the charger even if it is fully charged. This will not affect the battery life.
- The parent unit can be used on or off the charger.
- When the parent unit is being used while on the charger.
• We recommend that you TURN OFF the parent unit when it is not in-use, to conserve battery power.
Battery Life
The rechargeable battery pack (supplied) can be charged and discharged hundreds of times, however they will eventually wear out and lose their ability to hold a full charge. When the in use time becomes noticeably shorter than normal, it is time to purchase a new battery pack.
How to purchase spare parts
You can purchase Battery packs (Model No: BPCK1700LI) chargers and extra camera units from www.oricom.com.au
For added convenience you may wish to purchase additional chargers online at www.oricom.com.au.


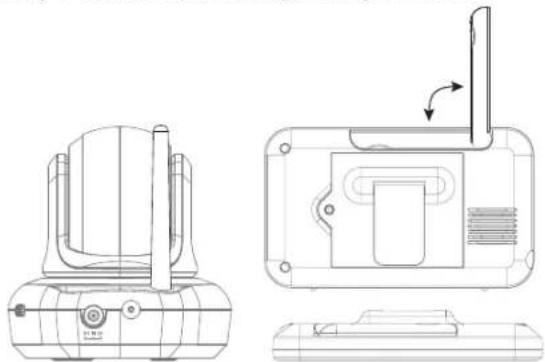

Optimisation of Range
The parent unit has a fold out antenna, extend the antenna vertically to achieve optimal range from your monitor.
8 SING THE BABY MONITOR
4 USING THE BABY MONITOR
Once the baby and parent units are switched on, the display on the parent unit will show the video captured by the baby unit.
4.1 Switching on the parent unit
Press and hold the power button until the Oricom logo appears on the parent unit. The camera image will then appear.
Press and hold the power button for approx. 1 second to switch the unit off.
NOTE:
If you place the Parent and Baby units too close together you will hear a high pitched noise called "feedback", this is normal. The units are designed to be located in separate rooms.
To prevent feedback, do not take the parent unit into the nursery/baby's room.
Do not press the talk button when the baby unit and parent unit are positioned in the same room. Feedback will be generated if the talk button is pressed when the baby unit and parent unit are close to each other.
4.2 Talk function
(1) Press and hold button on the parent unit to talk to your baby through the baby unit loudspeaker. The talk symbol will be displayed in the middle of the LCD screen.
NOTE:
The lullaby will stop playing if the Talk function is activated.
4.3 Adjusting the volume of the parent unit
Press <▲> and <▼ to adjust the volume of the parent unit. [■] appears on the LCD screen. There are 5 levels can be adjusted.
4.4 Playing a lullaby for your baby
You can remotely activate a lullaby to be played on the baby unit
(1) Press and release button on the parent unit to play the previous lullaby and [♪X] appears on the LCD screen.
(2) When the music starts playing, within 8 sec, press <▲> and <▼> keys to change lullabies. There are 5 lullabies available for selection, indicated by [♪1], [♪], [3]♪[4] ♗d [5].
(3) Press < Music > again to stop.
(4) If you want to change to a different lullaby in the middle of playing music, it is necessary to turn the music off, then turn on again to resume (the music will change within 8 seconds).
4.5 Out of range indication
When the distance between the parent unit and baby unit is too far, [Out of Range] will display on the parent unit and the
link LED will flash. Move the parent unit closer to the baby unit until the link is re-established. Both the parent unit and baby unit antennas should be extended vertically to achieve the best range.
4.6 Infrared Sensitive Night vision
The camera has high-intensity infrared LEDs for picking up clear images in the dark. When the built-in light sensor detects a low level of ambient light, the LEDs will automatically activate and the screen on the parent unit will display in black and white.
4.7 Brightness
(1) When unit is in monitor mode or stand-by status, press
