USER MANUAL KB-KM STIHL
WARNING
Read Instruction Manual thoroughly before use and follow all safety precautions – improper use can cause serious or fatal injury.
ADVERTENCIA
Guide to Using this Manual 2
Safety Precautions and Working
Techniques 3
Using the Unit 8
Approved KombiEngines 10
Assembling the Unit 11
Mounting the KombiTool 12
Fitting the Harness 13
Balancing the Machine 14
Starting / Stopping the Engine 14
Storing the Machine 15
Replacing the Sweeping
Attachments 15
Maintenance and Care 16
Main Parts 17
Specifications 18
Maintenance and Repairs 18
Disposal 19
Trademarks 19
STIHL
KB-KM, KW-KM
English
Allow only persons who fully understand the manuals of the KombiEngine and the Bristle Brush or PowerSweep KombiTool to operate this power tool combination.
To receive maximum performance and satisfaction from your STIHL
KombiTool, it is important that you read, understand and follow the safety precautions and the operating and maintenance instructions in chapter "Safety Precautions and Working Techniques" before using your KombiTool. For further information you can go to www.stihlusa.com.
Contact your STIHL dealer or the STIHL distributor for your area if you do not understand any of the instructions in the two manuals.
WARNING
Because a KombiEngine equipped with a Bristle Brush or PowerSweep KombiTool is a power tool, some special safety precautions must be observed to reduce the risk of personal injury. Careless or improper use may cause serious or even fatal injury.
Always wear proper eye protection.
This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process with electronic systems.
KombiSystem Guide to Using this Manual
In the STIHL KombiSystem a number of different KombiEngines and KombiTools can be combined to produce a power tool. In this instruction manual the functional unit formed by the KombiEngine and KombiTool is referred to as the power tool.
Therefore, the separate instruction manuals for the KombiEngine and KombiTool should be used together for the power tool.
Always read and make sure you understand both instruction manuals before using your power tool for the first time and keep them in a safe place for future reference.

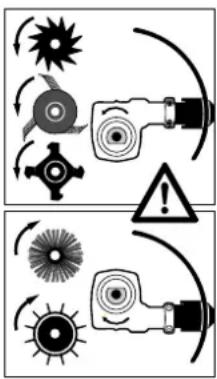

Pictograms
All the pictograms attached to or embossed on the machine are shown and explained in this manual.
Symbols in Text
Many operating and safety instructions are supported by illustrations.
The individual steps or procedures described in the manual may be marked in different ways:
●A bullet marks a step or procedure.
A description of a step or procedure that refers directly to an illustration may contain item numbers that appear in the illustration. Example:
●Loosen the screw (1).
●Lever (2) ...
In addition to the operating instructions, this manual may contain paragraphs that require your special attention. Such paragraphs are marked with the following symbols and signal words:
DANGER
Indicates a hazardous situation that, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
NOTICE
Indicates a risk of property damage, including damage to the machine or its individual components.
Engineering Improvements
STIHL's philosophy is to continually improve all of its products. As a result, engineering changes and improvements are made from time to time. Therefore, some changes, modifications and improvements may not be covered in this manual. If the operating characteristics or the appearance of your machine differs from those described in this manual, please contact your STIHL dealer or the STIHL distributor for your area for assistance.
Safety Precautions and Working Techniques
Because a KombiEngine equipped with a Bristle Brush or PowerSweep is a powerful tool, special safety precautions must be observed to reduce the risk of personal injury.
It is important that you read, fully understand and observe the following safety precautions and warnings. Read the instruction manuals and the safety precautions of your KombiEngine and KombiTool periodically. Careless or improper use may cause serious or fatal injury.
Have your STIHL dealer show you how to operate your power tool. Observe all applicable local safety regulations, standards and ordinances.
WARNING
As more fully explained later in these Safety Precautions, to reduce the risk of personal injury, make sure your unit is equipped with the proper handle, harness (if applicable) and deflector for the type of working tool you are using. Use only attachments that are specifically authorized by STIHL for use on your KombiEngine model.
WARNING
Do not lend or rent your power tool without the instruction manuals of your KombiEngine and KombiTool. Be sure that anyone using it understands the information contained in these manuals.
WARNING
The use of this machine may be hazardous. When it comes in contact with solid foreign objects such as rocks or bits of metal, it may fling them directly or by ricochet in the direction of bystanders or the operator. Striking such objects could damage the sweeping attachment. Thrown objects may result in serious or fatal injury to the operator or bystanders.
Use your KombiEngine equipped with the KW-KM PowerSweep only for moving wet materials, such as leaves or dirt, clearing snow and removing standing water from solid surfaces.
Use the KB-KM Bristle Brush only for sweeping areas and paths, including uneven and jointed surfaces, and natural stone paving.
WARNING
Do not use it for other purposes, since misuse may result in personal injury or property damage, including damage to the machine.
WARNING
Minors should never be allowed to use this power tool. Bystanders, especially children, and animals should not be allowed in the area where it is in use.
WARNING
To reduce the risk of injury to bystanders and damage to property, never let your power tool run unattended. When it is not in use (e.g. during a work break), shut it off and make sure that unauthorized persons do not use it.
Most of these safety precautions and warnings apply to the use of all STIHL power tools. Different models may have different parts and controls. See the appropriate section of your KombiEngine and KombiTool instruction manuals for a description of the controls and the function of the parts of your model.
Safe use of a power tool involves
-
the operator
-
the power tool
-
the use of the power tool.
THE OPERATOR
Physical Condition
You must be in good physical condition and mental health and not under the influence of any substance (drugs, alcohol, etc.) which might impair vision, dexterity or judgment. Do not operate this machine when you are fatigued.
WARNING
Be alert – if you get tired, take a break. Tiredness may result in loss of control. Working with any power tool can be strenuous. If you have any condition that
English
might be aggravated by strenuous work, check with your doctor before operating this machine.
Proper Clothing
WARNING
To reduce the risk of injury, the operator should wear proper protective apparel.
The suitable deflector for your power tool will not protect the operator from all foreign objects (gravel, glass, wire, etc.) thrown back by the rotating attachment. Thrown objects may also ricochet and strike the operator.
WARNING
To reduce the risk of injury to your eyes never operate your power tool unless wearing goggles or properly fitted protective glasses with adequate top and side protection complying with ANSI Z87 "+" (or your applicable national standard).
Power tool noise may damage your hearing. Wear sound barriers (ear plugs or ear mufflers) to protect your hearing. Continual and regular users should have their hearing checked regularly.
Be particularly alert and cautious when wearing hearing protection because your ability to hear warnings (shouts, alarms, etc.) is restricted.
Always wear heavy duty work gloves (e.g. made of leather or other wear resistant material) when handling the power tool. Heavy-duty, nonslip gloves improve your grip and help to protect your hands.
Clothing must be sturdy and snug-fitting, but allow complete freedom of movement. Wear long pants made of heavy material to help protect your legs. Do not wear shorts, sandals or go barefoot.
Avoid loose-fitting jackets, scarfs, neckties, jewelry, flared or cuffed pants, unconfined long hair or anything that could become caught on branches, brush or the moving parts of the unit. Secure hair so it is above shoulder level.
Good footing is very important. Wear sturdy boots with nonslip soles. Steel-toed safety boots are recommended.
For further instructions on proper clothing see the safety precautions in the instruction manual of the KombiEngine you are using.
THE POWER TOOL (KOMBIENGINE EQUIPPED WITH BRISTLE BRUSH OR POWERSWEEP)
For illustrations and definitions of the power tool parts see the chapter on "Main Parts."
WARNING
Never modify this power tool in any way. Only attachments supplied by STIHL and expressly approved by STIHL for use with the specific STIHL KombiEngine model are authorized. Although certain unauthorized attachments are useable with STIHL power tools, their use may, in fact, be extremely dangerous.
If this tool is subjected to unusually high loads for which it was not designed (e.g. heavy impact or a fall), always check that it is in good condition before continuing work. Check in particular that the controls and safety devices are working properly. Do not continue operating this machine if it is damaged. In case of doubt, have it checked by your STIHL servicing dealer.
THE USE OF THE POWER TOOL (KOMBIENGINE EQUIPPED WITH BRISTLE BRUSH OR POWERSWEEP)
Transporting the Power Tool
WARNING
To reduce the risk of injury from loss of control and working tool contact, never carry or transport your power tool with the working tool moving.
WARNING
Always switch off the engine and make sure the working tool has stopped before putting a power tool down.
WARNING
When transporting it in a vehicle, properly secure it to prevent turnover, fuel spillage and damage to the unit.
Before Starting
WARNING
Always check your power tool for proper condition and operation before starting. Never attempt to modify the controls or safety devices.
WARNING
Never use a power tool that is damaged or not properly maintained.
WARNING
Do not attach any sweeping attachment to a unit without proper installation of all required parts. Failure to use the proper parts may cause the working tool to fly off and seriously injure the operator or bystanders.

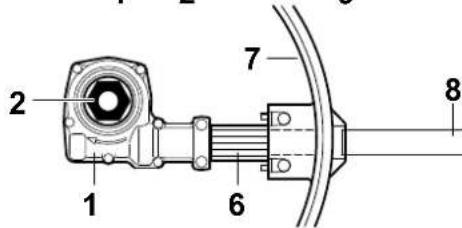

Position the gearbox so that the axle for sweeping and cleaning attachments is above the drive shaft.
WARNING
The sweeping attachment must be properly tightened and in safe operating condition. Inspect for loose parts (hitch pins, screws, etc.) and for damaged parts. Replace damaged parts before using the power tool.
Keep the handles clean and dry at all times; it is particularly important to keep them free of moisture, pitch, oil, fuel mix, grease or resin in order for you to maintain a firm grip and properly control your power tool.

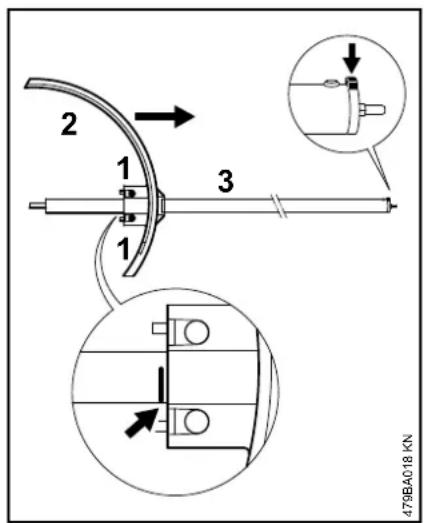

Keep the deflector adjusted properly at all times (see chapter on "Assembling the Unit" of your instruction manual).

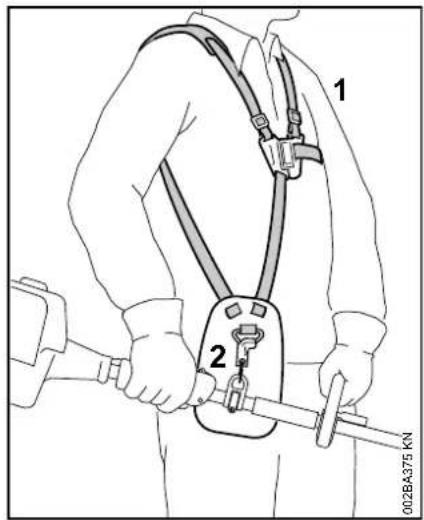

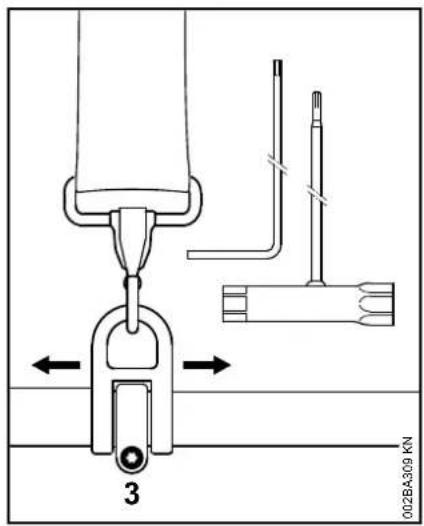

Adjust carrying harness and hand grip to suit your size before starting work. The machine should be properly balanced as specified in your instruction manual for proper control and less fatigue in operation. To be better prepared in case of an emergency, practice releasing the unit from the harness as quickly as possible.
Starting
WARNING
Start the engine at least 10 feet (3 m) from the fueling spot, outdoors only.
For specific starting instructions, see the appropriate section of your KombiEngine and KombiTool manuals.

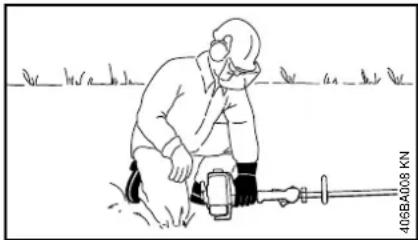

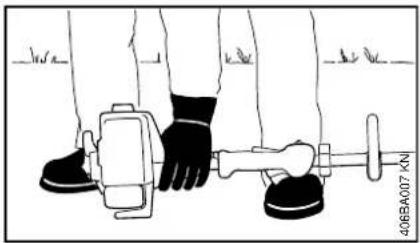

Place the power tool on firm ground or other solid surface in an open area. Maintain good balance and secure footing.
If you start the engine the working tool will rotate when the engine starts – this may set the sweeping attachment in motion back towards the operator.
WARNING
To reduce the risk of injury from loss of control, be absolutely sure that the working tool is clear of you and all other obstructions and objects, because when the engine starts at starting-throttle, engine speed will be fast enough for the clutch to engage and move the working tool.
Once the engine has started, immediately blip the throttle trigger, which should release the starting throttle and allow the engine to slow down to idle.
With the engine running only at idle, attach the power tool to the spring hook of your harness if you are using one (see appropriate chapter of this manual).
WARNING
Your power tool is a one-person machine. Do not allow other persons in the general work area, even when starting.
See also the safety precautions on Starting in the instruction manual of the KombiEngine.
English
During Operation
Holding and Controlling the Power Tool
WARNING

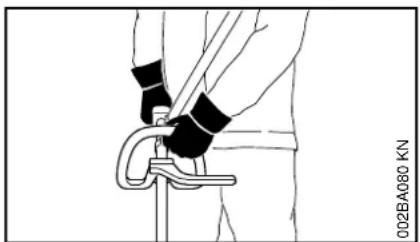

To reduce the risk of injury from loss of control, hold and guide the machine at a shallow angle. If the machine is held at too steep an angle, it tends to push back toward the operator.
WARNING
Never work on steep slopes because of the risk of injury through loss of control of the power tool.
KB-KM Bristle Brush
WARNING
Never attempt to operate your power tool with one hand. Loss of control of the power tool may result in serious or fatal injury.
WARNING
Do not overreach. Keep proper footing and balance at all times. Special care must be taken in slippery conditions (wet ground, snow) and in difficult, overgrown terrain. Watch for hidden obstacles such as tree stumps, roots and ditches to avoid stumbling. Be extremely cautious when working on slopes or uneven ground.
Operate the power tool only at a normal walking pace.
Working Conditions
Start and operate your power tool only outdoors in a well-ventilated area. Operate it under good visibility and daylight conditions only. Work carefully
WARNING
As soon as the engine is running, this product generates toxic exhaust fumes containing chemicals, such as unburned hydrocarbons (including benzene) and carbon monoxide, that are known to cause respiratory problems, cancer, birth defects, or other reproductive harm. Some of the gases (e.g. carbon monoxide) may be colorless and odorless. To reduce the risk of serious or fatal injury/illness from inhaling toxic fumes, never run the machine indoors or in poorly ventilated locations.
WARNING
Inhalation of certain dusts, especially organic dusts such as mold or pollen, can cause susceptible persons to have an allergic or asthmatic reaction. Substantial or repeated inhalation of dust and other airborne contaminants, in particular those with a smaller particle size, may cause respiratory or other illnesses. Control dust at the source where possible. Use good work practices, such as operating the unit so that the wind or operating process
directs any dust raised by the power tool away from the operator. Follow the recommendations of EPA / OSHA / NIOSH and occupational and trade associations with respect to dust ("particulate matter"). When the inhalation of dust cannot be substantially controlled, i.e., kept at or near the ambient (background) level, the operator and any bystanders should wear a respirator approved by NIOSH / MSHA for the type of dust encountered.
WARNING
Never divert discharge of material toward bystanders nor allow anyone near the area of operation. Use care in directing discharge to avoid damage to surfaces, automobiles, and the like.
WARNING
Before you start work, examine the area for stones, glass, pieces of metal, rubbish or other solid objects. Such objects could be hurled aside by the sweeping tool and directly or indirectly strike the operator or bystanders. Such objects may also damage the sweeping tool.
WARNING
Static charges may build up when cleaning synthetic floors – risk of electric shock and accidents.
WARNING
To reduce the risk of a dust explosion, spray very dusty surfaces with water before sweeping. Always operate the power tool in such a way that the sweeping attachment cannot become jammed or blocked.
WARNING
To reduce the risk of injury, keep hands and feet away from the sweeping attachment.
WARNING
Use the sweeping attachments at ground level only. The risk of injury is increased if you use sweeping attachments above ground level because they are more exposed and the power tool is more difficult to control.
Operating Instructions
WARNING
Do not operate your power tool using the starting throttle lock, as you do not have control of the engine speed.
In the event of an emergency, switch off the engine immediately – move the slide control / stop switch / momentary stop switch to 0 or STOP.
See also the safety precautions in the instruction manual of your KombiEngine on the proper use of the slide control / stop switch / momentary stop switch.
WARNING
Never touch a rotating sweeping attachment with your hand or any part of your body. The sweeping attachment continues to rotate for a short period after the throttle trigger is released (flywheel effect).
If the sweeping attachment or deflector becomes clogged or stuck, always switch off the engine and make sure the sweeping attachment has stopped before cleaning. Dirt, grass, weeds, etc. should be cleaned off the sweeping attachment as necessary.
The rotating sweeping attachment may fling foreign objects directly or by ricochet a great distance. To reduce the risk of eye and other injury always wear proper eye protection (see the chapter on "Proper Clothing") and ensure that bystanders are at least 16 feet (5 m) away. To reduce the risk of damage to property, also maintain this distance from such objects as vehicles or windows. Any coworkers who must be in the restricted area should also wear goggles or protective glasses.
Stop the engine immediately if you are approached.
WARNING
During work, check the tightness and the condition of the sweeping attachment at regular intervals with the engine and
English
attachment stopped. If the behavior of the sweeping attachment changes during use, stop the engine immediately and check the attachment for cracks, wear and damage. Replace cracked or damaged sweeping attachments immediately.
WARNING
Do not mount any sweeping attachment to a machine without proper installation of all required parts. Never use unauthorized parts to secure the sweeping attachments. Failure to use the proper parts may cause the attachments to fly off and seriously injure the operator or bystanders.
MAINTENANCE, REPAIR AND STORING
WARNING
Always stop the engine and make sure that the attachment is stopped before doing any maintenance or repair work or cleaning the power tool. Do not attempt any maintenance or repair work not described in your KombiEngine and KombiTool instruction manuals. Have such work performed at your STIHL servicing dealer only.
WARNING
Use only identical STIHL replacement parts for maintenance and repair. Use of non-STIHL parts may cause serious or fatal injury.
WARNING
Check the condition of the attachment at regular short intervals. Loose parts might fly off and injure the operator or bystanders. To reduce the risk of injury, always replace sweeping attachments immediately and in pairs. Do not attempt to repair or continue using damaged or worn sweeping attachments.
Tighten all nuts, bolts and screws, except the carburetor adjustment screws, after each use.
Do not clean your machine with a pressure washer. The solid jet of water may damage parts of the machine.
Store the power tool in a dry and high or locked location out of reach of children.
Using the Unit
Sweeping Attachments
KombiTools for sweeping and cleaning operations are available in two versions: KB-KM bristle brush and KW-KM PowerSweep.
Preparations
If the surface to be cleaned is dry, spray it with water to reduce the amount of dust created.
●To reduce the risk of accidents or injury, remove all obstacles and objects from the work area.
- Start the engine.

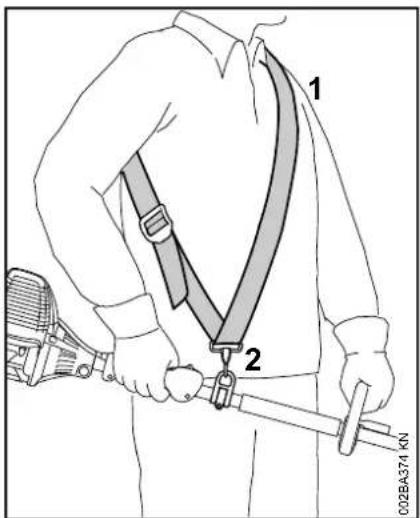

●Put on the shoulder strap.
The KombiEngine with sweeping attachment is operated in the forward direction only.
Working Technique
Bristle Brush
To reduce the risk of injury, never work without the properly mounted deflector and two extensions.
These devices divert material away from the machine and the operator.

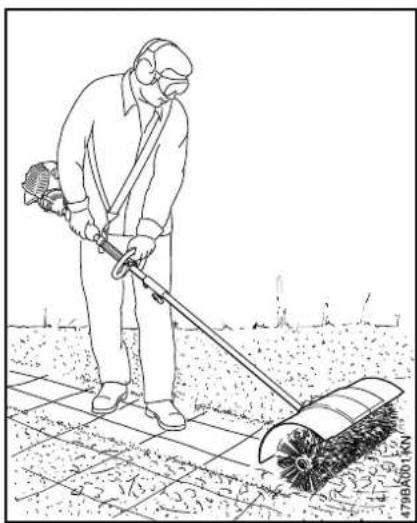

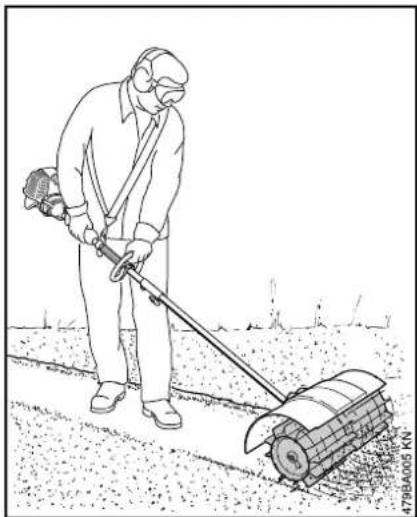

●Push the bristle brush steadily at walking pace.
WARNING

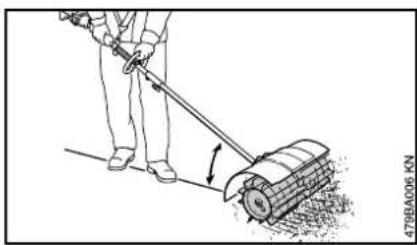

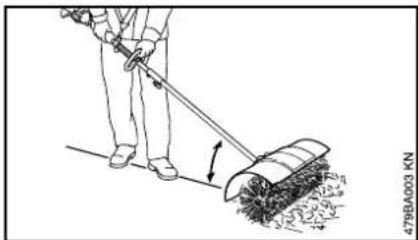

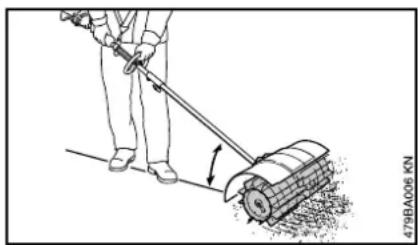

The steeper the angle shown above, the more difficult it is to control the tool.

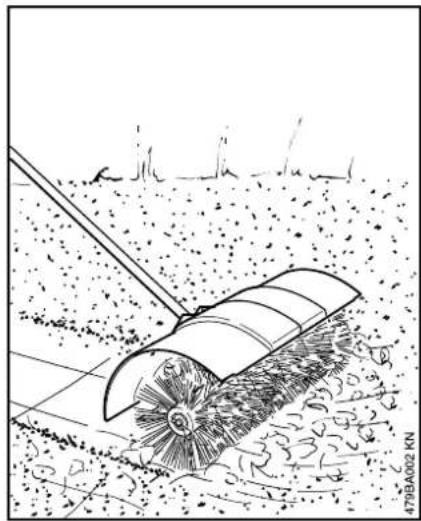

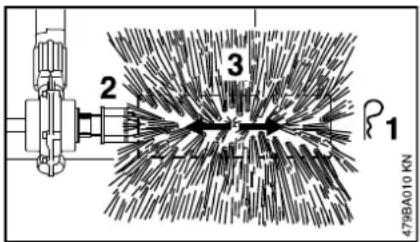

●Guide the bristle brush at right angles to the direction of travel (1). Sweepings are thrown forwards, ahead of the operator.
WARNING
The bristle brush pushes back towards the operator.
English
PowerSweep
●Push the PowerSweep steadily at walking pace.
WARNING
The steeper the angle shown above, the more difficult it is to control the tool.

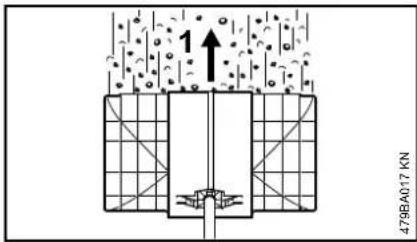

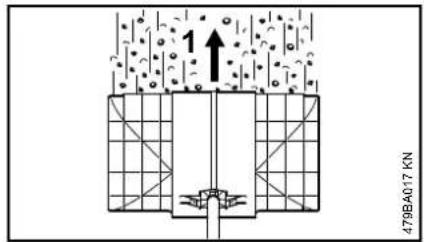

●Guide the PowerSweep at right angles to the direction of travel (1). Sweepings are thrown forwards, ahead of the operator.
WARNING
The PowerSweep pushes back towards the operator.
Cleaning the Sweeping Attachment
Clean away any dirt and debris that has accumulated between the sweeping attachments, around the gearbox or between the sweeping attachments and the deflector:
- Shut off the engine.
– Pull the hitch pins out of the axle. - Remove the sweeping attachments from the axle and clean them.
- Clean away dirt and debris from the machine.
Refit the sweeping attachments – see "Replacing the Sweeping Attachments".
Approved KombiEngines
KombiEngines
Only use KombiEngines supplied or explicitly approved by STIHL for use with the attachment.
This KombiTool may be operated only in combination with the following KombiEngines:
Loop-handled machines must be equipped with a barrier bar.
Assembling the Unit
- Pull the protective caps off the ends of the drive tube and keep them in a safe place for later use – see "Storing the Machine".
The plug may come out of the drive tube when you pull off the cap. Push it back into the drive tube as far as stop.
Mounting the deflector
- Apply a mark at distance A (5 in,/ 125 mm) from the end of the drive tube.
●Loosen the clamp screws (1) and push the deflector (2) onto the drive tube (3) and beyond the mark
(arrow). Then pull the deflector back until it is flush with or just covers the mark (arrow).
●Line up the deflector so that it is vertical and the fixing lug (arrow) on the drive tube points up (upper magnified arrow).
●Tighten down the clamp screws (1) firmly.
WARNING
Check that the deflector is secure – it must not be possible to rotate it on the drive tube.
Mounting the Gearbox
- Remove both sweeping attachments – see "Replacing the Sweeping Attachmenrs".
●Push the sleeve (4) onto the drive tube (3) as far as stop.
English
●Loosen the clamp screws (5).
●Push the gearbox (6) onto the drive tube (3), turn the gearbox back and forth as necessary.
Aligning the Gearbox

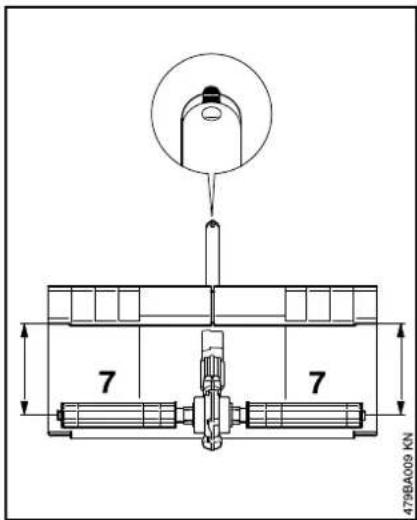

●Line up the gearbox on the drive tube so that the distance between the horizontal axles (7) and the deflector is the same at both sides.
●Tighten down the clamp screws firmly.
WARNING
It must not be possible to rotate the gearbox on the drive tube.
●Mount the two sweeping attachments – see "Replacing the Sweeping Attachmenrs".
Mounting the KombiTool

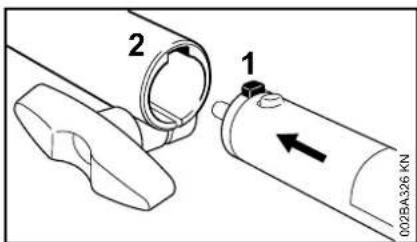

●Push the lug (1) on the drive tube into the slot (2) in the coupling sleeve as far as stop.
When correctly installed, the red line (3) (arrow point) must be flush with the end of the coupling sleeve.
●Tighten down the star knob (4) firmly.
Removing the KombiTool
●Reverse the above sequence to remove the drive tube.
Fitting the Harness
The type and style of the harness and carabiner (spring hook) depend on the market.
Shoulder Strap
●Put on the shoulder strap (1).
- Adjust the length of the strap so that the carabiner (2) is about a hand's width below your right hip.
●Balance the machine – see "Balancing the Machine".
Full Harness
●Put on the full harness (1).
- Adjust the length of the strap so that the carabiner (2) is about a hand's width below your right hip.
●Balance the machine – see "Balancing the Machine".
Attaching Machine to Harness

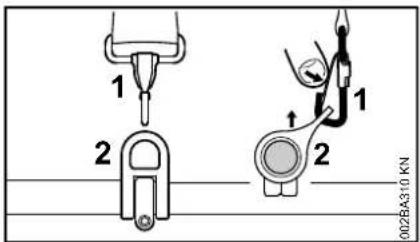

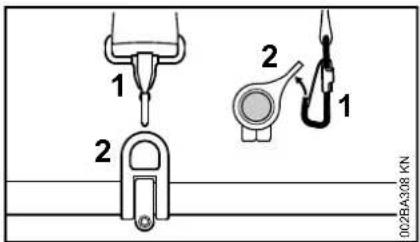

- Attach the carabiner (1) to the carrying ring (2) on the drive tube – hold the carrying ring steady.
Disconnecting Machine from Harness
●Press down the bar on the carabiner (1) and pull the carrying ring (2) out of the carabiner.
Throwing Off the Machine
WARNING
The machine must be quickly thrown off in the event of imminent danger. Practice removing and putting down the machine as you would in an emergency. To avoid damage, do not throw the machine to the ground when practicing.
English
Practice quickly detaching the power tool from the carabiner as described under "Disconnecting Machine from Harness".
If you are using a shoulder strap: Practice slipping the strap off your shoulder.
If you are using a full harness: Practice quickly opening the locking plate and slipping the harness straps off your shoulders.

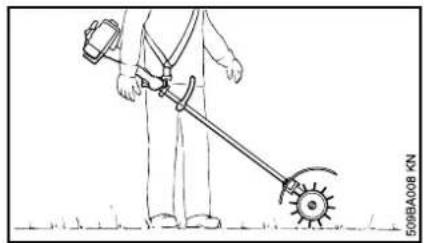

Balancing the Machine
Balancing the Machine
●Loosen the screw (3).
●Tighten down the screw on the carrying ring firmly.
Starting / Stopping the Engine
Starting the Engine
Always follow the operating instructions for the KombiEngine and basic power tool.
The sweeping attachments may touch the ground, but no other obstacles – risk of accidents.

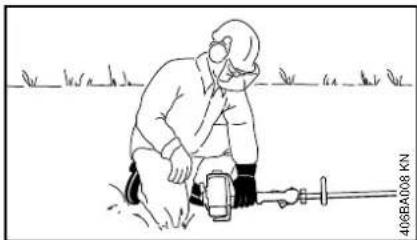

●Make sure you have a firm footing, either standing, stooping or kneeling.
- Hold the machine with you left hand and press it down firmly – do not touch the controls on the control handle – see KombiEngine or basic power tool instruction manual.
NOTICE
Do not stand or kneel on the drive tube.
WARNING
The sweeping attachments may begin to rotate and cause the machine to move as soon as the engine starts. For this reason, blip the throttle after starting – the engine returns to idling speed.
The starting procedure is now as described in the instruction manual of the KombiEngine or basic power tool you are using.
Stopping the Engine
- See instruction manual of the KombiEngine or basic power tool.
Storing the Machine Replacing the Sweeping Attachments
For periods of 3 months or longer
- Remove and clean the sweeping attachments, inspect them for damage and wear.
- If the KombiTool is removed from the KombiEngine and stored separately: Fit the protective cap on the drive tube to avoid dirt getting into the coupling.
- Store the machine in a dry, high or locked location – out of the reach of children and other unauthorized persons.
Bristle Brush
Removing

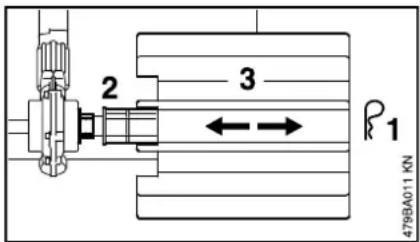

- Remove the hitch pin (1) from the end of the axle (2).
●Pull the bristle brush (3) off the axle.
●Push the bristle brush (3) onto the axle.
●Insert the hitch pin (1) in the hole at the end of the axle and fold it flat.
●Use the same procedure to mout the other bristle brush.
Installing
WARNING
Always mount both bristle brushes.
English
PowerSweep
Removing
- Remove the hitch pin (1) from the end of the axle (2).
●Pull the sweeper drum (3) off the axle.
Installing
●Push the sweeper drum (3) onto the axle.
●Insert the hitch pin (1) in the hole at the end of the axle and fold it flat.
●Use the same procedure to mout the other sweeper drum.
WARNING
Always mount both sweeper drums.
Maintenance and Care
The following intervals apply to normal operating conditions only. If your daily working time is longer or operating conditions are difficult (very dusty work area, etc.), shorten the specified intervals accordingly.
All accessible screws and nuts
●Retighten if necessary
Sweeping attachments and deflectors
●Visual inspection, check tightness before starting work and after every refueling stop
-Replace if damaged
●Replace illegible safety labels
Safety labels
Main Parts
479BA022 KN

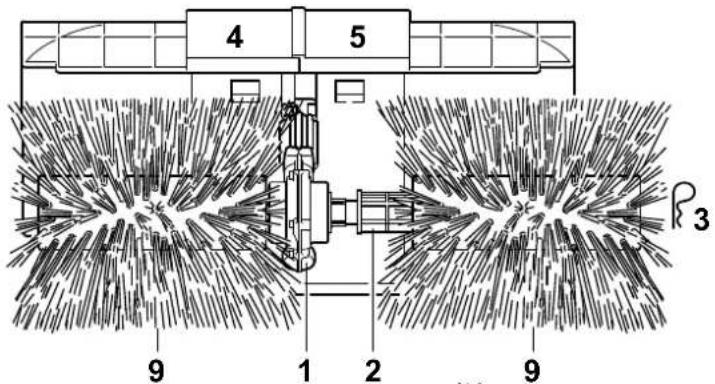

Bristle Brush, PowerSweep™
1 Gearbox
2 Axle
3 Hitch Pin
4 Deflector Extension, Right
5 Deflector Extension, Left
6 Sleeve (Shaft Protector)
7 Deflector
8 Drive Tube
Bristle Brush
9 Roller Brush

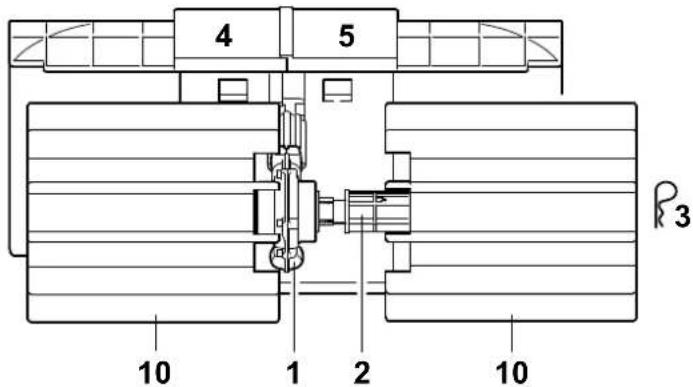

PowerSweep™
10 Sweeper Drum
Definitions
1 Gear box
Reduces input speed to required axle speed.
2 A x l e
Connects the sweeping attachment to the output shaft.
3 H i t c h P i n
Secures the attachments and simplifies removal and installation of the attachments.
English
4 Deflector Extension, Right Helps divert removed material and debris away from the machine and operator.
5 Deflector Extension, Left Helps divert removed material and debris away from the machine and operator.
6 Sleeve (Shaft Protector) Designed to protect drive tube from wear caused by rubber paddles of sweeper drum, maintains minimum clearance between gearbox and deflector.
7 Deflector Deflector with extensions fitted.
8 Drive Tube Encloses and protects the drive shaft between the coupling sleeve and gearbox.
9 Roller Brush Tool for sweeping and cleaning.
10 Sweeper Drum Tool for sweeping and cleaning.
Specifications
Sweeping Attachments
KB-KM
Two roller brushes Diameter: 250 mm (9.84 in.) Working width: 600 mm (23.62 in.)
KW-KM
Two sweeping drums Diameter: 270 mm (10.63 in.) Working width: 600 mm (23.62 in.)
Weight
Attachment complete with deflector and drive tube KB-KM: 6.4 kg (14.1 lbs.) KW-KM: 7.4 kg (16.3 lbs.)
Maintenance and Repairs
Users of this unit should carry out only the maintenance operations described in this manual. STIHL recommends that other repair work be performed only by authorized STIHL servicing dealers using genuine STIHL replacement parts.
Genuine STIHL parts can be identified by the STIHL part number, the STIHL ^ logo and, in some cases, by the STIHL parts symbol G_ . The symbol may appear alone on small parts.
For repairs of any component of this unit's air emissions control system, please refer to the air emissions systems warranty in this manual.
Disposal
Observe all country-specific waste disposal rules and regulations.
STIHL products must not be thrown in the garbage can. Take the product, accessories and packaging to an approved disposal site for environment-friendly recycling.
Contact your STIHL servicing dealer for the latest information on waste disposal.
Trademarks
STIHL Registered Trademarks
STIHL®
STIHL®
G
The color combination orange-grey (U.S. Registrations #2,821,860; #3,010,057, #3,010,058, #3,400,477; and #3,400,476)
MASTERWRENCH STIHL
SERVICE
AutoCut®
FARM BOSS®
iCademy®
MAGNUM®
MasterWrench Service®
MotoMix®
OIOMATIC®
ROCK BOSS®
STIHL Cutquik®
STIHL DUROMATIC®
STIHL Quickstop®
STIHL ROLLOMATIC®
STIHL WOOD BOSS®
TIMBERSPORTS®
WOOD BOSS®
YARD BOSS®
Some of STIHL's Common Law Trademarks
4-MIX ^TM
BioPlus ™
Easy2Start ™
EasySpool ^TM
ElastoStart ™
Ematic ^TM
FixCut ^TM
IntelliCarb ™
Master Control Lever ^TM
Micro ^TM
Pro Mark ^TM
Quiet Line ^TM
STIHL M-Tronic ^TM
English
STIHL OUTFITTERS ^TM
STIHL PICCO ^TM
STIHL PolyCut ^TM
STIHL PowerSweep ™
STIHL Precision Series ^TM
STIHL RAPID ^TM
STIHL SuperCut ^TM
TapAction ^TM
TrimCut ^TM
This listing of trademarks is subject to change.
Any unauthorized use of these
trademarks without the express written consent of
Waiblingen is strictly prohibited.
Contenido
Sistema KombiSystem 22
Illustration of a person sweeping a surface with a broom, showing brush and angle (no text or symbols)Barredora KW-KM PowerSweep
Illustration of a manual sweep cutter cutting through a pile of debris (no text or symbols)ADVERTENCIA
Line drawing of a person using a pushaxe to clean or manage equipment on a paved surface (no text or symbols)natural_image
Illustration of a person using a manual pushrower to lift a moving cart (no text or symbols visible)natural_image
Mechanical assembly diagram showing a shaft and housing with an arrow indicating motion (no text or symbols)INDICACIÓN
Illustration of a person using a tool on a mechanical device (no text or symbols visible)
MotoMix®
OIOMATIC®
ROCK BOSS®
STIHL Cutquik®
STIHL DUROMATIC®
STIHL Quickstop®
STIHL ROLLOMATIC®
STIHL WOOD BOSS®
TIMBERSPORTS®
WOOD BOSS®
YARD BOSS®
This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
0458-479-8621-A
0458-479-8621-A
- WARNING
- ADVERTENCIA
- KombiSystem Guide to Using this Manual
- Pictograms
- Symbols in Text
- DANGER
- NOTICE
- Engineering Improvements
- Safety Precautions and Working Techniques
- THE OPERATOR
- Physical Condition
- English
- Proper Clothing
- THE POWER TOOL (KOMBIENGINE EQUIPPED WITH BRISTLE BRUSH OR POWERSWEEP)
- THE USE OF THE POWER TOOL (KOMBIENGINE EQUIPPED WITH BRISTLE BRUSH OR POWERSWEEP)
- Working Conditions
- Operating Instructions
- MAINTENANCE, REPAIR AND STORING
- Using the Unit
- Sweeping Attachments
- Preparations
- Working Technique
- Cleaning the Sweeping Attachment
- Approved KombiEngines
- KombiEngines
- Mounting the Gearbox
- Removing the KombiTool
- Fitting the Harness
- Throwing Off the Machine
- Balancing the Machine
- Starting / Stopping the Engine
- Starting the Engine
- Stopping the Engine
- Storing the Machine Replacing the Sweeping Attachments
- Removing
- Installing
- Maintenance and Care
- All accessible screws and nuts
- Safety labels
- Main Parts
- Bristle Brush, PowerSweep™
- Bristle Brush
- PowerSweep™
- Definitions
- Specifications
- KB-KM
- KW-KM
- Weight
- Maintenance and Repairs
- Disposal
- Trademarks
- STIHL Registered Trademarks
- STIHL®
- Contenido
- INDICACIÓN
Brand : STIHL
Model : KB-KM
Category : Uncategorized
