USER MANUAL AT-HDVS-150-TX-PSK Atlona

HDBaseT™ Scaler with HDMI and Analog Audio Outputs

Version Information

Version Release Date Notes
2 04/17 New format
3 02/18 Added firmware update procedure

Welcome to Atlona!

Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase.

Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware. Atlona product registration is voluntary and failure to register will not affect the product warranty.

To register your product, go to http://www.atlona.com/registration

Sales, Marketing, and Customer Support

Main Office

Atlona Incorporated

70 Daggett Drive

San Jose, CA 95134

United States

Office: +1.877.536.3976 (US Toll-free)

Office: +1.408.962.0515 (US/International)

Sales and Customer Service Hours

Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)

http://www.atlona.com/

International Headquarters

Atlona International AG

Ringstrasse 15a

8600 Dübendorf

Switzerland

Office: [phone]

Sales and Customer Service Hours

Monday - Friday: 09:00 - 17:00 (UTC +1)

Operating Notes

IMPORTANT: Visit http://www.atlona.com/product/AT-HDVS-150-RX for the latest firmware updates and User Manual.

Atlona, Inc. ("Atlona") Limited Product Warranty

Coverage

Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.

Under its Limited Product Warranty, Atlona, at its sole discretion, will either:

- repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping.

OR

- replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products.

OR

- refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.

Repair, replacement or refund of Atlona products is the purchaser's exclusive remedy and Atlona liability does not extend to any other damages, incidental, consequential or otherwise.

This Limited Product Warranty extends to the original end-user purchaser of Atlona products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.

Coverage Periods

Atlona Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.

Limited Product Warranty Terms – New Products

• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013.
• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013.
• Lifetime Limited Product Warranty for all cable products.

Limited Product Warranty Terms - Refurbished (B-Stock) Products and Discontinued Products

- 3 years from proof of purchase date for all Refurbished (B-Stock) and Discontinued hardware and electronic products purchased on or after June 1, 2013.

Remedy

Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.

Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at atlona.com.

Exclusions

This Limited Product Warranty excludes:

- Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packaging or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.

Atlona, Inc. ("Atlona") Limited Product Warranty

• Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
• Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).
• Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.

Disclaimers

This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.

Limitation on Liability

The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable law.

Other Conditions

Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at www.atlona.com.

Important Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCT THE RISK OF

ELECTRIC SHOCK

DO NOT OPEN ENCLOSURE OR EXPOSE

TO RAIN OR MOISTURE.

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.

The information bubble is intended to alert the user to helpful or optional operational instructions in the literature accompanying the product.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
11. Only use attachments/accessories specified by Atlona.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
13. Unplug this product during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Statement

FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference

to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Table of Contents

Introduction 8

Features 8

Package Contents 8

Panel Description 9

Installation 10

RS-232 Connector 10

Audio Connector 10

Power Connector 11

Connection Instructions 12

Connection Diagram 12

Configuration and Management Interfaces 13

Accessing the On-Screen Display 13

Input Select 14

Input Resolution 14

Output Resolution 15

VGA Adjust 15

Picture Adjust 16

Aspect 17

Overscan 17

Audio 18

OSD 19

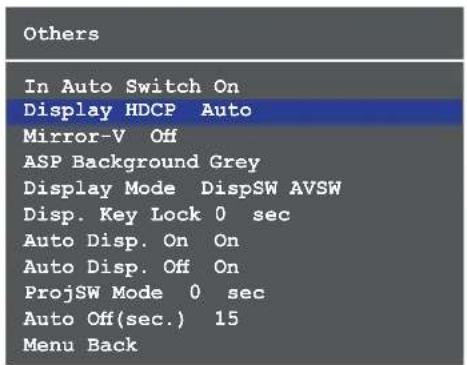

Others 20

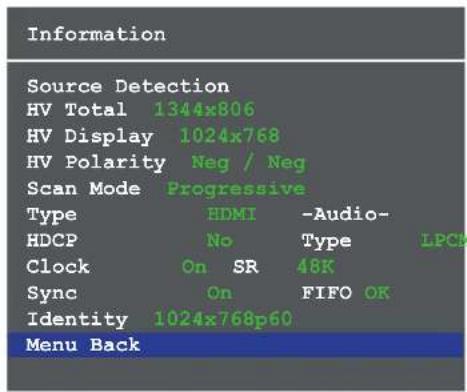

Information 22

System Reset 23

Control Software 24

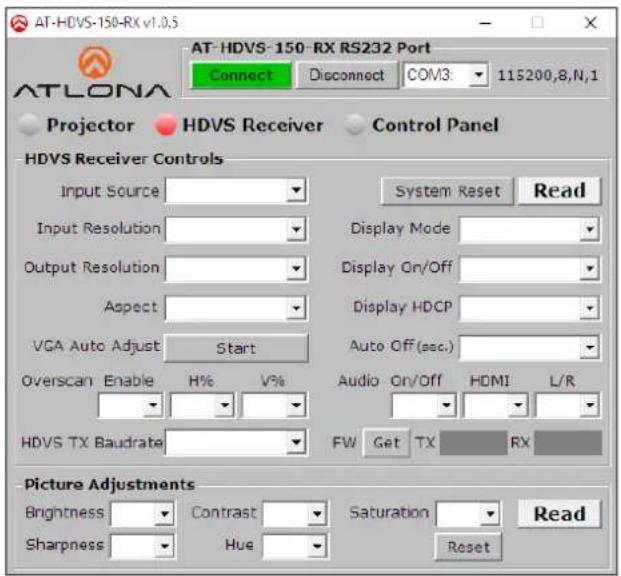

HDVS Receiver Controls 24

Picture Controls 27

Projector Command Settings 28

Projector Controls 29

Solution Setup and Configuration Guide 30

Input Auto Switching 30

Display Control 32

Installing the Software 32

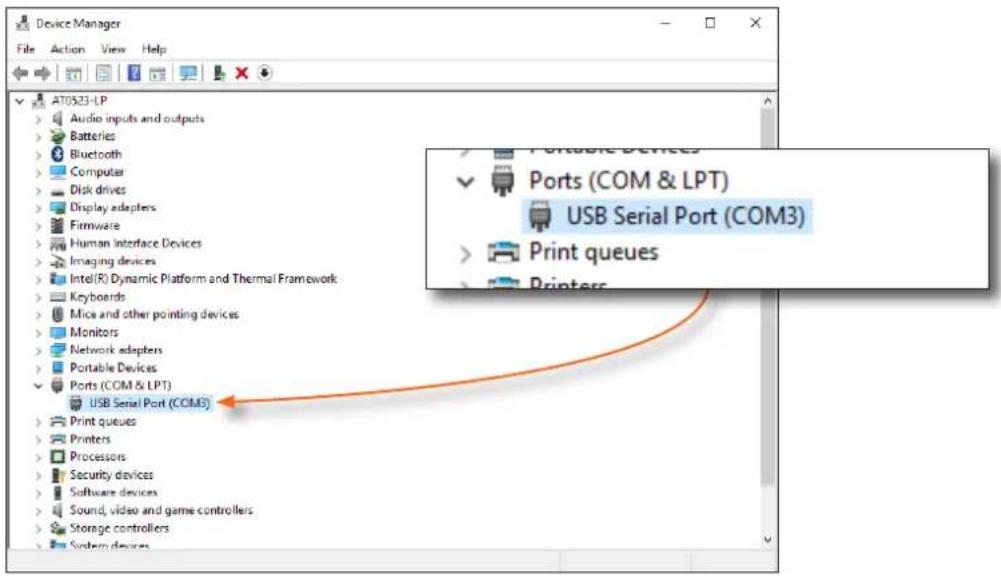

Connecting RS-232 32

Programming the AT-HDVS-150-RX 34

Controlling Display Power 34

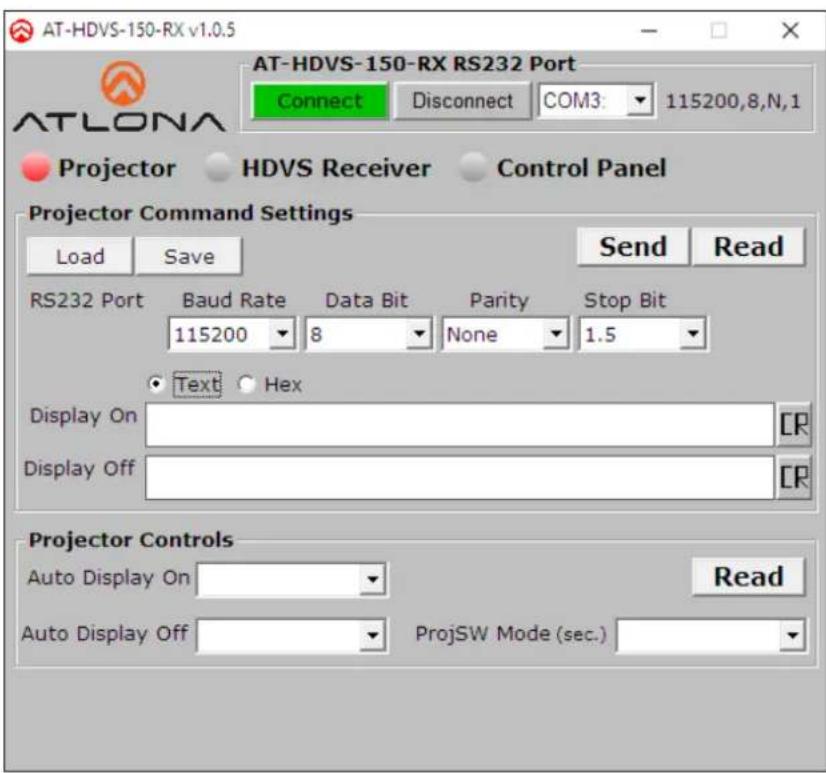

Projector Control 35

Connecting the AT-HDVS-150-RX to the Display 36

Appendix 37

Default Settings 37

Updating the Firmware 38

Specifications 40

Index 42

Introduction

The Atlona AT-HDVS-150-RX is an HDBaseT™ scaler receiver for HDMI transmission over category cable. It receives AV signals up to 1080p/60Hz or 1920×1200 video with embedded audio and control signals at distances up to 230 feet (70 meters). Features include balanced analog audio de-embedding, RS-232 control, and Power over Ethernet for compatible transmitting devices. The receiver offers advanced scaling capabilities including image adjustment capability and an Auto-set feature for matching incoming signals to the display's native resolution. Designed for use with the AT-HDVS-150-TX transmitter, the transmitter/receiver pair enables auto display on/off, auto-switching, third-party control, and other features. The built-in HD video scaler works with matrix switchers to optimize source signals with different resolutions to a display's native resolution. The AT-HDVS-RX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.

The HDVS-150 maintains all capabilities the HDVS series is known for and adds industry-standard Power over Ethernet for full HDBaseT certification. The HDVS-150 Series is a simple audio visual system with auto-switching for HDMI and VGA inputs, projector on/off control, analog audio de-embedding, volume control, and a scaler. Much more than an extender system, it provides a complete system for small spaces like huddle rooms and teaching spaces with 2 or 3 sources.

Features

• Receives HDMI and VGA/Audio signals up to 230 ft (70m) @ 1080p over CAT6a/7 and 197 feet (60 m) @ 1080p over CAT5e/6
• Scales output video signals up to 1080p/60Hz and 1920x1200
  • Uses Power-over-Ethernet (PoE) to transmitter, saving time and integration cost
• Two-channel audio de-embedding
  • RS-232 scaler / display control
  • Field-updateable firmware

Package Contents

1 x AT-HDVS-150-RX
1 x Phoenix terminal block, 2-pin
1 x Phoenix terminal block, 3-pin
1 x Phoenix terminal block, 5-pin
1 x 48V DC power supply
1 x Installation Guide

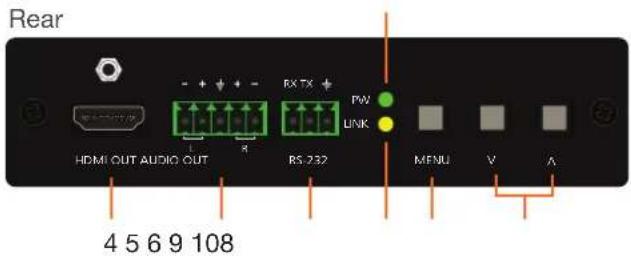

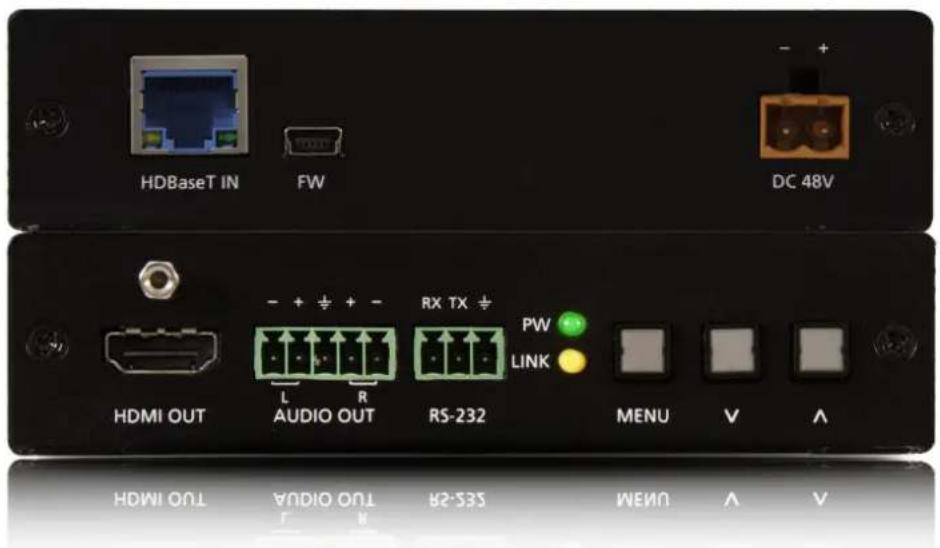

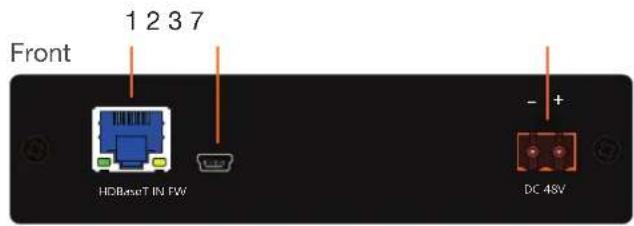

Panel Description

1 HDBaseT IN

Use an Ethernet cable to connect an HDBaseT PoE transmitter to this port.

2 FW

Connect a mini USB type-B cable to this port to update the firmware. Refer to Updating the Firmware (page 38) for more information.

3 DC 48V

Connect the included 48V DC power supply to this power receptacle.

4 HDMI OUT

Connect an HDMI cable from this port to a display or other sink device.

5 AUDIO OUT

Connect the included 5-pin Phoenix block from this connector to an audio amplifier.

6 RS-232

Connect the included 3-pin Phoenix block from this connector to an RS-232 device.

7 PW

This LED indicator will glow bright green when the scaler is powered.

8 LINK

This LED indicator will glow bright amber when a link is established between the transmitter and receiver.

9 MENU

Press this button to display the built-in On-Screen Display (OSD).

10 Cursor buttons

Press these buttons to select items within the OSD.

Installation

RS-232 Connector

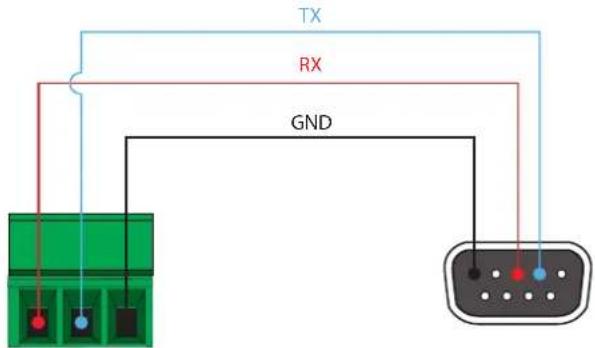

The AT-HDVS-150-RX provides RS-232 control between an automation system and an RS-232 device. This step is optional and is used when connecting a computer that is running the control software. Refer to Display Control (page 32) for more information.

1. Use wire strippers to remove a portion of the cable jacket.

2. Remove at least 3/16" (5 mm) from the insulation of the RX, TX, and GND wires.

3. Insert the TX, RX, and GND wires into correct terminal on the included Phoenix block. If using non-tinned stranded wire, presss the orange tab, above the terminal, while inserting the exposed wire. Repeat this step for the TX, RX, and GND connections.

Green 3D model of a mechanical connector or terminal block (no text or symbols visible)

Audio Connector

The AUDIO OUT connector on the AT-HDVS-150-RX provides the connection of either balanced or unbalanced audio outputs using XLR connectors. Use the included 5-pin Phoenix terminal block.

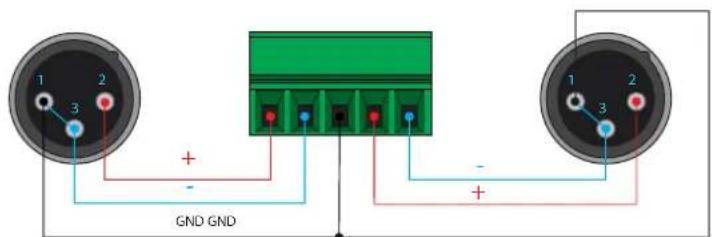

Balanced audio connections use two signal wires and a ground to minimize interference in audio signals. Unbalanced audio connections use one signal wire and a ground and are used if system components don't support balanced signals.

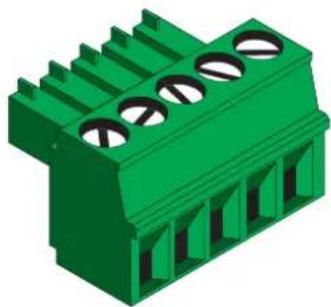

Green 3D model of a mechanical connector or terminal block with multiple slots and mounting holes (no text or symbols visible)

Balanced

Unbalanced

Installation

Power Connector

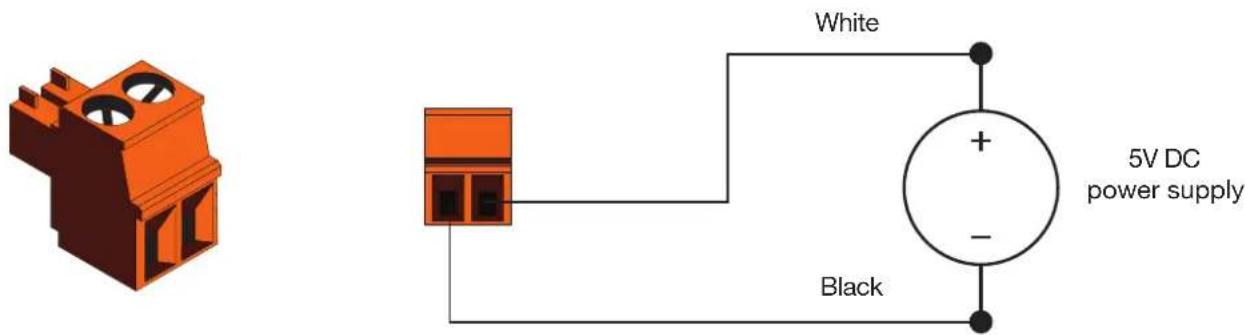

Locate the included orange Phoenix terminal block and wire the included power supply to the block, as shown below. Do not use high-torque devices, when securing the wires to the Phoenix terminal block, as this may damage the screws and/or block.

1. Insert the wires into the correct terminal on the included Phoenix block, as shown below.
2. Tighten the screws to secure the wires. Do not use high-torque devices as this may damage the screws and/or connector block.

Connection Instructions

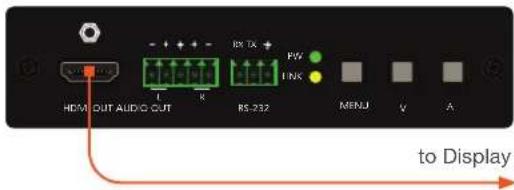

1. Use an HDMI cable to connect an HDMI display to the HDMI OUT port on the unit.
2. Connect an Ethernet cable, up to 230 feet (70 meters), from the HDBaseT IN port on the unit to a PoE-compatible transmitter (not included). Ethernet cables should use EIA/TIA-568B termination.
3. Connect the included power supply to the DC 48V port.

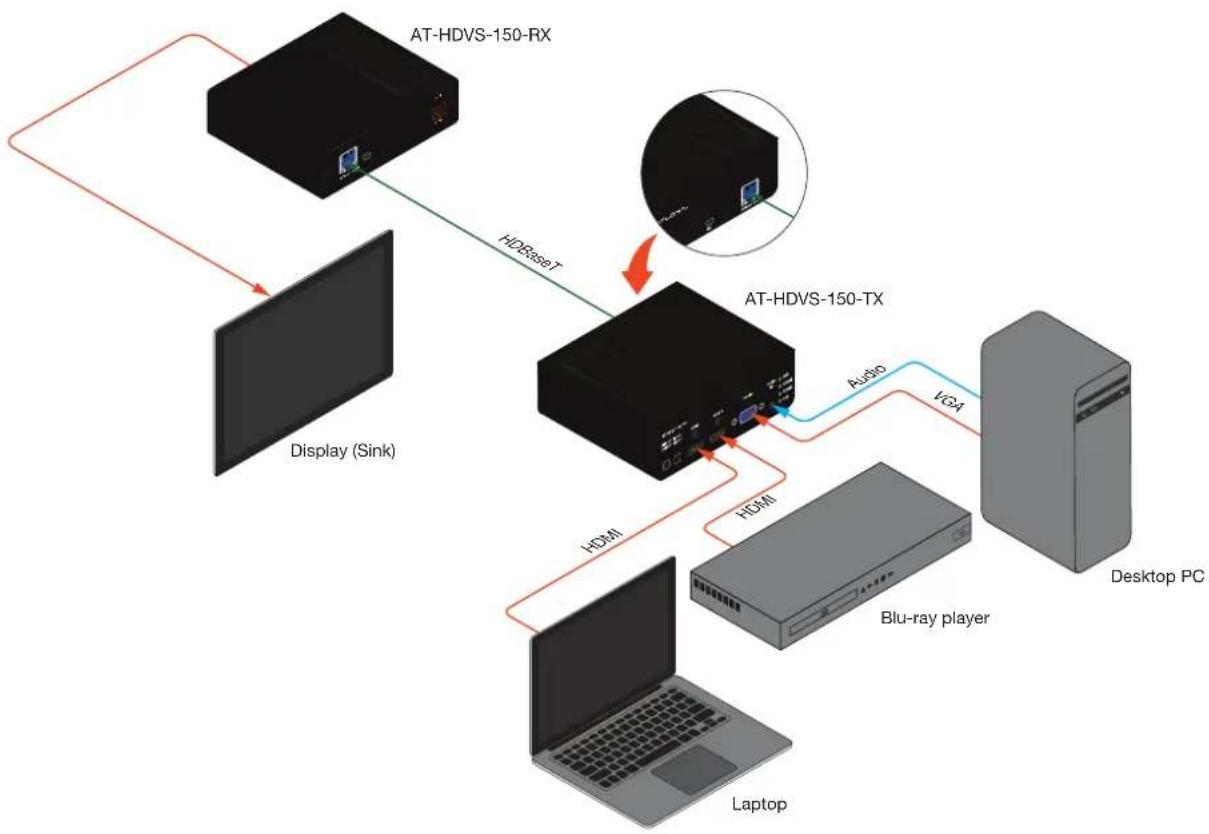

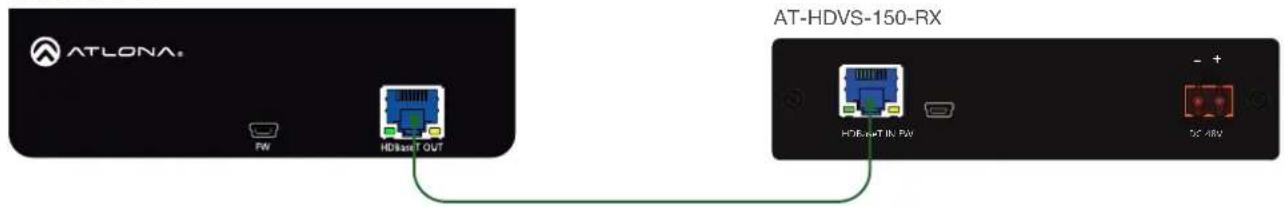

Connection Diagram

NOTE: The AT-HDVS-150-RX is designed to be used with the AT-HDVS-150-TX.

Configuration and Management Interfaces

Accessing the On-Screen Display

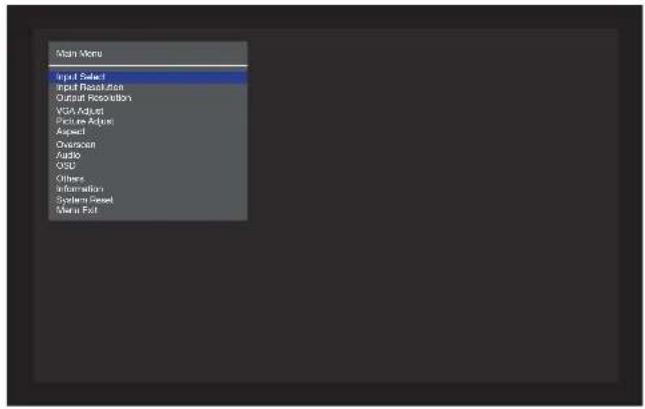

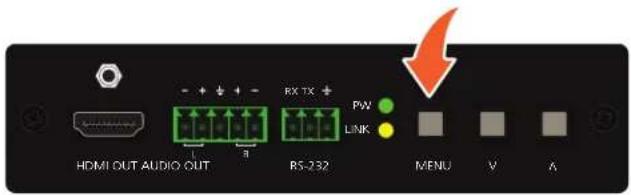

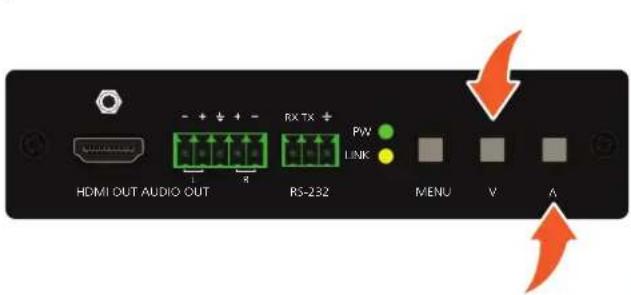

The AT-HDVS-150-RX includes a built-in On-Screen Display (OSD) menu system to manage and control all video features.

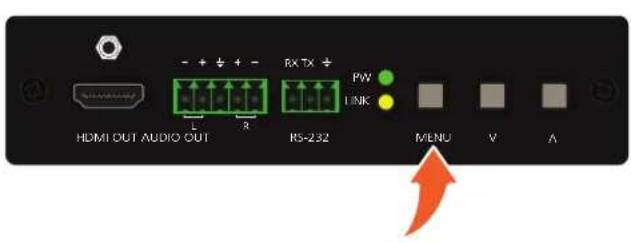

1. Press and release the MENU button to display the OSD.

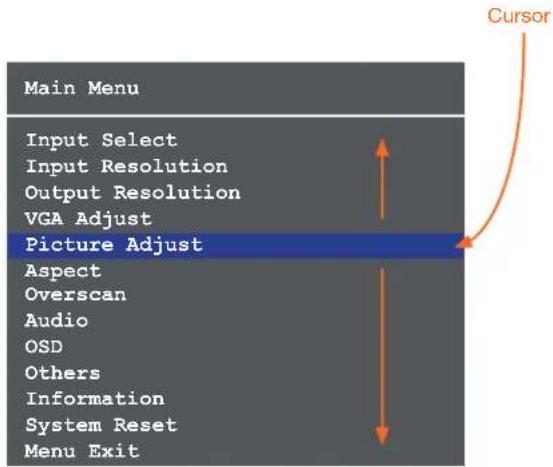

1. Press the UP/DN buttons to highlight the various menu options. The currently selected menu item will be highlighted with a blue cursor bar. Press the UP button to move the cursor up through the menu system and press the DN button to move down.

1. Once the desired menu item is highlighted, press the MENU button to access its settings.

Within the menu item, the current setting will always be highlighted in green.

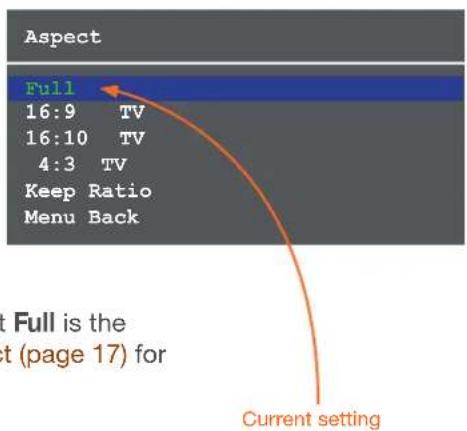

In this illustration, the Aspect menu item indicates that Full is the currently selected aspect ratio setting. Refer to Aspect (page 17) for more information.

Configuration and Management Interfaces

Input Select

Selects the desired input.

1. Under the Main Menu, highlight the Input Select menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The Input Select menu will be displayed.
4. Press the UP/DN buttons to highlight the desired input.

1. Press the MENU button to confirm the selection.
2. Press the Menu Back option to return to the Main Menu.

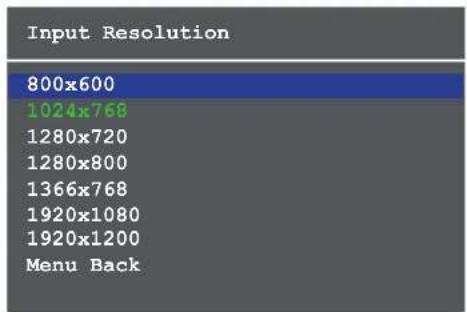

Input Resolution

Selects the desired input resolution.

1. Under the Main Menu, highlight the Input Select menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The Input Resolution menu will be displayed.
4. Press the UP/DN buttons to highlight the desired input.
5. Press the MENU button to confirm the selection and display the list of available input resolutions.

1. Press the UP/DN buttons to select the desired resolution.
2. Press the MENU button to confirm the selection.
3. Press the Menu Back option to return to the Main Menu.

Configuration and Management Interfaces

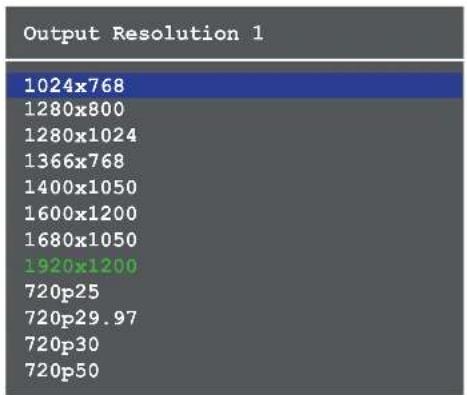

Output Resolution

Selects the desired output resolution. The default output resolution is 720p (1280x720). The Output Resolution menu consists of three pages.

1. Under the Main Menu, highlight the Output Resolution menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The Output Resolution menu will be displayed.
4. Press the UP/DN buttons to highlight the desired resolution.

1. Press the MENU button to confirm the selection.

2. Scroll down and select the Menu Back option, under Output Resolution 3, then press the MENU button to return to the Main Menu.

VGA Adjust

Provides adjustment of the VGA signal. This menu option is only available if using the VGA input on the transmitter.

1. Under the Main Menu, highlight the VGA Adjust menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The VGA Adjust menu will be displayed.
4. Press the UP/DN buttons to highlight the desired option.

1. Press the MENU button to confirm the selection.

Configuration and Management Interfaces

Setting Description
Auto Adjust Automatically tunes the phase and clock of the VGA signal.
Clock Polarity Sets the VGA clock polarity.	Normal- The default setting. Unless it is required, the clock polarity should be set to Normal.Inverse- Inverts the clock polarity, shifting it by 180°.

1. When selecting the Clock Polarity option, the current value will be highlighted in green and surrounded by brackets and two arrowheads.

1. Press the UP/DN buttons to select the desired value.
2. Press the MENU button to confirm the value.
3. Highlight the Menu Back option, then press the MENU button to return to the Main Menu.

Picture Adjust

Provides custom adjustment of picture brightness, contrast, saturation, hue, sharpness, and color space.

1. Under the Main Menu, highlight the Output Resolution menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The Picture Adjust menu will be displayed.
4. Press the UP/DN buttons to highlight the desired option.

Picture Adjust
Brightness	64
Contrast	64
Saturation	64
Hue	64
Sharpness	32
Picture Reset
Menu Back

1. Press the MENU button to confirm the selection.
2. The current value will be highlighted in green and surrounded by brackets and two arrowheads.

Configuration and Management Interfaces

Aspect

Allows the aspect ratio of the output image to be changed.

1. Under the Main Menu, highlight the Output Resolution menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The Aspect menu will be displayed.
4. Press the UP/DN buttons to highlight the desired aspect ratio.
5. Press the MENU button to confirm the selection.

Setting Description

Full The output signal will be scaled to fill the screen.

16:9 TV The output signal will be scaled to fit as 16:9.

16:10 TV The output signal will be scaled to fit as 16:10.

4:3 TV Output signal will be set to 4:3. If the input is HD, approximately 35% of the total horizontal resolution will be lost.

Keep Ratio The input aspect ratio is preserved on the output.

1. Select the Menu Back option, then press the MENU button, to return to the Main Menu.

Overscan

Adjusts the overscan setting of the output video signal. By default, overscan is disabled.

1. Under the Main Menu, highlight the Overscan menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The Overscan menu will be displayed.
4. Press the UP/DN buttons to highlight the Enable option.
5. Press the MENU button to change the Enable value

Configuration and Management Interfaces

1. When overscan is enabled, the H Size % and V Size % fields can be adjusted. Press the UP/DN buttons to highlight the desired field.
2. Press the MENU button to select the field.
3. Press the UP/DN buttons to change the value. Press the UP button to increase the value; press the DN button to decrease the value.
4. Press the MENU button to confirm the change.
5. Highlight the Menu Back option, then press the MENU button to return to the Main Menu.

Audio

The Audio menu allows adjustment of all audio settings.

1. Under the Main Menu, highlight the Audio menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The Audio menu will be displayed.

Audio

Audio On/Off On

HDMI Audio On

L/R Audio On

Menu Back

Setting Description

Audio On Off Provides muting of both HDMI and analog audio outputs. Set this value to Off to mute all audio.

HDMI Audio Controls the HDMI audio, only. Set to Off to mute the HDMI audio.

L R Audio Toggles the analog audio output On or Off. Set to Off to mute the analog audio output.

1. Press the UP/DN buttons to highlight the desired option.
2. Press the MENU button to confirm the selection.
3. The current value will be highlighted in green and surrounded by brackets and two arrowheads.
4. Press the UP/DN buttons to select the desired value. Press the UP button to increase the value; press DN to decrease the value.
5. Press the MENU button to confirm the value.
6. Highlight the Menu Back option, then press the MENU button to return to the Main Menu.

Configuration and Management Interfaces

OSD

Adjusts the appearance and position of the On-Screen Display (OSD) on the screen.

1. Under the Main Menu, highlight the Audio menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The OSD menu will be displayed.
4. Press the UP/DN buttons to highlight the desired option.

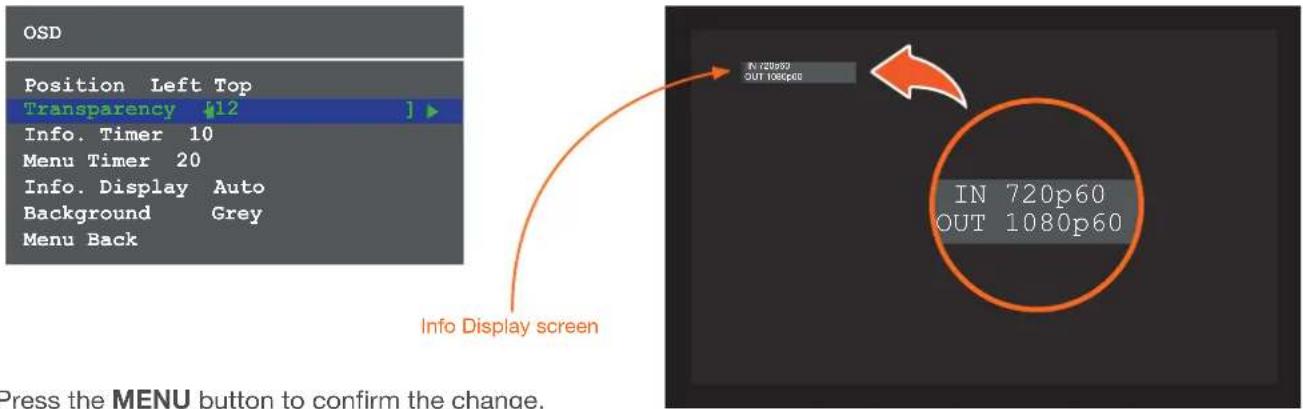

OSD

Position Left Top

Transparency 12

Info. Timer 10

Menu Timer 20

Info. Display Auto

Background Grey

Menu Back

Setting Description

Position Sets the position of the OSD on the display. The following options are available:Left TopRight TopRight BottomLeft BottomCenter

Transparency Adjusts the transparency setting of the OSD.Range: 5 to 100

Info. Timer The duration, in seconds, of how long the Info Display screen is displayed.Range: 5 to 100

Menu Timer The duration, in seconds, of how long the OSD remains on the screen, after no activity.Range: 5 to 100

Info. Display Adjusts the display settings of the Info Display screen, which indicates the input and output resolution. Refer to the illustration below for an example of the Info Display screen. The following options are available:Auto - Automatically displays the Info Display screen when a change is made to the input or output signal. The screen will automatically be hidden after approximately five seconds.Off - Prevents the Info Display screen from being displayed.On - The Info Display screen is always displayed.

Background Sets the background color of the OSD. The following options are available:GreyCyanMagentaYellow

Configuration and Management Interfaces

1. Press the MENU button to confirm the selection.
2. The current value will be highlighted in green and surrounded by brackets and two arrowheads.
3. Press the UP/DN buttons to change the value. For settings that contain a value, press the UP button to increase the value; press the DN button to decrease the value.

1. Press the MENU button to confirm the change.

2. Highlight the Menu Back option, then press the MENU button to return to the Main Menu.

Others

This menu provides control for various other settings, such as auto-switching, HDCP, and vertical mirroring.

1. Under the Main Menu, highlight the Others menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The Others menu will be displayed.
4. Press the UP/DN buttons to highlight the desired option.

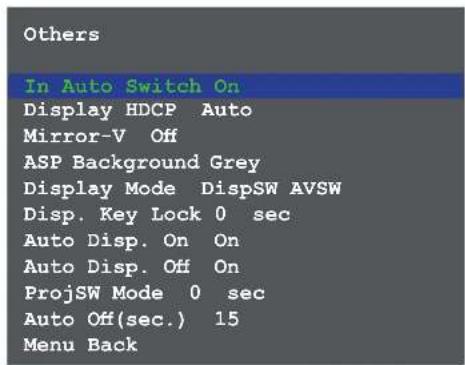

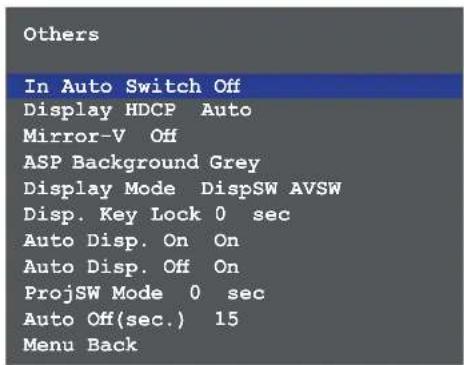

Setting Description

In Auto Switch Enables or disables auto-switching. The following options are available:On - Enables auto-switching.Off - Disables auto-switching.

Configuration and Management Interfaces

Setting Description
Display HDCP Provides control	over the transmission of HDCP content for the HDMI IN port on the transmitter (TX). The following options are available:Compliant- Forces detection of HDCP-compliant sink devices. If the sink device is not HDCP-compliant, then no content will be transmitted.Noncompliant- Suppresses detection of HDCP-compliant sink devices, allowing non-HDCP content to be transmitted.Auto-Automatically detects the presence of HDCP-compliant sink devices. If an HDCP-compliant display is detected, then HDCP content will be sent. Otherwise, non-HDCP content will be sent.NOTE: Some source devices will enable HDCP if an HDCP-compliant display (sink) is detected. However, there may be applications where sending HDCP content is not desired.This feature doesnotprovide decryption of HDCP content to non-HDCP sink devices
Mirror-V Vertically flips the output signal. The default setting is Off. The following options are available:On- Vertically flips the output image.Off- The output image is unaltered.
ASP Background Changes the color of background bars when changing the aspect ratio of the output image. The default color is Black. The following options are available:BlackGrey
Display Mode Controls how the display behaves when connected to a source device.DispSW AVSW- Display switches on/off, source audio/video signal switches on/off.DispSW AVon- Display switches on/off, source audio/video signal always on.Always ON- Display is always on, source audio/video signal always on.AV SW- Display is always on, source audio/video signal switches on/off.
Disp. Key Lock	Allows theMENUbutton to be locked, preventing accidental operation when the product is in use. Define the time interval using the Warm Up Timer option, below. The following options are available:On- Enables the feature.Off- Disables the feature.
Auto Disp. On Sends the command to power-on the display when an A/V signal is detected. The following options are available:On- Enables the feature.Off- Disables the feature.
Auto Disp. Off Sends the command to power-off the display when an A/V signal is no longer present. The following options are available:On- Enables the feature.Off- Disables the feature.

Configuration and Management Interfaces

Setting Description

ProjSW Mode Used with a projector whose lamp cannot be turned on for up to 5 minutes after being shut off. Keeps control in same state as projector. Match settings with lamp delay on projector in 5 to 300 seconds. The LED will blink for the full amount of the delay time (ex. 40 seconds).

Auto Off(sec.) Adjusts period of time before scaler goes into standby following loss of signal. The default is 0 seconds (standby off). When set to 0 seconds, the Auto Off value will be displayed as Always On. The available settings are 2, 5, 10, 15, 30, 45, 60, 100, 150, 300, and 600. Note that this option is only applicable if Auto Disp. Off is set to On.

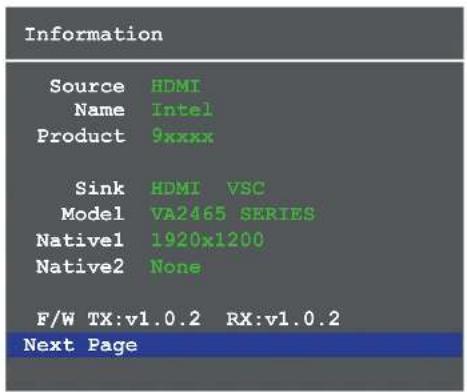

Information

The Information menu displays current information about the AT-HDVS-150-RX. The Information menu consists of two pages. None of the fields within this menu can be edited.

1. Under the Main Menu, highlight the Information menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The Information menu will be displayed.
4. Press the MENU button to view the next page.
5. Press the MENU button again to return to the Main Menu.

Setting Description
Source The current input source that is displayed. The source will be displayed as HDMI or VGA.
Name	The name of the source, if available.
Product	The product name, if available.
Sink	Contains the manufacturer's abbreviation of the sink.
Model	Displays the model of the display.
Native1	The native (preferred) timing for the display.
Native2	Displays any detailed (alternate) timing information for the display.

Configuration and Management Interfaces

Setting Description
F/W Indicates the firmware version of both the transmitter (TX) and receiver (RX). If the TX is not connected, then “Unknown” will be listed next to the TX field.
HV Total The total number of horizontal and vertical pixels.
HV Display The display resolution.
HV Polarity Polarity of both the horizontal and vertical sync pulse.
Scan Mode The scan mode - either progressive or interlaced.
Type The type of video signal.
HDCP Indicates whether or not if HDCP content is present.
Clock Indicates whether the source status of the TMDS clock is detected (On) or has been lost (Off).
Sync Indicates whether the source status of the TMDS sync is detected (On) or has been lost (Off).
Identity Displays the detected resolution of the source.
Type (Audio) Displays the audio format.
SR (Audio) Displays the sampling rate of the audio signal.
FIFO (Audio)	Displays the status of the FIFO audio buffer.

System Reset

The System Reset menu provides the ability to reset the AT-HDVS-150-RX to factory-default settings.

1. Under the Main Menu, highlight the System Reset menu item using the UP/DN buttons on the front panel.
2. Press the MENU button.
3. The System Reset menu will be displayed.

System Reset

No

Yes

Menu Back

1. Press the UP/DN buttons to highlight the desired option.
2. Press the MENU button to confirm the selection.
3. Highlight the Menu Back option, then press the MENU button to return to the Main Menu.

Configuration and Management Interfaces

Control Software

Connect

Click this button to attempt to connect to the select COM port in the drop-down list. When successfully connected, this button will be highlighted in green.

Disconnect

Click this button to disconnect from the COM port. When successfully disconnected, this button will be highlighted in red. This button will also be highlighted in red if the control software is unable to connect to the selected COM port.

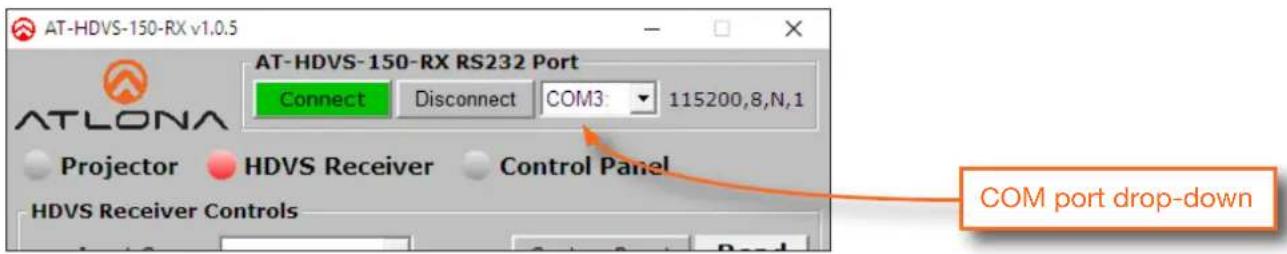

COM port selection

Click this drop-down list to select the correct COM port.

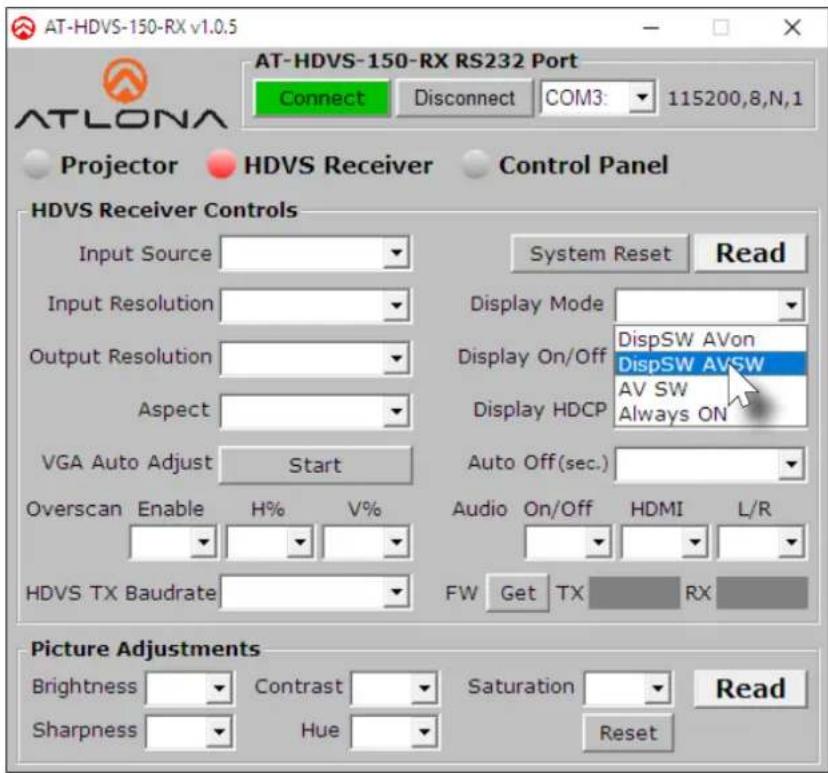

HDVS Receiver Controls

Input Source

Click this drop-down list to select the desired input source.

Setting Description

Hdmi Receiver will use the HDMI IN input on the transmitter as the source.

Vga Receiver will use the VGA IN input on the transmitter as the source.

Input Resolution

Click this drop-down list to select the desired input resolution.

Input Resolutions

800x600 1280x720 1366x768 1920x1200

1024x768 1280x800 1920x1080

Configuration and Management Interfaces

Output Resolution

Click this button to select the output resolution on the AT-HDVS-150-RX.

Output Resolutions
1024x768 720p25 1080i59.94 1080p50
1280x800 720p29.97 1080i60 1080p59.94
1280x1024 720p30 1080p23.98 1080p60
1366x768 720p50 1080p24 Native
1400x1050 720p59.94 1080p25
1600x1200 720p60 1080p29.97
1680x1050 1080i50 1080p30

Aspect

Click the Aspect drop-down list and select the desired output aspect ratio.

Aspect Description
Full The input signal is adjusted to fill the screen.
16:9 TV Set the aspect ratio to 16:9; common aspect ratio for HD and widescreen formats; also notated as 1:77.1
16:10 TV Set the aspect ratio to 16:10; typical aspect ratio for computer and tablet displays.
4:3 TV Sets the aspect ratio to 4:3; if the input signal is 16:9 or 16:10, up to 30% of the vertical resolution is lost.
Keep Ratio	The output aspect ratio is the same as the input.

VGA Auto Adjust

In most situations, adjustment of the VGA signal should not necessary. However, if the VGA signal does not appear correctly, click the Start button to automatically correct the clock and phase. This feature only applies to VGA input signals.

Enable (Overscan)

Click this drop-down list to enable or disable overscan.

Setting	Description
Yes	Enables overscan.
No	Disables overscan.

H% (Overscan)

Click this drop-down list to select the percentage of horizontal overscan to be applied to the output image. The Enable drop-down list (above) must be set to Yes, in order to apply this feature.

V% (Overscan)

Click this drop-down list to select the percentage of vertical overscan to be applied to the output image. The Enable drop-down list (above) must be set to Yes, in order to apply this feature.

Configuration and Management Interfaces

HDVS TX Baudrate

Click this drop-down list to select the required baud rate: 9600 or 115200.

System Reset

Click this button to reset the AT-HDVS-150-RX to factory-default settings.

Read

Click this button to populates all fields with the current settings of the AT-HDVS-150-RX.

Display Mode

Click this drop-down list to select how the DISPLAY button functions on the transmitter.

Setting Description

DispSW AVon Turns the display on or off; the source is unaffected.

DispSW AVSW Turns the display on/off and blocks/unblocks the AV source.

AV SW Blocks/unblocks the source; display control is unaffected.

Always ON Pressing the DISPLAY button will have no affect on the display or the source.

Display On/Off

Click this drop-down list to block or unblock the video signal on the connected display.

Setting Description

On Video signal is displayed

Off Video signal is blocked

Display HDCP

Click this drop-down list to control how HDCP content is handled.

Setting Description

Compliant Forces detection of HDCP-compliant sink devices. If the sink device is not HDCP-compliant, then no content will be transmitted.
Non-compliant Suppresses	detection of HDCP-compliant sink devices, allowing non-HDCP content to be transmitted.
Auto Automatically detects	the presence of HDCP-compliant sink devices. If an HDCP-compliant display is detected, then HDCP content will be sent. Otherwise, non-HDCP content will be sent.

Standby (Min.)

Click this drop-down list to select the time interval, in minutes, before the receiver is placed in standby mode. The available range is 1 to 30. This feature must be set to a value greater than zero, when specifying the Display Power Off option. Refer to the Projector Controls (page 29) section for more information.

Configuration and Management Interfaces

Audio On/Off

Click this drop-down list to block the audio signal. This applies to both HDMI and analog audio.

Setting Description

On Allows the audio signal on both HDMI and analog to pass.

Off Blocks both HDMI and analog audio signals.

HDMI

Click this drop-down list to block the audio signal on the HDMI output. The analog audio signal is unaffected.

Setting Description

On Allows the audio signal to pass.

Off Blocks the audio on the HDMI signal.

L/R

Click this drop-down list to block the analog output audio signal. The HDMI audio is unaffected.

Setting Description

On Allows the analog audio signal to pass.

Off Blocks the analog audio output signal.

Get

Click this button to retrieve the firmware versions for both the transmitter and receiver. Note that is the transmitter is not connected to the AT-HDVS-150-RX, then only the firmware for the receiver will be displayed.

Picture Controls

Brightness

Click this drop-down list to select the desired brightness applied to the output image. Range: 0 to 100. The default setting is 64.

Sharpness

Click this drop-down list to select the desired picture sharpness. Range: 0 to 100. The default setting is 32.

Contrast

Click this drop-down list to select the desired contrast applied to the output image. Range: 0 to 100. The default setting is 64.

Hue

Click this drop-down list to select the desired picture hue applied to the output image. Range: 0 to 100. The default setting is 64.

Saturation

Click this drop-down list to select the desired picture saturation applied to the output image. Range: 0 to 100. The default setting is 64.

Reset

Click this button to reset the picture settings to their default settings. This function does not reset the AT-HDVS-150-RX to factory-default settings.

Read

Click this button to populate the Picture Controls fields with the current settings.

Configuration and Management Interfaces

Projector Command Settings

Load

Click this button to load a saved projector settings file. The settings file is in .ini format and is created using the Save button.

Save

Click this button to save the current projector settings to a file.

Send

Click this button to send the current projector settings to the projector.

Read

Click this button to populate all fields under the Projector Command Settings group with the current settings.

Baud Rate

Click this drop-down list to select the required baud rate: 2400, 9600, 19200, 38400, 56000, 57600, or 115200.

Data Bit

Click this drop-down list to select the number of data bits: 5, 6, 7, or 8.

Parity

Click this drop-down list to select the parity bit: None, Odd, Even, Mark, or Space.

Stop Bit

Click this drop-down list to select the number of stop bits: 1, 1.5, or 2.

Display On

Enter the "Display On" command in this field. When entering the command, specify the format by clicking the Text or Hex radio button. If a carriage-return is required, click the CR button at the end of the field. Each click of the CR button will add a single carriage-return character to the end of the command string.

Display Off

Enter the "Display On" command in this field. When entering the command, specify the format by clicking the Text or Hex radio button. If a carriage-return is required, click the CR button at the end of the field. Each click of the CR button will add a single carriage-return character to the end of the command string.

Configuration and Management Interfaces

Projector Controls

Auto Display On

Click this drop-down list to select when the display will be powered-on, based on the detection of a source.

Setting Description

On Powers-on the display when a source is detected.

Off Display is not powered-on when a signal is detected.

Auto Display Off

Click this drop-down list to select when the display will be powered-off, based on the detection of a source.

Setting Description

On Power-off the display when no signal is detected for the time interval specified in the Standby (Min.) drop down list.

Off Display is not powered-off when no signal is detected.

Read

Click this button to populate all fields under the Projector Controls group with the current settings.

ProjSW Mode (Sec.)

Sets the time interval, in seconds, before the front panel buttons are locked, after a power-off command is sent to the projector. Range: 0 to 300.

Solution Setup and Configuration Guide

The following sections provide step-by-step instructions for the following topics:

• Input Auto-Switching
• Display Control

Input Auto Switching

The AT-HDVS-150-TX provides auto-switching capability between HDMI IN 1 and HDMI IN 2, which will automatically switch the input to the most recently-connected or powered source when a source is disconnected. For example, if the connection sequence is HDMI 2 > HDMI 1, and a source is disconnected from HDMI 1, then the AT-HDVS-150-TX will automatically switch to the HDMI 2. Auto-switching mode is enabled or disabled through the on-screen display (OSD) menu system, and is enabled (On), by default.

NOTE: Auto-switching is triggered by a Hot-Plug Detect (HPD) event. If HPD is not detected, then AT-HDVS-150-TX will not switch inputs. VGA does not support HPD. Therefore, the VGA port cannot be used in the auto-switching cycle.

1. Connect a category cable from the HDBaseT OUT port on the AT-HDVS-150-TX to the HDBaseT IN port on the AT-HDVS-150-RX using a category cable (CAT-5e or better). The category cable should not exceed 230 feet (70 meters) in length.

The AT-HDVS-150-RX must be connected to the AT-HDVS-150-TX, in order to manage auto switching.

AT-HDVS-150-TX

1. Connect an HDMI cable from the HDMI OUT port on the AT-HDVS-150-RX to a display.

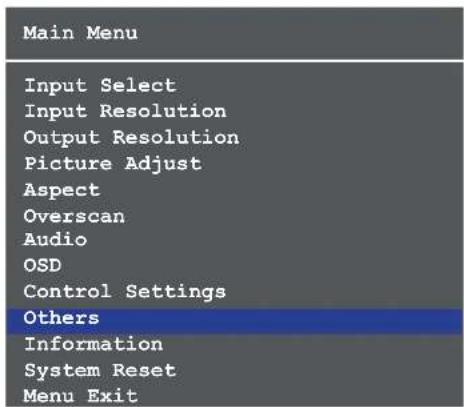

1. Press the MENU button on the front panel of the AT-HDVS-150-RX to display the on-screen display (OSD) menu system.

Solution Setup and Configuration Guide

1. Press and release the VOL DN button until the Others menu is highlighted in blue.

1. Press and release the MENU button to enter the Others menu. The In Auto Switch option will be highlighted in blue.
2. Press and release the MENU button. The In Auto Switch text will be displayed in green, indicating that the option can be changed.
3. Press and release the VOL DN buttons to change the value to the On setting.

1. Press and release the MENU button to commit changes. The In Auto Switch option will be displayed in white.
2. Highlight the Menu Back option, then press the MENU button to return to the Main Menu.
3. Select the Menu Exit option, in the Main Menu, and press and release the MENU button to exit the menu system.

Solution Setup and Configuration Guide

Display Control

The AT-HDVS-150-RX features a control interface which can be used to program connected transmitters, allowing them to power-on/off displays as well as adjust the appearance of the output image.

In order to configure display control, the control software should be downloaded and installed. The control software is available for download, under the AT-HDVS-150-RX page on the Atlona web site, and supports programming of the following transmitters.

Supported Transmitters

AT-HDVS-150-TX AT-HDVS-150-TX-WP AT-HDVS-150-TX-WP-UK

Installing the Software

1. Download the control software from the Atlona web site.

a. Go to http://atlona.com/product/at-hdvs-150-rx/.
b. Scroll down the page and locate the Resources tab.
c. Click on the Control Software Version hyperlink to begin downloading the software.

1. Extract the files from the .zip file.
2. Double-click the setup.exe to run the installation wizard. Follow the directions on each screen to install the software.

IMPORTANT: Note the folder/directory where the control software is being installed on the computer. This information will be necessary, later. The default installation directory is \Program Files (x86)\AT_HDVS_RX.

Connecting RS-232

1. Connect a serial cable from the RS-232 port on the AT-HDVS-150-RX, to the RS-232 port on the display. The included 3-pin captive screw connector should be wired as shown. If a DE-9 port is not available on the computer, a DE-9 to USB cable may be used.

NOTE: DE-9 to USB cables usually require a driver. Refer to any documentation that was provided with the cable to ensure correct functionality.

Green electronic component with three leads, labeled GND, RXD, TXD (no additional text or symbols)

Solutions Setup and Configuration Guide

1. Go to the Windows Device Manager and verify the installed COM port, under Ports (COM & LPT).

1. If running Windows 10, perform the step 3a. Otherwise, continue with step 4.
   a. Install the gulim.ttc font file by double-clicking it. This file must be installed, if running the software under Windows 10.
2. Open Windows Explorer and locate the folder/directory where the AT-HDVS-150-RX Control Software is installed. The default installation directory is \Program Files (x86)\AT_HDVS_RX.
3. Double-click the AT_HDVS_150_RX_AP.exe file to launch the control software and select the correct COM port from the COM port drop-down list.

If a message box, similar to the following, is displayed, then click the OK button and check the following:

• The incorrect COM port is selected in the control software. Select another COM port from the drop-down list, next to the Connect and Disconnect buttons.
• Windows was unable to install the COM port. Check the connection between the computer and the AT-HDVS-150-RX. In addition, verify that the captive screw terminal block is wired correctly to the DE-9 interface. After verifying the connection, check that the COM port is available under the Device Manager. If the problem persists, contact an Atlona Technical Support Engineer for assistance.

Solutions Setup and Configuration Guide

Programming the AT-HDVS-150-RX

Once the control software is running, it can be used to program the AT-HDVS-150-RX to affect the behavior of the connected display. For example, the display can automatically be turned on, when the source device is turned on. Conversely, when the source is turned off (or disconnected), then display is automatically turned off.

Controlling Display Power

1. Click the Display Mode drop-down list, in the control software.
2. Select the desired mode. In this example, DispSW AVSW is selected. This will instruct the display to "follow" the power-on / power-off state of the source device.
3. Refer to the table below, for a list of available settings and a brief description.
4. Refer to the AT-HDVS-150-RX User Manual for more information on other settings.

Setting Description

DispSW AVon Turns the display on or off; the source is unaffected.

DispSW AVSW Display switches on/off, source audio/video signal switches on/off.

AV SW Display is always on, source audio/video signal switches on/off

Always ON Pressing the DISPLAY button will have no affect on the display or the source.

Solutions Setup and Configuration Guide

Projector Control

If a projector is being controlled by the AT-HDVS-150-RX, then click the Projector radio button in the top-portion of the screen, as shown below. This section of the control software is similar to the HDVS Receiver section. In addition, this area also provides two fields for RS-232 "Display On" and "Display Off" commands.

1. Click the Projector radio button in the top-portion of the screen.
2. Click the Read button to fetch the RS-232 settings from the projector's RS-232 port. The Baud Rate, Data Bit, Parity, and Stop Bit fields will be filled in automatically.

NOTE: If the RS-232 command cannot be read from the projector system, the Baud Rate, Data Bit, Parity, and Stop Bit fields will need to be entered manually. Click each of the drop-down lists to specify the required values.

1. Once the projector's RS-232 settings are known, they can be saved to a local .ini file. Click the Save button to save the RS-232 settings to the desired file. It is recommended that the name of the file be descriptive of the projector manufacturer / model. This way, if multiple projectors are used, the proper file can be loaded.
2. Click on the Text or Hex radio button to specify the type of command string that will be sent to the projector. Refer to the projector's User Manual for a list of commands.
3. Enter the command for the "display on" and "display off" in the Display On and Display Off fields, respectively.

An example of a power-on command, might be:

PWON // text format

BEEF030600BAD20100006001000D // hex format

Solutions Setup and Configuration Guide

1. Once the proper command strings have been entered, refer to the tables below for information on setting the Auto Display On and Auto Display Off features.

Auto Display On

Click this drop-down list to select when the display will be powered-on, based on the detection of a source.

Setting Description

On Powers-on the display when a source is detected.

Off Display is not powered-on when a signal is detected.

Auto Display Off

Click this drop-down list to select when the display will be powered-off, based on the detection of a source.

Setting Description

On Power-off the display when no signal is detected for the time interval specified in the ProjSW Mode (sec.) drop down list.

Off Display is not powered-off when no signal is detected.

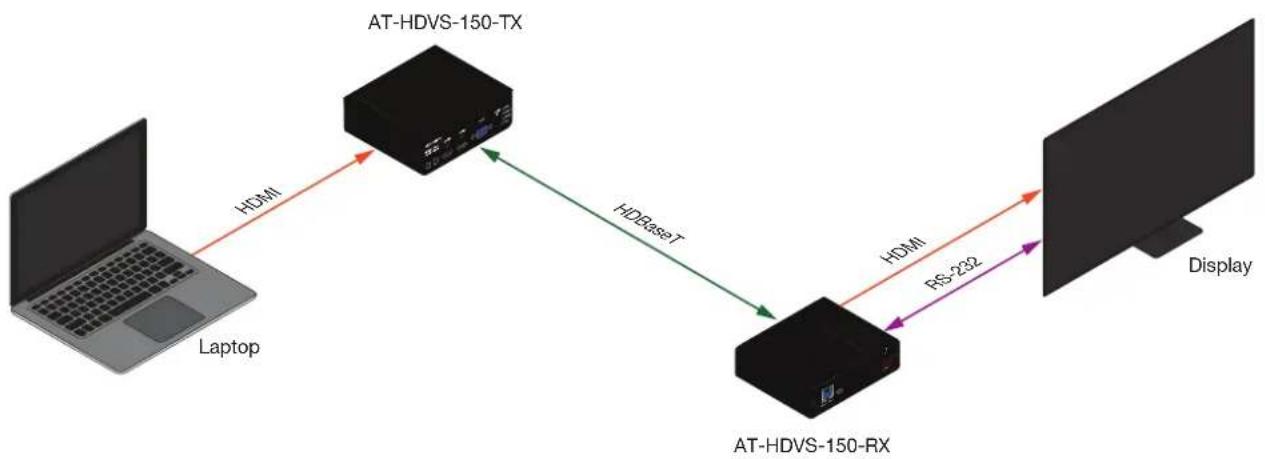

Connecting the AT-HDVS-150-RX to the Display

Once programming is completed, connect the RS-232 cable from the AT-HDVS-150-RX to the RS-232 port on the display or projector device, as shown in the illustration below. The display / projector will now function based on the programming which was performed in the control software. If a change to the display behavior is desired, then disconnect the RS-232 cable from the display, reconnect the RS-232 computer to the AT-HDVS-150-RX, launch the control software, and make the necessary changes.

Appendix

Default Settings

The following tables list the factory-default settings for the AT-HDVS-150-RX.

Feature Settings
Input Select HDMI
Input Resolution 1280x800
Output Res 720p60
VGA Clock Polarity Normal
Picture Adjust Brightness	64
Contrast	64
Saturation	64
Hue	64
Sharpness	32
Aspect Full
Overscan Disabled
Audio Audio On / Off	On
HDMI Audio	On
L / R Audio	On
OSD Position	Left Top
Transparency	12
Info Timer	10
Menu Timer	20
Info Display	Auto
Background	Grey
Others In Auto Switch	On
Display HDCP	Compliant
Mirror-V	Off
ASP Background	Grey
Display Mode	DispSW AVon
Disp. Key Lock	0 sec.
Auto Disp. On	On
Auto Disp. Off	On
ProjSW Mode	0 sec.
Auto Off (sec)	Always On

Updating the Firmware

The following procedure is used for updating the firmware on the AT-HDVS-150-RX.

Requirements

• AT-HDVS-150-RX

• Firmware file: AT-HDVS-150-RX [version].bin
  • USB Type A to Mini-USB Type B cable
  • Computer with USB port

• Download the latest firmware from the Atlona web site.

• Disconnect the power supply from the AT-HDVS-150-RX.
• Press and hold the MENU button.

1. While pressing the MENU button, connect the USB cable from the computer to the FW port on the AT-HDVS-150-RX. When the USB cable is connected, the PWR LED indicator will glow solid green.

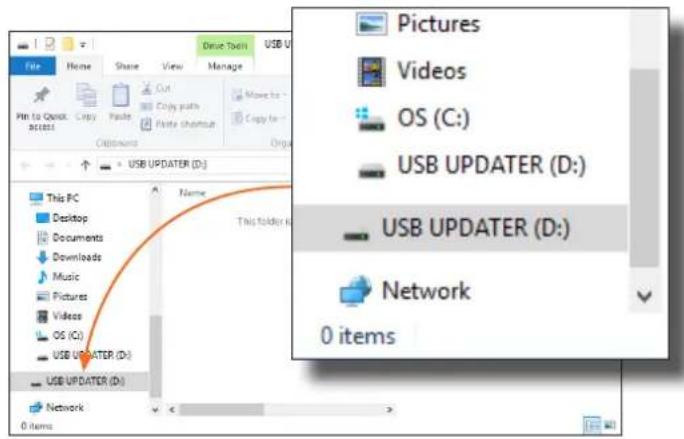

1. After a few seconds, a folder with the name USB UPDATER, will be displayed. Release the MENU button.

Appendix

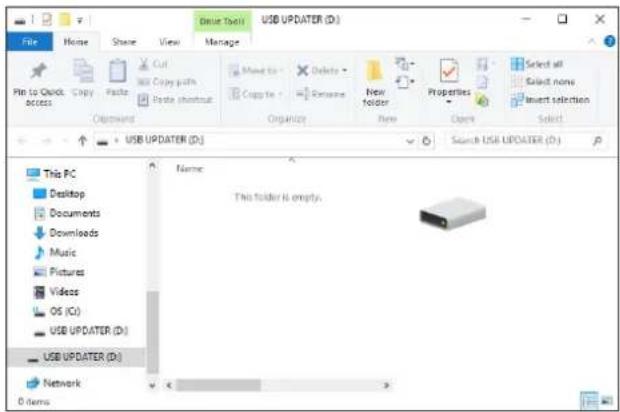

If the folder is not displayed, open Windows Explorer and locate the drive named USB UPDATER.

1. Delete all files from the USB drive, if any are present.
2. Drag-and-drop the AT-HDVS-150-RX [version].bin firmware file to the drive.
3. After the file has been copied, disconnect the USB cable from both the computer and the AT-HDVS-150-RX.
4. Reconnect the power supply to the AT-HDVS-150-RX.
5. The update process is complete.

Specifications

Video
HD/SD 1080p@23.98/24/25/29	97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz,720p@25/29/30/50/59.94/60Hz, 576p, 576i, 480p, 480i, 1920×1200RB,1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768,1280×1024, 1280×960, 1280×800, 1280×768, 1152×854, 1024×768, 800×600,720×400, 640×480
VESA 1080p@23.98/24/25/29.9	7/30/50/59.94/60Hz, 1080i@50/59.94/60Hz,720p@25/29/30/50/59.94/60Hz, 1920×1200, 1680×1050, 1680×1200, 1400×1050,1366×768, 1280×1024, 1280×800, 1024×768
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2
Color Depth 8-bit, 10-bit, 12-bit

Audio
Analog PCM 2Ch (de-embedded)
HDMI OUT & HDBaseT IN PCM 2Ch
Sample Rate 32 kHz, 44.1 kHz,	48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Rate 24-bit (max.)

Cable Feet Meters
CAT5e/6 200 60
CAT6a/7 230 70
HDMI IN / OUT 30 10

Signal
Bandwidth	6.75 Gbps
CEC	No
HDCP	Compliant - 1.4

Temperature	Fahrenheit	Celsius
Operating	32 to 104	0 to 40
Storage	-4 to 140	-20 to 60
Humidity (RH)	20% to 90%, non-condensing

Appendix

Power
Consumption 15 W (varies per paired transmitter)
Supply Input: 100 - 240 V AC, 50/60 HzOutput: 48 V DC, 0.83 A

Dimensions Inches Millimeters
H x W x D 1.18 x 4.8 x 4.92 30	x 122 x 125

Weight Pounds Kilograms
Device 0.67 0.31

Certification
Unit CE, FCC
Power Supply CE, FCC, cULus, RoHS, CCC, RCM

Index

A

Aspect ratio

setting 17, 25

Audio

analog 18

connector 10

enabling / disabling 18

HDMI 18

Auto-adjust

VGA signal 15, 25

Auto-switching 20,30

B

Background color

setting 21

Brightness

adjusting 16, 27

C

Connection

diagram 10

instructions 10

Contents

package 8

Contrast

adjusting 16,27

Control software

installation 32

Customer support 3

D

Default settings 37

Description

front / rear panel 9

Display

control 32

mode 21

Down

button 13

F

FCC statement 6

Features 8

Firmware

updating 38

H

HDCP 21

Hue

adjusting 16,27

1

Information

displaying 22

Info screen

settings 19

Input

selecting 14, 24

Installation 10

M

Menu

button 13

locking 21

main 13

O

Operating notes 3

OSD

background color 19

position 19

timer 19

transparency 19

Output

vertically mirroring 21

Overscan

enabling / disabling 17, 25

horizontal 17

vertical 17

P

Panel descriptions 9


reset 16

Power

connector 11

Projector lamp

timer 22

R

Reset

to factory-default 23, 26

Resolution

input 14,24

output 15,25

RS-232

connector 10

control, display 32

S

Safety information 6

Saturation

adjusting 16, 27

Sharpness

adjusting 16, 27

Source

input 14,24

Specifications 40

Standby mode

setting 22

Switching

auto 30

T

TMDS

clock 23

sync 23

Transmitters

supported 32

U

Up

button 13

Updating

firmware 38

W

Warranty 4
