Product Type	HDMI Distribution Amplifier
Model	AT-RON-442
Brand	Atlona
Number of Outputs	2
Video Support	4K/UHD @ 60 Hz with 4:4:4 chroma sampling, HDR, HDCP 2.2, up to 18 Gbps
Audio Support	All HDMI 2.0a audio formats
EDID Management	Internal (INT) and LEARN modes
Cascading	Supports cascading multiple units without performance loss
Input Connector	1 x HDMI (type A, female)
Output Connectors	2 x HDMI (type A, female)
Firmware Update Port	Mini USB (FW)
Power Supply	5V DC, 2-pin Phoenix terminal block; included adapter
Power Consumption	5V DC, ~2.5W (estimated)
Dimensions (approx.)	1.5" H x 4.5" W x 3" D
Weight (approx.)	0.5 lbs (0.23 kg)
Mounting	Rack ears and rubber feet included; can be mounted under table or in rack (with optional spacer)
LED Indicators	Power, SYNC (source detect), OUT 1/2 (sink detect), EDID mode (INT/LEARN)
Package Contents	AT-RON-442, 5V DC power supply, Phoenix connector, rack ears (2), rubber feet (4), screws (4), installation guide
Maintenance	Clean with a dry, soft cloth; do not use liquids or solvents
Safety	Use only the provided power supply; avoid exposure to liquids; do not operate if damaged
Spare Parts / Repairability	Contact Atlona support for any replacement parts; no user-serviceable internal components
Compliance	HDCP 2.2, HDMI 2.0a

Frequently Asked Questions - AT-RON-442 Atlona

How do I switch between INT and LEARN EDID modes on the AT-RON-442?

Press and hold the EDID button on the front panel. While in LEARN mode, the LEARN LED will blink until the EDID is successfully copied from the display on Output 1, then the LED stays solid.

What does the SYNC LED indicate?

The SYNC LED glows solid blue when an active HDMI source is detected on the HDMI IN port.

Can I cascade multiple Rondo distribution amplifiers?

Yes, the Rondo series supports cascading multiple units without compromising performance. Simply connect the output of one unit to the input of another.

How do I perform a firmware update on the AT-RON-442?

Download the latest firmware from Atlona's support page. Connect a mini USB cable from your computer to the FW port on the unit and follow the included instructions.

Why is 3D content not displaying on some screens?

In INT (internal) EDID mode, all connected displays must support 3D for it to pass. To pass 3D when some displays do not support it, connect a 3D-capable display to Output 1 and use the LEARN EDID mode.

What power supply should I use with the AT-RON-442?

Use only the included 5V DC power supply and connect it to the Phoenix terminal block with the correct polarity (white wire to +, black to -). Do not use a different voltage supply.

Can I mount the AT-RON-442 under a table?

Yes, the included mounting brackets can be inverted to allow under-table mounting. Use the oval-shaped holes on each bracket to secure the unit.

What does the OUT 1 LED indicate?

The OUT 1 LED glows solid blue when a display or other sink device is connected and detected on the HDMI OUT 1 port.

Does the Rondo series support external automation control?

No, the Rondo series does not provide external automation control (RS-232, IP, etc.). It is a standalone distribution amplifier.

What video resolutions and color spaces are supported?

The AT-RON-442 supports all video resolutions up to 4K/UHD @ 60 Hz with 4:4:4 chroma sampling, HDR metadata, and data rates up to 18 Gbps, fully compliant with HDMI 2.0a.

USER MANUAL AT-RON-442 Atlona

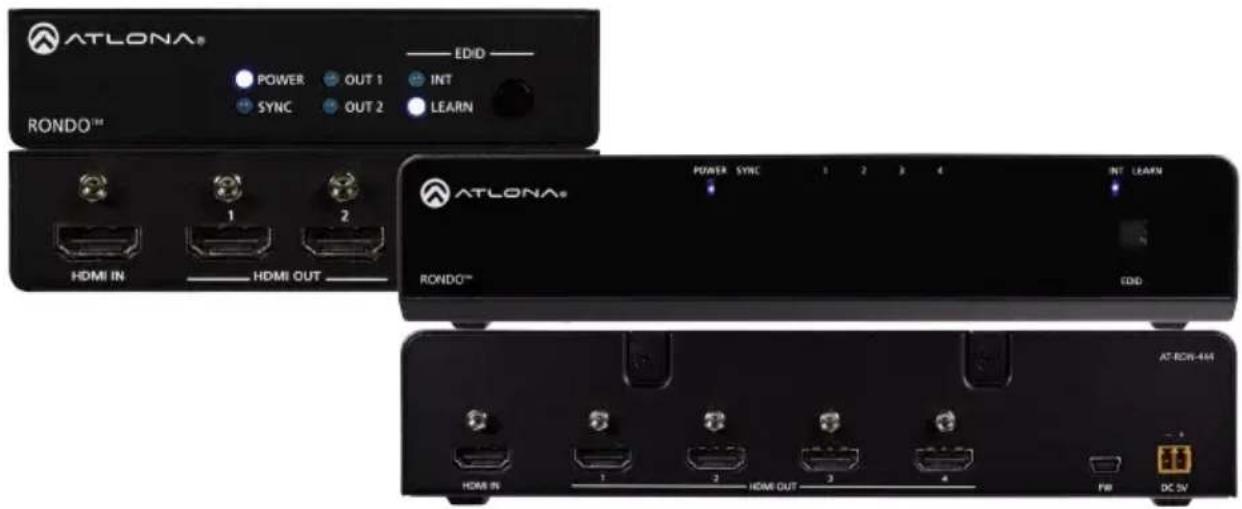

4K HDR Two / Four-Output HDMI Distribution Amplifier

AT-RON-442 / AT-RON-444

ATLONA® —— EDID —— POWER OUT 1 INT SYNC OUT 2 LEARN RONDO™ 1 2 HDMI IN HDMI OUT —— ATLONA® —— POWER SYNC 1 2 3 4 INT LEARN RONDO™ EDID HDMI IN 1 2 HDMI OUT 3 4 FW DC SN

The Atlona Rondo™ series are HDMI distribution amplifiers for high dynamic range (HDR) formats. They are HDCP 2.2 compliant and support 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The Rondo series are ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays. They are compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specification, plus the ability to pass metadata for HDR content. The Rondo Series HDMI distribution amplifiers include EDID management features, front panel LED indicators for power and signal status, and the capability to cascade several units without compromising performance.

Package Contents

AT-RON-442

1 x AT-RON-442
1 x 5V DC power supply
1 x Phoenix terminal block, 2-pin
2 x Rack ears
4 x Rubber feet
4 x Screws
1 x Installation guide

AT-RON-444

1 x AT-RON-444
1 x 5V DC power supply
1 x Phoenix terminal block, 2-pin
2 x Mounting plates
1 x Long rack ear
1 x Short rack ear
4 x Rubber feet
4 x Screws
1 x Installation guide

IMPORTANT: Visit http://www.atlona.com/product/AT-RON-442 and http://www.atlona.com/product/AT-RON-444 for the latest firmware updates.

Panel Descriptions

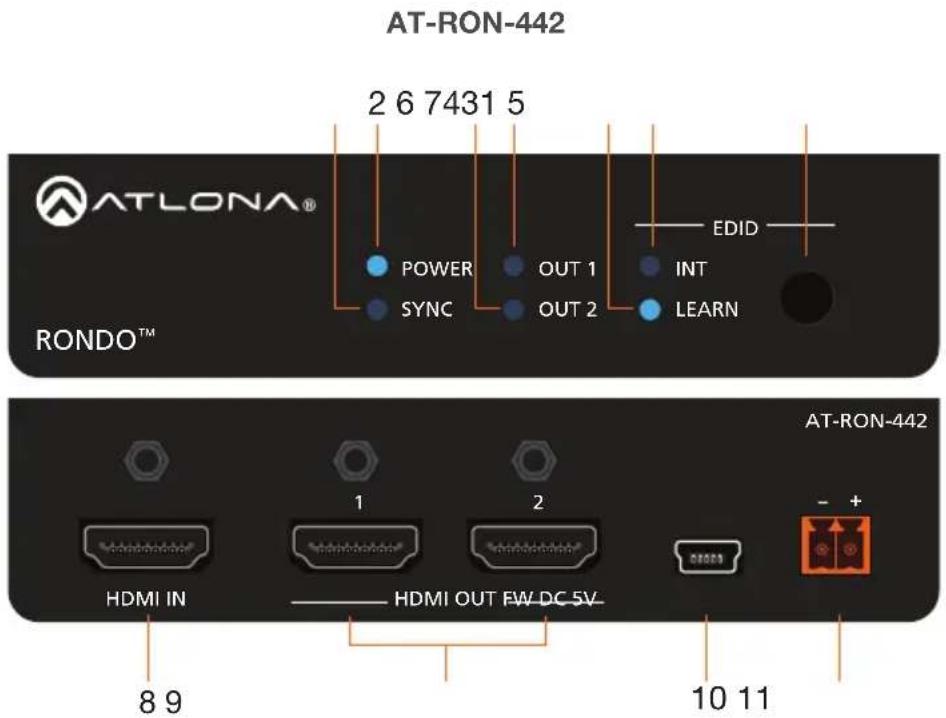

AT-RON-442 2 6 7431 5 ATLONA® POWER SYNC OUT 1 OUT 2 EDID INT LEARN RONDO™ AT-RON-442 HDMI IN 8 9 HDMI OUT FW DC 5V- 10 11

1 POWER

This LED indicator will glow solid blue when the unit is powered.

2 SYNC

This LED indicator will glow solid blue when an active source is detected on the HDMI IN port.

3 OUT 1

This LED indicator will glow solid blue when a display or other sink device is connected to the HDMI OUT 1 port.

4 OUT 2

This LED indicator will glow solid blue when a display or other sink device is connected to the HDMI OUT 2 port.

5 LEARN

This LED indicator glows solid blue when the unit is in LEARN mode.

6 INT

This LED indicator glows solid blue when the unit is using the built-in EDID.

7 EDID button

Press this button to switch between INT and LEARN modes.

8 HDMI IN

Connect an HDMI cable from this port to a UHD/HD source.

9 HDMI OUT 1/2

Connect an HDMI cable from each of these ports to a display or other sink device.

10 FW

Connect a mini USB cable to this port to update the firmware.

11 DC 5V

Connect the included 5V DC power supply to this port.

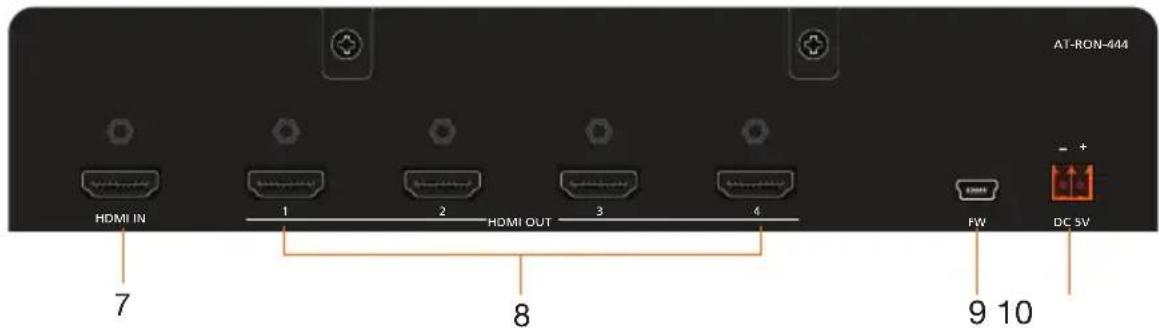

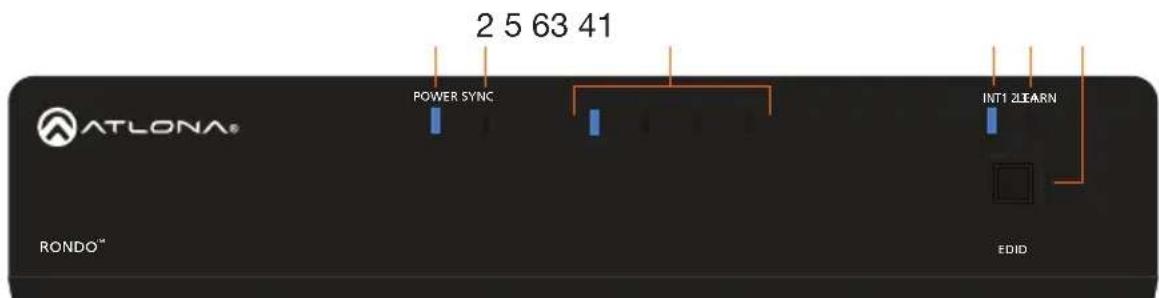

AT-RON-444

2 5 63 41 POWER SYNC INT1 2LEARN ATLONA® RONDO™ EDID

AT-RON-444 HDMI IN 1 2 3 4 HDMI OUT FW DC 5V 7 8 9 10

1 POWER

This LED indicator will glow solid blue when the unit is powered.

2 SYNC

This LED indicator will glow solid blue when an active source is detected on the HDMI IN port.

3 Output Indicators

These LED indicator will glow solid blue when a display or other sink device is connected to the HDMI OUT ports.

4 INT

This LED indicator glows solid blue when the unit is using the built-in EDID.

5 LEARN

This LED indicator glows solid blue when the unit is in "EDID learn" mode.

6 EDID button

Press this button to switch between "internal" and "learn" modes.

7 HDMI IN

Connect an HDMI cable from this port to a UHD/HD source.

8 HDMI OUT 1/2/3/4

Connect an HDMI cable from each of these ports to a display or other sink device.

9 FW

Connect a mini USB cable to this port to update the firmware.

10 DC 5V

Connect the included 5V DC power supply to this port.

Power Connector

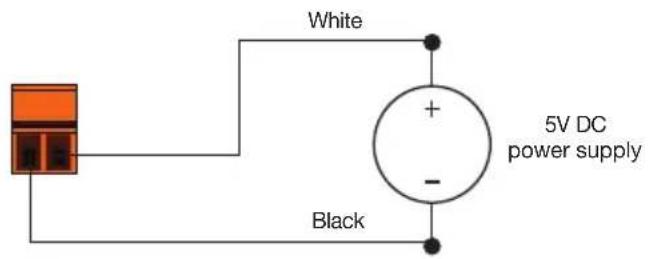

Locate the included orange Phoenix terminal block, and wire the included power supply to the block as shown below. Do not use high-torque devices, when securing the wires, as this may damage the screws and/or connector block.

3D rendered mechanical component with orange and brown sections (no text or symbols)

White + - Black 5V DC power supply

Installation

1. Connect an HDMI cable from the UHD/HD source to the HDMI IN port on the AT-RON-442/AT-RON-444.
2. Connect display/sink devices to the AT-RON-442/AT-RON-444 to the HDMI OUT ports. The AT-RON-442 supports up to two outputs. The AT-RON-444 supports up to four outputs.
3. Connect the included power supply to the DC 5V Phoenix connector.

Mounting Instructions

The AT-RON-442 and AT-RON-444 each include two mounting brackets, which can be used to attach the unit to any flat surface.

AT-RON-442

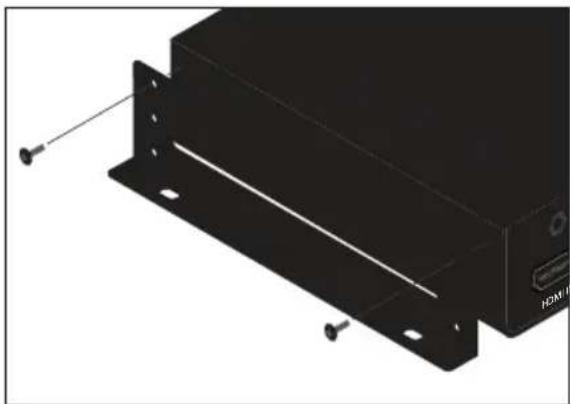

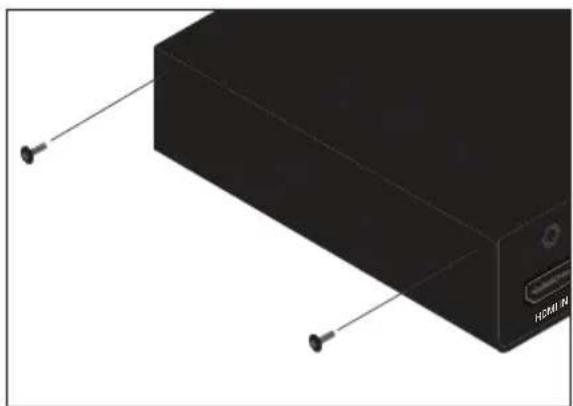

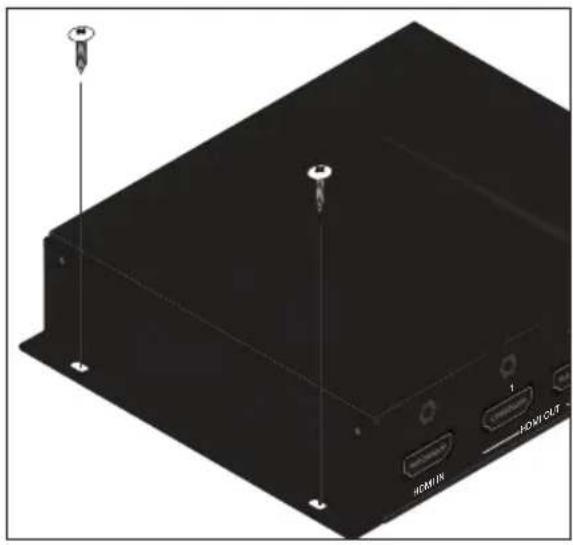

1. Using a small Phillips screwdriver, remove the two screws from the left side of the enclosure.
2. Position one of the mounting brackets, as shown below, aligning the holes on the side of the enclosure with one set of holes on the mounting bracket.

Black rectangular electronic device with two metallic pins and a USB port, no visible text or symbols

3D rendering of a black electronic device with mounting flanges and a small USB port (no text or symbols visible)

1. Use the enclosure screws to secure the mounting bracket to the enclosure.

2. Repeat steps 1 through 3 to attach the second mounting bracket to the opposite side of the unit.

3. Mount the unit using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended.

3D rendering of a black electronic device with labeled ports and mounting holes (no readable text or symbols)

NOTE: Mounting brackets can also be inverted to mount the unit under a table or other flat surface.

AT-RON-444

Two AT-RON-444 units can be connected to one another and installed in a 19" rack, using the included mounting brackets. Alternatively, a single AT-RON-444 can be mounted in the rack using the included spacer bracket.

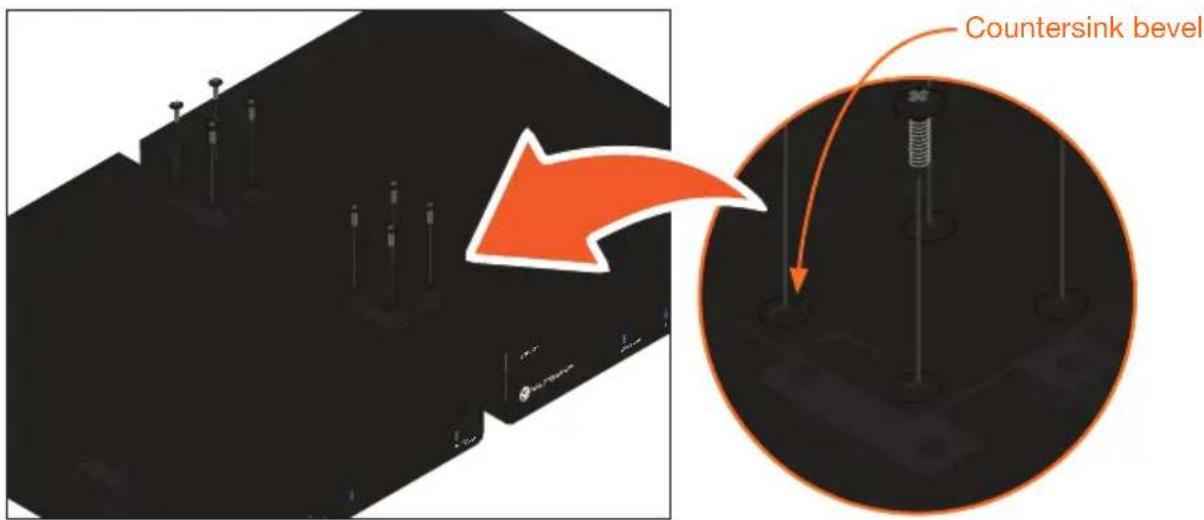

Dual-unit rack installation

1. Turn the unit upside-down on a flat surface.
2. Position the included mounting brackets over the pre-drilled holes on the bottom of the enclosure. When attaching mounting brackets, the countersink bevels on the mounting bracket should face upward.

Countersink bevel

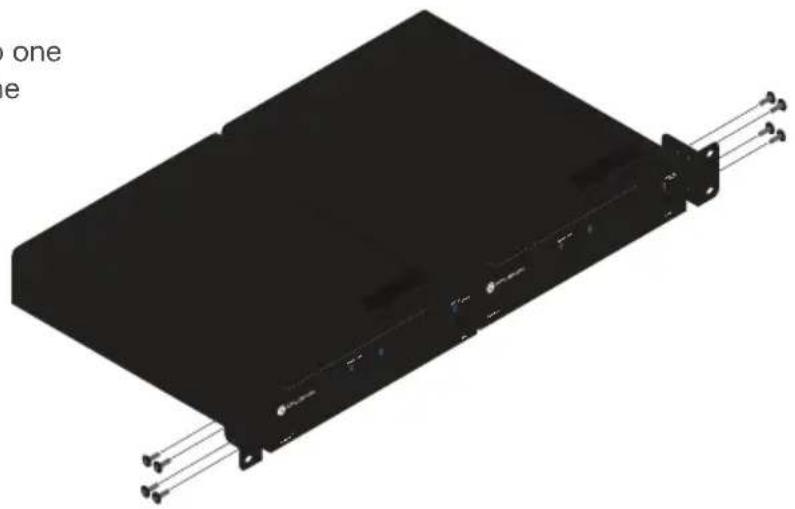

1. Turn the attached units over and install the included rack ears to one side of each enclosure using the included screws.

3D rendering of a black rectangular electronic device with multiple connectors and mounting holes (no text or symbols visible)

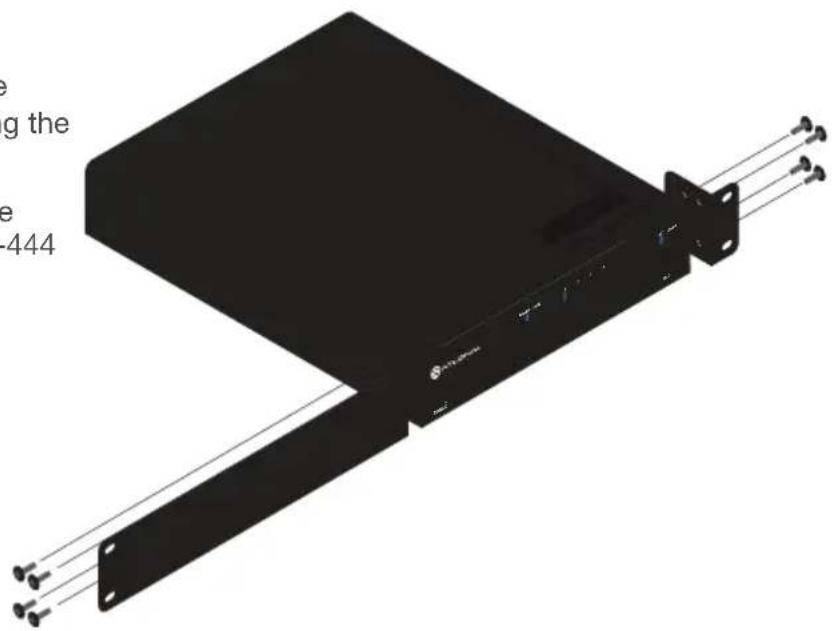

Single-unit rack installation only

1. Attach the small rack ear to one side of the AT-RON-444, using the included screws.

2. Attach the longer rack ear to the opposite side of the AT-RON-444 using the included screws.

Black electronic device with attached cable and mounting bracket, no visible text or symbols

EDID

The AT-RON-442 and AT-RON-444 provide two EDID modes: internal (INT) and LEARN. Internal mode selects the highest common resolution and audio between the source and all displays.

NOTE: 4K, 3D, and multichannel audio may not be available when using INT (internal) EDID mode. When using this mode, the AT-RON-442 / AT-RON-444 will build an EDID, based on the capabilities of each display that is connected.

LEARN mode will copy the EDID information of the display/sink connected to the HDMI OUT 1 port.

To switch between internal and learn modes, press and hold the EDID button. While EDID is being learned, the LEARN LED will blink. EDID learn is complete when the LEARN LED goes solid.

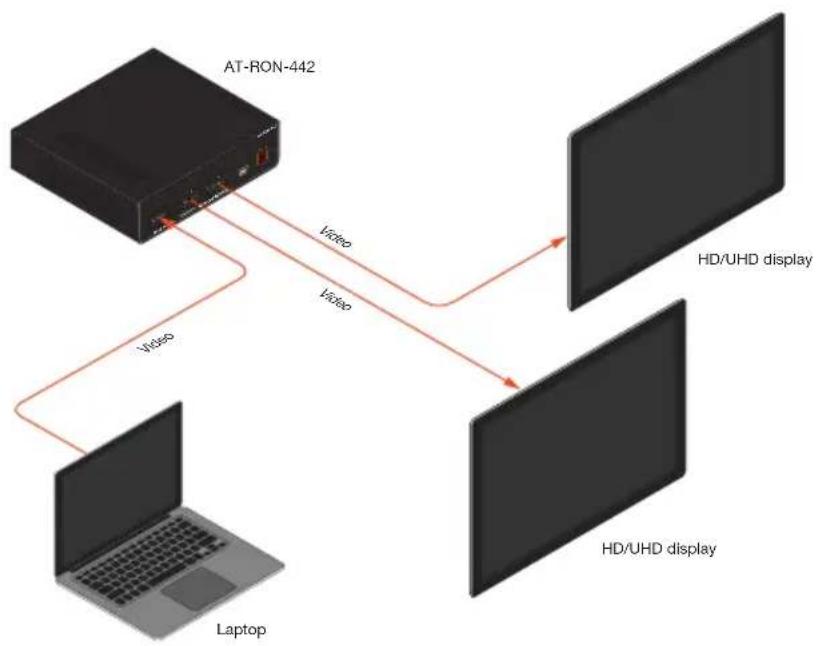

Connection Diagrams
AT-RON-442


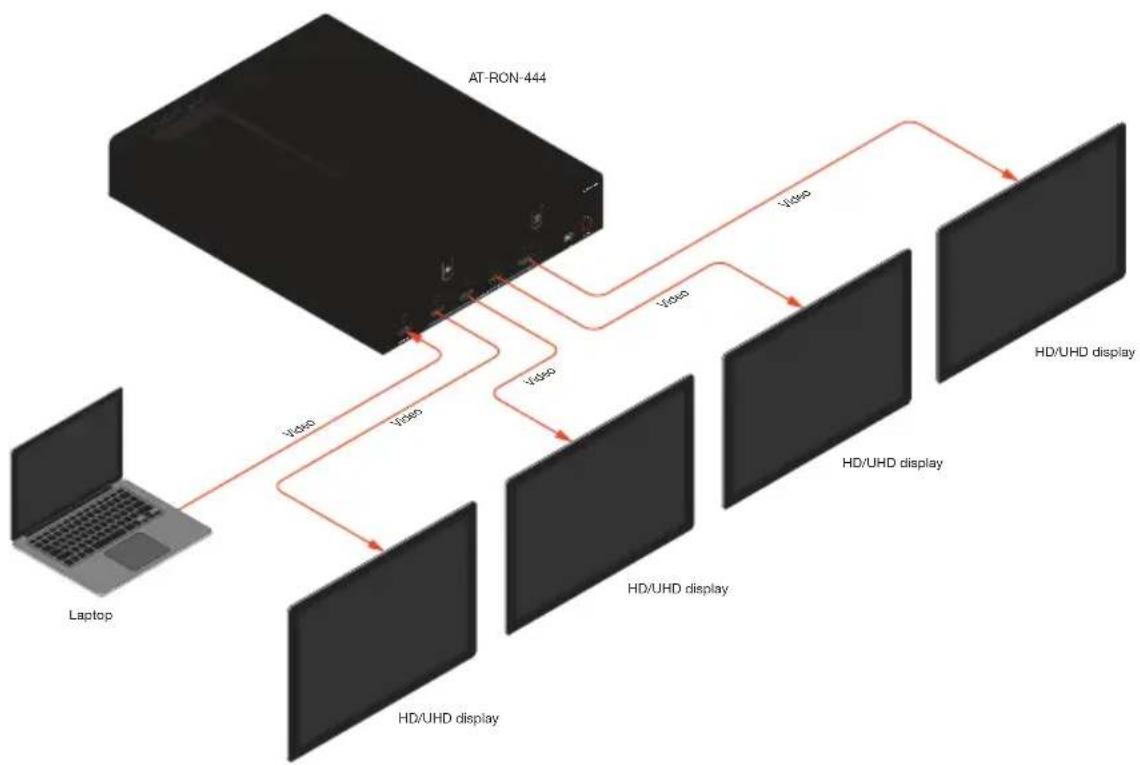

AT-RON-444

Troubleshooting

Version 2

Problem Solution

How do I perform a firmware update on the AT-RON-442 / AT-RON-444?

Firmware and instructions can be found and downloaded under the Firmware tab, at:

http://www.atlona.com/product/AT-RON-442 http://www.atlona.com/product/AT-RON-444

Does the Rondo series provide external automation control?

No.

3D content is not being displayed.

• If using INT (internal) EDID mode, all connected displays must be able to display 3D content. If only one of the connected displays is not 3D-capable, then none of the displays will show 3D content.
• To pass 3D content when not all displays support 3D, connect a 3D display to Output 1, then use the "learn EDID" procedure.
