ASD184 - Drill BLACK & DECKER - Free user manual and instructions
Find the device manual for free ASD184 BLACK & DECKER in PDF.
| Product type | Cordless drill/driver |
| Brand | Black & Decker |
| Model | ASD184 |
| Rated voltage | 18 V (model ASD184) |
| No-load speed | 0 – 800 min⁻¹ |
| Maximum torque | 16 Nm |
| Chuck capacity | 10 mm |
| Maximum drilling capacity (steel) | 10 mm |
| Maximum drilling capacity (wood) | 25 mm |
| Battery type | Li-Ion |
| Battery capacity | 1.1 / 1.3 / 1.5 Ah (depending on model) |
| Approximate charging time | 1.5 h (fast charger) |
| Weight (approx.) | 1.2 kg |
| Sound pressure level | 67.1 dB(A) |
| Vibrations (metal drilling) | < 2.5 m/s² |
| Main functions | Drilling, screwing, Autoselect™ technology, Autosense™ |
| Lighting | Integrated LED work light |
| Battery charge indicator | Charge level indicator on the tool |
| Rotation direction | Forward/Reverse with center lock |
| Maintenance | Regular cleaning of ventilation slots with a soft brush |
| Safety | Double insulation of charger, overload protection, complete safety instructions |
| Repairability | Repair by authorized Black & Decker service center only |
| Warranty | 24 months (excluding professional use or abuse) |
| Package contents | Drill, battery, charger, screwdriver bit, instruction manual |
Frequently Asked Questions - ASD184 BLACK & DECKER
User questions about ASD184 BLACK & DECKER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual ASD184 - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ASD184 by BLACK & DECKER.
USER MANUAL ASD184 BLACK & DECKER
ASD14
ASD18
A
Intended use
Your BLACK+DECKER, ASD14, ASD18 drill/screwdriver has been designed for screwdriving applications and for drilling in wood, metal, plastics and soft masonry. This tool is intended for consumer use only.
Safety instructions
General power tool safety warnings
Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
- Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
- Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
- Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Service
a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Additional power tool safety warnings
Warning! Additional safety warnings for drills and impact drills
-
Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.
◆ Use auxiliary handles supplied with the tool. Loss of control can cause personal injury. -
Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
- Hold power tool by insulated gripping surfaces when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock
- Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
◆ Before drilling into walls, floors or ceilings, check for the location of wiring and pipes. - Avoid touching the tip of a drill bit just after drilling, as it may be hot.
Safety of others
This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.
Residual risks.
Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.
Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:
◆ Injuries caused by touching any rotating/moving parts.
◆ Injuries caused when changing any parts, blades or accessories.
- Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
◆ Impairment of hearing.
◆ Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)
Vibration
The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.
Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.
When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.
Labels on tool
The following pictograms are shown on the tool along with the date code:
Warning! To reduce the risk of injury, the user must read the instruction manual.
Additional safety instructions for batteries and chargers
Batteries
◆ Never attempt to open for any reason.
◆ Do not expose the battery to water.
- Do not store in locations where the temperature may exceed 40 °C.
◆ Charge only at ambient temperatures between 10 °C and 40 °C.
◆ Charge only using the charger provided with the tool.
- When disposing of batteries, follow the instructions given in the section "Protecting the environment".
Do not attempt to charge damaged batteries.
Chargers
◆ Use your BLACK+DECKER charger only to charge the battery in the tool with which it was supplied. Other batteries could burst, causing personal injury and damage.
- Never attempt to charge non-rechargeable batteries.
◆ Have defective cords replaced immediately.
◆ Do not expose the charger to water.
◆ Do not open the charger.
◆ Do not probe the charger.
The charger is intended for indoor use only.
Read the instruction manual before use.
Electrical safety
Your charger is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating plate. Never attempt to replace the charger unit with a regular mains plug.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

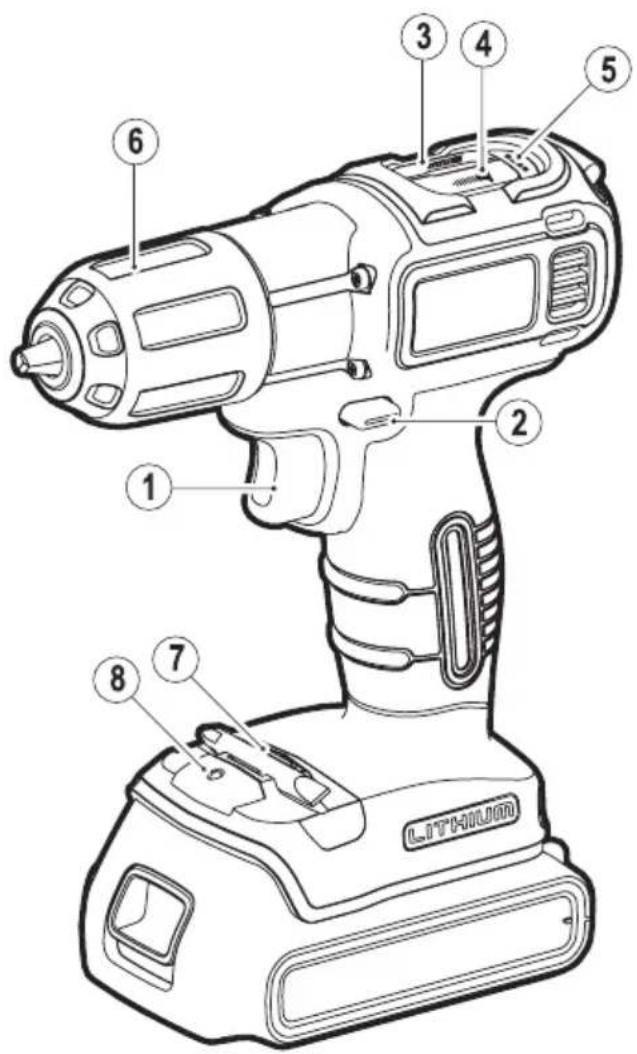

Features
This tool includes some or all of the following features.
- Variable speed switch
- Forward/reverse slider
- Drill mode selector
- Screwdriver mode selector
- State of charge indicator
- Single sleeve chuck
- Bit holder
- LED work light
Fig. A
- Battery
- Charger
- Charge Indicator
Assembly
Warning! Before assembly, remove the battery from the tool.

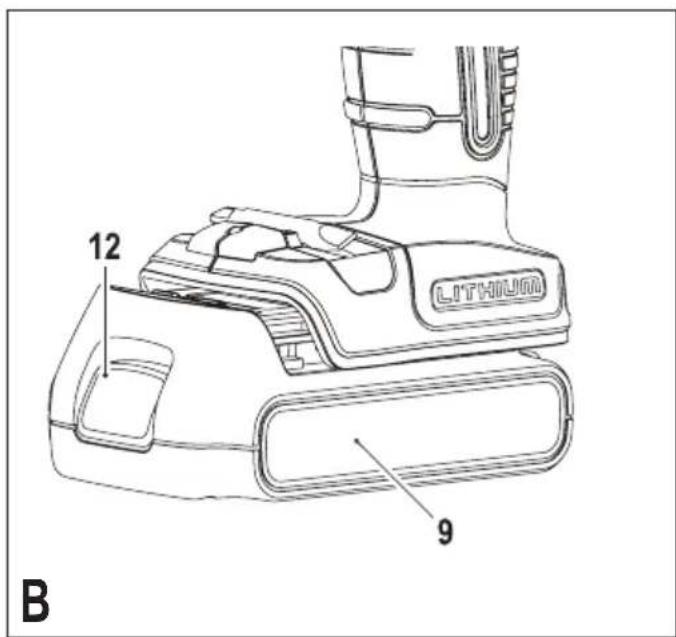

Fitting and removing the battery (fig. B)
- To fit the battery (9), line it up with the receptacle on the tool. Slide the battery into the receptacle and push until the battery snaps into place.
◆ To remove the battery, push the release button (12) while at the same time pulling the battery out of the receptacle.
Fitting and removing a drill bit or screwdriver bit
This tool is fitted with a keyless chuck to allow for an easy exchange of bits.
ENGLISH
(Original instructions)
◆ Lock the tool by setting the forward/reverse slider (2) to the centre position.
◆ Open the single sleeve chuck (6) by turning it.
- Insert the bit shaft into the chuck and firmly tighten the single sleeve chuck.
This tool is supplied with a screwdriver bit in the bit holder (7).
- To remove the screwdriver bit from the bit holder, lift the bit from the recess.
◆ To store the screwdriver bit, firmly push it into the holder.
- To remove the screwdriver bit from the bit holder, lift the bit from the recess. - To store the screwdriver bit, firmly push it into the holder.
Warning! Do not attempt to tighten drill bits (or any other accessory) by gripping the single sleeve chuck and turning the tool on. Damage to the single sleeve chuck and personal injury may occur when changing accessories.
Use
Warning! Let the tool work at its own pace. Do not overload.
Warning! Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.

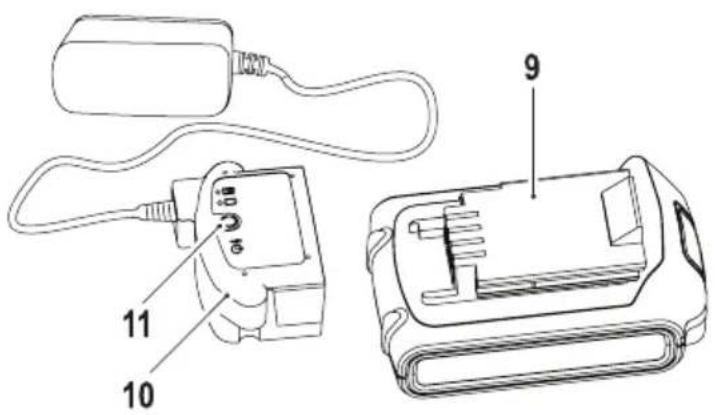

Charging the battery (fig. A)
The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before. The battery may become warm while charging; this is normal and does not indicate a problem.
Warning! Do not charge the battery at ambient temperatures below 10 °C or above 40 °C. Recommended charging temperature: approx. 24 °C.
Note: The charger will not charge a battery if the cell temperature is below approximately 10 °C or above 40 °C. The battery should be left in the charger and the charger will begin to charge automatically when the cell temperature warms up or cools down.

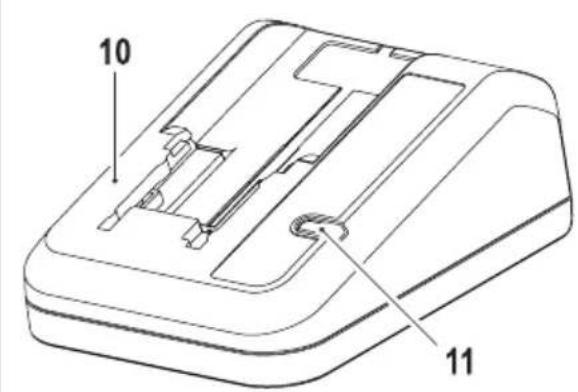

- To charge the battery (9), insert it into the charger (10). The battery will only fit into the charger in one way. Do not force. Be sure that the battery is fully seated in the charger.
◆ Plug in the charger and switch on at the mains.
The charging indicator (11) will blink.
The charge is complete when the charging indicator (11) switches to continuously on. The charger and the battery can be left connected indefinitely. The LED will switch on as the charger occasionally tops up the battery charge.
◆ Charge discharged batteries within 1 week. Battery life will be greatly diminished if stored in a discharged state.
Leaving the battery in the charger
The charger and battery pack can be left connected with the LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged.
Charger diagnostics
If the charger detects a weak or damaged battery, the charging indicator (11) will flash red at a fast rate. Proceed as follows:
◆ Re-insert the battery (9).
- If the charging indicators continues flashing red at a fast rate, use a different battery to determine if the charging process works properly.
- If the replaced battery charges correctly, the original battery is defective and should be returned to a service centre for recycling.
- If the new battery gives the same indication as the original battery, take the charger to be tested at an authorised services centre.
Note: It may take as long as 30 minutes to determine that the battery is defective. If the battery is too hot or too cold, the LED will alternately blink red, fast and slow, one flash at each speed and repeat.

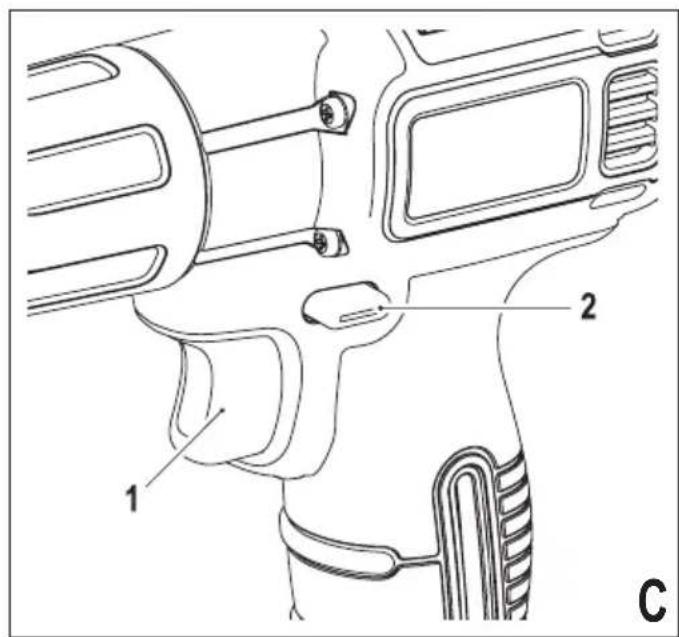

Selecting the direction of rotation (fig. C)
For drilling and for tightening screws, use forward (clockwise) rotation. For loosening screws or removing a jammed drill bit, use reverse (counterclockwise) rotation.
◆ To select forward rotation, push the forward/reverse slider (2) to the left.
- To select reverse rotation, push the forward/reverse slider to the right.
◆ To lock the tool, set the forward/reverse slider into the centre position.
Switching on and off
- Select forward or reverse rotation using the forward/ reverse slider (2).
◆ To switch the tool on, press the switch (1). The tool speed depends on how far you press the trigger switch.
◆ To switch the tool off, release the trigger switch.

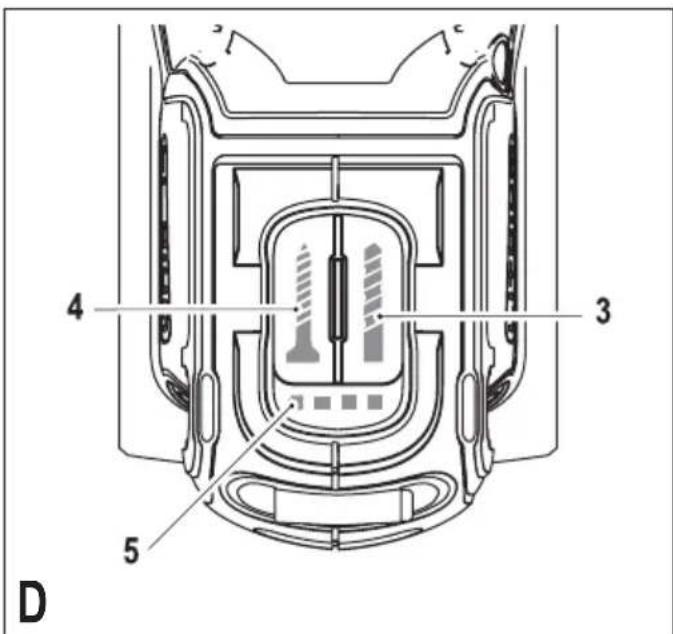

Autoselect™ technology (fig. D)
- For drilling in wood, metal and plastics, press the drill mode selector button (3).
- For screwdriving, press the screwdriver mode selector button (4).
Autosense™ technology
In screwdrive mode, this tool is equipped with Autosense™ technology that helps drive screws accurately and without effort.
- Select Screwdrive mode & ensure the forward/reverse (2) is pushed to the left.
◆ Pull the trigger switch (1) to drive a screw into the workpiece and the tool will automatically stop when the screw is flush to the workpiece.
If a deeper screw is desired, continue to hold the trigger switch. After a moment the drill will begin to rotate, to drive the screw to the desired depth at a more controllable pace.
- Once the desired depth is reached, release the trigger switch.
Note: If the screw stops half way, release the trigger switch (1) then press the trigger switch (1) to start again.
State of charge indicator (fig. D)
The tool is fitted with a state of charge indicator. This can be used to display the current level of charge in the battery during use.
- Press either the drill mode selector button (3) or the screwdriver mode selector button (4) to display the current state of charging.
LED work light
The LED work light (8) is activated automatically when the trigger is depressed. The LED work light will illuminate when the trigger is partially depressed, before the unit begins running.
Hints for optimum use
Drilling
◆ Always apply a light pressure in a straight line with the drill bit.
- Just before the drill tip breaks through the other side of the workpiece, decrease pressure on the tool.
- Use a block of wood to back up workpieces that may splinter.
◆ Use spade bits when drilling large diameter holes in wood.
◆ Use HSS drill bits when drilling in metal.
- Use a lubricant when drilling metals other than cast iron and brass.
◆ Make an indentation using a centre punch at the centre of the hole to be drilled in order to improve accuracy.
Screwdriving
◆ Always use the correct type and size of screwdriver bit.
- If screws are difficult to tighten, try applying a small amount of washing liquid or soap as a lubricant.
◆ Always hold the tool and screwdriver bit in a straight line with the screw.
Maintenance
Your BLACK+DECKER tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
Your charger does not require any maintenance apart from regular cleaning.
Warning! Before performing any maintenance on the tool, remove the battery from the tool. Unplug the charger before cleaning it.
- Regularly clean the ventilation slots in your tool and charger using a soft brush or dry cloth.
- Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
- Regularly open the chuck and tap it to remove any dust from the interior.
Protecting the environment
Separate collection. This product must not be disposed of with normal household waste.
Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again.
Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
BLACK+DECKER provides a facility for the collection and recycling of BLACK+DECKER products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com
Batteries
Run the battery down completely, then remove it from the tool.
◆ NiCd, NiMH and Li-Ion batteries are recyclable. Take them to any authorised repair agent or a local recycling station.
Technical data
| ASD14 (H2) ASD18 (H2) | ||
| Voltage | V_DC | 14.4 18 |
| No-load speed | Min^-1 | 0-650 0-800 |
| Max. torque(PTI Rating) | Nm 13 16 | |
| Chuck capacity | mm 10 10 | |
| Max Drilling capacity | ||
| Steel/wood | mm 10/25 10/25 | |
| Charger 905531** typ. 1 905998** (typ. 1) | ||
| Input Voltage | V_AC | 100 - 240 230 |
| Output Voltage | V_DC | 8 - 20 18 |
| Current mA 400 1000 | ||
| Approx. charge time h 3 - 5 | 1.5 | |
| Battery | BL1114 | BL1314 BL1514 | ||
| Voltage | V_DC | 14.4 14.4 14.4 | ||
| Capacity | Ah | 1.1 | 1.3 | 1.5 |
| Type | Li-Ion | Li-Ion | Li-Ion | |
| Battery | BL1118 | BL1318 BL1518 | ||
| Voltage | V_DC | 18 | 18 | 18 |
| Capacity | Ah | 1.1 | 1.3 | 1.5 |
| Type | Li-Ion | Li-Ion | Li-Ion | |
| Level of sound pressure according to EN 60745: |
| Sound pressure (LpA) 67.1 dB(A), uncertainty (K) 3 dB(A) |
| Sound power (LWA) 78.1 dB(A), uncertainty (K) 3 dB(A) |
| Vibration total values (triax vector sum) according to EN 60745: |
| Drilling into metal ( a_h,D ) < 2.5 m/s ^2 , uncertainty (K) 1.5 m/s ^2 Screwdriving without impact ( a_h,s ) < 2.5 m/s ^2 , uncertainty (K) 1.5 m/s ^2 |
EC declaration of conformity MACHINERY DIRECTIVE
ASD14, ASD18 - Drill/Screwdriver
Black & Decker declares that these products described under "technical data" are in compliance with:
2006/42/EC, EN 60745-1:2009 +A11:2010 EN 60745-2-1:2010
These products also comply with Directive 2004/108/EC (until 19/04/2016) 2014/30/EU (from 20/04/2016) and 2011/65/EU.
For more information, please contact Black & Decker at the following address or refer to the back of the manual.
The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.
R. Laverick
Engineering Manager
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
United Kingdom
18/06/2015
Guarantee
Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:
- The product has been used for trade, professional or hire purposes;
◆ The product has been subjected to misuse or neglect; - The product has sustained damage through foreign objects, substances or accidents;
◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.
To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com
Please visit our website www.blackanddecker.co.uk to register your new BLACK+DECKER product and to be kept up to date on new products and special offers. Further information on the BLACK+DECKER brand and our range of products is available at www.blackanddecker.co.uk
Black & Decker Europe, 210 Bath Road, Slough, Berkshire,
SL1 3YD
Großbritannien
18/06/2015
Garantie
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Royaume-Uni
18/06/2015
Garantie
ASD14, ASD18-Trapano, cacciavite
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Regno Unito
18/06/2015
Garanzia
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Verenigd Koninkrijk
18/06/2015
Garantie
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Reino Unido
18/06/2015
Garantía
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Reino Unido
18/06/2015
Garantia
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Storbritannien
18/06/2015
Garanti
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Storbritannien
18/06/2015
Garanti
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Ηνωμένο Βασίλειο
18/06/2015
Εγγύηση
- Intended use
- Safety instructions
- General power tool safety warnings
- Additional power tool safety warnings
- Safety of others
- Residual risks.
- Vibration
- Labels on tool
- Additional safety instructions for batteries and chargers
- Batteries
- Do not attempt to charge damaged batteries.
- Chargers
- Electrical safety
- Features
- Fig. A
- Assembly
- Fitting and removing the battery (fig. B)
- Fitting and removing a drill bit or screwdriver bit
- ENGLISH
- (Original instructions)
- Use
- Charging the battery (fig. A)
- Leaving the battery in the charger
- Charger diagnostics
- Selecting the direction of rotation (fig. C)
- Switching on and off
- Autoselect™ technology (fig. D)
- Autosense™ technology
- State of charge indicator (fig. D)
- LED work light
- Hints for optimum use
- Drilling
- Screwdriving
- Maintenance
- Protecting the environment
- EC declaration of conformity MACHINERY DIRECTIVE
- ASD14, ASD18 - Drill/Screwdriver
- Guarantee
- Garantie
- ASD14, ASD18-Trapano, cacciavite
- Garanzia
- Garantía
- Garantia
- Garanti
- Εγγύηση
Brand : BLACK & DECKER
Model : ASD184
Category : Drill
