Product Type	Range Hood
Brand	Gorenje
Model	GHV62B
Installation Type	Ducted or Recirculating (Filter Version)
Width	60 cm
Depth	50 cm
Height (min-max)	60 - 110 cm
Weight	18 kg
Power Supply	220-240 V, 50 Hz
Motor Power	250 W
Lighting	LED, integrated
Number of Lights	2
Light Power	3 W each
Motor Speeds	9 + 2 Intensive (Speeds 1-11)
Control Type	Touch with Slider
Suction Panel	Perimetric Suction Panel
Auto Ventilation	Yes, with sensor
Timer	10/20/30 minutes
Refresh Function	Yes (24h)
Grease Filter	Washable metal, monthly cleaning
Charcoal Filter	Replaceable every 4 months (filter version)
Filter Saturation Indicator	Grease (40h) and Charcoal (160h)
Minimum Distance from Hob	45 cm (electric), 50 cm (gas)
Safety Features	Automatic shut-off, thermal protection

Frequently Asked Questions - GHV62B GORENJE

What is the minimum installation height above the hob?

The minimum distance between the cooking surface and the lowest part of the hood is 45 cm for electric cookers and 50 cm for gas or mixed cookers. Always follow the hob manufacturer's instructions if they specify a higher distance.

How do I clean the grease filter?

The grease filter should be cleaned at least once a month. You can wash it in a dishwasher on a low temperature (max 70°C) and short cycle. Use non-aggressive detergents. After washing, dry it in an oven at max 100°C for one hour. Replace it every 2 years.

How often should I replace the charcoal filter?

The charcoal filter (used in recirculating mode) should be replaced every 4 months or when the saturation indicator (T9 flashing) alerts you. It cannot be washed or regenerated.

Can the hood be used in ducted or recirculating mode?

Yes, the GHV62B can be used both as a ducting version (fumes expelled outside) and as a filter version (recirculating). In filter version, you need to install a charcoal filter (not supplied).

How do I activate the auto ventilation function?

Press the T3 button. The hood will start at speed 2 and automatically adjust based on a sensor. To deactivate, press T3 again. If the sensor fails, an acoustic signal sounds for 10 seconds.

What do the different timer settings do?

Press T8 repeatedly to set a timer for 10, 20, or 30 minutes. After the set time, the hood switches off automatically. The timer works only when the hood is on (not during timing or auto ventilation).

How do I calibrate the sensor?

With the motor off, press T4 for 5 seconds. Calibration lasts 15 minutes with the motor running. Perform this at first switch-on, when changing hob type, or if auto ventilation malfunctions. Calibrate in an odor-free environment.

What do the filter saturation indicators mean?

The grease filter indicator (T9 lit) lights after 40 hours of use, prompting a wash. The charcoal filter indicator (T9 flashing) warns after 160 hours, prompting replacement. Reset by pressing T9 with the hood off.

What should I do if the lights don't work?

The hood uses integrated LED lights that cannot be replaced by the user. If they fail, contact Technical Service for replacement.

Is it safe to use the hood with gas hobs?

Yes, but ensure the room is well-ventilated. The hood must not be used simultaneously with gas appliances unless sufficient ventilation is provided. Never use open flames under the hood, and monitor frying to prevent oil fires.

USER MANUAL GHV62B GORENJE

EN Instruction on mounting and use

5

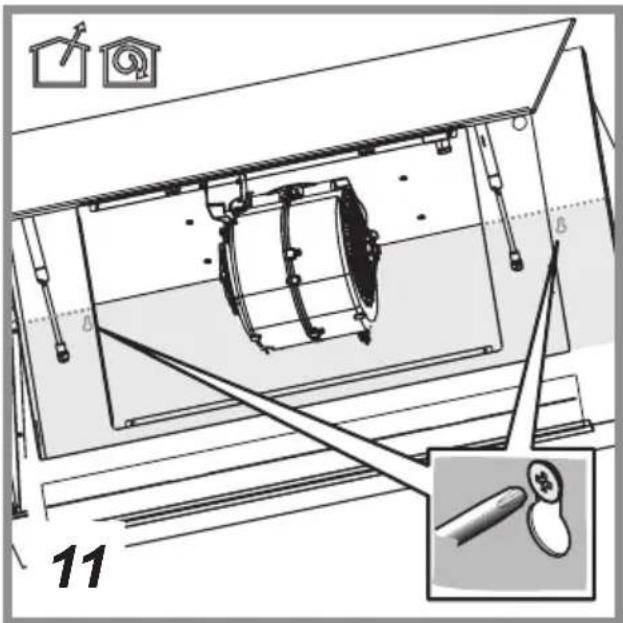

Technical diagram of a mechanical assembly with labeled components and an inset view showing a tool interacting with a component (no readable text or symbols)

Technical diagram showing mechanical assembly with a hammer and gear, a downward arrow, and a grid-patterned path (no text or symbols)

DIGESTOŘ

C

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.

! Read the instructions carefully: there is important information about installation, use and safety.

! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

CAUTION

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected to any existing ventilation

system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1;
  ISO 5167-3; ISO 5168; EN/IEC 60704-1;

EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Additional Installation Specifications:

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

USE

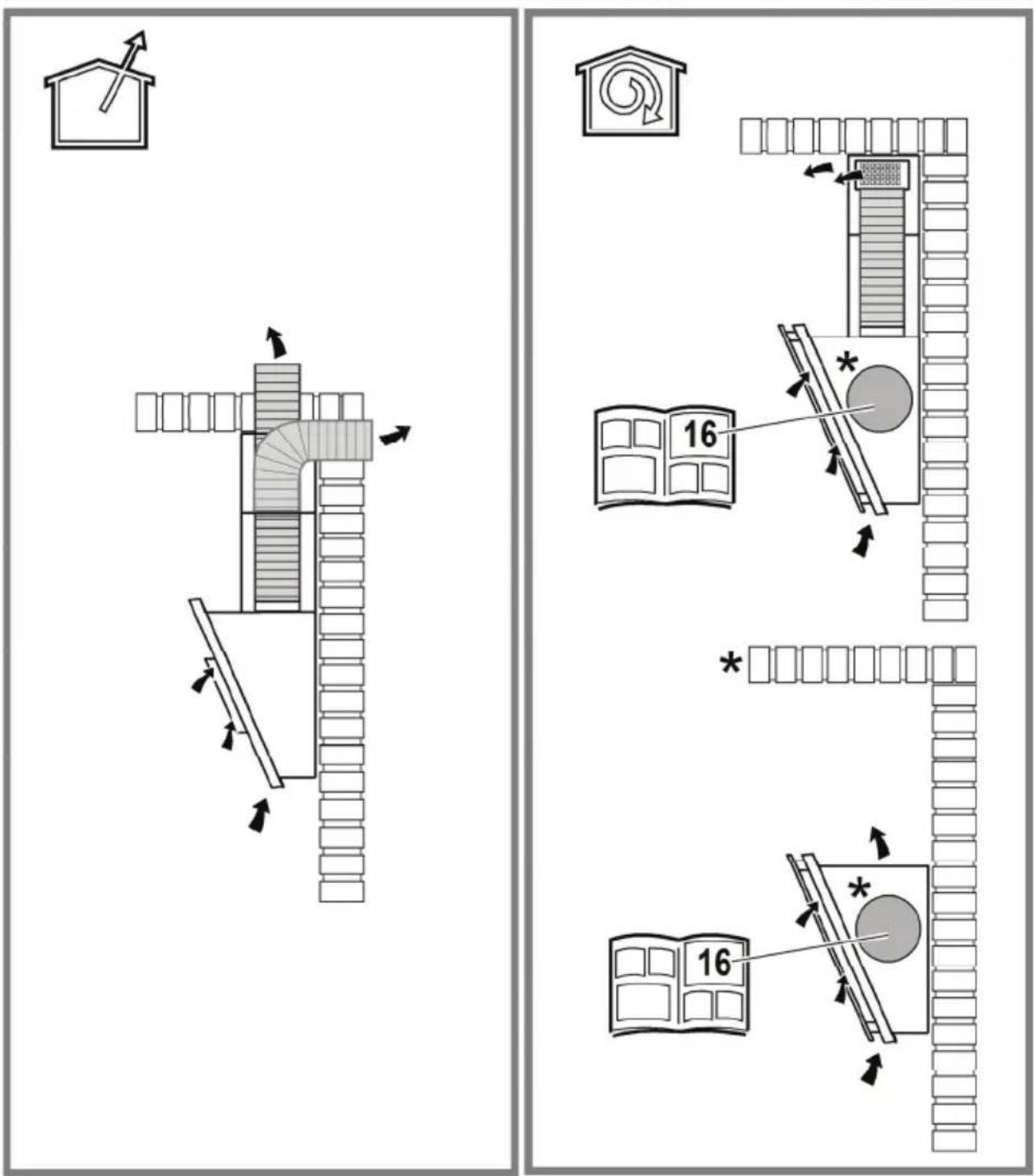

The hood is designed to be used either for exhausting or filter version.

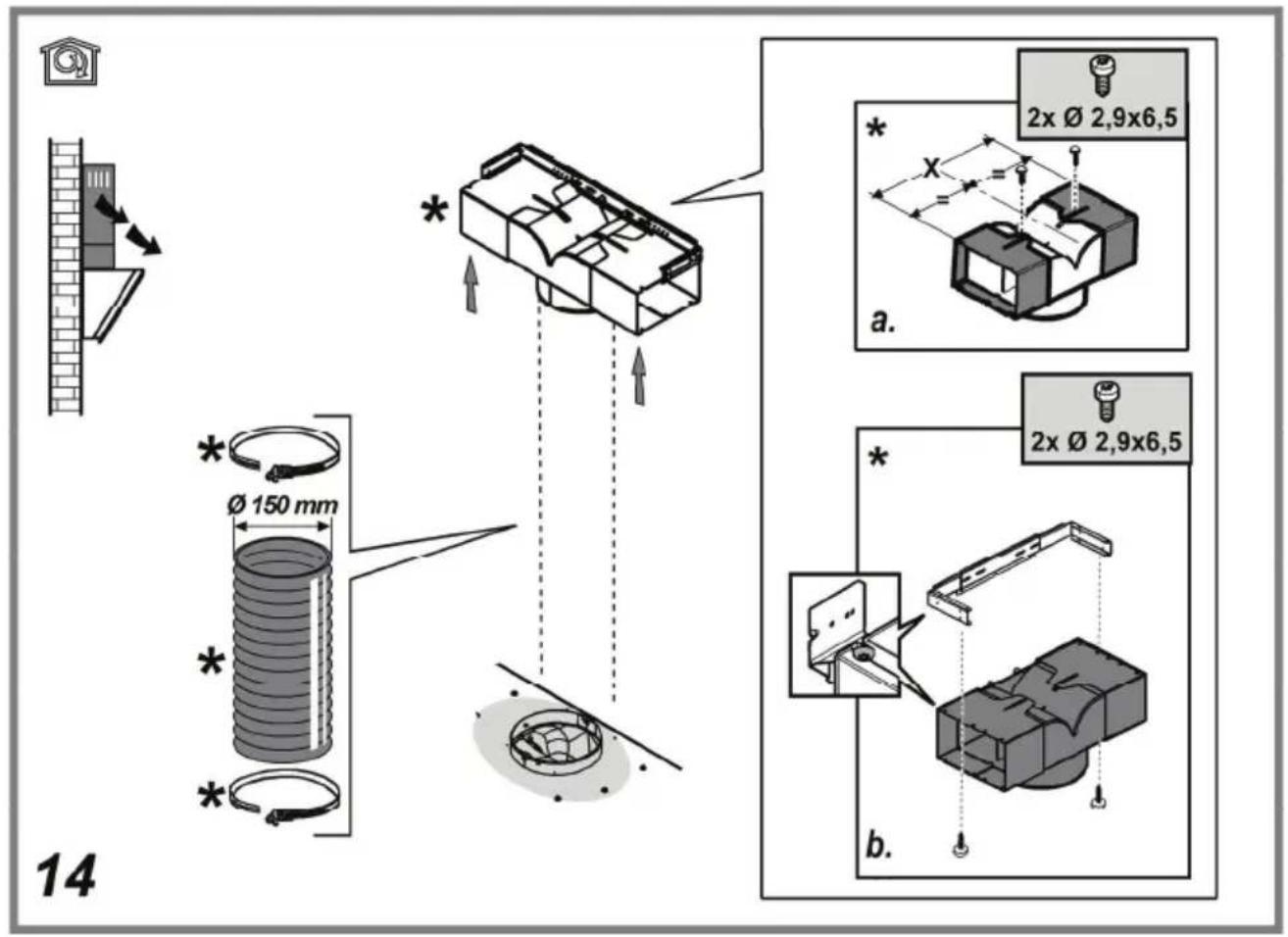

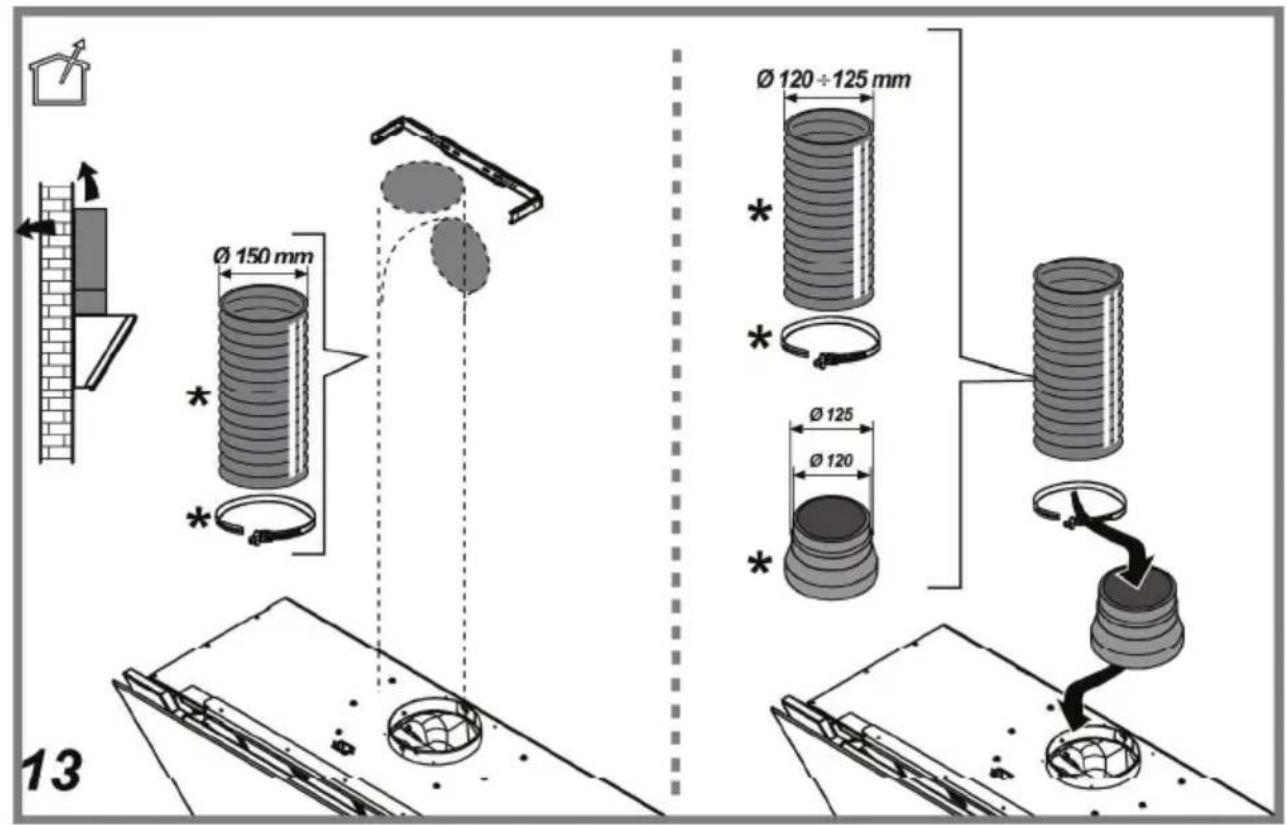

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from

the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90^ ).

! Avoid drastic changes in the duct cross-section.

! Use a duct as smooth as possible inside.

! The duct must be made of certified material.

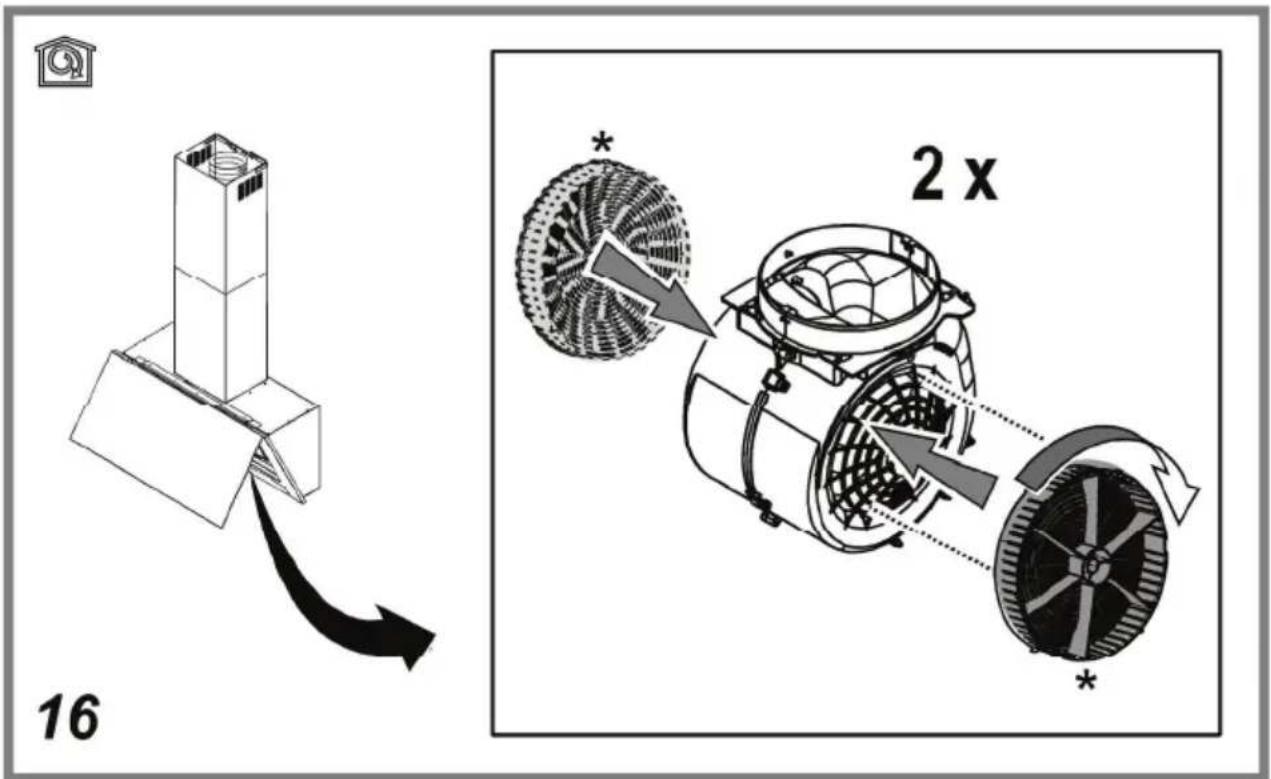

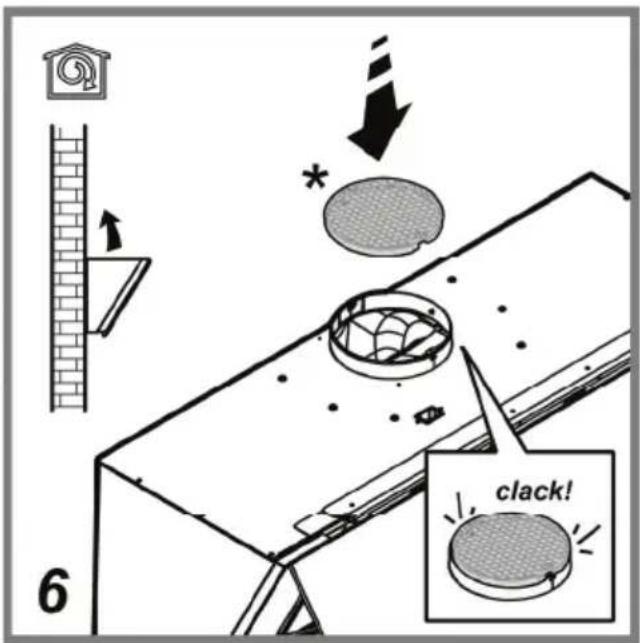

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer. The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

INSTALLATION

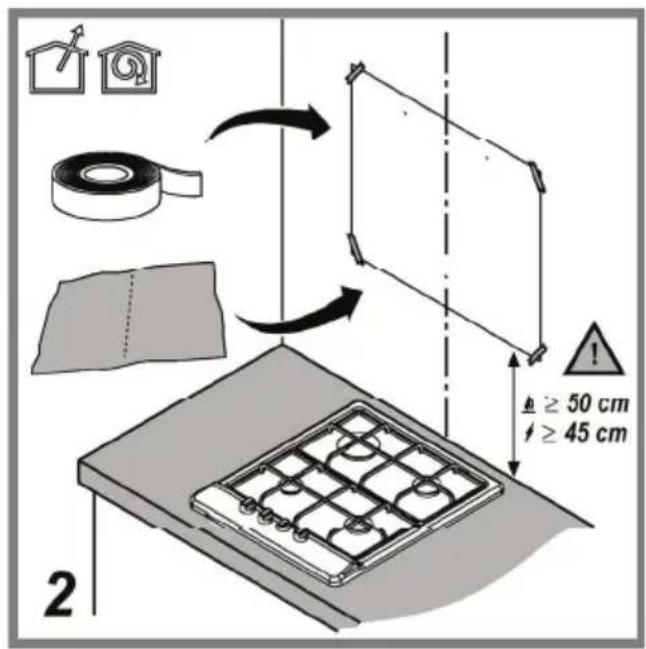

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 45cm from electric cookers and 50cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

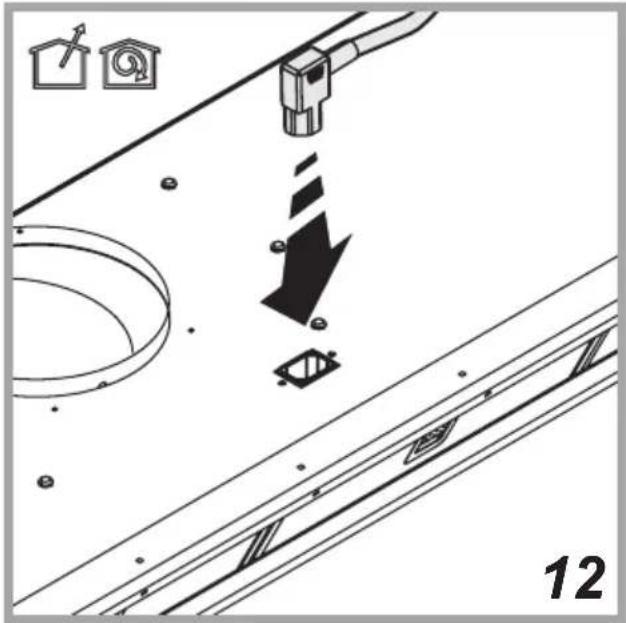

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

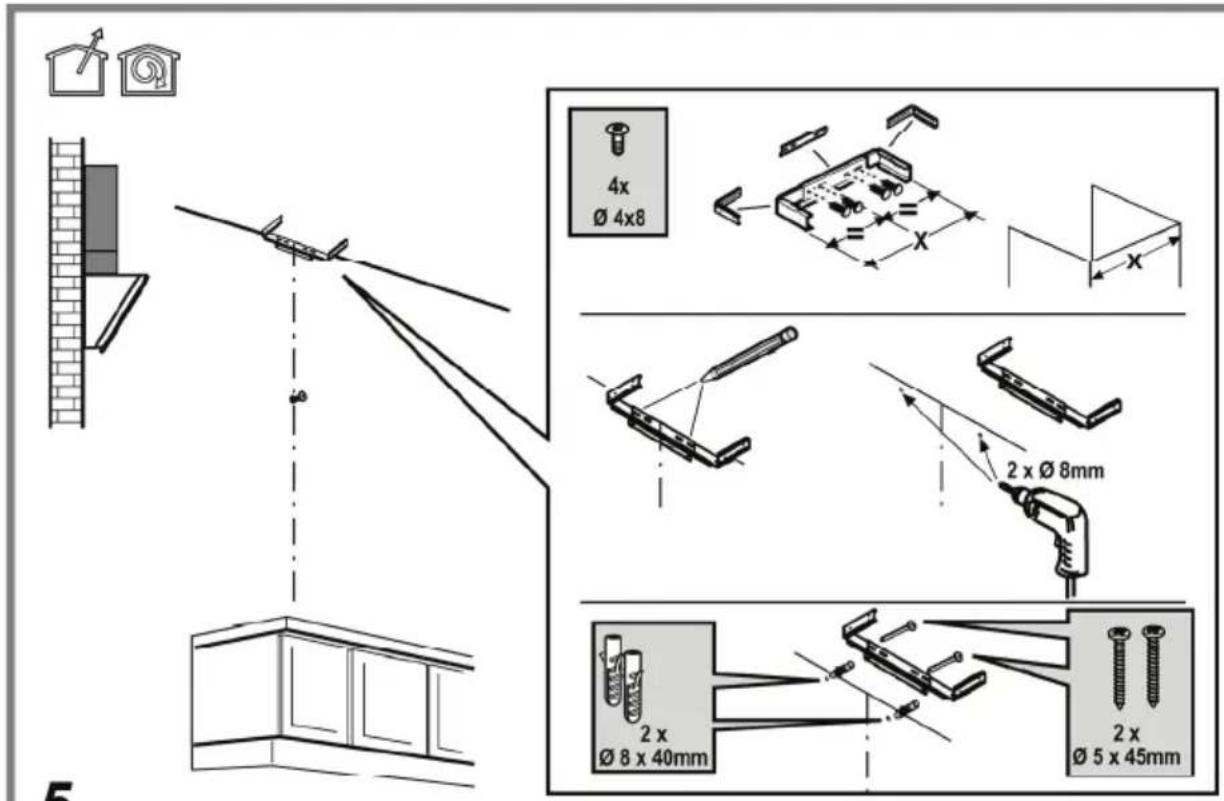

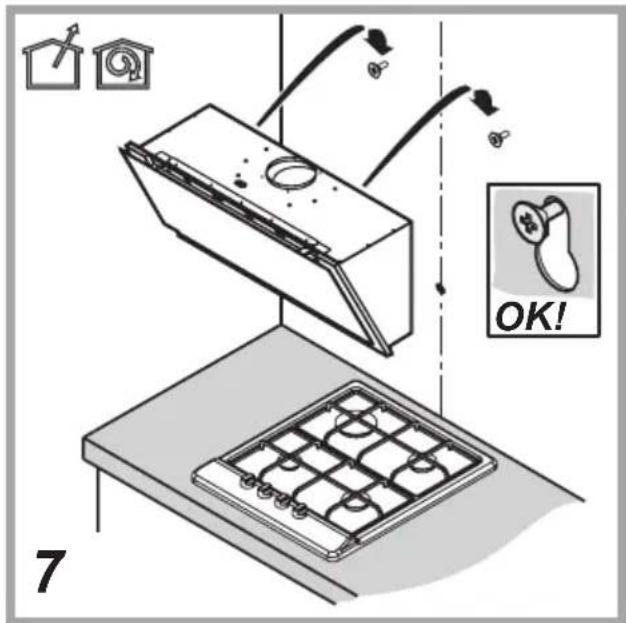

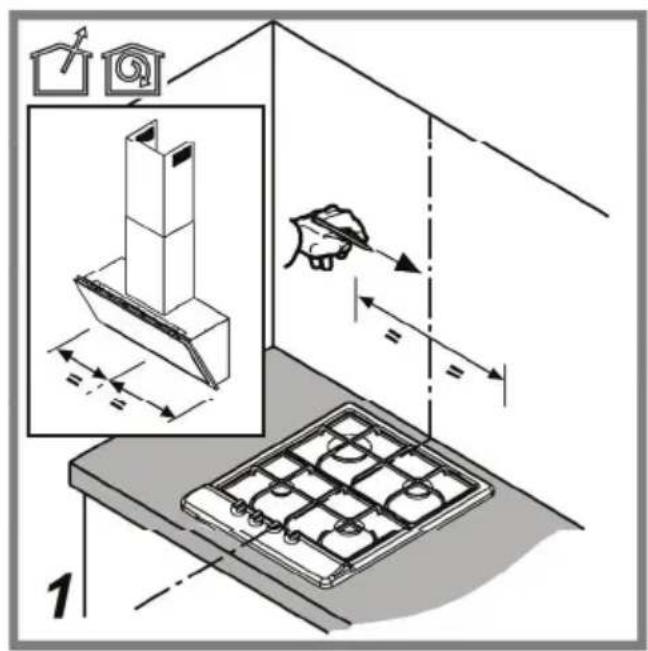

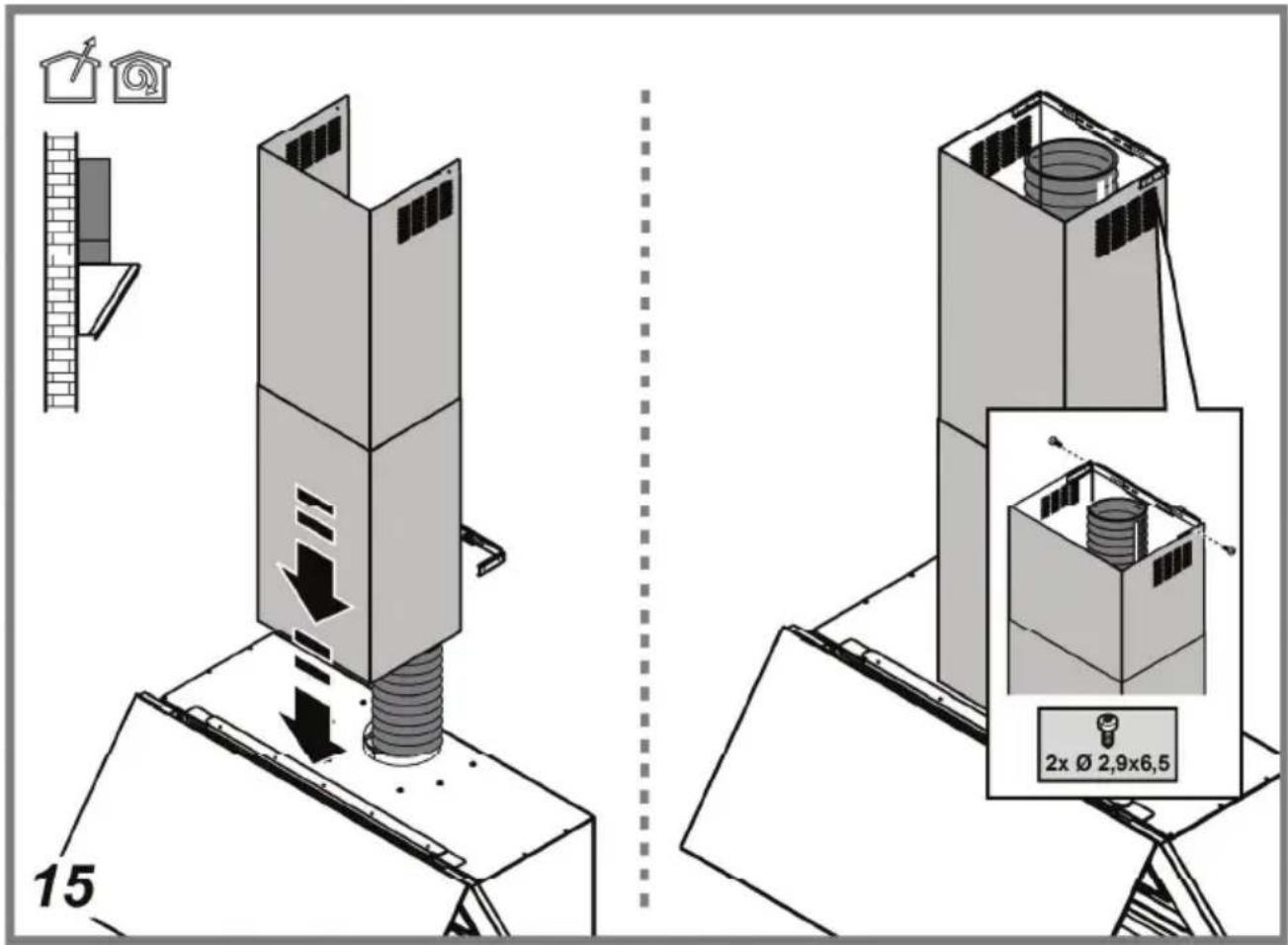

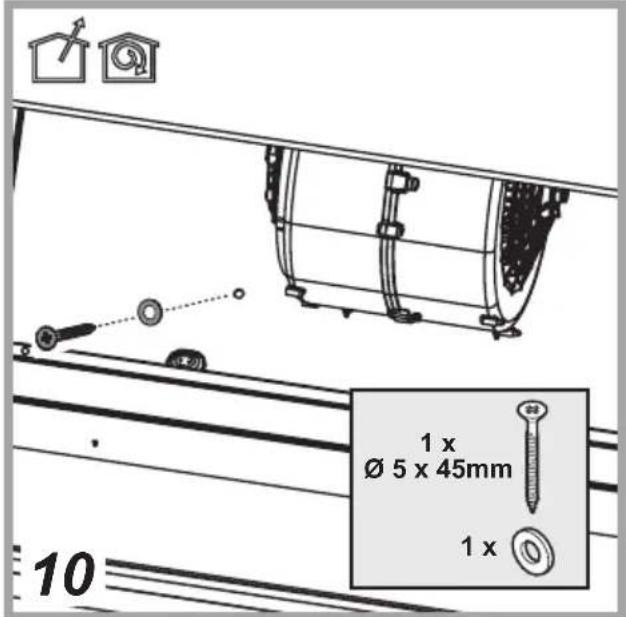

Mounting

Very heavy product; hood handling and installation must be carried out by at least two persons.

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.

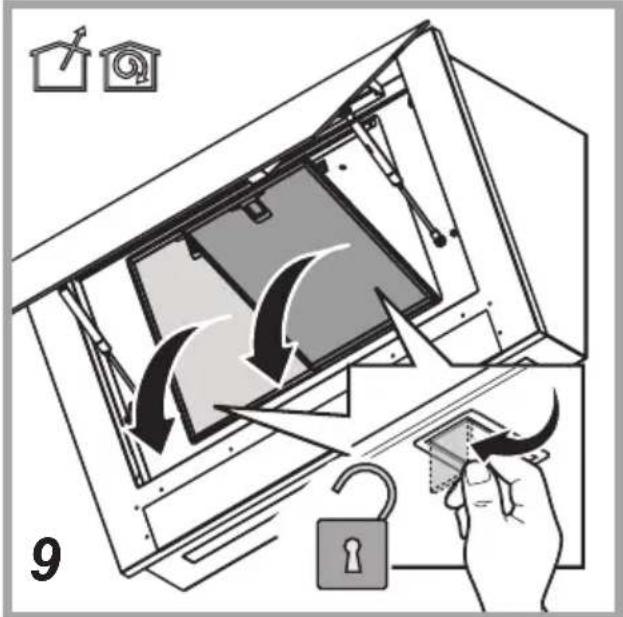

• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these

is/are to be mounted only if you want lo use the hood in the filtering version.

• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (*), guarantees (*), etc.), eventually removing them and keeping them.
• If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.
• In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available and it is possible to connect a fumes discharge device to the outside (only suction version).
• Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube).

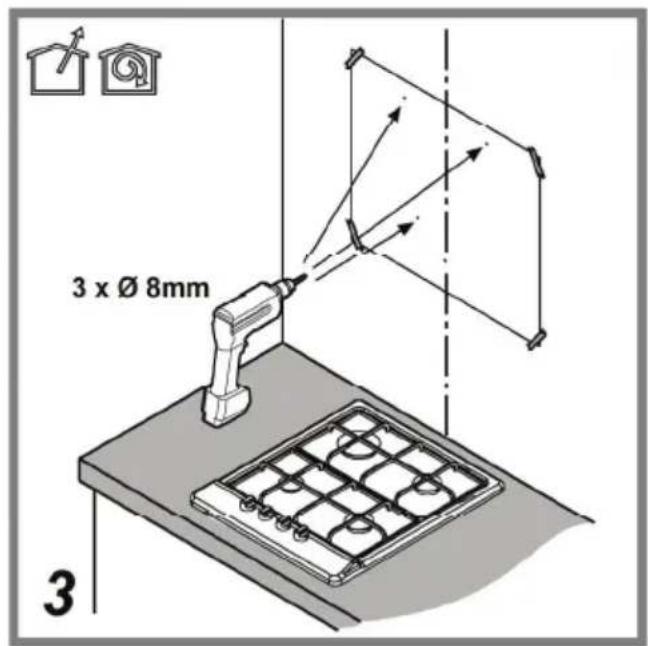

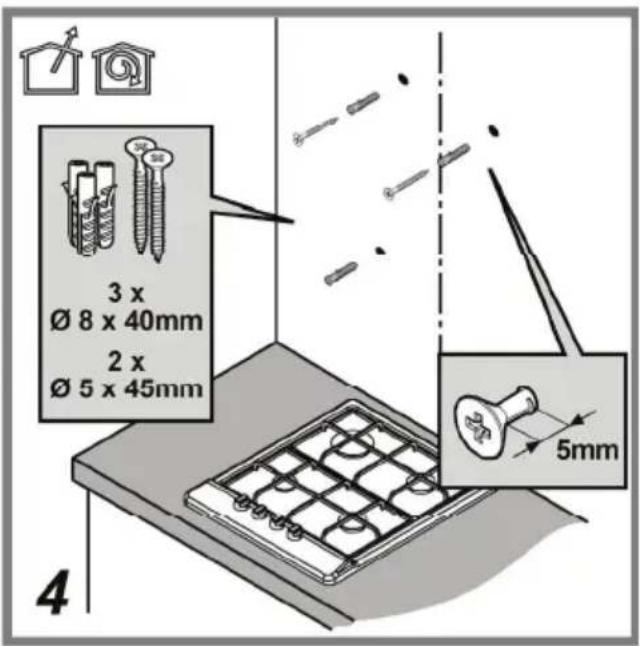

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

OPERATION

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

This model is equipped with a perimetric suction panel.

The panel allows to optimize the performances of the hood.

T1 - ON/Stand By

- select T1 to access, set and start any function of the hood:

the control icons, which can be selected by the user, will be lit (low intensity light)

NB = icon T9 will remain off since it is a saturation indicator. It will however be possible to access settings by following the procedure described in paragraph “Charcoal filter/grease filter use status”.

T2 - Light ON/OFF

SL1 - Increase/Decrease light intensity

• press T2 to switch the lights on
• skim your finger to the right over the control to increase the intensity of the light (intensity 1 --- > intensity 9);
• skim your finger to the left over the control to decrease the intensity of the light

(intensity 9 --- > intensity 1);

- press T2 to switch the lights off

NB = the light switches on for the first time, by default, with intensity 1; it will subsequently light up with the intensity it had when it was switched off.

T3 - Auto Ventilation

• press T3 to activate the auto ventilation function
• the suction speed will initially start at the second speed, then it will be automatically set by the sensor.
• press T3 to deactivate the auto ventilation NB = the auto ventilation function will deactivate itself if the user operates other functions that adjust speed during auto ventilation.
  NB= if the sensor cannot connect properly, the motor will not switch on and an acoustic signal will be triggered for 10 seconds.

NB - special cases of sensor operation

1) if the sensor sets the "Timing or Timing x2" speed, suction will still return to the ninth speed after 5 minutes;
2) if there are no speed variations for 10 minutes, the hood switches off and the auto ventilation function is deactivated;

Hob selection

This operation optimises the operation of the hood in auto ventilation mode; with the motor off, proceed as follows:

• press T3 for 5 seconds:
  T5 and T6 switch on.
• press T5 to select the Gas cooktop; press T6 to select the Electric cooktop:
  NB = the gas cooktop is selected by default

Sensor calibration

This operation is important for correct operation of the sensor, which regulates the hood in auto ventilation mode; it must be performed:

• at the first switch-on of the hood
• when selecting/changing the hob
• whenever any malfunctioning of the hood

in auto ventilation mode is detected

If possible, perform calibration in an odour-free environment with no “cooking events” in progress.

For sensor calibration, proceed as follows:

- press T4 for 5 seconds, with the motor switched off.

Calibration will last 15 minutes with:

- motor switched on according to speed

- T4 flashing;

If calibration has been performed correctly:

- the motor switches off

- T4 switches off (low-intensity light)

NB = press T4 for 5 seconds to stop calibration; calibration will result cancelled and must be repeated.

T4 - Motor ON/OFF

SL2 - Increase/Decrease motor speed

- press T4 to switch on the motor

- skim your finger to the right over the control to increase the motor speed(speed 1 --- > speed 9);

- skim your finger to the left over the control to decrease the motor speed(speed 9 --- > speed 1);

- press T4 to switch off the motor

T5 - Timing

(intensive : speed 10)

- press T5 to activate the timing function: the hood will remain at speed 10 for 5 minutes, then it will go back to the previous setting;

- press T5 to deactivate the timing function.

T6 - Timing X2

(intensive : speed 11)

- press T6 to activate the timing function

- the hood will remain at speed 11 for 5 minutes, then it will go back to the previous setting;

- press T6 to deactivate the timing function.

24h

T7 - Refresh function

- press T7 to activate the refresh function

- 50 minutes after being switched off, the hood switches on again automatically at speed 1 for 10 minutes; then it will switch off again.

- press T7 to deactivate the refresh function NB = the function is active when T7 is lit

T8 - Timer/Automatic switch off

- press T8 to activate the function (manually when the hood is on - not with timing or auto ventilation),

10' - on pressing once, the time will be set to switch off after 10 minutes; NB = the function is active when T8-1 is lit

20' - on pressing twice, the timer will be set to switch off after 20 minutes; NB = the function is active when T8-2 is lit

30' - on pressing three times, the timer will be set to switch off after 30 minutes; NB = the function is active when T8-3 is lit

after selecting the desired time, release T8; the countdown will start after 5 seconds.

- after the set time has elapsed, the hood will switch off automatically

T9 - Charcoal filter use status

- to activate the function, press T8+T9 simultaneously for three seconds with the hood switched off; NB = T9 lights up, the function is activated - to deactivate the function, press T8+T9 simultaneously for three seconds with the hood switched off; NB = T9 flashes, the function is deactivated.

The charcoal filter saturation warning is displayed after 160 hours of use and is signalled by T9 flashing; when this warning appears, the carbon filter must be replaced. After performing maintenance:

- press T9 with the hood switched off to deactivate the warning, and restart the countdown relating to the charcoal filter efficiency.

- Grease filter use status

- the function is always active

The grease filter saturation warning is displayed after 40 hours of use and is signalled by T9 lighting up; when this warning is displayed, the grease filter must be washed.

After performing maintenance:

- press T9 with the hood switched off to deactivate the warning, and restart the countdown relating to the grease filter efficiency.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

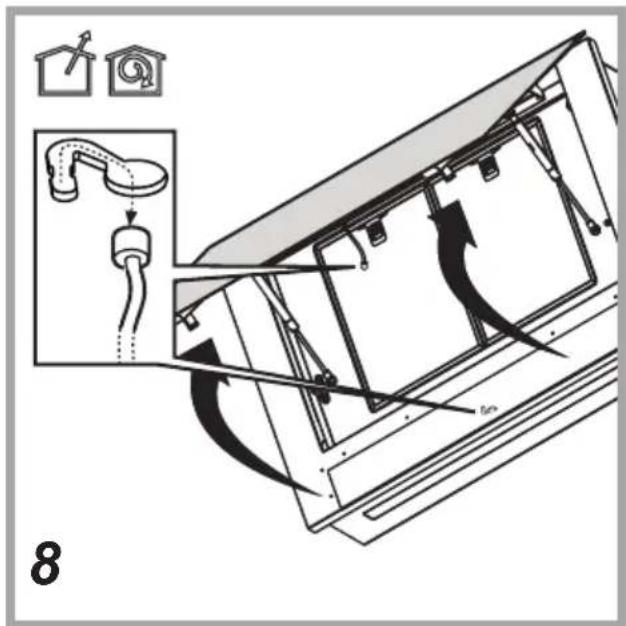

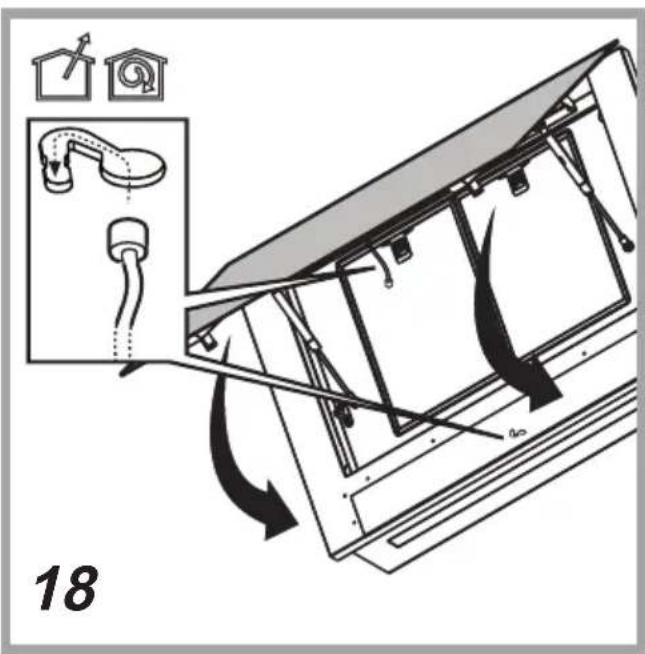

Panel

Fig. 8-18

Clean the perimeter aspiration panel with the same frequency as the ant-fats filter, using a cloth and not too concentrated liquid detergent. Do not use abrasive substances.

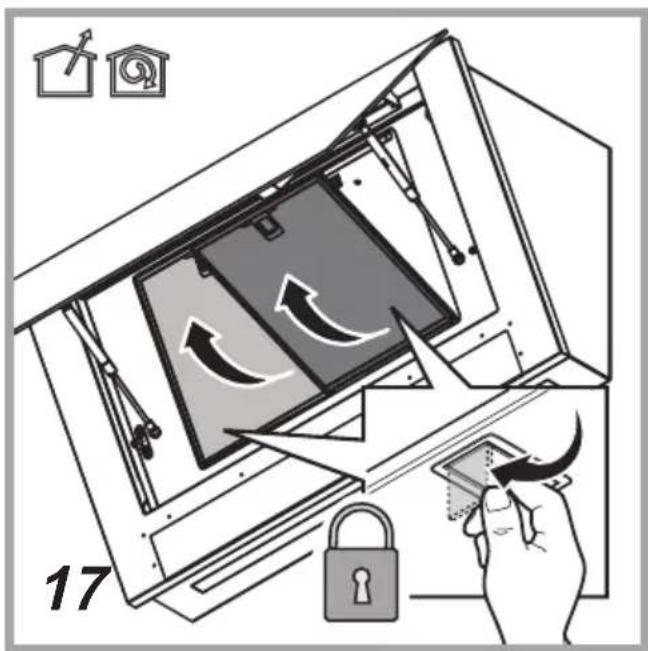

Grease filter

Fig. 9-17

Traps cooking grease particles.

This must be cleaned at least once a month (or when the filter saturation indication system - envisaged on the model in possession - indicates this necessity), using non-aggressive detergents, in a dishwasher, which must be set to a low temperature and a short cycle (Tmax: 70°C).

When washed in a dishwasher, metal parts may discolour slightly.

The filter must be dried in an oven for one hour at a max temperature of 100^ C; if the filter is still moist, repeat the operation.

Replace the filter at least every 2 years.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig. 16

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity). The charcoal filter may NOT be washed or regenerated.

Circular carbon filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise.

For the disassembly, turn counter-clockwise.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.

E M H Æ T T E
