KX-MB1663CN - Printer PANASONIC - Free user manual and instructions

Product Type	Multifunction Laser Printer
Brand	Panasonic
Model	KX-MB1663CN
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 18 ppm (monochrome)
Print Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 18 cpm
Scan Resolution	Up to 600 x 600 dpi
Paper Input Capacity	150 sheets
Paper Output Capacity	50 sheets
Paper Sizes	A4, Letter, Legal
Connectivity	USB 2.0, Ethernet 10/100 Base-TX
Dimensions (W x D x H)	Approx. 400 x 380 x 300 mm
Weight	Approx. 10 kg
Power Supply	AC 220-240V, 50/60 Hz
Power Consumption	Approx. 1000 W (peak), 10 W (standby)
Consumables	Toner cartridge (e.g., TN-2510), Drum unit (e.g., DR-1215)
Maintenance	Replace toner and drum as needed; clean interior regularly
Safety	Do not block vents; use only authorized supplies
Reparability	Authorized service centers; some parts user-replaceable

Frequently Asked Questions - KX-MB1663CN PANASONIC

How do I clear a paper jam?

Open the front cover, remove the drum and toner unit, gently pull out the jammed paper from rollers. Close cover and press OK.

How do I replace the toner cartridge?

Open the front cover, lift the toner cartridge handle, pull it out, unpack new cartridge, shake gently, insert until it clicks, close cover.

How do I connect the printer to my computer via USB?

Connect a USB cable from the printer to your computer. Turn on printer. Install the driver from the included CD or Panasonic website.

How do I scan a document to my computer?

Place document on scanner glass or ADF. Install Panasonic Scan Utility on your computer. Select scan function on printer or computer.

How do I set up fax?

Connect a phone line to the LINE port on the printer. Configure fax settings in the menu: date, time, header, and country.

How do I print double-sided?

This printer supports manual duplex. Print odd pages first, then reload the output stack into the paper tray to print even pages on the reverse.

What toner cartridge does this model use?

It typically uses Panasonic TN-2510 toner cartridge. For drum, use DR-1215 drum unit.

How do I clean the printer?

Turn off and unplug. Use a dry, lint-free cloth to wipe the exterior and paper tray. Do not use liquids or sprays inside.

What does error code E-01 mean?

E-01 indicates a paper jam. Open all covers and remove any jammed paper. Check the registration area and fuser unit.

How do I perform a factory reset?

Press Menu, choose Initial Setup, then Factory Reset. Confirm with Yes. The printer will restart with default settings.

USER MANUAL KX-MB1663CN PANASONIC

Model

KX-MB1663CN KX-MB1665CN KX-MB1666CN KX-MB1667CN KX-MB1678CN KX-MB1679CN

You can select English for the display and report (feature #110, page 51).

Best Usage Tips

Daily Maintenance

Illegal Copying

- Copying certain documents is illegal.

⑦ Paper tray ⁴

⑧ Handset

⑨ Handset cord

① Paper output slot

* The model shown in this image is KX-MB1666 KX-MB1667 KX-MB1678 KX-MB1679.

2 Remove the drum unit (①) preinstalled in the machine.

- Hold the drum unit by its center handle.

3 Remove the protective paper (①) from the drum unit.

6 Close the front cover.

When to Add Toner/When to Replace the Drum

When to Add Toner

① [EXT. INTERFACE] connector

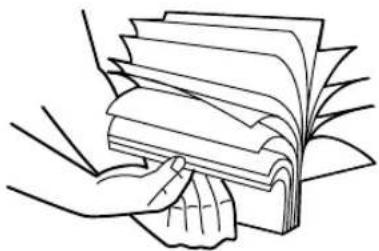

2 Fluff the paper before loading to prevent paper jams.

1. Introduction and Installation

3 Load the paper with the print side facing down (①).

Important:

5 Insert the paper tray into the machine.

Note:

Paper Tray Precautions

- Do not drop the paper tray.

Note:

- To print from the manual feed tray:

2 Install the receiving tray.

Note:

4 KX-MB1663 KX-MB1665:

Go to step 5.

KX-MB1666 KX-MB1667 KX-MB1678

KX-MB1679, USB connection:

KX-MB1666 KX-MB1667 KX-MB1678

KX-MB1679, LAN connection:

扫描方式	TIFF JPEG BMP PDF
“阅览器”*1	● ● ● ●
“文件”*1	● ● ● ●
“电子邮件”*1	● ● - ●
“OCR”*1	● ● ● -
“电子邮件地址”*2*3	● ● - ●
“FTP 服务器”*2*3	● ● - ●
“SMB 文件夹”*2*3	● ● - ●

KX-MB1666 KX-MB1667 KX-MB1678 KX-MB1679

3 [Add to exception list] → [OK] → [OK]

Case 1:

When the recording paper is jammed inside the rear cover:

1. Open the rear cover (①).

Caution:

- The fusing unit (②) becomes hot. Do not touch.

Note:

- The rear cover (③) will also become warm.

11. Paper jams

1. Push the green lever (①) upward back to its original position.

1. Close the rear cover.

- Open and close the front cover to clear the error message.

Case 2:

When the recording paper is jammed inside the front cover:

1. Open the front cover (①).

1. Close the front cover.

3 Insert the paper tray into the machine.

Note:

Note:

- Be careful not to damage the transparent plastic sheet (①).

2 Carefully remove the jammed document (①).

When the document is jammed near the document entrance:

When the document is jammed near the document exit:

3 Close the ADF cover.

[Stop]

- Press [Stop] to clear this message.

12.1 Cleaning the white platen and glass

Note:

- Be careful not to damage the transparent plastic sheet (①).

3 Close the document cover.

12.2 Cleaning the feeder rollers

4 Close the ADF cover.

5 Reconnect the power cord.

13.1 Reference lists and reports

You can print the following lists and reports for your reference.

- "Installation Settings List"

- "Phone Number List"

- "Communication Report"

- "Multi-site Sending Programming Table" *1

- "Printer Test"

- "Caller ID Table"

- "Email Address List" *1

- "FTP Server List" *1

- "SMB Folder Table" *1

- "WLAN Status List" *2

- "Department Print Count"

WPA/WPA2-PSK (TKIP/AES)

Open System (WEP64/WEP128)

WPS:

Note:

- The images and diagrams used in this manual are simplified.

Recording Paper Specifications

Plain paper / thin paper / thick paper sizes:

A4: 210 mm × 297 mm

Letter: 216 mm × 279 mm

Legal: 216 mm × 356 mm ^*1

B5(JIS): 182 mm × 257 mm ^*1

B5(ISO): 176 mm × 250 mm*1

Example 2

Notes:
