Product Type	Power Bank
Brand	Xtorm
Model	XR101
Battery Capacity	10,000 mAh
Battery Type	Lithium-ion
Input (USB-C)	5V/3A, 9V/2A (PD)
Output (USB-A)	5V/2.4A
Output (USB-C)	5V/3A, 9V/2A, 12V/1.5A (PD)
Total Max Output	18W
Dimensions	150 x 70 x 15 mm
Weight	250 g
Charging Time (via USB-C PD)	Approx. 4-5 hours
Battery Level Indication	4 LED indicators
Fast Charging Support	USB-C PD 18W
Pass-through Charging	Supported
Protection Features	Overcharge, Overdischarge, Short Circuit
Material	ABS + PC
Color	Black
Package Contents	Power Bank, USB-C Cable, Manual
Maintenance	Wipe with dry cloth, avoid moisture
Repairability	Non-user-serviceable, battery not replaceable

Frequently Asked Questions - XR101 Xtorm

How long does it take to fully charge the Xtorm XR101 power bank?

Charging the XR101 from empty to full takes approximately 4 to 5 hours when using a USB-C PD charger that supports at least 18W.

Can I charge my laptop with the XR101?

The XR101 can charge some laptops via USB-C PD up to 18W, but it is primarily designed for smartphones and tablets. Check your laptop's power requirements; if it needs more than 18W, the power bank may not be sufficient.

How many times can the XR101 charge my phone?

The number of charges depends on your phone's battery capacity. For a typical 4000 mAh smartphone, you can expect around 2 to 2.5 full charges, accounting for energy loss.

Does the XR101 support wireless charging?

No, the XR101 does not have wireless charging capability. It charges devices via two USB ports (one USB-A and one USB-C).

Is it safe to charge the power bank and a device at the same time?

Yes, the XR101 supports pass-through charging, so you can charge the power bank while it is charging a connected device. However, this may slow down the charging speed of both.

How do I know how much battery is left?

The power bank has four LED indicators on the side. Each LED represents approximately 25% capacity. Press the power button briefly to check the current level.

Can I take the XR101 on an airplane?

Yes, the XR101's 10,000 mAh capacity (approximately 37 Wh) is below the 100 Wh limit for carry-on luggage. Check with your airline for specific regulations.

What devices can I charge with the USB-A port?

The USB-A port outputs up to 5V/2.4A, suitable for most smartphones, tablets, Bluetooth headphones, and other USB-powered devices. It does not support fast charging protocols like Quick Charge.

How do I clean the power bank?

Use a soft, dry cloth to wipe the exterior. Avoid using liquids, abrasives, or cleaning solvents. Keep the ports dry and free of debris.

What should I do if the power bank gets wet?

If the power bank gets wet, immediately disconnect it from any devices and chargers. Do not use it until it is completely dry. Allow it to air dry in a warm, ventilated area for at least 24 hours. If it shows signs of damage, do not use it and contact Xtorm support.

USER MANUAL XR101 Xtorm

1x USB-C 20W (5V-2.4A) 2x USB-A QC 3.0 18W (5V-2.4A)

114x89x25 mm

295 grams

+ 1x USB-C to USB-C PD cable 1x Manual

3 CHARGING YOUR DEVICE

Three technical diagrams showing a smartphone, a connected USB cable, and a device with labeled ports (no text or symbols present)

COMPATIBLE DEVICES

3A Connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically.
3B Charging some devices requires a charging cable other than the one supplied.
E.g. an Apple Lightning ✗ or a Micro USB cable.

CHARGING THE POWER BANK 4

Three technical line drawings of electronic components: a three-pin plug, a connector pin, and a multi-pin device (no text or symbols present)

4A Connect the USB-C end of the charging cable to output 2 of the Power Bank and the USB end to a wall charger.
4B For the fastest charging possible use a 18W charger. This will fully recharge the Power Bank within 2.5 hours.

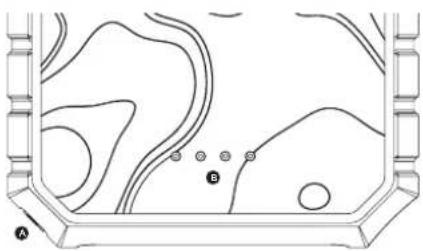

LED POWER INDICATOR5 IN THE BOX 6

Topographic contour map with no text or labels, showing contour lines and a marked point 'X' (no readable text or symbols)

Diagram of a container with internal flow channels and labeled points A and B (no text or symbols beyond labels)

5A De button function is:

1. Short press: Turn on the product/ Show battery capacity

2. Double press: Turn off the product.

3. Long press (3s): Turn on/off LED flashlight

58 Each lit LED light indicates 25% remaining energy in the Power Bank. At 4 lit lights, the Power Bank is fully charged.

Topographic contour map with a marked location (no text or labels)

1

●

●

XR201 Rugged

Power Bank

USB-C to USB-C PD

cable

Manual

EN - ENGLISH

1 SPECIFICATIONS

2 PRODUCT OVERVIEW

3 CHARGING YOUR DEVICE

3A Connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically.

3B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning® or a Micro USB cable.

4 RECHARGING THE POWER BANK

4.A Connect the USB-C end of the charging cable to output 2 of the Power Bank and the USB end to a wall charger.

4.B For the fastest charging possible use a 18W charger. This will fully recharge the Power Bank within 2.5 hours.

5 LED POWER INDICATOR

5.A De button function is:

1. Short press: Turn on the product/ Show battery capacity.

2. Double press: Turn off the product.

3. Long press (3s): Turn on/off LED flashlight

5.B Each lit LED light indicates 25% remaining energy in the Power Bank. At 4 lit lights, the Power Bank is fully charged.

6 IN THE BOX

NL - NEDERLANDS

1 SPECIFICATIES

2 PRODUCTOVERZICHT

3 UW APPARAAT OPLADEN

5 LED STROOMINDICATOR

5.A De knopfunctle Is:

EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.

XTORM SAFETY CHECK WARNINGS

1. TEMPERATURE CONTROL

Provided with a temperature control chip that prevents overheating.

2. OVERLOAD PROTECTION

Protects both the internal battery as well as the battery of the attached device from overcharging.

3. SECURED POWER MANAGEMENT

Automatically picks the correct charging speed and efficiently devides power between attached devices.

4. SHORT CIRCUIT PROTECTION

Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.

5. A-CLASS BATTERY CELLS

We only use the best battery cells that provide the fast charging you need and meet all safety requirements.

6. HIGH EFFICIENCY

Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.

EN Warnings

Don't drop, dissemble or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of fiammole gas. The warranty will lapse in the event of improper use. Telco Accessories has tested the product in a test environment. All statements/declarations made by Telco Accessories about the operation of the product are based on the results obtained from such tests. These results/batazamants/declarations cannot be guaranteed, for example in cases or deviating or injudicious use and/or use in a different environment.
