Product Type	Media Player / Mini PC
CPU	Intel Apollo Lake Celeron N3350/J3455 (TDP ≤6W/10W)
Memory	Dual Channel SO-DIMM DDR3L, 1866MT/s, max 8GB
Graphics	Intel HD Graphics 500
Expansion Slots	M.2 2230 (key E for WiFi), M.2 2242 (key B for SSD), M.2 2242 (key B for MCU/4G/SATA)
Audio	Realtek ALC269Q HD Audio CODEC
LAN	Dual Gigabit Ethernet (Realtek RTL8111H)
Front Panel I/O	Power button with blue LED, HDD indicator, RS232, 2x USB 3.0
Rear Panel I/O	DC 19V jack, HDMI 2.0, HDMI 1.4b, 2x RJ45, 2x USB 3.0, Line out, Mic in, Extend power SW
Power Adapter	40W (19V, 2.1A) AC adapter, input AC 100-240V
Operating Temperature	0 to 40°C
Cooling	Fanless
Ventilation Clearance	At least 5cm on sides and rear
Safety Certification	Class I Laser Product (optical drive)
Disposal	Recycle according to WEEE directives
Cleaning	Disconnect power, use dry cloth only
Package Contents	DE3450 system, user guide, driver CD, 40W adapter, L-type holder, rubber pads, power holder
Mounting	Includes LH02 L-type holder with M3 screws
Regulatory Compliance	FCC Class B, ICES-003

Frequently Asked Questions - DE3450 AOPEN

How do I clean the DE3450?

Disconnect the device from power before cleaning. Use a dry, soft cloth. Do not use liquid or aerosol cleaners.

Can I install the DE3450 in a closed cabinet?

No. The device requires at least 5cm of clearance on the sides and rear for proper ventilation. Installing in a closed space may cause overheating.

What type of memory does the DE3450 support?

It supports dual-channel SO-DIMM DDR3L memory at 1866MT/s, with a maximum capacity of 8GB.

How do I use the extend power switch on the rear?

The extend power switch allows you to connect a custom external power button. Use a spring clamp terminal block: press the button, insert stripped wire (AWG 20-28, strip length 9-10mm), release. Connect to Ground and SW+; PS_ON indicates power status (low = on, high = off).

Is the DE3450 fanless?

Yes, the DE3450 is fanless, which ensures silent operation. Ensure adequate ventilation to prevent overheating.

What is the maximum RAM capacity?

The maximum memory capacity is 8GB, using two SO-DIMM DDR3L modules.

How do I connect an external display?

Use the HDMI 2.0 or HDMI 1.4b ports on the rear panel. The HDMI 2.0 supports higher resolutions and refresh rates.

What does the blue LED on the front panel indicate?

The blue LED is the power indicator. It lights up when the device is powered on.

How should I dispose of the DE3450?

Do not dispose of it in municipal trash. Recycle it according to local regulations for Waste Electrical and Electronic Equipment (WEEE). Visit www.aopen.com under 'Green Products' for more info.

How can I upgrade the storage?

The DE3450 has an M.2 2242 slot (key B) for SSD. You can access it by opening the chassis. Refer to the user manual for detailed instructions.

USER MANUAL DE3450 AOPEN

Personal Computer User Guide for DE3450 series

Front view of a black electronic device rear panel showing ports, connectors, and ventilation icons (no readable text or symbols)

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under “Green Products”

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc. All other brand names and trademarks are owned by their respective owners.

Copyright © 2017 by AOpen Inc. All rights reserved.

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a service personnel:

a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to user's manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.

1. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.

1. Safety caution concerning laser products:

DVD-ROM/CD-RW combo drive is “Class I Laser Product” This equipment, built with DVD and/or CD disc drives using laser beam to read or write data on optical discs, is classified as “Class I laser product”. While the laser optical drive is reading data from or writing data to an optical disc, do not force open the disc drive door. Press the Eject button to retrieve the optical disc only after the in-use indicator goes off.

1. Ambient operation temperature: 0 \~ 40 degrees C.

2. Risk of overheating!

- Do not install DE3450 in a closed space. Be sure the ventilation holes in the DE3450 side for at least 1 to 2 inches or 2 to 5cm of space for ventilation. To ensure that other objects do not cover the ventilation holes on DE3450

In right side and rear side keep space at least 5cm.

Don't put operating device inside closed space.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■. Reorient or relocate the receiving antenna.
■. Increase the separation between the device and receiver.
■ Connect the device into an outlet on a circuit different from that to which the receiver is connected.
■. Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Index

1. Outlook ......2
2. Product Specification....4
3. Internal Connectors....5
4. Function introduction......6
5. Packing List....8
6. Chassis and Holder Dimension....9

1. Outlook

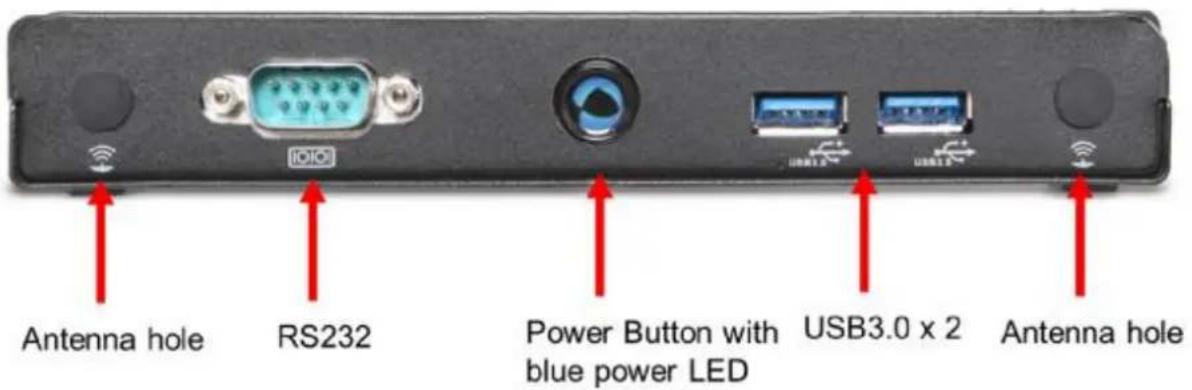

Front IO

Rear IO

2. Product Specification

CPU	Intel Apollo Lake Celeron N3350/J3455 processor TDP≤6W/10W
Chipset	NA
Memory	Dual Channel Mode, SO-DIMM DDR3Lx 2, 1866MT/s, Max memory size : 8GB
Graphics	Intel® HD Graphics 500
Expansion Slot	M.2 2230 x 1(key E for wifi), M.2 2242 x 1(key B for SSD)M.2 2242 x 1(key B for MCU/4G/SATA)
Audio	Realtek ALC269Q HD Audio CODEC on-Board.
LAN	Realtek GbE LAN controller RTL8111H x 2
Front Panel IO	Power Button x 1 (with Power indicator (Blue)), HDD indicator (Blue) x 1, RS232 x 1, USB 3.0 Port x 2
Rear Panel IO	DC 19V Jack x 1, HDMI2.0 Port x 1, HDMI1.4b Port x 1, RJ45 LAN Jack x 2, USB 3.0 Port x 2, HD Audio ports (speaker out x 1, Mic in x 1), Extend power SW x 1
Adapter	40W (19V, 2.1A) AC Power Adapter
Input Voltage	AC 100 ~ 240V

3. Internal Connectors

4. Function Introduction

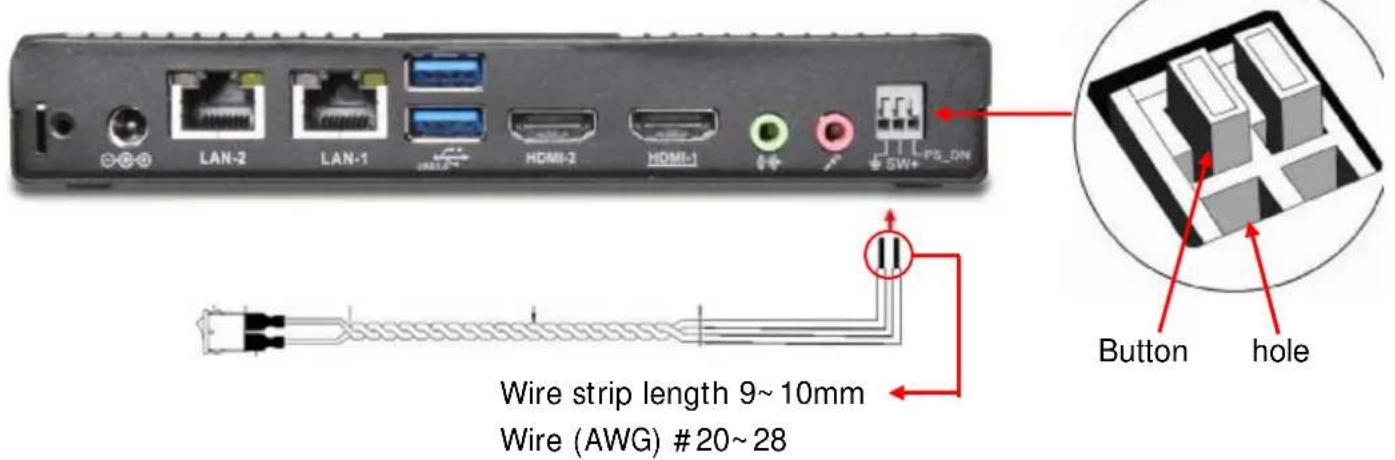

4.1 Extend power switch

Extend power switch at rear IO of DE3450 can allow customer to extend the power switch by their demand, and customer can decide their own switch specification and cable length just follow the wire gauge and strip length.

(The cable above is an illustration diagram only not an accessory)

Ground & SW+ are for connection to extend power switch, and PS_ON is a signal to present the system power on/off status, when PS_ON signal is low, then system is in power on status when PS_ON signal is high, then system is in power off status

This is a screwless type spring clamp pluggable terminal block, you can insert a wire by press the button on the terminal, please refer to the procedure below.

Step 1 please prepare a pin or rod that hard enough for pushing the button on the terminal block

Step 2 push the button in the end and hold it

Step 3 insert the wire into the hole and make sure the stripped portion is fully inserted

Step 4 release the pin or rod then the wire will clamp by the terminal block

step1

step2

step3

step4

3D diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

3D diagram of a mechanical assembly with a cylindrical component inserted into a grid-like structure (no text or symbols)

Diagram showing a pipe being inserted into a 3D block with a black curved component, no text or symbols present.

Diagram showing a mechanical component with an upward arrow and numbered label (4), no readable text or symbols present.

5. Packing List

DE3450

1 x DE3450 system
1 x User Guide
1 x Driver CD
1 x 40W Adapter and Power Cord
1 x L type Holder with 4 pcs of M3 screw
4 x Rubber Pad
1 x power holder

6. Chassis and Holder Dimension

A. Dimension of DE3450 (unit: mm[inch])

B. LH02 L type Holder(Include 2 piece holder and 4 FPH M3 screws)

Dimension of L type Holder. (unit: mm[inch])

(This L type Holder can only lock on horizontal desktop table)

P/N : 49.DEH01.0010
