Product Type	Media Player / Mini PC
Brand	AOpen
Model	Digital Engine DEX5550
CPU	Intel 7th Gen Kaby Lake U Core i Processor (TDP ≤ 15W)
Memory	Dual Channel DDR4 SO-DIMM, up to 32GB (2133MHz)
Graphics	Intel HD Graphics 610/620
Storage	M.2 2242 slot for SSD, M.2 2230 for WiFi
Audio	Realtek ALC269Q HD Audio CODEC
LAN	Intel GIGA LAN x2 (i210AT/i219LM)
Front I/O	Power Button, HDD indicator, USB 3.0 x2
Rear I/O	DC 19V jack, HDMI 2.0 x2, RJ45 LAN x2, USB 3.0 x2, RS232 x2, Line-out, Extend Power SW
Power Adapter	65W (19V, 3.42A) or optional 90W (19V, 4.74A)
Input Voltage	AC 100~240V
Cooling	Fanless design
Operating Temperature	0°C to 40°C
Safety	Class I Laser Product, FCC Class B, ICES-003
Environmental Compliance	WEEE recycling
Mounting	L-type holder included (desktop mount)
Warranty	Refer to manufacturer

Frequently Asked Questions - Digital Engine DEX5550 AOPEN

How do I clean the AOpen Digital Engine DEX5550?

Disconnect the device from power before cleaning. Use a moist sheet or cloth; do not use liquid or sprayed detergent.

What type of memory does the DEX5550 support?

It supports DDR4 SO-DIMM modules in dual channel mode, up to 32GB total at 2133MHz.

Can I use an external power switch with the DEX5550?

Yes, the rear I/O includes an extend power switch terminal block. Connect a momentary switch (AWG 20-28, strip 9-10mm) to the Ground and SW+ pins.

Is the DEX5550 fanless?

Yes, the DEX5550 features a fanless design. Ensure at least 5cm clearance on the right and rear sides for passive cooling.

How many displays can I connect?

It has two HDMI 2.0 ports on the rear, supporting dual display output.

What operating system is compatible?

The device is a standard x86 PC; it supports Windows, Linux, and other operating systems compatible with Intel 7th Gen hardware.

Does the DEX5550 have built-in WiFi?

It has an M.2 2230 slot for a WiFi module, but the module is not included. You can install one separately.

How do I dispose of the DEX5550?

Do not discard in municipal trash. Recycle according to WEEE guidelines. Visit www.aopen.com for more information.

What is the maximum power consumption?

The included adapter is 65W (19V, 3.42A). An optional 90W adapter is available. Actual consumption depends on configuration.

Can I replace the battery?

The internal CMOS battery (if present) should be replaced by qualified personnel. Use only the recommended battery type to avoid explosion or fire.

USER MANUAL Digital Engine DEX5550 AOPEN

Personal Computer User Guide for DEX5550 series

Front view of a black server rack with ventilation slots and two blue USB drive indicators (no text or symbols visible)

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding.

To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under “Green Products”

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc. All other brand names and trademarks are owned by their respective owners.

Copyright © 2018 by AOpen Inc. All rights reserved.

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a service personnel :

a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to user's manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.

1. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.

1. Safety caution concerning laser products:

DVD-ROM/CD-RW combo drive is "Class I Laser Product" This equipment, built with DVD and/or CD disc drives using laser beam to read or write data on optical discs, is classified as "Class I laser product". While the laser optical drive is reading data from or writing data to an optical disc, do not force open the disc drive door. Press the Eject button to retrieve the optical disc only after the in-use indicator goes off.

1. Ambient operation temperature: 0 \~ 40 degrees C.

2. Risk of overheating!

- Do not install DEX5550 in a closed space. Be sure the ventilation holes in the DEX5550 side for at least 1 to 2 inches or 2 to 5cm of space for ventilation. To ensure that other objects do not cover the ventilation holes on DEX5550

In right side and rear side keep space at least 5cm

Don't put operating device inside closed space.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ □Reorient or relocate the receiving antenna.
■ □Increase the separation between the device and receiver.
■ □Connect the device into an outlet on a circuit different from that to which the receiver is connected.
■ □Consult the dealer or an experienced radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Index

1. Outlook ...... 2
2. Product Specification....4
3. Internal Connectors....5
4. Function introduction....6
5. Packing List.... 8
6. Chassis and Holder Dimension....9

1. Outlook

Front IO

Rear IO

2. Product Specification

CPU	Intel 7th Gen Kaby Lake U Core i processor TDP ≤q 15W
Chipset	NA
Memory	Dual Channel Mode, SO-DIMM DDR4 x 2, 2133MHz, Max memory size : 32GB
Graphics	Intel HD Graphics 610 / 620
Expansion Slot	M.2 2230 x 1(key E for wifi), M.2 2242 x 1(key B for SSD)M.2 2242 x 1(key B for AiCU)
Audio	Realtek ALC269Q HD Audio CODEC on-Board.
LAN	Intel GIGA LAN x 2 (i210AT/i219LM)
Front Panel IO	Power Button x 1 (with Power indicator (Blue)), HDD indicator (Blue) x 1,USB 3.0 Port x 2
Rear Panel IO	DC 19V Jack x 1, HDMI 2.0 Port x 2, RJ45 LAN Jack x 2, USB 3.0 Port x 2, RS232 SerialPort x 2, HD Audio ports (Line out x 1), extend power S.W.
Adapter	65W (19V, 3.42A) AC Power Adapter, 90W (19V, 4.74A) AC Power Adapter (option)
Input Voltage	AC 100 ~ 240V

3. Internal Connectors

4. Function Introduction

4.1 Extend power switch

Extend power switch at rear IO of DEX5550 can allow customer to extend the power switch by their demand, and customer can decide their own switch specification and cable length just follow the wire gauge and strip length.

Ground & SW+ are for connection to extend power switch, and PS_ON is a signal to present the system power on/off status, when PS_ON signal is low, then system is in power on status when PS_ON signal is high, then system is in power off status

This is a screwless type spring clamp pluggable terminal block, you can insert a wire by press the button on the terminal, please refer to the procedure below.

Step 1 please prepare a pin or rod that hard enough for pushing the button on the terminal block Step 2 push the button in the end and hold it

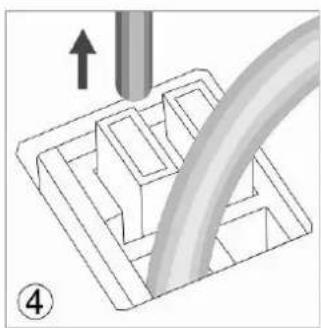

Step 3 insert the wire into the hole and make sure the stripped portion is fully inserted Step 4 release the pin or rod then the wire will clamp by the terminal block

step1

step2

step3

step4

Isometric diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

3D diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Diagram showing a black curved pipe being inserted into a 3D grid structure with a tool, no text or symbols present.

3D diagram of a mechanical component with an upward arrow and a curved pipe, no text or symbols present

5. Packing List

DEX5550

1 x DEX5550 system
1 x User Guide
1 x Driver CD
1 x 65W Adapter and Power Cord
1 x L type Holder with 4 pcs of M3 screw
4 x M3 - L4 screws
1 x power holder

6. Chassis and Holder Dimension

A. Dimension of DEX5550 (unit: mm[inch])

B. LH02 L type Holder(Include 2 piece holder and 4 FPH M3 screws)

Dimension of L type Holder. (unit: mm)

(This L type Holder can only lock on horizontal desktop table)

P/N : 49.DEK01.0010
