| Product Type | Induction Cooktop |
| Brand | Whirlpool |
| Model | WS Q4860 NE |
| Number of Cooking Zones | 4 |
| Power Supply | 220-240 V ~ / 380-415 V 2N~ |
| Adjustable Power Levels | 2.5 kW, 4.0 kW, 6.0 kW, 7.2 kW |
| Booster Function | Yes (indicated by "P" on display) |
| Timer | Yes, can be set for all zones individually |
| Control Panel Lock | Yes (key lock, 3 sec press) |
| Residual Heat Indicator | Yes, displays "H" when zone is hot |
| iXelium Technology | Yes (if logo present on glass) |
| Acoustic Signal | Can be turned on/off |
| Demo Mode | Available (displays "DE") |
| Suitable Cookware | Ferromagnetic base (induction compatible) |
| Safety Features | Automatic shut-off, overheat protection, child lock |
| Cleaning | Use soft cloth and mild detergent; avoid abrasive sponges |
| Installation | Must be carried out by qualified technician |
| Energy Compliance | Ecodesign Regulation 66/2014 |
| Warranty | Refer to warranty booklet |
Frequently Asked Questions - WS Q4860 NE WHIRLPOOL
User questions about WS Q4860 NE WHIRLPOOL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cooker in PDF format for free! Find your manual WS Q4860 NE - WHIRLPOOL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WS Q4860 NE by WHIRLPOOL.
USER MANUAL WS Q4860 NE WHIRLPOOL
Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.
⚠ WARNING: If the hob surface is cracked, do not use the appliance - risk of electric shock.
⚠ WARNING: Danger of fire: Do not store items on the cooking surfaces.
⚠️ CAUTION: The cooking process has to be supervised. A short cooking process has to be supervised continuously.
⚠ WARNING: Unattended cooking on a hob with fat or oil can be dangerous - risk of fire. NEVER try to extinguish a fire with water: instead, switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
⚠ Do not use the hob as a work surface or support. Keep clothes or other flammable materials away from the appliance, until all the components have cooled down completely - risk of fire.
⚠ Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
⚠️Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
⚠️ After use, switch off the hob element by its control and do not rely on the pan detector.
⚠ WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
The food must not be left in or on the product for more than one hour before or after cooking.
PERMITTED USE
⚠️ CAUTION: the appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.
This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.
⚠️ No other use is permitted (e.g. heating rooms).
This appliance is not for professional use. Do not use the appliance outdoors.
⚠ WARNING: Induction hob may generate the acoustic sound when something is left on the control panel. Switch off the cooktop through the ON/OFF button.
INSTALLATION
The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.
⚠ Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.
⚠️Carry out all cabinet cutting operations before fitting the appliance and remove all wood chips and sawdust.
⚠️ If the appliance is not installed above an oven, a separator panel (not included) must be installed in the compartment under the appliance.
ELECTRICAL WARNINGS
⚠ It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.
⚠ Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.
⚠️ Installation using a power cable plug is not allowed unless the product is already equipped with the one provided by the Manufacturer.
⚠️ If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electric shock.
CLEANING AND MAINTENANCE
⚠ WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.
⚠ Do not use abrasive or corrosive products, chlorine-based cleaners or pan scourers.
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable and is marked with the recycle symbol 🎨.
The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.
DISPOSAL OF HOUSEHOLD APPLIANCES
This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE) and with the Waste Electrical and Electronic Equipment regulations 2013 (as amended).
By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.
The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.
ENERGY SAVING TIPS
Make the most of your hot plate's residual heat by switching it off a few minutes before you finish cooking.
The base of your pot or pan should cover the hot plate completely; a container that is smaller than the hot plate will cause energy to be wasted.
Cover your pots and pans with tight-fitting lids while cooking and use as little water as possible. Cooking with the lid off will greatly increase energy consumption.
Use only flat-bottomed pots and pans.
DECLARATION OF CONFORMITY
This appliance meets Ecodesign requirements of European Regulation 66/2014 and The Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019 in compliance with the European standard EN 60350-2.
The information related to low power mode of the appliance in accordance with Regulation (EU) 2023/826 can be found in the following link: https://docs.emeaappliance-docs.eu.
NOTE
People with a pacemaker or similar medical device should use care when standing near this induction cooktop while it is on. The electromagnetic field may affect the pacemaker or similar device. Consult your doctor, or the manufacturer of the pacemaker or similar medical device for additional information about its effects with electromagnetic fields of the induction cooktop.

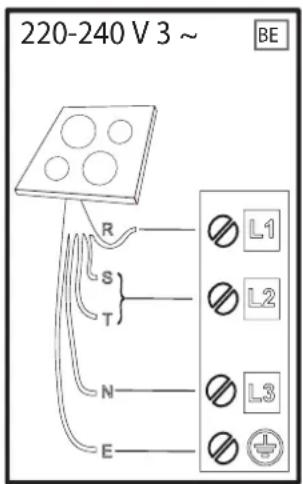

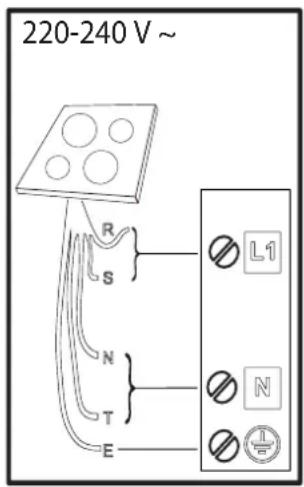

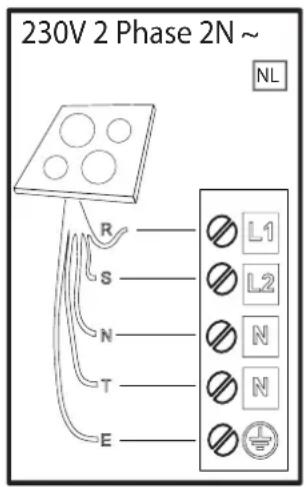

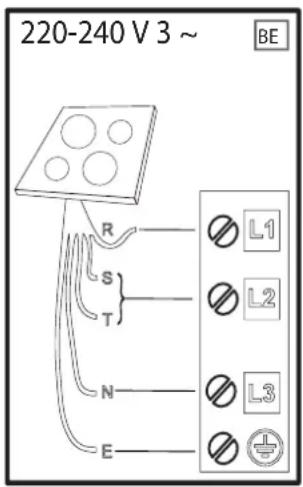

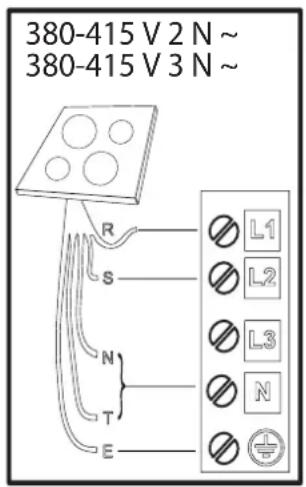

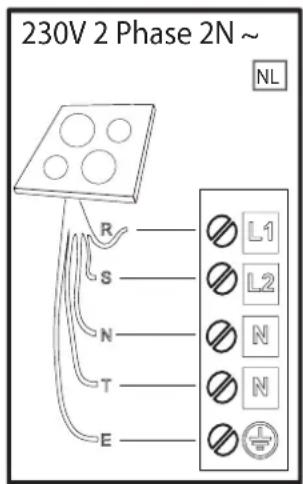

Electrical connection must be made before connecting the appliance to the electricity supply.
Installation must be carried out by qualified personnel who know the current safety and installation regulations. Specifically, installation must be carried out in compliance with the regulations of the local electricity supply company.
Make sure the voltage specified on the data plate located on the bottom of the appliance is the same as that of the home.
Regulations require that the appliance be earthed: use conductors (including the earth conductor) of the appropriate size only.
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн-črna-crno-черный-чорний-қара-černa-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kafé-pruun-brūns-rudas-brązowy-braunen-brun-bruin-maro-kaфяв-браon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (cíрий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
⊥ = E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/trpáσινο-kollane/roheline-dzeltens/za|š-geltona/žalia-zółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-jkýlto/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/carpsy-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-cinho-плавa-modroplava-cinih-cinij-kek-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT
In order to receive a more complete assistance, please register your product on www.register10.eu.
Before using the appliance carefully read the Safety Instruction.
PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

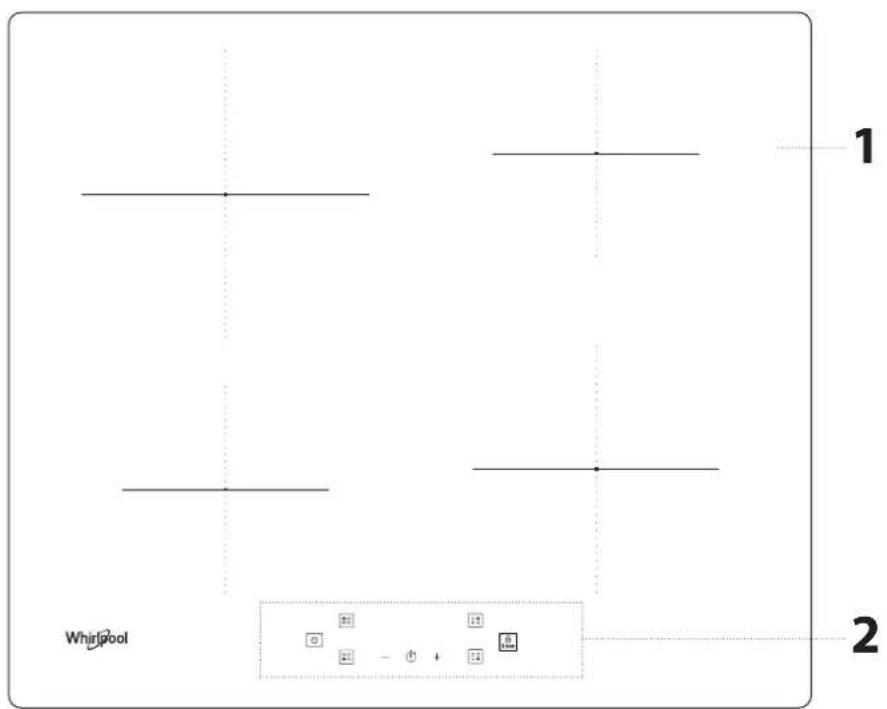

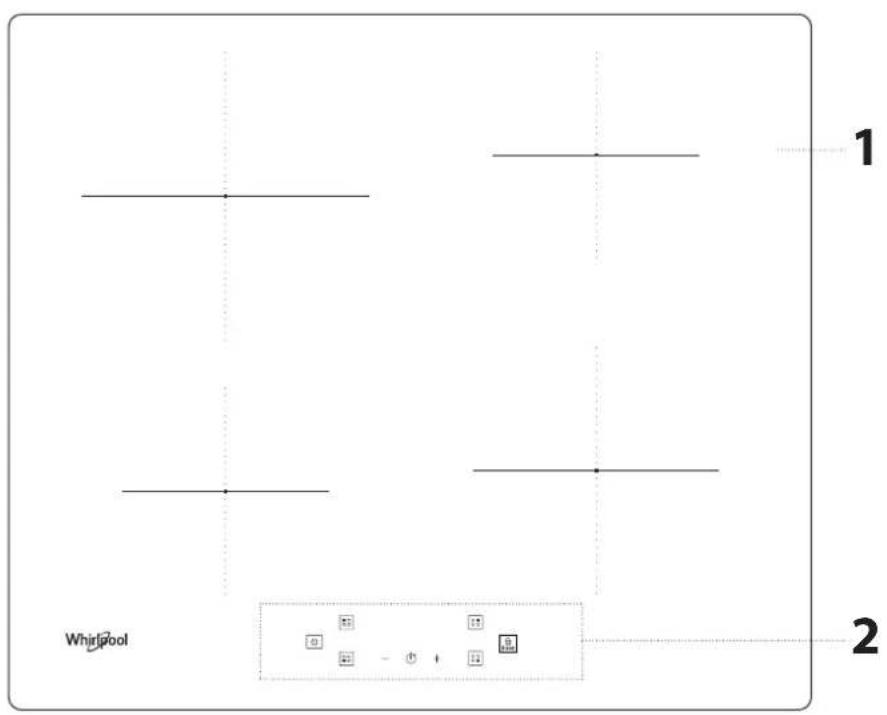

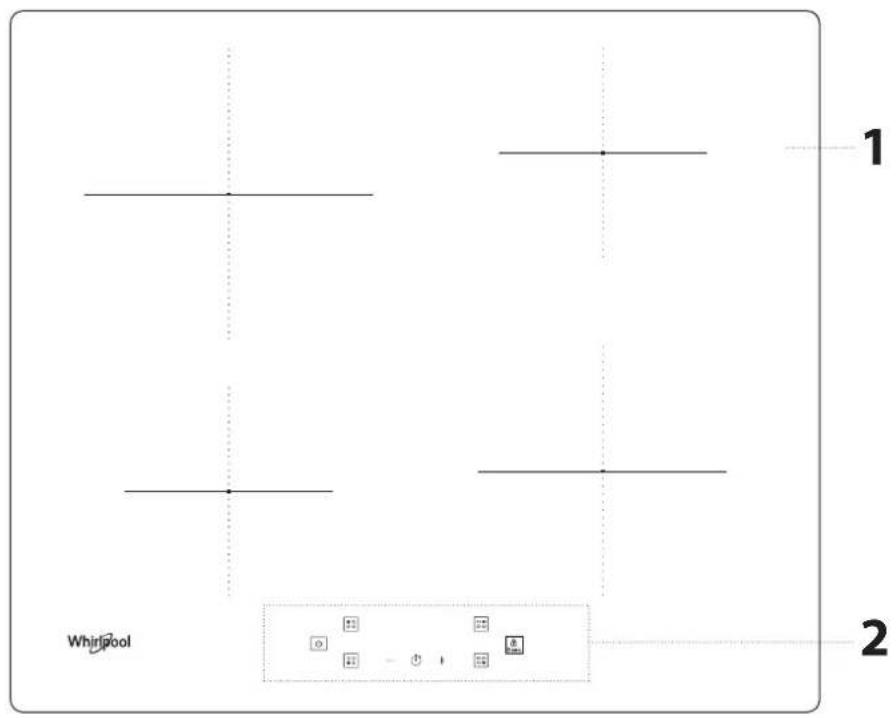

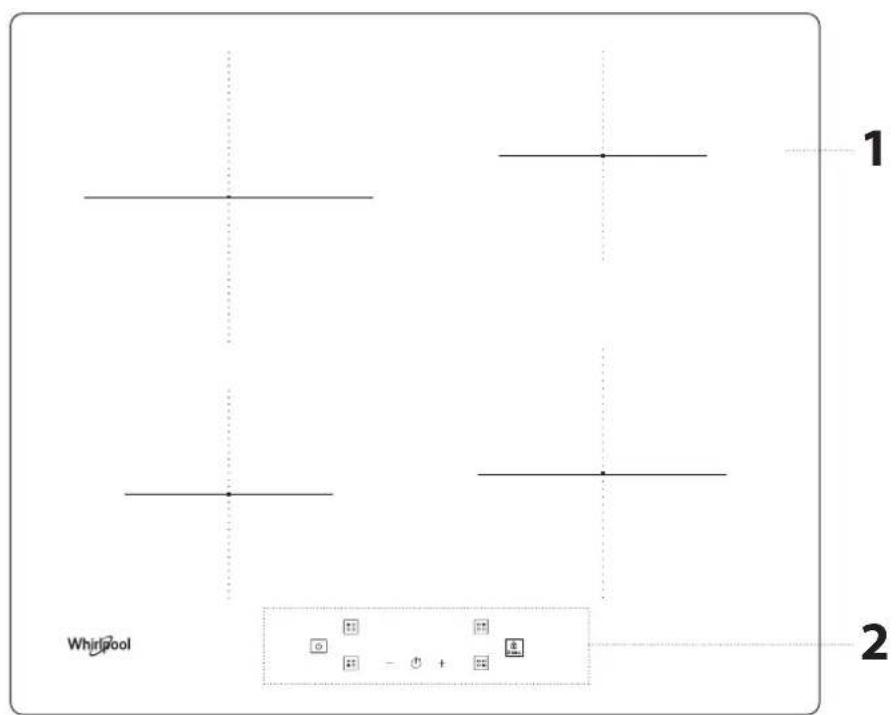

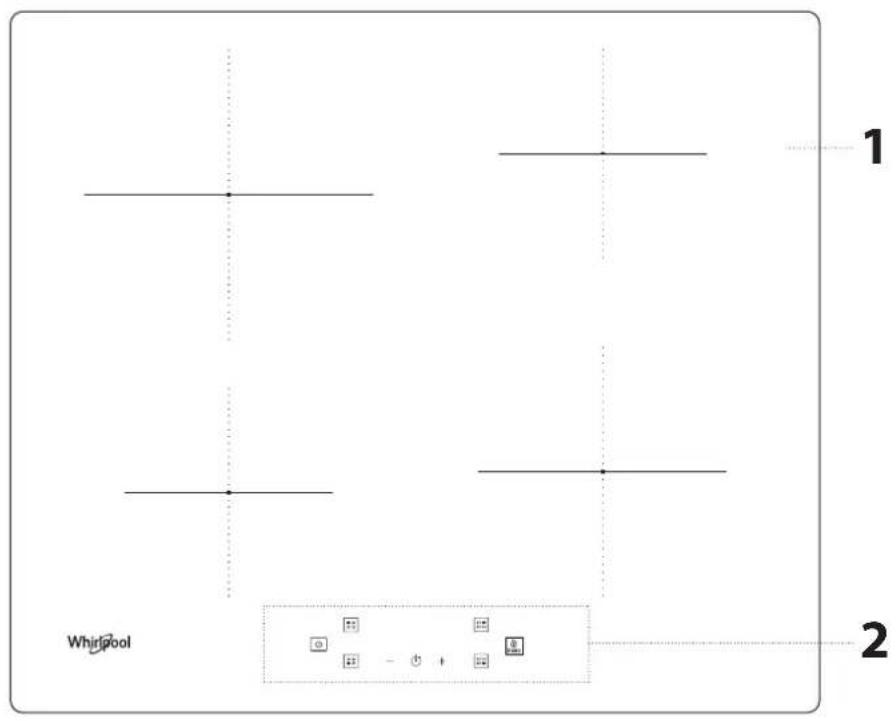

PRODUCT DESCRIPTION
- Cooktop
- Control panel

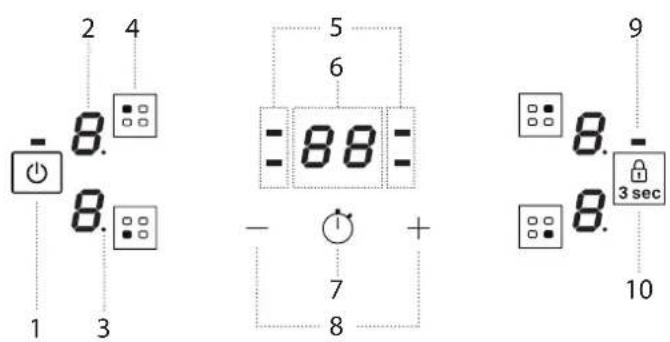

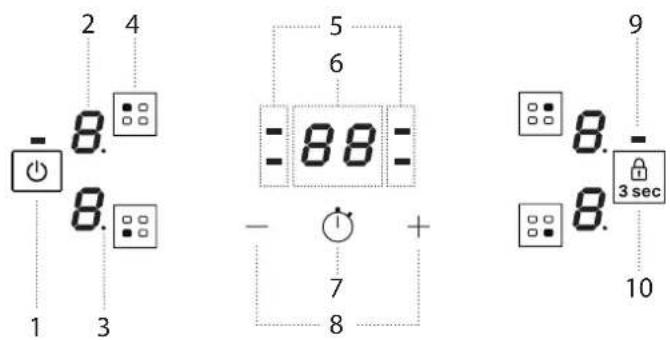

CONTROL PANEL
- On/Off button
- Cooking level selected
- Zone selection indicator
-
Cooking zone selection button
-
Timer indicators active for the selected zone
-
Cooking time indicator
-
Timer activation button
-
Power and cooking time adjustment buttons
-
Indicator light – function active
-
Key lock button - 3 seconds
ACCESSORIES
Only use pots and pans made from ferromagnetic material suitable for induction hobs. Check for the symbol (generally stamped on the bottom) to determine whether a pot is suitable. A magnet may also be used to check whether the cookware base is magnetic.
| COOKWARE M | MATERIAL PROPERTIES | |
Recommended cookware | Base made of stainless steel with a sandwich design, enamelled steel, cast iron. | Ensures optimum efficiency, heats up quickly, and distributes heat evenly. |
Suitable cookware | Base not fully ferromagnetic (magnet sticks only on part of the cookware base). | Only the ferromagnetic area heats up. As a result, may heat up less quickly and heat may be distributed less evenly. |
Suitable cookware | Ferromagnetic base contains areas with aluminium, or has a recessed area in the centre. | The ferromagnetic area is smaller than the actual cookware base area. As a result, less power may be delivered and cookware may not heat sufficiently. Cookware may not be detected. |
| Not suitable Normal | thin steel, glass, clay, copper, aluminium and other non-ferromagnetic materials, cookware with rubber feet. | Cookware is not detected and will not heat up. |
NOTE: All cookware must have a flat base. Periodically check the base for any sign of warping, as some cookware may undergo deformation due to high heat. Using cookware that does not match the recommended sizes and properties may significantly affect cooking performance and cause unsatisfactory results.
ADAPTERS FOR POTS/PANS UNSUITABLE FOR INDUCTION
The use of adapter plates affects efficiency and therefore increases the time required to heat water or food. Make sure the ferromagnetic diameter of the
FIRST TIME USE
POWER MANAGEMENT
At the time of purchase, the hob is set to the maximum possible power. Adjust the setting concerning the limits of your home's electrical system as described in the following paragraph.
N.B: Depending on the power selected for the hob, some of the cooking zone power levels and functions (e.g. boil or fast heating) could be automatically limited to prevent the selected limit from being exceeded.
To set the power of the hob:
Once you have connected the device to the mains power supply, you can set the power level within 60 seconds.
Press the "+" button for at least 3 seconds. The display shows "PL". Press 3 sec button to confirm.
Use the "+" and "-" buttons to select the desired power level. The power levels available are: 2.5 kW – 4.0 kW – 6.0 kW – 7.2 kW.
Confirm by pressing 3 sec.
The power level selected will stay in the memory even if the power supply is interrupted.
To change the power level, disconnect the appliance from the mains for at least 60 seconds, plug it back in, and repeat the above steps.
cookware base aligns with both the diameter of the adapter plate and the diameter of the cooking zone. If these measurements don't match, efficiency and performance may be significantly reduced. If these guidelines are not followed, there may be a heat build-up that is not effectively transferred to the pot or pan, potentially causing blackening of the plate and hob.
EMPTY POTS AND PANS
The hob is equipped with an internal safety system that activates the "Automatic off" function when an over-high temperature is detected. The use of empty pots and pans with a thin base is not recommended but, if they are used, the temperature might rise quicker than the time needed for the "Automatic off" to be triggered promptly, with the risk of damaging the pan or the hob surface. If this happens, do not touch the pan or the hob surface. Wait for all components to cool down. If any error message is displayed, call the Service Centre.
SUITABLE SIZE OF PAN/POT BASE FOR THE DIFFERENT COOKING ZONES
To ensure that the hob works properly, use pots of a suitable base diameter for each zone (refer to the table below). Please note that cookware manufacturers often provide the size of the upper diameter of the cookware, rather than the base diameter.
To ensure that the hob works as expected, always use a cooking zone with a size matching the ferromagnetic size of the cookware base.
Centre the pan/pot correctly on the cooking zone in use. It is recommended not to use pots larger than the size of the cooking zone.
COOKWARE USAGE BY ZONE
| Zone | Suitable cookware shape | Suitable ferromagnetic base (cm) |
| 1 | Round | 10 |
| 2 | Round | 15 |
| 3 | Round | 12 |
| 4 | Round | 10 |
If an error occurs during the setting sequence, the "EE" symbol will appear, and you will hear a beep. If this happens, repeat the operation. If the error persists, contact the After-Sales Service.
ACOUSTIC SIGNAL ON/OFF
To switch the acoustic signal on/off:
- Connect the hob to the power supply;
- Wait for the switch-on sequence;
- Within 60 seconds, press the buttons "+" and least 5 seconds.
3 sec simultaneously for at
DEMO MODE (reheating deactivated, see the section on "Troubleshooting")
To switch the demo mode on and off:
- Connect the hob to the power supply;
- Wait for the switch-on sequence.
- Within 60 seconds, press the cooking zone selection buttons in the top left and top right simultaneously for at least 3 seconds (as shown below);
- "DE" will show on the display.
DAILY USE
SWITCHING THE HOB ON/OFF
To turn the hob on, press the power button for around 1 second.
To turn the hob off, press the same button again, and all cooking zones will be deactivated.
POSITIONING
Locate the desired cooking zone by referring to the position symbols.
Do not cover the control panel symbols with the cooking pot.
Please note: In the cooking zones close to the control panel, it is advisable to keep pots and pans inside the markings (taking both the bottom of the pan and the upper edge into consideration, as this tends to be larger).
This prevents excessive overheating of the keypad. When grilling or frying, please use the rear cooking zones wherever possible.
ACTIVATING/DEACTIVATING COOKING ZONES AND ADJUSTING LEVELS
To activate the cooking zones:
Select the pre-selected cooking zone by pressing the corresponding zone selection button. The display will show level "0".
Each cooking zone has different power levels that can be adjusted using the "+"/"-" buttons, from a minimum of 1 to a maximum of 9.
Some cooking zones have a fast heating function (Booster), shown on the display with the letter "P".
Power indicator display Selected cooking zone indicator
To deactivate the cooking zones:
Select the cooking zone to be switched off by pressing the corresponding zone selection button (a dot will light up on the display, to the power level indicator's bottom right). Press the "-" to set the level to "0".
INDICATORS
RESIDUAL HEAT
If "H" appears on the display, this means that the cooking zone is hot. The indicator lights up even if the zone has not been activated but has been heated due to the adjacent zones' use or because a hot pot has been placed on it.
When the cooking zone has cooled down, the "H" disappears.
To switch off immediately, press and hold the zone selection button for 3 seconds. The cooking zone is deactivated and the residual heat indicator "H" appears on the display.
CONTROL PANEL LOCK
To lock the settings and prevent it from accidentally switching on, press and hold the Key lock button for 3 seconds. A beep and a warning light above the symbol indicate that this function has been activated. The control panel is locked except for the switching off function (☐). To unlock the controls, repeat the activation procedure.
- ⏻ + TIMER
The timer enables a cooking time to be set for all of the zones.
To activate the timer:
Select and activate the cooking zone for which you wish to set the timer. Press the button with the clock icon and set the desired time, using the "+" and "-" buttons. The timer LED for the zone in use will be illuminated.
A few seconds after the last touch, the timer will start the countdown and the dot on the display that indicates that the seconds are passing will flash.
When the set time is up, an acoustic signal will sound and the cooking zone will switch off automatically.
After selecting the zone and the clock icon, the time can be changed at any point, and several timers can be activated simultaneously.
The timer always shows the time set for the selected area, or the shortest remaining time.
When more than one timer is active, the flashing LED indicates the zone for which the cooking time is visible on the display.
To set the timer for another zone, repeat the above steps.
To deactivate the timer:
Select the cooking zone for which you wish to deactivate the timer.
Press the button with the clock icon ( ⏻ ) for 3 seconds. Alternatively, press the button with the clock icon and then press and hold the "-" button until the display shows "0:0".
POT INCORRECTLY POSITIONED OR MISSING
This symbol appears if the pot is not suitable for induction cooking, is not positioned correctly or is not of an appropriate size for the cooking zone selected. If no pot is detected within 30 seconds of making the selection, the cooking zone switches off.
COOKING TABLE
The cooking table offers an example of the cooking type for each power level. The actual delivered power of each power level depends on the cooking zone dimension.
| POWER LEVEL TYPE OF COOKING | LEVEL USE(indicating cooking experience and habits) | ||
| Maximum power | P Fast heating/Booster | Ideal for rapidly increasing food temperature to a fast boil (for water) or for rapidly heating cooking liquids. | |
| 8 – 9 | Frying – boiling | Ideal for browning, starting to cook, frying deep frozen products, fast boiling. | |
| High power | 7 – 8 | Browning – sautéing – boiling – grilling | Ideal for sautéing, maintaining a lively boil, cooking and grilling (for a short period of time, 5-10 minutes). |
| 6 – 7 | Browning – cooking – stewing – sautéing – grilling | Ideal for sautéing, maintaining a light boil, cooking and grilling (for a medium period of time, 10-20 minutes), preheating accessories. | |
| Medium power | 4 – 5 | Cooking – stewing – sautéing – grilling | Ideal for stewing, maintaining a gentle boil, cooking (for a long period of time). Creaming pasta. |
| 3 – 4 | Cooking – simmering – thickening – creaming | Ideal for long-cooking recipes (rice, sauces, roasts, fish) with liquids (e.g. water, wines, broth, milk), creaming pasta. | |
| 2 – 3 | Ideal for long-cooking recipes (less than a litre in volume: rice, sauces, roasts, fish) with liquids (e.g. water, wines, broth, milk). | ||
| Low power | 1 – 2 | Melting – defrosting – keeping food warm – creaming | Ideal for softening butter, gently melting chocolate, thawing small products and keeping just-cooked food warm (e.g. sauces, soups, minestrone). |
| 1 | Ideal for keeping just-cooked food warm, for creaming risottos and for keeping serving dishes warm (with induction-suitable accessory). | ||
| Zero power 0 Support surface | Hob in stand-by or off mode (possible end-of-cooking residual heat, indicated by an “H”). | ||
CLEANING AND MAINTENANCE
Important:
- Before cleaning, make sure the cooking zones are switched off and that the residual heat indicator ("H") is not displayed.
- Do not use abrasive sponges or scouring pads as they may damage the glass.
• After each use, clean the hob (when it is cool) to remove any deposits and stains from food residue. - A surface that is not kept suitably clean may reduce the sensitivity of control panel buttons.
- Use a scraper only if residues are stuck to the hob. Follow the scraper manufacturer's instructions to avoid scratching the glass.
- Sugar or foods with high sugar content can damage the hob and must be immediately removed.
- Salt, sugar and sand could scratch the glass surface.
- Use a soft cloth, absorbent kitchen paper or a special hob cleaner (follow the Manufacturer's instructions).
- Spills of liquid in the cooking zones can cause the pots to move or vibrate.
• After cleaning the hob, dry thoroughly.
If the iXelium™ logo appears on the glass, the hob has been treated with iXelium™ technology, an exclusive Whirlpool finish which ensures perfect cleaning results, as well as keeping the surface of the hob shiny for longer.
To clean iXelium™ hobs, follow these recommendations:
- Use a soft cloth (microfibre is best) dampened with water or with everyday glass cleaning detergent.
- For best results, leave a wet cloth on the glass hob surface for a few minutes.
SOUNDS PRODUCED DURING OPERATION
Induction hobs may whistle or creak during normal operation.
These noises actually come from the cookware and are linked to the pan bottoms' characteristics (for example, when the bottoms are made from different layers of material or are irregular).
These noises may vary according to the type of cookware used and the amount of food it contains and not the symptom of something wrong.
TROUBLESHOOTING
- Check that the electricity supply has not been shut off.
- If you cannot turn the hob off after using it, disconnect it from the power supply.
- If alphanumeric codes appear on the display when the hob is switched on, consult the following table for instructions.
Please note: The presence of water, liquid spilled from pots or any objects resting on any of the hob buttons can accidentally activate or deactivate the control panel lock function.
| DISPLAY CODE DESCRIPTION POSSIBLE CAUSES SOLUTION | |||
| F0E1 | Cookware is detected but it is not compatible with requested operation. | The cookware is not well positioned on the cooking zone, or it is not compatible with one or more cooking zones. | Press On/Off button twice to remove the F0E1 code and restore the functionality of the cooking zone. Then, try to use the cookware with a different cooking zone, or use different cookware. |
| F0E7 | Wrong power cord connection. The power supply connection is not exactly as indicated in "ELECTRICAL CONNECTION" paragraph. | Adjust the power supply connection according to "ELECTRICAL CONNECTION" paragraph. | |
| F0EA | The control panel switches off because of excessively high temperatures. | The internal temperature of electronic parts is too high. | Wait for the hob to cool down before using it again. |
| F0E9 | The cooking zone turns off when the temperatures are too high. | The internal temperature of electronic parts is too high. | Wait until the cooking area has cooled off before using it again. |
| F0E2, F0E4, F0E6, F0E8, F0EC, F1E1, F2E1, F6E1, F6E3, F7E5, F7E6 | Disconnect the hob from the power supply.Wait a few seconds, then reconnect the hob to the power supply.If the problem persists, call the service centre and specify the error code that appears on the display. | ||
| d E[when the hob is off] | The hob does not switch heat up.The functions do not come on. | DEMO MODE on. | Follow the instructions in the "DEMO MODE" paragraph. |
| e.g. P → S[Power level lower than level requested] | The hob automatically sets a minimum power level to ensure that the cooking zone can be used. | The power regulator limits the power levels in accordance with the maximum value set for the hob. | See paragraph "Power management". |
AFTER-SALES SERVICE
BEFORE CALLING THE AFTER-SALES SERVICE:
- See if you can solve the problem by yourself with the help of the TROUBLESHOOTING suggestions.
- Switch the appliance off and back on again to see if the fault persists.
IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SERVICE.
When contacting our Client After sales service, always specify:
- a brief description of the fault;
- the type and exact model of the appliance;
- the serial number (number after the word SN on the rating plate located under the appliance). The serial number is also indicated in the documentation;
- your full address; - your telephone number.
If any repairs are required, please contact an authorized after-sales service (to guarantee that original spare parts will be used and repairs carried out correctly).
In the case of flush-mounted installation, call the After Sales Service to request assembly of screws kit (if not present).
In case of installation not over a built-in oven, you can call the After Sales Service to buy the divider kit C00628720 (cooktop 60 and 65 cm) or C00628721 (cooktop 77 cm).
If you prefer not to buy the divider kit please ensure that a separator is installed according to the installation instructions.
Policies, standard documentation and additional product information can be found by:
• Using QR code in your appliance;
- Visiting our website docs.whirlpool.eu/docs;
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.
TM/ © 2025 Whirlpool. Produced under license.
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн-črna-crno-черный-чорний-қара-černa-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kafé-pruun-brūns-rudas-brązowy-braunen-brun-bruin-maro-kaфяв-браon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (cíрий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
⊥ = E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/πράσινο-kollane/roheline-dzeltens/za|š-geltona/žalia-žółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/cары-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-cinho-плавa-modroplava-cinih-cinij-kek-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
DANKE, DASS SIE SICH FÜR EIN WHIRLPOOL PRODUKT ENTSCHIEDEN HABEN
PRODUKTBESCHREIBUNG
- Kochfeld
- Bedienfeld
BEDIENFELD
DÉCLARATION DE CONFORMITÉ
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн-črna-crno-черный-чорний-қара-černa-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kafé-pruun-brūns-rudas-brazowy-braunen-brun-bruin-maro-kaфяв-браon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (сірий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
⊥ = E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/πράσινο-kollane/roheline-dzeltens/za|š-geltona/žalia-žółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/cары-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-sinho-плавo-modroplava-cinii-sinii-kεk-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн-črna-crno-черный-чорний-қара-černa-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kafé-pruun-brūns-rudas-brazowy-braunen-brun-bruin-maro-kaфяв-браon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (сірий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
① = E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/trpáσινο-kollane/roheline-dzeltens/za|š-geltona/žalia-žółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/carys-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-cinho-плавa-modroplava-cinih-cinij-kek-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
DANK U WEL VOOR UW AANKOOP VAN EEN WHIRLPOOL PRODUCT
PRODUCTBESCHRIJVING
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн-črna-crno-черный-чорний-қара-černa-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kafé-pruun-brūns-rudas-brązowy-braunen-brun-bruin-maro-kaфяв-браon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (cíрий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/trpáσινο-kollane/roheline-dzeltens/zalš-geltona/žalia-zółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-jkýlto/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/carpsy-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-cinho-плавa-modroplava-cinih-cinij-kek-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
GRAZIE PER AVERE ACQUISTATO UN PRODOTTO WHIRLPOOL
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн-črna-crno-черный-чорний-қара-černa-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kafé-pruun-brūns-rudas-brazowy-braunen-brun-bruin-maro-kaфяв-браon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (сірий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/πράσινο-kollane/roheline-dzeltens/za|š-geltona/žalia-žółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/cары-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-sinньo-плавa-modroplava-cinий-ciníй-көк-modrý-modrý-kék-blå-sininen-blå-blåt-mavi-gorm-blár
DZIEKUJEMY ZA ZAKUP PRODUKTU WHIRLPOOL
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн--crna-crno-черный-чорний-қара-černá-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kafé-pruun-brūns-rudas-brazowy-braunen-brun-bruin-maro-kaфяв-браon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (сірий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
① = E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítpivo/trpáσινο-kollane/roheline-dzeltens/zalš-geltona/žalia-žółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/carys-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-sinho-плавo-modroplava-cinii-sinii-kεk-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
TÄNAME, ET OSTSITE WHIRLPOOL TOOTE
TOOTE KIRJELDUS
HELISIGNAAL SEES/VÄLJAS
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн--crna-crno-черный-чорний-қара-černá-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kafé-pruun-brūns-rudas-brazowy-braunen-brun-bruin-maro-kaфяв-браon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (сірий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
① = E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/πράσινο-kollane/roheline-dzeltens/za|š-geltona/žalia-žółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/cары-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-sinho-плавo-modroplava-cinii-sinii-kεk-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
DĖKOJAME, KAD |SIGIJOTE „WHIRLPOOL“ GAMINI!
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн--crna-crno-черный-чорний-қара-černá-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kaφέ-pruun-brūns-rudas-brązowy-braunen-brun-bruin-maro-kaφяв-braon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (сірий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/πράσινο-kollane/roheline-dzeltens/za|š-geltona/žalia-žółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/cары-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-sinho-плавo-modroplava-cinii-sinii-kεk-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
IZSTRĀDĀJUMA APRAKSTS
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн--crna-crno-черный-чорний-қара-černá-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kaφέ-pruun-brūns-rudas-brązowy-braunen-brun-bruin-maro-kaφяв-braon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (сірий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
⊥ = E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/πράσινο-kollane/roheline-dzeltens/za|š-geltona/žalia-žółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/cары-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-sinho-плавo-modroplava-cinii-sinii-kεk-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
DĚKUJEME VÁM, ŽE JSTE SI ZAKOUPILI VÝROBEK ZNAČKY WHIRLPOOL
POPIS PRODUKTU
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн-črna-crno-черный-чорний-қара-černa-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kafé-pruun-brūns-rudas-brazowy-braunen-brun-bruin-maro-kaфяв-браon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (сірий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/πράσινο-kollane/roheline-dzeltens/za|š-geltona/žalia-žółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/cары-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-sinho-плавo-modroplava-cinii-sinii-kεk-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
ĎAKUJEME, ŽE STE SI KÚPILI VÝROBOK WHIRLPOOL
OPIS SPOTREBIČA
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн-črna-crno-черный-чорний-қара-černa-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kafé-pruun-brūns-rudas-brązowy-braunen-brun-bruin-maro-kaфяв-браon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синій (сірий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/πράσινο-kollane/roheline-dzeltens/za|š-geltona/žalia-žółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/cары-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-buí/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-sinho-плавo-modroplava-cinii-sinii-kεk-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
VĂ MULTUMIM CĂ ATI ACHIZITIONAT UN PRODUS WHIRLPOOL
R
black-nero-negro-preto-μαύροσ-must-melns-juodas-czarny-schwarz-noir-zwart-negru-черно-црн- črna-crno-черный-чорний-қара-černá-čierna-fekete-svart-musta-svart-sort-siyah-dubh-svartur
S
brown-marrone-marrón-marrom-kafé-pruun-brūns-rudas-brazowy-braunen-brun-bruin-maro-kaфяв-браon-rjava-smed-korичневый-korичневий-коңыр-hnědý-hnedý-barna-brunt-ruskea-brunt-brunkahverengi-donn-brúnn
T
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)-μπλε (γκρι)-sinine (hall)-zila (pelēka)-mélyna (pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri)-синьо (сиво)-плава (сива)-modro (sivo)-plava (siva)-синий (серый)-синий (cíрий)-кек (сүр)-modrý (šedá)-modrý (sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå)-blåt (gråt)-mavi (gri)-gorm (liath)- blár (grár)
① = E
yellow/green-giallo/verde-amarillo/verde-amarelo/verdekítrivo/πράσινο-kollane/roheline-dzeltens/zalš-geltona/žalia-žółty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde-жълто/зелено-жуто/зелena-rumeno/zeleno-žuto/zelena-желтый/зеленый-жовтий/зелений-жасыл/сары-žlutá/zelená-žltá/zelená-sárga/zöld-gul/grønn-keltainen/vihreä-gul/grön-gul/grøn-sari/yeşil-bui/glas-gulur/grænn
N
blue-blu-azul-azul-μπλε-sinine-zila-mélyna-niebieski-blau-bleu-blauw-albastru-sinho-плавa-modroplava-cinii-sinii-kεk-modry-modry-kék-blå-sininen-blå-blåt-mavi-gorm-blár
ОПИС ВИРОБУ
