Product type	Heat pump tumble dryer
Brand	Miele
Model	TWD 440 WP
Capacity (dry weight)	8.0 kg
Drum volume	120 L
Dimensions (H x W x D)	850 x 596 x 643 mm
Depth with door open	1077 mm
Weight	approx. 62 kg
Condensed water container capacity	4.8 L
Refrigerant	R290 (flammable)
Programmes	Cottons, Minimum iron, Delicates, Woollens handcare, Shirts, Express, Denim, Bed linen, Proofing, Pre-ironing, Warm air
Drying levels	Extra dry, Normal, Hand iron, Machine iron
Perfect Dry system	Yes – measures residual moisture
Gentle tumble	Yes – for delicate fabrics
Delay start	Up to 24 hours
Anti-crease phase	Up to 2 hours
Fragrance flacon compatible	Yes (optional accessory)
Fluff filters	2 in door opening (clean after every cycle)
Plinth filter	Clean when indicator lights; replaceable
Door hinging	Reversible
Energy consumption (Cottons 8 kg, 1000 rpm)	1.44 kWh, 155 min
Noise level	Humming from compressor (normal)
Installation	Freestanding; can be stacked with Miele washing machine (kit required)

Frequently Asked Questions - TWD 440 WP MIELE

How do I clean the fluff filters?

Clean the two fluff filters in the door opening after every drying cycle. Pull out the upper filter, remove visible fluff, and rinse with warm water if necessary. Ensure filters are completely dry before reinserting.

What does the F066 error code mean?

F066 indicates a blockage in the fluff filter system. Switch the dryer off and on, then clean the fluff filters and the plinth filter thoroughly. If the error persists, check the heat exchanger or replace the plinth filter.

Why is my laundry not drying properly?

Possible causes: filters are clogged, room temperature too high, laundry was too damp after spinning, or the load contains mixed fabrics. Clean filters, ensure good ventilation, and select a higher spin speed in the washing machine.

Can I use fabric softener in the tumble dryer?

No, fabric softener is used in the washing machine. For fragrance, you can use a Miele fragrance flacon (optional accessory) inserted into the fluff filter area.

How do I change the door hinging?

The door hinging can be reversed. Disconnect power, remove the door, relocate the door lock and hinge to the opposite side, and refit using the provided covers and tools (T20/T30 Torx screwdrivers).

What is the maximum load for the Cottons programme?

The maximum load for the Cottons programme is 8.0 kg (dry weight). For other programmes, refer to the programme chart; e.g., Minimum iron 4 kg, Delicates 2.5 kg.

How often should I clean the plinth filter?

Clean the plinth filter when the indicator light comes on or if drying times become longer. Remove it, rinse thoroughly under running water, and squeeze carefully. Replace if it shows signs of wear.

Can I use an extension cord or multi-socket adapter?

No, do not use extension cords or multi-socket adapters. Connect the dryer directly to a properly earthed socket to avoid overheating and fire risk.

What is the correct way to stack this dryer on a washing machine?

Use a Miele washer-dryer stacking kit (optional accessory) designed for your models. Follow the kit instructions to ensure stability and safety.

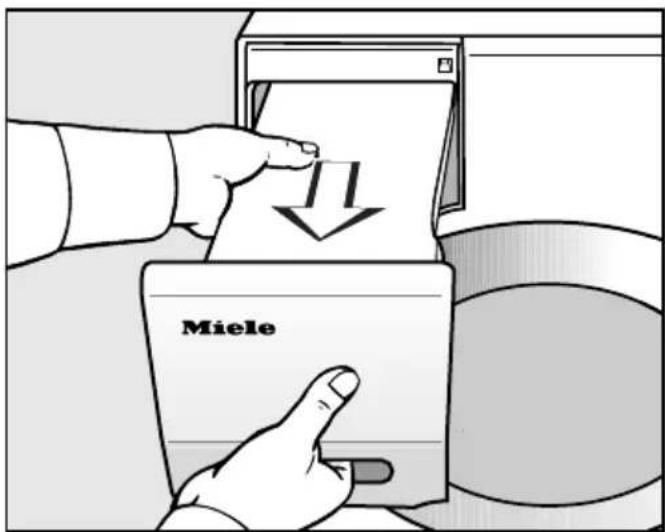

How do I empty the condensed water container?

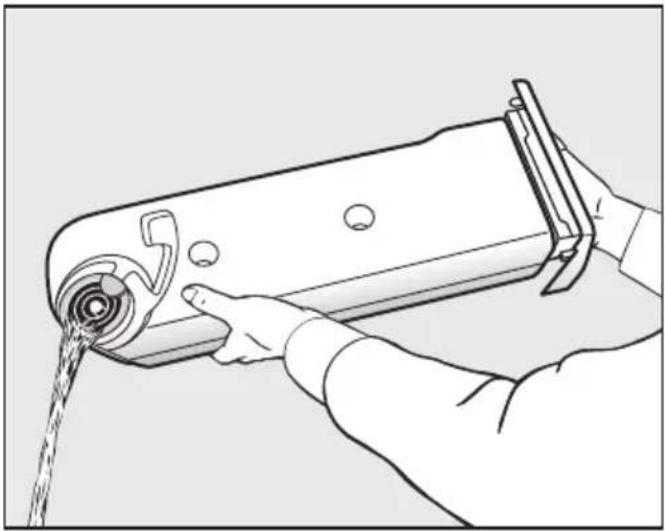

Pull out the container at the bottom front, keep it horizontal to avoid spills, empty it, and slide it back in. Empty after every drying cycle to avoid the indicator light.

USER MANUAL TWD 440 WP MIELE

Operating instructions Heat pump tumble dryer

Close-up of a hand washing a baby in a plastic basin, no visible text or symbols

It is essential to read these operating instructions before installing and using the appliance. This prevents both personal injury and damage to the appliance.

Caring for the environment 5

Warnings and safety instructions 6

Operating the tumble dryer 18

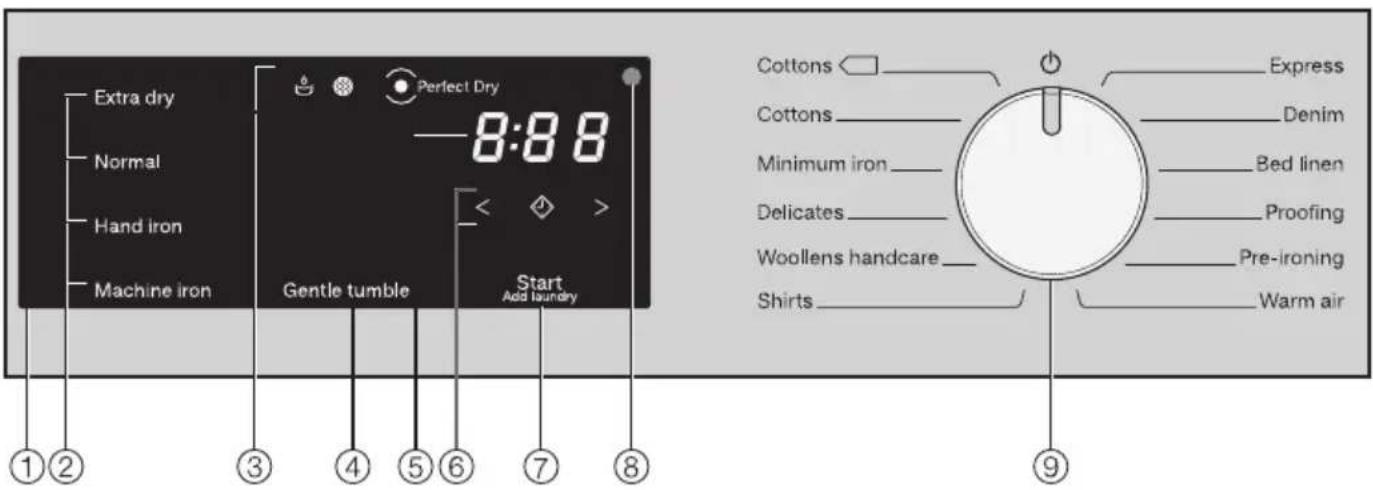

Control panel.... 18

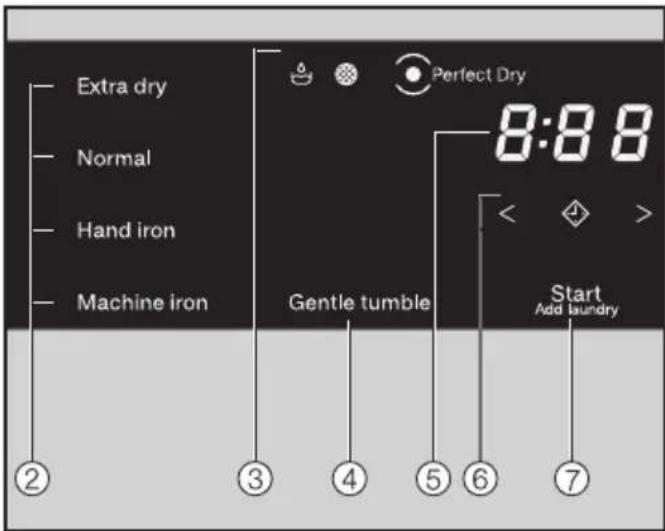

How the control panel works 19

Before using for the first time 21

Downtime after installation.... 21

Removing the protective foil and stickers 21

Energy saving tips 22

1. Notes on correct laundry care 23

Points to note regarding washed laundry 23

Preparing the laundry before drying.... 23

Drying 24

Care label symbols.... 24

Selecting the correct drying level.... 24

1. Loading the tumble dryer 25

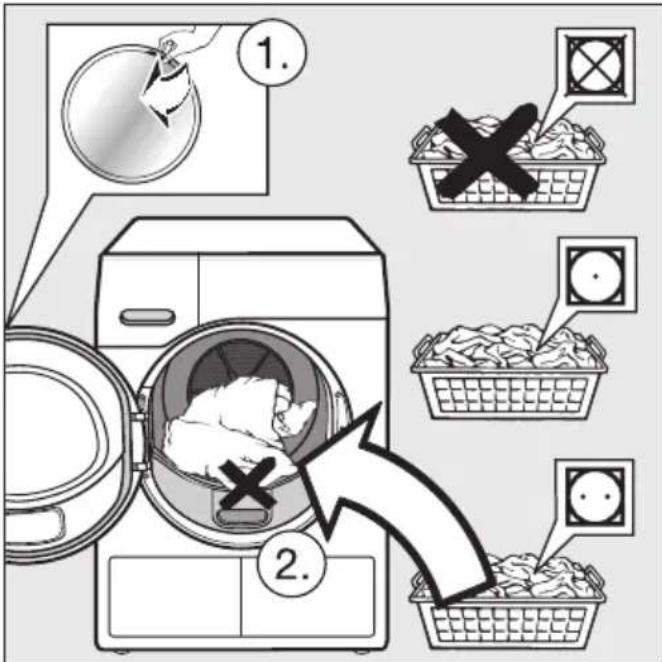

Loading the laundry.... 25

1. Selecting a programme and starting it.... 26

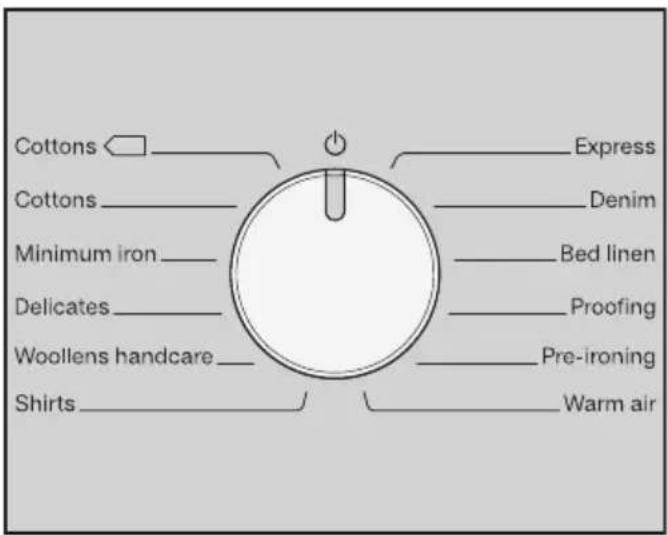

Selecting a programme 26

Selecting a drying level with a drying programme 26

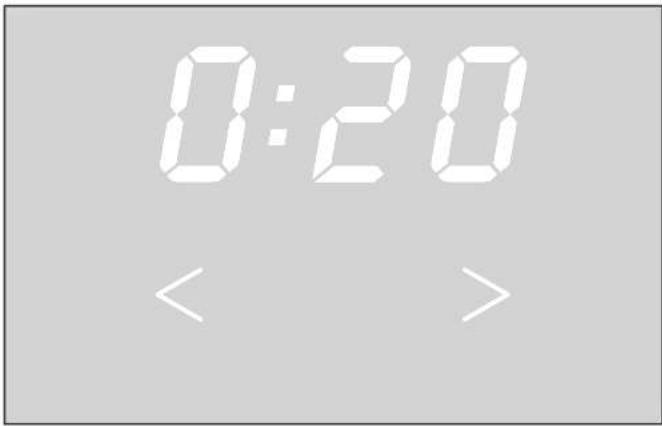

Selecting timed drying programmes and other programmes 27

Selecting Gentle tumble 27

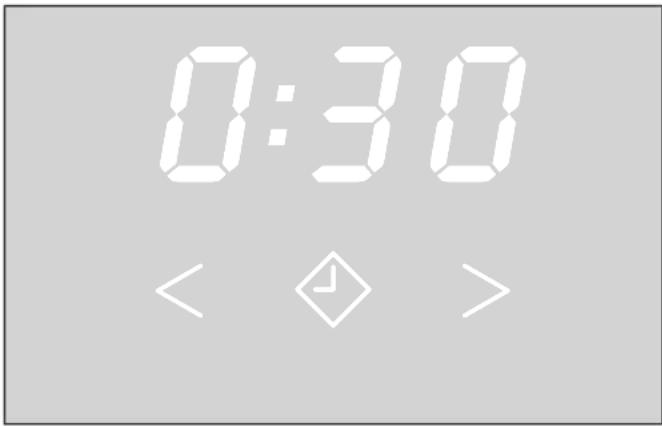

Selecting Delay start 28

1. Removing the laundry at the end of the programme 30

End of programme/Anti-crease 30

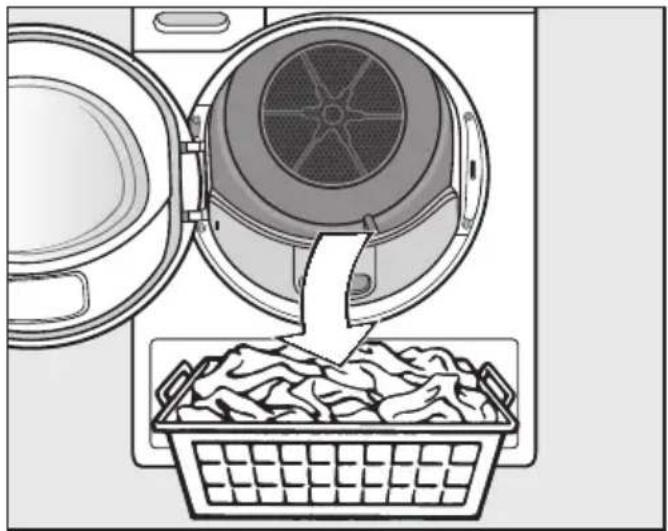

Removing the laundry 30

Programme chart 31

Changing the programme sequence.... 34

Changing a programme after it has started 34

Adding or removing laundry 34

Condensed water container 35

Emptying the condensed water container 35

Fragrance flacon.... 36

Using a fragrance flacon 36

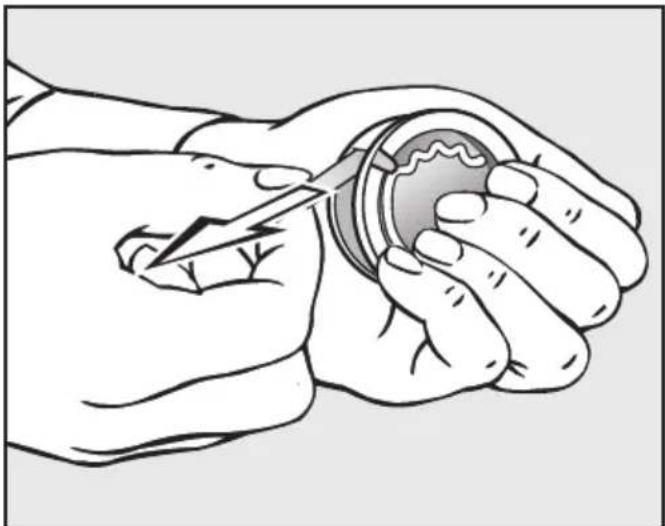

Removing the protective seal from the fragrance flacon.... 36

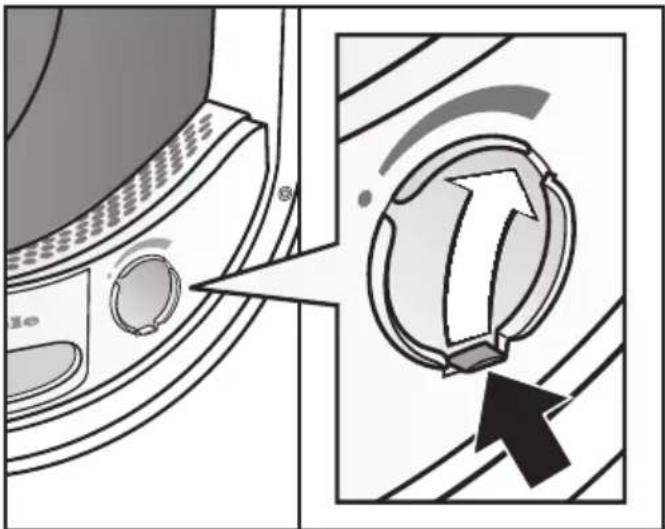

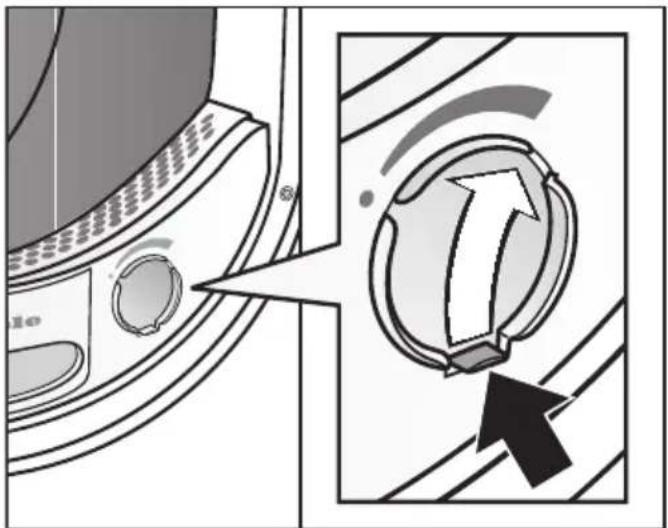

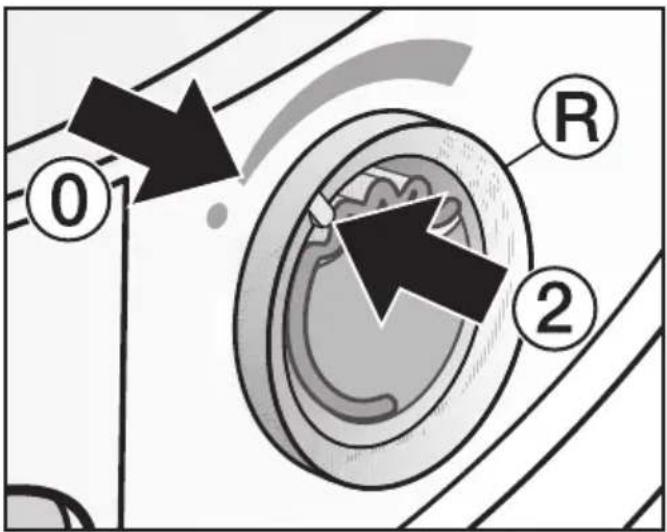

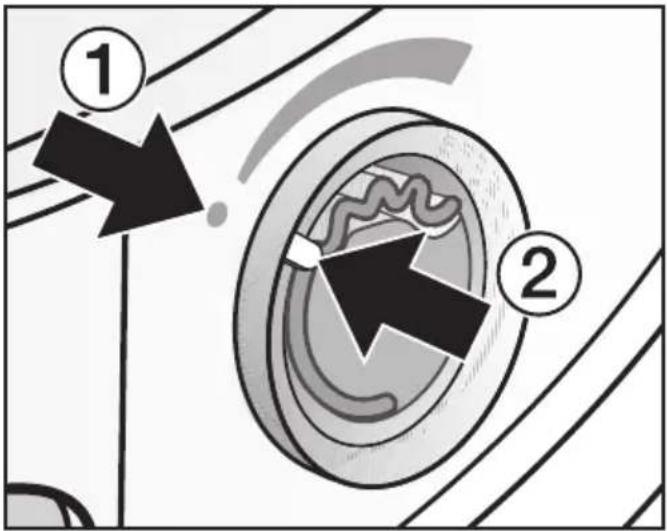

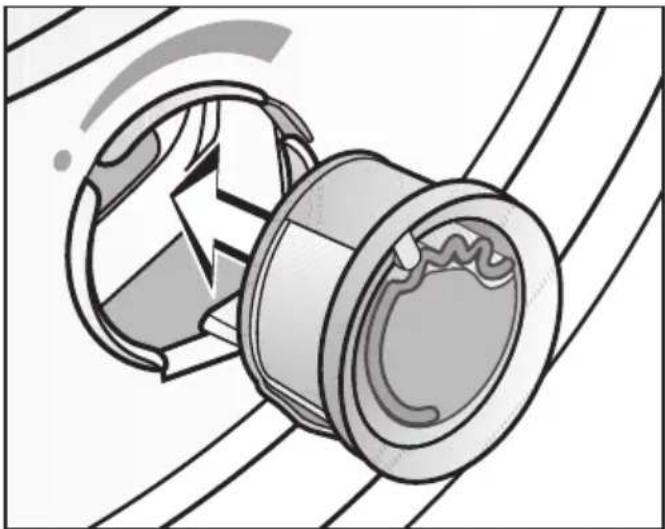

Inserting the fragrance flacon.... 37

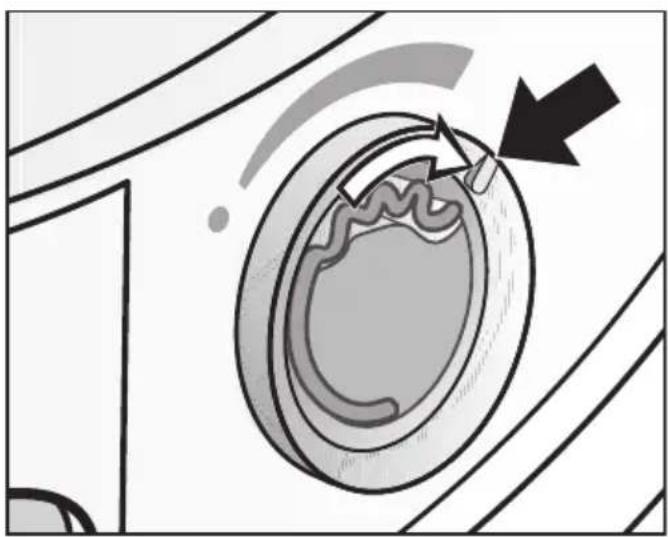

Opening the fragrance flacon.... 38

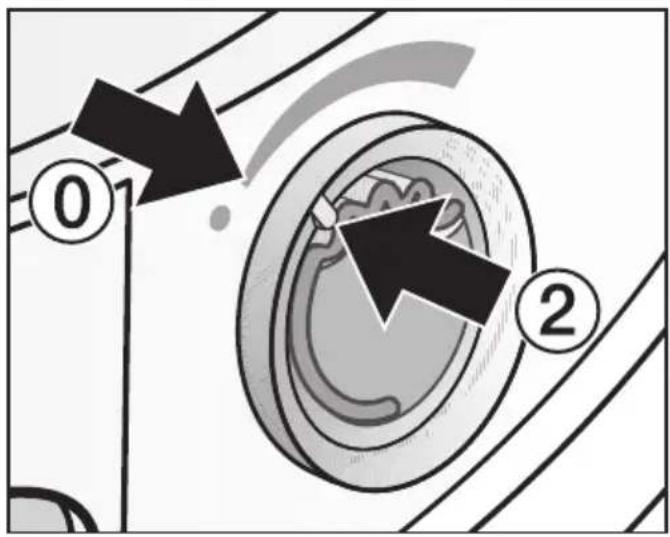

Closing the fragrance flacon 38

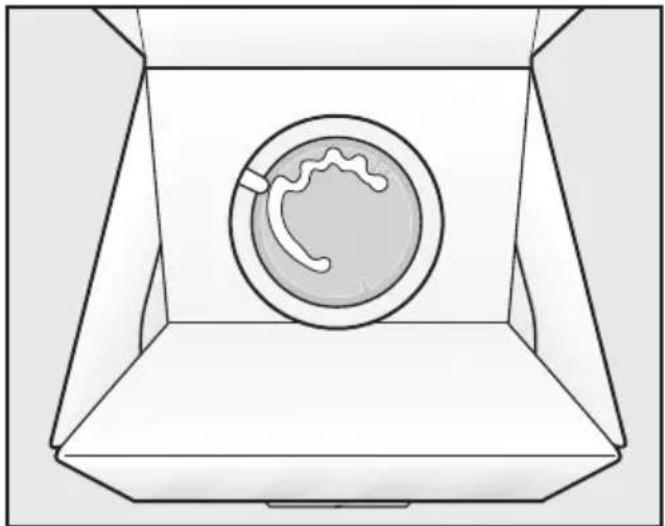

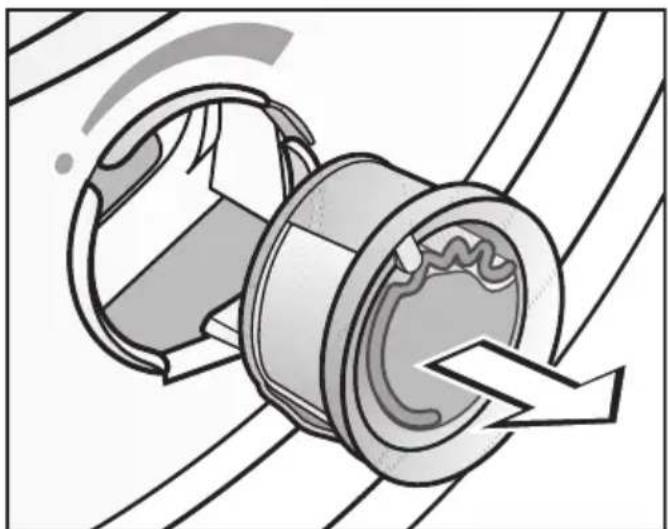

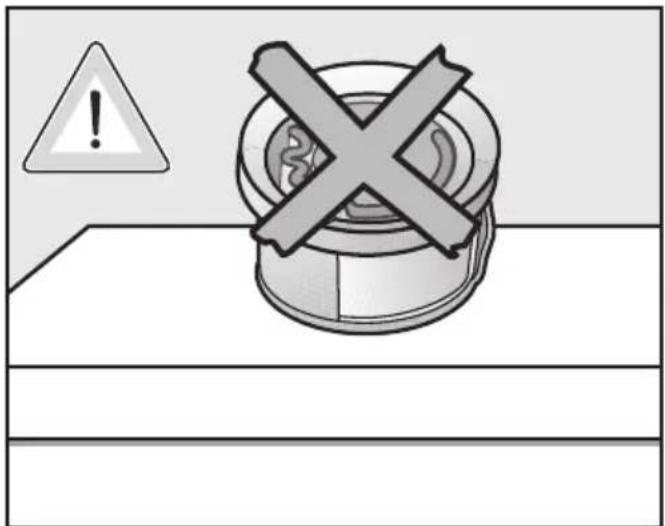

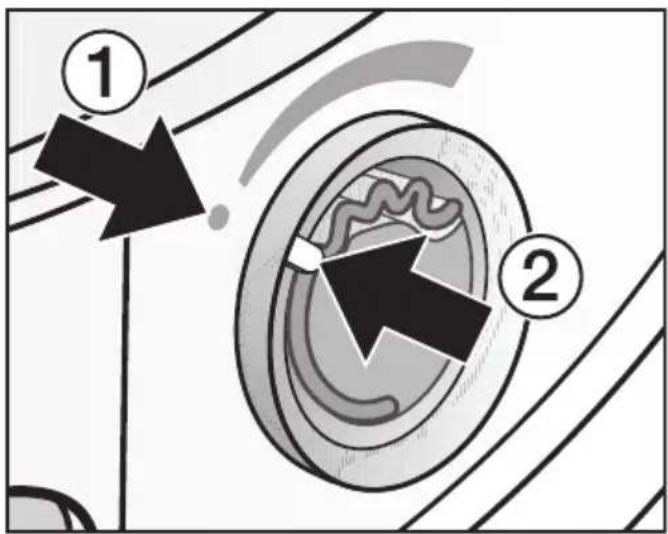

Removing/replacing the fragrance flacon 39

Cleaning and care 40

Fluff filters 40

Removing the fragrance flacon 40

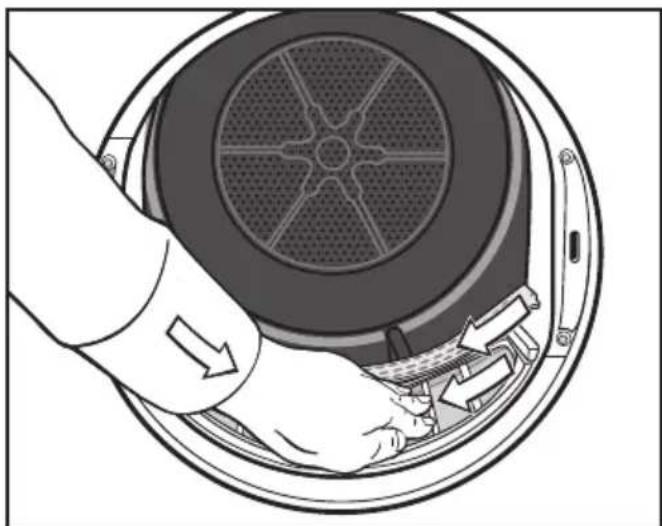

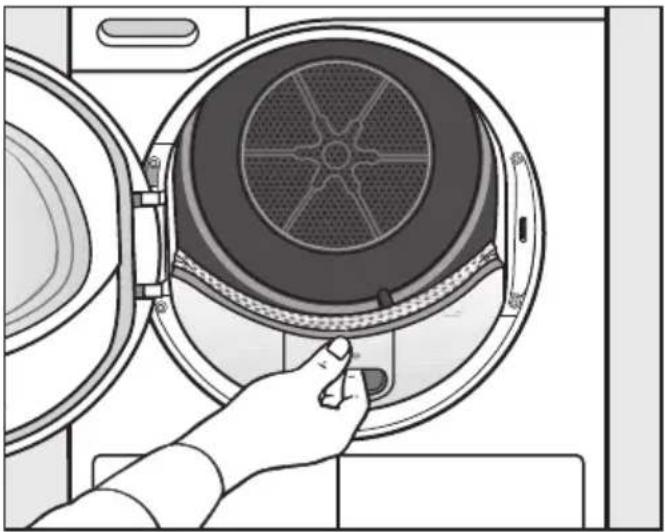

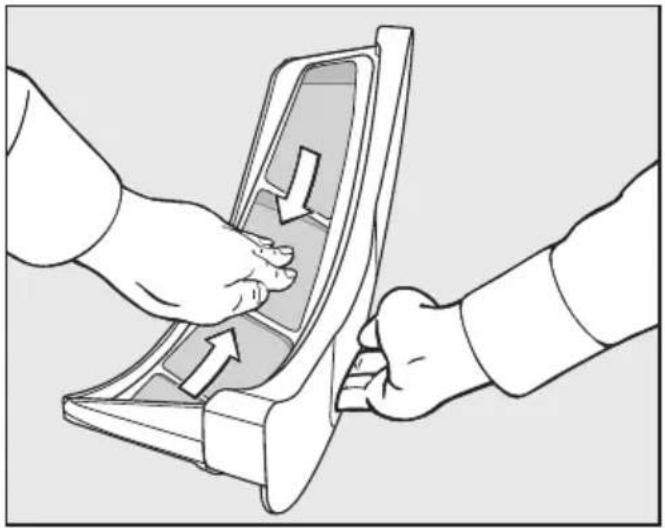

Removing visible fluff 40

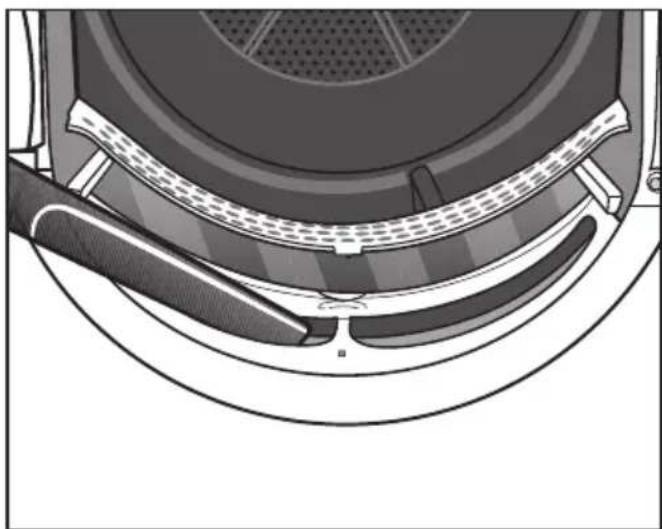

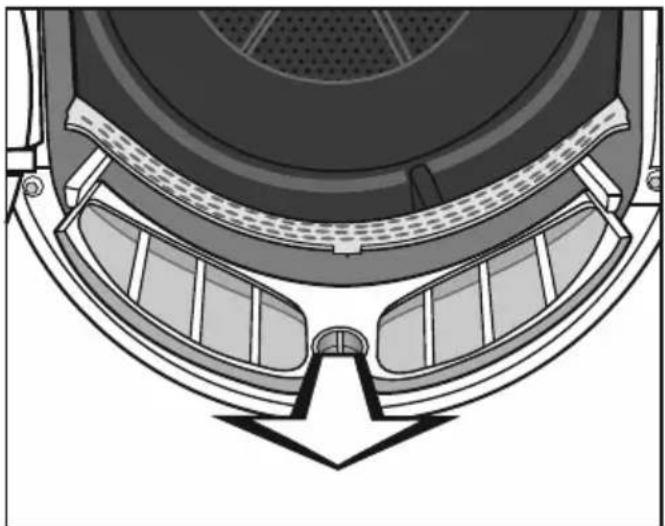

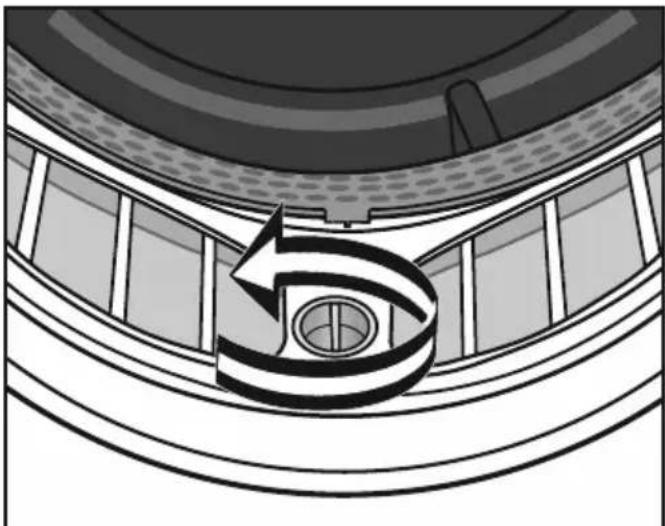

Cleaning the fluff filters and air flow openings thoroughly 41

Cleaning the fluff filters with water 42

Cleaning the plinth filter.... 43

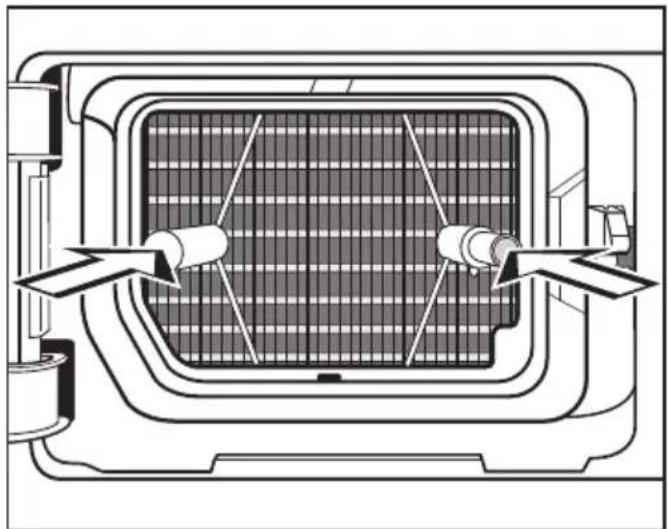

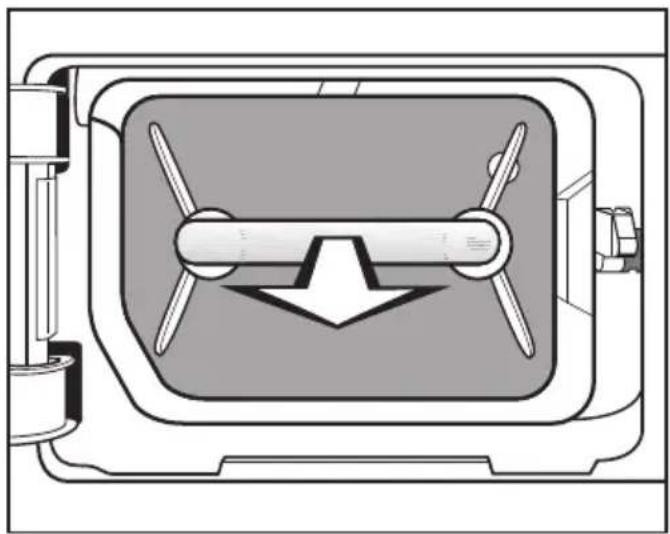

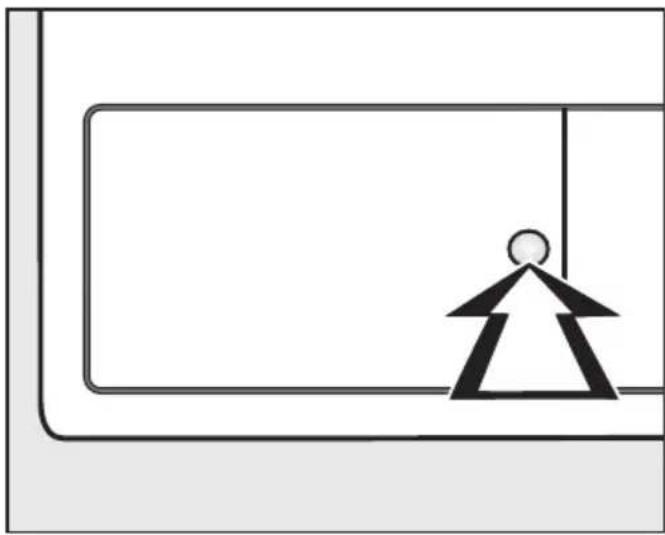

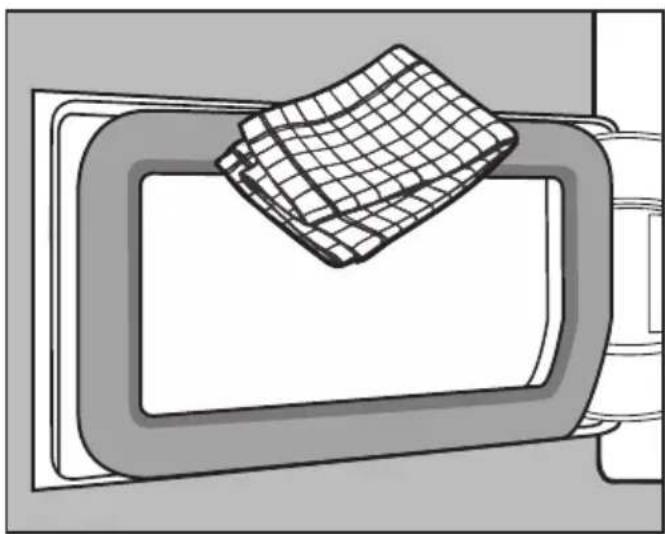

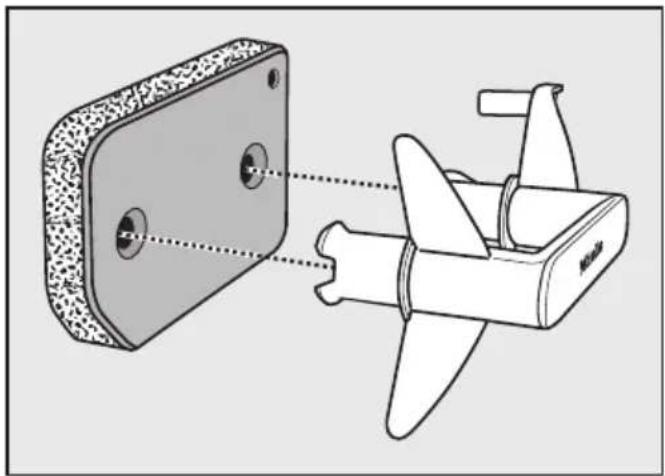

Removing the plinth filter 43

Cleaning the plinth filter 44

Cleaning the plinth filter flap.... 45

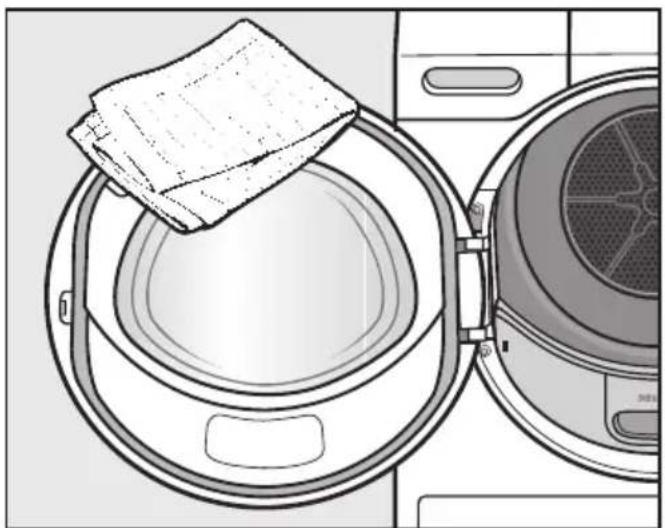

Cleaning the dryer 45

Problem solving guide 46

Indicator lights or information in the time display 46

Unsatisfactory drying results.... 49

The drying process takes a long time. 50

Other problems 51

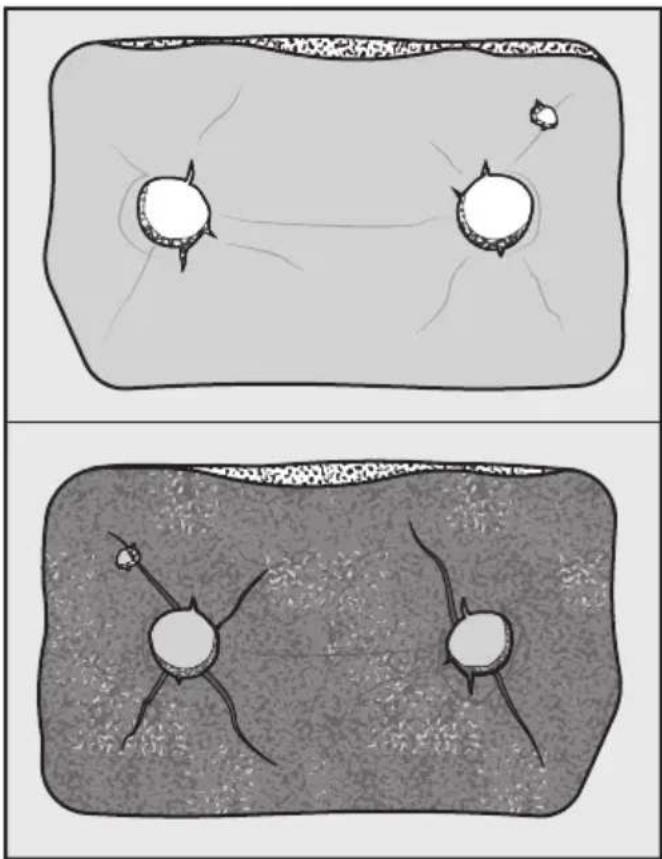

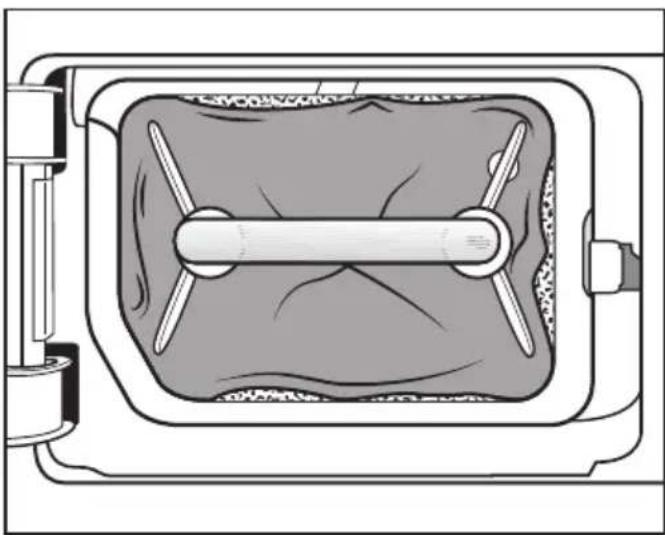

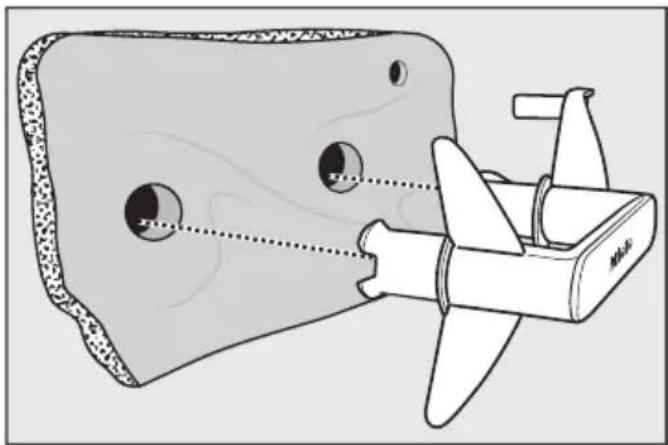

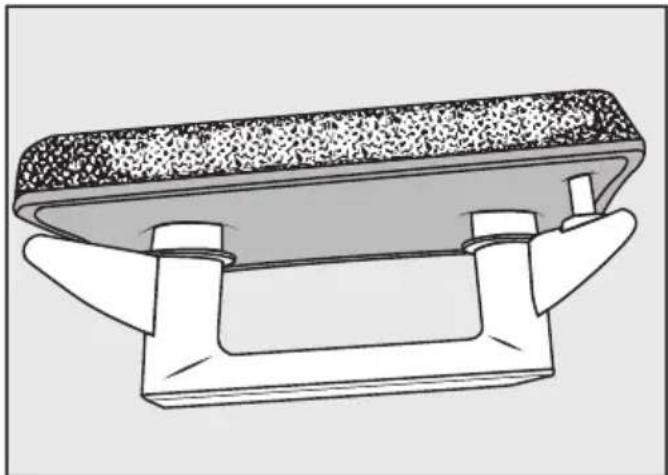

Replacing the plinth filter.... 52

Regenerating the plinth filter 54

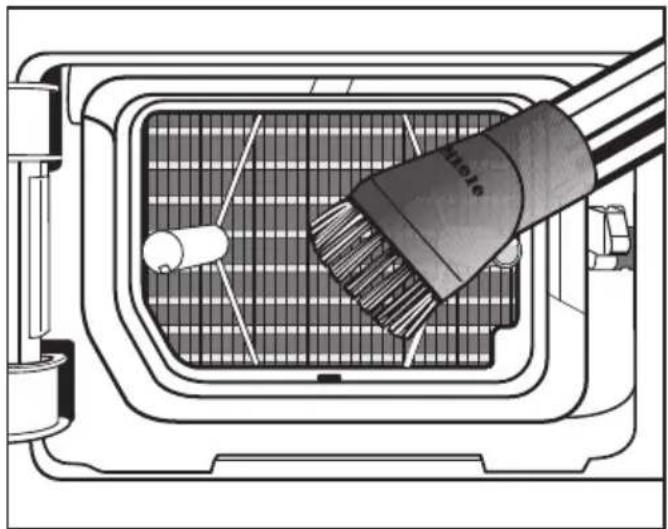

Checking the heat exchanger.... 54

Service....55

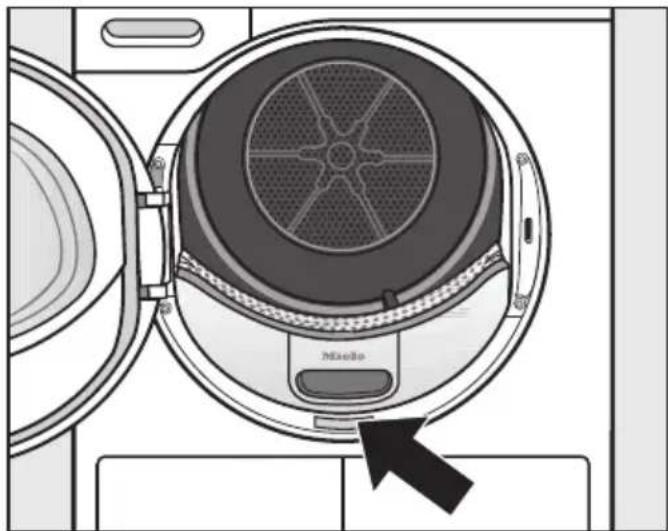

Contact in case of fault 55

Optional accessories.... 55

Warranty 55

Contents

Installation.... 56

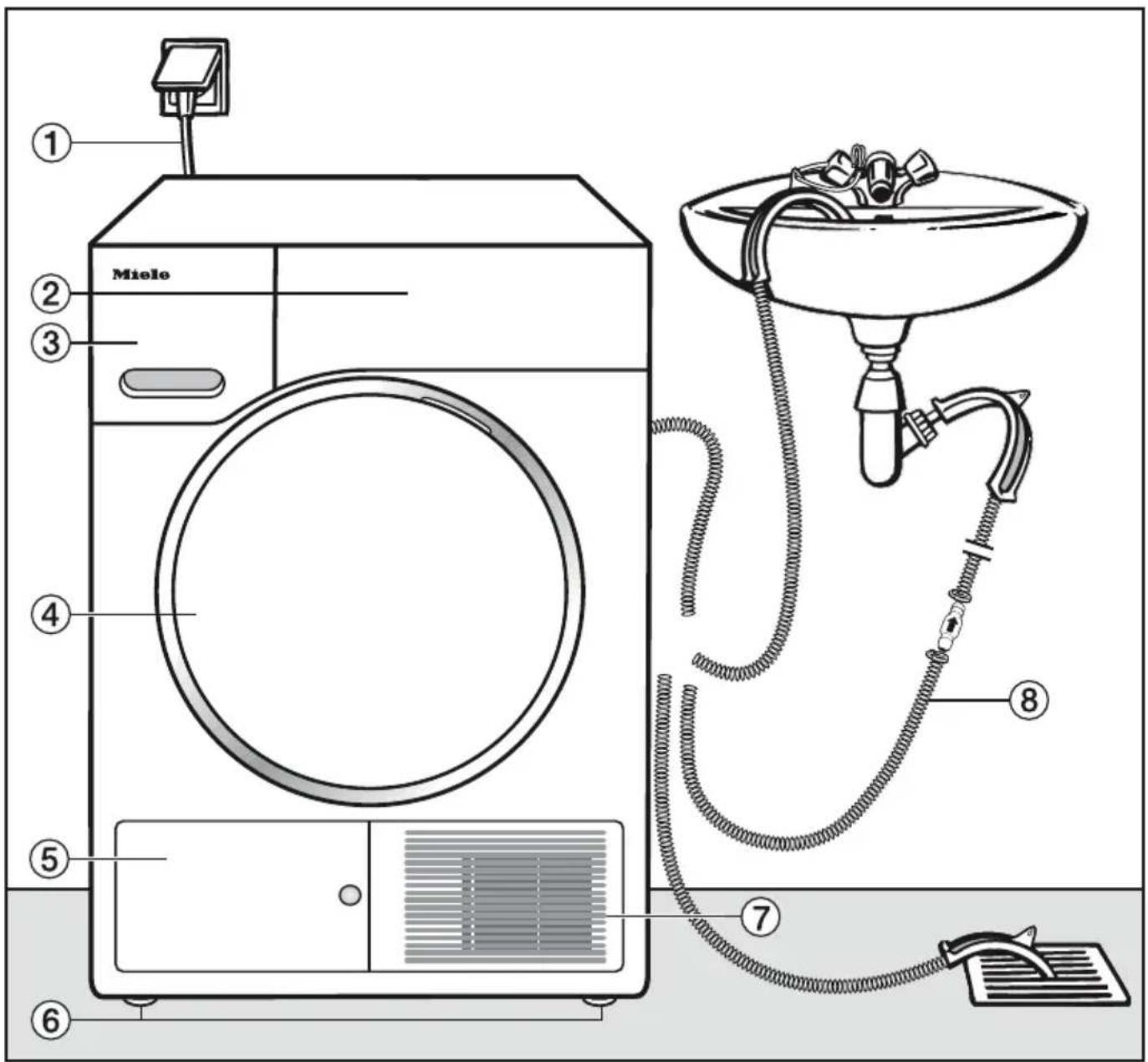

Front view 56

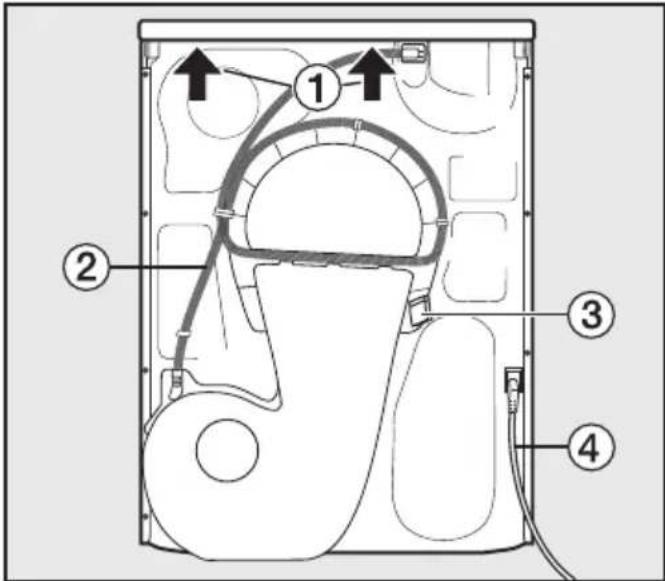

Rear view 57

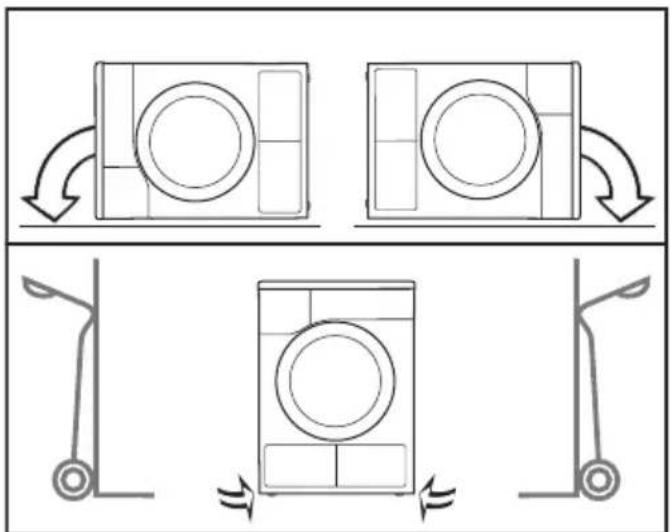

Transporting the tumble dryer 57

Transporting the tumble dryer to its installation site 57

Installation 58

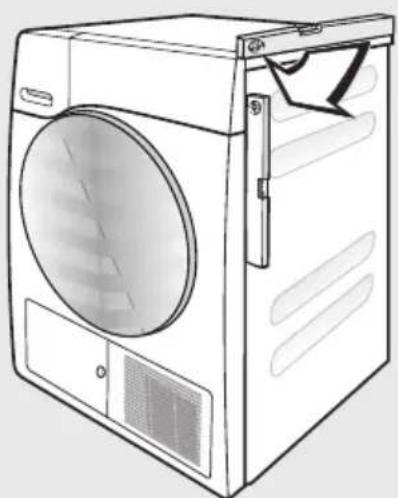

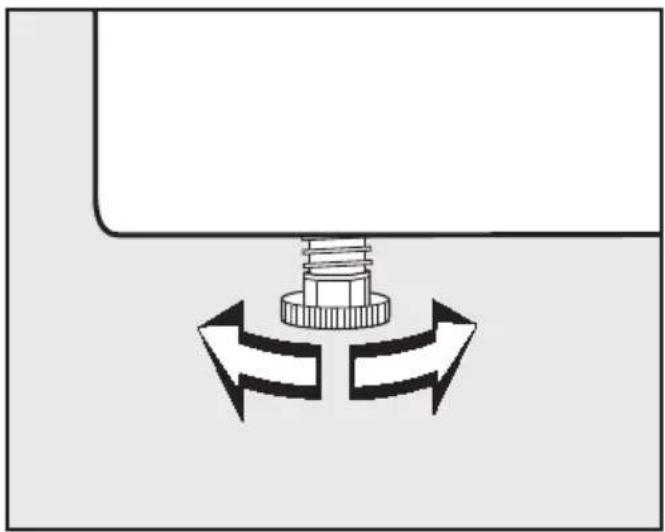

Levelling the dryer 58

Downtime after installation.... 59

Ventilation....59

Before moving the tumble dryer again (e.g. when moving house).... 59

Additional installation requirements 60

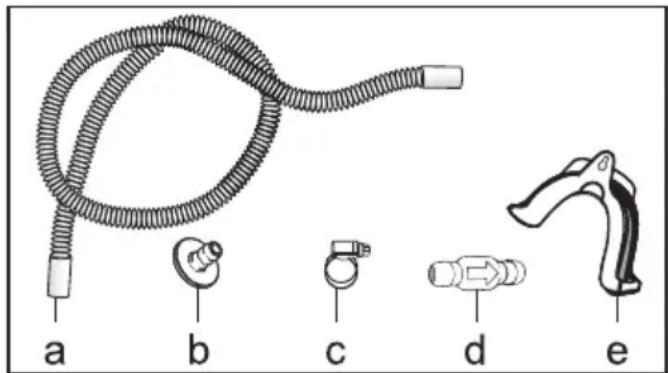

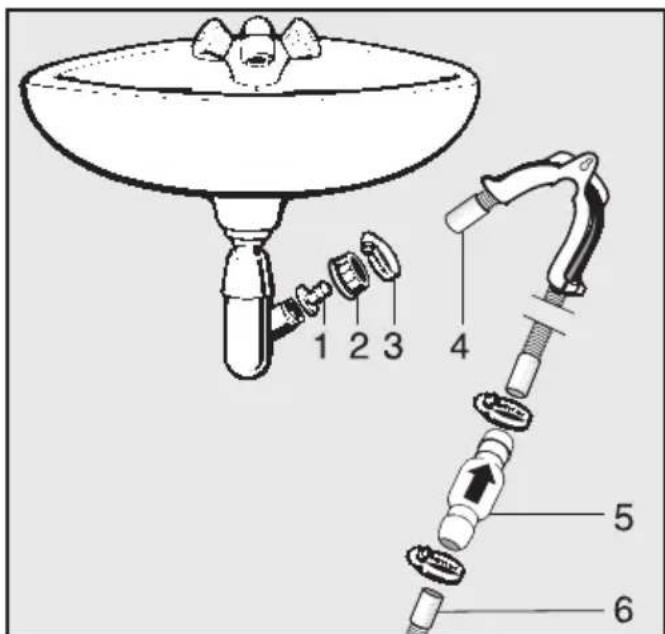

Externally draining condensed water 61

Installation conditions requiring a non-return valve 61

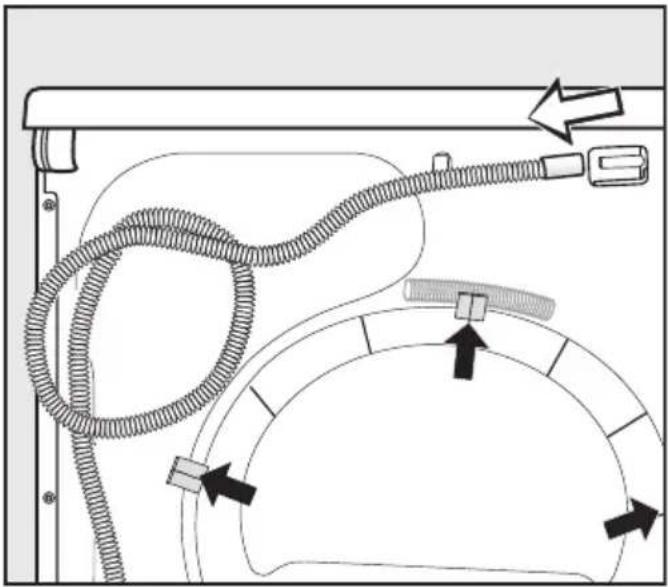

Arranging the drain hose 62

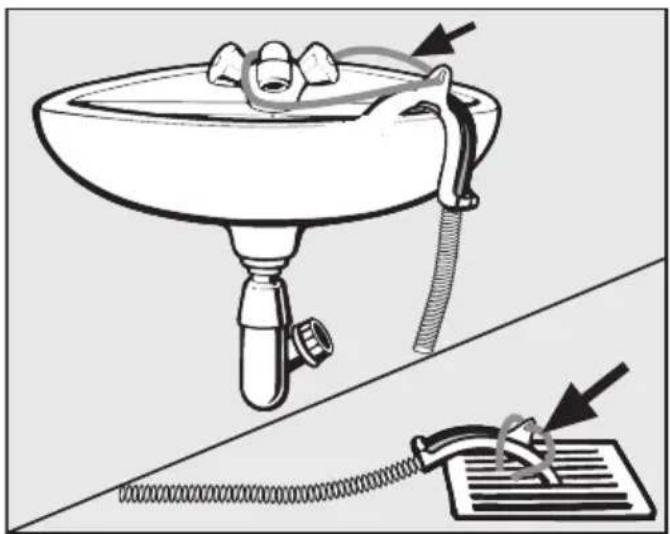

Examples.... 62

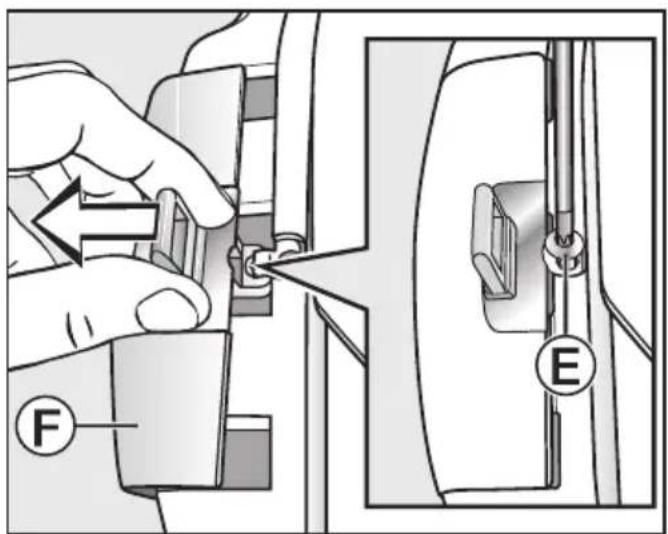

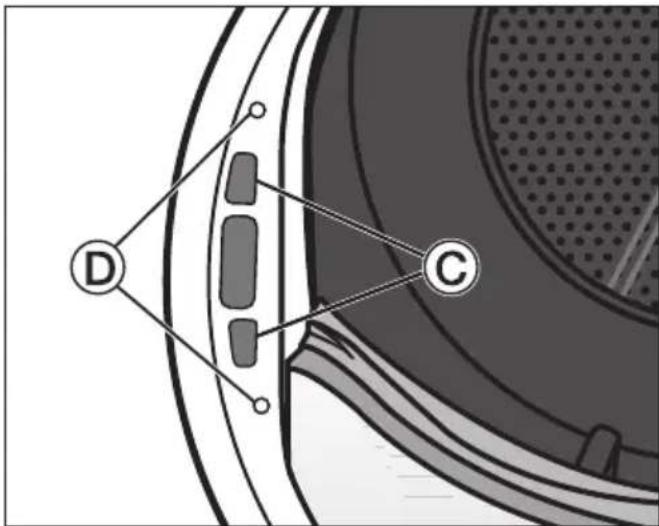

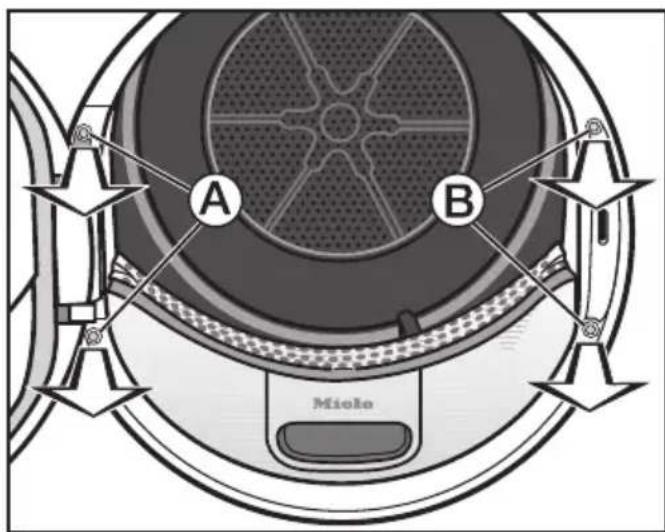

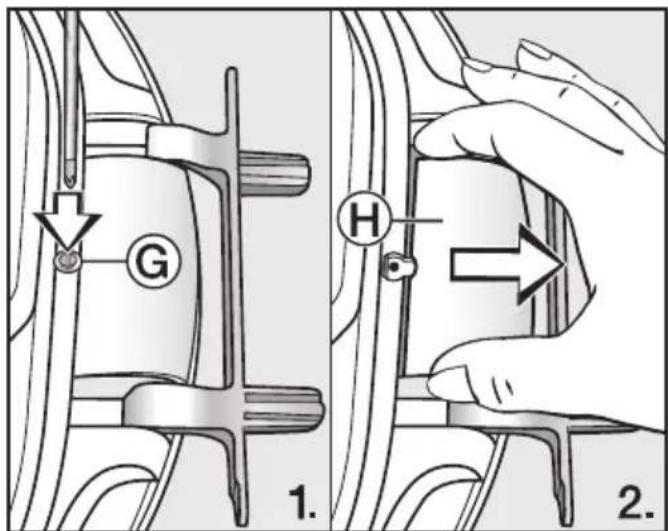

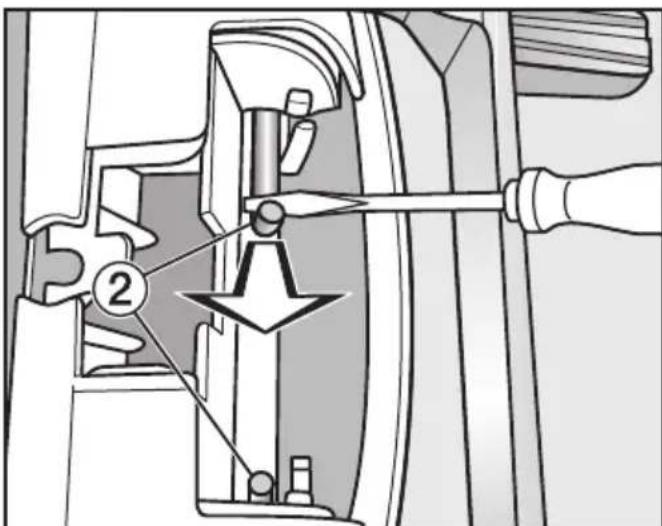

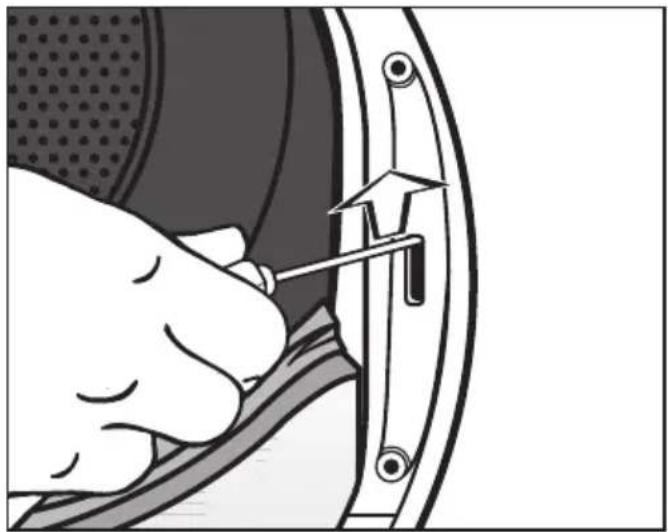

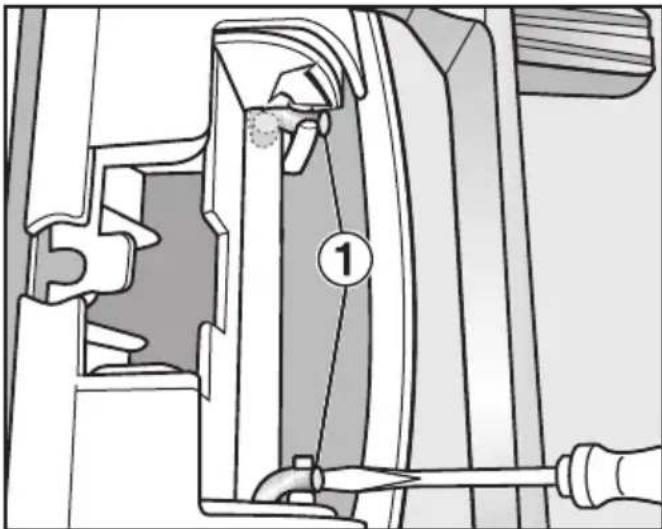

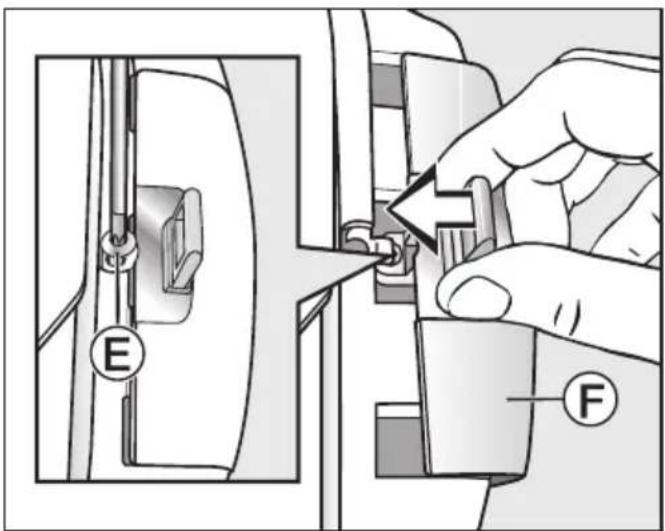

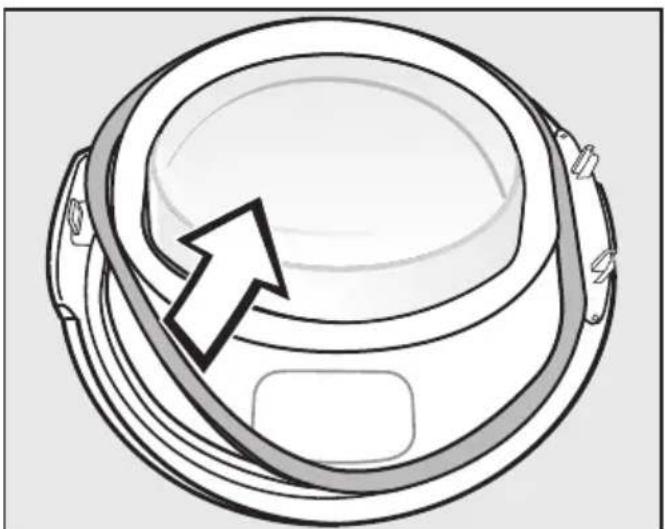

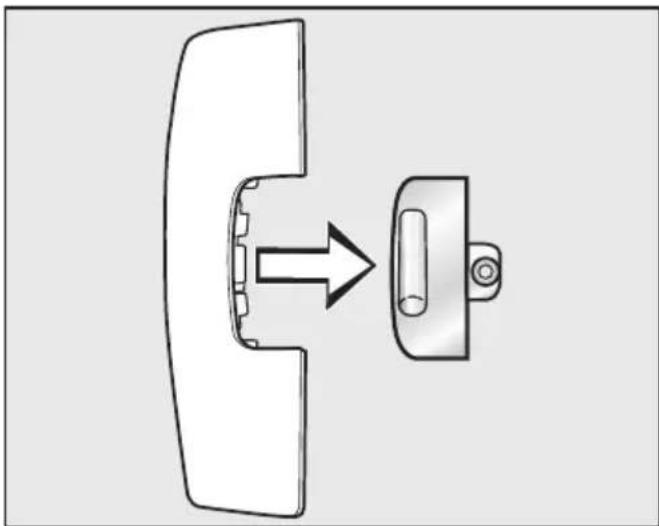

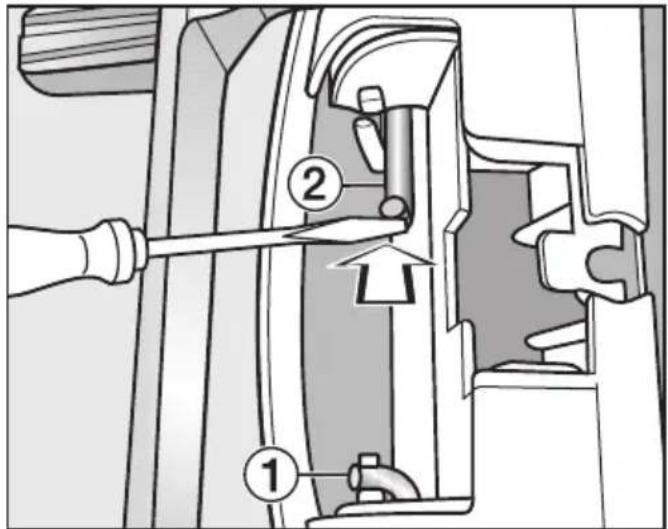

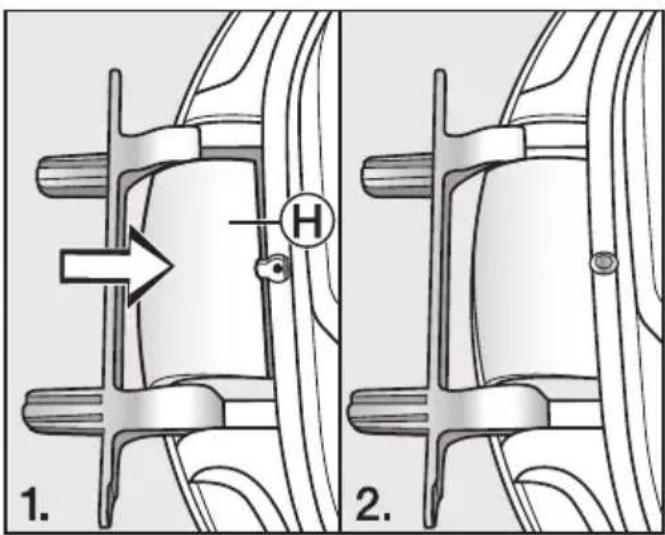

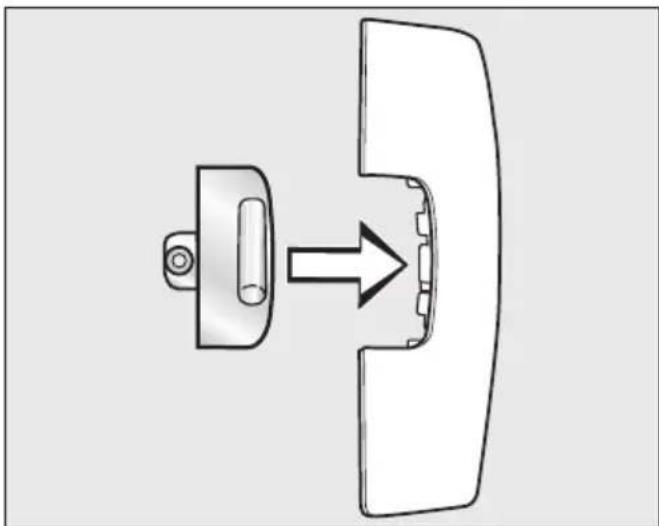

Changing the door hinging.... 64

Changing the hinging over 64

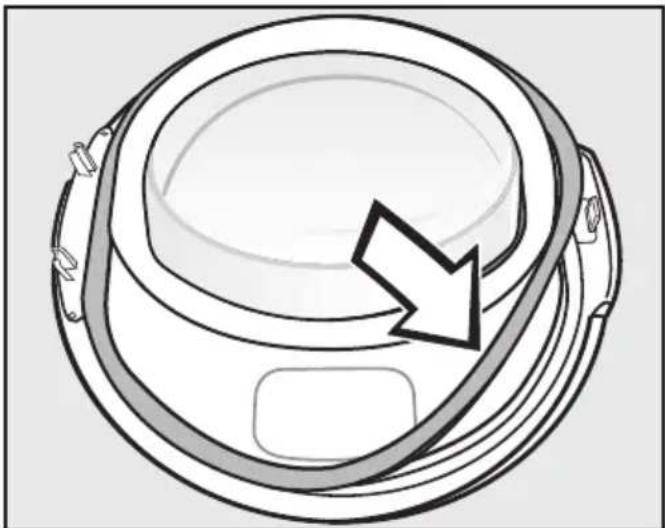

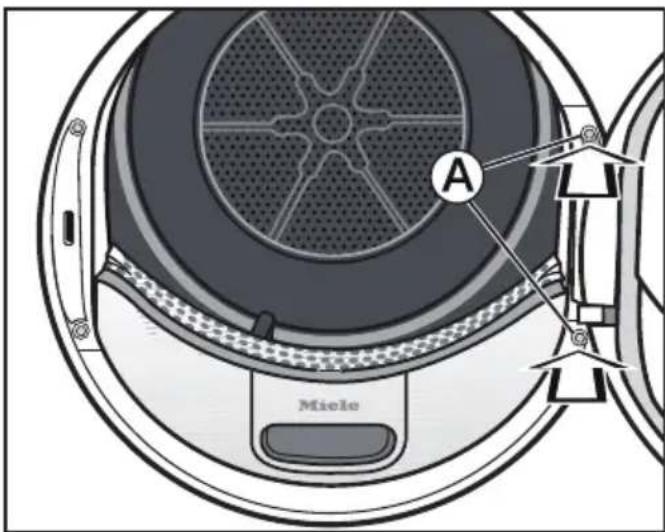

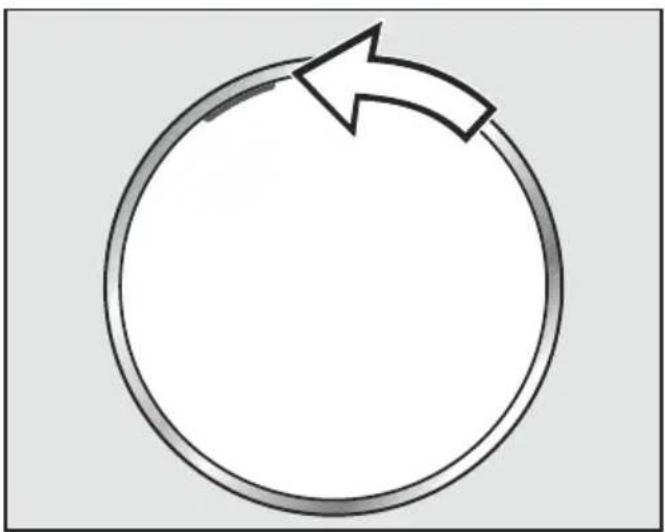

Refitting 69

Electrical connection 70

Technical data....71

Consumption data.... 72

Programmable functions 73

Programming.... 73

POI Cottons drying levels.... 75

PO2 Minimum iron drying levels.... 75

P04 Cooling temperature 75

POS Keypad tone.... 75

P07 PIN Code 76

P08 Conductivity 76

PII Control panel standby status 77

PI3 Memory.... 77

P14 Anti-crease 77

P20 Airways indicator.... 78

P22 Backlight brightness dimmed.... 78

Disposal of the packing material

The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.

Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.

Disposing of your old appliance

Electronic and electrical appliances contain many valuable materials. They also contain certain materials, compounds and components which were essential for their correct functioning and safety. These could be hazardous to your health and to the environment if disposed of with general waste or if handled incorrectly. Please do not, therefore, dispose of your old appliance with your household waste.

Take care not to damage the tumble dryer's pipework and heat exchanger before or during transportation to an authorised collection depot.

This is to ensure that refrigerant in the tumble dryer and oil in the compressor are contained, and will not leak into the environment.

Please dispose of it at your local community waste collection/recycling centre for electrical and electronic appliances, or contact Miele. You are also responsible for deleting any personal data that may be stored on the appliance being disposed of. Please ensure that your old appliance presents no danger to children while being stored awaiting disposal.

It is essential to read these instructions.

This tumble dryer contains a refrigerant that is flammable and explosive.

This tumble dryer complies with all current local and national safety requirements. However, inappropriate use can lead to personal injury and damage to property.

Read the operating instructions carefully before using the tumble dryer. They contain important information on safety, installation, use and maintenance of the appliance. This prevents both personal injury and damage to the tumble dryer.

In accordance with standard IEC 60335-1, Miele expressly and strongly advises that you read and follow the instructions in “Installation”, as well as in the “Warning and Safety instructions”.

Miele cannot be held liable for injury or damage caused by non-compliance with these instructions.

Keep these operating instructions in a safe place and pass them on to any future owner.

Correct application

This tumble dryer is designed for domestic use and for use in similar environments by guests in hotel or motel rooms, bed & breakfasts and other typical living quarters. This does not include common/shared facilities or commercial facilities within hotels, motels or bed & breakfasts.
This tumble dryer is not suitable for outdoor use.
It must only be used to dry items which have been washed in a water solution and which are marked on the manufacturer's care label as being suitable for tumble drying. If using dry cleaning kits, do so at your own risk, and follow the instructions provided on the packaging.

Any other applications may be dangerous. Miele cannot be held liable for damage resulting from incorrect or improper use or operation.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they are supervised whilst using it or have been shown how to use it by a person responsible for their safety.

Safety with children

▶ Young children must not be allowed to use this appliance.
▶ Older children may only use the appliance when its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.
Children must not be allowed to clean or maintain the tumble dryer unsupervised.
▶ Please supervise children in the vicinity of the tumble dryer and do not let them play with it.

Technical safety

Before setting up the tumble dryer, check it for any externally visible damage.

Do not install or use a damaged tumble dryer.

Before connecting the tumble dryer, ensure that the connection data on the data plate (fuse rating, voltage and frequency) matches the mains electricity supply. If in any doubt, consult a qualified electrician.

▶ Reliable and safe operation of this tumble dryer can only be assured if it has been connected to the mains electricity supply.

The electrical safety of this tumble dryer can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician. Miele cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

Do not connect the tumble dryer to the mains electricity supply by an extension lead. Extension leads do not guarantee the required safety of the appliance (e.g. danger of overheating).

If the connection cable is faulty, it must only be replaced by a Miele authorised technician to protect the user from danger.

▶ Unauthorised repairs could result in unforeseen dangers for the user, for which Miele cannot accept liability. Repairs should only be undertaken by a Miele authorised service technician, otherwise any subsequent damage will not be covered by the warranty.
▶ Faulty components must only be replaced by genuine Miele spare parts. Miele can only guarantee the safety of the appliance when Miele replacement parts are used.
In the event of a fault or for cleaning purposes, the tumble dryer is only completely isolated from the electricity supply when:

- it is switched off at the wall socket and the plug is withdrawn, or

- it is switched off at the mains circuit breaker.

This tumble dryer must not be installed and operated in mobile installations (e.g. on a ship).
Do not make any alterations to the tumble dryer, unless authorised to do so by Miele.

This tumble dryer is supplied with a special lamp to cope with particular conditions (e.g. temperature, moisture, chemical resistance, abrasion resistance and vibration). This special lamp must only be used for the purpose for which it is intended. It is not suitable for room lighting. Replacement lamps may only be replaced by a Miele authorised technician.

This tumble dryer uses a gaseous refrigerant which is condensed by the compressor. Having been increased to a high temperature level by compression, the refrigerant passes through a closed refrigerant circuit. The heat generated is transferred to the drying air as it passes through the heat exchanger.

• The humming noises caused by the heat pump during the drying process are normal. They do not impair the correct functioning of the dryer.
• The refrigerant is environmentally friendly and does not damage the ozone layer.

Damage to the tumble dryer by switching it on too soon.

This can damage the heat pump.

After setting up the tumble dryer, wait for at least one hour before starting a drying programme.

The R290 refrigerant contained in this tumble dryer is flammable and explosive. If the tumble dryer is damaged, proceed as follows:

• Avoid naked flames or anything which creates a spark.
• Disconnect the dryer from the electricity supply.
  – Air the room where the tumble dryer is located.
• Contact Miele Customer Service.

Risk of fire and explosion due to damage to the tumble dryer.

The refrigerant is flammable and explosive if it leaks.

Take measures to protect the tumble dryer against damage. Do not make any alterations to the tumble dryer.

▶ Follow the instructions in “Installation” and “Technical data”.

The plug and socket must be accessible at all times in order to be able to disconnect the tumble dryer from the power supply.

Do not block the gap between the bottom of the tumble dryer and the floor with plinth facings, deep pile carpet etc. This would hinder a sufficient flow of air to the tumble dryer.

▶ Make sure the dryer door can be opened without hindrance after installation.

Correct use

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

READ THE INSTRUCTIONS

⚠ Warning: Risk of fire / Flammable materials.

To avoid the possible danger of fire, please read these warnings carefully.

⚠️ A clogged filter is a fire hazard!

The fluff filter must be cleaned after every programme.

The maximum load for this tumble dryer is 8.0 kg (dry weight). See the “Programme chart” for the maximum recommended loads for individual programmes.
To prevent the risk of fire, do not connect the tumble dryer via a controllable socket (e.g. a timer or a peak-load switch-off device). If the drying programme is interrupted before the end of the cooling down phase, this could cause the laundry to self-ignite.
▶ Warning: Ensure that you always wait until the end of the programme before removing the laundry. If the drying programme is stopped prematurely, remove the laundry immediately and hang it up or spread it out to cool it down.
Fabric softener and similar products must be used according to the instructions on the manufacturer's packaging.
Remove all items from pockets (e.g. lighters, matches).
The fluff filters must be cleaned after every drying cycle. Fluff must not be allowed to accumulate around the tumble dryer.

The fluff filters and the plinth filter must be thoroughly dried after cleaning. Do not replace them if they are damp or wet. Damp or wet filters could cause operational faults.
▶ Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer.

The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat.

If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

If it is unavoidable that fabrics contaminated with vegetable or cooking oil, or hair care products, be placed in a tumble dryer, they should first be washed in hot water with extra detergent - this will reduce, but not eliminate, the hazard.

To prevent the risk of fire, textiles that have not been cleaned thoroughly or are still soiled with deposits of any kind must not be dried in this tumble dryer. This applies in particular to

• Items which have not been washed.
• Items, such as workwear, which have not been thoroughly cleaned and are still soiled with grease, oil or other deposits (such as cooking oils, cosmetics, lotions, etc.). If items have not been thoroughly cleaned, there is a danger that they might ignite when heated, even after they have been removed from the tumble dryer at the end of the programme.
• Items (e.g. mops and floor cloths) that have been treated with inflammable cleaning agents or which contain residues of acetone, alcohol, benzene, petrol, kerosene, stain remover, turpentine, wax and wax remover or other chemicals.
• Items which have been splashed with hair lacquer, hair spray, nail varnish remover or similar substances.

When washing such heavily soiled items:

Ensure that you use a larger quantity of detergent and select a high temperature. If in doubt, wash the items several times.

▶ To prevent the risk of fire, the following textiles must never be dried in the tumble dryer:

• Textiles that have been cleaned using chemicals (e.g. professional dry-cleaning agents).
• Textiles which contain a large proportion of rubber, foam rubber or rubber-like materials. For example, products made from latex foam rubber, shower caps, waterproof textiles, rubberised articles and items of clothing and pillows with foam rubber filling.
• Textiles which contain padding or fillings which are damaged (e.g. pillows, jackets). The filling could fall out and cause a fire.

The heat pump that is essential to the operation of this tumble dryer generates a lot of heat inside its casing. It must be possible to dissipate this heat well. Otherwise loads could take longer to dry or the tumble dryer might sustain damage in the long term.

The following mandatory requirements must be met:

• permanent room ventilation from the beginning to the end of every drying programme.
• a gap between the floor and the bottom of the tumble dryer (this must not be blocked or obstructed in any way).

The tumble dryer must not be hosed down.

Do not let anyone sit or lean on the door, as this can cause the tumble dryer to tip up.

In many programmes, the heating phase is followed by a cooling down phase to ensure that the items are not too hot to handle when you remove them (this also avoids the danger of the laundry self-igniting). The programme is not finished until the cooling down phase has been completed.

As soon as the programme has finished, remove all laundry from the drum.

▶ Always close the door after use. This way you will avoid the danger of:

– children climbing onto or into the dryer or hiding things in it.

- pets or other small animals climbing into it.

The tumble dryer must not be used

- without the fluff filters in place or with damaged fluff filters.

- without the plinth filter in place or with a damaged plinth filter.

This would cause an excessive build-up of fluff which in turn would cause a fault.

Do not install the tumble dryer in a room where there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly. There is a risk of damage if the condensed water is allowed to freeze in the pump and hoses.

If the water is drained externally through the drain hose instead of being collected in the condensed water container, make sure the drain hose is securely attached if you hang it in a laundry tub to avoid the hose slipping and the water causing damage.

Condensed water is not drinking water.

It can cause health problems in both people and animals.

▶ Always keep the area around the tumble dryer free of dust and fluff.

Dust drawn into the tumble dryer can cause blockages in the heat exchanger over time.

Using a fragrance flacon (optional accessory)

▶ Only use genuine Miele original fragrance flacons.

The fragrance flacon must be stored in its packaging so please make sure you retain this.

▶ Caution. The fragrance can run out of the flacon. Make sure that you always keep the flacon, or the fluff filter with the flacon inserted in it, upright when carrying and do not tip it or place it down on any surface.

▶ Use an absorbent cloth immediately to wipe up any fragrance which has run out of the flacon onto the floor, the dryer or any dryer components (e.g. the fluff filter).

If fragrance which has run out of a flacon should come in contact with the skin - wash the skin thoroughly with soap and water; come in contact with the eyes - rinse the eyes with clean water for at least 15 minutes; be swallowed - rinse out the mouth thoroughly with clean water. Seek medical advice in the case of contact with the eyes or if fragrance has been swallowed.

If fragrance which has run out of a flacon comes in contact with clothing, change the clothing immediately. Wash the clothing or any cloths used for mopping up fragrance thoroughly with plenty of water and detergent.

There is the risk of fire or damage to the tumble dryer if the following instructions are not observed:

- Never refill a flacon with fragrance.

- Never use a faulty fragrance flacon.

▶ Dispose of an empty fragrance flacon with the household waste and never use it for any other purpose.

▶ Please also observe the information supplied with the fragrance flacon.

Accessories

▶ Only use genuine Miele spare parts and accessories with this appliance. If spare parts or accessories from other manufacturers are used, this will invalidate the warranty, and Miele cannot accept liability.
A Miele tumble dryer can be stacked on top of a Miele washing machine using the appropriate stacking kit (available as an optional accessory). Please make sure you order the correct one for the Miele washing machine and Miele tumble dryer.

⚠️ Miele cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.

Control panel

Extra dry Normal Hand iron Machine iron Gentle tumble Perfect Dry 8:8.8 Start Add laundry ①② ③ ④ ⑤⑥ ⑦ ⑧ Cottons Cottons Minimum iron Delicates Woollens handcare Shirts Express Denim Bed linen Proofing Pre-ironing Warm air

① Control panel
② Sensors for the drying levels
③ Indicator lights 🙏 🍴 light up when necessary
④ Gentle tumble sensor for gentle drying
⑤ Time display for the programme duration

⑥ Sensors < ◊> for time selection
⑦ Start/Add laundry sensor for programme start and adding laundry
⑧ Optical interface for service technicians
⑨ Programme selector for selecting programmes and for switching off. The dryer is switched on by selecting a programme, and switched off by turning the programme selector to the ⏻ position.

How the control panel works

Extra dry Normal Hand iron Machine iron ② ③ ④ ⑤ ⑥ ⑦ Perfect Dry 8:8:8 Gentle tumble Start Add laundry

The ②, ④, ⑥, and ⑦ sensors react to fingertip contact. Selection is possible as long as the respective sensor is illuminated.

If a sensor is brightly lit, this means it is currently selected.

If a sensor is dimly lit, this means it can be selected.

② Sensors for the drying levels

After selecting a drying programme with the programme selector, the proposed drying level lights up.

Drying levels that can be selected are dimly lit.

③ Indicator lights

lights up when the condensed water container needs to be emptied.

lights up when the plinth filter needs to be cleaned.

- Ⓞ Perfect Dry

The Perfect Dry system measures the residual moisture present in the laundry in programmes with selectable drying levels and provides a more precise drying result.

The PerfectDry ◎ display

- will flash until the programme duration has been determined, and then go out.

- will light up again when the selected drying level is reached and remain on until the end of the programme.

– does not light up at all with the programmes Woollens handcare, Warm air.

④ Gentle tumble sensor

For drying temperature-sensitive textiles with the Ⓞ symbol. When the sensor is touched, Gentle tumble lights up brightly.

With some programmes, Gentle tumble is always active (lights up brightly) or inactive (does not light up).

⑤ Time display

The remaining programme duration will be displayed in hours and minutes.

With most programmes, the duration displayed may vary or “jump”. The following factors, among others, affect the programme duration displayed: the quantity of the laundry, the type of fabric and the residual moisture in the laundry. The electronics will continually assess the conditions and adjust the programme duration with increasing accuracy.

⑥ Sensor < ♩ >

-

After touching the ◆ sensor, a later start time for the programme (Delay start) can be selected. Once selected, ◆ lights up brightly.

- < >

The < or > sensors are used for selecting the duration of the Delay start period or the duration of the Warm air programme.

⑦ Start/Add laundry sensor

Touching the Start/Add laundry sensor starts a programme. The current programme can be interrupted to add laundry. The programme can be started when the sensor is flashing on and off. The sensor lights up constantly once the programme has started.

Drum lighting

The lighting helps to ensure that all items are removed from the drum. The drum lighting will go out automatically to save energy.

Downtime after installation

⚠️ Damage to the tumble dryer by switching it on too soon.

This can damage the heat pump. After setting up the tumble dryer, wait for at least one hour before switching it on.

Removing the protective foil and stickers

■ Remove:

– the protective foil from the door
– any stickers from the front and the lid

Please do not remove any labels (e.g. the data plate) which are visible when you open the door.

Follow the procedure for using for the first time outlined in these instructions

■ Refer to “1. Notes on correct laundry care” and “2. Loading the tumble dryer”.
- You can then load the tumble dryer and select a programme as described in “3. Selecting a programme and starting it”.

This dryer with heat-pump technology is designed for energy-saving drying cycles. You can save even more energy with the following measures, because the drying time is not extended unnecessarily.

• Make sure your laundry is spun at the maximum spin speed before drying. The higher the spin speed, the greater the savings that can be made in energy and time during drying, e.g. approx. 20% energy can be saved if spinning laundry at 1600 rpm instead of 1000 rpm.
• Use the maximum load quantity for the drying programme being used. This will mean that the energy consumption for the amount of laundry is the most economical.
• Make sure that the room temperature is not too high. If there are other heat producing appliances in the room in which the dryer is located, make sure the room is well ventilated and switch the other appliances off, if possible.
  – Clean the fluff filters in the door opening after every drying cycle.

Please refer to “Cleaning and care” for information on cleaning the fluff filters and the plinth filter.

- If possible, make use of time-variable, low-cost electricity tariffs. Ask your energy supplier for information. Your tumble dryer's Delay start function will be useful as you can select when during the next 24 hours you want drying to start automatically.

Points to note regarding washed laundry

• When washing very heavily soiled items, ensure that you use sufficient detergent and select a high temperature. If in doubt, wash the items several times.
• Do not put soaking wet items into the tumble dryer. Make sure your laundry is thoroughly spun before drying. The higher the spin speed, the greater the savings that can be made in energy and time during drying.
• New dark coloured garments should be washed and dried separately from light coloured garments to avoid the risk of colours running and discolouring other garments or even plastic components in the dryer. Dark coloured fibres can also settle on light coloured garments and vice versa.
• Starched laundry can be dried in the tumble dryer. To achieve the usual finish, double the amount of starch should be used.

Preparing the laundry before drying

⚠️ Damage due to foreign objects which were not removed from the laundry.

Foreign objects can melt, burn, or explode.

Ensure that any foreign objects, e.g. detergent dispensing balls, lighters, etc. have been removed from the laundry.

⚠️ Risk of fire due to incorrect use and operation.

The laundry can burn and destroy the dryer and the surroundings.

See “Warning and Safety instructions” for further information.

• Sort the laundry according to the type of fibre and weave, size, garment care label symbol and the drying level required.
• Check seams and stitching to ensure that padding and linings are intact. This way you will avoid the danger of fillings coming out. These could catch fire when being dried.
• Untangle the laundry.
• Tie together textile belts and apron ties.
• Fasten duvet covers and pillow cases to prevent small items from being rolled up inside them.
• Fasten hooks and eyes.
• Leave jackets open and undo any long zips so that textiles dry evenly.
• Sew in or remove loosened underwiring from bras.
• Reduce the size of the load. Minimum iron fabric tends to crease more the larger the load. This is particularly the case for garments made from very fine weave fabric, such as shirts or blouses.

1. Notes on correct laundry care

Drying

Useful tip: See the “Programme chart”. It lists all programmes and their maximum load.

• Always observe the maximum recommended load for each programme. This will mean that the energy consumption for the amount of laundry is the most economical.
• Down-filled garments have linings which have a tendency to shrink, depending on the quality of the item. Only use the Pre-ironing programme for these textiles.
• Pure linen should only be tumble dried if it is specified as suitable on the care label. The surface of the fabric may otherwise become rough. Only use the Pre-ironing programme for these textiles.
• Woollens and wool blends are susceptible to becoming matted or shrinking. Only use the Woollens handcare programme for these textiles.
• Loopknit garments (e.g. T-Shirts, underwear) have a tendency to shrink after the first wash. Do not overdry these fabrics to prevent further shrinking. When buying loopknit garments, it is advisable to take their shrinkage potential into account.
• With fabrics that are particularly heat-sensitive or susceptible to creasing, reduce the drying load and select Gentle tumble.

Care label symbols

Drying

Normal/higher temperatureReduced temperature**Select Gentle tumbleDo not tumble dry

Ironing
Very hotWarm	HotDo not iron

Selecting the correct drying level

• Extra dry for multi-layered and very thick fabrics.
• Normal for textiles that can shrink or for light cotton or jersey textiles.
• Hand iron or Machine iron if you want to iron the laundry after drying.

Useful tip: You can alter the drying levels (damper or drier) for the Cottons and Minimum iron programmes. See "Programmable functions".

2. Loading the tumble dryer

Loading the laundry

Textiles may be damaged. Before loading the dryer, read "1. Notes on correct laundry care".

Diagram illustrating a washing machine operation with numbered steps and corresponding waste disposal options.

■ Check that the drum is empty. Remove any items that might be blocking the drum.
■ Unfold the laundry and load loosely into the drum.

Do not overload the drum. Overloading can cause unnecessary wear and tear to the laundry and give a disappointing drying result. It can also cause more creasing.

When closing the door, make sure that laundry does not get trapped in the door opening. This can result in damage to the laundry.

Socket for the fragrance flacon

See the section "Fragrance flacon" for information on how to use fragrance flacons.

Diagram showing a washing machine with control knob and fan blade, annotated with directional arrows indicating motion or movement.

If you are not using a fragrance flacon: Push the tab down completely (see arrow) so that the socket is closed. Otherwise, fluff will accumulate here.

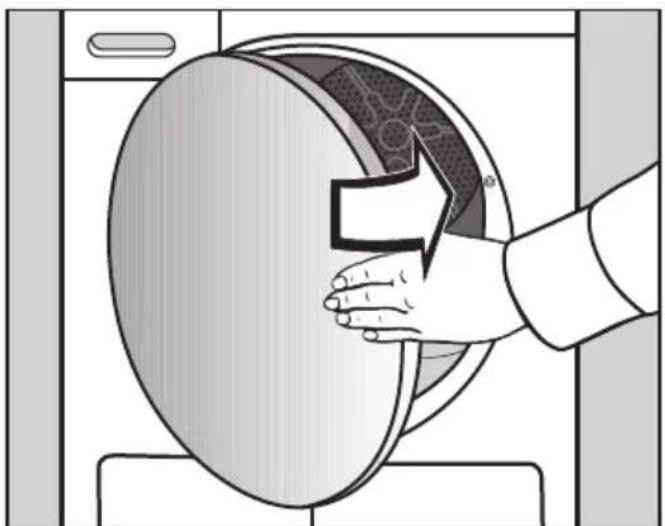

Closing the door

Illustration of a hand opening a circular device with a mesh pattern, no text or symbols present

■ Shut the door with a gentle swing.

3. Selecting a programme and starting it

Selecting a programme

The dryer is switched on by selecting a programme, and switched off by turning the programme selector to the ⏻ position.

Cottons Cottons Minimum iron Delicates Woollens handcare Shirts Express Denim Bed linen Proofing Pre-ironing Warm air

■ Turn the programme selector to a programme.

A drying level may light up and durations will appear in the time display.

Selecting a drying level with a drying programme

Cottons, Minimum iron, Delicates, Shirts, Express, Denim, Bed linen, Pre-ironing

The preset drying level for the programme can be changed if required.

Extra dry

Normal

Hand iron

Machine iron

■ Touch the sensor for the drying level you want. It then lights up brightly.

Any drying level can be selected for the Cottons, Express, and Bed linen programmes. A limited range is available with the other programmes.

3. Selecting a programme and starting it

Selecting timed drying programmes and other programmes

Warm air

You can set the duration in ten-minute increments from 0:20 minutes to 2:00 hours.

0:20 < >

■ Touch the < or > sensor repeatedly until the required programme duration appears in the time display.

Cottons □, Woollens handcare, Proofing

The drying level is preset by the dryer and cannot be altered.

Selecting Gentle tumble

Delicate fabrics (with the Ⓞ symbol on the care label, e.g. acrylic garments) are dried at a lower temperature. The programme duration is longer.

■ Touch the Gentle tumble sensor. It then lights up brightly.

- Gentle tumble can be selected with the following programmes:

• Cottons
• Minimum iron
• Shirts
• Denim
• Warm air

- Gentle tumble is always activated/cannot be deselected with Delicates, Pre-ironing.

3. Selecting a programme and starting it

Selecting Delay start

With Delay start you can delay the start of a programme from 0:30 minutes up to 24h.

However: Delay start cannot be used with the Warm air programme.

0:30 < ◇ >

■ Touch the ◊ sensor.
The ◇ sensor lights up brightly.
■ Touch the > or < sensor repeatedly until the required delayed start time appears in the time display.

Useful tip: The time will count upwards and downwards automatically if you touch the > or < sensor continuously.

Altering Delay start

If you would like to alter the Delay start function after starting a programme, the function must be cancelled first.

■ Turn the programme selector to the ⏻ position.

The tumble dryer is switched off and Delay start is cancelled.

■ Select a programme.
■ Select a Delay start time.

Delay start countdown

• Delay start times of more than 10h will count down in hours and then in minutes until the start of the programme.
• The drum will turn briefly every hour until the start of the programme to reduce laundry creasing (Anti-crease function).

Adding laundry during the Delay start period

■ Follow the instructions in the sections "Changing the programme sequence" and "Adding or removing laundry".

3. Selecting a programme and starting it

Starting a programme

■ Touch the flashing Start/Add laundry sensor.

The Start/Add laundry sensor lights up.

Programme sequence

• If Delay start has been selected, the Delay start time will start to count down first.
• The programme starts.
• The Perfect Dry indicator will only flash/light up with programmes with selectable drying levels (see also "Operating the tumble dryer").
• The dryer measures the residual moisture of the laundry and calculates the required programme duration. If a small load or dry laundry is placed in the dryer, it is dried/aired for a preset duration. In this case the Perfect Dry indicator does not light up at the end of the programme.

Laundry items and fabrics can wear out unnecessarily.

Avoid over-drying laundry and garments.

– Before the programme finishes, the laundry is cooled.

Energy savings

After 10 minutes, the indicators dim. The Start/Add laundry sensor flashes slowly.

■ Touch the Start/Add laundry sensor to switch the indicators on again (this does not have any effect on a running programme).

Adding laundry

You can add laundry after the programme has started.

■ Follow the instructions in the sections "Changing the programme sequence" and "Adding or removing laundry".

4. Removing the laundry at the end of the programme

End of programme/Anti-crease

End of programme: 0:00 lights up in the time display and the Start/Add laundry sensor goes out.

The end of the programme is followed by the Anti-crease phase, which will run for up to 2 hours. There is no Anti-crease with Woollens handcare. See “Programmable functions - P14 Anti-crease”.

Removing the laundry

Only open the door when the drying process has finished. Otherwise, the laundry will not be properly dried and cooled down.

■ Pull the door open at the side with the orange marker.

Diagram showing a washing machine opening a basket of food, with an arrow indicating the process (no text or symbols present)

■ Remove the laundry.

Always remove all items from the drum.

Items left in the dryer could be damaged by overdrying when the dryer is used the next time.

■ Turn the programme selector to the ⏻ position.

■ Remove the fluff from the 2 fluff filters in the door opening (see “Cleaning and care - Fluff filters”).

■ Shut the door with a gentle swing.

■ Empty the condensed water container.

All weights marked with * are based on the weight of dry laundry.

Cottons □ Max. load 8.0 kg*
Items Cotton	items such as those described under Cottons Normal with normal residual moisture.
Notes Items	are dried to a Normal level only.
Cottons Max. load 8.0 kg*
Extra dry, Normal
Items Single	and multi-layered cotton fabrics. For example: towelling, jerseywear, T-shirts, underwear, baby clothes, workwear, covers, aprons, jackets, bathrobes, and flannelette bed linen.
Notes - Select Extra dry for multi-layered and very thick fabrics.- Do not use Extra dry for jersey fabrics (e.g. T-shirts, underwear, baby clothes), as they have a tendency to shrink.
Set programme “Cottons Extra dry” for test in accordance to AS/NZS 2442.1 & AS/NZS 2442.2
Hand iron, Machine iron
Items Cotton	or linen fabric requiring further processing. For example: table linen, bed linen, or starched laundry.
Notes Roll	up laundry that you want to machine iron to prevent it from drying out until you are ready for ironing.
Minimum iron Max. load 4 kg*
Normal, Hand iron
Items Minimum	iron items made of cotton, synthetic, or mixed fibre. For example: workwear, overalls, pullovers, dresses, trousers, table linen and leggings.
Delicates Max. load 2.5 kg*
Normal, Hand iron
Items Delicate	items with the ☑ symbol on the care label made of synthetic fibre, mixed fibre, rayon, and easy care cotton. For example: shirts, blouses, lingerie, and appliquéd garments.
Notes The load	should be reduced further for a particularly crease-free drying result.

Programme chart

Woollens handcare Max. load 2.0 kg*
Items Woollen garments and fabric containing wool blends, e.g. pullovers, cardigans, stockings.
Notes – Wool and wool blend items are only fluffed up; they are not dried completely. – Remove garments as soon as the programme has finished.
Shirts Max. load 2 kg*
Normal, Hand iron
Items Shirts and blouses.
Express Max. load 4 kg*
Extra dry, Normal, Hand iron, Machine iron
Items Hard-wearing garments suitable for the Cottons programme.
Notes The programme duration is shorter.
Denim Max. load 3 kg*
Normal, Hand iron
Items Denim garments, e.g. jackets, jeans, shirts, and skirts.
Bed linen Max. load 4 kg*
Extra dry, Normal, Hand iron, Machine iron
Items Bed linen, pillow cases.
Proofing Max. load 2.5 kg*
Items Microfibre fabric, skiwear, outerwear, fine close weave cotton garments (poplin), or tablecloths which are suitable for drying in a tumble dryer and have been treated to provide a water and dirt-resistant finish.
Notes – Items are dried to a Normal level only. – This programme includes a proofing fixing phase. – Only use proofing agents which are stated by the manufacturer as being “suitable for use on membrane textiles”. These agents contain fluorochemical compounds. – Do not dry items which have been treated with proofing agents containing paraffin. Fire hazard!Pre-ironing Max. load 1 kg*
Normal, Hand iron
Items – Cotton and linen fabrics.- Minimum iron items made of cotton, synthetic or mixed fibre. For example: cotton trousers, jackets, anoraks, and shirts.
Notes – This programme smoothes out creasing caused during the spin cycle in the washing machine.- This programme is also suitable for dry fabrics.- Please remove the garments as soon as the programme has finished.
Warm air Max. load 8.0 kg*
Items – For	completely drying multi-layered fabrics whose layers have different drying characteristics, e.g. jackets, pillows, sleeping bags and other voluminous items.- For drying individual items, e.g. bath towels, bathing suits, tea towels and small loads.
Notes Do not select the longest drying time to start with. Check the items as you are drying them to find the optimum time.

Changing a programme after it has started

It is no longer possible to change the selected programme. This prevents the appliance being operated unintentionally, e.g. by children.

If you adjust the programme selector, the -0- symbol will light up in the time display. The -0- symbol goes out when you select the original programme.

Cancelling the current programme

■ Turn the programme selector to the ⏻ position.

The programme is cancelled.

You can now select a new programme.

Adding or removing laundry

You have forgotten an item of laundry, but the programme has already started.

■ Touch the Start/Add laundry sensor.

The word Add will appear in the time display. The Start/Add laundry sensor flashes slowly.

⚠️ Risk of burning when touching hot laundry in the drum. You could burn yourself.

■ Open the door.

■ Add or remove laundry.

You can also change the programme selection.

■ Close the door.

■ Touch the Start/Add laundry sensor.

The programme will continue.

Exceptions to adding laundry

In some cases, e.g. during the cooling phase or in the Proofing programme, you cannot add laundry.

In these cases, the word Rdd is not displayed.

In exceptional cases, the door can be opened while the programme is running.

Emptying the condensed water container

The condensed water is collected in the condensed water container.

Empty the condensed water container after every drying programme.

The ⚙ indicator will light up when the maximum level in the condensed water container is reached.

To turn the 🔒 indicator light off: Open and close the door while the dryer is switched on.

⚠️ Damage to the door and the fascia panel when removing the condensed water container*.

The door and the fascia panel can get damaged.

Always close the door completely.

*This does not apply to right-hand hinged models.

Miele

■ Pull out the condensed water container.

■ To prevent water running out, keep it in a horizontal position when carrying it. Hold the condensed water container by the front panel and at the back.

Illustration of a person pouring liquid from a mechanical device into a cylindrical container (no text or symbols)

■ Empty the container.

■ Replace the container in the dryer.

Condensed water can cause health problems in people and animals. Do not drink condensed water.

Condensed water can be put to household use (e.g. used in a steam iron or humidifier). To ensure that any residual particles of fluff in the condensed water are removed before use, pass it through a fine sieve or paper filter first.

Using a fragrance flacon

Fragrance flacons (optional accessories) can be used to give your laundry a pleasant scent.

Risk of fire and harm to health if fragrance flacons are used incorrectly.

Leaked fragrance can be harmful to your health if it comes in contact with the body. Leaked fragrance can cause a fire.

Before using a fragrance flacon, please read the section "Using a fragrance flacon (optional accessory)" in the Warning and Safety instructions.

Removing the protective seal from the fragrance flacon

Only hold the fragrance flacon as illustrated. Do not hold it at an angle or tip it as the fragrance will leak out.

Illustration of a hand holding a small object with a tool, no text or symbols present

■ Hold the fragrance flacon securely so that you do not open it by mistake.
■ Pull off the protective seal.

Inserting the fragrance flacon

■ Open the door of the tumble dryer.

The fragrance flacon is inserted in the upper fluff filter next to the recessed grip.

Diagram showing a washing machine with a rotary knob and directional arrow indicating rotation or adjustment.

■ Open the cover using the tab until the tab is right at the top as shown.

Technical illustration of a mechanical component with internal gear and shaft (no text or symbols)

■ Insert the fragrance flacon in the opening as far as it will go.

Diagram showing two labeled components (① and ②) with directional arrows indicating flow or movement, possibly illustrating a mechanical or electrical system.

Markers ① and ② must line up with each other.

0 R 2

■ Turn the outer ring Ⓡ clockwise a little.

The fragrance flacon can slip out. Turn the outer ring so that markers ② and ⑩ line up.

Opening the fragrance flacon

Before drying, you can select the intensity of the fragrance.

Diagram of a mechanical component with a circular feature and directional arrow, no text or symbols present

■ Turn the outer ring clockwise: the further you open the fragrance flacon, the more intense the fragrance.

The fragrance is only released into the laundry effectively with damp laundry and longer drying times with sufficient heat transfer. The fragrance will also be noticeable in the room air during the drying process.

Closing the fragrance flacon

After drying, the fragrance flacon should be closed to prevent the fragrance from escaping needlessly.

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

■ Turn the outer ring anti-clockwise until marker ② is in position ①.

If you wish to dry laundry without adding fragrance: remove the fragrance flacon and store it in its original packaging.

When the intensity of the fragrance is no longer sufficient, replace the fragrance flacon with a new one.

Removing/replacing the fragrance flacon

Diagram showing a mechanical or electrical component with labeled parts 1 and 2, indicating directional movement or process flow.

■ Turn the outer ring anti-clockwise until markers ① and ② line up.

Mechanical component diagram showing a rotating shaft and housing with motion arrows (no text or symbols)

■ Replace the fragrance flacon with a new one.

When not in use, you can store the fragrance flacon in its original packaging.

Fragrance flacons are available to order from Miele or via the Miele online shop.

Warning symbol with warning triangle and cross mark over a mechanical component, likely indicating incorrect safety or hazard.

Fragrance can leak. Do not lay the fragrance flacon down.

Simple line drawing of a box containing a circular object with internal lines, no text or symbols present.

• If you are keeping the fragrance flacon in its original packaging, do not store the packaging upright on its edge or upside down. Otherwise, the fragrance will leak out.
• Always store in a cool, dry place away from direct sunlight.
• When purchasing new fragrance flacons, only remove the protective seal just before use.

Cleaning and care

Fluff filters

This tumble dryer has 2 fluff filters in the door opening: The upper and lower fluff filters trap fluff produced during the drying process.

Clean the fluff filters after each drying programme. This prevents an extension of the programme duration.

Also clean the fluff filters when the ◎ indicator light comes on.

To turn the Ⓧ indicator light off:

■ Open and close the door while the dryer is switched on.

Removing the fragrance flacon

The intensity of the fragrance will be diminished if the fluff filters and the plinth filter are not cleaned.

■ Remove the fragrance flacon. See "Fragrance flacon - Removing/ replacing the fragrance flacon".

Removing visible fluff

Useful tip: You can use a vacuum cleaner so that you can remove the fluff without touching it.

■ Open the door.

Illustration of a hand inserting a fan into a washing machine (no text or symbols visible)

■ Pull the upper fluff filter forwards to remove it.

Illustration of two hands assembling a mechanical component with arrows indicating motion (no text or symbols)

■ Remove the fluff (see arrows).

Diagram of a hand pressing down on a circular device with a mesh grille (no text or symbols)

■ Remove the fluff from the filter surface of all the fluff filters and the perforated laundry deflector (see arrows).
■ Push the upper fluff filter back until it clicks into position.
■ Close the door.

Cleaning the fluff filters and air flow openings thoroughly

If the drying duration has become longer or the surface of the filters is visibly compacted with fluff, you should clean them thoroughly.

■ Remove the fragrance flacon. See "Fragrance flacon - Removing/ replacing the fragrance flacon".
■ Pull the upper fluff filter forwards to remove it.

Diagram of a mechanical component with a circular arrow symbol, no text or labels present

■ Turn the yellow dial on the lower fluff filter in the direction of the arrow (until you hear it click).

Technical diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

■ Hold the dial and pull the fluff filter forwards to remove it.

Technical diagram of a mechanical component with layered structure and mounting bracket (no text or symbols)

■ Use a vacuum cleaner with a long crevice nozzle attached to remove any visible fluff from the upper air flow openings.

Finally, clean the fluff filters with water.

Cleaning the fluff filters with water

■ Wipe the smooth plastic surfaces of the fluff filters with a damp cloth to clean them.
■ Rinse the filters with warm running water.
■ Shake the fluff filters thoroughly and then dry them carefully.

Ensure the filters are dry before replacing them. Wet filters could cause operational faults.

■ Push the lower fluff filter in completely and lock it with the yellow dial.
■ Push the upper fluff filter in completely.
■ Close the door.

Cleaning the plinth filter

Clean the plinth filter whenever the 📍 indicator light comes on or when the programme duration is longer than usual.

To turn the Ⓗ indicator light off:

■ Open and close the door while the dryer is switched on.

Removing the plinth filter

Simple line drawing of a person climbing a rope next to a rectangular frame (no text or symbols)

■ Press the round, indented area on the heat exchanger access panel to open it.

The panel will spring open.

Diagram of a mechanical component with a central shaft and four blades, showing a downward arrow (no text or symbols)

■ Pull the plinth filter out by the handle.

When the plinth filter is pulled out, the right guide pin will slide out. The guide pin prevents the flap from being closed without the plinth filter in place.

Cleaning the plinth filter

Technical illustration of a mechanical component with a plate and pin, showing alignment between two parts (no text or symbols)

■ Pull the handle out of the plinth filter.
■ Clean the filter thoroughly under running water.
■ Squeeze the plinth filter very carefully several times as you rinse it.
■ Rinse the plinth filter until all visible residues have been removed.
■ Use a damp cloth to remove any fluff from the handle.

⚠️ Damage caused by a damaged or worn filter.

If the plinth filter is not functioning properly, the heat exchanger will be obstructed. A fault may occur. Check the plinth filter in accordance with the descriptions in "Problem solving guide - Replacing the plinth filter". If necessary, replace the plinth filter with a new one.

Technical illustration of a mechanical component with a plate and pin assembly (no text or symbols)

■ Fit the plinth filter back on the handle the right way round.

Technical diagram of a mechanical component with internal grid structure and directional arrows (no text or symbols)

■ Push the plinth filter in completely.

Insert the right guide pin at the same time.

Cleaning the plinth filter flap

Illustration of a 3D wireframe cube placed on a rectangular frame (no text or symbols)

■ Use a damp cloth to remove any fluff. Make sure that you do not damage the rubber seal when doing this.
■ Close the heat exchanger access panel.

⚠ Damage or ineffective drying when drying without a plinth filter or with the heat exchanger flap open. An excessive accumulation of fluff can damage the dryer in the long term. If the system is not leak-proof, this can lead to ineffective drying. Only operate the dryer with the plinth filter fitted correctly and the heat exchanger access panel closed.

Cleaning the dryer

Disconnect the dryer from the electricity supply.

⚠️ Damage due to the use of unsuitable care products. Unsuitable care products could damage plastic surfaces and other parts. Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners.

Diagram of a washing machine with a cloth cover and fan blade, showing internal components (no text or symbols)

■ Clean the dryer and the seal on the inside of the door only with a slightly damp, soft cloth and mild detergent or soapy water.
■ Dry all parts with a soft cloth.

With the help of the following guide, minor faults in the performance of the appliance, some of which may result from incorrect operation, can be remedied without contacting Miele. This will save you time and money because you won't need a service call.

Please note that a call-out charge will be applied to unnecessary service visits where the problem could have been rectified as described in these operating instructions.

Indicator lights or information in the time display

Problem Possible cause	and remedy
The ⚙ indicator light comes on at the end of the programme.	The tumble dryer is not working correctly or economically. Possible causes could be clogging caused by fluff or detergent residues.■ Please see "Cleaning and care" for notes on cleaning.■ Clean the fluff filters.■ Also check the plinth filter and clean it if necessary.■ To turn the ⚙ indicator light off: Open and close the door while the dryer is switched on.
	You can influence when the ⚙ indicator light comes on.■ Follow the instructions in "Programmable functions - P20 Airways indicator".
F and 066 light up after a programme has been cancelled, a signal sounds.	The system is clogged by fluff or detergent residues.■ To switch off F 066: Switch the tumble dryer off and back on.■ Clean the fluff filters and the plinth filter.Please see "Cleaning and care" for notes on cleaning.■ Check that the fluff filters and the plinth filter are not damaged or worn.If all fluff filters are damaged, deformed or cannot be cleaned anymore, they must be replaced. For information on when to replace a plinth filter that is not functioning properly, refer to "Problem solving guide - Replacing the plinth filter".
F and 066 flash again after a programme cancellation, despite thorough cleaning.	The plinth filter looks clean after thorough cleaning. However, the programme is terminated again and the error message appears again. There are probably still deeper residues which could not be removed.■ To switch off F 066: Switch the tumble dryer off and back on.■ Check all of the possible causes described below.
	The heat exchanger is clogged.■ Check the heat exchanger. Follow the instructions in "Problem solving guide - Checking the heat exchanger".
	The plinth filter is clogged on a deeper level.■ Check the plinth filter. Follow the instructions in "Problem solving guide - Replacing the plinth filter".■ If the plinth filter is not deformed or defective, you can regenerate it in the washing machine. Follow the instructions in "Problem solving guide - Regenerating the plinth filter".
lights up after a programme has been cancelled and a signal sounds.	The condensed water container is full or there is a kink in the drain hose.■ Empty the condensed water container.■ Check the drain hose.■ See “Cleaning and care”.To switch off:■ Open and close the door (with the dryer switched on).
-0 - lights up. The programme selector has been moved.■ Select the original programme. The time remaining will appear in the display again.
Bars flash in the display at the end of a programme:...	The programme has finished but the laundry has not yet cooled down.■ Either remove the laundry and spread it out to cool down or leave it in the tumble dryer to cool down during the cooling phase.

Problem solving guide

Problem Possible cause	and remedy
--- flashes/lights up after the tumble dryer is switched on and a programme cannot be selected.	Access via a code has been activated.■ See “Programmable functions - P07 PIN Code”.
F and another number combination flash after a programme has been cancelled, a signal sounds.	There is no obvious cause.■ Switch the dryer off and then on again.■ Start a programme.If the programme terminates again with the same error message, then there is a fault. Contact Miele.
0:00 lights up and the programme has been cancelled, a signal sounds.	The laundry is unevenly distributed or has rolled up.■ Untangle the laundry and remove a few items, if necessary.■ Switch the dryer off and then on again.■ Start a programme.

Unsatisfactory drying results

Problem Possible cause	and remedy
The laundry is not sufficiently dry.	The load consisted of different types of fabric.■ Finish drying using the Warm air programme.■ Select a more suitable programme next time.Useful tip: You can alter the drying levels for some programmes. See “Programmable functions”, sections “POI Cottons drying levels”, “PO2 Minimum iron drying levels”.
Laundry or feather filled pillows smell after drying.	The laundry was washed with insufficient detergent. Feathers are a natural product and this is quite normal.■ Laundry: use sufficient detergent next time.■ Pillows: take out of the tumble dryer and aerate.■ Use a fragrance flacon (available as an optional accessory).
Items made of synthetic fibres are charged with static electricity after drying.	Synthetic fibres tend to attract static charge.■ Static charge can be reduced by adding a fabric softener to the final rinse in the washing programme.
There is a build-up of fluff.	Fluff is principally the result of friction when garments are being worn and to some extent when they are being washed. Machine drying hardly causes any fluff to form.Fluff is collected by the fluff filters and the plinth filter and can be removed easily.■ See “Cleaning and care”.

The drying process takes a long time.

Problem Possible cause	and remedy
The drying process goes on for too long or even switches off.*	The room in which the tumble dryer is located is too warm.■ Ventilate the room thoroughly.
	Detergent residues, hair and fine fluff can clog the filters.■ Clean the fluff filters and the plinth filter.■ Remove visible fluff from the heat exchanger.
	The laundry is unevenly distributed or has rolled up. The tumble dryer has been overloaded.■ Untangle the laundry and remove a few items, if necessary.■ Start a programme.
	The cool air intake (bottom right grille) is blocked.■ Move any objects, such as a laundry basket, away from the dryer.
	The laundry is too damp.■ Spin the laundry using a higher spin speed in the washing machine.
	Metallic components, e.g. zippers, have prevented the dryer from registering the correct moisture level.■ Open the zippers next time.■ If the problem recurs, dry these items using the Warm air timed drying programme.

* Switch the tumble dryer off and on again before starting a new programme.

Other problems

Problem Possible cause	and remedy
There are humming noises.	The compressor is operating.These noises are quite normal and do not indicate a fault.
A programme cannot be started.	There is no obvious cause.■ Connect the tumble dryer to the mains electricity supply■ Turn on the tumble dryer.■ Close the door.■ Check whether the mains fuse has tripped.
	Has there been a power cut? When power is restored, any previously running programme will restart automatically.
Only the Start/Add laundry sensor flashes slowly when the programme is running.	Once the programme has been running for 10 minutes, the indicators go out. The Start/Add laundry sensor flashes slowly. This is not a fault, but a normal function to help save energy.■ Touch a sensor to switch on the indicators.See “Programmable functions”, section “P// Control panel standby status”.
The tumble dryer is switched off.	The tumble dryer switches off automatically after 15 minutes if no further selections are made. This is not a fault, but a normal function.■ Select a programme.
The interior drum lighting does not come on.	The drum lighting will switch off automatically ... when the door is closed.... after a few minutes when the door is open (to save energy).If the dryer is switched on, the drum lighting will come on when the door is opened.

Problem solving guide

Replacing the plinth filter

The heat exchanger can clog up. Replace the plinth filter immediately (replacement filters are available as an optional accessory) if you see the following signs of wear before or after cleaning.

Poor fit

Cross-sectional diagram of a mechanical or electrical component with internal components and no visible text or symbols

The edges of the plinth filter do not sit properly and the filter is deformed. Fluff will blow into the heat exchanger unfiltered through edges that do not sit properly. This will eventually cause obstruction in the heat exchanger.

Deformations

Diagram of a spacecraft with a propeller and two circular components, no text or symbols present

Deformations indicate that the filter has become worn.

Cracks, tears, indentations

Two-panel scientific illustration showing a biological or material science setup with two circular structures and radiating lines, no text or symbols present.

Fluff will blow into the heat exchanger unfiltered through cracks and tears and will cause obstruction. This will eventually cause obstruction in the heat exchanger.

White residues or residues of other colours

Technical line drawing of a mechanical component with two mounting holes and a textured top (no text or symbols)

Residues arise from laundry fibres and residual detergent components. They can be found on the front and side edges of the plinth filter. In extreme cases, they can form stubborn crusts. Residues are a sign that the filter no longer has a snug fit at the sides, even if it appears to be perfect. Fluff is getting in unfiltered at the edges.
Regenerate the plinth filter. If the plinth filter shows these residues again soon, the plinth filter must be replaced.

Regenerating the plinth filter

You can regenerate one or more dirty plinth filters in the washing machine. The plinth filter will be ready for use again.

Before regenerating it, check whether the plinth filter is still in good condition. Check the plinth filter in accordance with the descriptions in "Problem solving guide - Replacing the plinth filter". If the plinth filter is worn, replace it.

■ Wash one or more plinth filters separately without garments. Do not add laundry detergent.
■ Select a short wash programme with a maximum temperature of 40^ C and a maximum spin speed of 600 rpm.

After washing and spinning, you can refit the plinth filter.

Checking the heat exchanger

Risk of injury from sharp cooling fins. You could cut yourself. Do not touch the cooling fins.

■ Look to see if fluff has accumulated. If fluff is present, it must be removed.

⚠️ Damage due to incorrect cleaning of the heat exchanger. The tumble dryer will not dry if the cooling fins are damaged or bent. Clean using a vacuum cleaner with a dusting brush attached. Only pass the vacuum cleaner dusting brush over the fins lightly, without applying any pressure.

Technical line drawing of a mechanical component with a black connector inserted into a grid-patterned chamber (no text or symbols)

■ Vacuum up any fluff and residues.

Contact in case of fault

In the event of any faults which you cannot remedy yourself, please contact Miele.

You can book a Miele customer service call-out online at www.miele.com/service.

Contact information for Miele can be found at the end of this booklet.

Please quote the model and serial number of your appliance (SN) when contacting the Miele. This information can be found on the data plate.

The data plate is visible when the door is open.

Diagram of a washing machine interior showing the inner casing and door, with no text or symbols present.

Optional accessories

Optional accessories for this tumble dryer are available from Miele (see contact details at the back of these instructions).

You also can order these and other useful products from the Miele online shop.

Drying basket

The drying basket is suspended in the drum and does not rotate with the drum. This enables items which must not be subjected to mechanical action to be dried or aired.

Fragrance flacon

Fragrance flacons can be used in your tumble dryer to add a pleasant fragrance to your laundry.

Warranty

The manufacturer's warranty for this appliance is 2 years.

For further information, please refer to your warranty booklet.

Front view

Miele ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

① Mains connection cable
② Control panel
③ Condensed water container – empty after every drying cycle
④ Door - do not open during drying

⑤ Heat exchanger access panel
- do not open during drying
⑥ Four height adjustable screw feet
⑦ Cool air intake grille - do not obstruct with a laundry basket or other objects
⑧ Hose for external drainage of condensed water

Rear view

Diagram of a device interior with numbered components and directional arrows indicating flow or movement.

① Protruding lid for holding when moving the tumble dryer (see arrows)
② Drain hose for condensed water
③ Hook for winding the mains cable around during transport
④ Mains connection cable

Transporting the tumble dryer

Danger of injury to people and damage to property caused by moving the appliance incorrectly. If the tumble dryer tips over, there is a danger of injury to people and damage to property. Ensure that the tumble dryer is stable during transportation.

■ If the tumble dryer is being transported horizontally, it must only be tipped onto its left or right side.
If the tumble dryer is being transported upright and you are using a handcart or trolley, you must only transport it with its left or right side resting on the handcart or trolley.

Transporting the tumble dryer to its installation site

⚠️ Make sure the fixings at the back of the lid are secure.

Otherwise there is a danger of the lid being pulled off when carrying the appliance.

Before carrying the appliance, check that the lid is secure where it protrudes at the back of the appliance.

- Carry the tumble dryer by the front feet and by the lid where it protrudes at the back of the appliance.

Installation

Levelling the dryer

The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

Make sure the dryer door can be opened without hindrance after installation.

Line drawing of a washing machine with circular vent and side door (no text or symbols)

The appliance must stand perfectly level to ensure safe and proper operation.

Diagram showing a mechanical component with two opposing bidirectional arrows indicating rotational motion (no text or symbols)

The screw feet can be adjusted to compensate for any unevenness in the floor.

Risk of fire and explosion due to damage to the tumble dryer.

The refrigerant is flammable and explosive.

Do not make any alterations to the tumble dryer. Take measures to protect the tumble dryer against damage.

If the tumble dryer is damaged, proceed as follows:

• Avoid naked flames or anything which creates a spark.
• Disconnect the dryer from the electricity supply.
  – Air the room where the tumble dryer is located.
• Contact Miele Customer Service.

Downtime after installation

⚠️ Damage to the tumble dryer by switching it on too soon.

This can damage the heat pump. After setting up the tumble dryer, wait for at least one hour before switching it on.

Ventilation

The cool air intake at the front of the tumble dryer must not be blocked or covered. This would hinder a sufficient intake of cool air for the heat exchanger.

Do not block the gap between the bottom of the tumble dryer and the floor with plinth facings, deep pile carpet etc. This would hinder a sufficient flow of air to the tumble dryer.

Adequate ventilation has to be provided to avoid the backflow of gases into the room from appliances burning other fuels, including open fires.

Air which is taken in to cool the heat exchanger is then blown back out of the dryer and warms up the air in the room. Ensure sufficient ventilation of the room, e.g. by opening a window. The drying time will otherwise take longer (higher energy requirement).

The heat pump that is essential to the operation of this tumble dryer generates a lot of heat inside its casing. It must be possible to dissipate this heat well.

Otherwise loads could take longer to dry or the tumble dryer might sustain damage in the long term.

Permanent room ventilation during every drying programme and the ventilation gap between the bottom of the tumble dryer and the floor are mandatory requirements at all times.

Before moving the tumble dryer again (e.g. when moving house)

After each use a small quantity of condensed water will collect in the area of the pump. This water can run out if the tumble dryer is tipped up when it is being moved. Recommendation: Run the Warm air programme for approximately 1 minute without a load before moving the tumble dryer. Any remaining condensed water will then be fed into the condensed water container, which can then be emptied, or can drain out through the drain hose.

Additional installation requirements

Suitable for pushing under a worktop

This tumble dryer is suitable for pushing under a worktop.

Appliance defect due to a build-up of heat.

Make sure there is adequate room for warm air from the dryer to be directed away.

• The appliance lid cannot be removed.
• The electrical socket must be located in an accessible position near the appliance.
  – Drying durations may increase slightly.

Optional accessories

- Washer-dryer stack

The tumble dryer can also be combined with a Miele washing machine in a washer-dryer stack. The appropriate Miele washer-dryer stacking kit is required.

Externally draining condensed water

Notes

When drying is in progress, condensed water is pumped into the condensed water container through the drain hose which is located at the back of the dryer.

The condensed water can also be drained away via the drain hose. The condensed water container will then not need to be emptied.

Hose length: 1.49 m Maximum delivery head: 1.00 m Maximum drain hose length: 4.00 m

Drainage accessories

a b c d e

• Supplied: adapter (b), hose clip (c), hose holder (e);
• Available to purchase: “Non-return valve” kit for connection to an external water connection. Non-return valve (d), hose extension (a) and hose clips (c) are supplied with the kit.

Installation conditions requiring a non-return valve

⚠️ Danger of condensed water backflow.

Water could flow back into the tumble dryer or be drawn into it. Backflow water could damage the tumble dryer and also the room in which it is located.

The non-return valve should be used if the end of the hose is immersed in water, or if other water connections are installed.

Maximum delivery head with non-return valve fitted: 1.00 m

Installation conditions requiring the fitting of a non-return valve:

• Drainage into a laundry tub or floor gully where the end of the hose is immersed in water.
• Connection to a sink drain outlet.
• Connection to a drainage system already in use by another appliance, e.g. a dishwasher or washing machine.

If the non-return valve is incorrectly fitted the appliance will not drain. The non-return valve has to be fitted with the arrow on it pointing in the direction of flow.

Arranging the drain hose

⚠️ Damage to the drain hose through incorrect handling.

The drain hose can suffer damage and leak.

Do not pull on the drain hose and do not stretch it or allow it to become kinked.

There will be a small amount of residual water left in the drain hose. Have a container ready to collect this.

Diagram of a car interior showing rope routing and directional arrows (no text or symbols)

■ Pull the drain hose off its connection (light arrow).

■ Pull the hose out of the holders (dark arrows) and unwind it.

■ Allow any residual water to run into a container.

Examples

Drainage into a laundry tub or floor gully Use the hose holder to secure the drain hose.

Illustration of a hairdryer with a handle and cord, connected to a grid notebook (no text or symbols)

Risk of water damage.

Should the end of the hose come loose, overflowing water can cause damage.

Secure the drain hose carefully (e.g., by tying it) to make sure it cannot slip.

The non-return valve can be fitted in the end of the hose.

Direct connection to a sink drain outlet

Use the hose holder, the hose clips and the non-return valve (available to purchase).

Diagram of a mechanical assembly with numbered parts, showing a funnel and multi-step assembly with labeled parts 1 through 6.

1. Adapter
2. Nut
3. Hose clip
4. End of the hose (secured with the hose holder)
5. Non-return valve
6. Tumble dryer drain hose

■ Fit the adapter 1 to the sink drain outlet using the nut 2. The nut is usually fitted with a washer which must be removed.
■ Attach the end of the hose 4 to the adapter 1.
■ Use the hose holder.
■ Use a screwdriver to tighten the hose clip 3 up close to the nut.
■ Fit the non-return valve 5 to the tumble dryer drain hose 6.

The non-return valve 5 has to be fitted so that the arrow points in the direction of flow (i.e. towards the sink).

■ Secure the non-return valve using hose clips.

Changing the door hinging

You can change the door hinging on this tumble dryer yourself.

For safety reasons, the tumble dryer must be disconnected from the electricity supply before changing the door hinging.

You will need:

• a T20 and T30 Torx screwdriver
• a flat head screwdriver or pointed pliers
• the lock catch cover supplied
  – the door hinge cover supplied
• a soft surface (e.g. a tablecloth)

Changing the hinging over

1. Remove the door from the dryer

■ Open the door.

A B Miolo

■ Use a T30 Torx screwdriver to unscrew the two screws on the base plate of the door hinge Ⓐ.

The door cannot fall off as it is held in place by two pins.

■ Hold the door securely and pull it forwards: to remove the door you will need to pull the base plate of the hinge with its two pins out of the dryer.

To avoid scratching the door, place it outer side downwards on a soft surface (e.g. a tablecloth).

2. Change over the door lock on the dryer

■ Use a T30 Torx screwdriver to unscrew the two screws on the door lock Ⓑ.

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

■ Use the screwdriver to press the door lock upwards.

The door lock will spring out of its position and can then be removed.

■ Turn the door lock through 180°.

D C

■ Press the door lock into the openings © on the opposite side of the door opening.

■ Adjust the position of the door lock so that the screw holes line up with those in the front panel of the dryer ⑭.

■ Secure the door lock with the two Torx screws.

1. Remove the lock catch from the door

Diagram of a helmet with a curved arrow indicating direction (no text or symbols)

■ First take the rubber seal off the door and place this to one side.

Technical diagram showing a hand adjusting a component with labeled parts F and E, likely illustrating a mechanical or electrical assembly step.

■ Use a T20 Torx screwdriver to remove the screw Ⓔ on the lock catch.
■ Pull off the lock catch together with the lock catch cover Ⓔ.

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

■ Remove the lock catch from the cover.

This lock catch cover is no longer needed. However, please keep it in a safe place.

Diagram of a mechanical component with a bracket and arrow indicating direction (no text or symbols)

■ Insert the lock catch into the new cover supplied with the dryer.

■ Place this new cover to one side for now.

4. Dismantle the door hinge from the door

The door hinge cover must be unclipped from position Ⓖ and then removed.

G H 1. 2.

■ Use a screwdriver to press down gently on position Ⓖ on the door hinge cover.

■ Using a little force, pull out the door hinge cover Ⓗ.

This door hinge cover is no longer needed. However, please keep it in a safe place.

The door hinge is secured to the door with 2 angled rods. These rods need to be removed with a screwdriver or pointed pliers.

Technical diagram of a mechanical assembly with numbered component (1), no visible text or symbols

■ Insert the end of the screwdriver blade under the rod ① and rotate it so it is in an upright position. Do the same to the other rod.

Technical diagram showing mechanical assembly with labeled component '2' and directional arrow indicating motion or force

■ Use the screwdriver or pointed pliers to guide first one then the other rod ② to the middle until each can be removed.

Useful tip: In some circumstances, the rods can be difficult to dislodge. Moving the screwdriver with a levering action while pulling at the same time may help to work the rods free.

■ Remove the door hinge and rotate it 180°.
■ Refit the door hinge on the opposite side of the door.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating movement or force

• Secure the door hinge with the two rods ②.
  ■ Position the tip of the screwdriver under the end of the rod and then push it into its resting position ①.

You now need the new door hinge cover supplied with the tumble dryer.

1. 2.

■ Fit the new door hinge cover Ⓗ and clip it into position.

6. Change the lock catch on the door

You now need the new lock catch cover supplied with the dryer which you have already fitted with the lock catch.

Diagram showing a hand inserting a component into a device, labeled with parts E and F

■ Push lock catch cover Ⓕ with its lock catch into position.

■ Tighten the screw Ⓔ with a T20 Torx screwdriver.

Refitting

1. Refit the door


Line drawing of a mechanical component with a curved arrow indicating direction (no text or symbols)

■ Press the rubber seal back into the grove on the door.
■ Position the door in front of the dryer.
■ Fit the base of the door hinge with its 2 pins into the openings on the dryer.

The base of the door hinge must be flush with the front panel of the dryer. The door cannot fall off in this position.

A Miele

■ Screw the door securely to the dryer at the base of door hinge Ⓐ.

⚠️ Now that you have changed the door hinging the door will open from the opposite side.

Simple circular diagram with a curved arrow, no text or symbols present

■ Push the orange marker round to the other side so that you will see at which side to pull the door open.

Important

⚠️ Please keep the lock catch and door hinge covers which were no longer needed in a safe place. These will be required if, for example, you move house and need to change the door hinging back to its original position.

Electrical connection

The tumble dryer is supplied with a mains cable with moulded plug ready for connection to a socket.

The socket must be easily accessible after the tumble dryer has been installed. If the switch is not accessible after installation an additional means of disconnection must be provided for all poles.

Risk of fire from overheating.

Connecting the tumble dryer to a multi-socket plug adapter or to an extension lead can overload the cable.

Do not use an extension lead or multi-socket plug adapter.

All electrical work must be carried out by a suitably qualified and competent person, in strict accordance with national and local safety regulations. For extra safety, it is advisable to install a residual current device (RCD) with a trip current of 30 mA. Ensure power is not supplied to the appliance until after the installation has been completed. Connection should be made via a suitable switched socket.

If the connection cable is damaged, it must only be replaced with a specific connection cable of the same type (available from Miele) in order to avoid a hazard. For safety reasons, such replacement may only be carried out by a suitably qualified and competent technician or Miele.

Do not connect the tumble dryer to a stand-alone inverter such as those used with an autonomous energy source, e.g.

solar power. When the tumble dryer is switched on, power surges could result in a safety switch-off. This could damage the electronics.

The data plate indicates the nominal power consumption and the appropriate fuse rating. Compare the specifications on the data plate with those of the mains electricity supply.

If in any doubt, consult a qualified electrician.

Height 850 mm
Width 596 mm
Depth 643 mm
Depth with door open 1077 mm
Suitable for pushing under a worktop Yes
Height for pushing under a worktop 850 mm (+8/-2 mm)
Width for pushing under a worktop 600 mm
Depth for pushing under a worktop 600 mm
Suitable for stacking Yes
Weight Approx. 62 kg
Drum volume 120 l
Maximum capacity 8.0 kg (weight of dry laundry)
Capacity of condensed water container 4.8 l
Drain hose length	1.49 m
Maximum delivery head	1.00 m
Maximum drain hose length	4.00 m
Length of connection cable	2.00 m
Voltage	See data plate
Rated load	See data plate
Fuse rating	See data plate
Test certificates awarded	See data plate
Energy consumption	See “Consumption data”
LEDs	Class 1

	Load^1 kg rpm	Final spin speed in a domestic washing machine% kWh min.	Residual moisture	Energy Duration
Cottons 8.0		1,000	60	1.44	155
	4.0	1,000	60	0.82	95
Cottons Normal 8.0		1,200	53	1.30	140
	8.0	1,400	50	1.20	133
	8.0	1,600	44	1.10	118
Cottons Normal incl. Gentle tumble	8.0 1,000	60 1.50 165
Cottons Hand iron 8.0		1,000	60	1.10	125
	8.0	1,200	53	0.95	109
	8.0	1,400	50	0.90	102
	8.0	1,600	44	0.75	87
Minimum iron Normal 4.0 1,200	40 0.50 65
Minimum iron Normal incl. Gentle tumble	4.0 1,200	40 0.50 66
Delicates Normal 2.5 800 50 0.50	65
Woollens handcare	2.0 1,000	50 0.02 5
Shirts Normal	2.0 600	60 0.46 60
Express Normal	4.0 1,000	60 0.85 100
Denim Normal	3.0 900	60 0.95 115
Proofing Normal	2.5 800	50 0.75 95
^1 Weight of dry laundry
All data was calculated using EN 61121 unless otherwise stated.

Consumption data can vary from the nominal values given above depending on the size of the load, types of textiles, residual moisture levels after spinning and fluctuations in the electricity supply.

Using the Cottons Extra dry programme is recommended for a mixed cotton load and is the programme used in energy consumption tests to AS/NZS 2442 (Refer to www.energyrating.gov.au website for consumption data).

Programming

You can use the programmable functions to alter the dryer's electronics to suit your requirements.

Programming is carried out by following these steps (1, 2, 3 ... 9) using the sensors.

Accessing the programming level

Before you begin, ensure the following:

- Make sure that the programme selector is turned to any of the programme settings.

- The door of the dryer is open.

① Touch the Start/Add laundry sensor and hold it down whilst carrying out steps ②-③.

② Close the tumble dryer door.

3 Wait until the Start/Add laundry sensor, which will now be flashing quickly, lights up constantly ...

4 ... then release the Start/Add laundry sensor.

POI will light up in the time display.

Choosing and selecting programmable functions

The number of the programmable function will appear in the display as P and a number: e.g. POI.

5 Touch the > or < sensor to scroll to the next or previous programmable function:

Programmable function
P01	Cottons drying levels
P02	Minimum iron drying levels
P04	Cooling temperature
P06	Keypad tone
P07	PIN Code
P08	Conductivity
PII	Control panel standby status
PI3	Memory
PI4	Anti-crease
P20	Airways indicator
P22	Backlight brightness dimmed

6 Confirm the selected programmable function by touching the Start/Add laundry sensor.

Programmable functions

Editing and saving the programmable function

You can either switch a programmable function on or off or select different options.

The programmable function option will appear in the time display as - and a number: e.g. -00.

7 Touch the > or < sensor to switch the programmable function on/off or to select an option:

Programmable function
	Available options
	-00	-01	-02	-03	-04	-05	-06	-07
P01	X		XX	√	XXX
P02		XXX	X	X	XX
P04		XXX	X	to				-16√
P06	X √	X
P07	√	X
P08		√	X
P11	X √
P13	√	X
P14	XX √
P20	XX √	X
P22		X √	XXX				X	X

X = can be selected
√ = factory default setting

8 Confirm your selection with the Start/Add laundry sensor.

The number of the programmable function, e.g. POI will light up again.

Exiting the programming level

9 Turn the programme selector to the ⏻ position.

The settings have been changed. You can alter the settings again at any time.

POI Cottons drying levels

You can adjust the drying levels for the Cottons programme to one of 7 different levels.

Options

-01 = even damper
-02 = damper
-03 = a little damper
-04 = factory setting
-05 = a little drier
-05 = drier
-07 = even drier

Exception:

The Cottons □ programme will remain unchanged.

P02 Minimum iron drying levels

You can adjust the drying levels for the Minimum iron programme to one of 7 different levels.

Options

-01 = even damper
-02 = damper
-03 = a little damper
-04 = factory setting
-05 = a little drier
-06 = drier
-07 = even drier

P04 Cooling temperature

The laundry will be cooled to 55 °C before the end of the programme. It can be cooled to a lower temperature, but this will prolong the cooling phase.

The level is set in increments of 1 ^ .

-15 = factory setting 55 °C
-15 = 54°C
-14 = 53°C
-13 = 52°C
-12 = 51°C
-11 = 50°C
-10 = 49°C
-09 = 48°C
-08 = 47°C
-07 = 46°C
-05 = 45°C
-05 = 44°C
-04 = 43°C
-03 = 42°C
-02 = 41°C
-01 = 40°C

P06 Keypad tone

The tone that sounds when a sensor is pressed can be changed or switched off.

-00 = Off
-01 = factory setting
-02 = louder

P07 PIN Code

The code prevents your machine being used without your knowledge.

When the code has been activated, you have to enter the code after switching the dryer on. Otherwise the dryer cannot be operated.

Options

$$ - 0 0 = \text { Off (factory setting) } $$

$$ - 0 1 = \text { On } $$

If option -01 has been selected, after switching on you will have to enter the code before you can operate the dryer.

Using the dryer when the code is activated

After the dryer is switched on, --- will flash in the time display.

The code is 250 and cannot be altered.

■ Touch the > sensor until a 2-- flashes in the first position.
■ Confirm with the Start/Add laundry sensor.
■ Enter the two other numbers in the same way.

The dryer is ready for use after 250 has been entered and confirmed.

P08 Conductivity

This programmable function should only be altered if the water is so soft that it is likely to cause the electronics which sense residual moisture in the laundry to give false readings.

Options

$$ - 0 1 = \text { Off (factory setting) } $$

$$ - 0 2 = \text { low } $$

Important

This programmable function should only be set if the water used for washing the laundry is extremely soft with a conductivity reading (electrical conductivity) of less than 150 S/cm. To find out the conductivity level of your mains water, contact your local water authority.

Make sure that you only activate -02 for the condition described above. Otherwise, drying results can be unsatisfactory.

PII Control panel standby status

To save energy, the time display and the sensors will go out once the programme has been running for 10 minutes. In this case, the Start/Add laundry sensor flashes slowly.

However, there is no switch-off in the event of a fault.

Options

$$ - 0 0 = \text { Off } $$

The time display and the sensors do not go out.

$$ - 0 1 = \text { On (factory setting) } $$

The time display and the sensors will go out once the programme has been running for 10 minutes.

"Switch on" display again

- Touch the Start/Add laundry sensor. This will not affect a running programme.

PI3 Memory

You can set the following: The electronics will memorise the drying level and any options selected for the current drying programme. It will also memorise the duration of the Warm air programme. When the programme is selected again, these memorised settings will appear in the display.

Options

$$ \begin{array}{l} - 0 0 = \text { Off (factory setting) } \ - 0 1 = \text { On } \ \end{array} $$

Exception:

The Cottons ◯ programme will remain unchanged.

P14 Anti-crease

After the programme has finished, the drum will continue to rotate at intervals for a max. of 2 hours. This helps prevent creasing if the laundry is not removed immediately after the end of the programme. The duration can be shortened.

Options

$$ \begin{array}{l} - 0 0 = \text { no Anti - crease } \ - 0 1 = 1 \text { hour } \ - 0 2 = 2 \text { hours (factory setting) } \ \end{array} $$

P20 Airways indicator

Fluff must be removed after every drying programme. In addition, this indicator will remind you to clean the filters when a certain amount of fluff has collected in them: ☐ You can decide at what level of fluff this reminder should be given.

You will have an idea of how often this should be done after a few drying programmes.

Options

$$ - 0 0 = \text {Off} $$

does not light up. However, if there is a very severe blockage in the ducting, the programme will be cancelled and the error message F066 will appear in the display regardless of this option.

$$ - 0 I = \text { Heavy } $$

lights up when there is a heavy build-up of fluff.

$$ - 0 2 = \text { Normal (factory setting) } $$

$$ - 0 3 = \text { Light } $$

lights up when there is only a small build-up of fluff.

P22 Backlight brightness dimmed

The brightness of the dimmed sensors in the control panel can be set to one of 7 different levels.

The brightness will change as soon as a different setting is chosen.

Options

$$ - 0 I = \text { darkest level } $$

$$ - 0 2 = \text { factory setting } $$

$$ \dots $$

$$ - 0 7 = \text { brightest level } $$

Miele Australia Pty. Ltd. Miele New Zealand Limited

ACN 005 635 398

ABN 96 005 635 398

IRD 98 463 631

Miele Experience Centre and

Head Office Melbourne:

1 Gilbert Park Drive

Knoxfield, VIC 3180

Miele Experience Centre South Melbourne:

206-210 Coventry Street

South Melbourne, VIC 3205

Miele Experience Centre and Office Sydney:

3 Skyline Place

Frenchs Forest, NSW 2086

Miele Experience Centre and Office Brisbane:

Tenancy 4C, 63 Skyring Terrace

Newstead, QLD 4006

Miele Experience Centre Gold Coast:

131 Ferry Road

Southport, QLD 4215

Miele Experience Centre and Office Adelaide:

83-85 Sir Donald Bradman Drive

Hilton, SA 5033

Miele Experience Centre and Office Perth:

205-207 Stirling Highway

Claremont, WA 6010

1300 464 353 (1300 4 MIELE)

www.miele.com.au

Head Office:

Level 2, 10 College Hill

Freemans Bay, Auckland 1011

Miele Experience Centre

Auckland:

8 College Hill

Freemans Bay, Auckland 1011

Miele Experience Centre

Wellington:

183 Featherston Street

Wellington 6011

0800 464 353 (0800 4 MIELE)

www.miele.co.nz

Miele Global Headquarters

Germany

Miele & Cie. KG

Federal Republic of Germany

Miele

TWD 440 WP
