Product type	Wristwatch
Brand	Auriol
Model	2-LD3885
Water resistance	Up to 3 bar (DIN 8310 standard)
Power source	Battery
Display	Analog: hour, minute and second hands
Time setting	Crown in position 1
Strap	Adjustable by removable segments
Strap materials	Metal (segments with pins)
Included spare parts	Repair kit with spare pin, spare segments (2)
Care	External cleaning with soft dry cloth
Warranty	3 years
Recycling	Batteries and packaging recyclable according to local regulations
Country of origin	Not specified in the manual

Frequently Asked Questions - 2-LD3885 AURIOL

How to set the time on the Auriol 2-LD3885 watch?

Pull the crown to position 1, then turn it to set the hours and minutes. Push the crown back in to start the second hand.

How to replace the battery?

The manual recommends having the battery replaced by a specialized store. Do not attempt to replace it yourself unless you are qualified.

Is the watch waterproof?

Yes, it is water resistant up to 3 bar (30 meters) according to DIN 8310 standard. However, water resistance is not permanent and should be checked annually.

How to adjust the strap?

For the HG00079A model, open the buckle and remove 1 or 2 removable segments. For the HG00079E model, use the repair kit to push the pins and remove the segments marked with an arrow.

What to do if the slider pin is defective?

Remove the slider, open the bottom cover with the spare pin, then replace the old pin with the new one using pliers.

How to clean the watch?

Clean only the exterior with a soft, dry cloth. Avoid contact with chemicals.

How to recycle the watch at the end of its life?

Do not throw it in household waste. Take it to a local collection point for recycling. Used batteries must be recycled according to Directive 2006/66/EC.

What is the warranty period?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not normal wear, fragile parts (glass, battery) nor loss of water resistance.

Can I repair the watch myself?

The warranty becomes void if the watch is opened or repaired by an unauthorized person. For repairs, consult a professional.

How to use the provided repair kit?

The kit contains a pusher and a spare pin. To remove the strap segments, place the watch face down in the kit, then push the pins upward. For the slider, use the pin to open the cover.

USER MANUAL 2-LD3885 AURIOL

WRISTWATCH AND BRACELET SET

GB IE

WRISTWATCH AND BRACELET SET

Operation and Safety Notes

SE

ARMBANDSUR MED SMYCKE

GB/IE Operation and Safety Notes Page 5

FI Käyttö- ja turvallisuusohjeet Sivu 12
SE Bruksanvisning och säkerhetsanvisningar Sidan 19
DK Betjenings- og sikkerhedshenvisninger Side 26
FR/BE	Instructions d’utilisation et consignes de sécurité	Page 33
NL/BE	Bedienings- en veiligheidsinstructies	Pagina 41
DE/AT/CH	Bedienungs- und Sicherheitshinweise	Seite 49

B
3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

WRISTWATCH AND BRACELET SET

● Preparations for use

- Changing the battery

Note: Have batteries changed in a specialist shop.

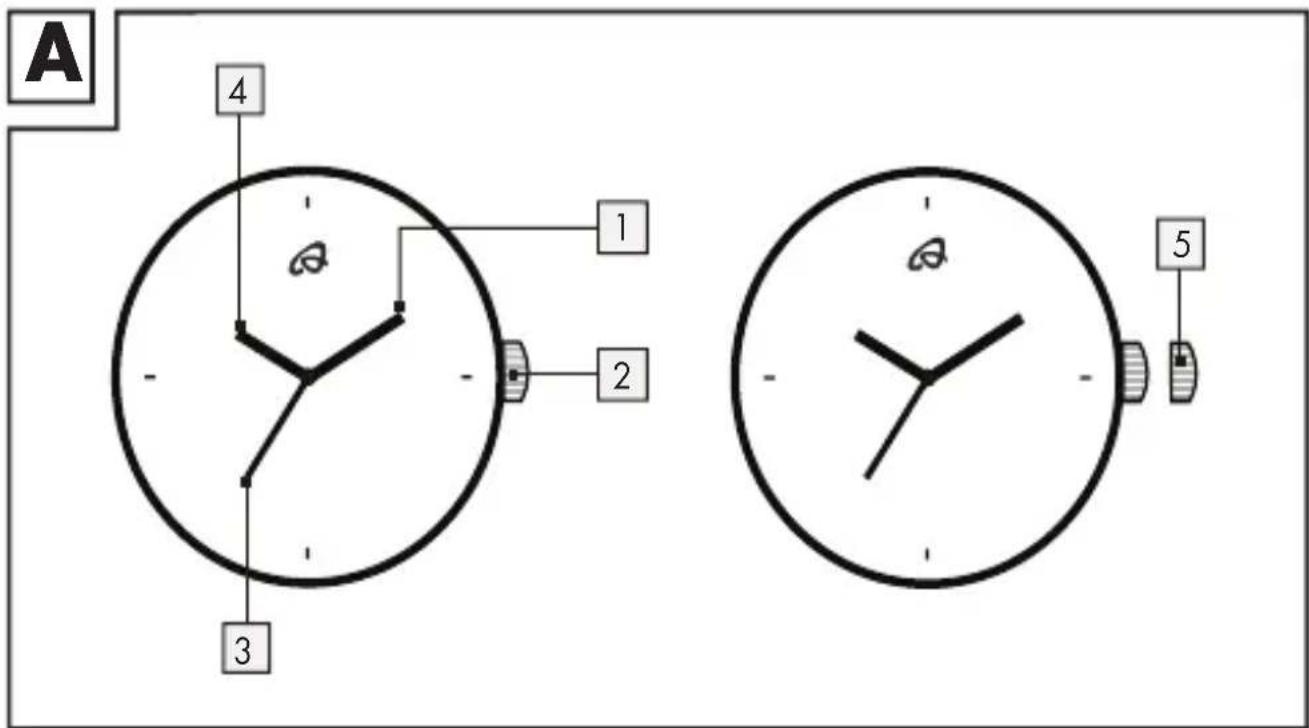

• Display

1 Minute hand
2 Crown
3 Second hand
4 Hour hand
5 1st position
6 Fastener (for model HG00079A)
7 Segment
8 Repair set
9 Slider
10 Spare pin
11 Bottom cover

- Setting the time

1. To set the time, pull the crown 2 out to the 1st position 5.
2. Turn the crown 2 to set the hour and minute hands 4, 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

- Watertightness

This watch is watertight to 3 bar in accordance with DIN 8310. Figure B shows the permissible areas of use. Please note that the watertightness is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.

●Shortening the watch strap

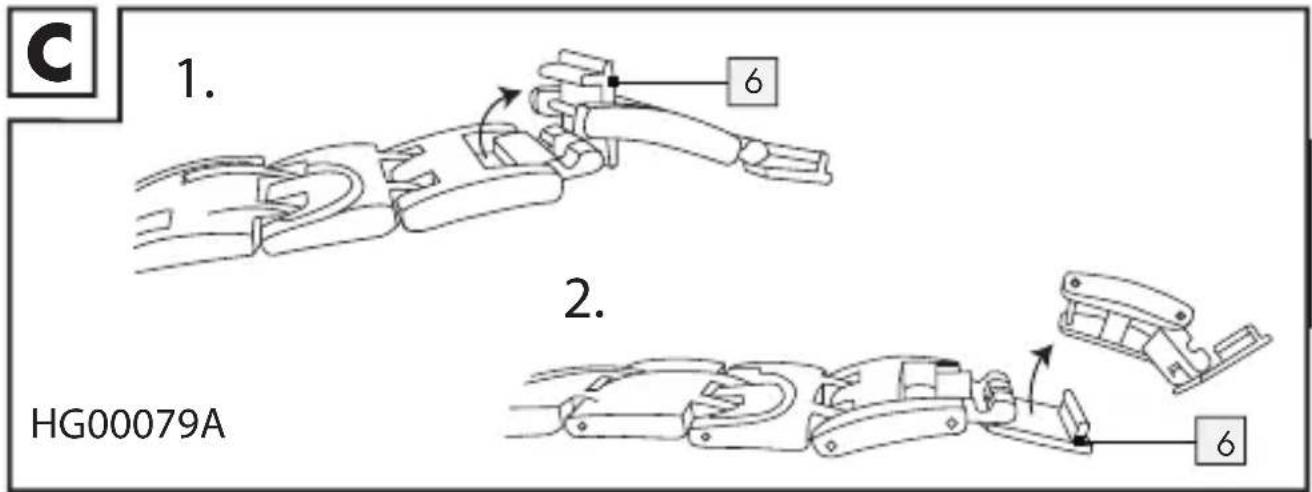

Model No. HG00079A

To shorten the watch strap, 2 removable segments are included. Open the fastener 6 of the watch strap and the fastener of the removable segment. Remove 1 or 2 segments and re-close the fastener of the watch strap (see Fig. C).

Model No. HG00079E

Note: The watch strap can be shortened by removing segments 7 (2 spare units are included). To this purpose you should use the repair set 8 supplied.

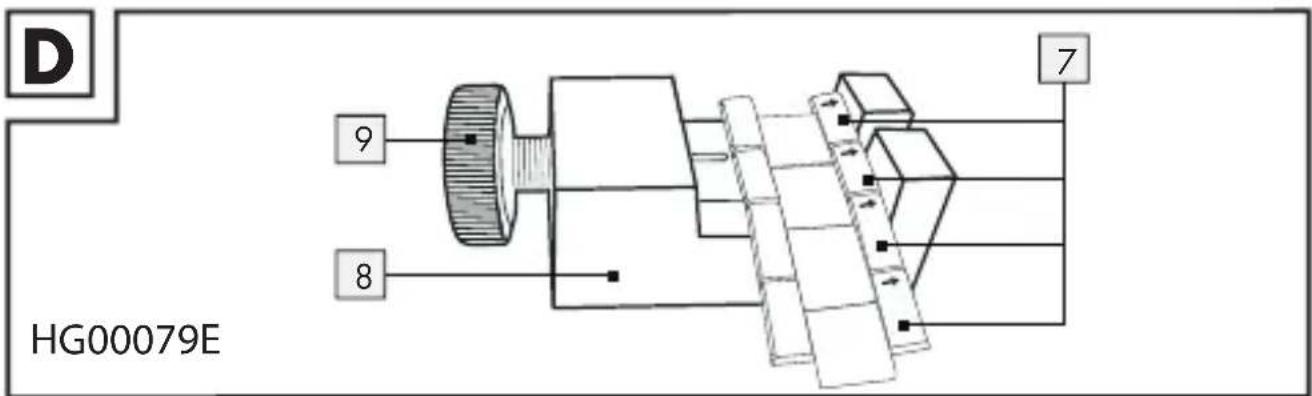

- Removing Segments (Fig. D)

Note: The segments which can be removed are marked with an arrow (see Fig. D). They are connected together with pins. These can be pushed out in the direction of the arrow with the repair set 8. Use

a pair of tweezers if necessary in order to remove the pins.

Place the watch with the dial facing downwards in the repair set 8.
☐ Remove the pins of the segment that you wish to remove (as described above) and take out the segment 7.

Note: If you would like to take out more than one consecutive segment 7, it is sufficient to remove the two outer pins.

☐ Connect the watch strap together again by joining the loose segments 7 with a pin. Press this pin against the direction of the arrow into the adjacent segments 7.

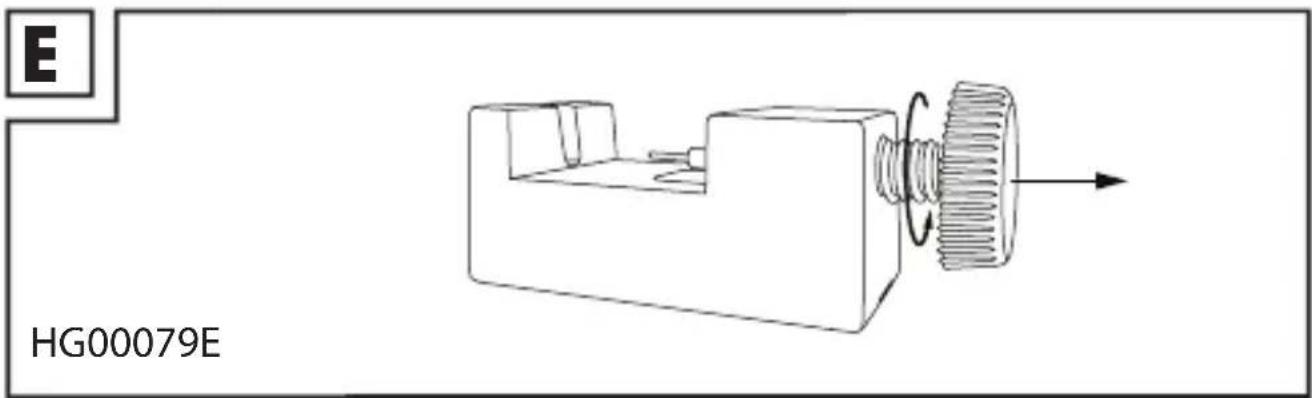

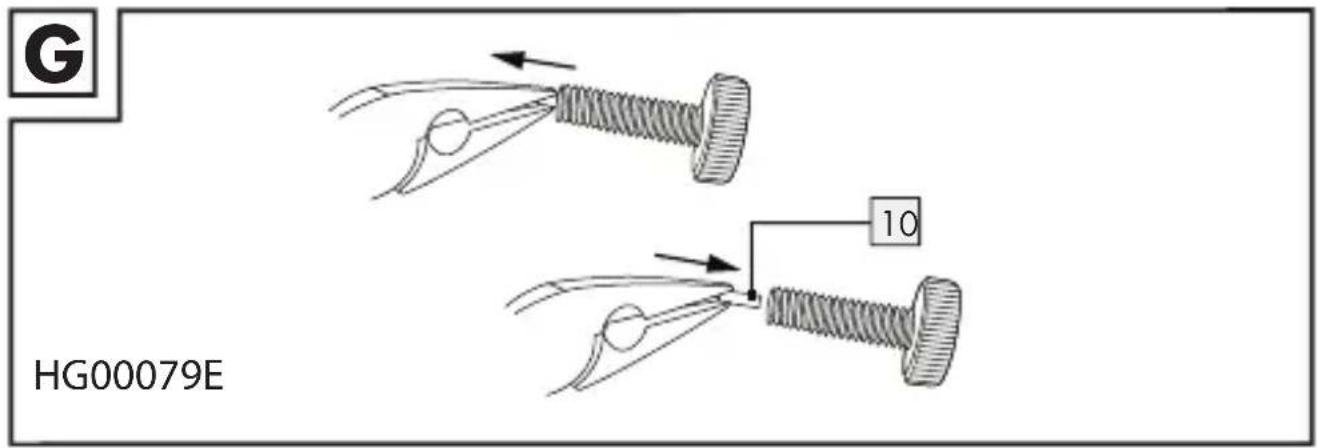

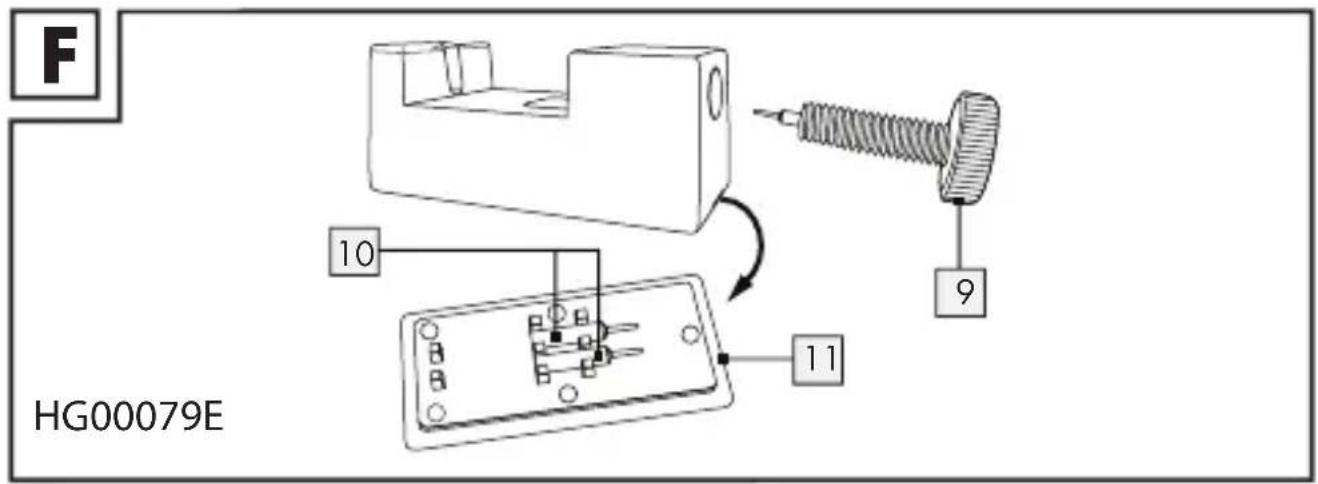

- How to exchange the pin inside the slider (Fig. E,F,G)

☐ Take out the slider 9, open the bottom cover 11 with the spare pin 10 inside.

☐ You will need the pliers to carefully remove the old pin from the slider.

☐ Insert the spare pin carefully into the slider by again using the pliers. The new pin is installed.

- Cleaning and maintenance

- Clean the product on the outside only with a soft, dry cloth.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries must not be disposed off with domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

- WARRANTY

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

CE
