XC6 - Tablet Xplore - Free user manual and instructions

Product Type	Rugged Tablet PC
Brand	Xplore
Model	XC6
Dimensions	11.20 x 8.25 x 1.6 inches (283.9 x 209.3 x 40.8 mm)
Weight	5.40 lbs (2.45 kg)
Processor	Intel Core i7-4650U / i5-4300U / Celeron 2980U (varies by configuration)
Memory	4 GB, 8 GB, or 16 GB DDR3 RAM
Storage	60 GB, 120 GB, or 240 GB SSD (single or dual, RAID 0/1 support)
Display	10.4-inch TFT XGA (1024x768), 1300 nits (sunlight-readable) or 340 nits (indoor)
Touchscreen	Active digitizer with pen and 10-finger multi-touch
Battery	Removable 80.75 Wh lithium-ion, up to 8 hours battery life
Operating System	Windows 7 Professional (32/64-bit) or Windows 8.1 Professional (64-bit)
Ports	2x USB 3.0, LAN (RJ-45), headphone/mic combo, 9-pin serial (or optional VGA/HDMI), DC-in
Wireless	Intel Dual Band Wireless-AC 7260 (Wi-Fi), optional WWAN (4G/LTE), Bluetooth
Cameras	Front: 1 MP, Rear: 5 MP (auto-focus)
Input	Active pen/stylus, fingerprint scanner, programmable hot keys
Ruggedness	MIL-STD-810G, IP67 ingress protection, 4-foot drop to concrete
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 75°C (-40°F to 167°F)

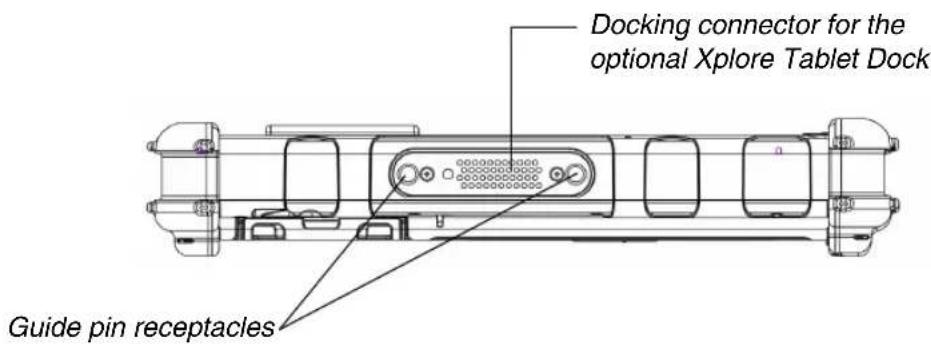

Docking	Compatible with xStand Desktop Dock and xDock Vehicle Dock (optional)
Accessories Included	Quick Start Guide, battery pack, power cord, AC adapter, stylus pen with tether, warranty kit

Frequently Asked Questions - XC6 Xplore

How do I turn on the Xplore XC6 tablet?

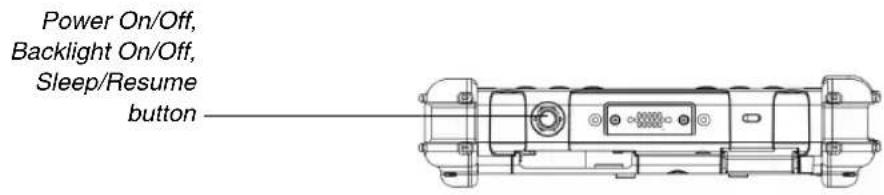

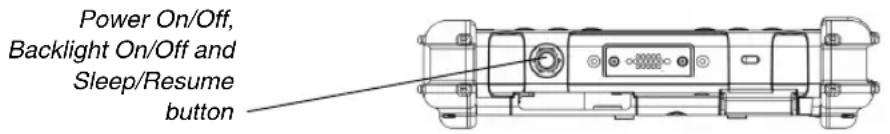

Press the Power On/Off, Backlight On/Off, Sleep/Resume button located on the left side of the tablet. The status LED will turn green when the device is on.

How do I charge the battery?

Connect the supplied AC adapter to the power connector on the right side of the tablet. The battery will charge automatically when the charge is below 95%. Full charge takes approximately 2.5 hours.

What should I do if the screen is blank?

First, ensure the tablet is powered on by checking the status LED. If the LED is green, the screen brightness may be too low. Press Fn + Start to open the Xplore menu and adjust brightness. If the LED is blinking red, the device may be in Sleep mode due to temperature extremes; move it to a cooler or warmer location.

How do I calibrate the digitizer?

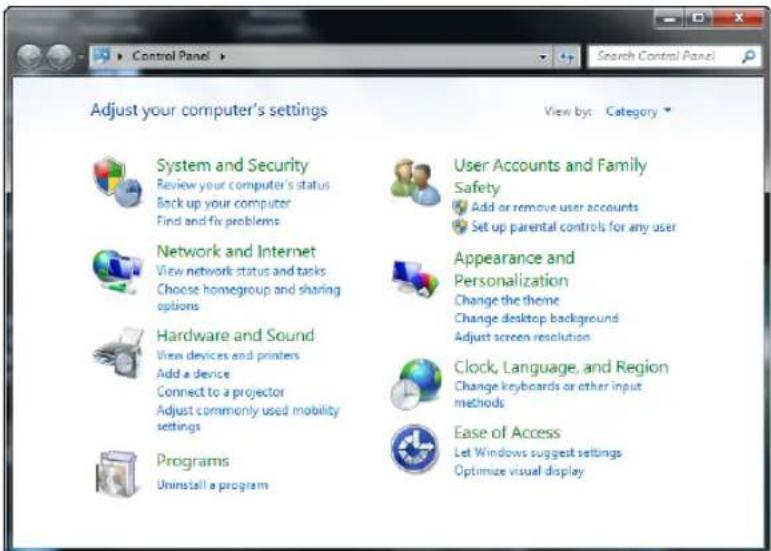

Go to Control Panel > Hardware and Sound > Tablet PC Settings and click Calibrate the screen for pen or touch input. Follow the on-screen instructions to tap the crosshairs.

How do I remove and install the battery?

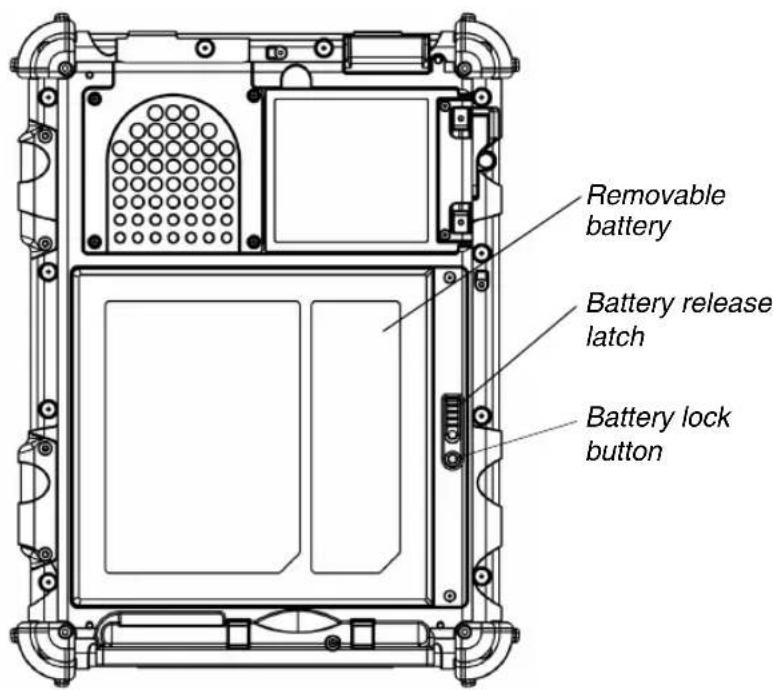

To remove, depress the battery lock button on the back, then pull the battery away. To install, slide the battery into the tray until it clicks into place. Always suspend or hibernate the tablet before removing the battery to avoid data loss.

How do I use the pen for mouse functions?

Tap the pen tip once to left-click, double-tap to double-click, and hold for 1 second to right-click. To drag, press and hold the pen on an object while moving it across the screen.

How do I program the hot keys (P1, P2, P3)?

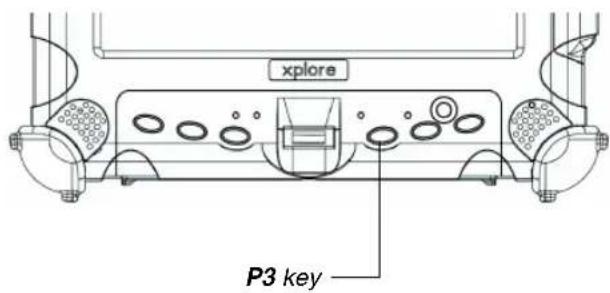

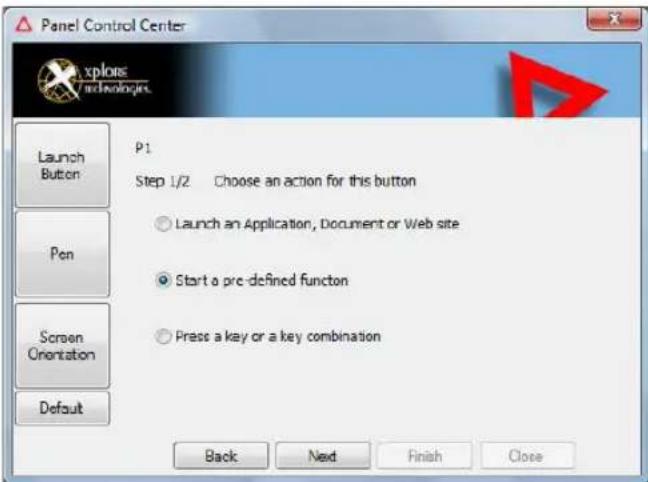

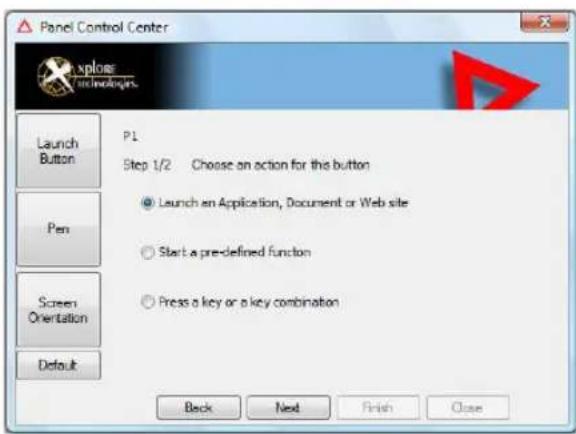

Click the XC6 Configuration icon in the system tray, then click Configure to open the Panel Control Center. Select a hot key, choose an action (launch application, pre-defined function, or key combination), and configure accordingly.

How do I connect the tablet to an external monitor?

Use the optional 15-pin D-SUB VGA or HDMI connector (if equipped). Press Fn + P1 to toggle between the tablet display and the external monitor.

How do I clean the display screen?

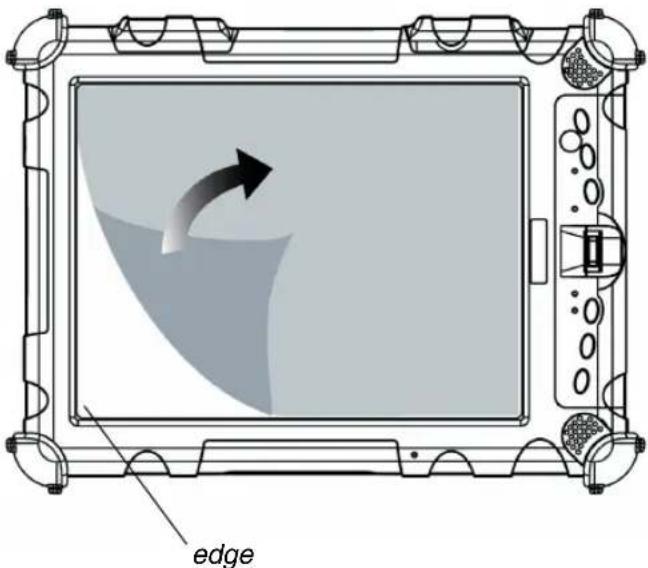

Dampen a soft cotton cloth with water and gently wipe the screen surface. Do not use isopropyl alcohol as it may damage the screen.

How do I access the Solid State Drive (SSD) cartridge?

Turn off the tablet and remove all power sources. Pinch the two center pins on the back of the tablet while pushing down on the lever to pop out the drive carrier. Pull out the carrier to access the SSD.

USER MANUAL XC6 Xplore

XC6 USER'S HANDBOOK

XPLORE

TECHNOLOGIES

Contents

Welcome 13

About your computer 14

Package contents 15

Optional accessories.... 15

Contacting Xplore - service and questions. 17

1 Getting Started 19

Front view.... 19

Back view 21

Left side view 22

Right side view 23

Bottom view 24

Top view 25

LED indicators 26

Quick-start guide.... 28

Application, Windows, and hot keys 28

2Using the Tablet 31

Turning on the computer.... 31

Turning off the computer 32

Using the Reset switch. 33

Suspending and resuming operation 34

Suspending operation.... 35

Resuming operation 37

Using the pen.... 38

Using the digitizer to perform mouse functions.... 39

Changing the pen double-click speed 39

Positioning the pen and pen tether 40

Using the fingerprint scanner 42

Changing the screen orientation 43

Adjusting the screen brightness.... 44

Enabling automatic backlight control 45

Optimizing screen settings for outdoor use 45

Docking the tablet 46

Connecting devices 47

Connecting to a local area network 47

Connecting USB-compatible devices 47

Connecting an external microphone, headphone, or speakers ..... 48

Adjusting microphone volume 48

Adjusting headphone or speaker volume 48

Connecting a monitor or projection panel (optional).... 49

Activating the monitor or projection panel. 49

Connecting a device to the serial port (standard). 50

Connecting an XPL expansion module 50

Using the battery 51

Charging the battery pack 51

If you do not have an external battery charger .... 51

If you have an external battery charger 52

Removing and installing the battery 52

Removing the battery 52

Installing the battery 54

Discarding batteries 54

Using power options 55

Displaying power options 55

Checking battery power status.... 55

Selecting a power plan 56

Selecting power options 57

Selecting Power (On/Off) / Backlight (On/Off) / Sleep/ Resume button options. 58

Tips for conserving battery power 59

Accessing the Solid State Drive (SSD) cartridge 60

Re-installing the drive carrier 61

Accessing the MicroSD and SIM compartment 62

Programming hot keys 63

Programming hot keys to start applications, open documents, or go to a website ..... 63

Programming hot keys to perform predefined functions 68

Programming hot keys to perform other key functions 70

3Maintaining the Tablet 73

Caring for the tablet. 73

Checking power cords and connectors. 73

Protecting the computer from damage.... 73

Preventing the computer from overheating 74

Storing the computer 75

Caring for the display screen 75

Protecting the display screen 75

When to replace the pen 76

Calibrating the digitizer.... 77

ATroubleshooting 79

BUsing BIOS and AOS Functions 81

Disabling the Auto Power feature.... 82

Enabling automatic LCD backlight control 82

CGlossary 83

F Environmental Policy and Recycling Program 103

Environmental policy 103

Compliance 103

Risk reduction, prevention, and resource management ..... 103

Communication.... 104

Continuous improvement 104

Take back and recycling program.... 104

Environmental and Sustainability Corporate Report 105

Index 107

Disclaimer

Xplore Technologies ^® has made every effort to ensure the accuracy and completeness of this document; however, because ongoing development efforts are made to continually improve the capabilities of our products, we cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes herein.

Trademarks

Xplore and the Xplore logo are registered trademarks of Xplore Technologies Corp.; iX104, XC6, XC6 Lite, and XC6 Dual Mode are trademarks of Xplore Technologies Corp. Kensington and MicroSaver are registered trademarks of the Kensington Technology Group. Microsoft is a registered trademark of Microsoft Corporation. Windows 8.1, and Windows 7 are trademarks of Microsoft Corporation. MicroSD is a registered trademark of the Personal Computer Memory Card International Association. Intel and Core, are registered trademarks of Intel Corporation. Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance (WECA). ISODAMP is a registered trademark of Aearo Company.

All other brands, product names, company names, trademarks and service marks used herein are property of their respective companies.

Copyright

Copyright © 2003-2014 Xplore Technologies Corp. All rights reserved. No part of this publication may be copied, reproduced, or translated, without the prior written consent of Xplore Technologies. No part of this publication may be stored or transmitted in any electronic form without the prior consent of Xplore Technologies. Any unauthorized use is a violation of copyright laws.

Publication information

PN: 95-01110, Rev. A April 7 2014

Declaration of conformity

DECLARATION OF CONFORMITY according to FCC Part 15, IC ICES-003, and RTT&E directives

Responsible Party Name: Xplore Technologies

Address: 14000 Summit Drive, Suite 900, Austin, Texas 78728

Telephone: [phone]

Declares that product: Model Series: iX104C6 complies with Part 15 of the FCC Rules.

This device complies with Part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and, (2)

This device must accept any interference received, including interference that may cause undesired operation.

WARNING

Changes or modifications to this unit not expressly approved by the party responsible for compliance may void the user's authority to operate this equipment.

For more information about FCC rules and their applicability to the XC6, see Appendix E, "Agency Notices."

Energy Star Partner

Warranty information

The XC6 is backed by a standard 36-month International Limited Warranty. An extended International Limited Warranty is available. Check the service kit included with your computer for warranty terms and conditions.

Important safety information

Before you use the XC6 (referred to as the tablet), read these safety instructions and the operation instructions in this handbook.

Failure to observe all these instructions voids the Limited Warranty and may lead to suspension or denial of services to the offender, or legal action, or both.

Follow any special regulations governing the use of the tablet and, if radio-enabled, always switch it off in areas where radio devices are forbidden or when the radio device can cause interference or danger.

Always follow any safety laws and regulations pertaining to the use of cell phones and two-way radios, because these laws and regulations typically apply to the use of the wireless-enabled tablet.

Observe all restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants, and wherever blasting operations are in progress or in any area in which restrictions on radio transmissions are imposed.

Switch off the tablet when in an aircraft. The tablet is not FAA-approved for use on aircraft. The effect of the use of the tablet in aircraft is unknown. Using the tablet in an aircraft may affect aircraft instrumentation, communication, and performance; may disrupt the network; and may be illegal.

Operating the wireless-enabled tablet may interfere with the functioning of inadequately protected medical devices such as pacemakers. Consult a physician or the manufacturer of the medical device if you have any questions.

Radio signals from your tablet will not affect the operation of most modern equipment, but certain electronic equipment, including automotive systems, may not be shielded against radio signals from your tablet. Check with the manufacturer of your motor vehicle or the manufacturer's representative to determine whether using the tablet will present any safety issues.

Avoid using the tablet in any environment that requires your full attention, such as when driving a vehicle. If you need to use your tablet while driving, have a passenger use it for you or find a safe location to halt your vehicle.

ERNING - BATTERIES

Use only battery types specified in this handbook. Using any other type of battery can be dangerous and can disable the tablet. Do not drop or mishandle the batteries, immerse them in water, or subject them to high heat. Doing so could increase the risk of explosion or leakage, and possibly cause injury. The lithium-ion batteries used in this equipment contain material that is hazardous to your health. If battery contents come in contact with the eyes, IMMEDIATELY flush the affected area with clean water for 15 minutes and have someone else summon medical attention for you. Unaffected persons should assist the affected individual in the vital first flushing of the eyes. RECHARGING THE BATTERY MUST ONLY BE CARRIED OUT IN ANON-HAZERDOUS AREA USING THE SUPPLIED AC ADAPTOR. The definition of hazardous areas can be found in Standard EN 60079-10.

When operating the tablet in a known explosive environment do not remove or replace the battery while the circuit is live. Before removing the battery verify that the area is known to be free of ignitable concentrations of flammable substances.
EXPLOSION HAZARD – DO NOT DISCONNECT WHILE CIRCUIT IS LIVE UNLESS AREA IS KNOWN TO BE NON-HAZARDOUS.
AVERISSEMENT – RISQUE D'EXPLOSION. NE PAS DÉBRANCHER TANT QUE LE CIRCUIT EST SOUS TENSION, À MOINS QU'IL NE S'AGISSE D'UN EMPLACEMENT NON DANGEREUX.
EXPLOSION HAZARD – DO NOT REPLACE THE BATTERY UNLESS POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.
AVERTISSEMENT – RISQUE D'EXPLOSION – COUPER LE COURANT OU S'ASSURER QUEL'EMPLACEMENT EST DESIGNE NON DANGEREUX AVANT DE REPLACER LE BATTERY.
EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2.
AVERTISSEMENT – RISQUE D'EXPLOSION – LA SUBSTITUTIOND E COMPOSANTSP EUTR ENDRE CE MATERIEL INACCEPTABLE POUR LES EMPLACEMENTS DE CLASSE I, DIVISION 2.
EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.
AVERTISSEMENT – RISQUE D'EXPLOSION – AVANT DE DECONNECTER L'EQUIPEMENT, COUPER LE COURANT OU S'ASSURER QUE L'EMPLACEMENT EST DESIGNE NON DANGEREUX.
Do not use any dock or any other accessory or attachment that is not manufactured or supplied by Xplore or an authorized Xplore accessories supplier. Use of any accessory or attachment that is not supplied or approved for use with the tablet by Xplore is not permitted because it may cause hazards.
Operate the tablet only from the type of power source indicated on the marking label. (See page 51 for more information about the battery and power supply.) Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs and convenience receptacles, and at the point where cords exit from the tablet or its dock. Do not overload wall outlets, extension cords, or integral convenience receptacles because this can cause fire or electric shock.

WARNING

WARNING

WARNING

WARNING

WARNING

Unplug the tablet and refer the tablet and dock for service to qualified service personnel if any of the following conditions occur:

■The power supply cord or plug is damaged.
■ The tablet or dock does not operate normally when you follow the instructions in this book.
■ The tablet or dock exhibits a distinct change in performance.

Adjust only controls for which there are instructions in this book. An improper adjustment of other controls can result in damage and may require extensive work by a qualified technician to restore the tablet or dock to normal operation.

CAUTION

Avoid prolonged physical contact with the exposed metal surfaces on the front and back of the tablet. While the tablet may not feel hot to the touch, if you maintain physical contact with the tablet for a long time (for example, if you rest the tablet on your lap for a long time), your skin may suffer low-heat injury. In addition, be careful when you remove a PC card that has been used for a long time, because the card may be hot.

Welcome

Welcome to the Xplore Technologies XC6 ^TM tablet PC, the rugged tablet designed, tested, and manufactured to meet the environmental and physical real-world challenges faced by today's mobile workers. Based on years of experience in rugged mobile applications, the XC6 is designed to withstand the abuses of everyday wear and tear.

Advanced technology, innovative design, and a rugged case are just a few highlights of your XC6 system.

Tablet with enhanced performance antennae

Note: This handbook assumes that you have basic experience using computers and Microsoft® Windows®.

About your computer

The XC6 is a high-performance tablet PC that runs on Microsoft Windows 7 32-bit, Windows 7 64-bit, and Windows 8.1 64-bit operating systems.

You can use any of the following methods to control the tablet:

■Special, enhanced pen (included with the tablet)
■Your finger
■Any suitable pointing device

Note: In this handbook, all information applies to all models unless otherwise noted.

All XC6 tablets have been engineered and tested to meet Military Standards for Environmental Extremes (MIL STD 810G). Your tablet includes the following features that make it exceptionally rugged and durable:

■Durable, long-lasting, rigid magnesium enclosure
■Interior and exterior multi-layer magnesium structure
■Bumper system and gasket protection mechanisms
■Specialized drive technology
■Removable, dual, Solid State Drive (SSD) cartridge
■ Integrated, protected wireless LAN and WAN antennas for dual mode operation
■Locked-in-place memory, cables, and connectors
■Proprietary thermal management system

Package contents

Check to make sure your package includes the following items:

■Quick Start Guide
■Battery pack
■Power cord
■AC adapter
■Stylus pen (attached to tablet)
■Stylus pen tether (attached to tablet)
■XC6 tablet PC
■Warranty information kit
■Operating System Recovery Guide

Optional accessories

Your package also includes any optional accessories you ordered.

Docking options

■xStand Desktop Docking Station
■xDock Vehicle Docking Station

Carrying cases

■Shoulder cases
■Portfolio case
■Dockable case

Memory

■4, 8 or 16 GB DDR III RAM

Storage

■60, 120, or 240 GB Solid State Drive (SSD) single drive configuration
Note: Drive bay carrier can be configured to use 2 SSDs,

Power options

■AC adapter with U.S. cord
■Extended life battery pack (80.75 watt hours)
■Auto adapter (cigarette lighter adapter)

Additional accessories

■Top-mounted Fast-Lock GPS II Pro (submeter accuracy)
■Non-rugged USB optical disk drive
■USB rugged, backlit keyboard (83-key)
■Replaceable drive cartridges
■Active stylus

Contacting Xplore – service and questions

Note: To troubleshoot problems (including wireless and GPS problems), before you call, read the FAQ page of the Xplore Technologies website. Go to http://www.xploretech.com; then select Customer Support; then FAQ.

If you purchased your tablet from an authorized Xplore dealer, contact the dealer for service and support.

If you purchased your tablet directly from Xplore, use any of the following methods to contact Xplore for service and support:

Website http://www.xploretech.com

E-mail [e-mail]

Toll free 1-866-296-8541, extension 222

Fax [phone]

Before you contact Xplore, have the following information ready so that the customer support representative can quickly provide a solution:

Product name: XC6

Product serial number

Purchase date

Conditions under which the problem occurred

Any error messages that were displayed

Type of device connected, if any

1 Getting Started

This chapter gives you an overview of your tablet and includes a quick-start guide to tablet keys.

Front view

Reset switch Enables you to turn off the computer when using the Power (On/Off)/Backlight (On/Off)/Resume key is not effective. (See page 33.)

Built-in microphone Enables you to input mono audio with noise cancellation. (See page 48.)

Status indicator Indicates the computer status (on, off, etc.). (See page 26.)

Speakers Enable you to listen to stereo audio files. Sealed to provide protection from the environment.

Chapter 1. Getting Started

Front view

Auto Light sensor Detects ambient light conditions.

SSD indicator Indicates hard drive activity. (See page 26.)

Digital camera 1-megapixel, auto-focus camera for taking color or black-and-white images or videos.

Fingerprint scanner Enables you to use fingerprint verification features. (See page 42.)

Back view

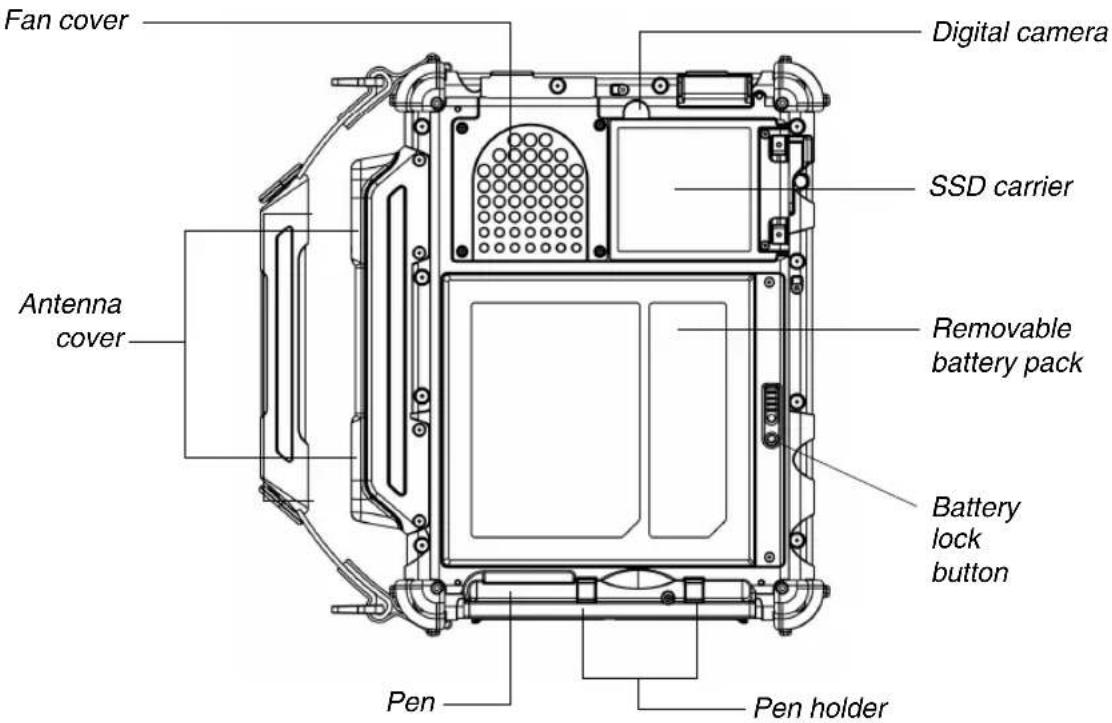

Fan cover Plastic cover over the thermal transfer bay that manages heat movement out of the computer.

Antenna cover For optional wireless LAN and WAN models, protect and secure the radio antennas (accessible by authorized service personnel only).

Digital camera 5-megapixel, auto-focus camera for taking color or black-and-white images or videos.

SSD carrier User-accessible drive carrier for SSD storage (can accommodate 2 SSDs).

Removable battery pack Powers the computer when AC power is unavailable.

Battery lock button Secures the battery inside the tablet.

Pen The main device you use to enter data and control applications (instead of a mouse or a keyboard). Also called the stylus. See "Using the pen" on page 38.

Pen holder Provides a place to secure the pen when you are not using it.

Chapter 1. Getting Started

Left side view

Left side view

Power On/Off,

Backlight On/Off,

Sleep/Resume button

Power On/Off, Backlight On/Off, Sleep/Resume button

Press to power on the computer. Press and hold for more than 4 seconds to force power off. Momentarily press to toggle the backlight on or off.

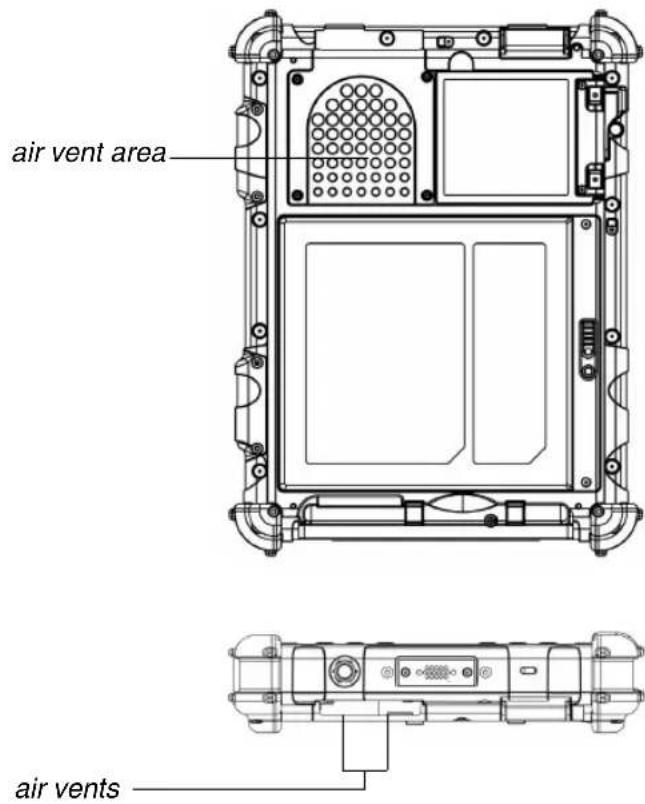

Heat exchange Helps prevent the computer from overheating by forcing heat away from the computer. (Do not block the vents.)

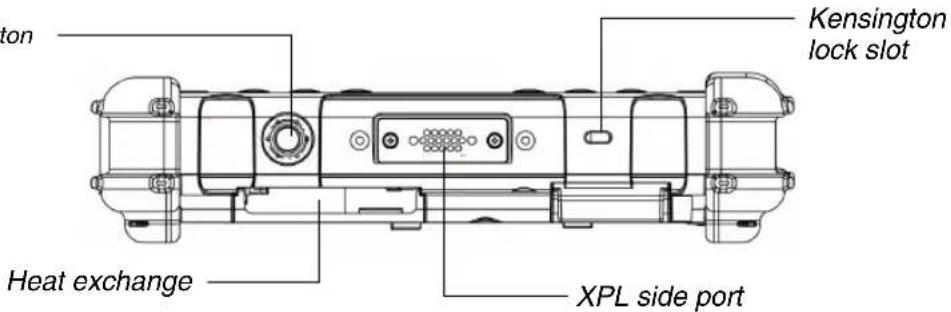

XPL side port Permits connection of special devices made expressly for the XC6.

KensingtonTM lock slot	Connector for the optional Kensington MicroSaverTM or equivalent compatible security cable.
	Note: Contact your reseller for information about the Kensington security cable.

Right side view

The connectors on the right side of the computer are located behind the outer doors.

Power connector	For the AC adapter or optional auto adapter. (See “Optional accessories” on page 15.)
USB 3.0 ports	For Universal Serial Bus devices (compliant with USB Standard Revision 3.0). Note: The optional Office and Vehicle Docks include additional USB ports. See “Optional accessories” on page 15.
Headphone/speaker mini-jack connector	For smartphone compatible headphones or speakers.
LAN connector	For connecting a standard RJ-45 connector to the tablet's internal local area network (LAN) card

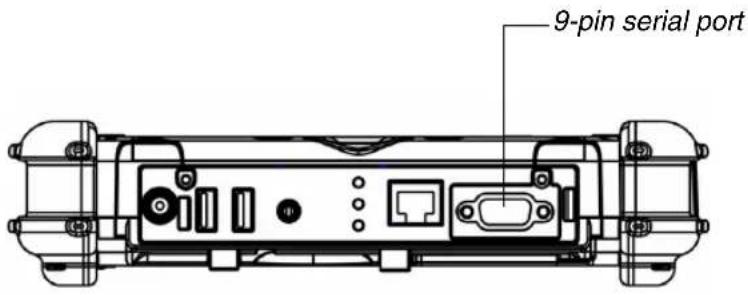

9-pin serial connector or optional external monitor connector	Serial connector for connecting terminals or other devices that use the RS-232, RS-422, or RS-485 data transfer standard, or an optional connector for an external monitor or projection panel.

Chapter 1. Getting Started

Bottom view

Bottom view

Docking connector

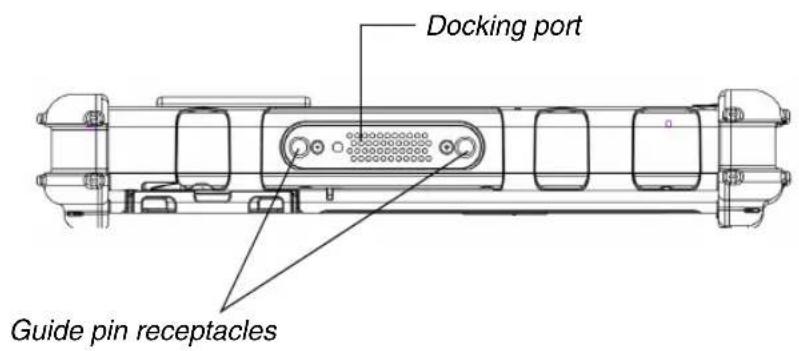

Enables you to connect the optional xStand Desktop Docking Station or xDock Vehicle Docking Stations.

Guide pin receptacles Help assure a secure connection of the optional xStand or xDock.

Note: See "Optional accessories" on page 15.

Top view

XPL expansion port

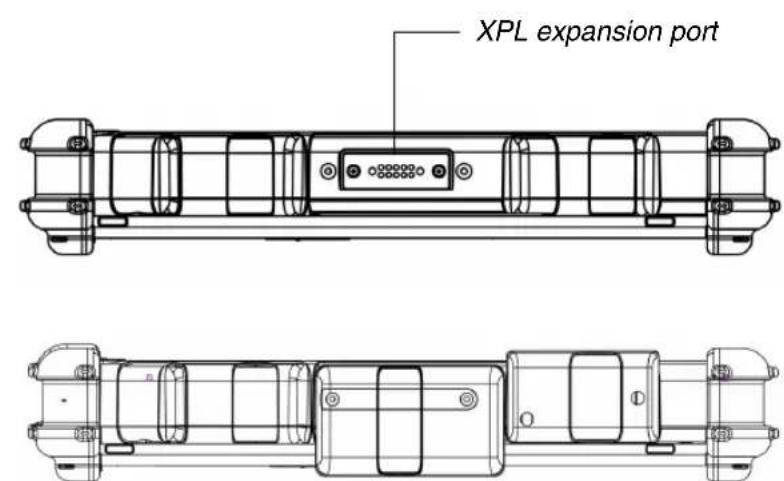

A port that permits connection of special devices made expressly for the XC6.

Bumpers Fabricated from rugged material. Raised to help protect the computer from damage.

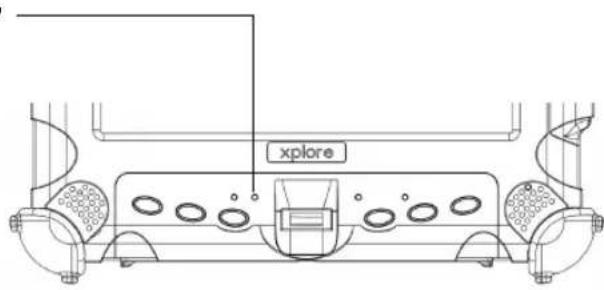

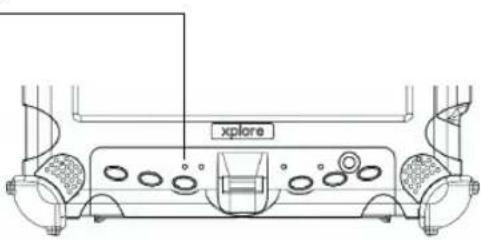

LED indicators

LED indicators

The LED indicator lights show the status of system functions.

Table 1 Status LED indicator states

LED state AC adapter Battery Tablet mode Action required (if any)
geen, blinking slowly	plugged in charging On, Off, or fully charged		Hibernating
			Sleep mode
green/cyan, blinking slowly	plugged in charging
green, breathing	not plugged in	discharging
	plugged in removed
green, continuous	plugged in fully charged		Onnot
	plugged in	removed
		discharging
LED state AC	adapter Battery	Tablet mode	Action required (if any)
off (no light) all conditions		all conditions Off or Hibernating (or any Night Vision mode)
blue, continuous	all conditions	all conditions On. Front or rear camera is active.
red, blinking quickly	not plugged in	discharging < 10%	On Plug the tablet into an AC/DC power source or install a charged battery.
red, continuous	not plugged in	discharging < 3%	On Plug the tablet into an AC/DC power source or install a charged battery.
		installed Off Battery is critically low.Plug the tablet
amber, continuous	all conditions	installed High temperature threshold has been exceeded.
amber/green, blinking quickly	all conditions	installed Critical temperature threshold has been exceeded.

Quick-start guide

This section is a quick guide to using the main features of your tablet. (See Chapter 2 for detailed information.)

Application, Windows, and hot keys

Note: Xplore pre-programs the P2, P2, and P3 hot keys and Function mode hot key combinations to perform the functions shown in Table 2, Table 3, and Table 4. However, you can program them to perform different functions (see “Programming hot keys” on page 63).

Table 2 Main keys

Press this key... To perform this function
	Log on after resuming operation from power management, powering on, or locking. After logging on, launch Windows Task Manager.
	Display the Windows Start menu.
	Use in combination with another key to perform various functions.
	Fingerprint scanner.

Table 3 Key functions – Windows 7

Press these keys... To perform this function
P1	Take picture.
P2	Change video output.
P3	Rotate screen.
Fn P1	Take video.
Fn P2	Toggle GPS.
Fn P3	Put computer in Sleep mode.

Table 4 Key functions – Windows 8.1

Press these keys... To perform this function

Open charm bar.

P2 Transition between open apps.

P3 Change video output.

Fn [No pre-programmed function.]

Fn [No pre-programmed function.]

Put computer in Sleep mode.

To define a function, see "Programming hot keys" on page 63.

2 Using the Tablet

This chapter contains detailed instructions for using the tablet.

Turning on the computer

1. Make sure the computer is off.

When the computer is off, the Status LED is off. —

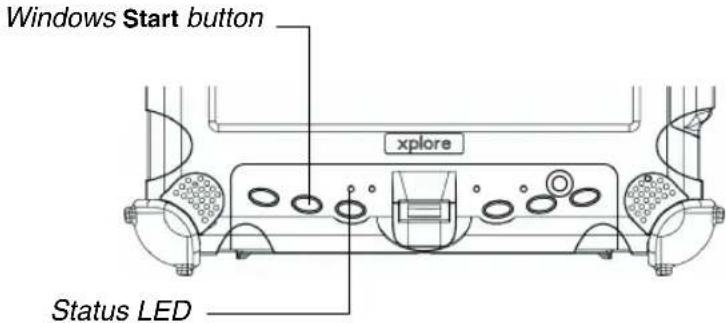

1. Make sure the battery is charged or that the computer is plugged in to an external power source.

2. Press the Power On/Off, Backlight On/Off, Sleep/Resume button.

Turning off the computer

Turning off the computer

When the computer is in Sleep mode, the Status LED is breathing green.

1. If the computer is in Sleep mode, press the Power On/Off, Backlight On/Off, Sleep/Resume button to resume operation. (See page 35 for information about Sleep mode.)

1. Make sure the battery is charged or that the computer is plugged in to an external power source.
2. Save your work and close all programs.
3. From the Windows Start menu, click Turn Off Computer.
4. The Turn off computer dialog box opens.
5. Click Turn Off or press the Power button continuously for more than 4 seconds.

Turning off the computer

Using the Reset switch

Use the Reset switch only if you cannot turn off the computer by any other means, because you may lose unsaved data.

If the computer does not seem to be accepting input and you cannot turn it off by using the method described in “Turning off the computer,” press the Reset switch. (Use the stylus or a similar instrument to press the switch).

Reset switch

Note: If the computer does not reset after you press the Reset switch, try pressing it again.

Suspending and resuming operation

For more information, see "Checking battery power status" on page 55.

To conserve battery power when you do not want to turn off the computer or when you need to install a charged battery pack, put the computer into Sleep mode. (You can suspend operation without closing any programs or Windows.)

When you suspend operation:

■Programs that are running stop (but do not close).

■Active data is saved.

■The system enters one of the following low-power modes:

• Sleep (Suspend-to-RAM) mode – The Status LED light is breathing green. Active data is saved in RAM and most other components are turned off.
  Although the computer uses very little power when in Sleep mode, eventually the battery's power does run out. If you do not plan to use the computer for an extended period of time, turn the computer off or put it in Hibernation mode instead of Sleep mode.
• Hibernation mode – Active data is saved on the SSD and power usage is reduced to the same level as when the computer is turned off. In Hibernation mode, there is no danger of losing data if battery power is lost.

Notes:

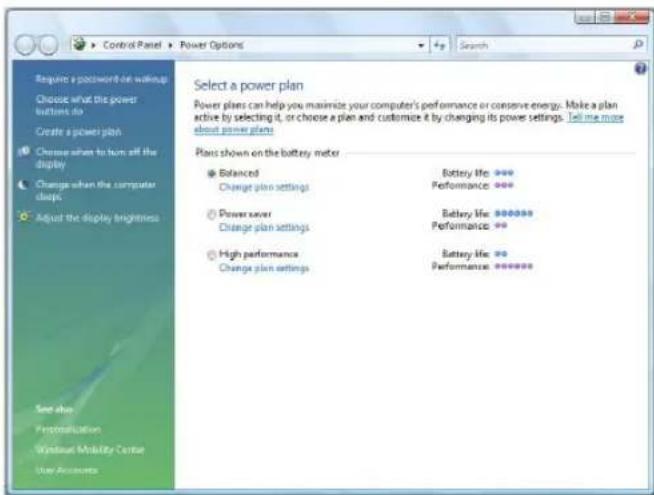

If you have set your computer to turn power off (in the Power Options utility in Windows Control Panel), you cannot suspend operation. To change power settings, see "Selecting Power (On/Off) / Backlight (On/Off) / Sleep/ Resume button options" on page 58.

In the default configuration, the P3 key puts the computer in Sleep mode and the Power button shuts down the computer. To change these settings, see “Programming hot keys to perform predefined functions” on page 68.

Suspending and resuming operation

If your computer is connected to a network, the network may automatically log you off after a period of inactivity while system operation is suspended. Contact your help desk or system administrator to learn your log-off time limit.

Suspending operation

In order to suspend operation, the Sleep option must be enabled in Windows Power Options. See "Selecting Power (On/Off) / Backlight (On/Off) / Sleep/Resume button options" on page 58.

Use one of the following methods to suspend operation:

Method 1

Press the P3 key.

Method 2

1. Press the Windows Start button; then press the right arrow next to the Shutdown button.
2. Press Sleep.

Suspending and resuming operation

When operation is suspended, the Status LED displays a breathing green light.

Resuming operation

To resume operation when the computer is in Sleep mode, press the Power On/Off, Backlight On/Off, Suspend/Resume button.

Note: Press the button only once.

Approximately 20 seconds later, the computer resumes normal operation. When the Status LED displays a continuous green light, you can begin using the computer.

Using the pen

You can use any of the following methods to select items and to navigate through programs.

■ Auto-Sense mode: Use either the multifunction pen or your finger interchangeably. The computer distinguishes between the two input modes and automatically adjusts accordingly. This is the tablet's default state.
- Digitizer mode: Use only the special multifunction pen provided with the computer.

For more information, see “Programming hot keys to perform predefined functions” on page 68.

WARNING

Do not use items such as a ball point pen or a screwdriver that can damage the tablet. Damage caused by using an item not provided with the tablet is not covered by the tablet warranty.

Note: During the first use of the tablet, or if the action you are trying to perform does not occur when you use the pen or your finger to touch the screen, calibrate the digitizer as described in "Calibrating the digitizer" on page 77.

Using the digitizer to perform mouse functions

To perform this function... Do this

Select an object(left button click).	Tap the pen tip once on the object.
Perform a double-click. Quickly tap the pen tip twice on the object.
Perform a right-click. Hold the pen or your finger directly on the object for 1 second.
Move or drag an object. Place the pen tip or your finger on the object; then continue to hold the pen tip or your finger against the screen as you move the pen or your finger.

Changing the pen double-click speed

The pen double-click speed is in sync with the mouse double-click speed. To change the speed, follow the instructions below.

1. Click the Windows Start button.
2. Click the Control Panel option.
3. In the Control Panel window, select Hardware and Sound > Set up your Pen and Tablet.
4. Drag the slider to a faster or slower speed.

Using the pen

Positioning the pen and pen tether

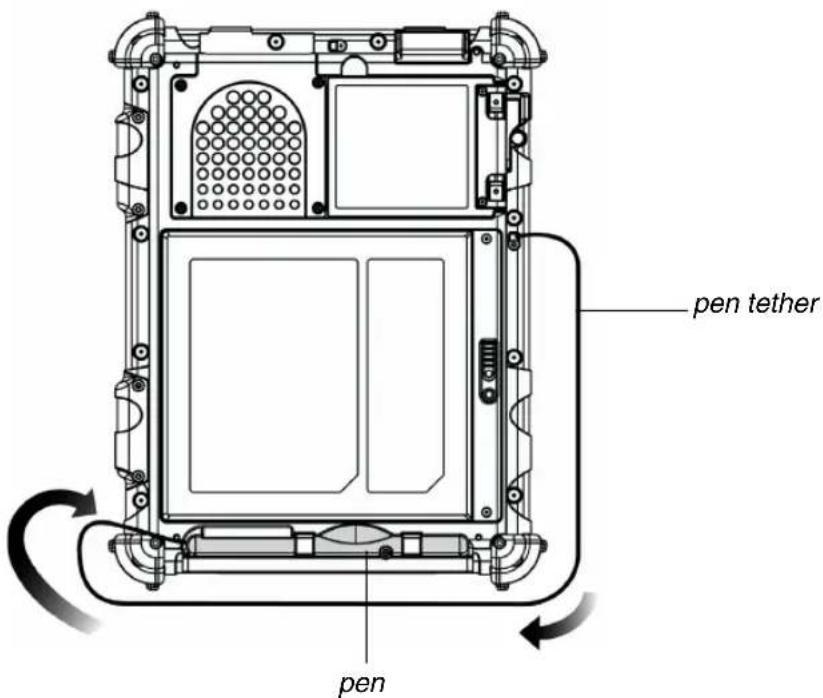

The pen tether helps prevent the loss of your pen. The following illustrations show how to position the pen and pen tether.

Tether anchored at the bottom

Using the pen

Tether anchored on the side

Using the fingerprint scanner

Using the fingerprint scanner

The fingerprint scanner enables you to use fingerprint verification to protect the security of your data.

The first step for using fingerprint verification is to enroll your fingerprint to create an association between your username, password, and fingerprint.

After fingerprint enrollment you will be able to:

■Use your fingerprint as part of computer login security.
■Register Web pages and Windows applications to use your fingerprint instead of passwords.
■Launch applications by swiping your finger the sensor.
■ Store confidential information in an encrypted form in a protected folder.

To launch the Fingerprint application:

Tap the icon located on the Windows Desktop.

or

Follow the instructions that appear the first time you turn on the computer.

Changing the screen orientation

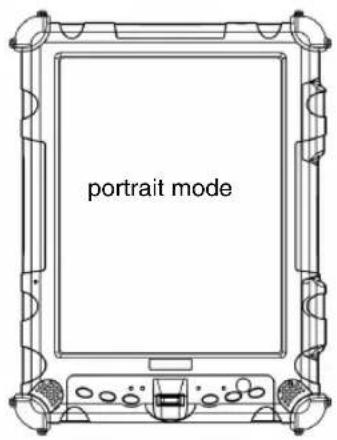

To rotate the screen orientation from portrait (vertical) to landscape (horizontal) mode or from landscape to portrait mode:

If your tablet is using Windows 7

Press the Windows Start button.

If your tablet is using Windows 8.1

Rotate the tablet.

Adjusting the screen brightness

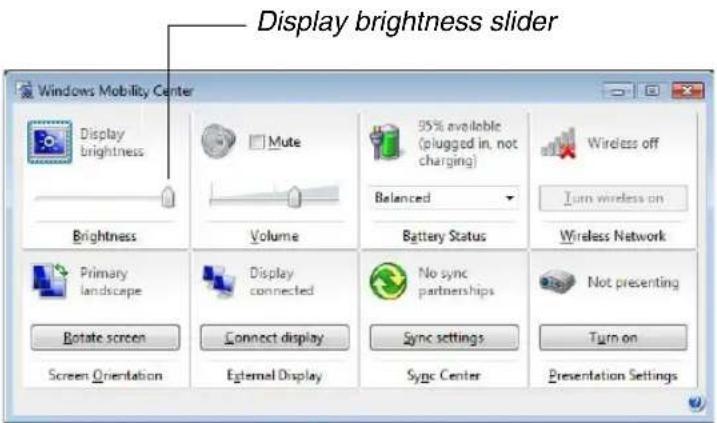

Use either of the following methods to adjust the screen brightness:

Method 1

1. Click Start.
2. Open the Control Panel.
3. In the Hardware and Sound area, select Adjust commonly used mobility settings. Use the Brightness slider to adjust the brightness.

Method 2

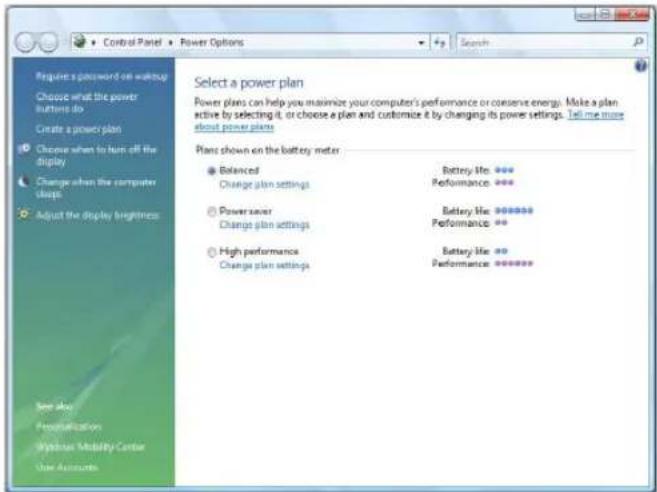

1. In the Windows taskbar, click the power management icon; then select Adjust screen brightness.
2. Move the slider bar (located at the bottom of the window) to change the screen brightness.

Enabling automatic backlight control

When the Auto Light sensor is enabled, the computer automatically controls the amount of backlight sent to the screen to provide optimum brightness for the lighting conditions in which you are working.

To enable automatic backlight control, see page 82.

Optimizing screen settings for outdoor use

1. Click Start > Control Panel > Appearance and Personalization > Personalization > Change desktop background.
2. In the My Themes area, select High Contrast White.
3. Click the Back button.
4. Click Display.
5. Click Medium - 125% to enlarge the icon size; then click Apply.
6. Click Adjust Resolution. Make sure the screen resolution setting is 1024 by 768 pixels; then click OK.

Chapter 2. Using the Tablet

Docking the tablet

Docking the tablet

If you have the optional xStand office dock or xDock vehicle dock, connect it to the tablet at the docking port. (See the iX104 Docking Stations Handbook.)

Connecting devices

Refer to the following subsections for information about connecting external devices to your computer.

Note: If the device you want to use does not appear to be working with your computer, the device may need to be enabled in the computer's configuration program. Contact your local help desk or Xplore reseller.

Connecting to a local area network

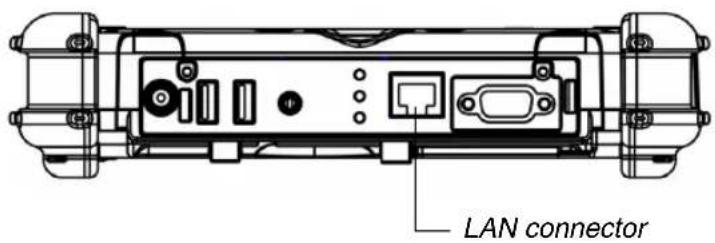

Connect a local area network (LAN) cable's RJ-45 connector to the internal LAN interface card. (See your network system administrator for more information.)

Connecting USB-compatible devices

Connect any USB-compatible devices to the computer's USB ports.

Connecting devices

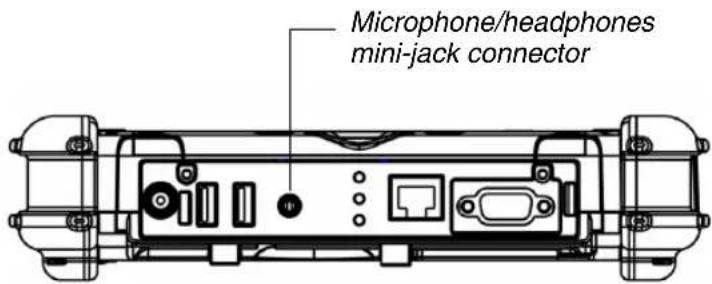

Connecting an external microphone, headphone, or speakers

Note: The connector is compatible with smartphones.

Adjusting microphone volume

If necessary, adjust the volume of the microphone as follows:

1. Press the Windows Start key; then open the Control Panel.
2. Select Hardware and Sound; then select Sound.
3. Select the Recording tab.
4. Select Microphone; then select Properties.
5. Select the Levels tab.
6. Adjust the microphone volume or boost.
7. Click OK.

Adjusting headphone or speaker volume

1. Click the audio icon in the Status area of the Windows taskbar.

The volume control area opens.

1. If the Mute button indicates that sound is muted, click the button to turn on the sound.
2. Move the slider bar up or down to increase or decrease the volume.

Connecting a monitor or projection panel (optional)

Activating the monitor or projection panel

If your tablet includes the optional monitor/projection panel connector, you can change the video output as follows:

To change the video output to the monitor or projection panel:

Press the Fn-P1 key combination.

To change the video output back to the computer:

Press the Fn-P1 key combination again.

Connecting devices

Connecting a device to the serial port (standard)

If your tablet includes the standard serial port, you can connect a terminal or other device that uses the RS-232, RS-422, or RS-485 data transfer standard.

Connecting an XPL expansion module

Tablet with optional GPS II

Using the battery

You can recharge, remove, and replace the battery pack.

Charging the battery pack

If you do not have an external battery charger

Follow these steps to charge the battery while it is installed in the computer:

1. Connect a power source, such as an AC adapter or cigarette lighter adapter, to the power connector on the computer.

If the battery charge is below 95%, the battery begins charging and the Status LED flashes green. (If the battery charge is higher than 95%, the battery will not charge, preventing battery overcharge.)

1. Check the level of charge. (See "Checking battery power status" on page 55.)

The charging process continues until the battery charge reaches 100%.

Using the battery

Table 5 shows the approximate time required to charge the battery level to 100%.
Table 5 Approximate battery charge time

Battery pack capacity Charge time Battery pack P/N

55 watt hours (7600 mAh) 1.5 hours 11-01018

68.5 watt hours (9250 mAh) 2.5 hours 11-01019

80.75 watt hours (10625 mAh) 2.5 hours 11-01022

If you have an external battery charger

1. Remove the battery pack (see page 52).
2. Use the external battery charger to charge the battery.
3. Install the battery (see page 54).

Removing and installing the battery

You can remove the battery and use an (optional) external charger to charge it.

Removing the battery

1. To swap with a charged battery:

Use one of the methods described in “Suspending operation” on page 35 to suspend operation.

If a charged battery is not available:

Save your work and close all running programs; then shut down the computer or put the computer in Hibernation mode (see “Suspending operation” on page 35).

Using the battery

Note: To avoid losing unsaved data, wait until the computer has completed switching to Hibernation mode before removing the battery.

1. Use the stylus or a pen to depress the battery lock button.

The battery release latch returns to its original position.

1. Pull the battery away from the computer and remove it.

Note: After removing the battery, you must replace the battery or connect the computer to an external power supply within 3 to 5 minutes or the computer completely loses power.

Using the battery

Installing the battery

1. Orient the battery with the slides in the empty battery tray.

1. Slide the battery into the tray and press it firmly until it is seated.

2. Slide the battery release latch to its original position.

The lock button pops back into the locked position, securing the battery in place.

Discarding batteries

Dispose of batteries in accordance with your local government regulations. Under federal, state, or local law, it may be illegal to put batteries in the trash. Contact your system administrator, municipal waste disposal department/provider for information.

Using power options

Displaying power options

On the Windows taskbar, click the battery icon; then select More power options. The Power Options window opens.

Checking battery power status

On the Windows taskbar, click the battery icon.

The following window opens, displaying the percentage of power remaining in the battery:

Using power options

Selecting a power plan

1. On the Windows taskbar, click the battery icon. The following window opens:

1. Select one of the following power plans: (select More power options in necessary)

Balanced – Balance between computer performance and battery life.

Power Saver – Longer battery life and lower performance.

High performance – Higher performance and shorter battery life.

Selecting power options

1. On the Windows taskbar, right-click the battery icon.

2. Select Power Options.

The following window opens.

1. Under the selected power plan, press Change plan settings.

2. Select the power options you want to use.

Using power options

Selecting Power (On/Off) / Backlight (On/Off) / Sleep/Resume button options

To change what happens when you press the button:

1. On the Windows taskbar, right-click the battery icon.

2. Select Power Options.

The following window opens.

1. Press Choose what the power buttons do.

2. Select the options you want to use.

Tips for conserving battery power

The following tips help you extend the life of your battery by conserving battery power:

■ Use an external power source such as the AC or auto adapter whenever available.
■Suspend operation if you know that you will not be using the system for a while. (See page 35.)
■If you do not plan to use the computer for an extended period of time, turn it off.
■ Adjust power options to automatically conserve power. (See page 57.)
- Adjust the display brightness to no brighter than necessary for comfortable viewing. The display can consume a large portion of the computer's power. (See page 44.)
■ Set the LCD Brightness range to “Power Saving” in the BIOS Setup Utility. (See page 81.)

Accessing the Solid State Drive (SSD) cartridge

Accessing the Solid State Drive (SSD) cartridge

When you install a new storage drive, follow the instructions in this section to access the hard drive carrier.

WARNING Failure to follow this procedure can result in damage to the case and the cover, which is not covered under the Xplore Technologies warranty. Xplore recommends that you use an approved Xplore Technologies service center for this procedure.

1. Turn off the computer.

2. Remove all power from the unit, including batteries and other power sources such as power supplies, cigarette lighter adapters, and mobile power sources.

3. Pinch the two center pins with one hand while pushing down on the lever with the other. The drive carrier will pop up (like the battery) and permit removal.

Note: Your drive carrier may have two screws installed. If so, remove them before you exchange the drive carrier.

Re-installing the drive carrier

1. Insert the drive with smooth edge into the bay at a slight angle.
2. Press down until the carrier clicks into place, while pinching the two center pins.

1. If your unit had the screws in place, re-attach them.

Note: Do not use power tools.

Accessing the MicroSD and SIM compartment

Accessing the MicroSD and SIM compartment

Note: This compartment can handle most MicroSD and SIM cards.

When you install a MicroSD or SIM card, follow the instructions in this section to access the compartment.

WARNING Failure to follow this procedure can result in damage to the case and the cover, which is not covered under the Xplore Technologies warranty. Xplore recommends that you use an approved Xplore Technologies service center for this procedure.

1. Turn off the computer.
2. Remove all power from the unit, including batteries and other power sources such as power supplies, cigarette lighter adapters, and mobile power sources.
3. Remove the battery. (See "Removing and installing the battery" on page 52.)
4. Lift up on the D-ring and turn it clockwise 1/4 of a rotation. Once the lock is disengaged lift the door to open the compartment.

Opening the compartment Installing a MicroSD card

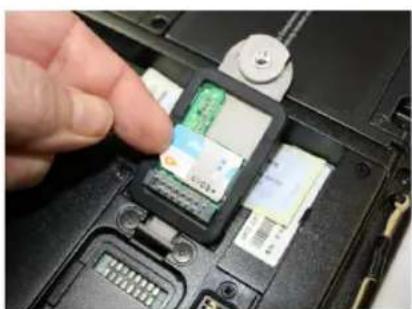

Installing a SIM card

Programming hot keys

Xplore pre-programs the P1, P2, and P3 hot keys and Function mode hot key combinations to perform certain functions by default (see “Application, Windows, and hot keys” on page 28). However, you can program them to perform different functions, as described in this section

Programming hot keys to start applications, open documents, or go to a website

1. In the Status area of the Windows taskbar, click the XC6 Configuration icon.

The Launch Button QuickShow dialog box opens.

1. Click the Configure button.

Programming hot keys

The Panel Control Center window opens.

1. Click the Change button next to the key or key combination you want to program.

The following options appear:

1. Click Launch an Application, Document or Web site. The following options appear:

Programming hot keys

5. To start an application:

a. Click Launch an Application.

b. Press Browse to find the application you want the hot key or Function mode hot key combination to start (for example: word.exe, notepad.exe, excel.exe).

c. Click Change.

6. To open a document:

a. In the Click Open a Document.

b. Press Browse to find the document you want the hot key or Function mode hot key combination to open. (For example: spreadsheet.xls, airports.doc, wiringdiagram.jpg)

c. Click Change.

7. To open a multimedia file:

a. Click Open a Multimedia file.

b. Press Browse to find the name of the multimedia file you want the hot key or Function mode hot key combination to open. (For example: 911training.dir, demo.ppt)

c. Click Change.

8. To open a Web page:

a. Click Open a Web page.

b. Press Browse to find the URL of the Web page you want the hot key or Function mode hot key combination to open. (For example: http://www.xploretech.com)

c. Click Change.

1. Program more hot keys, or click Close to close the Panel Control Center window.

Programming hot keys

Programming hot keys to perform predefined functions

1. In the Status area of the Windows taskbar, click the XC6 Configuration icon.

The Launch Button QuickShow dialog box opens.

1. Click the Configure button.

The Panel Control Center window opens.

1. Next to the key or key combination you want to program, click the Change button.

The following options appear:

1. Click Start a predefined function.

2. In the Function selection drop-down list, select an option.

1. Program more hot keys, or click Close to close the Panel Control Center window.

Programming hot keys

Programming hot keys to perform other key functions

1. In the Status area of the Windows taskbar, click the XC6 Configuration icon.

The Launch Button QuickShow dialog box opens.

1. Click the Configure button.

The Panel Control Center window opens.

1. Next to the key or key combination you want to program, click the Change button.

The following options appear:

4. Click Press a key or key combination.

The following options appear:

Programming hot keys

1. If you want the hot key or hot key combination to perform the function of a single key:

a. If the Ctrl, Alt, or Shift boxes are checked, uncheck them.
b. Click the key you want the hot key or hot key combination to perform. (For example: F6, G, or Caps Lock)

If you want the hot key or hot key combination to perform the function of a key combination:

a. Check the Ctrl, Alt, or Shift box.
b. From the drop-down list, select the additional key, or click the key on the keyboard.

Examples

To cause the hot key to perform the print screen function (Alt-Print Scrn): Check the Alt check box; then select PrtScr from the drop-down list.

To cause the hot key to perform the paste function (Ctrl-V): Check the Ctrl check box; then click the V key.

1. Program more hot keys, or click Close to close the Panel Control Center window.

3 Maintaining the Tablet

This chapter provides instructions for maintaining your tablet.

Caring for the tablet

This section provides information about how to keep your tablet in top working condition.

Checking power cords and connectors

Check AC and DC power cords and power connectors periodically for damage. Replace the power cord immediately if you find any damage.

Protecting the computer from damage

• Your computer is designed to sustain a multiple-axis drop to a non-yielding surface. Do not intentionally drop the computer, because the cumulative effects of multiple drops may damage the computer.
  ■Do not place heavy objects on the computer.
  ■Do not disassemble the computer.
• Keep the computer at least 5 inches (13 centimeters) away from any electrical appliance that generates a strong magnetic field, such as a motor, magnet, TV, refrigerator, or large audio speakers.

Caring for the tablet

Preventing the computer from overheating

The computer monitors its internal temperature. As the internal temperature approaches the tolerable limits of heat-sensitive components, system functions are automatically limited or turned off to prevent damage.

To prevent the computer from overheating, do not obstruct the computer's air vents.

Storing the computer

You can store the computer in the Off state for about 30 days with a fully charged battery installed. After this period, recharge the battery or replace it with a charged battery.

If you intend to store the computer for more than 30 days, remove the battery pack and keep it in a cool place.

Caring for the display screen

To clean the display screen, dampen a soft cotton cloth with water and gently wipe the screen surface.

Note: Do not use isopropyl alcohol to clean the screen. Alcohol may damage the surface of the screen.

Protecting the display screen

The screen protector is a durable, replaceable writing surface that protects the display screen from abrasion.

To obtain additional screen protectors, check with your reseller, or go to the Xplore Web site at www.xploretech.com for ordering information. Additional information about installation is included with the screen protectors.

When to replace the pen

Removing the screen protector

Slide your fingernail under the edge of the screen protector and pull the protector away from the screen.

Installing a new screen protector

Follow the instructions included with your screen protector replacement kit.

Note: If a screen protector is already installed on the display screen, remove it before installing the new screen protector.

When to replace the pen

With use, the pen tip may become worn and can scratch the screen. If your pen exhibits one of the following problems, replace the pen:

■The pen does not move freely across the screen.
■The pen does not perform as expected.

Calibrating the digitizer

Calibrating the digitizer adjusts the cursor position on the screen relative to the position of the pen tip or finger. Calibrate the digitizer to adjust the distance error between where the pen or finger is actually touching the screen and where the computer is registering the pen or finger touch.

You may need to calibrate the digitizer in the following situations:

■You are using the computer for the first time.
■The previous user of the computer writes with the opposite hand or at a different pen angle.
■The computer has not been used for some time.
■The computer has been serviced.

1. From the Start menu, select Control Panel.

The Control Panel opens.

Calibrating the digitizer

2. Select Hardware and Sound.

3. In the Tablet PC Settings area, select Calibrate the screen for pen or touch input; then follow the instructions that appear on the screen..

Table 6 contains solutions to some problems. If you cannot solve the problem by taking the actions described, contact your local help desk or your reseller for further assistance.
Table 6 Troubleshooting

Problem Possible cause and solution
Computer will not start.	The battery may be defective or discharged to a critically low level. Connect an external power supply (such as the AC adapter) or install a charged battery. See “Using the battery” on page 51.Internal components may be above or below the acceptable operating range (below -20°C or above 60°C). After the temperature returns to safe operating range the computer will start.
The computer will not resume operation after being suspended.	The battery may be defective or discharged to a critically low level. When the battery reaches a critically low level, the computer is forced into Sleep mode to avoid a total system power failure. Connect an external power supply (such as the AC adapter) or install a charged battery. See “Using the battery” on page 51.The computer may be at the critical thermal limit. To avoid damage to heat-sensitive components, the computer enters Sleep mode when the computer operates above 60°C. Operation automatically resumes when the computer cools to below 60°C. Move the computer to a cooler location.
The Status LED is red, continuous. • The computer is on, running under battery power, and the charge level in the battery has reached a critical level. Plug the computer into an AC/DC power source or install a charged battery.The system has encountered a fault and is preventing normal operation. Contact your local help desk.
The Status LED is red, blinking. The computer is powered on, running under battery power, and the charge level in the battery is at a minimum warning level. Plug the computer into an AC/DC power source or install a charged battery.
Display screen is blank or difficult to read.	Confirm that the computer is on (the Power icon is displayed continuously in the Status area).The brightness may be set too low, causing the screen to appear too dark. To change system brightness, press the Fn and Start keys to open the Xplore menu and adjust the brightness. (See page 28.)An external monitor may be selected. Press the Fn and P1 keys to select the computer display screen. (See page 28.)The video time-out may have expired. Tap the display screen to reactivate the display.Note: This is a normal, power-saving feature.If the Status light is blinking red, the computer is in Sleep mode because the temperature is below -20°C or above 60°C. When the temperature returns to a safe operating range, the display screen automatically comes back on. If possible, move the computer to a warmer or cooler location.If the Status light is continually yellow, the computer is in Sleep or Hibernate mode. Press the Power On/Off key to resume.
Cursor is not tracking the pen. Calibrate the pen. See “Calibrating the digitizer” on page 77.
Computer is not responding to the pen.	Connect an external USB keyboard to the computer. If the computer does not respond to the external keyboard, the application or operating system may have been corrupted. Press the Reset key. (See page 33.) If the system responds to a keyboard but not to the pen, contact your local help desk or reseller for further assistance.
Headphone or speaker volume is too low.	The volume may be in Mute mode or set too low. Follow the instructions in “Adjusting headphone or speaker volume” on page 48.Make sure the volume control in your audio software is set to an audible level.
An external device is not working with the computer.	The device may need to be enabled in the computer's configuration program (BIOS Setup). Contact your local help desk or reseller.

B

Using BIOS and AOS Functions

Note: Each button has its own blue-light LED. No matter which button you press, every blue-light LED is on for about 3 seconds, then off. When in Shifted mode, all blue-light LEDs flicker.

This appendix explains how to use the application and navigation buttons with the Basic Input-Output System (BIOS) program and the Advanced Operating System (AOS) Options menu.

Note: These functions are typically for use only by your system administrator or by authorized service technicians.

Table 7 Using BIOS and AOS functions

			In Shifted Mode
Button BIOS Key Function BIOS Key Function
	F1 continues message. Up Arrow Navigate up through computer is booting, press the P2 button and follow the instructions that appear on the screen.		Multi Boot options and BIOS menus.
			Down Arrow Navigate down through Multi Boot options and BIOS menus.
	F8 Prompt Windows to select Safe mode.		Right Arrow Navigate to the right.
	F11 (Lock Fn)	• Press for less than one second for F11 function.• Press longer to enable Shifted mode.	Release Function	Press once to exit Shifted mode.
	Start	Display Windows Start menu.	None	None
	Ctrl+Alt+Del	Reboot.	Enter	Enter.

Disabling the Auto Power feature

Note: When the tablet is in the docking station, it will shut down or go into Hibernation or Sleep mode the same as it does when not in the docking station.

When Auto Power is enabled, the tablet automatically turns on if you dock it and the following conditions exist:

■The tablet is off or in Hibernation or Sleep mode.
- The dock or the tablet is connected to an external power source (including power applied when a vehicle’s ignition is started).

If you dock the tablet and the tablet is off and no power is present, the tablet turns on as soon as power is applied.

To disable the Auto Power feature:

1. When the computer is booting, press the P2 button to access the BIOS Setup Utility.
2. Select the Advanced tab.
3. Disable the Dock with Auto Power On option.

Enabling automatic LCD backlight control

When the LCD backlight control is in manual mode, the ambient light sensor is disabled and the computer does not automatically control the screen brightness.

Follow these steps to enable automatic LCD backlight control:

1. When the computer is booting, press the P2 button to start the BIOS Setup Utility.
2. Select the Main tab.
3. In the LCD Backlight Control drop-down list, select Automatic.
4. Click OK.

Adapter. A device that provides an interface between two dissimilar electronic devices. For example, the AC adapter modifies the power from a wall outlet for use by the computer.

Advanced Power Management (APM). A facility consisting of one or more layers of software that support power management. The APM software interface enables applications, operating systems, device drivers, and the APM BIOS to work together to reduce power consumption.

Alternating Current (AC). Electric current that reverses its direction of flow at regular intervals.

Analog signal. A signal with characteristics such as amplitude and frequency that vary in proportion to (are an analog of) the value to be transmitted. Voice communications are analog signals.

Application. A program that performs specific tasks on your computer, such as word processing or creating spreadsheets.

BIOS. Programs that contain such basic hardware operations as an interaction with diskette drives, hard disk drives, and the memory.

Board. A circuit board. An internal card containing electronic components called chips, which perform a specific function or increase the capabilities of the system.

Boot. To load a program or operating system into system memory.

Bits Per Second (BPS). In serial transmission, the instantaneous bit speed with which a device or channel transmits a character.

Card. Synonym for board; see board.

Compact Disk-Read Only Memory (CD-ROM). Stores data on metal-plated plastic discs.

Compatibility. 1. The ability of one computer to accept and process data in the same method as another computer without modifying the data or the media upon which it is being transferred. 2. The ability of one device to connect or communicate with another system or component.

Configuration. The specific combination of hardware components of the computer, and their operating status. The configuration of your computer includes predefined memory, type and speed of microprocessor, type of and size of hard disk drive, etc.

Default. The preset parameter value automatically selected by the computer when you or a program do not provide instructions.

Device driver. A program that controls communication between a specific peripheral device (such as a printer or the pen/stylus) and the computer.

Disk drive. The physical device that enables the computer to read from, and write to, a disk.

Display. An image-producing device used to view computer output.

Double-click. To press and release the pen/stylus twice within a time frame you define, without moving the pointer off the choice.

Hardware. The physical electronic and mechanical components of a computer system. typically, the computer itself, CPU, memory, etc.

Hertz. A unit of wave frequency that equals one cycle per second.

Interface. 1. Hardware and/or software components used specifically to connect one computer or device to another. 2. To physically connect one system or device to another to exchange information. 3. The point of contact between user, the computer, and the program (for example, the pen/stylus or a menu).

JBOD. Two drives that appear in Window as two drives, Drive C and Drive D.

Kilobyte (KB). A unit of 1024 bytes measuring storage space, typically in memory or on storage media such as a diskette or hard disk drive.

Local area network (LAN). Assembly of separate computers into an integrated network that connects the various computers together and to common devices such as printers and fax machines.

Light Emitting Diode (LED). A semiconductor device that emits light when a current is applied.

Liquid Crystal Display (LCD). liquid crystal sealed between two sheets of glass coated with transparent conducting material. Applying a voltage between the glass sheets darkens the liquid crystal to provide contrast to lighted portions of the display.

Megabyte (MB). A unit of data storage equal to 1024 kilobytes.

Megahertz (MHz). a unit of wave frequency that equals 1 million cycles per second.

Modem. A device that connects your computer to a telephone line, allowing it to communicate with another computer at another location.

Pen. See stylus.

Peripheral device. An input/output device that is external to the central processor and/or main memory such as a printer or scanner.

Pixel. Picture elements (tiny dots) that compose a screen image.

Port. The electrical connection through which the computer sends and receives data to and from devices or other computers.

Program. A set of instructions a computer can execute to tell the system what to do and how to do it.

RAID 0. Two drives appear in Windows as one larger drive (two 80GB drives appear as one 160GB drive).

RAID 1. One drive has information mirrored to a duplicate drive. For example, information from one 80GB drive is mirrored to another 80GB drive. The two drives appear in Windows as a single drive.

Random Access Memory (RAM). A hardware component of your computer that temporarily stores active program code and data.

Reset. The act of hard stopping/shutting down the operating system.

Resolution. The number of pixels displayed on the screen. A higher resolution provides greater clarity and allows more information to be displayed on the screen at once.

Restart. Resetting a computer without turning it off (also called warm boot or soft reset).

Resume. The act of returning the computer to an active, operational state.

Read Only Memory (ROM). The portion of your computer's memory that contains permanent instructions, and which cannot be modified.

Sleep mode. A power conservation mode in which electrical current is removed from most components of the computer.

Solid State Drive (SSD). A sealed mass storage device used for storage and fast retrieval of programs and data. The SSD is contained in a drive cartridge for easy removal.

Status Indicator (LED). a light above the LCD screen which indicates the current status of a particular device or hardware component.

Stylus. A writing instrument. For pen computers, the stylus is used to interface with the LCD and digitizer.

Subscriber Identity Module (SIM). A smart card inside a GSM (Global System for Mobile communications) cellular device that encrypts voice and data transmissions and stores data about the specific user so that the user can be identified and authenticated by the network supplying the phone service. A SIM can be moved from one device to another and/or different SIMS can be inserted into any GSM radio.

Universal Serial Bus (USB). A serial interface that enables communication between devices and the computer.

Physical

Dimensions 11.20" x 8.25" x 1.6" (WxHxD)283.9mm x 209.3mm x 40.8mm
Weight 5.40 lbs. (2.45 kgs)*

Processing

CPU / chipset * Intel	® Core® i7-4650IU Intel	Core i5-4300U Intel	Celeron® 2980U
Cores / threads 2 / 4 2 / 4 2 / 2
Clock / turbo speed 1.7 / 3.3 GHz	1.9 / 2.9 GHz 1.6 GHz
L2 cache 4 MB 3 MB 2 MB
Graphics	Intel HD Graphics 5000	Intel HD Graphics 4400	Intel HD Graphics
Graphics frequency	200 MHz - 1.1 GHz	200 MHz - 1.1 GHz	200 MHz - 1.0 GHz
Number of displays supported	3	3	3
Intel vPro technology	Yes	Yes	No
Intel Hyper-Threading technology	Yes	Yes	No
Trusted Execution technology	Yes	Yes	Yes

* Varies according to your computer's configuration.

Memory/storage

Main RAM • 4 GB, 8 GB,	or 16 GB DDR III RAM (4GB standard)• 144-pin SODIMM modules
BIOS ROM 16 Mb
Storage	60 GB SSD, 120 GB SSD or 240 GB SSD, single or dual; RAID 0/1 and AHCI support

* Varies according to your computer's configuration.

Display

Display • 10.4” TFT XGA

(1024x768), 16M colors, 32-bit True-color LCDActive digitizer / penAdvanced matrix resistive touch panel with ten-finger multi-touchDual mode operation of digitizer and touch panelBrightness: 100 levels1300 nits max before touch (sunlight-readable)340 nits max before touch (indoor-readable)Viewing angle:- Horizontal: 80 degrees(typical, contrast ratio > 10)- Vertical: 80 degrees(typical, contrast ratio > 10)Contrast Ratio: Typ. 600:1, Min 400:1

User Interface

Wireless Radio Bays	One M.2 PCI Express slot for WWAN (4G / LTE)One half mini-PCI Express slot for WiFi
Integrated Interfaces • DC-in	USB 3.0 (2)Microphone / headset combination jackLAN (RJ-45)9-pin serial port (standard)or15-pin D-SUB VGA connector (optional)orHDMI connector (optional)
KeyPad / User Controls • Application buttons with primary and secondary functionsPower On/Off/Suspend/Resume buttonEmergency Shutoff/Reset button
Audio • Realtec ALC283	On-board microphone with noise cancellationOn-board integrated stereo speakers (1W each)
Status Indicators Power, Charge, DC-in, Warning, Camera Active

Power

Main Battery • 10 cell, Xplore	part number 11-01022Removable Lithium Ion7.4V @ 10.625 Ah (80.75 Whr)Warm-swappableRecharge time: 2.5 hours (100%)Life: Up to 8 hours. (Battery life is dependent on operating system, power management, and applications in use.)Suspend life: Min. 67 daysOff state: Approximately 90 days
Bridge Battery • 6-cell Li Ion,	45mAhLife: (with Suspend-to-RAM on bridge battery only): 3 to 5 minutes from full charge
AC Adapter • Xplore part number	11-50048FSP part number FSP065-REBPower adapter, 100-240V AC input (auto-sensing), 19V DC @ 3.42A output, ROHS, Energy Star, CE, UL, TUV

Environmental

Temperature • Operating:	-7° to 140° F (-20° to 60° C) (XC6 minimum is -49° F,-45° C)• Storage:-40° to 167° F (-40° to 75° C)
Humidity 0% to 95% non-condensing
Shock/Drop Four-foot drop to	concrete, all surfaces, edges and corners
Vibration 0.04g^2/Hz, 20 Hz -	1000 Hz-6dB/octave 1000 Hz - 2000 Hz
Enclosure Class Blowing rain:	4"/hr, 40 mph wind andMIL-STD-810G Method 506.5 Procedure 1Ingress protection:IEC (60529) ingress tested to an IP67 standardSand and dust:Particle size < 149 μm, 10 ± 7 g/m3 particle density 1.5 m/s to 8.9 m/s wind speedMIL-STD-810G Method 506.5 Procedure 1Salt Fog:5% saline for 48 hr (12 hr wet, 12 hr dry, 2 cycles)MIL-STD-810G Method 506.5Contamination by fluids:Detergents, brake fluid, aromatic hydrocarbonsMIL-STD-810G Method 506.5Solar radiation:1120 W/m2 (355 Btu/ft2/hr) UVB @ 50°C, 7x24 hr cyclesMIL-STD-810G Method 506.5

Agency approvals

EMC • CFR 47, FCC part 15B, IC ICES-003• European Union Directive 2004/108/EC RTT&E

Safety • TUV Bauart, RoHS, 2002/95/EC, WEEE• IEC600950-1 2nd Ed., EN60950-1 2nd Ed., UL60950-1 2nd Ed.• ETL Listed: ANSIISA-12.12.01-2007, C22.2 No. 213• UL1604

Operating system

Operating Systems • Microsoft Windows 7 Professional, 32-bit, English• Microsoft Windows 7 Professional, 64-bit, English• Microsoft Windows 8 Professional, 64-bit, English

FCC notices

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Modifications not expressly approved by Xplore Technologies could void this user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

IC regulations

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology.

The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems; the maximum antenna gain permitted (for devices in the bands 5250-5350 MHz and 5470-5725 MHz) to comply with the e.i.r.p. limit; and The maximum antenna gain permitted (for devices in the band 5725-5850 MHz) to comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate, as stated in section A9.2(3). In addition, High-power radars are allocated as primary users (meaning they have priority) of the band 5250-5350 MHz and this radar could cause interference and/or damage to LE-LAN devices.

The County Code Selection feature is disabled for products marketed in the US/Canada. For product available in the USA/ Canada markets, only channel 1\~11 can be operated. Selection of other channels is not possible.

IC radiation exposure statement

This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528.

RF exposure

Tests for SAR are conducted using standard operating positions specified by the FCC with the tablet PC transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the tablet PC while operating can be well below the maximum value. This is because the tablet PC is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

Before a tablet PC model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., on the body) as required by the FCC for each model. (Body-worn measurements may differ among tablet PC models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various tablet PCs and at various positions, they all meet the government requirement for safe exposure.

This device was evaluated and shown to comply with FCC SAR guidelines. Avoid covering or holding antennas when transmitting. Antenna locations are shown in the following figure.

Health and Safety Information

Exposure to Radio Frequency (RF) Signals

Your wireless tablet PC is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government as well as the RTT&E directive. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards previously set by both U.S. and international standards bodies:

■ American National Standards Institute (ANSI) IEEE. C95.1-1992
■ National Council on Radiation Protection and Measurement (NCRP). Report 86. 1986
■ International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996
■ Ministry of Health (Canada), Safety Code 6. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

■European Union RTT&E Directive for SAR

The exposure standard for wireless mobile tablet PCs employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. The SAR limit set by the RTT&E is 2.0W/kg.

Note: In the U.S. and Canada, the SAR limit for mobile tablet PCs used by the public is 1.6 watts/kg (W/kg) averaged over 1 gram of tissue. In Europe the SAR limit for mobile table PCs used by the public is 2.0 watts/kg (W/kg) averaged over 10 grams of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations.

DOC (Industry Canada Notices)

Notice to Users of Radio and Television

This Class B digital apparatus meets all requirements of Canadian Interference-Causing Equipment Regulations per the ICES-003

Notice to Users of the Canadian Telephone Network

Notice: This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.

Before connecting this equipment to a telephone line the user should ensure that it is permissible to connect this equipment to the local telecommunication facilities. The user should be aware that compliance with the certification standards does not prevent service degradation in some situations.

Repairs to telecommunication equipment should be made by a Canadian authorized maintenance facility. Any repairs or alterations not expressly approved by Xplore or any equipment failures may give the telecommunication company cause to request the user to disconnect the equipment from the telephone line.

Notice: The Ringer Equivalence Number (REN) for this terminal equipment is 0.0. The REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed five.

UL Notice

This unit requires an AC adapter to operate. Use only UL Listed Class 2 Adapters with an output rating of 19 VDC, with a current of 3.75 A. AC Adapter output polarity:

For authorized repair technicians only

WARNING

For continued protection against risk of fire, replace only with the same type and rating fuse.

M.E.R.C. √t

Mercury Education & Reduction Campaign

WARNING

Danger of explosion if Lithium (clock) battery is incorrectly replaced. Replace only with the same equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instruction.

System disposal

In the event of system disposal, observe the following information regarding proper procedures in the State of Vermont.

The liquid crystal display (LCD) lamps used in this system contain mercury. In the event of system disposal, be sure to follow local guidelines.

Intel Dual Band Wireless-AC 7260 country-specific-compliance statements

Hereby, Xplore Technologies, declares that the Intel Dual Band Wireless-AC 7260 complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment is marked with the CE symbol and can be used throughout the European community.

Sierra EM7305 country-specific compliance statements

Hereby, Xplore Technologies, declares that the Sierra EM7305 complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment is marked with the CE symbol and can be used throughout the European community.

Intel Dual Band Wireless-AC 7260 - Regulatory USA

USA	Requirements	Criteria
	EMI	FCC Part 15, Subpart B, Class B (CISPR 22 Limits at 10m)
	RF	FCC Part 15, Subpart C (Sections 15.205, 15.207, 15.209, & 15.247)FCC Part 15, Subpart E (Section 15.407)
	Safety	UL 60950-1

Intel Dual Band Wireless-AC 7260 - Regulatory Europe

Europe	Requirements	Criteria
	EMC	EN301489-1, EN 301489-17
	RF	EN300 328 & EN301-893 as DFS slave terminal
	Safety	EN60950-1 via CB Report (IEC60950-1)R&TTE Health Requirement article 1(a) referring to the EU EN50371

XPLORE

TECHNOLOGIES

Declaration of Conformity

Xplore Technologies, Corp. hereby declares under our sole responsibility that the product

√ Name: Wildcat 6
√ Model: iX104C6

To which this declaration relates, is in compliance with all the applicable essential requirements, and other provisions of the European Council Directives listed. The conformity assessment procedure used for this declaration is Annex IV of Directive 1999/5/EC. This product will bear the CE Mark label (CE !)

DIRECTIVES:

• Directive 2004/108/EC (EMC Directive)
• Directive 2006/95/EC (Low Voltage Directive)
• Directive 1999/5/EC (Radio and Telecommunications Terminal Equipment) (R&TTE Directive)
• Directive 2002/96/EC (Waste of Electrical and Electronic Equipment) (WEEE Directive)
• Directive 2002/95/EC (Restriction of Hazardous Substances) (RoHS Directive)
• Directive 2009/125/EC (Energy related Products Directive) (ErP Directive)
- Directive 72/245/EEC including amendments and corrigenda to 2004/104/EC. (The iX104C5 is only compliant to the stated directive when used with the xDIM dock xplore P/Ns: 02-05120 and 02-05120-B)

Product compliance has been demonstrated on the basis of:

STANDARDS:

• EN 55022: 2006/A1:2007 (Class B)
EN 55024:1998/A1:2001/A2:2003
• EN 61000-3-2:2008+A2:2009
EN 61000-3-3:2008
• EN 61000-4-2:2009
• EN 61000-4-3:2006+A2:2010
• EN 61000-4-4:2004+A1:2010
EN 61000-4-5:2007
• EN 61000-4-6:2009
• EN 61000-4-8:2010
• EN 61000-4-11:2005
EN 60950-1:2008+A11
EN 50568:2013
EN 62311:2008

EN 62209-2:2010
• EN 62479:2010
• ETSI EN 301 511 V9.0.2 (2003-03)
• ETSI EN 301 908-1 V6.2.1 (2013-04)
• ETSI EN 300 440-1 V1.6.1 (2010-08)
ETSI EN 300 440-2 V1.4.1 (2010-08)
• ETSI EN 300 328 V1.8.1 (2012-06)
• ETSI EN 301 893 v1.7.1 (2012-06)
• ETSI EN 301 489-1 V1.9.2 (2011-09)
• ETSI EN 301 489-3 V1.4.1 (2002-08)
• ETSI EN 301 489-7 V1.3.1 (2005-11)
• ETSI EN 301 489-24 V1.5.1 (2010-10)
EN 60079-0:2006
• EN 60079-15:2005

David J Ball

Senior Regulatory and Compliance Specialist

The technical construction file is kept available at:

Xpiore Technologies Corp.

14000 Summit Dr, Ste 900

Austin, TX 78728

USA 888-44-XPLORE, FAX: [phone], www.xpioretech.com

5 March 2014

Date

Austin, TX, USA

Place

PN 95-01212

Environmental policy

Xplore Technologies is committed to managing health, safety and environmental (HS&E) matters as an integral part of our business. In particular, it is our policy to assure the HS&E integrity of our processes and facilities at all times and at all places. We will do so by adhering to the following principles:

Compliance

We will comply with applicable laws and regulations and will implement programs and procedures to assure compliance. Compliance with HS&E standards will be a key ingredient in the training, performance reviews, and incentives of all employees.

Risk reduction, prevention, and resource management

We will seek opportunities, beyond compliance requirements, for reducing risk to human health and the environment, and we will establish and meet our own HS&E quality standards where appropriate.

We will employ management systems and procedures specifically designed to prevent activities and/or conditions that pose a threat to human health, safety, or the environment. We will look for ways to minimize risk and protect our employees and the communities in which we operate by employing clean technology, including safe technologies and operating procedures, as well as being prepared for emergencies.

We will strive to minimize releases to the air, land, or water through use of cleaner technologies and the safer use of chemicals. We will minimize the amount and toxicity of waste generated and will ensure the safe treatment and disposal of waste. We will manage scarce resources, such as water, energy, land, and forests in an environmentally sensitive manner.

Take back and recycling program

Communication

We will communicate our commitment to HS&E quality to our employees, vendors, and customers. We will solicit their input in meeting our HS&E goals and in turn will offer assistance to meet their goals.

Continuous improvement

We will measure our progress as best we can. We will review our progress at least on an annual basis. We will continuously seek opportunities to improve our adherence to these principles, and will periodically report progress to our stakeholders.

Take back and recycling program

Send us your unwanted Xplore products and/or batteries or find a recycling center near you. If your old Xplore product and/or batteries have no value or you want to recycle in a socially and environmentally responsible manner, go to http://www.xploretech.com; then select Customer Support and submit a technical support request as follows:

1. Navigate to the Technical Support form and enter information in the form's fields.
2. Under Message, type I want to recycle my product.
3. Click Submit.

An Xplore Technologies specialist will contact you with shipping instructions.

Alternatively, you can leave your unwanted Xplore products at a local recycling center. For batteries, Xplore Technologies has partnered with Call2Recycle® (http://www.call2recycle.org/). Call2Recycle is a program of the Rechargeable Battery Recycling Corporation (RBRC) that promotes environmental sustainability by providing free battery and cell phone recycling in North America. RBRC is a 501(c)4 nonprofit public service organization.

If you prefer to have Xplore Technologies recycle your battery packs, submit a technical support request as described above.

For the return of any Xplore product other than batteries, Xplore Technologies has partnered with R2 Solutions (http://www.r2solutions.org/). R2 Solutions (R2S) is a non-profit organization established to promote R2 practices as a major step towards making responsible electronics recycling business as usual across the United States and abroad. To find a location near you, go to R2 certified recycler locations (http://asoft552.accrisoft.com/certified/electronic-recyclers-with-r2-certified-facilities/).

If you do not have access to the Internet, contact our technical support at [phone] ext. 222.

Environmental and Sustainability Corporate Report

As the manufacturer of the world's most advanced ruggedized tablet PC and peripherals, Xplore Technologies is recognized for the efficient design and manufacturing of it products. In our inaugural Environmental and Sustainability Corporate Report we outline our plans and aspirations to sustain our environment. As you review this report, we welcome your candid feedback. We know that CSER is a journey and your input will help us along the way.

In 2011, Xplore Technologies Corporation of America established the Xplore Technologies Environmental committee to proactively work with stakeholders including customers, nongovernmental organizations (NGOs), and other interested groups on environmental issues. As a result of the committee's work, we have implemented initiatives to improve our performance across the spectrum of corporate environmental responsibility issues. Our progress on implementing these issues is outlined in this report.

Although the Xplore Technologies Environmental committee has only been active since 2012, we have always cared for the environment and this has been a core value since Xplore Technologies was founded more than 15 years ago. We are proud of our accomplishments to date and, we are committed to continuously improve in the future.

Environmental and Sustainability Corporate Report

Publishing this report is a significant step toward the goal of becoming an environmental sustaining leader of our industry. Going forward, we will persist to perfect our environmental performance and transparency. We will also leverage our role as an industry leader and actively support international organizations and industry associations working to improve environmental conditions.

The Xplore Technologies 2012 Environmental and Sustainability Corporate Report is located at http://www.xploretech.com/environment. To obtain the report, click Environmental Sustainability Report 2012. Feel free to save this to your personal files. If you do not have access to the Internet, call Xplore technical support at [phone] ext. 222 and request that a digital copy be sent to your email address.

Index

A

air flow vents, location 22

ambient light sensor location 19

antenna covers, location 21

Auto Light sensor, disabling 45

Auto Power feature, disabling 82

B

battery pack

charge time 52

charging 51

checking the charge 51

conserving power 59

installing 54

location 21

removing 52

battery release latch, location 21

BIOS Setup Utility, using 81

Bluetooth toggle 30

C

camera hot key 30

Charm bar, open 30

convection air flow cover, location 21

D

digitizer

calibrating 77

using to perform mouse functions 39

double-click, performing with pen 39

dragging and dropping, performing with pen 39

E

Environmental and Sustainability Corporate Report 105

Environmental policy 103

G

GPS, toggle 30

H

headphone volume, adjusting 48

Hibernation mode

description 34

hot keys, programming 63

hot keys, programming,

see keys, programming hot keys

K

Kensington lock slot, location 22

keys

Ctrl-Alt-Del, description 29

descriptions 29

Function

description 29

location 28

Function mode hot key combinations descriptions 30

P1, location 28

P2, location 28

P3, location 28

Power On/Off/Sleep/Resume location 58

programming hot keys 63 to perform other key functions 70 to perform pre-defined functions 68 quick-start diagram 28 Screen Rotation, location 28

L

LAN connector, location 23

LCD backlight disabling automatic control 45 enabling manual control 82

LEDs, Status LED meanings 26

left button click, performing with pen 39

local area network (LAN), connecting to 47

logging on 29

M

microphone connecting external 48 location 19 volume, adjusting 48

monitor activating 49 connecting 49

mouse functions, performing 39

P

pen double-click speed, changing 39 dragging and dropping 39 holder, location 21 location 21 performing a double-click 39 performing a right-click 39 performing left button click 39 positioning in holder 40 replacing 76 tether, using 40

Power (On/Off)/Backlight (On/Off)/Sleep/

Resume key, location 58

power connector, location 23

Power On/Off/ Suspend/Resume key location 22

power use, managing 55

projection panel activating 49 connecting 49

Q

quick-start guide 28

R

recycling program 104

Reset switch location 19 using 33

resuming operation 37

right-click, performing with pen 39

RJ-45 connector 23

rotate screen 30

S

screen protecting 75 rotating 30

screen orientation changing 43 landscape 43 portrait 43

screen protector installing 76 removing 76 replacing 76

serial port

compatible devices 50

location 50

Sleep mode

ending 37

starting 35

Sleep mode, description 34

Sleep mode, hot keys 30

speaker volume, adjusting 48

speakers, location 19

storing the computer 75

support, contacting 17

suspending operation 35

T

tablet

accessories 15

preventing overheating 74

protecting from damage 73

storing 75

transition between open apps 30

troubleshooting 79

turning off the computer 32

turning on the computer 31

U

USB port, location 23

USB-compatible device, connecting 47

V

video output

changing from monitor to computer 49

changing to monitor 49

video output, change 30

video, hot keys 30

volume

adjusting headphone 48

adjusting microphone 48

adjusting speaker 48

W

Windows Task Manager, launching 29

X

XPL expansion module, connecting 50

XPL2 port 22 25

Xplore Technologies, contacting 17

95-01110

Rev A
