Product Type	Condenser tumble dryer
Model	DYC 71013 NBX-S
Brand	Hoover
Drum Capacity	115 litres
Maximum Load	10 kg (cotton)
Height	85 cm
Width	60 cm
Depth	60 cm
Energy Efficiency Band	B
Voltage / Frequency	220-240 V, 50 Hz
Power Consumption (off-mode)	0.15 W
Power Consumption (left-on mode)	0.75 W
Drying Programmes	All Towels, Store Dry, Hang Dry, Iron Dry, Relax, Wool Finish, Mix & Dry, Shirts
Special Functions	Delay Start (1-24h), Anti-Crease, Time Selection, Acrylic/Synthetic button
Filter Type	Fluff filter (clean after each cycle)
Condenser Cleaning	Regular cleaning required (removable)
Water Removal	Water container (6 kg full) or optional drain hose kit
Installation Options	Freestanding; stackable with suitable kit (Mod 35100019 or 35900120)
Door Opening	Front load, reversible? Not specified
Safety Features	Cool-down phase, door interlock, child lock? Not specified
Warranty	Refer to guarantee card; service by GIAS

Frequently Asked Questions - DYC 71013 NBX-S HOOVER

How do I clean the fluff filter?

Open the door, pull the filter upwards, open it, and gently remove lint with a soft brush or fingertips. Do not use water. Snap the filter closed and push back into place.

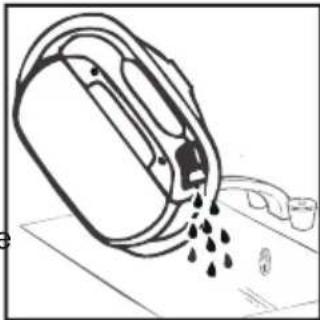

How to empty the water container?

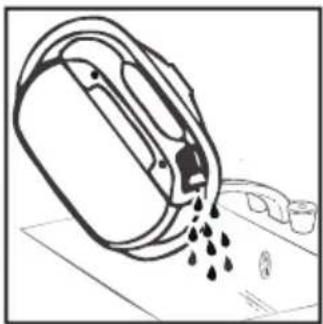

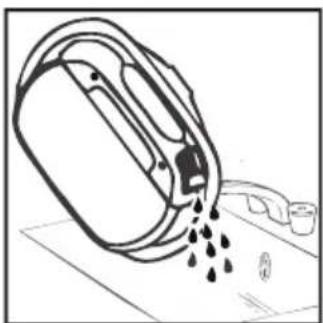

Pull out the water container by the handle (full weight approx. 6 kg), tilt to empty through the spout, then reinsert: first the base, then push the top until it clicks. Press Start/Pause to resume drying.

Why is my drying time taking too long or clothes not fully dry?

Check if you selected the correct programme, if clothes were spin-dried properly, if the fluff filter is clean, or if the dryer is overloaded. Also ensure the condenser is not clogged.

Can I install the dryer on top of a washing machine?

Yes, but use a suitable stacking kit: Mod 35100019 for washing machine depth ≥49 cm, or Mod 35900120 for smaller depths. Follow the instructions provided with the kit.

How often should I clean the condenser?

Regularly, to maintain efficiency. Remove the kickplate, turn the locking levers anti-clockwise, pull out the condenser, wash under running water to remove fluff, ensure gasket is seated, then refit and lock levers.

What does the "Filter Care" indicator mean?

It lights up when the fluff filter needs cleaning. Clean it before starting the next cycle. If the laundry is not drying, check the filter even if the indicator is off.

How do I use the Delay Start function?

Press the Delay Start button repeatedly to set a delay from 1 to 24 hours. The display shows the delay. Press Start/Pause to begin the countdown; the indicator will flash.

What types of fabrics should not be tumble dried?

Do not dry woollens, silk, delicate fabrics, nylon stockings, embroidery, metallic decorations, PVC/leather trimmings, training shoes, sleeping bags, or items treated with dry cleaning fluid or rubber. Always check care labels.

How can I cancel a running programme?

Press the Start/Pause button for 3 seconds. The display will show 0:00 and flash to indicate the programme has been reset. You can then select a new programme.

What should I do if the dryer is noisy?

Switch off the dryer, remove the plug, and contact GIAS Service. Do not attempt to repair yourself. A charge may apply if the issue is due to incorrect installation.

USER MANUAL DYC 71013 NBX-S HOOVER

Environmental Issues 7

Gias Service 7

Installation 7

Electrical Requirements 7

Adjusting the Feet 7

Drain Hose Kit: Fitting Instructions 8

Preparing the Load 9

Clothes Preparation 9

Do Not Tumble Dry 9

Energy Saving 9

Sorting the Load 9

Drying Guide 9

Controls and Indicators 10

Selecting the Programme 11

Door and Filter 12

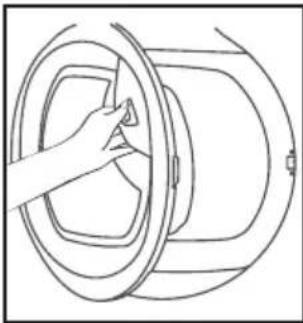

Opening the Door 12

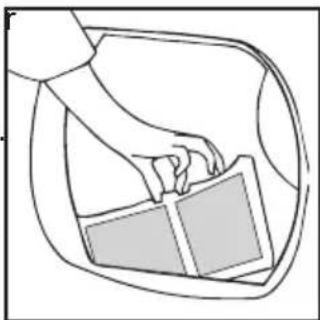

Filter 12

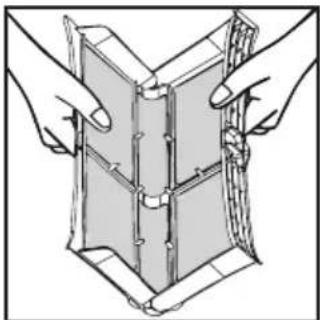

Filter Care Indicator 12

Water Container 12

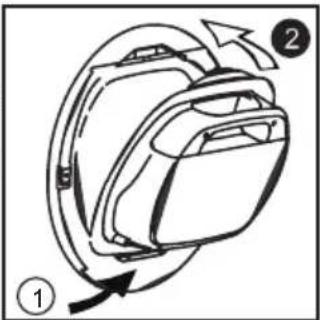

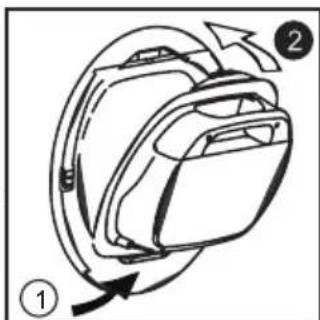

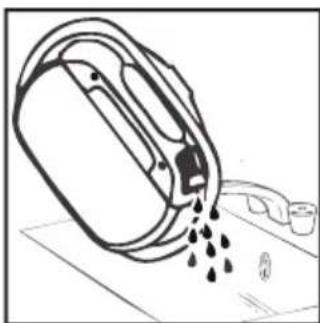

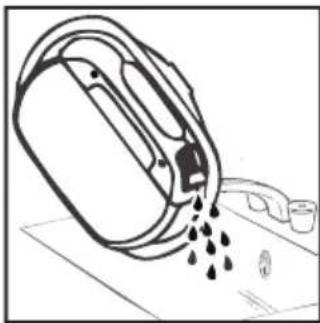

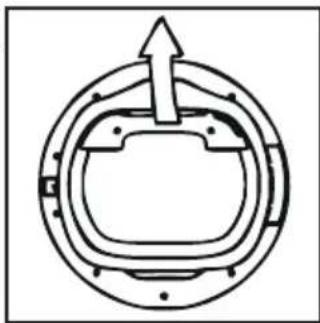

To Remove the Container 12

Condenser 13

To Remove the Condenser 13

Operation 13

Delay Start Function 14

Cancelling and Resetting the Programme 14

Cleaning and Routine Maintenance 14

Cleaning the Dryer 14

Technical Specifications 14

Troubleshooting 15

Customer Service 15

Spares 15

Gias Service 15

INTRODUCTION

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Delivery Information

Please check that the following items are delivered with the appliance:

• Instruction manual
• Guarantee card
• Energy label

Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS.

Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

SAFETY REMINDERS

Use

•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning

INTRODUCTION

SAFETY REMINDERS

Use

If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use ( even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law."

- This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.

- Do not touch the appliance when hands or feet are damp or wet.

- Do not lean on the door when loading the machine or use the door to lift or move the machine.

- Do not allow children to play with the machine or its controls.

- WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

- WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C

- Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.

- Do not continue to use this machine if it appears to be faulty.

- Lint and fluff must not be allowed to collect on the floor around the outside of the machine.

•The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

• Maximum load drying weight : 10 kg

- The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

- WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

INTRODUCTION

SAFETY REMINDERS

Installation

• Check that the product has no visible signs of damage before use. If damaged do not use and please call GIAS Service.
• Do not use adapters, multiple connectors and/or extensions.
• Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.
  •The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

The Laundry

- Do not dry unwashed items in the tumble dryer.

•Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.
• Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
•Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.
- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be

SAFETY REMINDERS

Ventilation

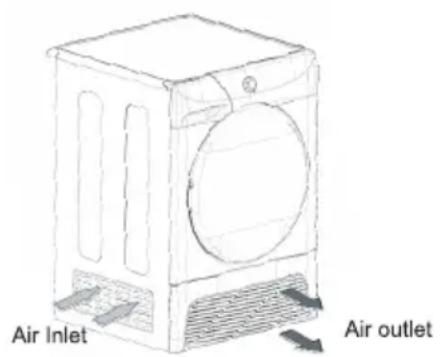

- Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

• Installing the rear of the appliance close to a wall or vertical surface.

- There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet should be kept clear of obstruction. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed.

- Check regularly that the air flowing through the dryer is not restricted.

- Check frequently the fluff filter after use, and clean, if necessary.

- Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet

- NEVER install the dryer up against curtains.

- In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the follow configuration.

-Stacking kit Mod 35100019: for minimum washing machine depth 49 cm

-Stacking kit Mod 35900120: for minimum washing machine depth

The instructions for installation and any fixing attachments, are provided with the staking kit.

Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between +2°C and +35°C. Please note that operating in cold condition (between +2 and +15°C) might simply some water condensation and water drops on floor.

Environmental Issues

• All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
  • To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European Directive 2002/96/EC

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

GIAS Service

• To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

If the appliance is not running properly or breaks down, switch it off and disconnect the plug from the socket. Consult GIAS Service for possible repair.

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 10A.

Electricity can be extremely dangerous.

This appliance must be earthed. The socket outlet and the plug on the appliance must be of the same type. Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has been installed.

CE Appliance complies with European Directive 2004/108/EC, 2006/95/EC and subsequent amendments.

You may be charged for a service call if a problem with your machine is caused by incorrect installation.

If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.

Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice.

Adjusting the Feet

Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

DRAIN HOSE : FITTING INSTRUCTIONS

To avoid emptying the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

The kit consists of:1 hose and 1 tap.

WARNING! Switch off and remove the able dryer plug from the electricity supply are carrying out any work.

Fit the Hose as Follows:

1. Tilt the machine backwards.

2. The waste water pipe is situated at the left -hand side of the machine (see the picture). A grey hose connects to the bridge at the left hand side of the machine. Using pliers, remove the pipe retaining clip from the bridge.

3. Pull the hose off the bridge connection.

4. Attach the black hose from the kit, (using the connector and pipe clips supplied), to the hose removed from the bridge connection.

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand holding a black plastic connector with metal clamps, attached to a white container (no visible text or symbols)

Close-up of a hand holding a black cable with blue insulation, attached to a white electronic device (no visible text or symbols)

1. Place the tap supplied by the kit to close the remaining hose.

2. Once the machine is in place the feet should be adjusted to ensure that the new hose does not kink when pushing the tumble dryer into position.

3. Connect the new drain hose to the waste Water pipe.

4. Connect to the mains electricity supply.

Close-up of a white plastic container with a black cylindrical tube inserted, no visible text or symbols

Illustration of a hand holding a small object with arrows indicating motion or force direction (no text or symbols)

White industrial machine with attached black cable and wiring, placed on a concrete floor (no visible text or symbols)

White portable electronic device with a black power button and coiled cable on the floor (no visible text or symbols)

PREPARING THE LOAD

Before using the tumble dryer for the first time:

- Please read this instruction book thoroughly.

- Remove all items packed inside drum.

- Wipe the inside of the drum and door damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

- Try to dry the maximum weight of laundry, this will save time and electricity.

- Check that the filter is clean before every drying cycle.

NÉVER

- Exceed the maximum weight, this will waste time and electricity.

- Put dripping wet items into the tumble dryer, this may damage the appliance.

Do not overload the drum, large items when wet can exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

Maximum Drying Weight

- Cottons

Max. 10 kg

with Synthetics

Max. 4 kg

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

•• Tumble drying at high temperature.

• Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

- By drying level

Sort into: iron dry, cupboard dry, etc. For delicate articles press the Delicates button to select low drying temperature.

Drying Guide

The standard cycle HANG DRY ( ) is the most energy efficient and best suited for drying normal wet cotton laundry.

The table below shows the approximate time and energy consumption of the main drying programmes.

CYCLE	LOAD	ENERGY (kWh)	TIME (Min)
All Towels	FULL	6,80	230
Store Dry	FULL	6,44	210
Hand Dry	FULL	5,70	180
Hang Dry	HALF	3,01	100
Iron Dry	FULL	4,56	147
Power consumption of "left on-mode"			0,75 W
Power consumption of "off-mode"			0,15 W

CONTROLS AND INDICATORS


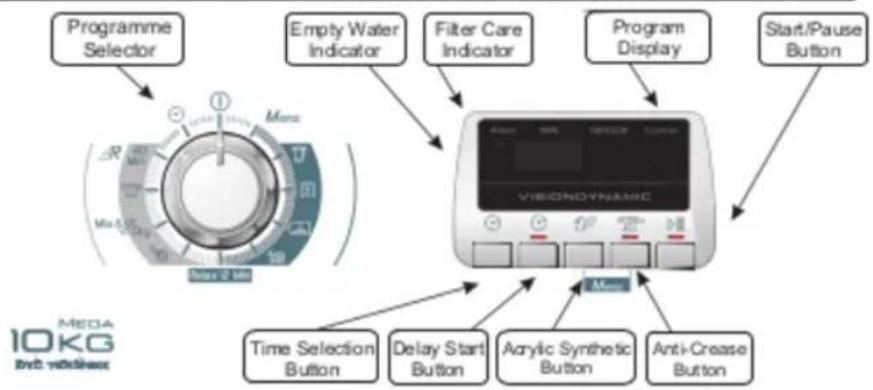

Control Panel and Indicator Lights

Programme Selector – Select the required programme.

Time Selection Button ☺ – Allows the user to change duration of the programme selected by Programme Selector. It can be used only with the selection of: Mix&Dry, Shirts and Time Programmes.

Delay Start Button ⏻ – Allows the user to delay the start of the drying cycle (see details of Operation).

Acrylic and Synthetic Button –When pressed the default indicator will fade and will be illuminated.

Anti-Crease Button 📋 – Allows the user to select a post drying anti-crease cycle.

Start/PauseButton || - Press to commence/ to pause the selected drying programme.

Memo Button – Allows user to record the programme by pressing simultaneously the Anti-Crease and the Acrylic Synthetic buttons for 3 seconds, after 2 minutes duration of the chosen programme/option.

SELECTING THE PROGRAMME

PROGRAMME	DESCRIPTION
All towels 📋	Select the degree of dryness that you require. This range from 📋 for all towels and bathrobes, through 🔒 for items that will be put away without ironing, to the programme that leaves the laundry suitable for ironing. 📋
Store Dry 📋
Hang Dry 📋
Iron Dry 📋
Relax	The programme provides a conditioning and anticrease function. The dryer will heat the load for 9 minutes followed by a 3 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators.This programme relaxes the creases in the fabric making ironing quicker and easier.
Wool Finish 📋	A gentle programme specially created to get woollens softer after air-drying. This delicate warm air cycle, lasting 12 minutes, can also be used to get woollens 'refreshed' after being stored in the wardrobe.
Mix & Dry	This is a special timed program for a maximum load of 4kg (117 min). The default duration is 99 minutes and allows to dry up to 3kg. With this program you can dry together cotton and synthetic fabrics.
Shirts 📋	This is a special timed program for shirts of max load of 3kg (78 minutes). For synthetic shirts you have to press the Acrylic fabric.

Opening the Door

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Pull on handle to open the door.

To restart the dryer, close the door and press ▷III.

WARNING! When the tumble dryer is in use the drum and door may be VERY HOT. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

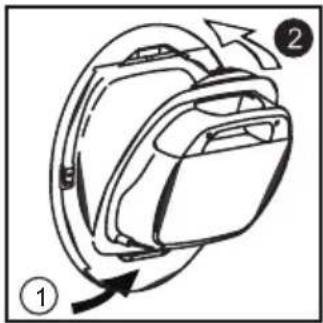

1. Pull the filte upwards.

2. Open filter as shown.

3. Gently remove lint using a soft brush or your fingertips.

4. Snap the filter together and push back into place.

Line drawing of a hand holding a folder inside a car (no text or symbols)

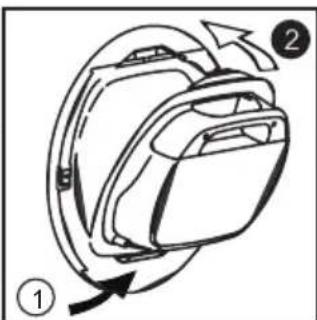

Filter Care Indicator

Lights when the filter needs cleaning.

If the laundry is not drying check that the filter is not clogged.

Illustration of two hands holding a folded or layered object, no text or symbols present

DO NOT USE WATER TO CLEAN THE FILTER.

WATER CONTAINER

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full the indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To Remove the Container

1. Gently pull out the water container holding the handle.

When it is full the water container will weigh about 6 kg.

1. Tilt the water container to empty the water out through the spout.

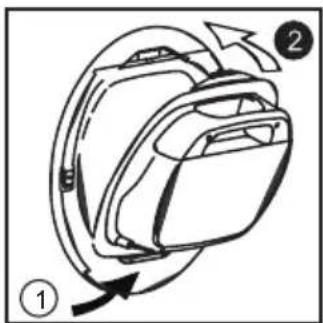

When empty, replace the water container back as shown; first insert the base of the container into position as shown then gentle push the top into position.

1. Press ▷ Button to restart the cycle.

Pure mechanical cross-section diagram without any text, numbers, or symbols

Simple line drawing of a funnel pouring liquid into a container (no text or symbols)

NOTE: If you have the option of drainage near to the dryer you can use the discharge kit to provide a permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container.

Diagram of a backpack with directional arrows indicating movement or rotation (no text or symbols)

WARNING! If you open the door mid cycle, before the cool-down cycle has completed, the handle may be hot. Please use extreme caution when attempting to empty the water reservoir during the cycle.

Important: Always switch off and remove the plug from the electricity supply before cleaning the condenser.

To maintain the efficiency of the dryer regularly check that the condenser is clean.

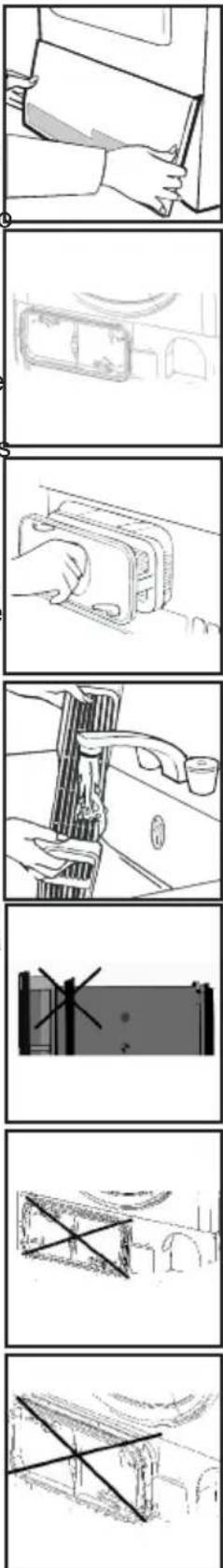

To Remove the Condenser

1. Remove the kickplate.

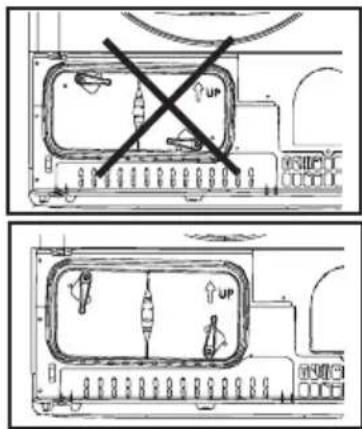

2. Turn the two locking levers anti-clockwise and pull out the condenser.

3.Pull out the condenser unit.

1. Gently remove any dust or fluff with a cloth, then wash the unit by holding it under a running tap turning it so that water flows between the plates, to remove any dust or fluff.

2. Check the gasket position after cleaning. Fit the gasket in to the groove if it is misaligned.

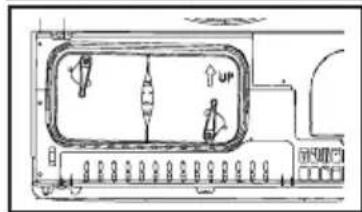

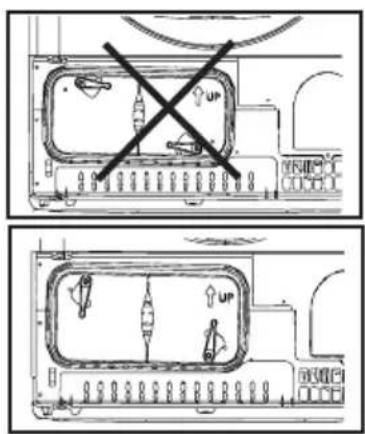

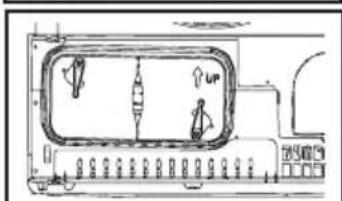

3. Refit the condenser ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise. Be sure that condenser unit fixed to the basement tightly.

4. Refit the kickplate.

Line drawing of a person holding a rectangular object, no text or symbols present

Simple line drawing of a vehicle or enclosure with no text, numbers, or symbols

Line drawing of a hand inserting a component into a housing (no text or symbols)

Line drawing of hands cleaning a window with a faucet (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Simple line drawing of a truss structure with diagonal braces and arches (no text or symbols)

Sketch of a geometric structure with intersecting lines and a triangular form (no text or symbols)

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.

2. Gently close the door pushing it slowly until you hear the door 'click' shut.

3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).

4. If drying synthetics, acrylics or delicate items, press the ☐ button to reduce the heat level. The indicator will light up when the machine is in low heat setting. To deselect in the first few minutes of the programme, press the ☐ button, after this time reset the machine to change the setting.

5. Press the ▷■ button. The dryer will start automatically and the indicator above the button will be continuously lit.

6. If the door is opened during the programme to check the laundry, it is necessary to press to recommence drying after the door has been closed.

7. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.

8. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automatic programs in order to obtain a proper drying.

OPERATION

Delay Start Function

The Delay Start Function allows the user to delay the start of the drying cycle by 1 to 24 hours.

When the function is first selected the display will show a delay of 1 hour, subsequent presses of the button will increase the delay with 1 hour steps.

To commence the programme press and the appliance will complete the drying cycle at the end of this time. The indicator light will flash to indicate that the start delay is in progress.

Cancelling and Resetting the Programme

To cancel a programme press the button for 3 seconds. In the TIME CONTROL display 0:00 Light will flash to indicate that it has been reset.

CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
  • Regularly clean the condenser.
  • After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
• Wipe the outside of the machine and the door with a soft cloth.
• DO NOT use abrasive pads or cleaning agents.
• To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load may be very hot.

Technical Specifications

Drum capacity	115 litres
Maximum load	10 kg
Height	85 cm
Width	60 cm
Depth	60 cm
Energy Label Band	B

Information for Test Laboratory

EN 61121 Programme	Programme To Use
-DRY COTTON	-HANG DRY
-IRON DRY COTTON	-IRON DRY
-EASY-CARE TEXTILE	-HANG DRY + SYNTHETIC

IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance.

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

TROUBLESHOOTING

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

•Have you selected the correct drying time/programme?
- Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
• Does the filter need cleaning?
• Is the dryer overloaded?
*Has the ①② option been selected from a

The dryer is noisy...

• Switch off the dryer and contact GIAS Service for advice.
  The Indicator is on...
  • Does the filter need cleaning?
  The Indicator is on...
  • Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.
- Has not been installed in accordance with the installation instructions.
- Has been used incorrectly.

Introduktion 17

Leveringsoplysninger 17

Hand holding a small object with arrows indicating rotation or movement (no text or symbols)

AFL∅BSSLANGE: MONTERINGSVEJLEDNING

Close-up of a hand using a red tool to apply or install a mechanical component (no visible text or symbols)

Close-up of a hand inserting a black plastic plug into a white container (no text or symbols visible)

Close-up of a hand holding a blue cable with black connectors, against a blurred industrial background (no visible text or symbols)

Close-up of a white plastic container with black pipes inserted, no visible text or symbols

Illustration of a hand holding a small object with arrows indicating motion or force direction (no text or symbols)

White electronic device with attached black cable and ventilation grilles, placed on a concrete floor (no visible text or symbols)

White portable water heater with attached black socket and cable, placed on a concrete floor (no visible text or symbols)

FORBEREDELSE AF ILÆGNING AF T∅J

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Illustration of two hands folding a folded or folded object with visible internal structure (no text or symbols)

BRUG IKKE VAND TIL RENG∅RING AF FILTERET

VANDBEHOLDER

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a hand washing a water bottle with liquid, no text or symbols present

Line drawing of a person holding a rectangular object, no text or symbols present

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a hand holding a cylindrical object above a surface, with no visible text or symbols

Pure electrical circuit lines without any symbols

Architectural line drawing of a building facade with trusses and windows (no text or symbols)

Simple line drawing of a geometric structure with intersecting lines (no text or symbols)

BETJENING

Indikator for filteredlikehold 40

Vannbeholder 40

SIKKERHETSPÄMINNELSER

Bruk

SIKKERHET SPÄMINNELSER

Bruk

SIKKERHETSPÅMINNELSER

Installasjon

SIKKERHETSPÅMINNELSER

VENTILASJON

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

AVL∅PSSLANGE: MONTERINGSANVISNING

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand holding a black plastic connector attached to a white container (no visible text or symbols)

Close-up of a hand holding a black cable with a blue hose, attached to an industrial machine (no visible text or symbols)

Close-up of a white plastic container with black cylindrical ports, no visible text or symbols

Illustration of a hand holding a small object with arrows indicating motion or rotation (no text or symbols)

White electronic device with attached cables and wiring, placed on a concrete floor (no visible text or symbols)

White washing machine with attached black door and cable, placed on a concrete floor (no visible text or symbols)

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Indikator For Filtervedlikehold

Illustration of hands holding a folded or layered object with no visible text or symbols

IKKE BRUK VANN TIL Å GJ∅RE FILTERET RENT

VANNBEHOLDER

Pure technical diagram of a mechanical component with no text or symbols

Simple line drawing of a container pouring liquid into a container with a lid, placed on a surface (no text or symbols)

Line drawing of a hand holding a rectangular object, no text or symbols present

Simple line drawing of a rectangular device with a curved top and side brackets (no text or symbols)

Line drawing of a hand inserting a card into a device (no text or symbols)

Line drawing of a hand cleaning a window with a tool (no text or symbols)

Pure electrical circuit lines without any symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a geometric structure with intersecting lines and a horizontal bar (no text or symbols)

DRIFT

Close-up of a hand using a tool to clean or inspect mechanical components (no visible text or symbols)

Close-up of a hand holding a black plastic hose connector with metal clamps, attached to a white surface (no visible text or symbols)

Close-up of a hand holding a black cable with a green cable inserted, against a white background (no visible text or symbols)

Close-up of a white plastic container with black pipes inserted, no visible text or symbols

Illustration of a person using a tool to interact with a device (no text or symbols present)

White electronic device with attached cable and wiring, placed on a concrete floor (no visible text or symbols)

White washing machine with black buttons and a black cord, placed on a concrete floor (no visible text or symbols)

FÖRBEREDA LASTEN

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand inserting a card into a car door (no text or symbols)

Filterindikator

Illustration of two hands holding a folded or folded object with internal components (no text or symbols)

RENGÖR ALDRIG FILTRET MED VATTEN

WATER CONTAINER

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container with a lid, placed on a surface (no text or symbols)

Line drawing of a person holding a rectangular object, no text or symbols present

Simple line drawing of a mechanical component or bracket with no visible text or symbols

Line drawing of a hand inserting a card into a device (no text or symbols)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a truss structure with no visible text or symbols

Sketch of a geometric structure with intersecting lines and a triangular frame (no text or symbols)

FUNKTION

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

POISTOVESILETKUN ASENNUSOHJEET

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand inserting a black plastic plug into a white container (no visible text or symbols)

Close-up of a hand holding a flexible blue cable with a black connector, next to a white lab equipment cabinet (no visible text or symbols)

Close-up of a white plastic shelf with a cylindrical pipe inserted, no visible text or symbols

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

White electronic device with attached cable and wiring, placed on a concrete floor (no visible text or symbols)

White portable washing machine with attached black cable on a concrete floor (no visible text or symbols)

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand holding a folder inside a car (no text or symbols)

Illustration of two hands holding a folded or layered object, no text or symbols present

ÄLÄ PUHDISTA SUODATINTA VEDELLÄ

VESISÄILIÖ

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container with a handle (no text or symbols)

Line drawing of a person holding a rectangular object, no text or symbols present

Simple line drawing of a rectangular object with internal features, no text or symbols present

Line drawing of a hand inserting a card into a folder (no text or symbols)

Illustration of hands using a tool to lift or lift a wall-mounted device (no text or symbols visible)

Pure diagram of a mechanical component with no text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a geometric shape with intersecting lines (no text or symbols)

KONEEN KÄYTTÖ

Illustration of a person using a tool to interact with a device (no text or symbols present)

KIT ACCESSORIO TUBO FLESSIBILE DI SCARICO: ISTRUZIONI PER IL MONTAGGIO

Close-up of a hand using a tool to clean or store items on a white surface (no visible text or symbols)

Close-up of a hand inserting a black plastic plug into a white container (no text or symbols visible)

Close-up of a hand holding a black cable with blue insulation, attached to an industrial machine (no visible text or symbols)

Close-up of a white plastic shelf with black cylindrical objects inserted, no visible text or symbols

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

White electronic device with attached black cable and wiring, placed on a concrete floor (no visible text or symbols)

White portable water heater with attached black socket and cable, placed on a concrete floor (no visible text or symbols)

Line drawing of a hand adjusting a circular component (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of two hands holding a folded or folded object with internal structure (no text or symbols)

NON USARE ACQUA PER PULIRE IL FILTRO

VASCHETTA DELL'ACQUA

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container with another container nearby (no text or symbols)

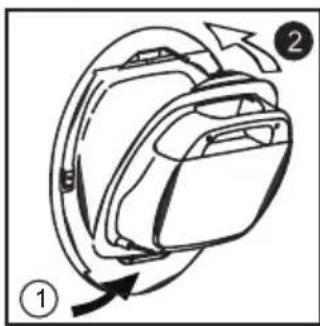

Diagram of a backpack with directional arrows indicating movement or rotation (no text or symbols)

Line drawing of a hand holding a rectangular object, no text or symbols present

Line drawing of a car front view showing the dashboard and side panel (no text or symbols)

Line drawing of a hand inserting a card into a folder (no text or symbols)

Illustration of hands cleaning a wall with a pipe and cloth (no text or symbols)

Pure diagram of a mechanical component with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Hand-drawn architectural sketch of a triangular structure with surrounding landscape (no text or symbols)

FUNZIONAMENTO

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

*Have you selected the correct drying time/programme?
- Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
• Does the filter need cleaning?
• Is the dryer overloaded?

The dryer is noisy...

• Switch off the dryer and contact GIAS Service for advice.
  The ◎ Indicator is on...
  • Does the filter need cleaning?
  The Indicator is on...
  • Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.
- Has not been installed in accordance with the installation instructions.
• Has been used incorrectly.

Giriş 87

Teslimat Bilgisi 87

Illustration of a person using a tool to lift a head, with arrows indicating motion (no text or symbols)

TAHLİYE HORTUMU: BAĞLANTI TALİMATI

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand inserting a black plastic hose into a white container (no text or symbols visible)

Close-up of a hand holding a flexible cable with a green cable, attached to a white industrial machine (no visible text or symbols)

Close-up of a white plastic shelf with black cylindrical pipes inserted (no visible text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or direction (no text or symbols)

White electronic device with attached cables and wiring, placed on a concrete floor (no visible text or symbols)

White portable water heater with black buttons and a coiled cable, placed on a concrete floor (no visible text or symbols)

Line drawing of a hand holding a circular object, no text or symbols present

Simple line drawing of a hand holding a rectangular object inside a curved container (no text or symbols)

Illustration of two hands assembling or folding a rectangular object (no text or symbols visible)

⚠️ FILTREYİ TEMİZLEMEK IÇİN SU KULLANMAYIN.

SU HAZNESÍ

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container with liquid spilling out (no text or symbols)

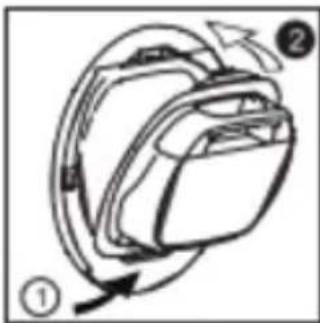

Diagram of a backpack with directional arrows indicating movement (no text or symbols)

-Hang Dry + Synthetic

Illustration of a hand holding a small object with directional arrows indicating rotation (no text or symbols)

Close-up of a hand using a tool to clean or inspect a mechanical component (no visible text or symbols)

Close-up of a hand inserting a black plastic plug into a white container (no text or symbols visible)

Close-up of a hand holding a black cable with blue insulation, attached to an electronic device (no visible text or symbols)

Close-up of a white plastic container with black pipes inserted, no visible text or symbols

Illustration of a person using a tool to interact with a small object, no text or symbols present

White industrial electrical box with attached black cable and wiring, placed on a concrete floor (no visible text or symbols)

White washing machine with attached black door and cable, placed on a concrete floor (no visible text or symbols)

Line drawing of a hand cleaning a circular mechanical component (no text or symbols)

Line drawing of a person opening a car door with a closed lid (no text or symbols)

Flusensieb-Anzeige

Illustration of two hands holding a folded or layered object, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a funnel pouring liquid into a container (no text or symbols)

Diagram of a mechanical device with labeled parts (1 and 2), showing directional arrows indicating motion or movement (no text or symbols beyond labels)

Line drawing of a person holding a rectangular object, no text or symbols present

Simple line drawing of a building facade with arches and windows (no text or symbols)

Line drawing of a hand inserting a card into a device (no text or symbols)

Line drawing of hands using a tool to interact with a mechanical device (no text or symbols visible)

Pure diagram of a mechanical or architectural component with no visible text, numbers, or symbols

Architectural line drawing of a building facade with trusses and windows (no text or symbols)

Architectural line drawing of a building with diagonal lines indicating construction or measurement (no text or symbols)

BETRIEB

Illustration of a person using a tool to interact with a device, no text or symbols present

Close-up of a hand using a tool to clean or inspect a mechanical component (no visible text or symbols)

Close-up of a hand holding a black cable with metal clamps, attached to a white plastic sheet (no visible text or symbols)

Close-up of a hand holding a black cable with a blue cable inserted, against a white background (no visible text or symbols)

Close-up of a white plastic container with black pipes inserted, no visible text or symbols

Illustration of a person using a tool to interact with a small object, no text or symbols present

White electronic device with attached cable and wiring, placed on a concrete floor (no visible text or symbols)

White industrial electrical box with attached black plug and cable, placed on a concrete floor (no visible text or symbols)

PREPARAÇÃO DA CARGA

Line drawing of a hand adjusting a circular component (no text or symbols)

Line drawing of a hand placing a rectangular object into a car's side panel (no text or symbols)

Indicador de Controlo do Estado do Filtro

Illustration of two hands holding a folded or layered object with visible internal structure (no text or symbols)

DEPÓSITO DA ÁGUA

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a container pouring liquid into a container with a side arm (no text or symbols)

FUNCIONAMENTO
