IAN 271111 - Parasol de plage FLORABEST - Free user manual and instructions

Brand	Florabest
Model	IAN 271111
Product type	Beach umbrella
Pole material	Aluminium
Canopy material	Polyester
Canopy diameter	Approximately 250 cm
Total height	Approximately 250 cm
Umbrella weight (without base)	Approximately 5 kg
Minimum base weight required	25 kg
Pole insertion depth into base	At least 40 cm
Opening mechanism	Manual by sliding handle
Adjustable tilt	Yes, with tilt button
UV protection	Yes, against direct rays
Recommended use	Outdoor only
Wind resistance	To be closed in strong wind
Care	Clean with damp cloth and mild detergent
Winter storage	Store in a dry and cool place
Warranty	3 years
Repairability	Contact the seller
Included accessories	None (base not included)
Number of pole sections	2

Frequently Asked Questions - IAN 271111 FLORABEST

How to assemble the Florabest IAN 271111 umbrella?

Insert the upper pole into the lower pole at least 10 cm, then tighten the locking knob clockwise. Place the assembly into an umbrella base of at least 25 kg by inserting the pole at least 40 cm deep.

What type of base should I use for this umbrella?

An umbrella base with a minimum weight of 25 kg. The lower pole must be inserted at least 40 cm into the base. The base is not included.

How to open and tilt the umbrella?

To open, raise the sliding handle until it clicks. To tilt, press the tilt button and tilt the umbrella towards the sun.

Can I leave the umbrella open in windy conditions?

No, close the umbrella as soon as the wind picks up or in gusts. Never leave it open unattended, as extreme wind could damage it.

How to clean and maintain the umbrella?

Clean the canopy with a slightly damp cloth and a mild detergent. Do not use chemical or abrasive products. In winter, store it in a dry and cool place.

Does the umbrella protect against all UV rays?

It protects against direct UV rays, but not against reflected UV. It is therefore recommended to also apply sunscreen.

Is there a risk of tipping over?

Yes, if the base is not heavy enough (min 25 kg) or if the pole is not inserted at least 40 cm. Always ensure stability before use.

What to do in case of a manufacturing issue?

The umbrella comes with a 3-year warranty. Keep the receipt. In case of defect, contact the seller for exchange or repair.

Can I use this umbrella under a tree or near a barbecue?

No, never light a fire (barbecue, stove) underneath or next to it. Also avoid low-hanging branches that could damage the canopy.

How to store the umbrella in winter?

Close it, clean it, and store it in a dry and cool place. Use a protective cover if possible to avoid dust.

USER MANUAL IAN 271111 FLORABEST

Parasol

GB IE

Parasol

Assembly and safety advice

SE

Parasoll

GB/IE Assembly and safety advice Page 5

FI Asennus- ja turvaohjeet Sivu 8
SE Monterings- och säkerhetsanvisningar Sidan 11
DK Montage- og sikkerhedsanvisninger Side 14
FR/BE	Instructions de montage et consignes de sécurité	Page	17
NL/BE	Montage- en veiligheidsinstructies	Pagina	20
BG	Инструкции за монтаж и безопасност	Страница	23
DE/AT/CH	Montage- und Sicherheitshinweise	Seite	26

A

B

Technical line drawing of a beach umbrella with structural details, shown in two views (top: circular detail; bottom: magnified view with dimension label '6')

Parasol

Introduction

using the device for the first time, take time to familiarise yourself with the product first. Read the following assembly instructions and safety instructions carefully. Only use the product as instructed and only for the indicated field of application. Keep instructions in a safe place. Submit all documents to a third party if distributing the product.

Proper use

The product is intended for use as sun protection in an outdoor domestic environment. The product is not intended for commercial use.

General safety instructions

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS

AND CHILDREN! Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

⚠️ CAUTION! RISK OF INJURY! Ensure that all parts are undamaged and have been assembled appropriately. Risk of injury exists if assembled incorrectly. Damaged parts can affect safety and function.

⚠️ CAUTION! Do not leave children unattended. The product is not a climbing frame or toy. Make sure that nobody, in particular children, climbs on the product. The product could tip over resulting in injury or damage.

CAUTION! DANGER OF TIPPING

OVER! Always ensure the firm footing and good balance of the product. Insert the parasol into a suitable parasol base. Ensure that the parasol base has a minimum weight of approx. 25 kg. The bottom pole 5 must penetrate at least 40 cm into the parasol base. Non-observance of this advice could cause the parasol to overturn, resulting in injury and /or damage. A parasol base is not included.

■ Ensure that the parasol is standing on a solid, level surface and cannot roll away, resulting in injury or damage.
- Check that the product is stable before using it.

Close the parasol in strong winds or approaching squalls / gusts of wind. Secure the parasol with an

additional protective sleeve or band to prevent it opening unintentionally.

■ Never leave the open parasol unattended. Sudden gusts of wind could cause damage.

- Close the product in windy weather, snow or rain and pull a protective sleeve over it, if necessary.

- Do not hang any objects (e.g. clothing) from the product.

When opening the parasol, ensure that the parasol top 1 is firmly fixed in the open position and the runner 2 is properly engaged. Unless this is done, it is not safe to use the parasol.

⚠️ CAUTION! The parasol protects your skin from direct UV radiation but not from reflected UV radiation. Therefore you must also use skin-applied sun protection.

⚠️ CAUTION! DANGER OF INJURY! Before opening or closing the product ensure that no person is within the opening or closing zone.

⚠️ CAUTION! DANGER OF SHEARING OR CRUSHING INJURY! Make sure you do not trap your fingers when opening or closing the product. A moment of inattention may result in a shearing or crushing injury.

- Never use the product as protection against bad weather.

⚠️ CAUTION! DANGER OF PINCHING

INJURY! Body parts could become pinched at all the articulating joints of the parasol top frame. Be aware of these danger points when opening or closing the product.

CAUTION! DANGER OF FIRE!

Do not operate an open flame device (e.g. garden oven or grill)

under or close to the product.

Assembly

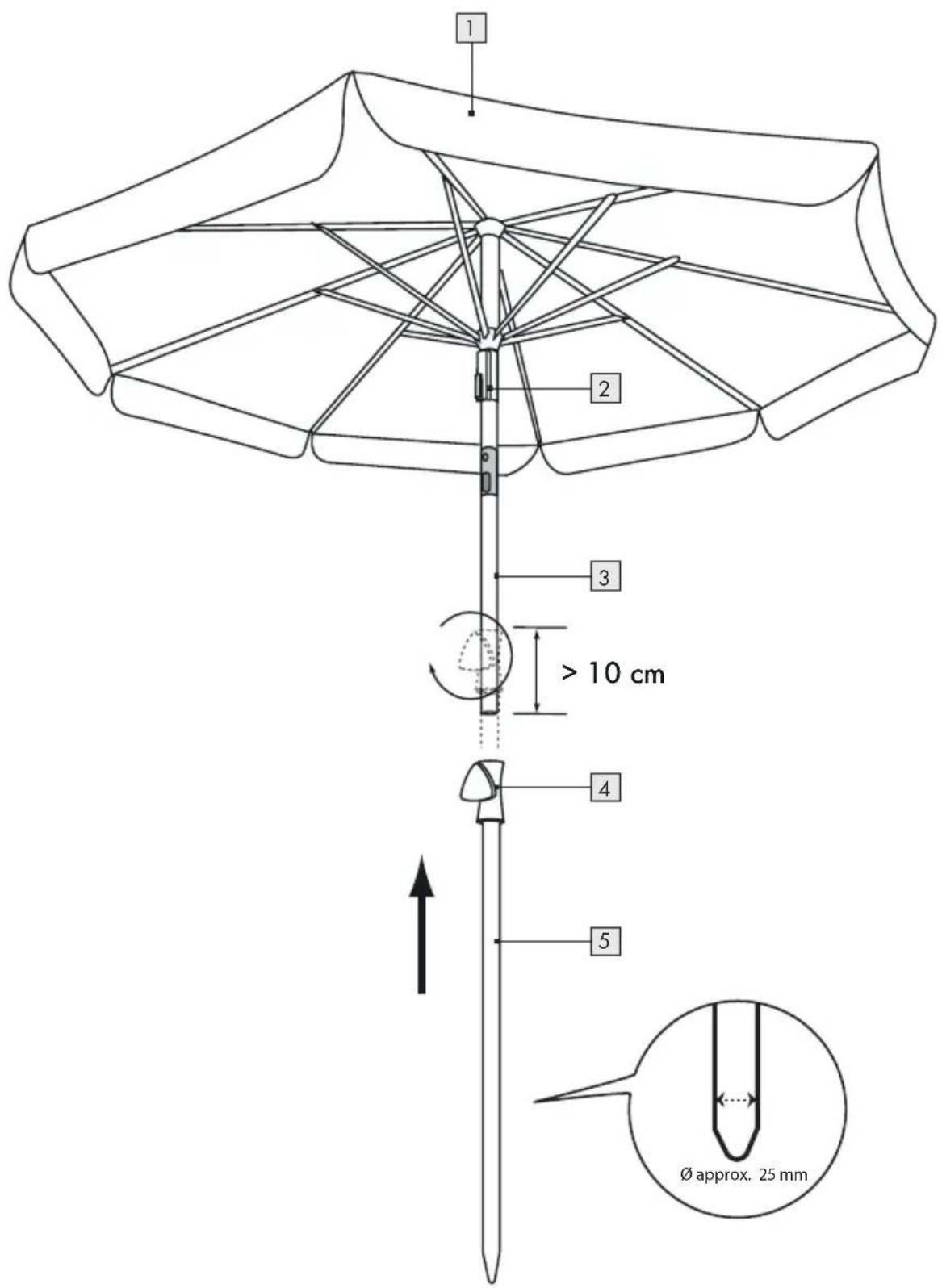

- Assembling / disassembling the parasol (see Fig. A)

Note: For assembly you will need a working space at least 2 m in diameter.

Note: If possible have a second person help you with the assembly.

Follow these steps:

1. Unpack the parasol carefully.
2. Insert the top pole 3 into the bottom pole 5.
   Note: Ensure that the end of the top pole 3 penetrates at least 10 cm into the bottom pole 5.
3. Turn the locking knob 4 clockwise to fix the top pole 3 in place.
4. Place the parasol in a suitable parasol stand (not contained in delivery).

Note: Always comply with the safety and operating instructions of the manufacturer.

Note: Ensure that the parasol base has a minimum weight of approx. 25 kg. The bottom pole 5 must penetrate at least 40 cm into the parasol base. Non-observance of this advice could cause the parasol to overturn, resulting in injury and/or damage. A parasol base is not included.

1. When disassembling the parasol, follow the instructions in reversed order.

- Opening / tilting the parasol

• Open the parasol by sliding the runner upwards until you hear it engage.

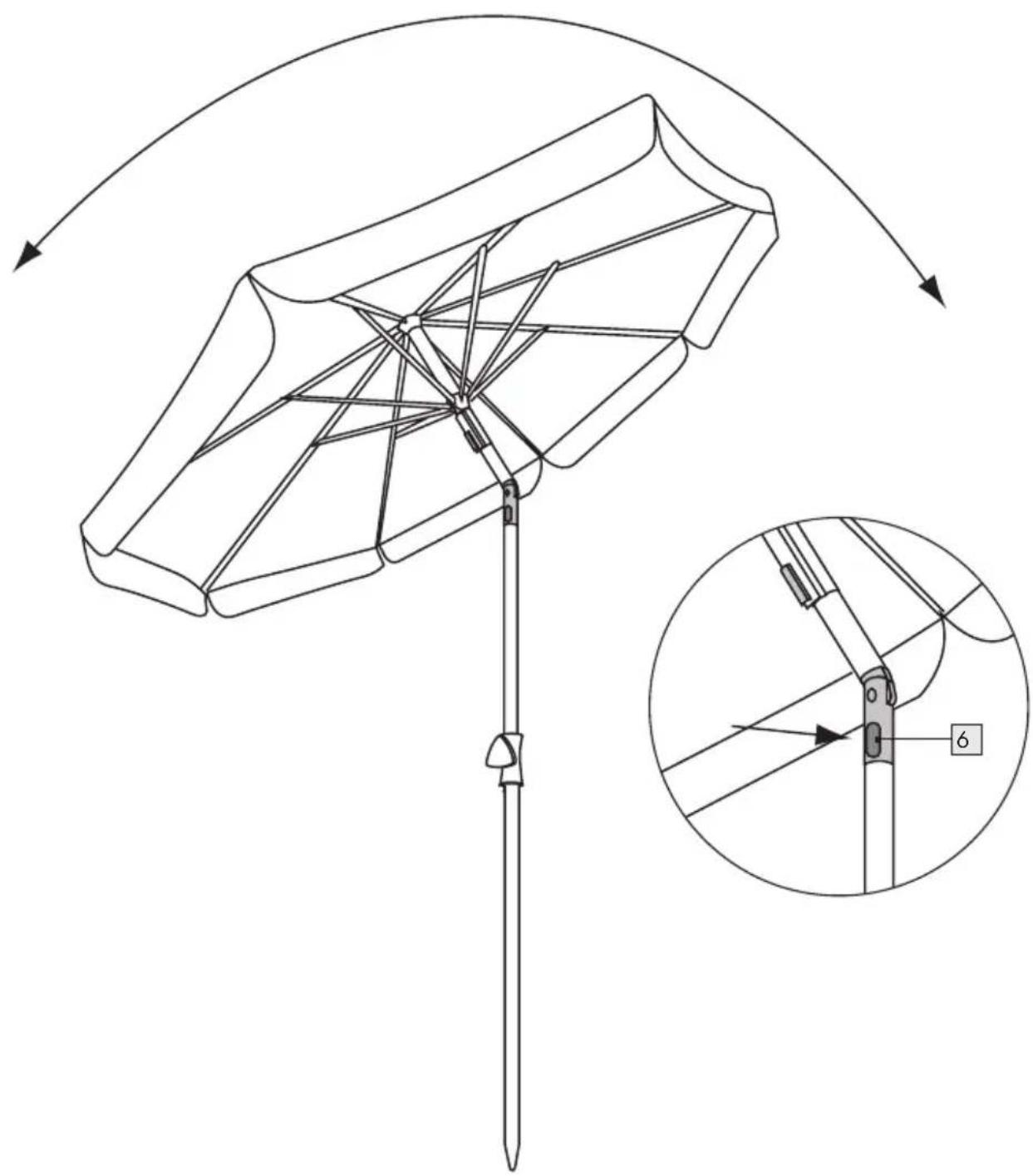

  Press the tilt button and tilt the parasol carefully to the side to suit the direction of the sunshine (see Fig. B).

- Closing the parasol

Press the tilt button to bring the parasol once more into the upright position (see Fig. B).

Press the unlocking button on the run and close the parasol.

● Cleaning and storage

• Clean the product using a slightly moist, fluff-free cloth. For more stubborn dirt you may also apply a weak soap solution to the cloth.
  Do not use chemical cleaners, scouring agents or sharp objects for cleaning the device, otherwise the product could be damaged.
  ■ Store the product in a cool, dry place over the winter.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

WARRANTY

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within three years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
