IAN 282714 - Air mattress CRIVIT - Free user manual and instructions

Product type	Air mattress
Brand	Crivit
Model	IAN 282714
Dimensions (L x W x H)	190 x 80 x 30 cm
Weight	3 kg
Material	Rigid PVC
Maximum load capacity	150 kg
Power supply	Manual or electric pump (not included)
Main functions	Quick inflation, easy deflation, soft surface
Valve	Large orifice valve for quick inflation/deflation
Care and cleaning	Clean with a damp cloth; do not use abrasive products
Storage	Store deflated, folded, in a dry place
Repair	Repair kit included for small leaks
Recommended use	Indoor and outdoor (on flat ground without sharp objects)
Safety	Do not use near sharp objects or open flames
Warranty	Statutory 2-year warranty
Country of origin	China

Frequently Asked Questions - IAN 282714 CRIVIT

How to inflate the Crivit IAN 282714 air mattress?

Use a suitable manual or electric pump. Insert the nozzle into the valve and inflate to the desired firmness. Do not overinflate.

What are the exact dimensions of the mattress?

The mattress measures approximately 190 cm long, 80 cm wide, and 30 cm high when inflated.

What is the maximum weight this mattress can support?

The maximum load capacity is 150 kg. Do not exceed this limit to avoid damage.

How to repair a leak on the mattress?

Use the included repair kit. Locate the leak with soapy water, dry the area, apply glue and patch, then press firmly.

Is the mattress suitable for outdoor use?

Yes, it can be used outdoors on flat, clean ground away from sharp objects. Avoid rough surfaces.

How to clean the air mattress?

Clean it with a soft, slightly damp cloth and mild soap. Rinse with clean water and air dry before storing.

How to store the mattress after use?

Completely deflate the mattress, fold it carefully, and store it in a dry place away from direct sunlight.

Is the mattress delivered with a pump?

No, a manual or electric pump is not included. You must purchase it separately.

What type of valve does this mattress have?

It is equipped with a large orifice valve compatible with most standard pumps. Make sure your pump is suitable.

Can I use this mattress on a bed or frame?

Yes, it can be placed on a bed or frame, but ensure the surface is flat and free of bumps to avoid punctures.

USER MANUAL IAN 282714 CRIVIT

LUFTMATRATZE

DE AT CH

LUFTMATRATZE

Gebrauchsanweisung

IT CH

MATERASSINO GONFIABILE

Instructions for use

IAN 282714

DE AT CH

Lieferumfang 4

Technische Daten 4

Scope of delivery 14

Technical data 14

Intended use 14

Used symbols 14 - 15

Safety instructions 15

Inflating 15-16

Empty the air 16

Repair 16

Care, storage 16

Disposal 16

Service 16

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following operating instructions.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

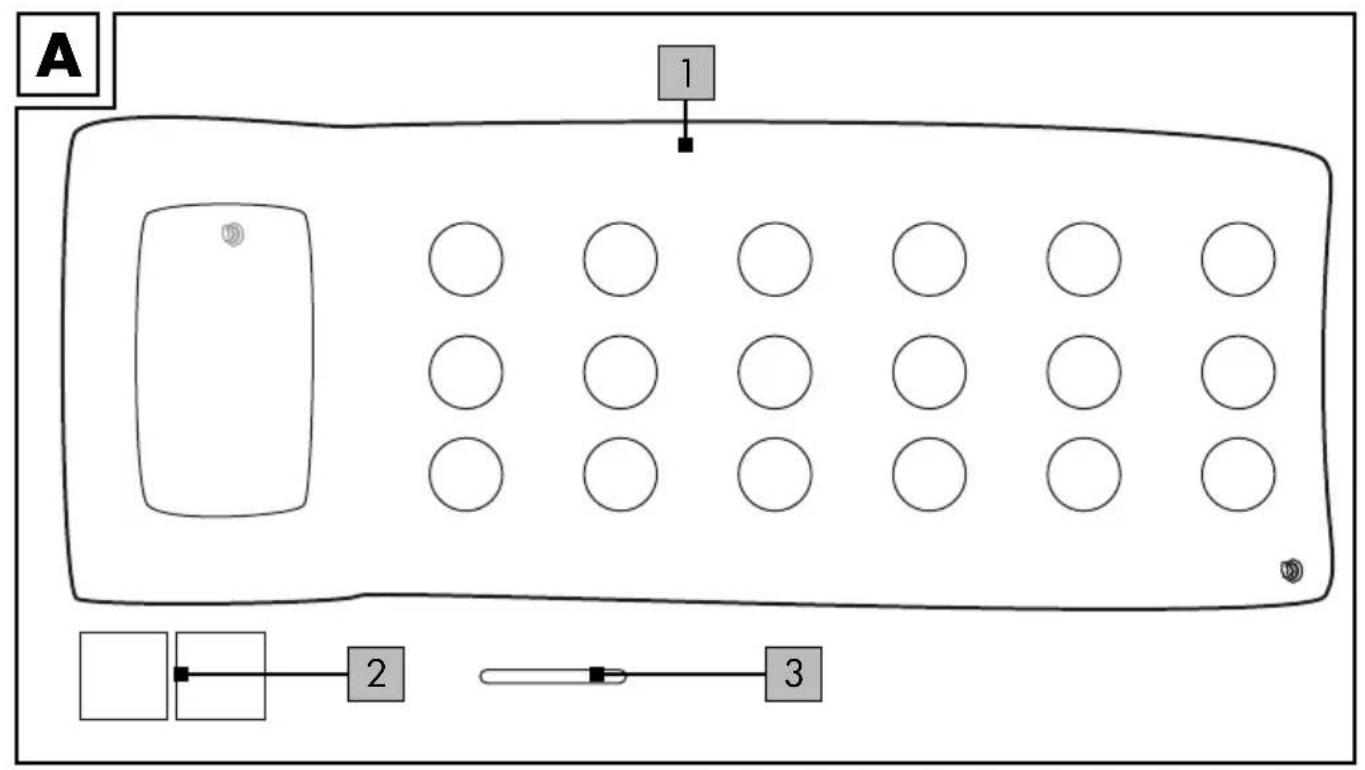

Scope of delivery (figure A)

1 x pool lounger (1)

2 x repair patch (2)

1 x bleeder tube (3)

1 x instructions for use

Technical data

Size (inflated): approx. 178 x 65 x 19cm (L x W x H)

Highest load: 100kg

Intended use

This product is designed for private use by one person of 100kg maximum weight, and is for use on water. The product is not a swimming aid, or a water toy, or a winter sports article, and is only suitable for swimmers!

Not suited for children from ages 0-14.

Used symbols

WARNING!

Please take note of the symbols indicated on the product before using the item.

General warning sign

This is not a buoyancy aid

General prohibition sign

General mandatory sign

First read the instructions for use

Do not use with offshore

Do not use with offshore

Not suitable for children 4 years of age

Number of users: / children 0

Only suitable for at swimmers

Device requires

Highest load

Safe distance to shore: 50m

completely

Inflate all air chambers

Safety instructions

CAUTION!

There is a risk of tipping, drifting or drowning if these instructions are not followed. Uneven distribution of load on the article will cause tipping.

WARNING!

Risk of suffocation for children! Do not allow children to play with the packaging material or the product without supervision.

WARNING! MORTAL DANGER!

Will not protect against drowning!

For swimmers only!

CAUTION!

The air chambers can be pushed below the water surface during ascending.

Due to this reason and as well as due to single-sided loading the product can tilt.

Risk of injury!

• Use the device only for its intended purpose.
• The product may only be used by persons who are familiar with the safety information.
• Please take note of the maximum highest load. Exceeding the weight limit can lead to product damages as well as influence the functions negatively.
• Check the product for damages or wear before each use. The product may only be used while in good order and condition! Do not use the product if visual damages can be seen or are suspected.
• Do not use the product anymore if it can no longer constrain air.

Avoiding damage to the product!

• All inflatable products are sensitive to the cold. The product should thus never be unfolded and inflated at temperatures below 15^ C !

• If air pressure increases in direct sunlight, it should be adjusted correspondingly by releasing some of the air.

• Please ensure that the product – particularly when it is inflated – is not brought into contact with stones, gravel or sharp objects and that it does not chafe or rub against anything, as damages to the foil could otherwise occur.

• Only insert suitable pump adapters into the safety valves. Otherwise the valves could become damaged.
• Do not inflate too strongly, as this could cause the welded seams to burst open. Seal the valves tightly after inflating.
• Avoid contact with sharp, hot, pointed or dangerous objects.

Inflating

ATTENTION!

• All air chambers must always be completely inflated!
• Avoid excessively inflating the air chambers as this could cause the welded seams to overstretch or even burst open.
• Use standard foot pumps or double-action hand pumps with the correct adapters to inflate the product.
• Do not inflate the product with compressors or compressed air bottles. This could damage the product.
  • Make sure that the chambers are equally filled with air one after the other.
• Only inflate the chambers enough such that they are still slightly wavy on the inside after being inflated.

Pump up the air chambers in the following order:

1. • Main section
2. • Head section

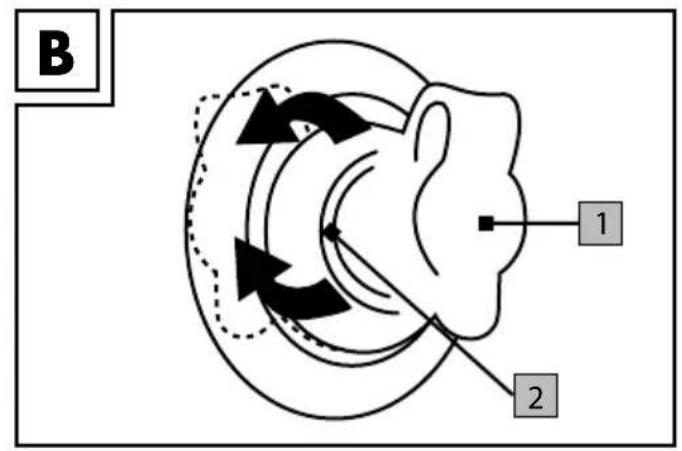

3. Open the valve stopper (1) (figure B).
4. Press the valve shaft (2) together and pump up the air chamber until the article is sufficiently taut.
5. Close the valve stopper and press the valve into the mattress applying gentle pressure.

Empty the air

1. Pull the valve out.
2. Press the valve shaft together slightly so that the air can escape.

Or insert the ventilation tube into the closure in order to allow the air to escape quickly.

Repair

Small leaks or holes can be rectified using the enclosed repair patch.

Important!

After repairing this product, do not inflate it for at least 20 minutes! Do not use the patch for leaks or holes on the seam.

• Let all the air escape from the product.
• Clean the area around the leak thoroughly! This area must be dry and free of grease or oil.
• Cut off a piece of the repair patch, which is approx. 1.3cm larger in diameter than the damaged area.
• Pull the patch off of the paper and place it on the damaged area and press down firmly.

Care, storage

Always store this product in a dry, clean and deflated state at room temperature. The valves should always be closed when this product is being stored. Only clean using water or soap water; never use any aggressive cleaning agents. When putting this product away for winter storage, do not place any sharp objects on top of it and do not apply talcum powder.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

IAN: 282714

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6

D-22397 Hamburg

Version: 04/2017
