Product Type	Calibration Color LCD Monitor
Screen Size	24.0 inch (61 cm) wide format
Panel Type	Color TFT (IPS) with LED backlight
Native Resolution	1920 × 1200
Viewing Angles	178° horizontal and vertical
Brightness (Recommended)	120 cd/m² or less
Contrast Ratio (typ.)	1000:1 (with DUE Priority set to Brightness)
Response Time	12 ms (black-white-black); 7.7 ms (gray-to-gray, Overdrive On)
Color Gamut (typ.)	Adobe RGB coverage 99%, NTSC ratio 110%
Display Colors	Approx. 1073.74 million (10-bit via DisplayPort/HDMI); 16.77 million (DVI)
Input Terminals	DVI-D ×1, HDMI ×1, DisplayPort ×1
USB Ports	Upstream ×2, Downstream ×2
Power Supply	100-120 Vac ±10%, 0.9A / 200-240 Vac ±10%, 0.5A; 50/60 Hz
Power Consumption (typ.)	0 W when main power switch is off
Built-in Calibration Sensor	Yes, supports SelfCalibration
Color Management Software	ColorNavigator (included)
DUE (Digital Uniformity Equalizer)	Reduces display unevenness; selectable Brightness or Uniformity priority
Overdrive Function	Improves moving image response; can be turned On/Off
Frame Sync Mode	Supported: 23.75-30.5 Hz and 47.5-61.0 Hz
Orientation	Landscape and Portrait (rotate 90° clockwise)
Cleaning	Use provided ScreenCleaner; avoid alcohol, benzene, or abrasive cleaners
Important Notice	Allow 7 minutes warm-up; use screen saver to prevent afterimages; periodic cleaning recommended

Frequently Asked Questions - ColorEdge CG247 EIZO

How do I perform SelfCalibration on the ColorEdge CG247?

Go to the Adjustment menu, select SelfCalibration > Execute. The built-in sensor will deploy and calibrate automatically. Ensure targets are set beforehand under Color > Target or via ColorNavigator software.

What are the compatible resolutions for the CG247?

The monitor supports many resolutions up to 1920×1200. Common ones include 640×480, 1024×768, 1280×1024, 1600×1200, and 1920×1080. For a full list, see the manual's 'Compatible Resolutions/Formats' section.

How can I adjust the brightness of the monitor?

Press the ▲ or ▼ buttons on the front panel to open the Brightness menu, then use those buttons to adjust. You can also adjust from the Color menu in the Adjustment menu.

How do I switch between multiple input sources?

Press the SIGNAL button on the monitor to cycle through connected inputs (DVI, HDMI, DisplayPort). The active input name appears on the top right of the screen.

What should I do if the screen shows no picture?

Check that the power cord is connected and the main power switch is on. Ensure the PC is on and the signal cable is secure. Press SIGNAL to switch inputs. If the power indicator is orange, the monitor may be in power saving mode.

How do I clean the monitor safely?

Use the provided ScreenCleaner on a soft cloth. Never use alcohol, benzene, thinner, or abrasive cleaners. Avoid liquid entering the gap between the panel and frame.

Can I mount the CG247 on an arm?

Yes, remove the stand by loosening the four screws. Attach a VESA-compatible arm (100×100 mm hole pattern, plate thickness 2.6 mm). Ensure the arm supports the monitor's weight (approx. 8.4 kg without stand).

How do I reset all settings to factory defaults?

Go to Tools > All Reset in the Adjustment menu and select Execute. This resets all adjustments except those in 'Optional Settings' and 'USB Selection'.

Does the monitor support HDCP?

Yes, all three input terminals (DVI-D, HDMI, DisplayPort) are HDCP-compatible, so you can play protected content such as Blu-ray movies.

What is the purpose of the DUE (Digital Uniformity Equalizer) function?

DUE reduces luminance and color unevenness across the screen. You can choose between Brightness priority (higher brightness/contrast) or Uniformity priority (more even display). Adjust via Optional Settings menu.

USER MANUAL ColorEdge CG247 EIZO

Calibration Color LCD Monitor

Important

Please read PRECAUTIONS, this User's Manual, and the Setup Guide (separate volume) carefully to familiarize yourself with safe and effective usage.

• Please refer to the Setup Guide for basic information ranging from connection of the monitor to a PC to using the monitor.
• The latest User's Manual is available for download from our web site: http://www.eizo.com

Location of Caution Statement

This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside this region, the product may not perform as stated in the specifications.

No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO Corporation.

EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation's receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

Notice for this monitor

Aside from general purposes like creating documents, viewing multimedia content, this product is also suited to applications such as graphics creation and digital photo processing, where accurate color reproduction is a priority.

This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications.

This product may not be covered by warranty for uses other than those described in this manual.

The specifications noted in this manual are only applicable when the following are used:

· Power cords provided with the product

· Signal cables specified by us

Only use optional products manufactured or specified by us with this product.

It takes about 7 minutes (under our measurement conditions) for the performance of electrical parts to stabilize. Please wait 7 minutes or more after the monitor power has been turned on, and then adjust the monitor.

Monitors should be set to a lower brightness to reduce changes in luminosity caused by long-term use and maintain a stable display.

When the screen image is changed after displaying the same image for extended periods of time, an afterimage may appear. Use the screen saver or power save function to avoid displaying the same image for extended periods of time.

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime (refer to “Cleaning” (page 4)).

The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may appear on the LCD panel, this is not a malfunction. Percentage of effective dots: 99.9994% or higher.

The backlight of the LCD panel has a fixed lifetime. When the screen becomes dark or begins to flicker, please contact your local EIZO representative.

Do not press on the panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc. If pressure is continually applied to the panel, it may deteriorate or damage your panel. (If the pressure marks remain on the panel, leave the monitor with a black or white screen. The symptom may disappear.)

Do not scratch or press on the panel with any sharp objects, as this may result in damage to the panel. Do not attempt to brush with tissues as this may scratch the panel.

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the monitor. In that case, do not turn the monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to the monitor.

Cleaning

Attention

• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or panel, and also quality deterioration of the image.
• Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet or panel.
• Do not allow liquid to enter the clearance between the panel and the panel frame.

The stains on the cabinet and panel surface can be removed by using the provided ScreenCleaner.

To use the monitor comfortably

• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to the environmental conditions.
• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

CONTENTS

Cover 1

Notice for this monitor .... 3

Cleaning 4

To use the monitor comfortably ....4

CONTENTS....5

Chapter 1 Introduction......7

1-1. Features 7

1-2. Controls and Functions ...... 9

Pont 9

Fear....10

Disk contents and software overview ......11

use ColorNavigator ....11

1-4. Basic Operations and Functions .....12

Basic Adjustment menu operations ......12

Showing Button Guide 13

Functions....13

Chapter 2 Adjusting Screens .... 15

2-1. Setting Resolution....15

Compatible Resolutions/Formats....15

switch signal formats (Only for HDMI signal input)....16

set the display resolution for the OS .....16

select screen size....17

2-2. Selecting the display mode (color mode).19

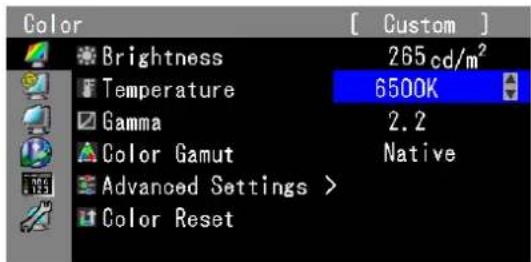

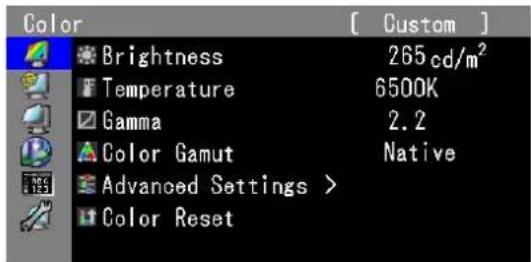

2-3. Adjusting Color 20

adjust brightness 20

adjust the temperature 21

adjust gamma....21

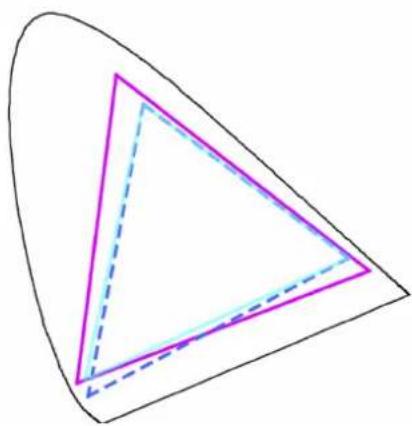

set color gamut....22

perform advanced adjustments 22

2-4. Configuring Moving Image Performance.26

2-5. Specifying Color Space 27

2-6. Expanding Signal Output Range ..... 28

extend the output range 28

select the range of signals to extend ..... 28

2-7. Setting HDMI.... 29

reduce noise....29

select how to display interlace signal......29

setting safe area....29

Chapter 3 Setting Monitor .... 31

3-1. Setting Adjustment Menu ....31

Selecting the Language ......31

Setting Orientation 31

change adjustment menu display position 31

3-2. Skipping Unused Display Modes....32

3-3. Showing and Hiding the EIZO Logo ...... 32

3-4. Locking Operation Buttons 32

3-5. Changing DUE (Digital Uniformity Equalizer) Setting 33

3-6. Setting Signal Bandwidth 33

3-7. Reset to default 34

to reset the color adjustments....34

reset all adjustments to the default settings 34

Chapter 4 SelfCalibration ...... 35

4-1. Setting the Color Mode for Executing SelfCalibration 35

●AL mode 35

Standard Mode 35

4-2. Setting Monitor Date and Time...... 36

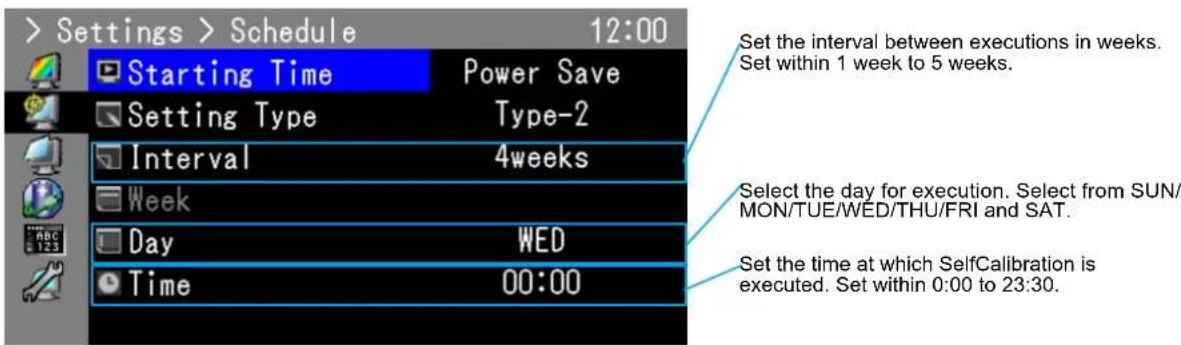

4-3. Setting Calibration Schedule 36

4-4. Setting the calibration targets .... 38

4-5. Executing SelfCalibration....39

4-6. Checking Adjustment Results......40

check adjustment results with CAL mode 40

check adjustment results with Standard Mode.... 40

Chapter 5 Connecting Multiple External Devices 41

5-1. To switch among input signals 42

5-2. To set input signal selection.... 42

5-3. Skipping Unused Input Signals......42

5-4. Switching USB Port Automatically ..... 43

Chapter 6 Power Saving Functions ...... 44

6-1. Setting Power Save 44

6-2. Adjusting Brightness of Front Button.....44

6-3. Setting DisplayPort Power Save 45

Chapter 7 Troubleshooting......46

7-1. No picture 46

7-2. Imaging problems......47

7-3. Other problems 48

7-4. Built-in calibration sensor and SelfCalibration problems....49

Chapter 8 Reference ....50

8-1. Attaching the Optional Arm....50

8-2. Making Use of USB (Universal Serial Bus)....51

System Requirement....51

Procedure....51

8-3. Showing Monitor Information.... 52

Displaying signal information 52
Displaying Monitor Information ....52

8-4. Specifications 53

Chapter 9 Glossary 56

Appendix....59

Trademark 59

License / Copyright 59

FCC Declaration of Conformity 60

Recycling Information ....71

China Measures for RoHS Compliance in ChinaRoHS....75

Chapter 1 Introduction

1-1. Features

• 24.0" wide format LCD
• Wide color gamut (Adobe® RGB coverage: 99%)
  • Supports a resolution of 1920 × 1200 .
• IPS panel with 178^ horizontal and vertical viewing angles
  • Frame synchronization mode supported (23.75 - 30.5Hz, 47.5 - 61.0Hz)

• 3 signal input terminals (DVI-D × 1, HDMI × 1, DisplayPort × 1)

• DisplayPort (applicable to 8 bit and 10 bit) ^*1

• HDMI (applicable to 8 bit, 10 bit, and 12 bit) ^1,2
  Can handle PC signals in HDMI input

*1 Not applicable to audio signals.
*2 The maximum screen display is 10 bits.

• Color mode function

Reproduces a color temperature, gamma, and gamut compliant with the following standard.

• Broadcasting standards "EBU/REC709/SMPTE-C"
• Digital cinema standard "DCI"
• Adobe ^® RGB / sRGB

See “2-2. Selecting the display mode (color mode)” (page 19)

• Attaching the “Adjustment Certificate”, which describes the factory measurement results of the grayscale and uniformity characteristics for each monitor
• Portrait/Landscape display available (rotate 90^ clockwise)
• This product is equipped with a built-in calibration sensor, and supports SelfCalibration in which the monitor executes calibration independently.
  See "Chapter 4 SelfCalibration" (page 35)

- The provided Color Management Software “ColorNavigator” enables you to calibrate monitor characteristics and generate color profiles

See "1-3. EIZO LCD Utility Disk" (page 11)

• Power saving function

Suppressing the power consumption reduces the carbon dioxide emissions. This product is equipped with power saving function.

- 0 W power consumption when the main power is off

Equipped with main power switch.

When the monitor is not required, the power supply can be shut off using the main power switch.

- Displays HDCP (High-bandwidth Digital Protection) protected contents.

Be careful of the following points when using the built-in calibration sensor.

Do not touch the built-in calibration sensor.

It may reduce the measurement accuracy of the built-in calibration sensor, or result in injury or equipment damage.

Attention

• A high temperature or high humidity environment may affect the measurement accuracy of the built-in calibration sensor. We suggest storing and using the monitor under the following conditions.
• Temperature 30°C or less
• Humidity 70% or less
  Avoid storing or using the sensor where it may be exposed to direct sunlight.
• Since adjustment accuracy of the monitor by the build-in sensor may be a ected, leave the level of ambient light that enters the sensor part of the built-in sensor unchanged largely while measuring.
• The use of the monitor hood is recommended.
• While measuring, do not bring the face or the object close to the monitor, do not look into the sensor.
• Set the monitor in the environment so that the light outside does not enter the sensor part directly.

Note

• This monitor supports both portrait and landscape format. You can change the orientation of the Setting menu when using the monitor screen in vertical display position. (See “Setting Orientation” (page 31))
• When using the monitor screen in a portrait position, the graphics board supporting portrait display is required. When placing the monitor in a portrait position, the settings of your graphics board need to be changed. Refer to the User's Manual of the graphics board for details.

1-2. Controls and Functions

Font

1. Built-in calibration sensor	Executes calibration for an independent monitor. SelfCalibration function (page 35)
2. Ambient Light Sensor Measures ambient light.
3. SIGNAL button	Switches input signals for display (page 42).
4. MODE button	Changes Color Mode (page 19).
5. RETURN button	Cancels the setting/adjustment and exits the Adjustment menu.
6. ▲▼ buttons	Provides the menu selection as well as the adjustment and setting of a function.Displays the Brightness menu (page 20).
7. ENTER button	Displays the Adjustment menu, determines an item on the menu screen, and saves values adjusted (page 12).
8. ⏻ button	Turns the power on or off.
9. Power Indicator	Indicates the monitor's operation status.Blue: OperatingFlashing blue (2 times for each): Indicates that recalibration is required if the SelfCalibration schedule (page 36) is set.Orange: Power saving modeOFF: Main power/Power off

*1 See “1-4. Basic Operations and Functions” (page 12) for how to use.

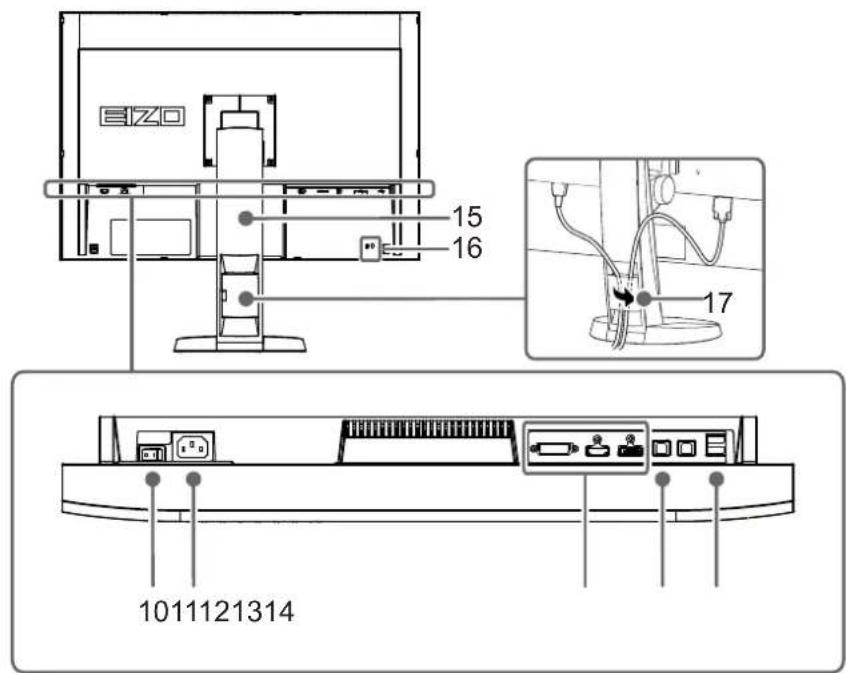

10. Main power switch	Turns the main power on or off.
11. Power connector Connects the power cord.
12. Input signal connectors	Left: DVI-D connector / Center: HDMI connector / Right: DisplayPort connector
13. USB upstream port	Connects the USB cable to use the software that needs USB connection, or to use USB hub function (page 51).
14. USB downstream port Connects a peripheral USB device.
15. Stand*2	Used to adjust the height and angle of the monitor screen.
16. Security lock slot	Complies with Kensington's MicroSaver security system.
17. Cable holder	Covers the monitor cables.

*2 An optional arm (or an optional stand) can be attached by removing the stand section (see "8-1. Attaching the Optional Arm" (page 50)).

1-3. EIZO LCD Utility Disk

An “EIZO LCD Utility Disk” (CD-ROM) is supplied with this product. The following table shows the disk contents and the overview of the software programs.

Disk contents and software overview

The disk includes application software programs for adjustment, and User's Manual. Refer to "Readme.txt" or the "read me" file on the disk for software startup procedures or file access procedures.

Contents	Overview	Windows	Macintosh
A “Readme.txt” or “read me” file
ColorNavigator A	application software for calibrating monitor characteristics and generating ICC profiles (for Windows) and Apple ColorSync profiles (for Macintosh).(A PC must be connected to the monitor with the supplied USB cable.)
Screen adjustment pattern files*1	Used when adjusting the image of the analog signal input manually. -
User’s Manual of this monitor (PDF file)

*1 This monitor does not support analog signal input, so these files are not used.

T●use ColorNavigator

Refer to the corresponding User's Manual on the CD-ROM disk in order to install and use the software. When using this software, you will need to connect a PC to the monitor with the supplied USB cable. For details of the USB cable connection, see "8-2. Making Use of USB (Universal Serial Bus)" (page 51).

1-4. Basic Operations and Functions

Basic Adjustment menu operations

1. Displaying Adjustment Menu

1. Press ENTER adjustment menu appears.

2. Adjusting/Setting

1. Choose a menu to adjust/set with ▲ and then press . ENTER

1. Choose an item to adjust/set with ▲,▼ and then press . ENTER

1. Adjust/set the selected item with ▲ and then press . ENTER

3. Exiting

1. Press RETURNS. The Adjustment menu finishes.

Sowing Button Guide

When you press the front buttons (except the button), the button guide appears next to the button.

• The button guide will continue to appear while the Adjustment menu or Mode menu is showing.
• The contents of the button guide will differ depending on the selected menu or status.
• In CAL mode, the brightness cannot be adjusted even though the button guide is displayed above the ▲ and ▼ buttons.

Fonctions

The following table shows the menus for adjustment and setting items of each menu.

Main Menu Item Reference
Color (Standard Mode)*1	Brightness		"2-3. Adjusting Color" (page 20)
	Temperature
	Gamma
	Color Gamut
	Advanced Settings	Hue
		Saturation
		Cliping
		Gain
		Black Level
		6 Colors
	Color Reset		"3-6. Setting Signal Bandwidth" (page 33)
Color (CAL Mode)*2	Target SelfCalibration		"4-1. Setting the Color Mode for Executing SelfCalibration" (page 35)
			"4-4. Setting the calibration targets" (page 38)
	Result	Calibration Result	"4-6. Checking Adjustment Results" (page 40)
		Ambient Light
	Color Reset		"3-6. Setting Signal Bandwidth" (page 33)
SelfCalibration	[CC42]			“4-5. Executing SelfCalibration” (page 39)
	Standard Mode Sel		[1973]	“4-1. Setting the Color Mode for Executing SelfCalibration” (page 35)
				“4-6. Checking Adjustment Results” (page 40)
	Settings		[0647]	“4-3. Setting Calibration Schedule” (page 36)
			[03K3] [0466]Adjustment	“4-2. Setting Monitor Date and Time” (page 36)
Screen	[CS43] [TTDW]		[73C] [0515]	“To select screen size” (page 17)
	[7826] [6540]		[23C] [0558]	“2-4. Configuring Moving Image Performance” (page 26)
	[7TH6] [3955]			“2-5. Specifying Color Space” (page 27)
	[8H7Q] [9T85]		R# [9700] [7W08]	“2-6. Expanding Signal Output Range” (page 28)
	[8210] [2558]		SL [0572] [087]
	[8C30] [2485]		No [807H] [527Y]	“2-7. Setting HDMI” (page 29)
	[77YH] [227Z]		Fil [0240]
	[23A4]		Sa [72C1] [Y7Z]
	[047Z] [0374]		Sa [C186] [8AAA]
	[12X6] [0821]		Bc [8V7Z1] [4476]
Power Manager	Power Save			“6-1. Setting Power Save” (page 44)
	Indicator			“6-2. Adjusting Brightness of Front Button” (page 44)
Menu Settings	Language			“Selecting the Language” (page 31)
	Orientation			“Setting Orientation” (page 31)
	Menu Position			“To change adjustment menu display position” (page 31)
Tools	Input Selection			“5-2. To set input signal selection” (page 42)
	Input Skip			“5-3. Skipping Unused Input Signals” (page 42)
	Mode Skip			“3-2. Skipping Unused Display Modes” (page 32)
	USB Selection			“5-4. Switching USB Port Automatically” (page 43)
	Signal Info			“8-3. Showing Monitor Information” (page 52)
	Monitor info
	All Reset			“3-6. Setting Signal Bandwidth” (page 33)

Power Manager	[2YKK]		[6W7X]		“6-1. Setting Power Save” (page 44)
	[AVZY]				“6-2. Adjusting Brightness of Front Button” (page 44)
Menu SettingsABC123	[HAYW]		[3HDB]	[CYCD]	“Selecting the Language” (page 31)
	[6SJK]	[XBC2]	[KV6D]	[TSC1]	“Setting Orientation” (page 31)
			[8OZC]	[XTEW]	“To change adjustment menu display position” (page 31)
Tools		[KHZ6]		[TH7F]	“5-2. To set input signal selection” (page 42)
	[4Y0G]	[8469]	[723Y]	[073A]	“5-3. Skipping Unused Input Signals” (page 42)
	[3B03]			[53C0]	“3-2. Skipping Unused Display Modes” (page 32)
		[7Y4S]	[7HUA]	[4KHZ]	“5-4. Switching USB Port Automatically” (page 43)
	[CXTY]	[550G]	[73AS]		“8-3. Showing Monitor Information” (page 52)
				[4330]
	[YT1Z]	[AYAA]	[3W8Z]	[06BW]	“3-6. Setting Signal Bandwidth” (page 33)

*1 Functions available for adjustment and setting in Standard Mode (page 19) are displayed.
*2 Functions available for adjustment and setting in CAL Mode are displayed.
*3 This function is available with HDMI signal input.

Chapter 2 Adjusting Screens

2-1. Setting Resolution

Compatible Resolutions/Formats

The monitor supports the following resolutions.

When using PC signal input (DVI-D, DisplayPort, HDMI: PC*1)

Resolution	Vertical scan frequency
640 x 480 60 Hz
720 x 400 70 Hz
800 x 600 60 Hz
1024 x 768 60 Hz
1280 x 960 60 Hz
1280 x 1024 60 Hz
1600 x 1200 60 Hz
1680 x 1050 60 Hz
1920 x 1080 60 Hz
1920 × 1200^*2	60 Hz

*1 When displaying PC signals by HDMI signal input, change the monitor's setting in advance (see (“To switch signal formats (Only for HDMI signal input)” (page 16)).
*2 Recommended resolution

When using Video signal input

Formats	Vertical scan frequency	Resolution	Scan Type	DVI	DisplayPort	HDMI
						Video*1	PC*2
480p	59.94 Hz / 60 Hz	640×480	Progressive	3	3	√	3
480i	59.94 Hz / 60 Hz	720×480	Interlace	-	-	√	-
480p	59.94 Hz / 60 Hz	720×480	Progressive	-	3	√	-
576i	50 Hz	720×576	Interlace	-	-	√	-
576p	50 Hz	720×576	Progressive	-	-	√	-
720p	50 Hz	1280×720	Progressive	3	3	√	3
720p	59.94 Hz / 60 Hz	1280×720	Progressive	3	3	√	3
1080p	23.976 Hz / 24 Hz	1920×1080	Progressive	3	3	√	3
1080p	25 Hz	1920×1080	Progressive	3	3	√	3
1080p	29.97 Hz / 30 Hz	1920×1080	Progressive	3	3	√	3
1080i	50 Hz	1920×1080	Interlace	3	3	√	3
1080p	50 Hz	1920×1080	Progressive	3	3	√	3
1080i	59.94 Hz / 60 Hz	1920×1080	Interlace	3	3	√	3
1080p	59.94 Hz / 60 Hz	1920×1080	Progressive	3	3	√	3

*1 The color difference signal is supported.
*2 Change the monitor's setting in advance.
*3 The output device must be defined. Refer to the User's Manual of the output device for further details.

T● switch signal formats (Only for HDMI signal input)

The monitor's displayable resolution can be changed. Use this when displaying PC signals by HDMI signal input.

Adjustable Range

Video / PC

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor. The "Optional Settings" menu appears.
3. Choose "Signal Selection" from "Optional Settings", and press .ENTER
4. Choose the input signal to set with ▲ or ▼ and press .ENTER
5. Select "Signal Format" with the selected input signal and press ENTER.
6. Switch the signal format with ▲ or ▼
7. Select "Finish" with ▲ or ▼
8. Press ENTER.

T● set the display resolution for the OS

When you connect the monitor to the PC and find that the resolution is improper, or when you want to change the resolution, follow the procedure below.

Windows 8 / Windows 7

1. For Windows 8, click the "Desktop" tile on the Start Screen to display the desktop.
2. Right-click the mouse anywhere on the desktop except for icons.
3. From the displayed menu, click "Screen resolution".
4. On the "Screen Resolution" dialog box, select the monitor.
5. Click "Resolution" to select the desired resolution.
6. Click the "OK" button.
7. When a confirmation dialog box is displayed, click "Keep changes".

Windows Vista

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Personalize".
3. On the "Personalization" window, click "Display Settings".
4. On the "Display Settings" dialog box, select the "Monitor" tab and select desired resolution in the "Resolution" field.
5. Click the "OK" button.
6. When a confirmation dialog box is displayed, click "Yes".

Windows XP

1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click "Properties".
3. When the "Display Properties" dialog box is displayed, click the "Settings" tab and select desired resolution for "Screen resolution" under "Display".
4. Click the "OK" button to close the dialog box.

Mac OS X

1. Select "System Preferences" from the Apple menu.
2. When the "System Preferences" dialog box is displayed, click "Displays" for "Hardware".
3. On the displayed dialog box, select the "Display" tab and select desired resolution in the "Resolutions" field.
4. Your selection will be reflected immediately. When you are satisfied with the selected resolution, close the window.

To select screen size

The image with the resolution other than the recommended resolution is displayed in full screen automatically. You can change the screen size by using the “Screen Size” function from “Screen”.

When using PC signal input

Settings Function
Full	Displays an image in full screen. Images are distorted in some cases because the vertical rate is not equal to the horizontal rate.
Enlarged	Displays an image in full screen. In some cases, a blank horizontal or vertical border appears to equalize the vertical rate and the horizontal rate.
Normal Displays images with the specified resolution.

Example: Image size 1280 × 1024

Full Enlarged Normal

1920 × 1220 1500 × 1200 1280 × 1024

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "Screen Size" from "Screen", and press ENTER.
3. Select "Full", "Enlarged", or "Normal" with ▲ or ▼
4. Press ENTER to exit.

When using video signal input

When displaying HD signals (720p, 1080i, 1080p)

Settings Function
Enlarged	Images are enlarged to full screen without changing the aspect ratio. Blank borders may appear at the top and bottom of the screen to maintain the aspect ratio.
Dot by Dot Displays	images with the specified resolution.

Example: 720p

Enlarged Dot by Dot

Simple geometric diagram with a circle and three smaller circles inside a rectangle (no text or symbols)

Simple geometric diagram with a circle and two side circles inside a rectangle (no text or symbols)

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "Screen Size" from "Screen", and press ENTER.
3. Select "Enlarged", or "Dot by Dot" with ▲ or ▼
4. Press ENTER to exit.

When displaying SD signals (640x480, 480i, 480p, 576i, 576p)

Settings Function
Auto	The monitor automatically changes the screen size according to the aspect ratio sent from the auto input signal.
4:3 Displays images	in a 4:3 format screen. Black bars appear on both sides of the screen.16:9 images are horizontally compressed.
Letter Box Displays	16:9 letterboxed images in full screen.Images other than the letterboxed ones are partly cut on top and bottom.
16:9	Displays the entire 16:9 image in full screen. Black bars appear on the top and bottom of the screen. 4:3 images are horizontally expanded.

Example: 480i/480p (16:9)

Auto

Simple diagram with a central circle and three smaller circles on either side of it, enclosed in a rectangular frame (no text or symbols)

4:3

Simple geometric diagram with an oval and three small circles inside a rectangle (no text or symbols)

Letter Box

Pure geometric diagram with two vertical rectangles and a central oval, no text or symbols present

16:9

Simple diagram with a central circle and three smaller circles on either side of it, enclosed in a rectangle (no text or symbols)

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "Screen Size" from "Screen", and press ENTER.
3. Select "Auto", "4:3", "Letter Box", or "16:9" with ▲ or ▼
4. Press ENTER to exit.

2-2. Selecting the display mode (color mode)

This function allows easy selection of a desired mode according to monitor application.

Display Modes

Mode Purpose
Standard Mode Adjust color using the monitor's Adjustment menu.
	1-Custom Available for the color settings according to your preference.
	2-Adobe®RGB Suitable for color matching with Adobe ®RGB compatible peripherals.
	3-sRGB Suitable for color matching with sRGB compatible peripherals.
	4-EBU Suitable for reproducing the color gamut and gamma as set forth by EBU (European Broadcasting Union) standards.
	5-REC709 Suitable for reproducing the color gamut and gamma as set forth by the ITU-R Rec. 709 standard.
	6-SMPTE-C Suitable for reproducing the color gamut and gamma as set forth by SMPTE-C standards.
	7-DCI Suitable for reproducing the color gamut and gamma as set forth by DCI standards.
CAL Mode Adjust the monitor's color using software.
	8-CAL1	Displays the screen adjusted by the Color Management Software “ColorNavigator” and SelfCalibration.
	9-CAL2
	10-CAL3

Attention

- Avoid operating any function of the monitor while using ColorNavigator.

Example:

Procedure

1. Press MODE.

The mode menu appears at the bottom left of the screen.

1. The mode among the list is highlighted in turn each time MODES.

You can switch the mode with ▲ or ▼ while the mode menu is displayed.

Note

• The Adjustment menu and the Mode menu cannot be displayed at the same time.
• You can disable a specific mode to be selected. For more information, see “3-2. Skipping Unused Display Modes” (page 32).

2-3. Adjusting Color

When displaying in Standard Mode, the “Color” menu of the Adjustment menu allows you to set and save independent color adjustments for each mode.

Attention

• It takes about 7 minutes (under our measurement conditions) for the performance of electrical parts to stabilize. Please wait 7 minutes or more after the monitor power has been turned on, and then adjust the monitor.
• The same image may be seen in different colors on multiple monitors due to their monitor-specific characteristics. Make fine color adjustment visually when matching colors on multiple monitors.

Note

- The values shown in “cd/m ^2 ”, “K” or “%” are available only as reference.

T● adjust brightness

The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel).

Setting Range

50cd/m ^2 to 350 cd/m ^2

Procedure

1. Press ▲ or ▼
   The Brightness menu appears.

2. Use ▲ or ▼ for adjustment.

3. Press ENTER to exit.

Attention

• If the entered value cannot be set, the value will appear in magenta. In such a case, change the value.
• Alternatively, you can use "Brightness" under "Color" in the Adjustment menu to adjust it.

Note

To adjust the temperature

The color temperature can be adjusted.

The color temperature is normally used to express the color of “White” and/or “Black” by a numerical value. The value is expressed in degrees “K” (Kelvin).

The screen becomes reddish at a low color temperature, and bluish at a high color temperature, like the flame temperature. The gain preset values are set for each color temperature setting value.

Settings Purpose

4000K to 10000K Specify color temperature in units of 100 K

Native The image is displayed in the preset color of the monitor (Gain: 100% for each RGB).

Adobe®RGB Change to color temperature in conformance with Adobe ®RGB.

sRGB Change to color temperature in conformance with sRGB.

EBU Change to color temperature in conformance with EBU.

REC709 Change to color temperature in conformance with REC709.

REC1886 Change to color temperature in conformance with REC1886.

SMPTE-C Change to color temperature in conformance with SMPTE-C.

DCI Change to color temperature in conformance with DCI.

User Displayed when gain is changed.

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Temperature" from "Color", and press ENTER.
3. Use ▲ or ▼ for adjustment.
4. Press ENTER to exit.

Note

- “Gain” allows you to perform more advanced adjustment (see “To adjust gain” (page 25)).

To adjust gamma

Gamma can be adjusted. The brightness of the monitor varies depending on the input signal, however, the variation rate is not proportional to the input signal. To keep the balance between the input signal and the brightness of the monitor is called as “Gamma correction”.

Settings Purpose
1.6 to 2.7	Set the gamma value.
Adobe®RGB	Set the gamma curve defined by Adobe®RGB.
sRGB	Set the gamma curve defined by sRGB.
EBU	Set the gamma curve defined by EBU.
REC709	Set the gamma curve defined by REC709.
REC1886	Set the gamma curve defined by REC1886.
SMPTE-C	Set the gamma curve defined by SMPTE-C.
DCI	Set the gamma curve defined by DCI.

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Gamma" from "Color", and press ENTER
3. Use ▲ or ▼ for adjustment.
4. Press ENTER to exit.

Note

- The gamma curve can be adjusted to L* by using ColorNavigator. For details, refer to the ColorNavigator User's Manual (on the CD-ROtM).

T● set color gamut

Set the color reproduction area (color gamut). “Color gamut” is the range of colors that devices such as monitors, digital cameras and printers can express. Various standards are defined.

Settings Purpose

Native Display images in the monitor's original color gamut.

Adobe®RGB Display images in the color gamut defined by Adobe ®RGB.

sRGB Display images in the color gamut defined by sRGB.

EBU Display images in the color gamut defined by EBU.

REC709 Display images in the color gamut defined by REC709.

REC1886 Display images in the color gamut defined by REC1886.

SMPTE-C Display images in the color gamut defined by SMPTE-C.

DCI Display images in the color gamut defined by DCI.

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Color Gamut" from "Color", and press ENTER.
3. Use ▲ or ▼ for adjustment.
4. Press ENTER to exit.

Note

- The method of displaying the defined color gamut outside the normal gamut of the monitor can be set. For more information, see “To set clipping” (page 24).

TO perform advanced adjustments

Make further advanced color adjustments.

To adjust hue

This function allows you to adjust the hue.

Setting Range

-100 to 100

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Advanced Settings" from "Color", and press ENTER.
3. Choose "Hue", and press ENTER.
4. Use ▲ or ▼ for adjustment.
5. Press ENTER to exit.

Attention

- Using this function may make some color gradations unavailable for display.

To adjust saturation

This function allows you to adjust color saturation.

Setting Range

-100 to 100

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Advanced Settings" from "Color", and press ENTER.
3. Choose "Saturation", and press ENTER.
4. Use ▲ or ▼ for adjustment.
5. Press ENTER to exit.

Attention

• Using this function may make some color gradations unavailable for display.
• The minimum value (-100) changes the screen to monochrome.

Note

To set clipping

The method of displaying the defined color gamut outside the normal gamut of the monitor can be set.

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Advanced Settings" from "Color", and press ENTER.
3. Choose "Clipping", and press ENTER.
4. Select "On" or "Off" with ▲ or ▼

Geometric diagram of a triangle with solid and dashed lines, no text or symbols present

On Off

Displays colors based on the standard values. The colors outside the gamut of the monitor are clipped.

Geometric diagram of a triangle with solid and dashed lines, no text or symbols present

Displays colors with priority on the color gradation rather than the color accuracy. The primary colors outside the gamut of the monitor (blue in the diagram) are adjusted to the colors most similar to those that can be displayed by the monitor.

	Color gamut of monitor
	Color gamut defined by standard
	Color gamut displayed on screen

Attention

- This is a conceptual diagram, and does not display the actual color gamut of the monitor.

5. Press ENTER

Attention

- This function will be disabled if "Native" is selected at "To set color gamut" (page 22).

To adjust gain

The brightness of each color component red, green, and blue is called Gain. You can change the hue of “white” by adjusting gain.

Setting Range

0% to 100%

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Advanced Settings" from "Color", and press ENTER.
3. Choose "Gain", and press ENTER.
4. Choose the color for adjustment from "Red", "Green", and "Blue", and press ENTER
5. Use ▲ or ▼ for adjustment.
6. Press ENTER to exit.

Attention

- Using this function may make some color gradations unavailable for display.

Note

• The "Temperature" setting invalidates this setting.
• The value of gain changes with that of color temperature.
• When gain is changed, the color temperature is changed to "User".

To adjust the brightness and color of black

You can adjust the brightness and chromaticity of black by adjusting the black level of red, green, and blue respectively. Please use a black test pattern or background for adjustment of the black level.

Adjustable Range

0% to 100%

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Advanced Settings" from "Color", and press ENTER.
3. Choose "Black Level", and press ENTER.
4. Choose the color for adjustment from "Red", "Green", and "Blue", and press ENTER
5. Use ▲ or ▼ for adjustment.
6. Press ENTER to exit.

Note

- To further darken the black when the value of the black level is 0, lower the brightness value.

To adjust 6 Colors

The hue, saturation and lightness can be adjusted for each of six colors: Magenta, Red, Yellow, Green, Cyan, and Blue.

Adjustable Range

-100 to 100

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Advanced Settings" from "Color", and press ENTER.
3. Choose "6 Colors", and press ENTER.
4. Choose the color for adjustment from "Magenta", "Red", "Yellow", "Green", "Cyan", and "Blue", and press ENTER.
5. Select "Hue", "Saturation" or "Lightness", and press ENTER.
6. Use ▲ or ▼ for adjustment.
7. Press ENTER to exit.

2-4. Configuring Moving Image Performance

This product is equipped with an overdrive function. This function reduces visible afterimages that appear in fast moving images. If noise or afterimage is adversely noticeable when the “Overdrive” setting is set to “On”, change the setting to “Off”.

Default setting: "Off"

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "Overdrive" from "Screen", and press ENTER.
3. Select "On" or "Off" with ▲ or ▼
4. Press ENTER to exit.

2-5. Specifying Color Space

The color space of the input signal can be specified. Set to other than “Auto” if this product cannot display correct color.

Settings Function
Auto Identifies the color space of the input signal automatically.
YUV 4:2:2 Converts	the color space of the input signal to a YUV 4:2:2 format.
YUV 4:4:4 Converts	the color space of the input signal to a YUV 4:4:4 format.
RGB Converts the color space of the input signal to an RGB format.

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "Color Space" from "Screen", and press ENTER.
3. Select "Auto", "YUV 4:2:2", "YUV 4:4:4", or "RGB" with ▲ or ▼
4. Press ENTER to exit.

Attention

• The setting is required when a DVI device is connected to the monitor (at the HDMI connector port) using the DVI-HDMI conversion connector.
• Even if "Auto" is set, correct color might not be displayed.

Note

• The color space at the DVI input is converted to an RGB format.
• See "2-6. Expanding Signal Output Range" (page 28) to set the range of input signals.

2-6. Expanding Signal Output Range

Depending on the external device, the black and white levels in the video signal output to the monitor may be restricted. If the signal is displayed on the monitor in its restricted form, the blacks will be faint, the whites dull, and contrast will be reduced. To restore the monitor's original contrast ratio, the output range can be extended for this kind of signal.

Example:

Astronaut in a white spacesuit with a dome reflecting its height (no visible text or symbols)

Astronaut performing spacewalk outside spacecraft, captured in full view against a dark sky (no visible text or symbols)

Restricted image Image with extended output range

TO extend the output range

The output range of the signal is extended to 0 - 255 for display.

Settings Function
On The output range of the signal is extended to 0 - 255 for display.
Off The signal output range is not extended.
Auto	The monitor automatically recognizes the brightness range of input signals and displays images appropriately (recommended).

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "Range Extension" from "Screen", and press ENTER.
3. Choose "Range Extension" from "Range Extension", and press ENTER.
4. Select "On", "Off", or "Auto" with ▲ or ▼

Attention

• When the DVI signal is input, "Auto" cannot be selected.

• If "Range Extension" is set to "On" while the signal output range is 0–255, black to white gradation may be lost.

• Press ENTERto exit.

To select the range of signals to extend

The method for extending signals can be selected by turning the "Super white" setting "On" or "Off".

Settings	Function
On	The output range of the signal is extended from 16 - 254 to 0 - 255 for display.
Off	The output range of the signal is extended from 16 - 235 to 0 - 255 for display.

Default setting: "Off"

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "Range Extension" from "Screen", and press ENTER.
3. Choose "Super White" from "Range Extension", and press ENTER
4. Select "On" or "Off" with ▲ or ▼
5. Press ENTER to exit.

Attention

- If "Range Extension" is turned "Off", the setting can be changed but the change will not be applied.

2-7. Setting HDMI

TO reduce noise

The small noises that occur in dark images are reduced. Use this function to reduce noise and roughness in images.

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "HDMI Settings" from "Screen", and press ENTER.
3. Choose "Noise Reduction", and press ENTER.
4. Select "On" or "Off" with ▲ or ▼
5. Press ENTER to exit.

Attention

- Using the Noise Reduction function may deteriorate fine images.

To select how to display interlace signal

The display method can be selected before the interlace signal is displayed.

To identify video images automatically and converting them to suitable images

Signals of 24 frames or 30 frames per second for images such as movies, computer graphics, and animations are automatically identified and the most suitable images are displayed.

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "HDMI Settings" from "Screen", and press ENTER.
3. Choose "Film Detection", and press ENTER.
4. Select "On" or "Off" with ▲ or ▼
5. Press ENTER to exit.

Attention

- If distorted images are displayed when "Film Detection" is "On", set "Film Detection" to "Off".

TO setting safe area

The “safe area” is an area in which images can be displayed on any display device. This function displays the safe area to allow you to view the layout of the subtitles and menu windows without using any special software. It enables the positions to be adjusted within the safe area during video editing.

To show or hide

Select whether or not to display the safe area.

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "HDMI Settings" from "Screen", and press ENTER.
3. Choose "Safe Area Marker", and press ENTER.
4. Select "On" or "Off" with ▲ or ▼
5. Press ENTER to exit.

To set safe area size

The size of the safe area can be set.

Adjustable Range

80% to 99%

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "HDMI Settings" from "Screen", and press ENTER.
3. Choose "Safe Area Size", and press ENTER.
4. The size of the safe area is set with ▲ or ▼
5. Press ENTER to exit.

To set safe area frame

Procedure

1. Choose "Screen" from the Adjustment menu, and press ENTER.
2. Choose "HDMI Settings" from "Screen", and press ENTER.
3. Choose "Border Color", and press ENTER.
4. Choose and set the color for the safety area from "White", "Red", "Green", "Blue", "Cyan", "Magenta", and "Yellow".
5. Press ENTER to exit.

Chapter 3 Setting Monitor

3-1. Setting Adjustment Menu

The language, orientation, and display position of the Adjustment menu can be set.

Selecting the Language

This function allows you to select a language for the Adjustment menu and messages.

Selectable languages

English/German/French/Spanish/Italian/Swedish/Japanese/Simplified Chinese/Traditional Chinese

Procedure

1. Choose "Menu Settings" from the Adjustment menu, and press ENTER.
2. Choose "Language" from "Menu Settings", and press ENTER.
3. Select a language with ▲ or ▼
4. Press ENTER to exit.

Sotting Orientation

This function allows you to change the orientation of the Adjustment menu.

Procedure

1. Choose "Menu Settings" from the Adjustment menu, and press ENTER.
2. Choose "Orientation" from "Menu Settings", and press ENTER.
3. Select "Landscape" or "Portrait" with ▲ or ▼
4. Press ENTER to exit.
5. When selecting "Portrait", turn the monitor screen 90^ in clockwise direction.

Attention

• Be sure that the cables are correctly connected.
• Be sure to turn the monitor screen after pulling up the screen to the uppermost position of the stand and setting the screen tilted upward.

Note

- For using the monitor with “Portrait” position, the graphics board supporting portrait display is required. When placing the monitor in a “Portrait” position, settings of your graphics board need to be changed. Refer to the User’s Manual of the graphics board for details.

● change adjustment menu display position

You can change the display position of the Adjustment menu.

Procedure

1. Choose "Menu Settings" from the Adjustment menu, and press ENTER.
2. Choose "Menu Position" from "Menu Settings", and press ENTER.
3. Choose the position with ▲ or ▼
4. Press ENTER to exit.

3-2. Skipping Unused Display Modes

This function selects / deselects modes that should be skipped. Please use this function if you would like to prevent a mode from being used.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "Mode Skip" from "Tools", and press ENTER.
3. Use ▲ or ▼ to select the mode to change, and press .ENTER
4. Select “-” or “Skip” with ▲ or ▼
5. Press ENTER to exit.

Attention

- You cannot set all the modes "Skip". Set at least one mode to “-”.

Note

• Available CAL modes differ depending on each input signal by factory settings.

3-3. Showing and Hiding the EIZO Logo

When the monitor is turned on, the EIZO logo appears on the screen. You can choose to show or hide the display of the EIZO logo.

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor. The "Optional Settings" menu appears.
3. Choose "Logo" from "Optional Settings", and press ENTER
4. Select "On" or "Off" with ▲ or ▼ and press .ENTER
5. Select "Finish" with ▲ or ▼
6. Press ENTER.

3-4. Locking Operation Buttons

This function allows you to lock the settings status to prevent changing them.

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor. The "Optional Settings" menu appears.
3. Choose "Key Lock" from "Optional Settings", and press .ENTER
4. Choose "Off", "Menu", or "All" with ▲ or ▼ and press .ENTER

Settings Buttons that can be locked
Off(Default setting) None (All buttons are enabled)
Menu	ENTER button
All	All buttons excluding ⏻

1. Select "Finish" with ▲or ▼

2. Press ENTER.

3-5. Changing DUE (Digital Uniformity Equalizer) Setting

This product is equipped with a Digital Uniformity Equalizer function that reduces display unevenness. This DUE setting can be changed.

Settings Function

Brightness Prioritizes high brightness and high contrast ratio.

Uniformity Prioritizes reduction of display unevenness.

Attention

- To change the DUE setting, the adjusted monitor display must be readjusted. Perform the target adjustment and correlation again using ColorNavigator. For details, refer to the ColorNavigator User's Manual (on the CD-ROM).

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor.
   The "Optional Settings" menu appears.
3. Choose "DUE Priority" from "Optional Settings", and press .ENTER
4. Select "Uniformity" or "Brightness" with ▲ or ▼ and press .ENTER
5. Select "Finish" with ▲ or ▼
6. Press ENTER.

3-6. Setting Signal Bandwidth

The range of frequency and detection sensitivity of the change in signal can be switched.

Attention

- This function cannot be used with HDMI input.

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor.
   The "Optional Settings" menu appears.
3. Choose "Signal Selection" from "Optional Settings", and press .ENTER
4. Choose the input signal to set with ▲ or ▼ and press .ENTER
5. Choose "Signal Bandwidth", and press ENTER.
6. Select "Normal", "Wide-1" or "Wide-2" with ▲ or ▼ and press .ENTER
7. Select "Finish" with ▲ or ▼
8. Press ENTER.

3-7. Reset to default

The setting values are reset to the default settings.

Attention

• After resetting, you cannot undo the operation.

Note

- Regarding the default setting, see "Main Default Settings" (page 54).

To reset the color adjustments

This function only resets the color adjustment value for the currently selected mode to the default settings.

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Color Reset" from "Color", and press ENTER.
3. Select "Execute" with ▲ or ▼
4. Press ENTER.

T● reset all adjustments to the default settings

This function resets all adjustments to the default settings (except the “Optional Settings” menu and “USB Selection”).

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "All Reset" from "Tools", and press ENTER.
3. Select "Execute" with ▲ or ▼
4. Press ENTER.

Chapter 4 SelfCalibration

This product is equipped with a built-in calibration sensor. The conditions that have been adjusted using

ColorNavigator and the measurement device can be maintained.

As the adjustment targets or interval times for SelfCalibration are set in advance using ColorNavigator, the built-in calibration sensor automatically executes regular calibration.

Monitor operation and setting are not necessary when ColorNavigator is used.

If ColorNavigator cannot be run due to the usage environment, SelfCalibration can be executed for an independent monitor.

Note

• The measurement results from the built-in calibration sensor can be correlated with the measurement results from the measurement device in use. For details, refer to the ColorNavigator User's Manual (on the CD-ROM).
• SelfCalibration can also be executed when there are no computer signals being input.

4-1. Setting the Color Mode for Executing SelfCalibration

OAL mode

Set the setting for CAL mode at "Color" in the Adjustment menu.

Note

- Multiple CAL modes can be enabled for one input signal. For more information, see “3-2. Skipping Unused Display Modes” (page 32).

Procedure

1. Switch to desired color mode.
2. Choose "Color" from the Adjustment menu, and press ENTER.
3. Choose "Target" from "Color", and press ENTER. The target setting window appears.
4. Choose "SelfCalibration" from the "Target" menu, and press .ENTER
5. Select "On" or "Off" with ▲ or ▼ and press .ENTER
6. Press ENTER to exit.

Standard Mode

When SelfCalibration is executed in Standard Mode, the monitor's color gamut is updated and each display mode in Standard Mode is adjusted as follows:

• The temperature is adjusted so that it is as close as possible to the specified value.
• The gamut values are adjusted so that they are close to each specified value.
  • Information on brightness is updated.

Procedure

1. Switch to desired color mode.
2. Choose "SelfCalibration" from the Adjustment menu, and press ENTER.
3. Choose "Standard Mode" from "SelfCalibration", and press ENTER. The Source adjustment menu appears.
4. Choose "SelfCalibration" from the "Standard Mode" menu, and press .ENTER
5. Select "On" or "Off" with ▲ or ▼ and press .ENTER
6. Press RETURN to exit.

4-2. Setting Monitor Date and Time

Set the monitor date and time.

Note

- When ColorNavigator is started, the date and time are automatically set. For details, refer to the ColorNavigator User's Manual (on the CD-ROM).

Procedure

1. Choose "SelfCalibration" from the Adjustment menu, and press ENTER.
2. Choose "Settings" from "SelfCalibration", and press ENTER
3. Choose "Clock Adjustment" from "Settings", and press ENTER.
   The Clock Adjustment menu appears.
4. Set date with ▲r, ▼nd press. ENTER
5. Set time with ▲ or ▼ and press .ENTER

Attention

- If the main power supply is disconnected for an extended period of time, the clock may need resetting.

4-3. Setting Calibration Schedule

Set the calibration schedule for SelfCalibration.

Procedure

1. Choose "SelfCalibration" from the Adjustment menu, and press ENTER.
2. Choose "Settings" from "SelfCalibration", and press ENTER

3. Choose "Schedule" from "Settings", and press ENTER.
   The schedule setting menu appears.

4. Choose "Starting Time", and press ENTER

5. Set the "Starting Time" with ▲ or ▼

Select the timing to execute SelfCalibration upon reaching the time set in the schedule.

Settings Function
Off SelfCalibration is not executed.
Power Save	To be executed under any of the following conditions.When the monitor is in “Power Save” mode or power is off at the set time.The monitor shifts to the power saving mode or the power is turned off when the time period set in the schedule has elapsed.
Immediately SelfCalibration is executed immediately at the set time.

Press RETURN to exit.

1. Choose "Setting Type, and press ENTER

Select the method for setting the adjustment schedule.

Setting	Function	Setting Example
Type-1	Execute once in every few months.	Execute once a month on Wednesday at 1:00 AM of the first week.
Type-2	Execute once in every few weeks.	Execute once every four weeks on Wednesday at 1:00 AM.
Type-3	Execute when the monitor usage time exceeds the set time.	Execute when the monitor usage time exceeded 200 hours.

Press ENTER to exit.

7. Select the interval for execution

The setting details differ depending on the type of "Setting Type" set.

Type-1

Note

- If the fifth week is selected but the fifth week doesn't have the selected day, adjustment will be executed on the fourth week.

Type-2

Type-3

Press ENTER

8. After completing all settings, press RETURN

Calibration schedule is set.

Note

- Upon reaching the set timing, the power indicator will blink in blue (quickly twice).

4-4. Setting the calibration targets

In CAL mode, white point, color gamut and gamma can be set as adjustment targets.

Attention

- Adjustment targets will be applied only to the currently displayed CAL mode.

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Target" from "Color", and press ENTER.

The target setting window appears.

1. Choose "Brightness", and press ENTER
2. Set the target brightness with ▲ or ▼ and press .ENTER
3. Choose "White Point", and press ENTER.

The white point setting window appears.

• When setting color coordinates, select "White(x)" and "White(y)" and press ENTERet the respective values. Set within 0.2400 to 0.4500.
• When specifying color temperature, select "Temperature" and press .ENTER

Settings Function
4000 K to 10000 K Sp	specify color temperature in units of 100 K.
Adobe®RGB	Change to color temperature in conformance with Adobe ®RGB.
sRGB	Change to color temperature in conformance with sRGB.
EBU	Change to color temperature in conformance with EBU.
REC709	Change to color temperature in conformance with REC709.
REC1886	Change to color temperature in conformance with REC1886.
SMPTE-C	Change to color temperature in conformance with SMPTE-C.
DCI	Change to color temperature in conformance with DCI.

Note

- When color coordinates are changed, the color temperature is changed to "User".

Press ENTER to exit.

6. Choose "Color Gamut", and press ENTER

The color gamut setting window appears. The color gamut defined by each standard can be selected.

Settings Function
Native	Display images in the monitor's original color gamut.
Adobe®RGB	Display images in the color gamut defined by Adobe ®RGB.
sRGB	Display images in the color gamut defined by sRGB.
EBU	Display images in the color gamut defined by EBU.
REC709	Display images in the color gamut defined by REC709.
REC1886	Display images in the color gamut defined by REC1886.
SMPTE-C	Display images in the color gamut defined by SMPTE-C.
DCI	Display images in the color gamut defined by DCI.

Note

• To set a color gamut other than those specified by each standard, specify the color coordinates of each RGB color at "Gamut Settings". The "Color Gamut" setting will automatically change to "User" at this time.
• Clipping can be set at “Gamut Settings”. For details on clipping, see (“To set clipping” (page 24)).

7. Choose "Gamma", and press ENTER

Settings Function

1.6-2.7 Set the gamma value.

Adobe®RGB Set the gamma curve defined by Adobe ®RGB.

sRGB Set the gamma curve defined by sRGB.

EBU Set the gamma curve defined by EBU.

REC709 Set the gamma curve defined by REC709.

REC1886 Set the gamma curve defined by REC1886.

SMPTE-C Set the gamma curve defined by SMPTE-C.

DCI Set the gamma curve defined by DCI.

Note

- These automatically become "Fixed" when adjusted with ColorNavigator.

Press ENTER to exit.

1. After completing all settings, press RETURN

4-5. Executing SelfCalibration

SelfCalibration can be executed manually regardless of the schedule.

Procedure

1. Choose "SelfCalibration" from the Adjustment menu, and press ENTER.
2. Choose "Execute" from "SelfCalibration", and press ENTER.
   The built-in calibration sensor is activated, and SelfCalibration is executed.

Attention

• To execute SelfCalibration, it is necessary to set the calibration details. For more information, see “4-4. Setting the calibration targets” (page 38).
• After selecting "Execute", aging may be executed before the built-in calibration sensor is executed.

4-6. Checking Adjustment Results

The previous SelfCalibration results can be checked.

To check adjustment results with CAL mode

Procedure

1. Choose "Color" from the Adjustment menu, and press ENTER.
2. Choose "Result" from "Color", and press ENTER
3. Choose "Calibration Result" from "Result", and press ENTER.
   The adjustment result window appears.

Attention

- The measurement results of the ambient light sensor are used to check the difference between the current environmental light level and the level of ambient light when SelfCalibration was executed, and are not reflected in the SelfCalibration results.

Note

• If “Ambient Light” is selected, the current environmental light is also displayed.
• If the environment in which the product is used is significantly different to the previous environment, the ambient light measurement results may differ greatly between the previous calibrations and current calibrations.

T● check adjustment results with Standard Mode

1. Choose "SelfCalibration" from the Adjustment menu, and press .ENTER
2. Choose "Standard Mode" from "SelfCalibration", and press ENTER.
3. Choose "Result" from "Standard Mode", and press ENTER. The adjustment result window appears.
4. Choose "Ambient Light" from "Result", and press ENTER The measurement result screen of ambient light is displayed.

Chapter 5 Connecting Multiple External Devices

The product has multiple connections to external devices and allows you to switch to one of the connections for display.

Connection examples

*1 Use a product able to handle High Speed.

5-1. To switch among input signals

The input signal switches each time SIGNALised.

When the signal is switched, the active input port name appears at the top right corner of the screen.

5-2. To set input signal selection

Settings Function
Auto The monitor re	cognizes the connector through which signals are input.When an external device enters the power saving mode, the monitor automatically displays another signal.
Manual	The monitor displays the signal from the selected connector despite the signal input. Select the input signal for display using the SIGNAL operation button.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "Input Selection" from "Tools", and press ENTER.
3. Select "Auto" or "Manual" with ▲ or ▼
4. Press ENTER to exit.

Note

- When “Auto” is selected for “Input Selection”, the monitor’s power saving function works only when all external devices are in the power saving mode.

5-3. Skipping Unused Input Signals

This function allows skipping of the set input signals when the input signals are switched.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "Mode Skip" from "Tools", and press ENTER.
3. Use ▲ or ▼ to select the mode to change, and press ENTER
4. Select “-” or “Skip” with ▲ or ▼
5. Press ENTER to exit.

Attention

- You cannot set all the modes "Skip". Set at least one mode to “-”.

5-4. Switching USB Port Automatically

This function allows the input signal to link the USB upstream port when one monitor is connected to two PCs. This can switch the USB port automatically according to the switch of the input signal. To calibrate one monitor using two PCs, the USB cables do not need to be connected again. USB devices such as the mouse and keyboard connected to one monitor can be used with two PCs.

Attention

• A cap is attached to USB-2 at shipment. Remove the cap when using USB-2.
• To switch the USB port to be used, two USB cables are required. Prepare cables.
• If a storage device such as a USB memory is connected to the monitor, remove the device before changing the setting. Otherwise, data may be lost or damaged.
• The key arrangement of the keyboard cannot be changed.

Note

• When the “Input Selection” function is set to “Auto”, the USB port automatically switches according to the switch of the input signal.
• The USB downstream port can be operated using the currently monitored PC.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "USB Selection" from "Tools", and press ENTER.
3. Choose the input signal to set with ▲ or ▼ and press .ENTER
4. Select "USB-1" or "USB-2" with ▲ or ▼
5. Press ENTER to exit.

Chapter 6 Power Saving Functions

6-1. Setting Power Save

This function allows you to specify whether to set the monitor in the power saving mode, depending on the state of an external device connected to it. When the monitor has shifted to the power saving mode, the images on the screen are not displayed.

Attention

• Turning off the main power switch or unplugging the power cord completely shuts off power supply to the monitor.
• When the monitor is in power saving mode, devices connected to the USB downstream port will still work. Therefore, the power consumption of the monitor varies with the connected devices even in the power saving mode.
• Five seconds before the monitor enters the power saving mode, it displays a preliminary message.

Procedure

1. Choose "PowerManager" from the Adjustment menu, and press ENTER.
2. Choose "Power Save" from "PowerManager", and press ENTER.
3. Select "On" or "Off" with ▲ or ▼
4. Press ENTER to exit.

Power Saving System

When the external device connected is a PC

At DVI signal input

This monitor complices with the "DVI DMPM" standard.

At DisplayPort signal input

This monitor complies with the "DisplayPort Standard V1.1a".

PC Monitor Power Indicator
On Operating mode Blue
Power saving mode	Power saving mode	Orange

When the external device connected is not a PC

Ext. Device	Monitor Power Indicator
On Operating mode Blue
Power saving mode	Power saving mode	Orange

Exiting the power saving mode

If the monitor receives input, it automatically exits the power saving mode and returns to the normal display mode.

6-2. Adjusting Brightness of Front Button

The brightness of the power button (blue) and the control button (white) when the screen is displayed can be set. (Default setting: 4)

Procedure

1. Choose "PowerManager" from the Adjustment menu, and press ENTER
2. Choose "Indicator" from "PowerManager", and press ENTER.
3. Select the indicator brightness "Off" or in the range from 1 to 7 with ▲ or ▼ as desired.
4. Press ENTER to exit.

6-3. Setting DisplayPort Power Save

This function allows you to change the power setting of the DisplayPort of the monitor.

Attention

- For the “On” setting, the position of the window may be changed when the signal is switched. In such a case, turn the setting to “Off”.

Procedure

1. Press ⏻ to turn off the monitor.
2. Holding MODE down, press for at least two seconds to turn on the monitor.
   The “Optional Settings” menu appears.
3. Choose "DP Power Save" from "Optional Settings", and press ENTER
4. Select "On" or "Off" with ▲ or ▼ and press .ENTER
5. Select "Finish" with ▲ or ▼
6. Press ENTER.

Chapter 7 Troubleshooting

If a problem still remains after applying the suggested remedies, contact your local EIZO representative.

7-1. No picture

Problem Possible cause and remedy
1. No picturePower indicator does not light.	Check whether the power cord is connected properly.PressTurn the main power switch on.Turn off the main power, and then turn it on again a few minutes later.
Power indicator is lighting blue.Increase “Brightness” and/or “Gain” in the Adjustment menu (see “2-3. Adjusting Color” (page 20)).
Power indicator is lighting orange.	Switch the input signal with SIGNAL.Operate the mouse or keyboard.Check whether the PC is turned on.
Power indicator is flashing orange and blue.	The device that is connected using DisplayPort / HDMI have a problem. Solve the problem, turn off the monitor, and then turn it on again. Refer to the User’s Manual of the output device for further details.
2. The message below appears.	This message appears when the signal is not input correctly even when the monitor functions properly.
This message appears when no signal is input.Example:	The message shown left may appear, because some PCs do not output the signal soon after power-on.Check whether the PC is turned on.Check whether the signal cable is connected properly.Switch the input signal with SIGNAL.
The message shows that the input signal is out of the specified frequency range. (Such signal frequency is displayed in magenta.)Example:fD: Dot ClockfH: Horizontal Scan FrequencyfV: Vertical scan frequency	Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see “Compatible Resolutions/Formats” (page 15)).Reboot the PC.Select an appropriate setting using the graphics boards utility. Refer to the User’s Manual of the graphics board for details.

7-2. Imaging problems

Problem Possible cause and remedy
1. The screen is too bright or too dark.	·Use “Brightness” in the Adjustment menu to adjust it. (The LCD monitor backlight has a limited life span.) When the screen becomes dark or begins to flicker, contact your local EIZO representative.)
2. Characters are blurred.	·Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see “Compatible Resolutions/Formats” (page 15)).
3. Afterimages appear.	·Afterimages are particular to LCD monitors. Avoid displaying the same image for a long time.·Use the screen saver or power saving function to avoid displaying the same image for extended periods of time.
4. Green/red/blue/white dots or defective dots remain on the screen.	·This is due to LCD panel characteristics and is not a failure.
5. Interference patterns or pressure marks remain on the screen.	·Leave the monitor with a white or black screen. The symptom may disappear.
6. Noise appears on the screen.	·In the Adjustment menu, set “Overdrive” to “Off” (see “2-4. Configuring Moving Image Performance” (page 26)).·When entering the signals of HDCP, the normal images may not be displayed immediately.
7. (DisplayPort input) Display position of the windows changes.	·When the signal is switched, the position of the window may be changed. In the Adjustment menu, set “DP Power Save” to “Off” (see “6-3. Setting DisplayPort Power Save” (page 45)).
8. (DisplayPort or HDMI input) The color shown on the display is not correct.	·Use “Screen” - "Color Space" under the Adjustment menu to adjust it (see “2-5. Specifying Color Space” (page 27)).·For HDMI signal input, change the “Signal Format” setting (see “To switch signal formats (Only for HDMI signal input)” (page 16)).
9. An image does not display on the entire screen.	·Change the “Screen Size” setting (see “To select screen size” (page 17)).

7-3. Other problems

Problem Possible cause and remedy
1. The adjustment menu does not appear.	Check whether the operation lock function works (see “3-4. Locking Operation Buttons” (page 32)).Operation buttons are locked when ColorNavigator is running. Exit the software.
2. No mode menu is displayed.	Check whether the operation lock function works (see “3-4. Locking Operation Buttons” (page 32)).Operation buttons are locked when ColorNavigator is running. Exit the software.
3. The monitor connected with the USB cable is not detected. / USB devices connected to the monitor does not work.	Check whether the USB cable is connected correctly (see “8-2. Making Use of USB (Universal Serial Bus)” (page 51)).Check the “Tools” – “USB Selection” settings under the Setting menu (see “5-4. Switching USB Port Automatically” (page 43)).Change the USB port to another one. If the PC or peripheral devices works correctly by changing the USB port, contact your local EIZO representative. (Refer to the manual of the PC for details.)Reboot the PC.If the peripheral devices work correctly when the PC and peripheral devices are connected directly, please contact your local EIZO representative.Check whether the PC and OS are USB compliant. (For USB compliance of the respective devices, consult their manufacturers.)Check the PC’s BIOS setting for USB when using Windows. (Refer to the manual of the PC for details.)
4. Audio is not output. • This monitor does not support the HDMI/DisplayPort audio signals.

7-4. Built-in calibration sensor and SelfCalibration problems

Problem Possible cause and remedy
1. The built-in calibration sensor does not come out/stays out.	Turn off the main power, and then turn it on again a few minutes later.
2. SelfCalibration cannot be executed.	Check whether the date and time are set correctly (see “4-2. Setting Monitor Date and Time” (page 36)).Check whether the mode is set (see “4-3. Setting Calibration Schedule” (page 36)).Check whether the calibration targets are set correctly (see “4-4. Setting the calibration targets” (page 38)).Set the SelfCalibration target using ColorNavigator.
3. SelfCalibration failure	Refer to the error code table. If an error code that does not appear in the error code table is displayed, contact your local EIZO representative.

Error Code Table

Error Code Description
0014 • Execute SelfCalibration again.	Adjust using ColorNavigator.
0034	The built-in calibration sensor may not have come out during calibration, or light may have entered the sensor during measurement.Turn off the main power, wait for a few minutes before turning the power back on, and then execute SelfCalibration again.
0050 • Execute SelfCalibration again.
0061 • The built-in calibration sensor may not have worked correctly.Check whether there is any foreign object near the built-in calibration sensor.Execute SelfCalibration again.

Chapter 8 Reference

8-1. Attaching the Optional Arm

An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the corresponding optional arm (or optional stand). http://www.eizo.com

Attention

• When attaching an arm or stand, follow the instructions of their User's Manual.
• When using another manufacturer's arm or stand, confirm the following in advance and select one conforming to the VESA standard.
• Clearance between the screw holes: 100 mm × 100 mm
• Thickness of plate: 2.6 mm
• Strong enough to support weight of the monitor unit (except the stand) and attachments such as cables.
• When using another manufacturer's arm or stand, use the following screws to secure it.
• Screws fixing the stand to the monitor.
• When using an arm or stand, attach it to meet the following tilt angles of the monitor.
• Up 45°, down 45°
• Connect the cables after attaching an arm or stand.
• Do not move the removed stand up and down. Doing so may result in injury or device damage.
• The monitor and arm or stand are heavy. Dropping them may result in injury or equipment damage.
• When setting the monitor to the portrait style, turn the monitor screen 90^ in clockwise direction.

Procedure

1. Lay the LCD monitor on a soft cloth spread over on a stable surface with the panel surface facing down.
2. Remove the stand.

Prepare a screwdriver. Loosen the screws (four) securing the unit and the stand with the screwdriver.

1. Attach the arm or stand to the monitor.

Secure the monitor to the arm or stand using the screws fixing the stand to the monitor.

Technical line drawing of a mechanical assembly with mounting bracket and mounting holes (no text or symbols)

8-2. Making Use of USB (Universal Serial Bus)

This monitor has a USB hub. It works as a USB hub when connected to a USB-compatible PC, allowing the connection of peripheral USB devices.

System Requirement

• A PC (including devices with a USB host function) and OS in conformance with USB Specification Revision 2.0
• USB cable

Attention

• This monitor may not work depending on PC, OS or peripheral devices. For USB compatibility of peripheral devices, contact their manufactures.
• Devices connected to the USB downstream port work when the monitor is in power saving mode or when the power button of the monitor is Off. Therefore, power consumption of the monitor varies with connected devices even in the power saving mode.
• When the main power of the monitor is Off, device connected to the USB downstream port does not operate.

Procedure

1. Connect the signal cable between a PC and the monitor, and turn on the PC.
2. Using the USB cable, connect the computer's downstream port and the monitor's upstream port 1.
3. Connect the peripheral USB device to the USB downstream port of the monitor.

Note

- By default, USB upstream port 1 is enabled. To connect two PCs, see “5-4. Switching USB Port Automatically” (page 43).

8-3. Showing Monitor Information

Displaying signal information

This function displays the information about the current input signals displayed.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "Signal Info" from "Tools", and press ENTER.

The "Signal Info" appears.

(Example)

Displaying Monitor Information

This function displays the information about the monitor.

Procedure

1. Choose "Tools" from the Adjustment menu, and press ENTER.
2. Choose "Monitor Info" from "Tools", and press ENTER.

The "Monitor Info" appears.

This function displays the model name, serial number, firmware version, usage time, and ColorNavigator license status.

Attention

- Due to inspection at the factory, the usage time when the power to the monitor is first turned on may not be "0".

8-4. Specifications

LCD Panel Size 6	1 cm (24.0) format
	Type Color TFT(IPS)
	Backlight LED
	Display area (H × V) 518.4 mm × 324.0 mm			(20.4 inch × 12.8 inch)
	Viewing angles Horizontal: 178°, vertical: 178°
	Recommended Brightness 120 cd/m			^2 or less (with “Temperature” of between “5000K” to “6500K”)
	Recommended resolution 1920 x 1200
	Contrast ratio			1000 : 1 (When "DUE Priority" setting is "Brightness")
	Dot pitch 0.27 mm × 0.27 mm
	Response time	Black-white-black:		Approx. 12 ms
		Gray-to-gray:		Approx. 7.7 ms (When the Overdrive setting is “On”)
	Color gamut display (typical)	Adobe® RGB Coverage		99 %
		NTSC ratio		110 %
Video signal	Input Terminals			DVI-D x 1 (Single Link , applicable to HDCP)HDMI x 1 (Applicable to HDCP)DisplayPort x 1(Applicable to HDCP)
	Dot clock (Max.)			164.5 MHz
	Horizontal scan frequency	DVI / DisplayPort		26 kHz - 78 kHz
		HDMI		15 kHz - 78 kHz
	Vertical scan frequency	DVI / DisplayPort		23.75 Hz - 63 Hz (non-interlace, 720 x 400: 69 Hz - 71 Hz)
		HDMI		23.75 Hz - 61 Hz (720 x 400: 69 Hz - 71 Hz)
		Frame Synchronous mode		23.75 Hz - 30.5 Hz47.5 Hz - 61 Hz
	Max. display color	DisplayPort		Approx. 1073.74 million colors (for 10 bit input)
		HDMI		Approx. 1073.74 million colors (for 10 bit, 12 bit input)
		DVI		Approx. 16.77 million colors
	Plug & Play	DVI / HDMI		VESA DDC2B / EDID structure 1.3
		DisplayPort		VESA DisplayPort / EDID structure 1.4
Power supply				100-120 Vac ±10%, 50/60 Hz 0.9A200-240 Vac ±10%, 50/60 Hz 0.5A
Environmental conditions	Temperature Operating 0 °C to 35 °C (32 °F to 95 °F)
	Humidity (R.H, no condensation)	Operating 20% to 80%
		Transportation/Storage 10% to 90%
	Air pressure Operating 540 hPa to 1060 hPa
USB Input Terminals Upstream port × 2, Downstream port × 2

Main Default Settings

Color Mode Custom
Screen Size PC signal Full
		video: HD signal (HDMI) Enlarged
		video: SD signal (HDMI)
Overdrive		Off
Color Space		Auto
Range Extension	DVI	Off
	DisplayPort / HDMI	Auto
Super White		Off
Noise Reduction		Off
Power Save		On
Language		English
Menu Position		Center
Input Selection		Manual
USB Selection		USB-1
Signal Format	HDMI	Video

Outside Dimensions

Unit: mm

Accessories

For the latest information about the accessories and information about the latest compatible graphics board, refer to our web site.

http://www.eizo.com

Chapter 9 Glossary

Adobe®RGB

This is a definition of the practical RGB color space proposed by Adobe Systems in 1998. The color reproduction range (color gamut) is broader than sRGB, and is highly adaptable to such fields as printing etc.

Color Space

YUV and RGB, etc. are available. YUV expresses the color by using the luminance (Y), the color difference of Blue (U), and the color difference of Red (V). RGB does this by using the gradation of the 3 colors, Red (R), Green (G), and Blue (B).

DCI (Digital Cinema Initiatives)

The company was founded by an association of U.S. film studios, and this company decides the specifications for digital cinema.

DisplayPort

This is the interface standard for image signals standardized in accordance with VESA. It was developed with the aim of replacing the conventional DVI and analog interfaces, and it can transmit high resolution signals and sound signals, which DVI does not support. It also supports 10-bit color, copyright protection technology, long cables, etc. The standard size and mini size connectors have been standardized.

DVI (Digital Visual Interface)

DVI is a digital interface standard. DVI allows direct transmission of the PC's digital data without loss. This adopts the TMDS transmission system and DVI connectors. There are two types of DVI connectors. One is a DVI-D connector for digital signal input only. The other is a DVI-I connector for both digital and analog signal inputs.

DVI DMPM (DVI Digital Monitor Power Management)

DVI DMPM is a digital interface power saving function. The “Monitor ON (operating mode)” and “Active Off (power saving mode)” are indispensable for DVI DMPM as the monitor’s power mode.

EBU (European Broadcasting Union)

The organization also includes broadcasting offices from Europe and North Africa, and it's role is to decide various technical standards etc.

Gain

The brightness of each color component red, green, and blue is called Gain. An LCD monitor displays the color by the light passing through the panel color filter. Red, green and blue are the three primary colors. All the colors on the screen are displayed by combining these three colors. The color tone can be changed by adjusting the light intensity (volume) passing through each color's filter.

Gamma

Generally, the monitor brightness varies nonlinearly with the input signal level, which is called “Gamma Characteristic”. A small gamma value produces a low-contrast image, while a large gamma value produces a highcontrast image.

HDCP (High-bandwidth Digital Content Protection)

Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc. This helps to transmit the digital contents safely by coding the digital contents sent via the DVI or HDMI connector on the output side and decoding them on the input side.

Any digital contents cannot be reproduced if both of the equipments on the output and input sides are not applicable to HDCP system.

HDMI (High-Definition Multimedia Interface)

HDMI is a digital interface standard, developed for consumer electrical appliance or AV device. This standard is issued on the basis of the DVI standard which is one of an interface specification for the connection between a PC and a monitor. The projected image, sound and control signal without compressed enable to be transmitted with one cable.

Overdrive

This technology enhances response speed by increasing the potential difference at the time of motion of liquid-crystal pixels, and it is used for liquid-crystal TV sets and others in general. It provides clear-cut three-dimensional display with little afterimage, by improving response speed of the intermediate graduation range that frequently appears in moving images.

Rec709

Digital broadcasting (HDTV) standards defined by the ITU-R (International Telecommunication Union Radio Communication Sector).

Rec1886

Standards for the input/output characteristics of flat panel displays used in studio production for digital broadcasting (HDTV) specified by the ITU-R based on CRT characteristics.

Resolution

The LCD panel consists of numerous pixels of specified size, which are illuminated to form images. This monitor consists of horizontal 1920 pixels and 1200 vertical pixels. At a resolution of 1920 × 1200 , all pixels are illuminated as a full screen (1:1).

SMPTE-C

One of the standards provided by the SMPTE (Society of Motion Picture and Television Engineers).

sRGB (Standard RGB)

International standard for color reproduction and color space among peripheral devices (such as monitors, printers, digital cameras, scanners). As a form of simple color matching for the Internet, colors can be displayed using tones close to those of the transmission and reception devices.

Temperature

Color temperature is a method to measure the white color tone, generally indicated in degrees Kelvin. The screen becomes reddish at a low temperature, and bluish at a high temperature, like the flame temperature.

5000 K: Slightly reddish white

6500 K: White referred to as daylight-balanced color

9300 K: Slightly bluish white

Appendix

Trademark

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

The DisplayPort Compliance Logo and VESA are registered trademarks of the Video Electronics Standards Association.

Acrobat, Adobe, Adobe AIR, and Photoshop are registered trademarks of Adobe Systems Incorporated in the United States and other countries.

AMD Athlon and AMD Opteron are trademarks of Advanced Micro Devices, Inc.

Apple, ColorSync, eMac, iBook, iMac, iPad, Mac, MacBook, Macintosh, Mac OS, PowerBook, and QuickTime are registered trademarks of Apple Inc.

ColorMunki, Eye-One, and X-Rite are registered trademarks or trademarks of X-Rite Incorporated in the United States and/or other countries.

ColorVision and ColorVision Spyder2 are registered trademarks of DataColor Holding AG in the United States. Spyder3 and Spyder4 are trademarks of DataColor Holding AG.

ENERGY STAR is a registered trademark of the United States Environmental Protection Agency in the United States and other countries.

GRACoL and IDEAlliance are registered trademarks of International Digital Enterprise Alliance.

NEC is a registered trademark of NEC Corporation.

PC-9801 and PC-9821 are trademarks of NEC Corporation.

NextWindow is a registered trademark of NextWindow Ltd.

Intel, Intel Core, Pentium and Thunderbolt are trademarks of Intel Corporation in the United States and other countries.

PowerPC is a registered trademark of International Business Machines Corporation.

PlayStation is a registered trademark of Sony Computer Entertainment Inc.

PSP and PS3 are trademarks of Sony Computer Entertainment Inc.

RealPlayer is a registered trademark of RealNetworks, Inc.

TouchWare is a trademark of 3M Touch Systems, Inc.

Windows, Windows Media, Windows Vista, SQL Server, and Xbox 360 and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and other countries.

YouTube is a registered trademark of Google Inc.

Firefox is a registered trademark of the Mozilla Foundation.

Kensington and MicroSaver are trademarks of ACCO Brands Corporation.

EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor, and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries.

ColorNavigator, EcoView NET, EIZO EasyPIX, EIZO ScreenSlicer, i • Sound, Screen Administrator, and UniColor Pro are trademarks of EIZO Corporation.

All other company and product names are trademarks or registered trademarks of their respective owners.

License / Copyright

A round gothic bold bit map font designed by Ricoh is used for the characters displayed on this product.

For U.S.A., Canada, etc. (rated 100-120 Vac) Only

FCC Declaration of Conformity

We, the Responsible Party	EIZO Inc.
	5710 Warland Drive, Cypress, CA 90630
	Phone: [phone]
declare that the product	Trade name: EIZO
	Model: ColorEdge CG247

is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note

Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.

- AC Cord

- Shielded Signal Cable (Enclosed)

Canadian Notice

This Class B digital apparatus complies with Canadian ICES-003.

EIZO Corporation (hereinafter referred to as "EIZO") and distributors authorized by EIZO (hereinafter referred to as the "Distributors") warrant, subject to and in accordance with the terms of this limited warranty (hereinafter referred to as the "Warranty"), to the original purchaser (hereinafter referred to as the "Original Purchaser") who purchased the product specified in this document (hereinafter referred to as the "Product") from EIZO or Distributors, that EIZO and Distributors shall, at their sole discretion, either repair or replace the Product at no charge if the Original Purchaser becomes aware within the Warranty Period (defined below) that the Product malfunctions or is damaged in the course of normal use of the Product in accordance with the description in the instruction manual attached to the Product (hereinafter referred to as the "User's Manual").

The period of this Warranty is limited to (i) five (5) years from the date of purchase of the Product; or, limited to the expiration of (ii) 30,000 hours of its use of the Product (hereinafter referred to as the "Warranty Period"). However, the brightness of the Product shall be warranted only if the Product has been used within the recommended brightness described in the User's Manual. The Warranty Period for the brightness is also limited to five (5) years from the date of purchase of the Product subject to the usage time being less than or equal to 10,000 hours. EIZO and Distributors shall bear no liability or obligation with regard to the Product in relation to the Original Purchaser or any third parties other than as provided under this Warranty.

EIZO and Distributors will cease to hold or store any parts of the Product upon expiration of seven (7) years after the production of such parts is discontinued. In repairing the monitor, EIZO and Distributors will use renewal parts which comply with our QC standards.

The Warranty is valid only in the countries or territories where the Distributors are located. The Warranty does not restrict any legal rights of the Original Purchaser.

Notwithstanding any other provision of this Warranty, EIZO and Distributors shall have no obligation under this Warranty whatsoever in any of the cases as set forth below:

(a) Any defect of the Product caused by freight damage, modification, alteration, abuse, misuse, accident, incorrect installation, disaster, faulty maintenance and/or improper repair by third party other than EIZO and Distributors;
(b) Any incompatibility of the Product due to possible technical innovations and/or regulations;
(c) Any deterioration of the sensor;
(d) Any deterioration of display performance caused by the deterioration of expendable parts such as the LCD panel and/or backlight, etc. (e.g. changes in brightness uniformity, changes in color, changes in color uniformity, defects in pixels including burnt pixels, etc.);
(e) Any deterioration of the Product caused by the use at higher brightness than the recommended brightness described in the User's Manual;
(f) Any defect of the Product caused by external equipment;
(g) Any defect of the Product on which the original serial number has been altered or removed;
(h) Any normal deterioration of the product, particularly that of consumables, accessories, and/or attachments (e.g. buttons, rotating parts, cables, User's Manual, etc.); and
(i) Any deformation, discoloration, and/or warp of the exterior of the product including that of the surface of the LCD panel.

To obtain service under the Warranty, the Original Purchaser must deliver the Product, freight prepaid, in its original package or other adequate package affording an equal degree of protection, assuming the risk of damage and/or loss in transit, to the local Distributor. The Original Purchaser must present proof of purchase of the Product and the date of such purchase when requesting services under the Warranty.

The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period.

EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR.

EIZO AND DISTRIBUTORS MAKE NO FURTHER WARRANTIES, EXPRESSED OR IMPLIED, WITH RESPECT TO THE PRODUCT AND ITS QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE. IN NO EVENT SHALL EIZO OR DISTRIBUTORS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHER DAMAGE WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFIT, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT OR IN ANY CONNECTION WITH THE PRODUCT, WHETHER BASED ON CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE, EVEN IF EIZO OR DISTRIBUTORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS EXCLUSION ALSO INCLUDES ANY LIABILITY WHICH MAY ARISE OUT OF THIRD PARTY CLAIMS AGAINST THE ORIGINAL PURCHASER. THE ESSENCE OF THIS PROVISION IS TO LIMIT THE POTENTIAL LIABILITY OF EIZO AND DISTRIBUTORS ARISING OUT OF THIS LIMITED WARRANTY AND/OR SALES.

BEGRENZTE GARANTIE

This product, when disposed of, is supposed to be collected and recycled according to your country's legislation to reduce environmental burden. When you dispose of this product, please contact a distributor or an affiliate in your country.

The contact addressees are listed on the EIZO website below.

http://www.eizo.com

For recycling information for customers in Switzerland, please refer to the following website.

http://www.swico.ch

China Measures for RoHS Compliance in ChinaRoHS

关于电子信息产品污染控制标识
