95-8733B - Automotive Mounting Kit Metra - Free user manual and instructions

Product Type	Car Mounting Kit for Aftermarket Radio Installation
Compatible Vehicles	Select 1993-2003 Ford and Mercury models (e.g., Ford F-150, Mercury Mountaineer)
Material	High-quality ABS plastic
Color	Matte black to match factory dash
Dimensions (Kit)	7.0 x 5.0 x 2.0 inches (178 x 127 x 51 mm)
Weight	0.5 lbs (0.23 kg)
Included Components	Dash trim panel, mounting brackets, wiring harness, antenna adapter, screws
Radio Size Compatibility	Single DIN and Double DIN (with adapter)
Installation Method	Screw-in and snap-fit design
Tools Required	Basic hand tools (screwdriver, panel removal tool)
Power Supply	Passive (no external power needed)
Main Features	Factory-like fit, color-matched, easy installation
Maintenance	Wipe clean with a damp cloth; avoid harsh chemicals
Safety	Ensures secure mounting of aftermarket radio
Repairability	Individual parts (brackets, trim) can be replaced separately
Spare Parts Available	Contact Metra or authorized dealers
Certifications	ISO 9001, TUV
Warranty	1 year limited warranty
Manufacturer	Metra Electronics Corp., USA

Frequently Asked Questions - 95-8733B Metra

What vehicles is the Metra 95-8733B compatible with?

It fits select 1993-2003 Ford and Mercury models, including Ford F-150, Explorer, and Mercury Mountaineer. Check Metra's website for full list.

Does this kit include a wiring harness?

Yes, it comes with a wiring harness and antenna adapter to connect an aftermarket radio.

Can I install a double DIN radio with this kit?

Yes, the kit supports both single DIN and double DIN radios with the included adapter.

Is the kit painted or colored?

The kit is matte black to match most factory dashes.

What tools are needed for installation?

You'll need standard tools like a screwdriver, panel removal tool, and possibly a drill for some vehicles.

How difficult is the installation?

It is considered moderately easy for DIYers; step-by-step instructions are included.

Does the kit have a warranty?

Yes, Metra offers a 1-year limited warranty against defects.

Can I buy replacement parts for this kit?

Yes, individual components like brackets are available through Metra dealers.

Is the kit made of metal or plastic?

It is made of high-quality ABS plastic, durable and lightweight.

Does this kit include an instruction manual?

Yes, a detailed instruction manual is included in the package.

USER MANUAL 95-8733B Metra

Interior view of a car dashboard with air filters and a mounted touchscreen display (no visible text or symbols)

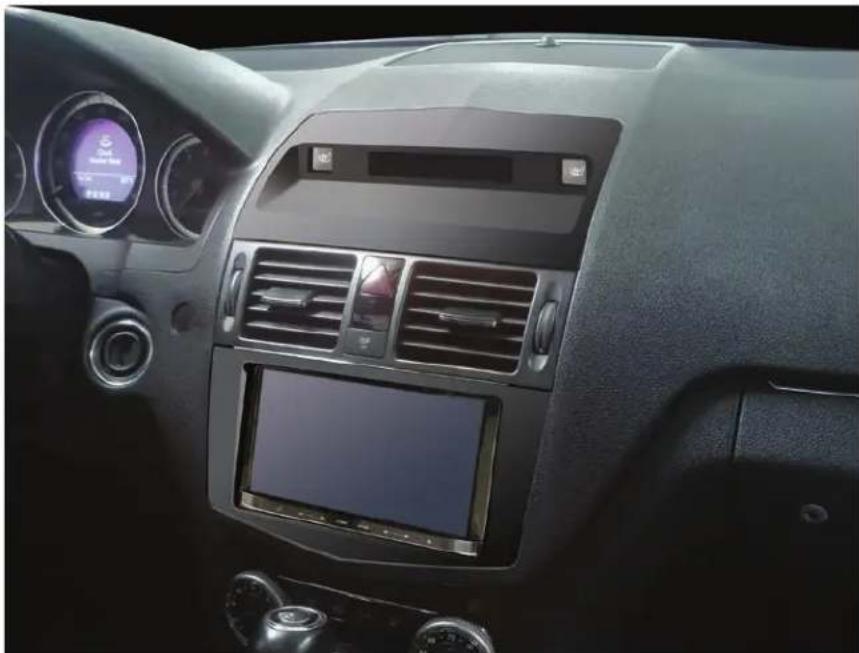

Mercedes-Benz C-class 2008-2011 (W204)

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

KIT FEATURES

• ISO DDIN radio provision
- Painted scratch resistant matte black

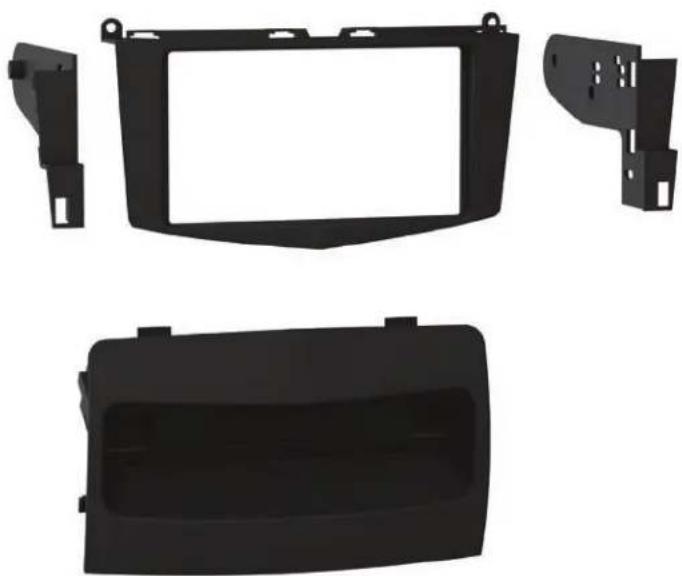

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Button housing • D) Button trim panel • E) Button blanks • F) Button panel hooks
  • G) #4 x 3/8" Phillips screws (9) • H) Panel clips (2)

AB

Technical line drawing of a rectangular frame with mounting brackets (no text or symbols)

•

•

D

E

F

G

F

TABLE OF CONTENTS

Dash Disassembly 2

Kit Preparation 3

Kit assembly 3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: See metraonline.com or axxessinterfaces.com for interface/harness.

Antenna Adapter: 40-EU56

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
  • T-20 Torx driver

Attention! Let the vehicle sit with the key out of the ignition for a few minutes before removing the factory radio. When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition.

DASH DISASSEMBLY

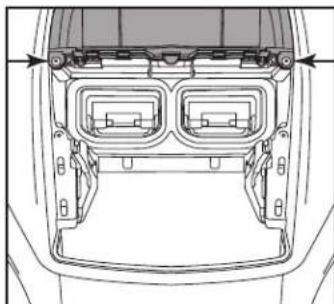

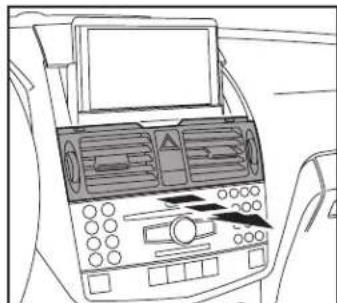

1. Unclip the air vents, unplug and remove (do not cycle the key while unplugged). (Figure A)

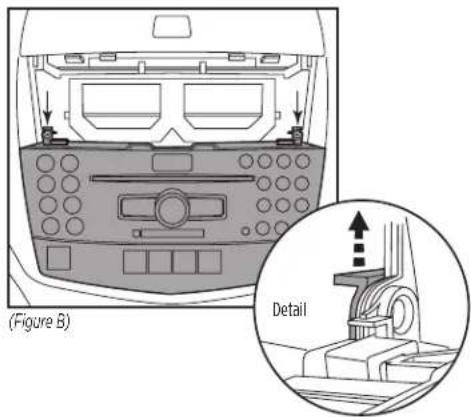

2. Remove two T-20 Torx from the radio and lift up on the two tabs located at each mounting point. (See detail)
3. Slide the factory radio out paying attention to the runners on the sides.

Line drawing of a car infotainment system showing controls and dashboard (no text or labels)

(Figure A) (Figure C)

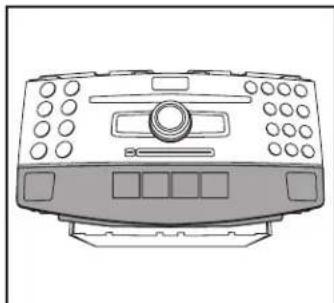

1. Unclip the trim at the bottom of the radio and unscrew the factory buttons to be relocated to the button trim panel in kit assembly.
2. Remove two T-20 Torx screws from the bottom of the factory radio screen assembly and remove.

Continue to Kit Preparation

Front view of a car dashboard with control panel and buttons (no text or symbols visible)

Top-down line drawing of a car's rear intake structure showing front, side, and top views with no text or symbols

(Figure D)

KIT PREPARATION KIT ASSEMB

1. Secure the button panel hooks to the button housing with (4) #4 x 3/8" Philips screws included. (Figure A)
2. Assemble the factory buttons into the button housing and button trim panel with the (5) #4 x 3/8" Philips screws included. Note: blanks are included for different vehicle options. (Figure B)
3. Attach the (2) supplied panel clips to the radio housing. (Figure C)

Continue to Kit Assembly

Line drawing of a car front panel with mounting holes and wiring (no text or symbols)

Technical illustration of a mechanical component with internal parts and alignment arrows (no text or symbols)

Technical line drawing of a door frame with mounting points (no text or symbols)

1. Route the factory button wiring up to the top of the dash opening.

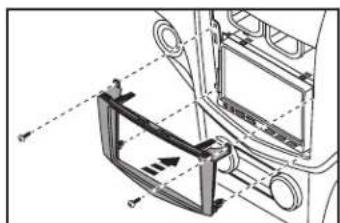

2. Attach the radio brackets to the radio using screws supplied with the radio, and then secure into the dash opening. NOTE: the radio mounting screws must be flush in the brackets so the radio assembly will fit into the dash opening. (Figure A)
3. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation.
4. Snap the radio trim panel over the radio and reassemble the dash in reverse order of disassembly. (Figure B)

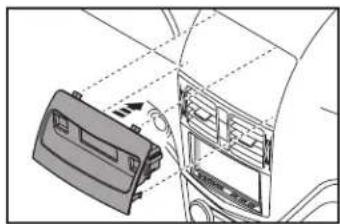

5. Install button assembly starting with the button panel hooks at the top and then snapping the bottom in. (Figure C)

Technical line drawing of an electronic device with labeled components (no readable text or symbols)

(Figure A)(Figure A)

Technical line drawing of a car interior frame with structural components and alignment indicators (no text or symbols)

(Figure B)(Figure B)

Diagram showing a device with cable and connector, no text or symbols present

(Figure C)(Figure C)

Having difficulties? We're here to help.

our Tech Support line at:

386-257-1187

mail at:

[e-mail]

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills b enselling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

600-354-8782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians

Interior view of a car dashboard with air filters and digital gauges (no visible text or symbols)

Three black automotive airbags with mounting brackets and structural details (no text or symbols visible)

HARDWARE INCLUDED

Illustration of two mechanical clamps and ten screw fasteners (no text or symbols)

Mercedes-Benz C-class

2008-2011 (W204)

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications.

ISO DDIN radio provision

Painted scratch resistant matte black

KIT COMPONENTS

• Radio trim panel
• Radio brackets
• Button housing
• Button trim panel
• Button blanks
• Button panel hooks

• 4 x 3/8" Phillips screws (9)

• Panel clips (2)

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: See metraonline.com or axxessinterfaces.com for interface/harness.

Antenna Adapter: 40-EU56

SALES 386-257-2956
