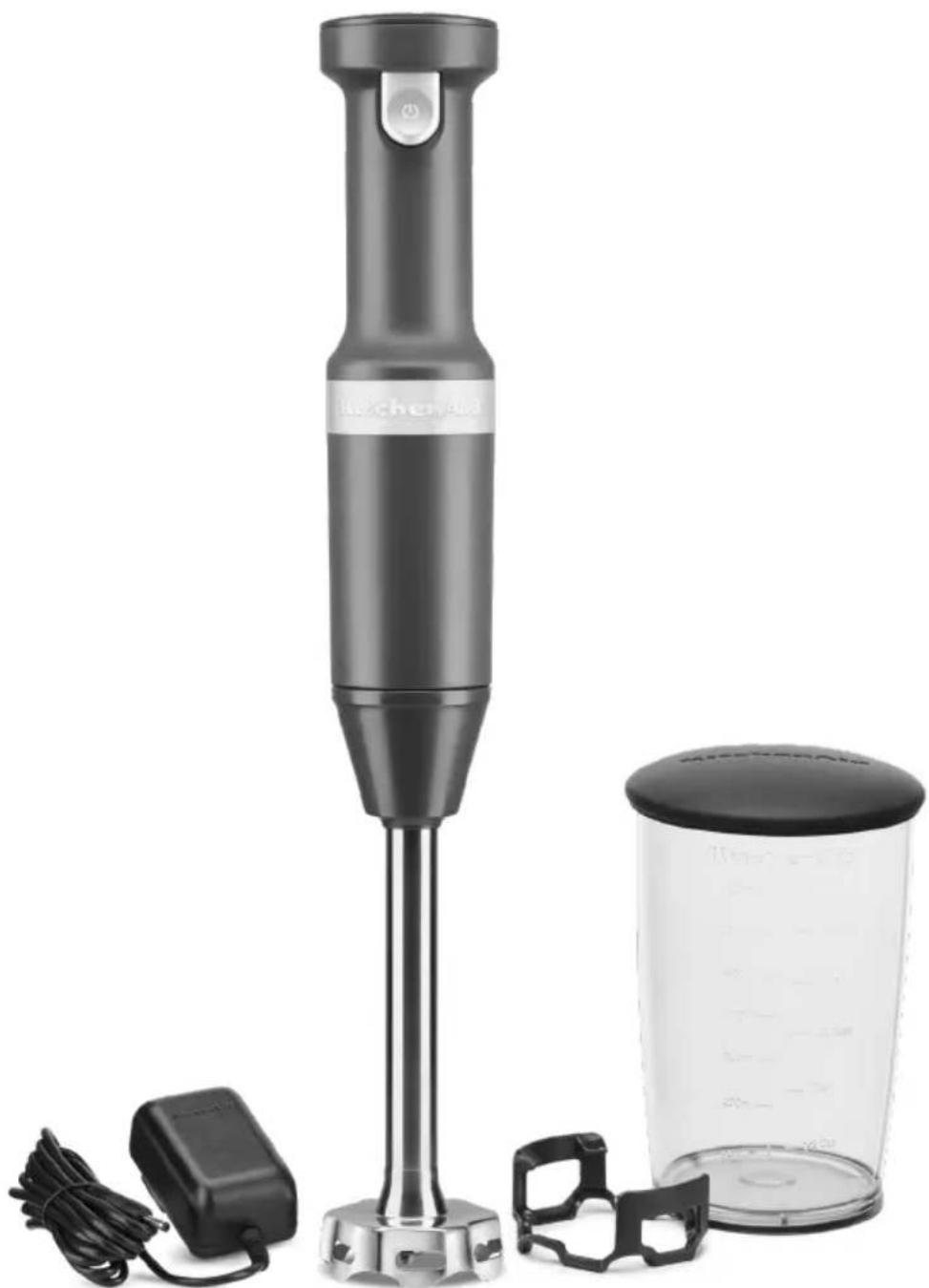

KHBBV53 - Blender KITCHENAID - Free user manual and instructions

Brand	KitchenAid
Model	KHBBV53
Product type	Cordless blender
Power supply	Rechargeable Li-Ion battery 8 V, AC adapter 120 V / 60 Hz
Pitcher capacity	700 ml (3 cups)
Pitcher material	BPA-free
Battery life	Up to 25 bowls of soup (354 ml each) or 7 preparations
Full charge time	2 hours
Quick charge	20 minutes for about 1 smoothie or 1 soup
Speed	Variable with pulse
Main functions	Blending, mixing, chopping (with optional accessory), whisking (with optional accessory)
Included accessories	Blending arm, protective cover, 700 ml pitcher with lid, charger adapter, storage case
Care and cleaning	Blade and pitcher dishwasher safe (top rack); arm and motor body wiped with a damp cloth
Safety	Automatic shut-off in case of overload; do not immerse motor
Warranty	1 year full warranty
Customer service	KitchenAid Customer Experience Center: 1 800 541-6390 (United States)
Replacement parts	Available on order (see customer service)
Repairability	Repair by authorized center or replacement under warranty
Country of manufacture	Not specified

Frequently Asked Questions - KHBBV53 KITCHENAID

How to charge the battery of the KitchenAid KHBBV53?

Remove the blending arm by turning and unlocking, plug the adapter pin into the charging port, then plug the adapter into an outlet. The indicator blinks during charging and becomes solid green after 2 hours (full charge). A quick charge of 20 minutes provides about one smoothie.

What to do if the blender does not start?

Check that the battery is charged (red or empty indicator). If the problem persists, consult the troubleshooting guide or contact KitchenAid customer service.

Can I put the parts in the dishwasher?

Yes, the whisk, protective cover, chopper bowl, blade, pitchers and their lid are dishwasher safe (top rack). The blending arm and whisk adapter should be washed in warm soapy water. The motor body should be wiped with a damp cloth.

Is the blender suitable for blending hot liquids?

Yes, but use a tall container and reduce quantities to avoid splashing. Do not immerse the motor in liquid and follow safety instructions.

How to use the pulse function?

Press the variable speed control for quick pulses (about 1 second followed by 1.5 seconds off). Release to stop. Ideal for chopping nuts, garlic, etc.

What accessories are included with the KHBBV53 model?

The KHBBV53 includes: 20.3 cm blending arm, protective cover, 700 ml pitcher with lid, charger and storage case. The whisk and chopper are not included (they are in the KHBBV83).

What to do if the blender stops during use?

The automatic shut-off protects the motor in case of overload or blockage. Divide food into smaller portions or add liquid to lighten the load.

How to clean the blender blade?

Handle the blade with care (it is sharp). Wash it in the dishwasher (top rack) or in warm soapy water. Dry immediately.

What is the warranty period?

The full warranty is one year from the date of purchase. It covers replacement or repair by an authorized KitchenAid center.

Can I use extension cords with the charger?

No, do not use an extension cord. Plug the charger directly into a grounded outlet.

USER MANUAL KHBBV53 KITCHENAID

Cordless Hand Blender

KHBBV53

KHBBV83

Exterior view of a kitchen brush and blender with power cord, battery, and cleaning cup (no text or symbols visible)

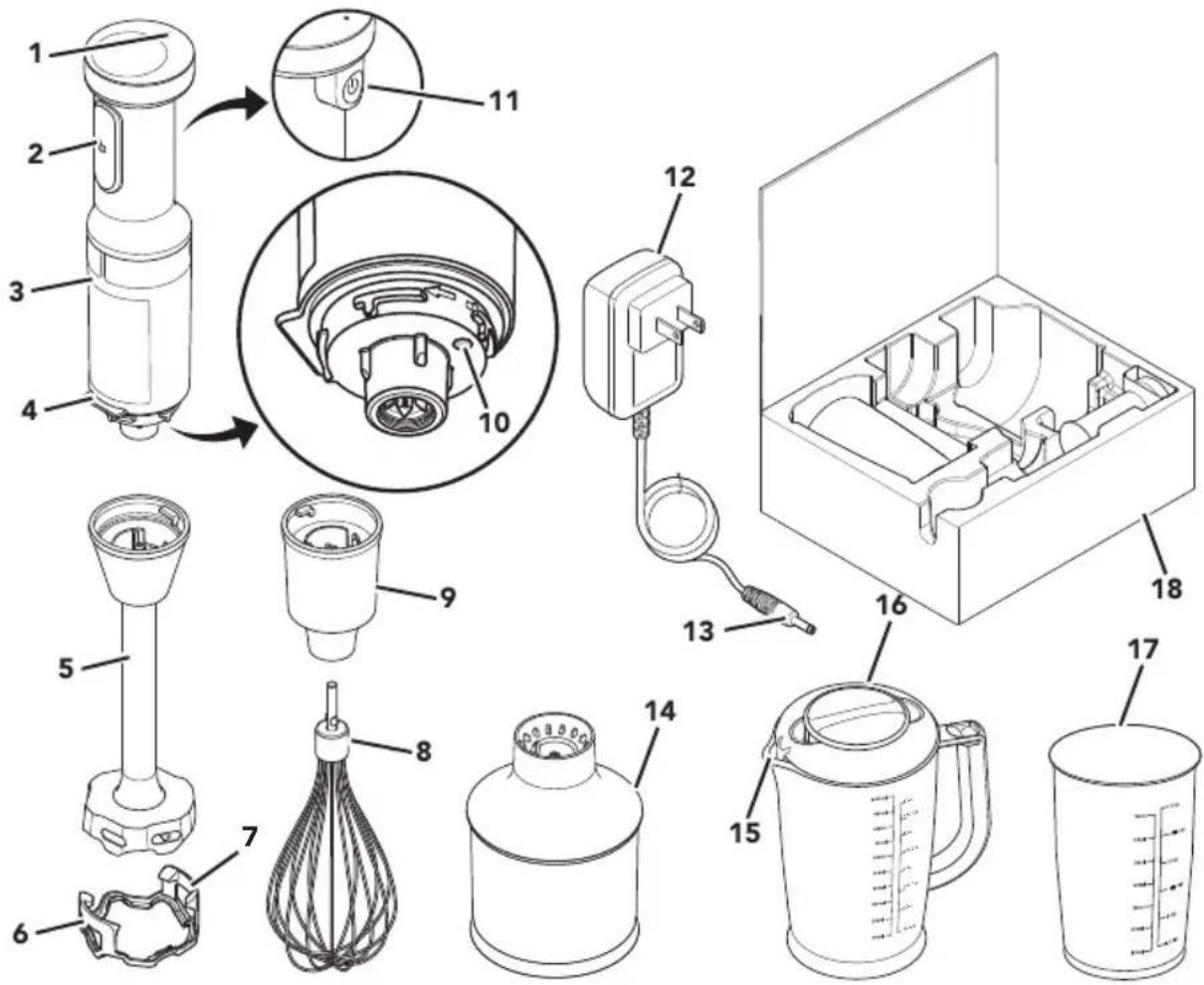

PARTS AND FEATURES

1 Battery status indicator
2 Palm switch
3 Motor body
4 Edge: Helps to avoid roll over of the Cordless Hand Blender.
5 Blending arm 8"(20.3 cm)

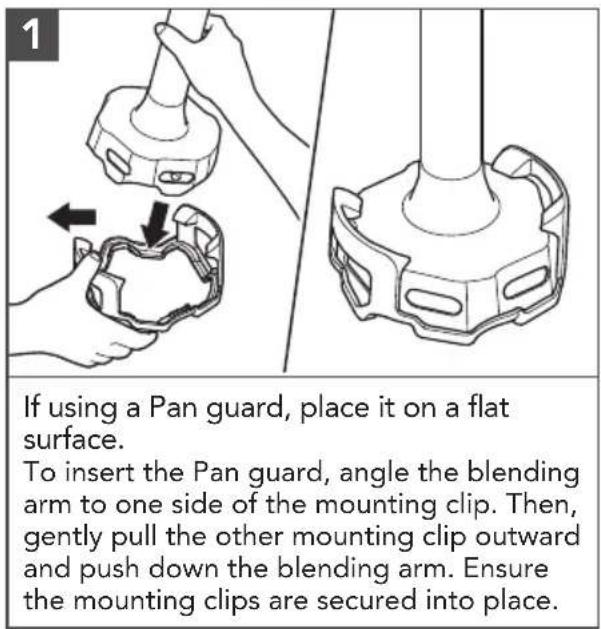

6 Pan guard: Use the pan guard to avoid damage to cookware while using Cordless Hand Blender.
7 Mounting clips
8 Whisk
9 Whisk adapter

ACCESSORY GUIDE

10 Charging port
11 Variable speed controller
12 Charger adapter
13 Charger adapter pin
14 Chopper attachment
15 Pour spout
16 4 Cup (1 Liter) BPA-free Blender pitcher with lid
17 3 Cup (700 ml) BPA-free Blender jar with lid
18 Storage case

Parts Included with model
Pan guard (6) KHBBV53 KHBBV83
Whisk attachment (8 & 9) KHBBV83
Chopper attachment (14) KHBBV83
4 Cup (1 Liter) BPA-free Blender pitcher with lid (16) KHBBV83
3 Cup (700 ml) BPA-free Blender jar with Lid (17) KHBBV53

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock, do not put the Motor body of Cordless Hand Blender, Charger adapter, cord, or electrical plug in water or other liquid.
3. This appliance should not be used by children and care should be taken when used near children.
4. Turn the appliance OFF before assembling or disassembling parts and before cleaning. To unplug the charger, grasp the plug and pull from the outlet. Never pull from the power cord.
5. Avoid contacting moving parts.
6. Do not operate any appliance or Charger adapter with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment.
7. The use of attachments not recommended or sold by KitchenAid may cause fire, electric shock, or injury.
8. Do not use the appliance outdoors.
9. Do not let cord hang over edge of table or counter.
10. Do not let cord contact hot surfaces, including the stove.
11. Keeps hands and utensils out of the container while blending to prevent the possibility of severe injury to persons or damage to the unit. A scraper may be used but must be used only when the unit is not running.
12. Blades are sharp. Handle carefully.
13. When mixing liquids, especially hot liquids, use a tall container or make small quantities at a time to reduce spillage.

PRODUCT SAFETY

1. To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place.
2. Be certain cover is securely locked in place before operating appliance.
3. Do not use an extension cord. Plug charger directly into an electric outlet.
4. Use only with the charger provided with the appliance. Do not attempt to use this charger with any other product. Likewise, do not attempt to charge this appliance with any other charger.
5. Do not incinerate this appliance even if it is severely damaged. The batteries can explode in a fire.
6. Keep hands and utensils away from the cutting blade while chopping food to reduce the risk of severe injury to persons or damage to the food chopper. A scraper may be used but only when the food chopper is not running.
7. Refer to the "Care and Cleaning" section for instructions on cleaning the surfaces in contact with food.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

Charger adapter:

Input: 120 Volts 60 Hz

Cordless Hand Blender:

Voltage: 8 Volts

NOTE: If the plug does not fit fully in the outlet, contact a qualified electrician. Do not modify the plug in any way.

LITHIUM-ION BATTERY OPERATED PRODUCT DISPOSAL

Always dispose the battery operated products according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations.

1. Charge the battery until the Battery status indicator turns solid green.
2. Clean all the parts and accessories (see "Care and Cleaning" section).
3. Remove all packaging materials, if present.

BATTERY STATUS

Battery status	% Battery status Full charge*	Quick charge**
Green 30	% to 100 %	25 bowls soups, 7 batches	1 Smoothie or 1 Soup
Yellow 15	% to 30 % (Consider charging)
Red Lower than 15 % (Need to charge soon)

\*Full Charge:

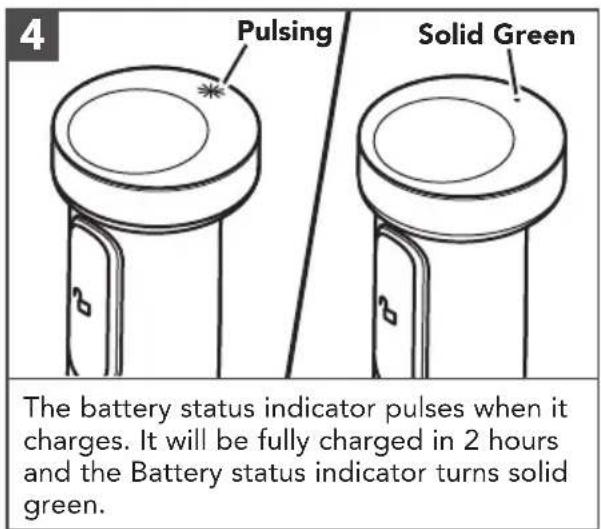

The Cordless Hand Blender will be fully charged in 2 hours. The Battery status indicator pulses when it charges and turns to solid green with a full charge. The Cordless Hand Blender will make 25 bowls of soup (354 ml), 7 batches on a full charge based on 12 ounces of tomato basil soup when following the recommended battery maintenance.

\*\*Quick Charge:

In 20 minutes, the Cordless Hand Blender will quick charge. The Cordless Hand Blender will run for approximately one smoothie or one soup preparation with one quick charge when following the recommended battery maintenance.

NOTE: Make sure to charge the battery, when the Battery status indicator is yellow.

NOTE: It is best to store your Cordless Hand Blender at room temperature.

SUGGESTED FOOD ITEMS

Food Quantity	Quantity Preparation	Speed Pulse
Almonds/Nuts	73/4 (200 gm) average carrot into	Place in whole nuts High		Quick pulse15 to 25 times
Beef Cut		High		Quick pulse10 to 15 times
Carrots Cut		quarters High		Quick pulse15 to 20 times
Garlic 10 to	12 cloves Place	in whole cloves High		Quick pulse10 to 15 times
Onion	3.5 oz (100 gm)	Cut into quarters	High	Quick pulse6 to 10 times
Parmesan cheese		Cut into 3/8" (1 cm) cubes High		Quick pulse20 to 30 times

*Processing settings are approximate.
Actual settings may vary depending on quality of food and desired blending results.
TIP: A Quick Pulse is one second On and one second Off operation.

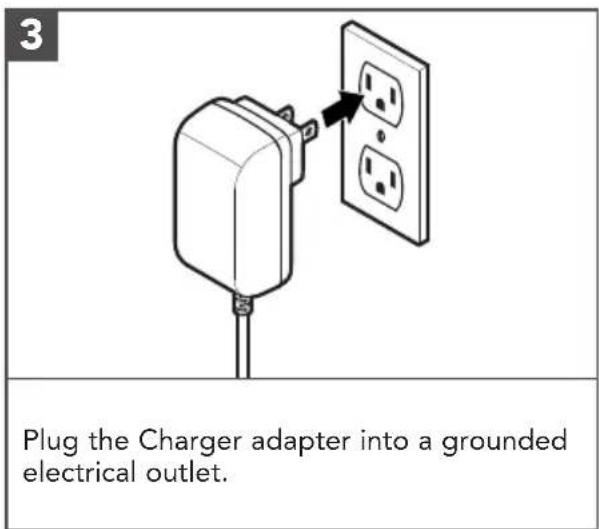

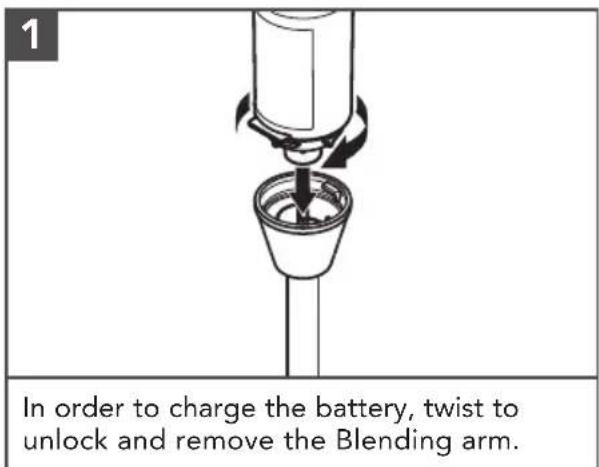

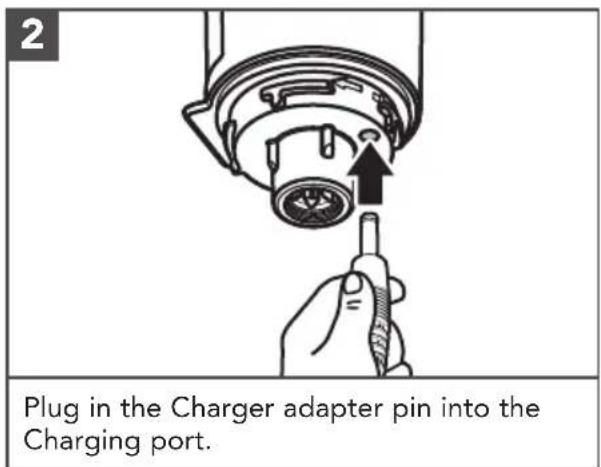

BATTERY CHARGING

PRODUCT USAGE

IMPORTANT: Make sure that the Variable speed controller is not pressed before attaching or removing parts or accessories.

PRODUCT USAGE

2
Blending

Diagram of a laboratory glassware setup with a pipette and internal components (no text or labels)

Insert the Cordless Hand Blender into the mixture. Press the Variable speed controller and Palm switch at the same time to start. Use your free hand to cover the top of the Blender jar for better stability and to avoid splashing.

NOTE: Do not immerse Motor body into liquids or other mixtures.

3
Drawing up

Use the draw up motion with the Cordless Hand Blender to move the ingredients within the jar.

Slowly draw it upwards against the side of the jar. Repeat the process until the ingredients are at the desired consistency.

USING THE CHOPPER ATTACHMENT (INCLUDED WITH KHBBV83)

Use to cut and chop beef, onion, garlic, cheese, carrots, nuts, etc.

WARNING

Cut Hazard

Handle blades carefully.

Failure to do so can result in cuts.

1

Two diagrams showing a mechanical device inside a container, one with a curved arrow and the other with a cube-shaped object (no text or symbols)

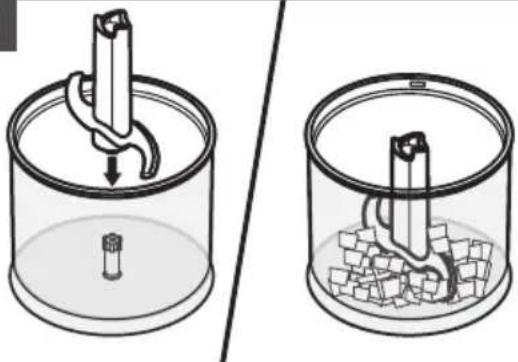

Insert the Chopper blade into Chopper bowl. Add ingredients into the Bowl. For best results, cut the food items into 3/4" (2 cm) pieces.

2

Diagram of a mechanical device with a central component and internal structure (no text or symbols)

Align the Chopper attachment with the Motor body and press together. Do not twist the Motor body into place.

PRODUCT USAGE

3

Illustration of a hand holding a cylindrical device with directional arrows indicating motion (no text or symbols)

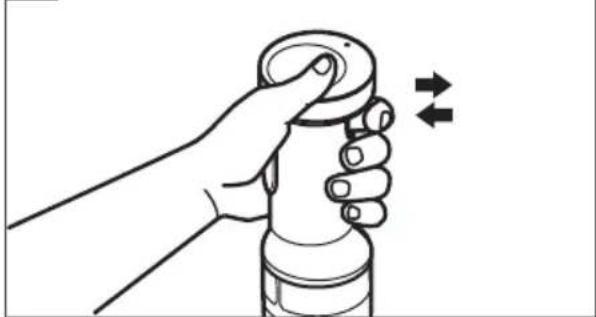

Press the Variable speed controller and Palm switch at the same time to start.

For best results, "pulse" the power by pressing and releasing the Variable speed controller until ingredients reach the desired consistency.

When chopping is complete, release the Variable speed controller.

USING THE WHISK ATTACHMENT (INCLUDED WITH KHBBV83)

Use the whisk to whip cream, beat egg whites, mix instant puddings, vinaigrettes, mousse, or for making mayonnaise.

Illustration of a hand turning a whisk into a small container, showing the process (no text or symbols)

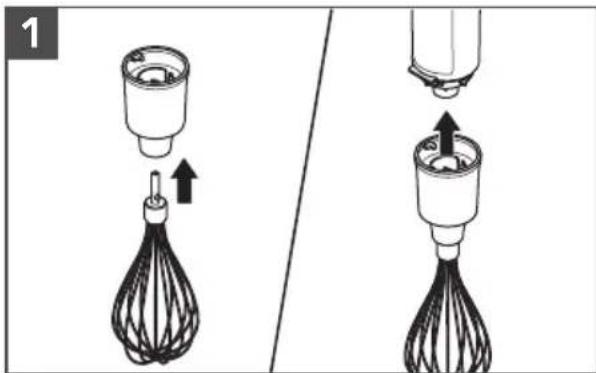

Insert the Whisk into the Whisk adapter until it locks in place.

Insert the Whisk accessory into the Motor body and twist to lock until it clicks.

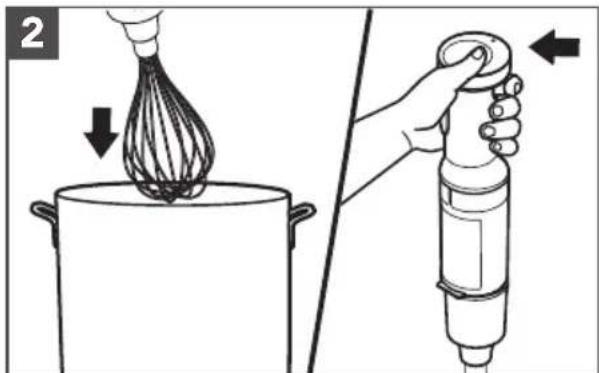

Insert the Cordless Hand Blender into the mixture. Press the Variable speed controller and Palm switch at the same time to start.

NOTE: Do not immerse Motor body into liquids or other mixtures.

TIP: The stainless steel whisk may scratch or mark non-stick coatings; avoid using the whisk with non-stick cookware.

NOTE: After whisking is complete, release the Variable speed controller; then remove Cordless Hand Blender from mixture.

CARE AND CLEANING

IMPORTANT: Make sure that the Variable speed controller is not pressed before attaching or removing parts or accessories.

WARNING

Cut Hazard

Handle blades carefully.

Failure to do so can result in cuts.

1

Technical diagram showing mechanical assembly with no visible text or symbols

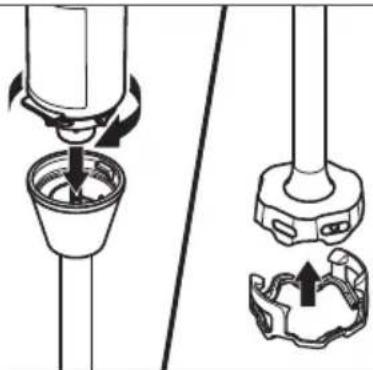

Remove the Blending arm, Pan guard, or Whisk accessory before cleaning.

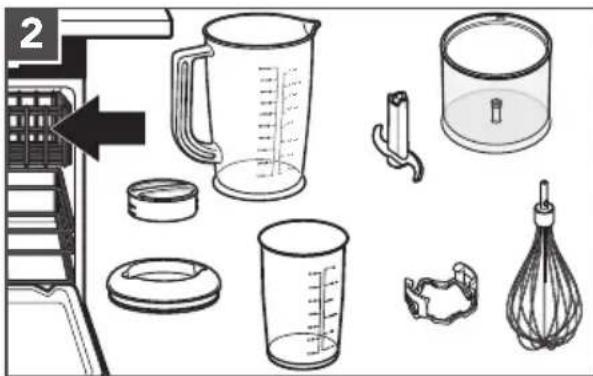

Dishwasher safe parts - top rack only: Whisk, Pan guard, Chopper bowl, Chopper Blade, Blender pitcher, Blender jar, and Lid. Wash Blender arm, Chopper attachment and Whisk adapter in hot, soapy water.

Line drawing of a hand holding a cylindrical device with a handle, no text or symbols present

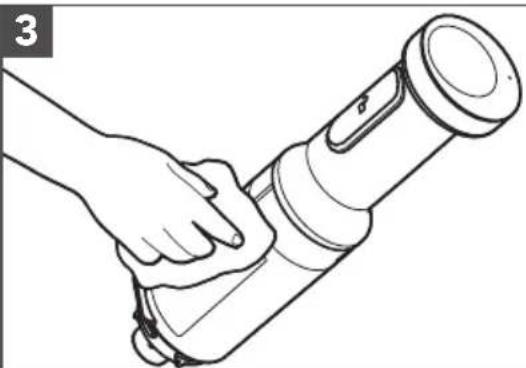

Wipe the Motor body with a damp cloth. Mild dish soap may be used, but do not use abrasive cleansers.

TIP: You can use the Storage case of the Cordless Hand Blender to store your product.

For detailed information on the Cordless Hand Blender:

Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes, and tips on how to use and clean your Cordless Hand Blender.

TROUBLESHOOTING GUIDE

Problem Solution
If the Cordless Hand Blender fails to start:	Check if the Cordless Hand Blender is charged. Charge the battery when the Battery status indicator is red or when the Battery is completed drained.
If the Cordless Hand Blender is not getting charged:	If you have a circuit breaker box, check to make sure that the circuit is closed.
If the Cordless Hand Blender stops while blending:	When overloaded or jammed, it will automatically shut off to prevent motor damage. Divide contents into smaller batches. For certain recipes, adding liquid in the Jar may also reduce the load.
If the problem cannot be corrected:	See the “Warranty and Service” sections. Do not return the Cordless Hand Blender to the retailer – retailers do not provide service.

WARRANTY AND SERVICE

KITCHENAID® CORDLESS HAND BLENDER WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Cordless Hand Blenders operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Cordless Hand Blender.See the next page for details on how to arrange for service, or call the Customer eXperience Center toll-free at 1.800.541.6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship.Service must be provided by an Authorized KitchenAid Service Center.
KitchenAid Will Not Pay for:	A. Repairs when your Cordless Hand Blender is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Cordless Hand Blender to an Authorized Service Center.D. Replacement parts or repair labor costs for Cordless Hand Blenders operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Cordless Hand Blender should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Cordless Hand Blender returned to us. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service. If your Cordless Hand Blender should fail within the first year of ownership, simply call our toll-free Customer eXperience Center at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.) When you receive your replacement Cordless Hand Blender, use the carton and packing materials to pack up your original Cordless Hand Blender.

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Cordless Hand Blender should fail within the first year of ownership, KitchenAid Canada will replace your Cordless Hand Blender with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service. If your Cordless Hand Blender should fail within the first year of ownership, take the Cordless Hand Blender or ship collect to an Authorized KitchenAid Service Center. In the carton include your name and complete shipping address along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Your replacement Cordless Hand Blender will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner call our toll-free Customer eXperience Center at 1-800-807-6777.

Or write to us at: Customer eXperience Center KitchenAid Canada 200 - 6750 Century Ave. Mississauga, ON L5N 0B7

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico: For service information, or to order accessories or replacement parts, call tollfree at 1-800-541-6390 or write to: Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Cordless Hand Blender for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

Or write to: Customer eXperience Center KitchenAid Canada 200 - 6750 Century Ave. Mississauga, ON L5N 0B7

PIÈCES ET CARACTÉRISTIQUES

Diagram of a laboratory mixing bowl with a stirring rod and internal components (no text or labels)

Diagram of a piston-cylinder mixing in a beaker with directional arrows indicating flow (no text or labels)

Simple line drawing of a mechanical component inside a cylindrical container, with no text or symbols present.

Simple line drawing of a cylindrical container with a central rod and scattered cubes inside, no text or symbols present.

Diagram of a mechanical device with a cylindrical component inserted into a container, showing internal components (no text or symbols)

Illustration of a hand holding a cylindrical device with two arrows indicating motion (no text or symbols)

Illustration of a hand operating a cylindrical device while being processed into a container with granular material (no text or symbols)

Illustration of a hand turning a whisk into a bulb, showing the process from top to side (no text or symbols)

Mechanical assembly diagram showing a valve and base mount with directional arrows indicating motion (no text or symbols)

Line drawing of a hand holding a cylindrical device with a handle, no text or symbols present

Technical illustration showing a hand holding a mechanical component with an arrow indicating rotation (no text or symbols present)

Diagram of a laboratory glassware setup with a pipette and internal components (no text or labels)

Diagram of a piston-cylinder mixing in a beaker with directional arrows indicating flow (no text or labels)

Simple line drawing of a mechanical component inside a cylindrical container, with no text or symbols present.

Simple line drawing of a cylindrical container with a central rod and surrounding cubes (no text or symbols)

Diagram of a mechanical device with a cylindrical component inserted into a container, showing internal components (no text or symbols)

Illustration of a hand holding a cylindrical device with two arrows indicating motion (no text or symbols)

Diagram showing two stages of a hair shaker being inserted into a container, with arrows indicating the process (no text or symbols present)

Diagram showing mechanical assembly steps with arrows indicating motion (no text or symbols)

Line drawing of a hand holding a cylindrical device with a handle, no text or symbols present

White silhouette of a telephone handset on black background (no text or symbols)

PRODUCT QUESTIONS OR RETURNS

QUESTIONS SUR LE PRODUIT OU LES RETOURS

MEXICO: KitchenAid.com.mx

LATIN AMERICA: KitchenAid-Latam.com

KitchenAid®

®/TM ©2019 KitchenAid. All rights reserved. Used under license in Canada.
