DHP459Y1J - Drill driver MAKITA - Free user manual and instructions

Product Type	Cordless Hammer Drill/Driver
Brand	Makita
Model	DHP459Y1J
Overall Length	192 mm
Net Weight (without battery)	1.5 kg
Net Weight (with battery)	1.7 kg (depending on battery)
Rated Voltage	18 V DC
Compatible Battery	BL1815, BL1815N, BL1820, BL1820B, BL1830, BL1840, BL1840B, BL1850, BL1850B
No-Load Speed (High Speed)	0 - 1,500 min⁻¹
No-Load Speed (Low Speed)	0 - 400 min⁻¹
Drilling Capacity (Concrete)	13 mm
Drilling Capacity (Steel)	13 mm
Drilling Capacity (Wood)	38 mm
Screwdriving Capacity (Wood Screws)	6 mm x 75 mm
Screwdriving Capacity (Machine Screws)	M6
Number of Torque Settings	16
Operating Modes	Drilling only, Hammer drilling, Screwdriving
Additional Features	LED light, Reverse switch, Speed change (2 speeds), Battery charge indicator
Sound Pressure Level	82 dB(A)
Sound Power Level	93 dB(A)
Vibration Emission (Hammer drilling concrete)	8 m/s²
Maintenance and Cleaning	Clean with a dry cloth; do not use solvents. Have it serviced at an authorized Makita service center.
Optional Accessories	Drill bits, screwdriver bits, blower bulb, hook, bit holder, Makita batteries and charger
Repairability	Makita spare parts available at authorized service centers

Frequently Asked Questions - DHP459Y1J MAKITA

What type of battery to use with the Makita DHP459Y1J?

Use exclusively Makita Lithium-ion 18 V batteries from the BL18xx series, including BL1815, BL1820, BL1830, BL1840, BL1850 and their variants. Do not use batteries of another brand.

How to change the rotation direction?

Use the reverse lever located above the trigger. Push it to the left for clockwise rotation (tightening) and to the right for counterclockwise rotation (loosening). Never change direction while the tool is still rotating.

What is the difference between the three modes on the mode change ring?

The drilling only mode (symbol Ⓗ) is for drilling in wood, metal or plastic. The hammer drilling mode (symbol ⚡) is for drilling in concrete, brick or stone. The screwdriving mode (screw symbol) is for driving screws.

How to adjust the tightening torque?

Turn the adjustment ring (located behind the chuck) to align one of the 16 numbers with the arrow on the tool body. Number 1 corresponds to the lowest torque and number 16 to the highest torque. Test on a scrap piece of material before final screwing.

The tool stops abruptly, what to do?

This is the battery protection device that has activated. If the tool is overloaded, release the trigger and remove the cause of the overload. If the battery is too hot, let it cool down. If the battery is low, recharge it. The tool will restart normally afterward.

How to clean and maintain the drill?

Before any maintenance, remove the battery. Clean the housing with a soft dry cloth. Never use gasoline, thinner or alcohol. The ventilation slots must remain unobstructed. For repairs, take the tool to an authorized Makita service center.

Can I use a regular drill bit for drilling concrete?

No, for drilling concrete, you must use a hammer drill bit with a tungsten carbide tip. Set the ring to hammer mode (symbol ⚡) and adjust the appropriate speed.

How to know if the battery is fully charged?

Batteries with the letter 'B' in their model have an indicator. Press the check button: the LEDs light up to indicate the remaining charge. 3 LEDs = 75-100%, 2 = 50-75%, 1 = 25-50%, 1 flashing = 0-25%.

What accessories are included with the drill?

The contents of the package may vary by country. Generally, the drill is supplied with a hook, a bit holder, a blower bulb and sometimes a screwdriver bit. Check the list in the manual.

What safety precautions should I take?

Wear hearing protection during hammer drilling. Always use the auxiliary handle if provided. Hold the tool by insulated gripping surfaces to avoid electric shock in case of contact with hidden wires. Never leave the tool unattended while it is running.

USER MANUAL DHP459Y1J MAKITA

GB Cordless Hammer Driver Drill Instruction Manual

Line drawing of a handheld electric drill putter with screwdriver and base (no text or symbols)

012790 012428

1

Line drawing of a drill bit with labeled parts (no text or symbols beyond the number 7)

015659 012792 4

3

012791 012793

5

7
012794 012795 8

9

012796 012797 10

11 12

012798 012846

13 14

Line drawing of a hand using a drill bit on a power tool (no text or symbols)

002449 012799

Explanation of general view

1 Red indicator	9 Reversing switch lever	17 Hook
2 Button	10 Speed change lever	18 Screw
3 Battery cartridge	11 Action mode changing ring	19 Bit holder

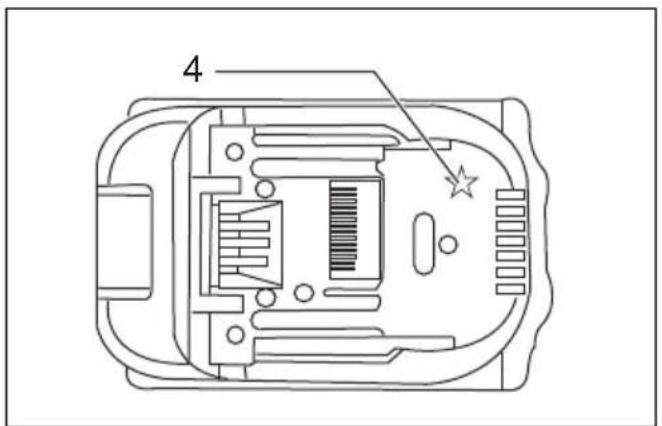

4 Star marking	12 Adjusting ring	20 Bit

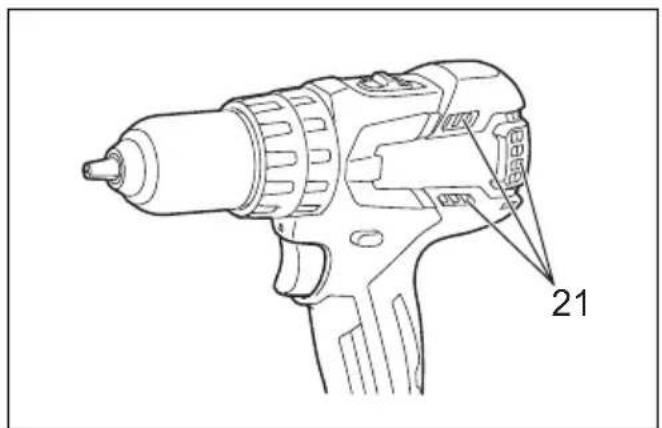

5 Indicator lamps	13 Graduation	21 Vent
6 Check button	14 Arrow	22 Blow-out bulb
7 Switch trigger	15 Sleeve
8 Lamp	16 Groove

SPECIFICATIONS

Model DHP459
Capacities	Concrete 13 mm
	Steel 13 mm
	Wood 38 mm
	Wood screw 6 mm x 75 mm
	Machine screw M6
No load speed (min ^-1 )	High (2)	0 – 1,500
	Low (1)	0 – 400
Blows per minute	High (2)	0 – 22,500
	Low (1)	0 – 6,000
Overall length		192 mm
Rated voltage		D.C. 18 V
Battery cartridge		BL1815 / BL1815N / BL1820 / BL1820B	BL1830 / BL1840 / BL1840B / BL1850 / BL1850B
Net weight		1.5 kg	1.7 kg

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003

ENE079-1

Intended use

The tool is intended for impact drilling in brick, concrete and stone. It is also suitable for screw driving and drilling without impact in wood, metal, ceramic and plastic.

GEA010-1

General Power Tool Safety Warnings

⚠ WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

GEB056-5

CORDLESS HAMMER DRIVER DRILL SAFETY WARNINGS

1. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
4. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
5. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.
6. Hold the tool firmly.
7. Keep hands away from rotating parts.

8. Do not leave the tool running. Operate the tool only when hand-held.

9. Do not touch the bit or the workpiece immediately after operation; they may be extremely hot and could burn your skin.

10. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

ENC007-9

IMPORTANT SAFETY INSTRUCTIONS

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50^ C ( 122^ F).
2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
3. Be careful not to drop or strike battery.
4. Do not use a damaged battery.
5. Follow your local regulations relating to disposal of battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room temperature at 10^ C – 40^ C ( 50^ F – 104^ F). Let a hot battery cartridge cool down before charging it.

4. Charge the battery cartridge if you do not use it for a long period (more than six months).

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

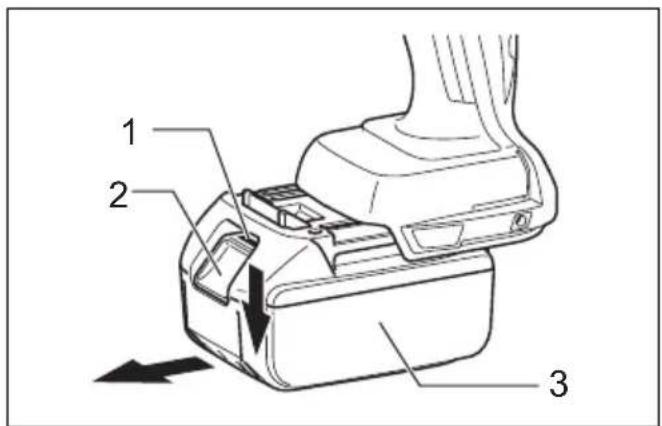

Installing or removing battery cartridge (Fig. 1)

CAUTION:

• Always switch off the tool before installing or removing of the battery cartridge.
• Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.

To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely.

CAUTION:

• Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.

Battery protection system (Fig. 2)

The tool and battery are equipped with a protection system. This system automatically cuts off power to the tool to extend battery life.
The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:
- Overloaded:

The tool is operated in a manner that causes it to draw an abnormally high current.

In this situation, release the switch trigger on the tool and stop the application that caused the tool to become overloaded. Then pull the switch trigger again to restart.

If the tool does not start, the battery is overheated. In this situation, let the battery cool before pulling the switch trigger again.

- Low battery voltage:

The remaining battery capacity is too low and the tool will not operate. In this situation, remove and recharge the battery.

NOTE:

- Those temperature-sensitive protection and low-voltage protection is applied only when the tool is used with a battery cartridge with a star mark.

Indicating the remaining battery capacity (Fig. 3) (Only for battery cartridges with "B" at the end of the model number.)

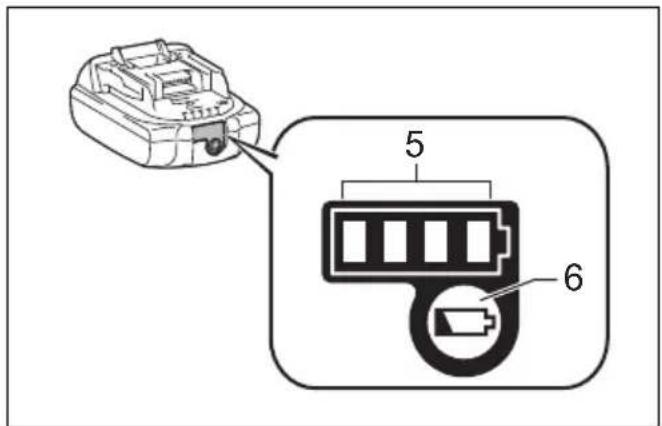

Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for few seconds.

Indicator lamps			Remaining Capacity
Lighted Off Blinking
			75% to 100%
			50% to 75%
			25% to 50%
			0% to 25%
			Charge the battery.
			The battery may have malfunctioned.

015658

NOTE:

- Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

Switch action (Fig. 4)

CAUTION:

- Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

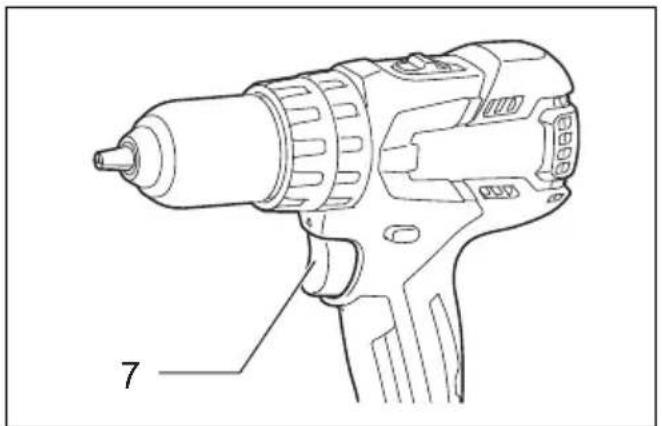

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

Lighting up the lamp (Fig. 5)

CAUTION:

- Do not look in the light or see the source of light directly.

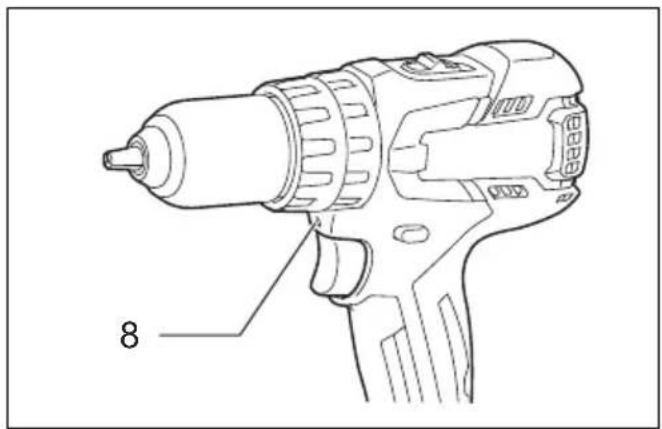

Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The lamp goes out just after releasing the trigger.

NOTE:

- Use a dry cloth to wipe the dirt off the lens of the lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.

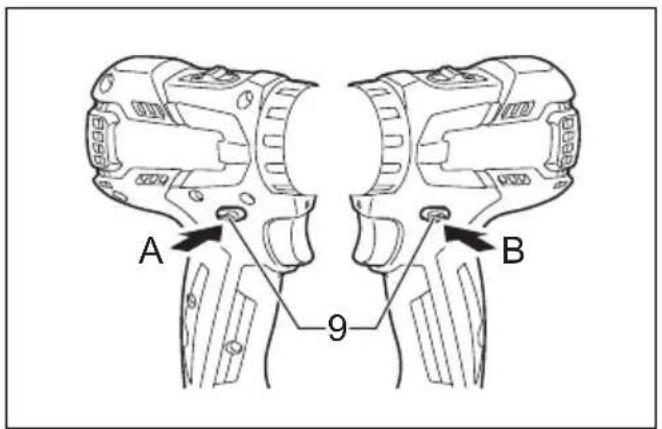

Reversing switch action (Fig. 6)

CAUTION:

• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.
• When not operating the tool, always set the reversing switch lever to the neutral position.

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation.

When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

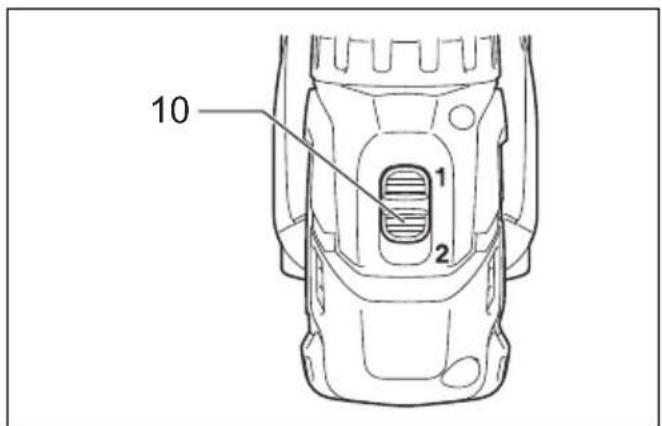

Speed change (Fig. 7)

CAUTION:

• Always set the speed change lever fully to the correct position. If you operate the tool with the speed change lever positioned halfway between the "1" side and "2" side, the tool may be damaged.
• Do not use the speed change lever while the tool is running. The tool may be damaged.

To change the speed, first switch off the tool and then slide the speed change lever to the "2" side for high speed or "1" side for low speed. Be sure that the speed change lever is set to the correct position before operation. Use the right speed for your job.

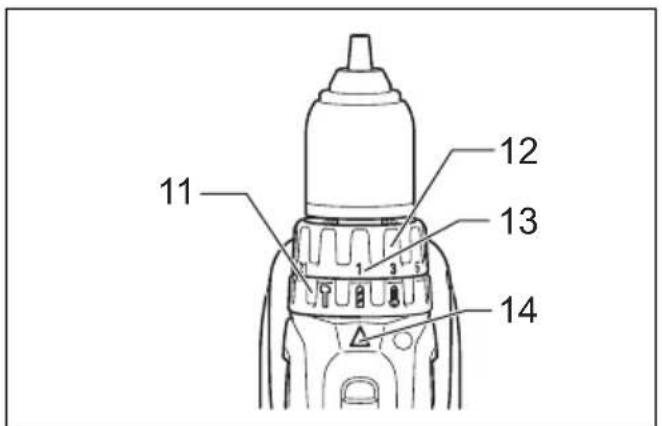

Selecting the action mode (Fig. 8)

This tool employs an action mode changing ring. Select one of the three modes suitable for your work needs by using this ring.

For rotation only, turn the ring so that the arrow on the tool body points toward the ⏻ mark on the ring.

For rotation with hammering, turn the ring so that the arrow points toward the ⏱ mark on the ring.

For rotation with clutch, turn the ring so that the arrow points toward the mark on the ring.

CAUTION:

- Always set the ring correctly to your desired mode mark. If you operate the tool with the ring positioned halfway between the mode marks, the tool may be damaged.

Adjusting the fastening torque (Fig. 8)

The fastening torque can be adjusted in 16 steps by turning the adjusting ring so that the graduations are aligned with the arrow on the tool body. The fastening torque is minimum when the number 1 is aligned with the arrow, and maximum when the number 16 is aligned with the arrow.

Before the actual operation, drive a trial screw into your material or a piece of duplicate material to determine which torque level is required for a particular application.

ASSEMBLY

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

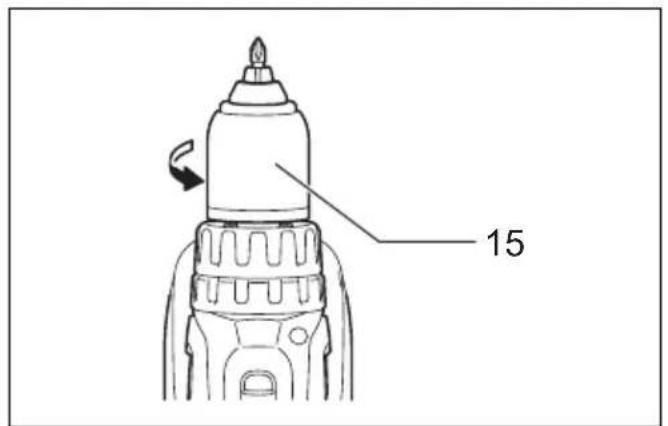

Installing or removing the driver bit or drill bit (Fig. 9)

Turn the sleeve counterclockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. Turn the sleeve clockwise to tighten the chuck.

To remove the bit, turn the sleeve counterclockwise.

Installing the hook (Fig. 10)

The hook is convenient for temporarily hanging the tool.

This can be installed on either side of the tool.

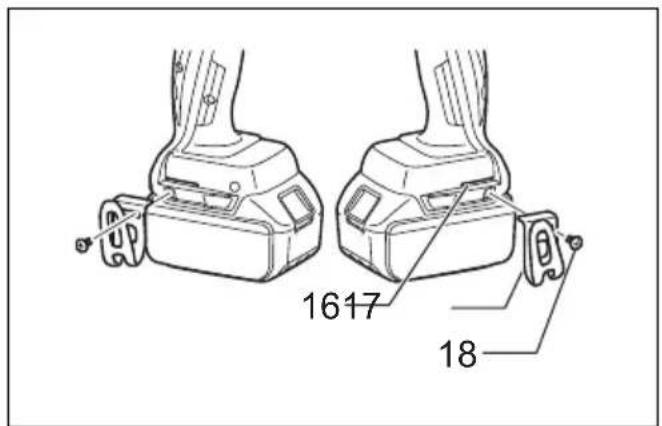

To install the hook, insert it into a groove in the tool housing on either side and then secure it with a screw. To remove, loosen the screw and then take it out.

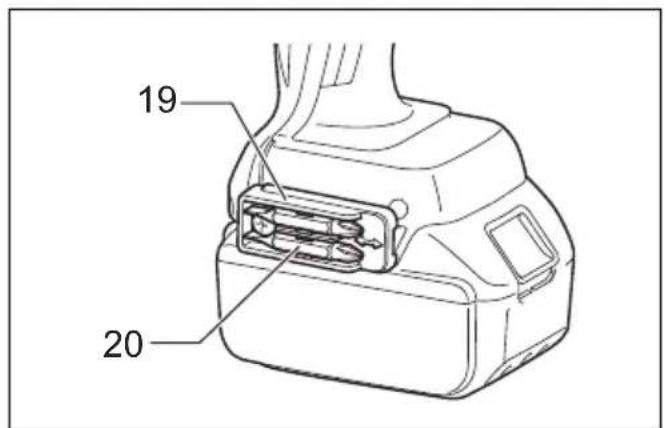

Installing the bit holder (Optional accessory) (Fig. 11)

Fit the bit holder into the protrusion at the tool foot on either right or left side and secure it with a screw.

When not using the driver bit, keep it in the bit holders.

Bits 45 mm long can be kept there.

OPERATION

CAUTION:

- Always insert the battery cartridge all the way until it locks in place. If you can see the red part on the upper side of the button, it is not locked completely. Insert it fully until the red part cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

Hold the tool firmly with one hand on the grip and the other hand on the bottom of the battery cartridge to control the twisting action.

CAUTION:

- Do not cover vents, or it may cause overheating and damage to the tool. (Fig. 12)

Hammer drilling operation

CAUTION:

- There is a tremendous and sudden twisting force exerted on the tool/bit at the time of hole breakthrough, when the hole becomes clogged with chips and particles, or when striking reinforcing rods embedded in the concrete.

First, turn the action mode changing ring so that the arrow on the tool body points to the ♂ marking. The adjusting ring can be aligned in any torque levels for this operation.

Be sure to use a tungsten-carbide tipped bit.

Position the bit at the desired location for the hole, then pull the switch trigger. Do not force the tool. Light pressure gives best results. Keep the tool in position and prevent it from slipping away from the hole.

Do not apply more pressure when the hole becomes clogged with chips or particles. Instead, run the tool at an idle, then remove the bit partially from the hole. By repeating this several times, the hole will be cleaned out and normal drilling may be resumed.

Blow-out bulb (optional accessory) (Fig. 13)

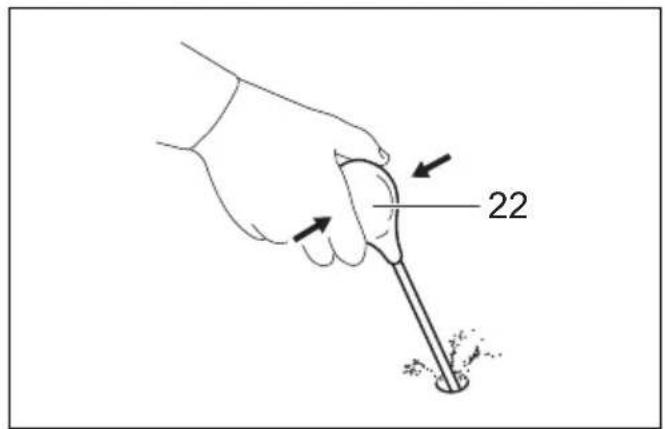

After drilling the hole, use the blow-out bulb to clean the dust out of the hole.

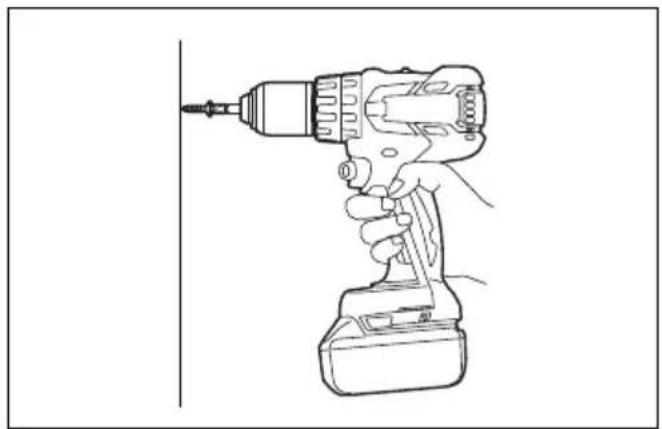

Screwdriving operation (Fig. 14)

First, turn the action mode changing ring so that the arrow on the tool body points to the ⚙marking. Adjust the adjusting ring to the proper torque level for your work. Then proceed as follows.

Place the point of the driver bit in the screw head and apply pressure to the tool. Start the tool slowly and then increase the speed gradually. Release the switch trigger as soon as the clutch cuts in.

CAUTION:

- Make sure that the driver bit is inserted straight in the screw head, or the screw and/or bit may be damaged.

NOTE:

- When driving wood screw, predrill a pilot hole 2/3 the diameter of the screw. It makes driving easier and prevents splitting of the workpiece.

Drilling operation

First, turn the adjusting ring so that the pointer points to the ⏻ marking. Then proceed as follows.

CAUTION:

• Pressing excessively on the tool will not speed up the drilling. In fact, this excessive pressure will only serve to damage the tip of your bit, decrease the tool performance and shorten the service life of the tool.
• There is a tremendous force exerted on the tool/bit at the time of hole break through. Hold the tool firmly and exert care when the bit begins to break through the workpiece.
• A stuck bit can be removed simply by setting the reversing switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it firmly.
• Always secure small workpieces in a vise or with a similar hold-down device.
• If the tool is operated continuously until the battery cartridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery.
• Do not pull the switch trigger repeatedly when the motor is locked. It may damage the tool.

Drilling in wood

When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw makes drilling easier by pulling the bit into the workpiece.

Drilling in metal

To prevent the bit from slipping when starting to make a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling.

Use a cutting lubricant when drilling metals. The exceptions are iron and brass which should be drilled dry.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

- These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use the accessories or attachments for their stated purposes.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Drill bits
  • Tungsten-carbide tipped hammer bit
• Screw bits
• Socket bit
• Blow-out bulb
• Safety goggles
• Makita genuine battery and charger
• Hook
• Bit holder

NOTE:

- Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

ENG905-1

Noise

The typical A-weighted noise level determined according to EN60745:

Sound pressure level ( L_pA ): 82 dB (A)

Sound power level ( L_WA ): 93 dB (A)

Uncertainty (K): 3 dB (A)

Wear ear protection

ENG900-1

Vibration

The vibration total value (tri-axial vector sum) determined according to EN60745:

Work mode: impact drilling into concrete

Vibration emission ( a_h,ID ): 8 m/s ^2

Uncertainty (K): 1.5 m/s ^2

Work mode: drilling into metal

Vibration emission ( a_h,D ): 2.5 m/s ^2 or less

Uncertainty (K): 1.5 m/s ^2

ENG901-1

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.
• The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

For European countries only

EC Declaration of Conformity

Makita declares that the following Machine(s):

Designation of Machine:

Cordless Hammer Driver Drill

Model No./ Type: DHP459

Conforms to the following European Directives: 2006/42/EC

They are manufactured in accordance with the following standard or standardized documents:

EN60745

The technical file in accordance with 2006/42/EC is available from:

Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium

31.12.2013

Yasushi Fukaya

Director

Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium

Descriptif

OPTIONELE ACCESSOIRES

LET OP:
