EMEK9 P545 BM - Microwaves BAUKNECHT - Free user manual and instructions

Product type	Combination microwave (microwave oven, convection, grill)
Brand	Bauknecht
Model	EMEK9 P545 BM
Cooking functions	Microwave, natural convection, forced convection, grill, turbo grill, hot air, keep warm, dough rising, Diamond Clean cleaning, dynamic defrosting, dynamic reheating, My Menu Cook
Microwave power	9 levels: 850 W, 750 W, 650 W, 500 W, 350 W, 160 W, 90 W, 0 W (timer)
Cavity volume	Approximately 43 liters (estimated based on typical dimensions)
Control type	Touch screen
Connectivity	Wi-Fi b/g/n 2.4 GHz, Bauknecht Home Net app
Included accessories	Metal rack, glass turntable, baking tray, meat probe
Number of rack levels	3 levels
Cleaning	Diamond Clean function (steam), wipeable interior surfaces
Safety	Control lock, start protection (door)
Power supply	230 V / 50 Hz (typical), total power varies by function
Dimensions (H x W x D)	Approximately 455 x 595 x 568 mm (estimated for standard built-in)
Weight	Approximately 40 kg (estimated)
Repairability	Bauknecht after-sales service, spare parts available
General information	Manual available in multiple languages, warranty included

Frequently Asked Questions - EMEK9 P545 BM BAUKNECHT

How to start the microwave for the first time?

On first use, you need to select the language and set the time. Then, heat the empty oven for about 30 minutes at 200 °C using the Rapid Preheat function to remove manufacturing odors.

Can I use metal containers in the microwave?

No, metal containers must never be used in microwave-only mode. They can be used in other modes (convection, grill) provided they are suitable for the oven temperatures.

How to activate the control lock function?

Press the lock icon in the Tools menu. To unlock, swipe the displayed message upward on the touch screen.

What to do if the screen displays 'F' followed by a number?

This indicates a software error. Note the number and contact Bauknecht after-sales service. Also check that demo mode is not activated (go to Settings > Demo mode > Off).

How to use the meat probe?

Plug the probe into the dedicated socket. Insert it deep into the meat avoiding bones. Select a compatible function (manual or My Menu) and set the desired internal temperature. Cooking stops automatically at the target temperature.

How to clean the interior of the oven?

Use the Diamond Clean function: place 200 ml of water at the bottom of the cavity and start the cycle. After cooling, wipe with a cloth or sponge. For stubborn stains, use a mild non-abrasive detergent.

Can I connect the oven to my Wi-Fi network?

Yes, the oven has Wi-Fi b/g/n 2.4 GHz. Download the Bauknecht Home Net app, create an account and follow the instructions to connect the appliance. The SAID code (on the rating plate) is required for registration.

Which accessories are included with the oven?

The oven comes with a metal rack, a glass turntable, a baking tray and a meat probe. Other accessories can be purchased separately from after-sales service.

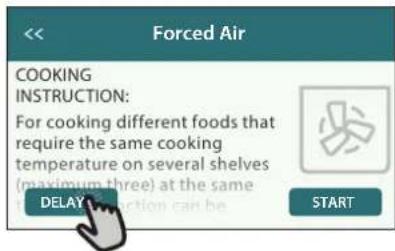

How to set a delayed start?

Before starting a function, press 'DELAY' and set the desired start time. Confirm with 'ACTIVATE DELAYED START'. The oven will start automatically at the scheduled time. Note that preheating must be disabled for this option.

What to do if the oven does not heat?

First check that demo mode is disabled (Settings > Demo mode > Off). If the problem persists, check the power supply and contact after-sales service if necessary.

USER MANUAL EMEK9 P545 BM BAUKNECHT

Line drawing of a human hand holding a medical device (no text or symbols)

SELBSTREINIGUNG

THANK YOU FOR BUYING A BAUKNECHT PRODUCT

In order to receive a more complete assistance, please register your product on www.bauknecht.eu/register

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

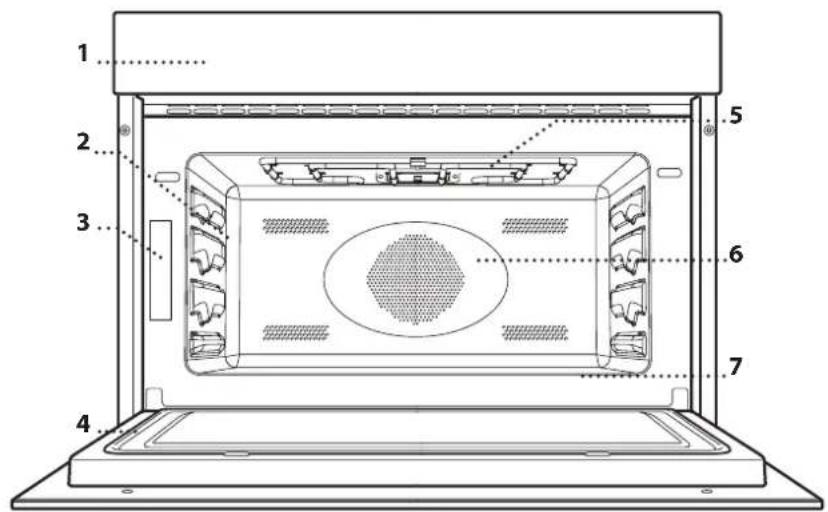

PRODUCT DESCRIPTION

1. Control panel
2. Shelf guides

The levels on which the wire shelf and other accessories can be placed are numbered, with 1 being the lowest and 3 being the highest.

1. Identification plate (do not remove)
2. Door
3. Grill
4. Fan and circular heating element (not visible)
5. Lower heating element (not visible)

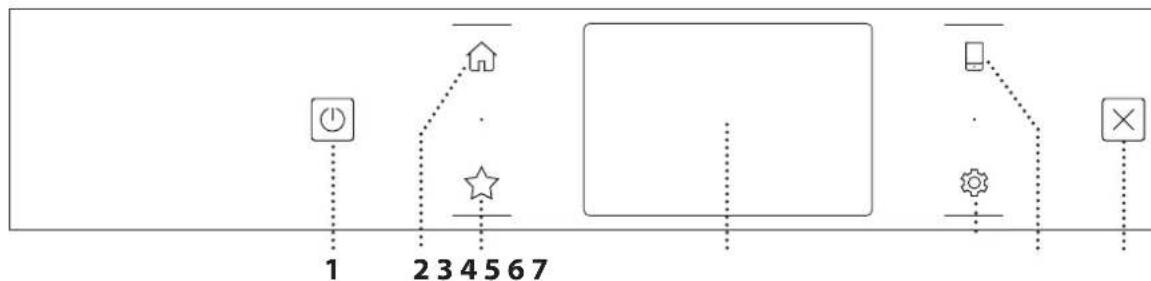

CONTROL PANEL DESCRIPTION

1. ON / OFF

For switching the oven on and off.

1. HOME

For gaining quick access to the main menu.

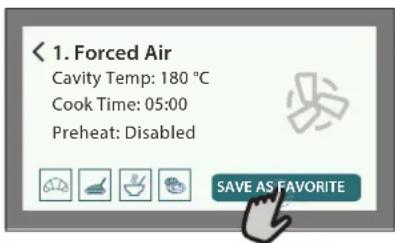

1. FAVORITE

For retrieving up the list of your favorite functions.

1. DISPLAY

2. TOOLS

To choose from several options and also change the oven settings and preferences.

1. REMOTE CONTROL

To enable use of the Bauknecht Home Net app.

1. CANCEL

To stop any oven function except the Clock, Kitchen Timer and Control Lock.

ACCESSORIES

BAKING TRAY

Useful as a support surface for oven baking containers; the plate can also be used for as a support surface for foods not in

containers. This accessory is not suitable for microwave use.

GLASS TRAY

Thanks to the properties of the

glass, this drip tray is suitable for all cooking modes. It collects the cooking juices when placed below the wire shelf.

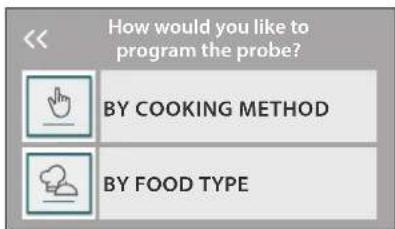

FOOD PROBE

For measuring the core temperature of food during cooking.

There are a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use and resistant to oven temperatures.

WIRE SHELF

The wire shelf is suitable for all cooking modes except for the single "Microwave" function. You can place food directly on the wire shelf or use it to support

baking trays and tins or other oven-ware resistant to heat and microwaves.

Insert the wire shelf by holding it tilted slightly upwards and resting the rear edge (pointing upwards) on the desired level. Then slide it horizontally along the runners as far as possible.

Other accessories that are not supplied can be purchased separately from the After-sales Service.

Metal containers for food or drink should never be used for microwave cooking.

FUNCTIONS

MICROWAVE

For quickly cooking and reheating food or drinks.

	|o|
850	Quickly reheating drinks or other foods with a high water content.
750 Cooking vegetables.
650 Cooking meat and fish.
500	Cooking meaty sauces, or sauces containing cheese or egg. Finishing off meat pies or pasta bakes.
350 Perfect for melting butter or chocolate.
160	Defrosting frozen foods or softening butter and cheese.
90 Softening ice cream.
0 Just minute-minder

	|o|
Reheat 2 cups 850 3
Reheat Mashed potatoes (1 kg) 850 10 - 12
Defrost Minced Meat (500 g) 160 13 - 14
Cook	Sponge cake	750	7 - 8
Cook	Egg custard	750	10 - 11
Cook	Meat loaf	750	15 - 16

Required accessory: Glass tray

FAST PREHEATING

For quickly preheating the oven before a cooking cycle. Wait for the function to finish before placing food inside the oven.

CONVENTIONAL FUNCTIONS

• CONVENTIONAL

For perfectly browning a dish, both on the top and bottom of the food.

|o|	20	400	∅	□
Small cakes	Yes	160 - 180	30 - 40	2
Biscuits	Yes	150 - 160	20 - 30	2
Pizza	Yes	230	20 - 30	1

• CONVENTIONAL+MW

For preparing baked dishes more quickly by combining the conventional oven and the microwave.

|o|	20	20-220	90	25-35	1
Bread	-	200-220	90	25-35	1
Roast beef(1-1.5kg)	-	160	160-350	35-45	1
Lasagna	Yes	170-200	160-350	20-40	1
Frozen food	-	160-180	350	20-30	1

GRILL FUNCTIONS

• GRILL

For browning, grilling and gratins.

|0|
Toast 3 7 - 10			3
Prawns 2 20 - 30			2

- GRILL + MW

For quickly cooking and gratinating dishes.

|o|
Potatoes gratin 350 2 20 - 40				2
Jacket Potatoes 350 3 10 - 20				2

TURBO GRILL FUNCTIONS

• TURBOGRILL

For perfect cooking and browning, combining the grill and oven air convection.

|o|
Chicken Kebab 3 25 - 35			2
Roasted potatoes 3 30 - 50			2

• TURBOGRILL+MW

For quickly cooking and browning, combining the microwave, grill and the oven air convection.

101
Cannelloni [Frozen]	350	3	20 - 25	2
Pork Chops	350	3	30 - 40	2
Roast Chicken	350	2	40 - 60	2

FORCED AIR FUNCTIONS

- FORCED AIR

For cooking sweets and meats, using continuous hot air circulation.

|o|	∅	∅°C	∅	∅
Meringues	Yes	100 - 120	40 - 50	2
Cookies	Yes	170 - 180	10 - 20	2
Bread loaf	Yes	180 - 200	30 -35	1
Swiss rolls	Yes	210 - 220	10 - 12	2
Puff pastry	Yes	180 - 190	15 - 20	2
Roast (800 g - 1.5 kg)	Yes	160 - 170	70 - 80	1

• FORCED AIR +MW

For quickly cooking sweets and meats, using all the benefits of the microwave and hot air circulation.

|o|
Roasts	160	170	40 - 60	2
Meat Pie	160	180	25 - 35	1
Baked fish	160	170 - 190	20 - 35	1

CONVECTION BAKE FUNCTIONS

• CONVECTION BAKE

For perfectly cooking meats, cakes and pies with a liquid filling.

|o|	#	#+°C	∅	#
Filled pies	-	160 - 200	35 - 55	1
Quiche lorraine	-	170 - 190	30 - 45	1

• CONVECTION BAKE + MW

For quickly cooking all food with a liquid filling, by combining the microwave, conventional heating and air convection.

|o|
Filled pies	350	160 - 200	25 - 45	2
Sponge cake	90	160 - 180	30 - 35	1

SPECIALS

- KEEP WARM

For keeping just-cooked food hot and crisp.

• RISING

For optimal proving of sweet or savoury dough.

• DIAMOND CLEAN

For making it easier to clean the cooking compartment. Regular use prevents deposits from forming, which could damage the surface.

MY MENU FUNCTIONS

These functions automatically select the best temperature and cooking method for all types of food.

• DYNAMIC DEFROST

For quickly defrosting various different types of food simply by specifying their weight. Always place the food directly on the glass tray for best results.

101	2
MEAT	100 g - 2.0 kg
POULTRY	100 g - 3.0 kg
FISH	100 g - 2.0 kg
VEGETABLE	100 g - 2.0 kg
BREAD	100 g - 2.0 kg

• DYNAMIC REHEAT

For reheating ready-made food that is either frozen or at room temperature. The oven automatically calculates the settings required to achieve the best results in the shortest amount of time. Place food in a microwave-safe and heatproof container. At the end of reheating process, leaving to stand for 1-2 minutes will always improve the result, especially for frozen food.

101

[NO TEXT]

DINNER PLATE 250 - 500 g

Take out from packaging being careful to remove any aluminium foil.

DINNER PLATE-FROZEN 250 - 500 g

Take out from packaging being careful to remove any aluminium foil.

SOUP 1 - 4 portions

Heat uncovered in separate bowls

BEVERAGE 1 - 4 portions

Place a heat resistant plastic spoon into a mug or cup to prevent overboiling

• MY MENU COOK

For cooking several kind of dishes and foods and achieving optimal results in the easiest and quickest way. To get the best from this function, follow the indications on the relative cooking table.

HOW TO READ THE COOKING TABLES

The list in the tables:

recipes 📄, if preheating is needed ⚪, temperature ⚫c, microwave power ⚙, grill level ⚽, weight ⚠, cooking time ⚻, accessories and level ⏱ suggested for cooking.

Cooking times start from the moment food is placed in the oven, excluding preheating (where required).

Cooking temperatures and times are approximate and depend on the amount of food and the type of accessory used.

Wire Shelf, cake tin on wire shelf, baking tray, glass tray

HOW TO USE THE TOUCH DISPLAY

To scroll through a menu or a list:

Simply swipe your finger across the display to scroll through the items or values.

To select or confirm:

Tap the screen to select the value or menu item you require.

To go back to the previous screen:

Tap. <

To confirm a setting or go to the next screen: Tap "SET" or "NEXT".

FIRST TIME USE

1. SELECT THE LANGUAGE

You will need to set the language and the time when you switch on the appliance for the first time.

- Swipe across the screen to scroll through the list of available languages.

- Tap the language you require.

Tapping will take you back to the previous screen.

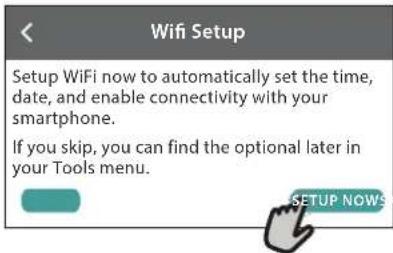

2. SETTING UP WIFI

The Bauknecht app feature allows you to operate the oven remotely from a mobile device. To enable the appliance to be controlled remotely, you will need to complete the connection process successfully first. This process is necessary to Register your appliance and connect it to your home network.

- Tap "SETUP NOW" to set up the connection.

Otherwise, or tap "SKIP" to connect your product later.

HOW TO SET UP THE CONNECTION

To use this feature you will need: A smartphone or tablet and a wireless router connected to the Internet. Please use your smart device to check that your home wireless network's signal is strong close to

the appliance.

Minimum requirements.

Smart device: Android with a 1280x720 (or higher) screen or iOS. See on the app store compatibility with Android or iOS versions.

Wireless router: 2.4Ghz WiFi b/g/n.

1. Download the Bauknecht Home Net app

The first step to connecting your appliance is to download the app on your mobile device. The Bauknecht Home Net app will guide you through all the steps listed here. You can download the Bauknecht Home Net app from the App Store or the Google Play Store.

2. Create an account

If you haven't done so already, you'll need to Create an account. This will enable you to network your appliances and also view and control them remotely.

3. Register your appliance

Follow the instructions in the app to register your appliance. For the registration process You will need the Smart Appliance Identifier (SAID) number. Its unique code the number following the word SERVICE on the identification plate attached to the product.

4. Connect to WiFi

Follow the scan-to-connect setup procedure. The app will guide you through the process of connecting your appliance to the wireless network in your home.

If your router supports WPS 2.0 (or higher), select "MANUALLY", then tap "WPS Setup": Press the WPS button on your wireless router to establish a connection between the two products.

If necessary, you can also connect the product manually using "Search for a network".

The SAID code is used to synchronise a smart device with your appliance.

The MAC address is displayed for the WiFi module.

The connection procedure will only need to be carried out again if you change your router settings (e.g. network name or password or data provider).

3. SETTING THE TIME AND DATE

Connecting the oven to your home network will set the time and date automatically. Otherwise you will need to set them manually

• Tap the relevant numbers to set the time.
• Tap "SET" to confirm.

Once you have set the time, you will need to set the date

• Tap the relevant numbers to set the date.
• Tap "SET" to confirm.

After a long power loss, you need to set the time and date again.

4. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: this is completely normal.

Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it.

Heat the oven to 200 °C, ideally using the "Fast preheat" function.

It is advisable to air the room after using the appliance for the first time.

DAILY USE

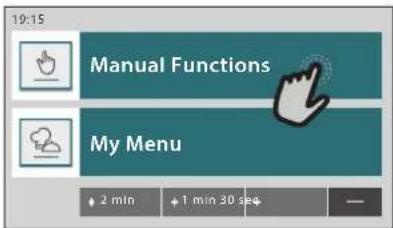

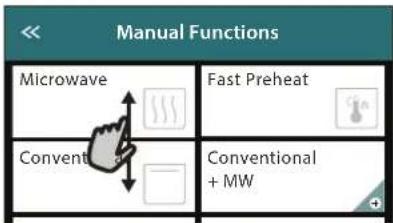

1. SELECT A FUNCTION

• To switch on the oven, press or touch anywhere on the screen.
  The display allows you to choose between Manual and My Menu Functions.
• Tap the main function you require to access the corresponding menu.

- Scroll up or down to explore the list.

- Select the function you require by tapping it.

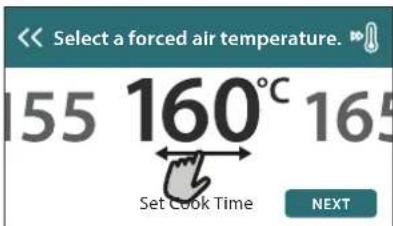

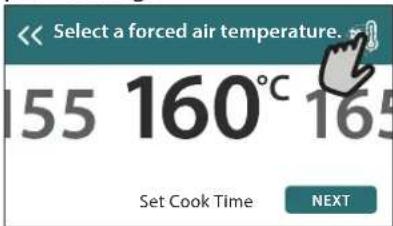

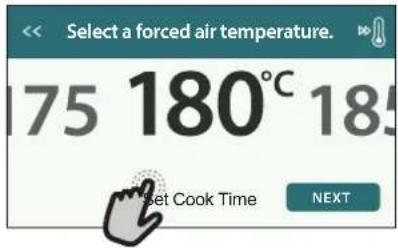

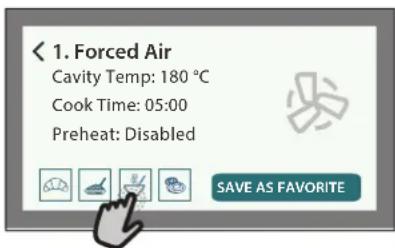

2. SET MANUAL FUNCTIONS

After having selected the function you require, you can change its settings. The display will show the settings that can be changed.

TEMPERATURE

- Scroll through the suggested values and select the one you require.

If allowed by the function, you can tap to activate preheating.

DURATION

You do not have to set the cooking time if you want to manage cooking manually. In timed mode, the oven cooks for the length of time you select. At the end of the cooking time, the oven turns off automatically.

- To start setting the duration, tap "Set Cook Time".

- Tap the relevant numbers to set the cooking time you require.

- Tap "NEXT" to confirm.

To cancel a set duration during cooking and so manage manually the end of cooking, tap the duration value and then select "STOP".

3. SET MY MENU FUNCTIONS

The My Menu functions enable you to prepare a wide variety of dishes, choosing from those shown in the list. Most cooking settings are automatically selected by the appliance in order to achieve the best results.

• Choose a cooking type from the list.
• Select a function.

Functions are displayed by food categories in the MY MENU FOOD LIST (see relative tables) and by recipe features in the SPECIAL OCCASIONS menu.

- Once you have selected a function, simply indicate the characteristic of the food (quantity, weight, etc.) you want to cook to achieve the perfect result.

Some of the My Menu Functions require use of the food probe. Plug it in before selecting the function. For best results with the probe, follow the suggestions in the relevant section.

- Follow the on-screen prompts to guide you through the cooking process.

4. SET START TIME DELAY

You can delay cooking before starting a function: The function will start at the time you select in advance.

- Tap "DELAY" to set the start time you require.

- Once you have set the required delay, tap "START

DELAY" to start the waiting time.

- Place the food in the oven and close the door: The function will start automatically after the period of time that has been calculated.

To program a delayed cooking start time the oven preheating phase must be disabled: The oven will reach the temperature you required gradually, meaning that cooking times will be slightly longer than those listed in the cooking table.

To activate the function immediately and cancel the programmed delay time, tap ⬇.

5. START THE FUNCTION

- Once you have configured the settings, tap "START" to activate the function.

In microwave functions is provided a start protection. The door must be opened and closed before starting the function.

• Open the door.
• Place food inside the oven and close the door.
• Tap "START".

You can change the values that have been set at any time during cooking by tapping the value you want to amend.

If the oven is hot and the function requires a specific maximum temperature, a message will shown on the display

- Press to stop the active function at any time.

6. PREHEATING

If previously activated, once the function has been started the display indicates the status of preheating phase.

Once this phase has been finished, an audible signal will sound and the display will indicate that the oven has reached the set temperature.

• Open the door.
• Place the food in the oven.
• Close the door and tap "DONE" to start cooking.

Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result.

Opening the door during the preheating phase will pause it. The cooking time does not include a preheating phase.

You can change the default setting of the preheating option for cooking functions that allow you to do that manually.

• Select a function that allows you to select the preheating function manually.
• Tap 🎨icon to activate or deactivate preheating. It will be set as a default option.

7. PAUSING COOKING

Some of the My Menu functions will require to carry out some actions during cooking. An audible signal will sound and the displays shows the action must be done.

• Open the door.
• Carry out the action prompted by the display.
• Close the door, then tap "DONE" to resume.

8. END OF COOKING

An audible signal will sound and the display will indicate that cooking is complete.

In some functions, once a cooking is finished, you can save it as favorite and use it quickly in the future, keeping the same settings or prolong the cooking.

• Tap to save it as a favorite.
• Tap ⊕ to prolong the cooking.

9. FAVORITES

The Favorites feature stores the oven settings for your favorite recipe.

The oven automatically detects the functions you use most often. After a certain number of uses, you will be prompted to add the function to your favorites.

HOW TO SAVE A FUNCTION

Once a function has finished, you can tap to save it as favorite. This will enable you to use it quickly in the future, keeping the same settings.

The display allows you to save the function by indicating up to 4 favorite meals time including breakfast, lunch, snack and dinner.

- Tap the icons to select at least one.

- Tap "SAVE AS FAVORITE" to save the function.

To view the favorite menu, press ★The functions will be divided by different meal times and some suggestions will be offered.

- Tap the meals icon to show the relevant lists

Tapping on also enables you to view your history of most recently used functions.

• Swipe the prompted list.
• Tap the recipe or function you require.
• Tap "START" to activate the cooking.

CHANGING THE SETTINGS

In the Favorites screen, you can add an image or name to each favorite to customise it to your preferences.

• Select the function you want to change.
• Tap "EDIT".
• Select the attribute you want to change.
• Tap "NEXT": The display will show the new attributes.
• Tap "SAVE" to confirm your changes.

In the Favorites screen, you can also delete functions you have saved:

• Tap the ★ on the relevant function.
• Tap "REMOVE IT".

You can also change the time when the various meals are shown:

- Press

• Select "Preferences".
• Select "Times and Dates".
• Tap "Your Meal Times".
• Swipe through the list and tap the desired time.
• Tap the relevant meal to change it.

Each time slot can be combined with one meal only.

10. TOOLS

Press to open the "Tools" menu at any time.

This menu enables you to choose from several options and also change the settings or preferences for your product or the display.

REMOTE ENABLE

To enable use of the Bauknecht Home Net app.

KITCHEN TIMER

This function can be activated either when using a cooking function or alone for keeping time.

Once started, the timer will continue to count down independently without interfering with the function itself.

Once the timer has been activated, you can also select and activate a function.

The timer will continue counting down at the top-right corner of the screen.

To retrieve or changhe the kitchen timer:

- Press

- Tap.

An audible signal will sound and the display will indicate once the timer has finished counting down the selected time.

• Tap "DISMISS" to cancel the timer or set a new timer duration.
• Tap "SET NEW TIMER" to set the timer again.

LIGHT

To switch on or off the oven lamp.

PROBE

Using the probe enables you to measure the core temperature of the meat during cooking to ensure that it reaches the optimum temperature. The temperature of the oven varies according to the function that you have selected, but cooking is always programmed to finish once the specified temperature has been reached.

Place food in the oven and connect the food probe to the socket. Keep the probe as far away from the heat source as possible. Close the oven door.

Tap ☐. You can choose between the manual (by cooking method) and My Menu (by food type) functions if use of the probe is allowed or required.

Once a cooking function has been started, it will be cancelled if the probe is removed. Always unplug and remove the probe from the oven when taking out the food.

Probe can be controlled remotely using Bauknecht Home Net App on your mobile device.

USING THE FOOD PROBE

Using the food probe enables you to measure the core temperature of the food during cooking.

Insert the food probe deep into the meat, avoiding bones or fatty areas.

Poultry: Insert the tip into the centre of the breast, avoiding hollow areas.

Joints or legs of meat: Insert the tip into the thickest part. Fish (whole): Position the tip in the thickest part, avoiding the spine.

SELF CLEAN

The action of the steam released during this special cleaning cycle allows dirt and food residues to be removed with ease. Place 200 ml of drinking water on the bottom of the cavity and activate the function when the oven is cold.

Please note: It is recommended to do not open the oven door during the cleaning cycle to avoid a loss of water vapor that could get an adverse effect on the final cleaning result.

An appropriate message will appear on the display once the cycle has finished. Leave the oven to cool and then wipe and dry the interior surfaces with a cloth or sponge.

MUTE

Tap the icon to mute or unmute all the sounds and alarms.

CONTROL LOCK

The "Control Lock" enables you to lock the buttons on the touch pad so they cannot be pressed accidentally. To activate the lock:

- Tap the icon.

To deactivate the lock:

- Tap the display.

- Swipe up on the message shown.

PREFERENCES

For changing several oven settings.

WIFI

For changing settings or configuring a new home network.

INFO

For switching off "Store Demo Mode", resetting the product and obtaining further information about the product.

MY MENU COOK TABLE

Food Category / Recipes		Level & Accessories	Suggested quantity	Cooking Info
BAKED PASTA	Lasagna	1	4 - 8 portions	Prepare according to your favorite recipe. Pour bechamel sauce on top and sprinkle with cheese to get perfect browning
	Lasagna-frozen	1	600 g - 1.2 kg	Take out from packaging being careful to remove any aluminium foil
MEAT	Roast beef	1	1 - 1.5 kg	Brush with oil and rub with salt and pepper. Season with garlic and herbs as you prefer. At the end of cooking let rest for at least 15 minutes before carving
	Roast Veal	1	1 - 1.5 kg	Brush with oil or melted butter. Rub with salt and pepper. At the end of cooking let rest for at least 15 minutes before carving
	Roast Pork	1	1 - 1.5 kg
	Leg of Lamb	1	1,5 - 2 kg	Brush with oil or melted butter. Rub with salt, pepper and chopped garlic. At the end of cooking let rest for at least 15 minutes before carving
	Roast Chicken	1	1 - 1.5 kg	Brush with oil and season as you prefer. Rub with salt and pepper. Insert into the oven with the breast side up
	Chicken pieces	2	800 g - 1,2 kg	Brush with oil and season as you prefer. Distribute evenly on the wire shelf with the skin side down
	Roasted fillets	2	800 g - 1.2 kg	Brush with oil and season as you prefer
	Steamed fillets	1	500 g - 1 kg	Brush with oil and season as you prefer. Rub with salt and pepper. Add lemon juice or bouillon
	Meat Loaf	1	4 - 8 portions	Prepare according to your favorite recipe and shape into a loaf container pushing to avoid the formation of air pockets
	Sausages & Wurstel	3	4 - 12 pieces	Pierce the sausages with a fork to prevent bursting
	Shepherd's Pie	1	4 - 8 portions	Lightly fry together 1 chopped onion and 2 finely diced carrots. Add 1tbsp flour, 300ml beef stock and cook until thickened. Add 1tbsp tomato puree and dash of Worcestershire sauce. Stir in 450g minced cooked beef or lamb and season with salt and pepper. Cover the meat stew with 4 portions of mashed potatoes
FISH	Whole-roasted	2	800 g - 1.5 kg	Brush with oil. Season with lemon juice, garlic and parsley
	Whole-steamed	1	800 g - 1.5 kg
	Roasted steaks	3	4 - 8 pieces	Season fish steaks with oil and cover with sesame seeds
	Fillet steamed	1	400 g - 1 kg	Distribute evenly in the container. Cook covered
	Gratin frozen	1	600 g - 1.2 kg	Take out from packaging being careful to remove any aluminium foil

ACCESSORIES

Wire shelf

Oven- and Mwo-proof container on wire shelf

Glass tray

Oven and Mwo proof container on glass tray

Baking plate Food Probe

Food Category / Recipes		Level & Accessories	Suggested quantity	Cooking Info
VEGETABLES	Roasted potatoes	2	1 - 1,5 kg	Cut in pieces, season with oil, salt and flavor with herbs before placing into the oven
	Stuffed vegetables	1	4 - 8 portions	Scoop out the vegetable and fill with a mixture of the vegetable flesh itself, minced meat and shredded cheese. Season with garlic, salt and flavor with herbs as you prefer
	Jacket Potatoes	1	4 - 8 pieces	Brush with oil or melted butter. Cut a cross on the potato and place into the oven facing downwards. When the oven prompts you to turn the potato, pour over the sour cream and season as required
	Vegetables Gratin	1	4 - 8 portions	Slice and interlace the vegetables each other into a large container. Season with salt, pepper and pour over cream. Spinkle cheese on top
	Veg. Gratin (frozen)	1	600 g - 1,2 kg Take out from packaging being careful to remove any aluminium foil
	Roots & Tubers	1	200 - 800 g Cut in pieces. Distribute evenly in the container
	Frozen Vegetables	1	200 - 800 g Distribute evenly in the container. Stir when oven prompts
	Potatoes Fried ✦	2	500 g - 1 kg Distribute evenly in the glass tray
	Other vegetables	1	200 g - 800 g Cut in pieces. Distribute evenly in the container
SALTY CAKES	Quiche Lorraine	1	1 batch	Line a baking pan with the pastry and pierce it with a fork. Prepare quiche lorraine mixture considering a quantity for 8 portions
BREAD	Rolls (frozen)	2	1 batch Take out from packaging. Distribute evenly on the baking tray
	Sandwich Loaf in tin	1	1 - 3 pieces	Prepare dough according to your favorite recipe for a light bread. Form into a loaf container before rise. Use the oven's dedicated rise function
	Scones	2	1 batch Shape into one scone or in smaller pieces on greased baking tray
PIZZA	Thin pizza	2	1 batch	Prepare a pizza dough based on 225ml water, 15g yeast, 400g flour, oil and salt. Leave it to rise using the oven's dedicated function. Roll out the dough into a lightly greased baking tray. Add topping like tomatoes, mozzarella and ham
	Thick pizza	2	1 batch	Prepare a pizza dough based on 250ml water, 20g yeast, 450g flour, oil and salt. Leave it to rise using the oven's dedicated function. Roll out the dough into a lightly greased baking tray. Add topping like tomatoes, mozzarella and ham
	Pizza-frozen	2	250 - 800 g	Take out from packaging being careful to remove any aluminium foil
	Pizza-chilled	2	250 - 800 g
CAKES & PASTRIES	Sponge cake in tin	1	1 batch	Prepare a fatless sponge cake batter of 500-900g. Pour into lined and greased baking pan
	Tart in tin	1	1 batch	Line a pie dish with the pastry, pierce with a fork and spread out the jam on it. Roll out the pastry scraps and cut into strips, make a lattice pattern on top
	Fruit Filled Pie	1	1 batch	Line a pie dish with the pastry and sprinkle the bottom with bread crumbs to absorb the juice from the fruit. Fill with chopped fresh fruit mixed with sugar and cinnamon. Roll out the pastry scraps to make a lid, seal the edges and brush with egg
	Dutch Apple tart	1	1 batch	Line a pie dish with the pastry and sprinkle the bottom with bread crumbs to absorb the juice from the fruit. Fill with sliced apples mixed with sugar, raisins, chopped almonds and cinnamon. Roll out the pastry scraps and cut into strips, make a lattice pattern on top
POPCORN		1	100 g Always place the bag directly on the glass tray. Pop only one bag at a time

WIFI FAQs

Which WiFi protocols are supported?

The WiFi adapter installed supports WiFi b/g/n for European countries.

Which settings need to be configured in the router software?

The following router settings are required: 2.4 GHz enabled, WiFi b/g/n, DHCP and NAT activated.

Which Version of WPS is supported?

WPS 2.0 or higher. Check the router documentation.

Are there any differences between using a smartphone (or tablet) with Android or iOS?

You can use whichever operating system you prefer, it makes no difference.

Can I use mobile 3G tethering instead of a router?

Yes, but cloud services are designed for permanently connected devices.

How can I check whether my home Internet connection is working and wireless functionality is enabled?

You can search for your network on your smart device. Disable any other data connections before trying.

How can I check whether the appliance is connected to my home wireless network?

Access your router configuration (see router manual) and check whether the appliance's MAC address is listed on wireless connected devices page.

Where can I find the appliance's MAC address?

Press then tap WiFi or look on your appliance: There is a label showing the SAID and MAC addresses. The Mac address MAC address consists of a combination of numbers and letters starting with "88:e7".

How can I check whether the appliance's wireless functionality is enabled?

Use your smart device and the Bauknecht Home Net app to check whether the appliance network is visible and connected to the cloud.

Is there anything that can prevent the signal reaching the appliance?

Check that the devices you have connected are not using up all the available bandwidth.

Make sure that your WiFi-enabled devices do not exceed the maximum number permitted by the router.

How far should the router be from the oven?

Normally the WiFi signal is strong enough to cover a couple of rooms, but this very much depends on the material the walls are made of. You can check the signal strength by placing your smart device next to

the appliance.

What can I do if my wireless connection does not reach the appliance?

You can use specific devices to extend your home WiFi coverage, such as access points, WiFi repeaters and power line bridges (not provided with appliance).

How can I find out the name of and password for my wireless network?

See the router documentation. There is usually a sticker on the router showing the information you need to reach the device setup page using a connected device.

What can I do if my router is using the neighbourhood WiFi channel?

Force the router to use your home WiFi channel.

What can I do if appears on the display or the oven is unable to establish a stable connection to my home router?

The appliance might have successfully connected to the router, but it is not able to access the Internet. To connect the appliance to the Internet, you will need to check the router and/or carrier settings.

Router settings: NAT must be on, firewall and DHCP must be properly configured. Password encryption supported: WEP, WPA, WPA2. To try a different encryption type, please refer to the router manual.

Carrier settings: If your Internet service provider has fixed the number of MAC addresses able to connect to the Internet, you may not be able to connect your appliance to the cloud.

The MAC address of a device is its unique identifier. Please ask your Internet service provider how to connect devices other than computers to the Internet.

How can I check whether data is being transmitted?

After setting up the network, switch the power off, wait 20 seconds and then switch on the oven: Check that the app is showing the UI status of the appliance.

Some settings take several seconds to appear in the app.

How can I change my Bauknecht account but keep my appliances connected?

You can create a new account, but remember to remove your appliances from your old account before moving them to your new one.

I changed my router – what do I need to do?

You can either keep the same settings (network name and password) or delete the previous settings from the appliance and configure the settings again.

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning.

Do not use steam cleaners.

Wear protective gloves.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

The oven must be disconnected from the mains before carrying out any kind of maintenance work.

EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues To dry any condensation that has formed as a result

of cooking foods with a high water content, let the oven to cool completely and then wipe it with a cloth or sponge.

- Activate the "Diamond Clean" function for optimum cleaning of the internal surfaces.

- Clean the glass in the door with a suitable liquid detergent.

ACCESSORIES

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

The glass tray is dishproof safe.

TROUBLESHOOTING

Problem Possible cause Solution

The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The display shows the letter "F" followed by a number.The oven does not heat up.	Software fault.When "DEMO" is "On" all commands are active and menus available but the oven doesn't heat up.	Contact you nearest Client After-sales Service Centre and state the number following the letter "F".Access "DEMO" from "SETTINGS" and select "Off".
The function does not start.The function is not available in demo mode.	Demo mode is running.	Press , tap Info" and then select "Store Demo Mode" to exit.
The icon is shown on display.	The WiFi router is off.The router settings have changed.The wireless connections does not reach the appliance.The oven is unable to establish a stable connection to home network.The connectivity is not supported.	Check that the WiFi router is connected to the Internet.Check that the WiFi signal close to the appliance is strong.Try to restart the routerSee the "WiFi FAQs" section.If your home wireless network settings have changed, connect to the network: Press , tap "WiFi" and then select "Connect to Network".
The connectivity is not supported.	Remote operation is not permitted in your country.	Check whether your country allows remote operation of electronic appliances before purchasing.

Policies, standard documentation and additional product information can be found by:

• Using the QR code in your appliance
- Visiting our website docs.bauknecht.eu
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

MERCI D'AVOIR ACHETÉ UN PRODUIT BAUKNECHT

Conditions requises minimales.

CONVENTIONELE FUNCTIONS

• CONVENTIONEEL

• CONVENTIONEEL + MW
