DRW24980LAP - Refrigerator Dacor - Free user manual and instructions

Product Type	Built-in Refrigerator
Brand	Dacor
Model	DRW24980LAP
Width	24 inches (61 cm)
Height	72 inches (183 cm)
Depth (excluding handles)	24 inches (61 cm)
Total Net Capacity	15.5 cu ft (439 L)
Refrigerator Capacity	11.2 cu ft (317 L)
Freezer Capacity	4.3 cu ft (122 L)
Net Weight	250 lb (113 kg)
Power Supply	115 V, 60 Hz, 15 A
Annual Energy Consumption	600 kWh/year
Defrost Type	Automatic (No Frost)
Climate Class	SN-T (from 10 °C to 43 °C)
Refrigerant	R600a (isobutane)
Noise Level	38 dB(A)
Main Functions	Forced air cooling, electronic temperature control, digital display, door alarm, LED lighting
Maintenance and Cleaning	Clean seals and condenser every 6 months with a soft cloth and soapy water
Safety	Child lock, automatic shut-off in case of overheating
Spare Parts	Available from Dacor authorized after-sales service (seals, shelves, bulbs)
Repairability	Repairability index: 7.8/10 (estimate)
Warranty	2 years parts and labor

Frequently Asked Questions - DRW24980LAP Dacor

How to set the temperature of the DRW24980LAP refrigerator?

Use the + and - buttons on the control panel to adjust the temperature of the refrigerator compartment (recommended: 3 °C to 5 °C) and the freezer (-18 °C). Press 'Temp' to select the compartment.

What to do if the refrigerator is not cooling enough?

Check that the appliance is properly plugged in, the ambient temperature is within the allowed range, and the ventilation grilles are not blocked. If the problem persists, contact customer service.

How to clean the door seal?

Use a soft cloth dampened with warm water and mild soap. Never use abrasive products. Dry thoroughly after cleaning to prevent mold.

The refrigerator makes a hissing noise, is this normal?

Yes, hissing or clicking sounds are normal during compressor and gas circuit operation. If the noise suddenly becomes loud or irregular, consult the manual.

How to activate vacation mode?

Press the 'Mode' button until 'Vacation' appears on the screen. This mode keeps the freezer active while reducing refrigerator consumption.

Can I install the refrigerator in an unheated garage?

No, the climate class SN-T requires an ambient temperature between 10 °C and 43 °C. Below 10 °C, the compressor may not operate correctly.

How to change the LED bulb?

The LED lighting is integrated and must be replaced by an authorized technician. Contact Dacor after-sales service for assistance.

What to do in case of a power outage?

Avoid opening the doors. Food stays cold for about 4 hours; a full freezer can keep cold for up to 48 hours.

How to defrost the freezer?

The DRW24980LAP is equipped with a No Frost system: defrosting is automatic. No manual intervention is necessary.

Where to find the reference for spare parts?

Check the rating plate inside the refrigerator. To order, visit the Dacor website or contact an authorized dealer with the model number DRW24980LAP.

USER MANUAL DRW24980LAP Dacor

Installation Instructions

Built-In Wine Cellar

DRW24980RAP/LAP

Contents

Before You Begin 4

Important 4

Customer-Service Information 5

If You Need Help 5

Important Safety Instructions 6

State of California Proposition 65 Warning (US only) 6

General Safety Precautions 7

Safety and Warning Information 11

Installation Safety 11

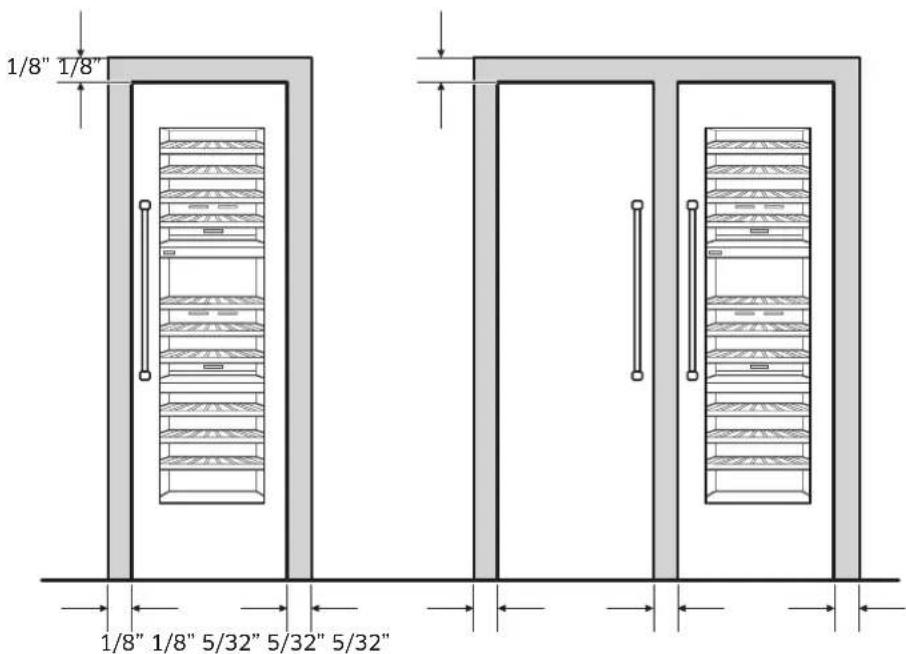

Installation Specifications 13

Installation Options 14

Product Specifications 16

Custom Panel Specifications 17

Handle Specifications 18

Installation 20

Installation Requirements 21

Installation Preparation 21

Grounding the Wine Cellar 24

Cabinet Special Requirements 25

English2

Installation Instructions 26

1. Uncrating the Wine Cellar 26
2. Moving the Wine Cellar 27
3. Installation Preparation 28
4. Attaching the Anti-tip-Bracket 28

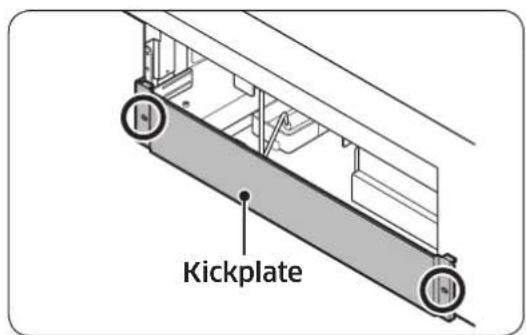

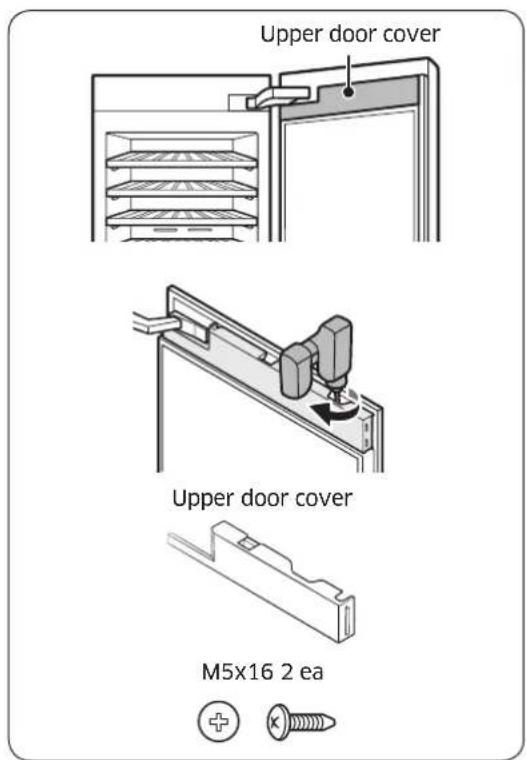

5. Removing Upper Door Cover, Kickplate 31

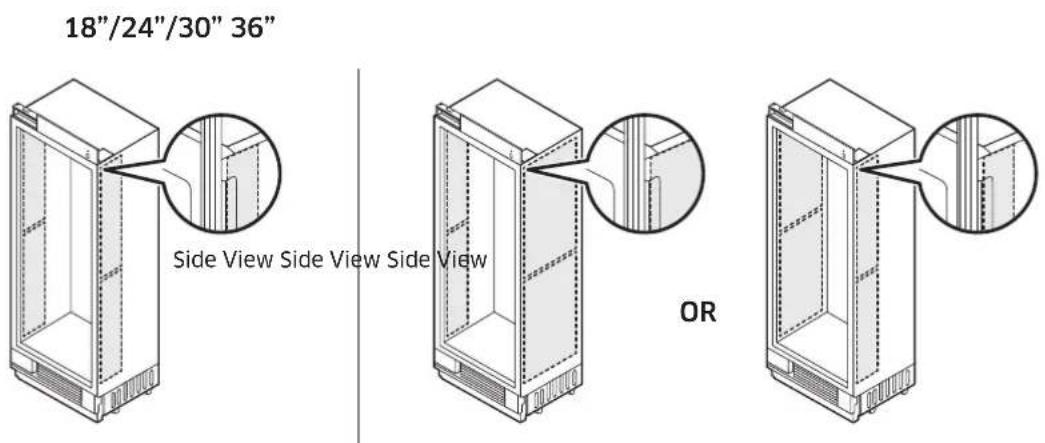

6. Attaching Insulators on the Side of the Wine Cellar - Single Installation 34

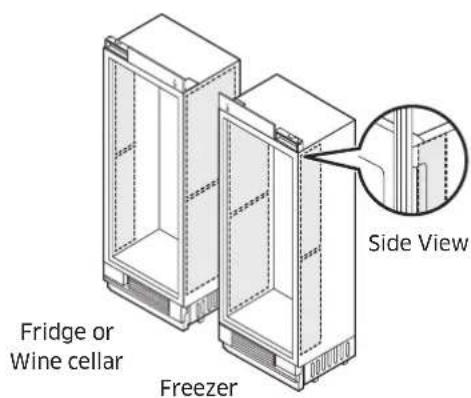

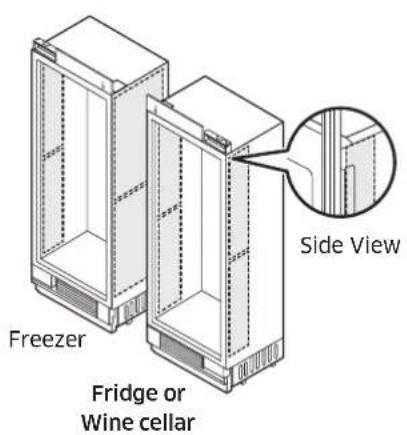

7. Attaching insulators on the side of the freezer or fridge or Wine Cellar

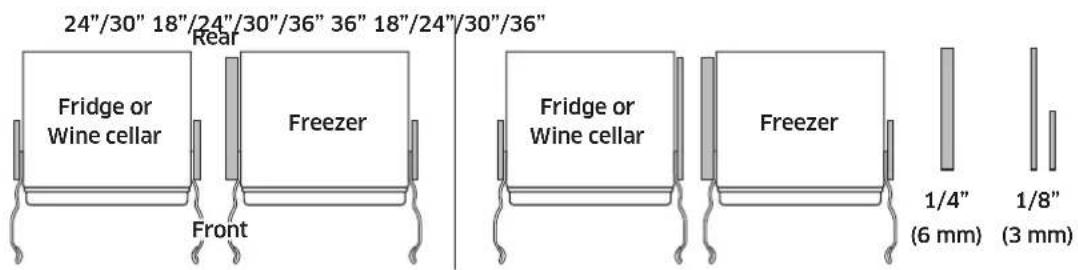

8. Side-by-side (Pair) Installation 35

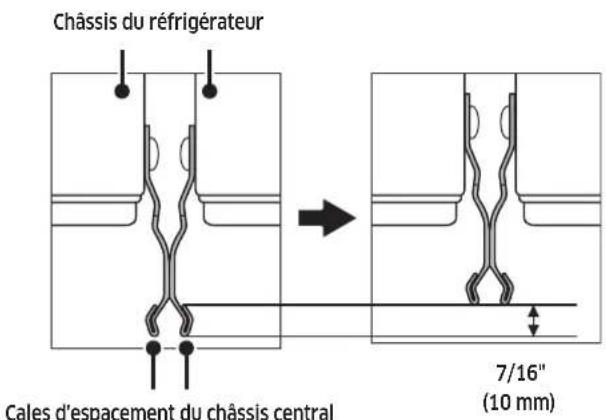

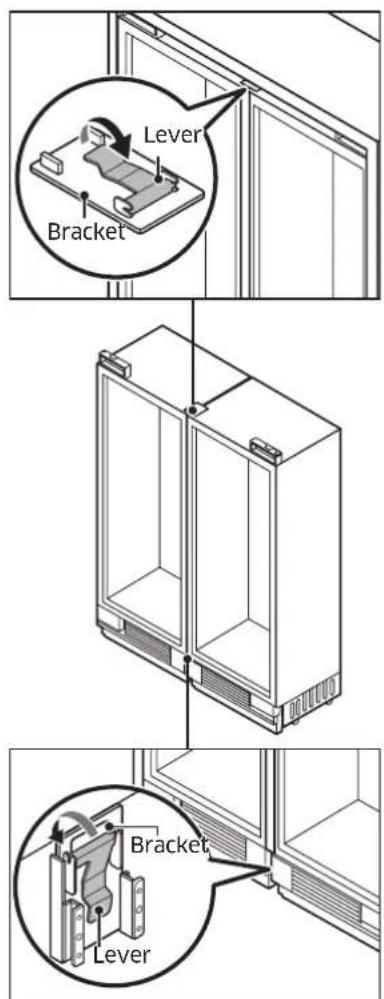

9. Connecting the Two Chassis 38
10. Adjusting the door Opening Angle 39
11. Moving the Wine Cellar Into Its Enclosure 40
12. Removing Two Levers 42

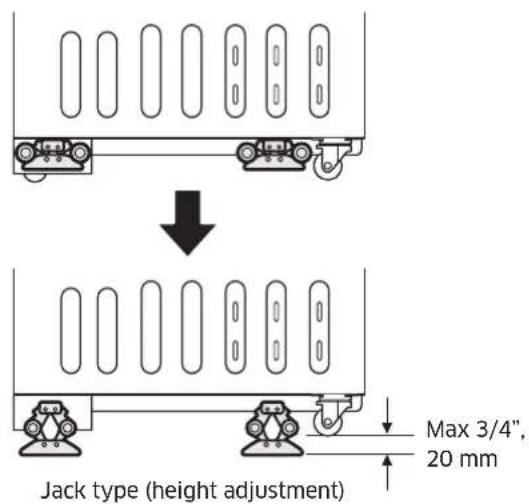

13. Leveling the Wine Cellar 43
14. Attaching Two Levers 45

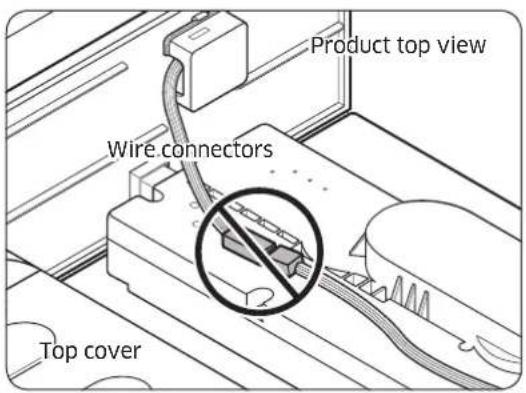

15. Attaching the Wine Cellar's Top Cover 46
16. Hanging a Custom Panel 50

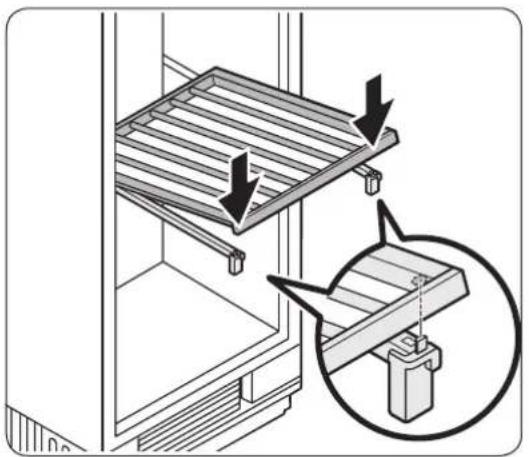

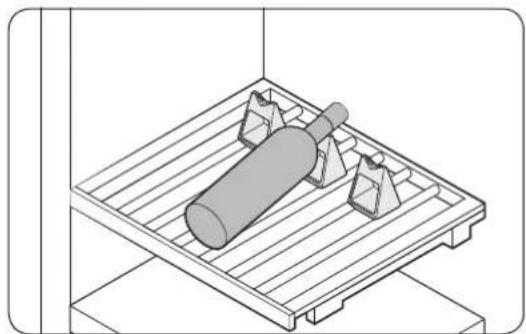

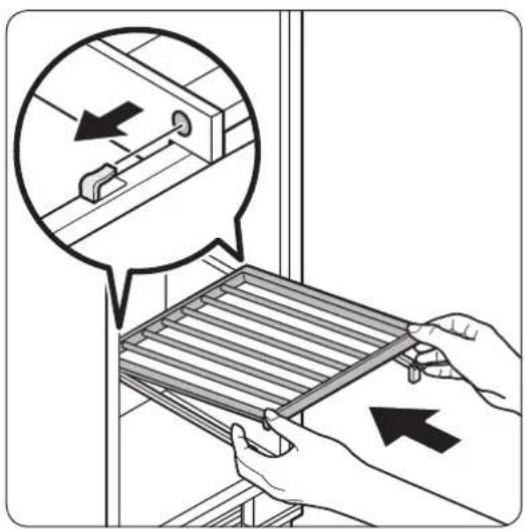

17. Assembling the Wine Rack 63

18. Securing the Wine Cellar 47

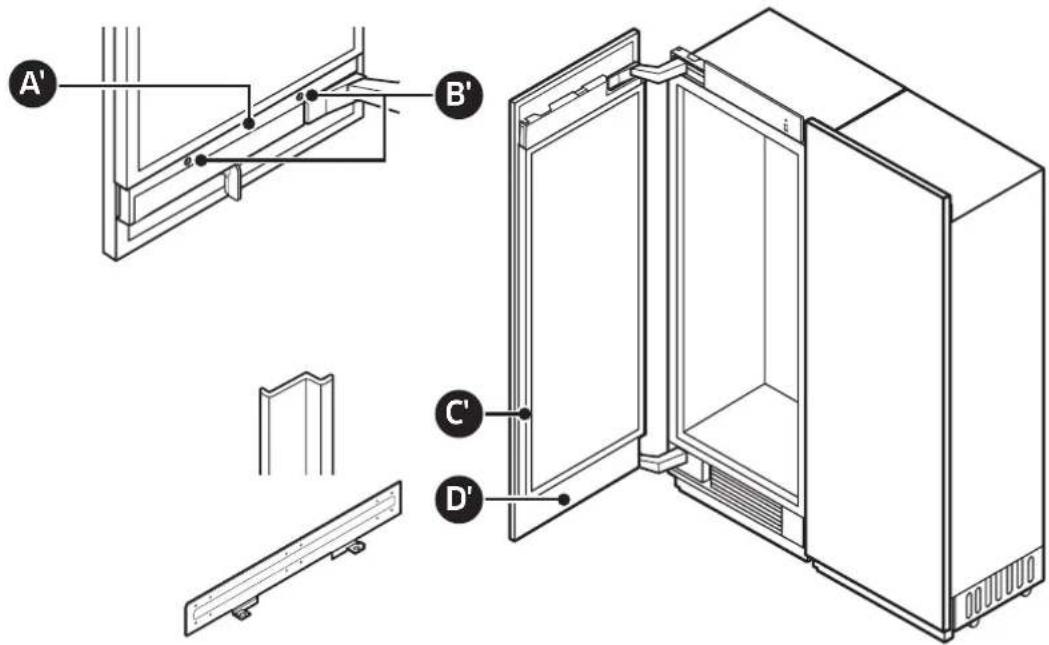

19. Attaching the Custom-Door-Panel Brackets 48

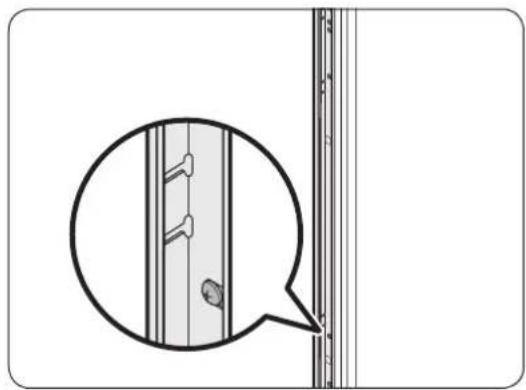

20. Preparing the Panel for Adjustment 51

21. Aligning the Panel 52

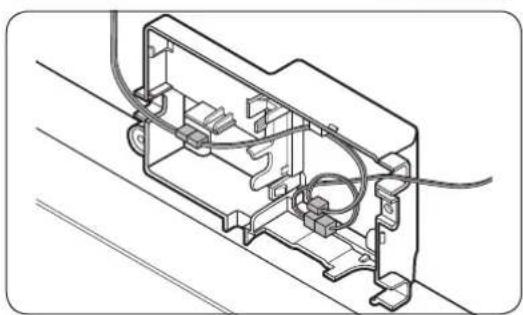

22. Attaching the Door's Interior Covers 56

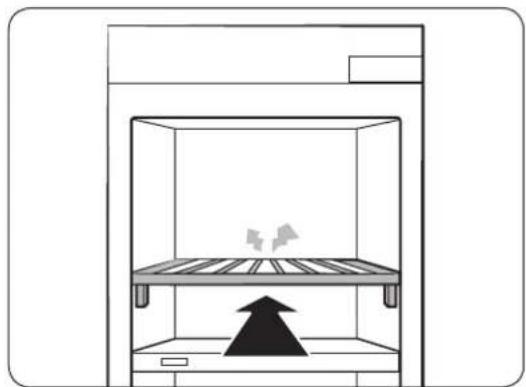

23. Attaching Grill, Kickplate and Toe Kickplate (optional) 59

24. Attaching the Wine Cellar Trim 61

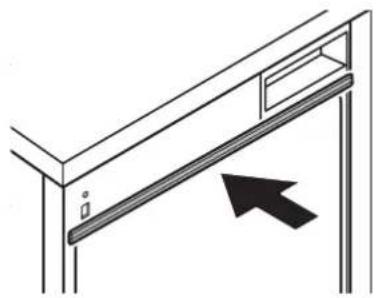

25. Attaching Trim Top Cover 62

26. Disassembling the Wine Rack 66

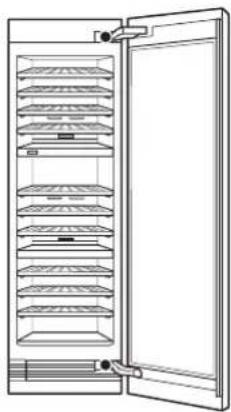

27. Adjusting the Door Spring 67

28. Cleaning 67

29. Installation Checklist 68

English 3

Before You Begin

Important

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

- The overall design and/or accessories may differ with the model.

Installer

• To promote safety and minimize problems, read this manual thoroughly before starting the installation. Leave this manual with the user.
- Write the appliance's model/serial numbers in this manual for service/maintenance reference.
- Model/serial numbers are on the data label in the Wine Cellar compartment.

User

- Keep this manual for personal reference and for that of inspectors, service personnel, etc.

SAVE THESE INSTRUCTIONS

English4

Customer-Service Information

If You Need Help

If you have questions or problems with installation, contact your Dacor® dealer or the Dacor Customer Assurance Team. If your Dacor appliance is under warranty, call Dacor Distinctive Service. Have the appliance's model/serial numbers available when you call. (These numbers are on the data label on the right-hand door jamb inside the refrigerator.)

Dacor Customer Assurance

Phone: 833-35-ELITE (833-353-5483) USA, Canada

Mon - Fri 5:00 a.m. to 5:00 p.m. Pacific Time

Website: www.dacor.com/customer-care/contact-us

insert here: Product Information: knowledgebase.dacor.com

All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications.

© 2017 Dacor, all rights reserved.

SAVE THESE INSTRUCTIONS

English 5

Important Safety Instructions

The Important safety instructions and warnings in these instructions are not meant to cover all possible problems and conditions that can occur.

Use common sense and caution when installing, maintaining, or operating this or any other appliance.

Always contact the Dacor Customer Assurance Team about problems and conditions that you don't understand. See Customer-Service Information.

Safety symbols and labels

These alerts are meant to bring attention to important areas in the manual.

Whenever you see these symbols or labels, read the message carefully before continuing.

DANGER

Immediate hazards that WILL cause severe personal injury or death.

WARNING

Hazards or unsafe practices that MAY cause in severe personal injury or death.

CAUTION

Hazards or unsafe practices that MAY cause in minor personal injury or property damage.

State of California Proposition 65 Warning (US only)

WARNING : This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

SAVE THESE INSTRUCTIONS

English6

⚠ WARNING - R600a Refrigerant

This appliance contains isobutane refrigerant, R600a, a natural gas with high environmental compatibility; however, it is also flammable. Please adhere to the warnings below

• When handling, installing and operating the appliance, care should be taken to avoid damage to the refrigerant tubing.
• Servicing shall be performed by manufacture-authorized service personnel and component parts shall be replaced with manufacturer-authorized replacement components.
• Refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal.
• Keep ventilation openings in the appliance enclosures or in the built-in structure clear of obstruction.
• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft ^3 in size for every 8 g of R-600a refrigerant inside the appliance.
• The installation location should not be exposed to direct sunlight and avoid placing near any electric appliances or heat source, e.g. stove, cooktop, oven, or radiator, etc.

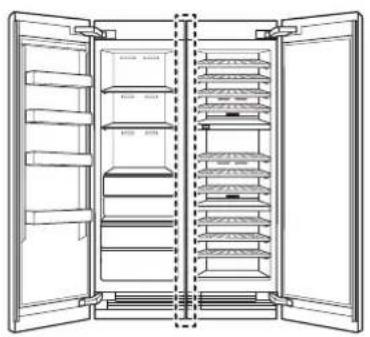

• If you use two products side by side, for safety reason, be sure to use certified products in explosive gas atmospheres.
• Do not use mechanical devices or other means to accelerate the defrosting process.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartment of the appliance.

General Safety Precautions

! DANGER

IMPORTANT:

To prevent child entrapment and suffocation when discarding an old appliance:

• Take off the door(s).
- Leave the racks in place so children cannot easily climb inside.
- Cut the prongs off the power plug and discard them.
- Cut the power cable off and discard it separately from the old appliance.

SAVE THESE INSTRUCTIONS

English 7

Important Safety Instructions

To avoid the possibility of explosion or fire, do not store or use combustible, flammable or explosive vapors and liquids (such as gasoline) inside or in the vicinity of this or any other appliance. Also keep items that could explode, such as aerosol cans away from cooktop burners, ovens and range hoods. Do not store flammable or explosive materials in adjacent cabinets or areas.

WARNING

IMPORTANT: This appliance is equipped with a three-prong grounding electric plug for protection against possible electric shock hazards. It must be plugged into a dedicated, grounded, electrical outlet. If only a two-prong electrical outlet is available, it is the responsibility of the customer to have it replaced with a dedicated, properly grounded three-prong electrical outlet.

• Do not kink or pinch the power supply cord of the appliance.
• Never unplug the appliance by pulling on the power cord.
  • Always grip the plug firmly and pull straight out from the electrical outlet.
• Disconnect this appliance when not in use.
• Do not install, repair, modify, or replace any part of the appliance unless specifically recommended in the literature accompanying it.
• A qualified service technician should perform all other services.

Illustration of a plug connected to an electrical outlet with three socket covers (no text or symbols)

DO NOT cut or remove the third (ground) prong from the power cord.

DO NOT use an adapter plug.

DO NOT use a power cord that is frayed or damaged.

DO NOT connect the appliance to an extension cord. Keep the power cord away from heated surfaces.

NOTE

• Use of an electrical outlet with a ground.
• Use of an electrical outlet with a ground fault interrupter (GFI) is not recommended.

SAVE THESE INSTRUCTIONS

English8

WARNING

• To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precautions, including the following:
• If you receive a damaged product, immediately contact your dealer or builder. Do not install or use a damaged appliance.
• Make sure that this appliance has been properly installed according to these installation instructions.
• Make sure to install in outlet locations according to electric supply location.
• Refrigeration equipment and refrigerants must be properly disposed of in a professional and appropriate way, in accordance with the current local regulations and laws which protect the environment. This applies to your old appliance and to your new unit once it has reached the end of its service life. DO NOT dispose of the appliance in a landfill or with urban waste. Contact local waste disposal centers for information on how to dispose of recyclable waste.
• Take care when handling, moving, using or disposing of the appliance to avoid damaging the refrigeration system.
• Do not install or use outdoors or in wet conditions. This appliance is not designed for installation in a recreational vehicle or boat.
• Keep packaging materials away from children. Plastic sheets and bags can cause suffocation.
• Connect this appliance to a 115 V, 15 A. circuit that is controlled by a circuit breaker or fuse. This appliance should have its own separate grounded circuit.
• Do not kink or pinch the power supply cord of the appliance. Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the electrical outlet.
• Disconnect this appliance when not in use.
• Do not install, repair, modify, or replace any part of the appliance unless specifically recommended in the literature accompanying it. A qualified service technician should perform all other services.
• Before performing any type of service, switch power off at the circuit breaker panel.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory abilities, or lack of experience and knowledge, unless they are properly supervised by a person responsible for their safety. Children must be supervised for their safety.
• Never allow anyone, including children to sit, stand or climb on any part of the appliance, including the door. Doing so may cause damage, serious injury or death.

SAVE THESE INSTRUCTIONS

English 9

Important Safety Instructions

• If the power cord is damaged, it must be replaced by the manufacturer or a qualified service technician in order to avoid a safety hazard. Do not tamper with the controls.
• Clean this appliance regularly as instructed in the Care and Cleaning section of the User manual. Clean the ice bucket or drawer regularly.
• When the freezer is functioning, do not touch the inner stainless steel surfaces with wet or damp hands, since skin may stick to the very cold surfaces.
• Do not use any type of electrical equipment inside the wine cellar compartments.
• Do not obstruct any of the vents or openings on the appliance.
• To avoid risk of the appliance tipping over it is mandatory to secure the appliance to the wall by means of the two supplied anti-tip brackets.
• Use this appliance only for its intended purpose: the storage of food and beverages. It is not intended for commercial or industrial use.
• Be careful when installing electrical component box is damaged or not by the shock departure.
• Hold the handle when opening and closing the door.
• When you open and close the door, be careful not to put your hands in the doorway.

SAVE THESE INSTRUCTIONS

English10

Safety and Warning Information

Installation Safety

WARNING

• Before installing the wine cellar, connect it to a power outlet and turn the wine cellar ON to make sure the wine cellar is working.
• Choose a location away from a heater, boiler, or direct sunlight.
  • Install the unit where air flows freely and where the wine cellar is well ventilated.
  • Install the unit so that air flows unobstructed through the front air grill. If the air circulation is not ensured, it may interfere with the normal functioning of the product.
• Outside animals (rodents) can chew on the power cord and cause a fire; therefore, install the unit where there is no access to animals.
• If the cabinet is made of soft material (ex: plaster, etc.), it can have a weak structure and be damaged. Therefore, use a cabinet made of sturdy, strong material.
  • Install the wine cellar with a team of at least 2 people.
• Refer to the dimensions of the cabinet and prepare the cabinet with good air circulation.
• Use cabinet that will not warp from product heat emissions or humidity from the opening and closing of the wine cellar.

NOTE

This wine cellar is a “built-in” style wine cellar, meaning that the wine cellar requires installation inside a recess in existing kitchen cabinetry.

Before moving the wine cellar, clear the route to the location where it will be installed.

Check all product dimensions and the tipping radius with any doorways, hallways, stairs, corners, etc., to ensure a clear passageway.

WARNING

Tip Hazard

This appliance is relatively heavy on the top and prone to tip over when not securely installed.

Keep doors taped closed until wine cellar is in its final position and ready to be secured in place.

Use two or more people to move and install wine cellar.

Failure to do so can result in death or serious injury.

English 11

Safety and Warning Information

DANGER

Three black spiky spikes on a horizontal line, no text or symbols present

Explosion Risk

Keep flammable materials and vapors - such as gasoline - away from the wine cellar. Failure to do so can result in death, explosion, or fire.

English12

Installation Specifications

WARNING

Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information.

WARNING

Electrical and grounding connections must comply with the applicable portions of the national electrical code and/or other local electrical codes.

This appliance comes with an electrical cord with a three-prong grounding plug for a 115 Vac, 15 Amp. power supply. Plug it into a 115 Vac, three-prong, grounding electrical outlet only.

The appliance features a lighting system with high intensity LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage.

Installation Options

There are many different installation options.

These are limited only by the design of the kitchen.

Individual appliance

Side-by-Side (Pair)

English14

Individual appliances with partition

NOTE

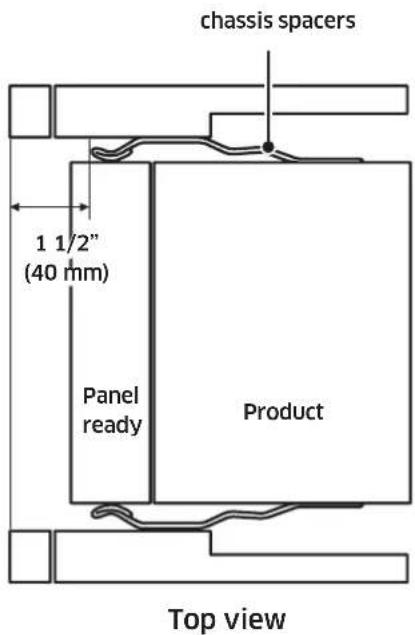

• The minimum thickness of the partition is 1 1/4" (32 mm).
• At 1 1/4" (32 mm), the door swings must open towards as case 1.
• At more than 1 9/16" (40 mm), the door swing can open same direction and door open angle is 90 degree as case 2.

At more than 7 7/8" (200 mm), the door swing can open toward each other and door open angle is 90 degree as case 3.

For this installation option it is recommend to install the 90 degree door stop. In order to minimize the partition thickness.

If a 115 degree door opening angle is desired, Distance of "F" (16 page) for a partition thickness is recommended.

- Partition thickness is dependent on handle depth. Dimension above is acceptable for Dacor handles.

1 1/4" (32 mm) 1 9/16" (40 mm)

1 9/16" (40 mm) 7 7/8" (200 mm)

Case 1 Case 2 Case 3
1 9/16" (40 mm)

All doors swings are recommended to be on the same side.

1 9/16" (40 mm)

The door swing of the individual column must open the same way as the door swing of the side-by-side.

Product Specifications

Callout 24"
A 23 3/4" (603 mm)
B (With Panel) 25" (635 mm)
B1 (Without Panel) 23 13/16" (605 mm)
C 83 3/8" (2118 mm)
D 23 5/8" (600 mm)
D1 24 7/8" (631 mm)
D2 27 9/16" (701 mm)
E 50 3/4" (1289 mm)
F 13 11/16" (348 mm)
G 49 11/16" (1261 mm)

English16

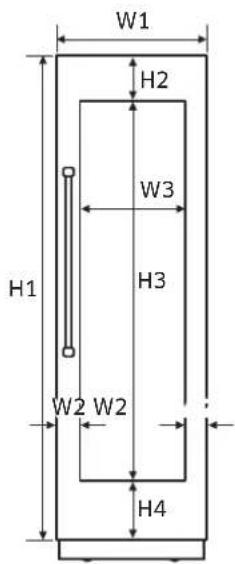

Custom Panel Specifications

Callout 24"
W1	23 3/4" (603 mm)
W2	3 9/32" (83.5 mm)
W3	17 5/32" (436 mm)
H1	79 7/8" (2029 mm)
H2	7 23/32" (196 mm)
H3	62 25/32" (1594.5 mm)
H4	9 3/8" (238.5 mm)
Panel Thickness	3/4" (19 mm)
Max Weight	55.0 lb (25 kg)

Do not exceed the max load that the custom panel can endure. Before crafting the panel, check the strength of the panel's material and the load of attachments to the panel.

	24”
Custom PanelMaximum Weight	55.0 lb (25 kg)

NOTE

- Standard Custom panel thickness is 3/4" (19 mm).

Product Specifications

Handle Specifications

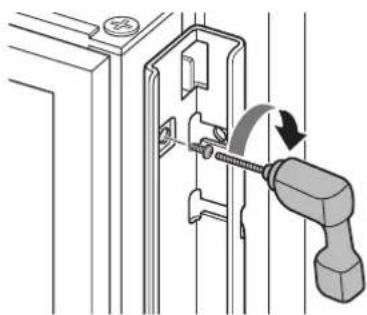

Before installing the custom panels, you must first install the door/drawer handles. With custom panel models, you have the advantage of being able to select a handle style that meets your own personal taste. Handles are not provided with custom panel models. Selected handle kits are available through your Dacor dealer. Dacor does not advise the use of single pull knobs.

The panel craftsman needs to select and purchase the required fasteners for the installation. The screw heads must be countersunk into the panel to prevent interference during depth adjustment.

CAUTION

We recommend installing a handle for a custom panel. Without the handle, you may catch your fingers in the door when opening or closing the door.

English18

Attach the Dacor Handle

WARNING

Follow these instructions to attach the Dacor handle. Otherwise, the handle may be damaged or malfunction.

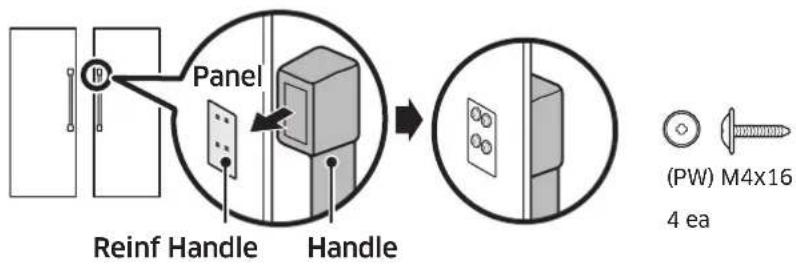

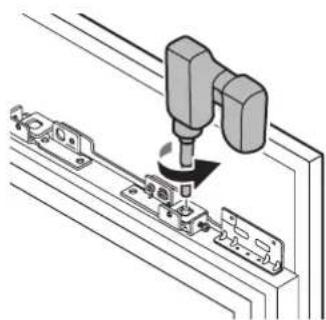

1. Put the reinforced handle support on the rear of the door panel, and then put the handle on the front of the door panel.
2. As shown, tighten the 4 screws on each of the upper and the lower sides of the handle. Do not tighten them excessively.

Installation

WARNING

Do not install the appliance:

• outdoors,
  • in an environment with dripping water.

Appliance is very heavy :

Wine Cellar 24" approx. 397 lb / 180 kg

Installation room

The appliance should be installed in a dry, ventilated room.

Secure installation

The appliance is very heavy and has a tendency to tilt forwards when the appliance door is opened.

Do not open the door until there is no possibility of the appliance tipping over.

The most secure way to install the appliance is to use the supplied anti-tipping devices.

Floor

The subsurface must be level and even in order to ensure that the appliance is securely installed and works correctly.

The subsurface must be made from a hard, non-flexible material to cover the weight of appliance.

Aligning the appliance

To ensure that the appliance functions correctly, it must be levelled properly.

Glass door

When moving or installing the appliance, be careful not to damage the glass door.

English20

Installation Requirements

Installation Preparation

Cabinet installation parts

Using the table on next page, verify that all installation parts are present as you unpack the appliance.

Check the installation parts when unpacking.

PARTS SINGLE-INSTALLATION PAIR-INSTALLATION
A	A1 LEVER - 2
	A2-1 LOWER BRACKET - 1
	A2-2 UPPER BRACKET - 1
B KICKPLATE 1 2
C Refrigerator Top Cover 1 2
D ANTI-TIP BRACKET			18", 24", 30": 136": 2	18", 24", 30": 236": 4
E		CENTER TRIM	-	1
F		CABINET SIDE TRIM	2	2
G		Wine Rack	10	20

English 21

Installation Requirements

Door installation parts

Using the table below, verify that all door-installation parts are present as you unpack the appliance.

Check the installation parts when unpacking.

PARTS SINGLE-INSTALLATION PAIR-INSTALLATION
A' LOWER	R DOOR CAP 1 2
B' CAP 2	4
C' DOOR	SIDE TRIM 2 4
D' PANEL	BRACKET 2 4

Screw and Nut

	M6x12 12 ea (FH) M4x14 22ea
	(TH) M4x16 24 ea M4x35 3ea
	M13 2 ea		ø6x30 3 ea

English22

Tools required

No. Tool No. Tool
1		Electric Screwdriver	8		Protective Floor Mat
2		Measuring Tape	9		Stepladder
3		Flat/Slot Head Screwdriver	10	[A&W4]	Appliance Dolly
4		Cutter (Scissors)	11		Cutter
5		Adjustable Wrench	12		Level
6		Phillips Head Screwdriver	13		Star Head Screwdriver
7		Ratchet	14		Combination Wrench
		3/8" (10 mm), 1/2" (13 mm)			3/8" (10 mm), 1/2" (13 mm)

Installation Requirements

Grounding the Wine Cellar

CAUTION

Electrical and grounding connections must comply with the applicable portions of the national electrical code and/or other local electrical codes.

This appliance comes with an electrical cord with a three-prong grounding plug for a 115 Vac, 15 Amp. power supply. Plug it into a 115 Vac, three-prong, grounding electrical outlet only.

Illustration of a plug connected to a wall socket with three socket holes (no text or symbols)

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE POWER CORD.

DO NOT USE AN ADAPTER PLUG TO CONNECT THE WINE CELLAR TO A 2-PRONG OUTLET.

DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE.

WARNING

Electric Shock Hazard

Plug into a grounded, dedicated 3-prong outlet.

Do not remove the ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electric shock.

English24

Cabinet Special Requirements

A : Cabinet Width
B : Cabinet Depth
C : Cabinet Height
D : Electrical supply width location
E : Electrical supply height location

Callout 24"
A 24" (610 mm)
B 25" (635 mm)
C 84" (2134 mm)
D 14" (356 mm)
E 80" (2032 mm)

• B : Includes the standard door panel thickness with 3/4".
- Installation inside a cabinet of this width allows the wine cellar trim to be attached directly to the surrounding cabinets.

Installation Instructions

1. Uncrating the Wine Cellar

Check the appliance for transit damage.

Do not install the appliance if it is visibly damaged.

If in doubt, contact your dealer.

1. Remove the PP-banding, cardboard crate, EPS, and Pe-bag.

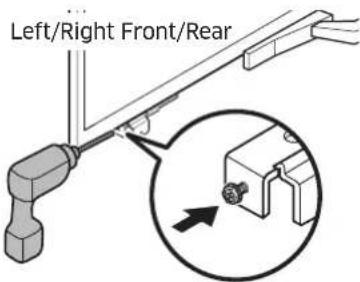

2. Remove the brackets from the pallet by unscrewing the bolts (five per bracket).

CAUTION

Use caution not to damage the appliance when unloading it from the pallet.

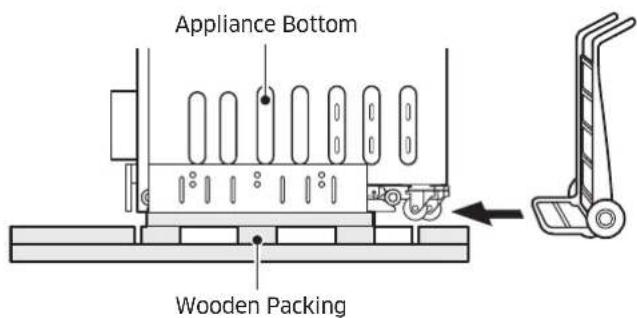

1. As shown, insert the hand truck between the appliance and the wooden packing. While tilting the appliance up to the rear, unload it from the wooden packing.

English26

2. Moving the Wine Cellar

WARNING

The appliance is very heavy. When moving the refrigerator, all personnel must take care not to injure themselves or the appliance.

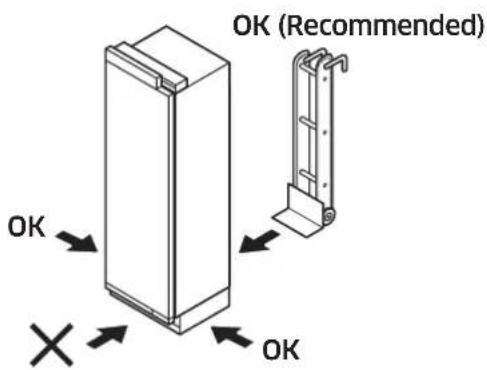

1. Secure the refrigerator to a suitable means of transport (preferably an appliance dolly), and move the refrigerator near its installation cabinet.
2. Move and install with a minimum of two persons.
3. Be very careful to avoid floor damage. Delicate flooring should be protected with plywood, hard cardboard, or similar material.
4. Before moving the refrigerator, verify that it will fit through all door openings, stairwells, and overhead obstructions.

- TIPPING HAZARD: The refrigerator is large, heavy, and tips easily when not secured. Always move the refrigerator in an upright position if possible. If not, move the refrigerator on its back. Secure the doors shut during transport.

WARNING

Be careful that electrical component box is not damaged when installing.

Installation Instructions

3. Installation Preparation

Unpack installation materials and accessories.

See the Installation preparation section on Installation Requirement chapter.

4. Attaching the Anti-tip-Bracket

WARNING

To keep the unit from tipping forward, an anti-tip bracket must be installed. Before attaching the bracket, ensure that no electrical wiring or plumbing is in the area where the screws will penetrate. One such bracket per appliance is required.

CAUTION

Always wear safety glasses and other necessary protective devices or apparel when installing or working with anchors.

Dacor does not recommend that you anchor the anti-tip bracket in light-weight masonry (e.g., block, brick) or in new, uncured concrete.

Make sure the wall or the cabinet that the brackets are studded in has enough strength to withstand the safety load.

Wooden Wall

Concrete Wall

1. Bracket height is measured from the floor and depends on the cabinet height.

NOTE

Bracket height

= Cabinet height - 4 3/32" (104 mm)

1. Attach the anti-tip brackets. Ensure the screws hold the bracket tightly.

The anti-tip brackets must extend at least 2" (50 mm) over the appliance to secure the appliance. If this minimum length cannot be observed for structural conditions it is possible to do this by fastening a spacer (wood) behind the anti-tip angle.

English28

Option Cabinet height A
1 83 1/2" (2121 mm) 79 13/32" (2017 mm)
2 83 3/4" (2127 mm) 79 5/8" (2023 mm)
3 84" (2134 mm) 79 7/8" (2030 mm)
4 84 1/4" (2140 mm) 80 1/8" (2036 mm)

		24"
ANTI-TIP BRACKET 1 ea
wooden wall M4x35 3 ea	[IMAGE]
concrete wall	[IMAGE] M4x35 3 ea
	(HOLDER LOCK)ø6x30	3 ea

• 3 screws/holder locks per bracket.

Installation Instructions

Anti-tip bracket considerations

1. Bracket positioning: follow the cabinet-specific height table.
2. Screws: Tighten all 3 screws on the brackets.
3. Push the product up against the rear wall of the cabinet.
4. Spacer: If using the spacer, you must follow the positioning specifications of the bracket (see the table above).

CAUTION

• The height of the spacer must be calculated based on the depth of the cabinet.
• The spacer must be fixed separately from the cabinet.

When installing the product into the cabinet

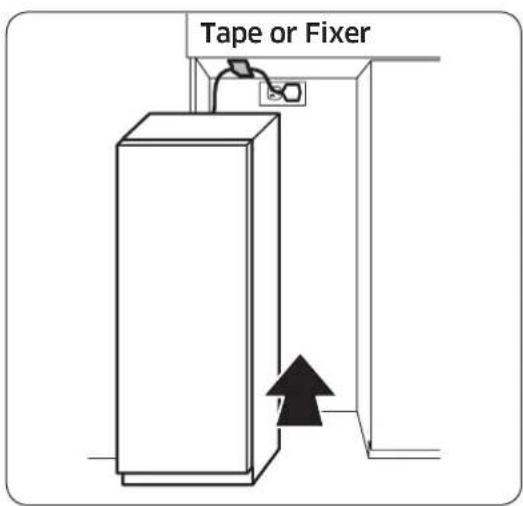

Before positioning the product in the cabinet, plug in the power cord. Then, attach the power cord near the front of the cabinet opening using tape or fixer such as clip, pin, etc.

After positioning the product inside the cabinet, make sure the power cord is positioned on the top of the product (as shown in the in the figure).

English30

5. Removing Upper Door Cover, Kickplate

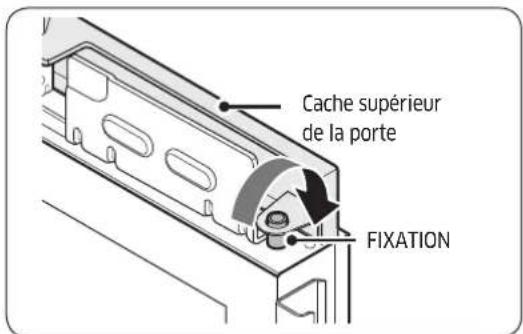

You need to remove the upper door cap and kickplate before you adjust the custom door panel.

Upper Door Cover M5x16 2 ei
Kickplate M4x8 2 ea

Installation Instructions

Diagram of an electrical panel assembly with a black arrow indicating a component (no text or symbols present)

1. Remove the inner cover on the inner part of the upper door cover.

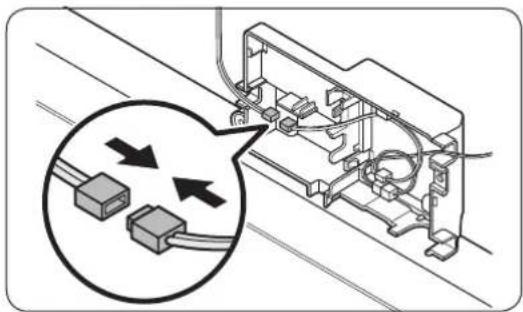

Diagram of an electrical connector with wiring and a magnified inset showing three connected components (no text or symbols)

1. Disconnect the humidity sensor connector.

Mechanical assembly diagram showing a cutting tool interacting with a base plate, with an inset close-up of the component (no text or symbols visible)

1. Remove the 2 screws fixing the upper door cover.

1. Remove the upper door cover from the fixers.

English32

- Kickplate: For side-by-side installation, remove the grill cover. This is not applicable for standard one installation.

Diagram of a screwdriver inserted into a rack with a vent, showing mechanical components (no text or symbols)

1. Push open the cover.Remove the screws on side and remove grill cover.

Diagram showing a screwdriver inserted into a bracket with a magnified view of the component (no text or symbols present)

WARNING

Do not use impact drill. Can cause damage.

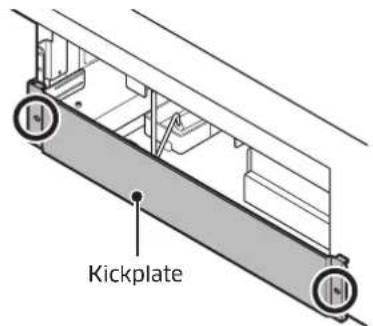

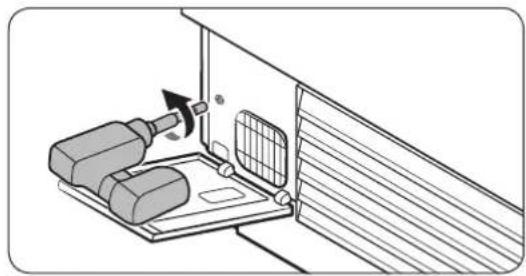

1. Remove the screws on both sides, and remove the kickplate.

Installation Instructions

6. Attaching Insulators on the Side of the Wine Cellar - Single Installation

Attach 2 insulators on any one side of the freezer or the fridge. Make sure that 36" models have two different-sized insulators.

Check your model first, and then attach the insulators by referring to the figures below. Attach the insulators to cover the screws on the chassis spacers.

Align the insulators with the end of the center chassis spacer.

See the figures below for the layout after the insulator is attached.

English34

7. Attaching insulators on the side of the freezer or fridge or Wine Cellar - Side-by-side (Pair) Installation

Attach 2 insulators on any one side of the freezer or the fridge. The insulators are different in size according to the type. Check your model first, and then attach the insulators by referring to the figures below. Make sure a larger insulator is attached on the contact point.

Attach the insulators to cover the screws on the chassis spacers.

Align the insulators with the end of the center chassis spacer. When pairing is complete, the insulators may be visible.

Product placement

1. When a freezer is on the left-hand side

See the figures below for the layout after the insulator is attached.

Top View

Installation Instructions

2. When a freezer is on the right-hand side

See the figures below for the layout after the insulator is attached.

Top View

English36

Repositioning the Center Chassis Spacers

1. Remove the set's center chassis spacer.
2. Re-attach the spacers 7/16 in. (10 mm) back from their original position (see graphic below).

Isometric line drawing of a two-cell cabinet or enclosure with no text or symbols

Installation Instructions

8. Connecting the Two Chassis

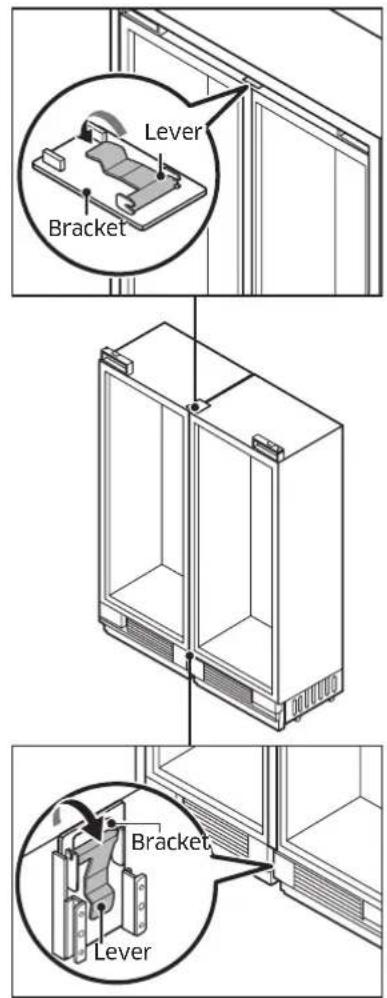

1. Making the upper connection.

- Attach the rectangular bracket to the protruding tabs on the top of each chassis (see the graphic). - Attach the lever to connect the two chassis.

1. Making the lower connection.

- Insert the bracket in the groove at the bottom of the two chassis. - Attach the lever to connect the two chassis.

English38

9. Adjusting the door Opening Angle

By factory default, the door opens by 115 degrees. You can use the limiter pin to adjust the opening angle down to 90 degrees, depending on the installation conditions.

• Open the door to less than 90 degrees, and then completely insert the limiter pin through the top and bottom holes of the top hinge as shown in illustrations (1) and (2).
• Close the door and make sure the limiter pin does not interfere with the hinge cover.

CAUTION

• Insert the limiter pin before putting the refrigerator into the cabinet.
• If the limiter pin is not inserted completely, the hinge and the hinge cover may get damaged.

Factory default 115°

With limiter pin 90°

Installation Instructions

10. Moving the Wine Cellar Into Its Enclosure

- According to the type of cabinet, a jig (positioning aid) can be used to align the refrigerator's custom door panel with cabinet by marking vertical line on the cabinet.

Diagram of a mechanical clamp or bracket with a rod inserted, showing alignment lines and an arrow pointing to the handle (no text or symbols present)

CAUTION

Make sure to position the front of chassis spacer so that it is aligned with the vertical line. Otherwise, the installed refrigerator will tilt and its door may not close fully. In addition, auto door open system may not work normally.

Overlay Type Frameless Type

English40

CAUTION

As you push the wine cellar into its enclosure, take care not to damage the power cord. The water hose must be fixed to the ground before pulled out to the front. Also, arrange the power cord behind the appliance to ensure that it is not stepped on or over.

WARNING

While moving the wine cellar, take care not to harm assisting personnel or the refrigerator itself.

1. Before moving the wine cellar, connect the power cord.
2. Place packaging cardboard or plywood in the refrigerator's path to protect the flooring while moving the appliance.
3. Carefully push the wine cellar into its enclosure.
4. Align the forward edge of the chassis spacer with the vertical line you marked on the cabinet.

Installation Instructions

11. Removing Two Levers

- To facilitate leveling on the wine cellar, remove the top and bottom levers to unpair the chassis.

• To disassemble lower lever, use a screwdriver by force.

English42

12. Leveling the Wine Cellar

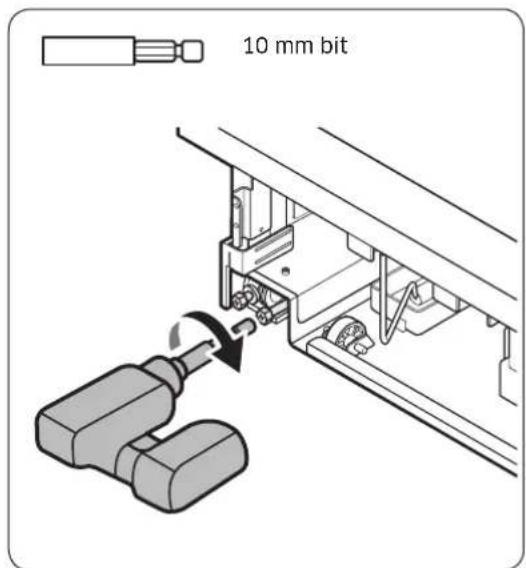

1. Using your drill and the bit shown below, engage each of the refrigerator's adjuster shafts in turn, and level the refrigerator. (CW ♠, CCW ♦)
2. Adjust the gap between the furniture and Refrigerator top cover to 1/8 in. (3 mm).

WARNING

Do not use impact drill. Can cause damage.

CAUTION

• The front and rear leveling legs have a maximum height adjustment of 3/4" (20 mm).
• To further raise the refrigerator, put the refrigerator on top of a sheet of plywood or runners.
• Raising the refrigerator above 3/4" (20 mm) will damage the front and rear leveling components.
• When pairing is complete, make sure to level both appliances simultaneously. Do not level them sequentially one after the other. Otherwise, the jack may not operate properly.

Installation Instructions

Pure mechanical component diagram without any text, numbers, or symbols

Front Rear
Adjustable shaft (10 mm)

English44

13. Attaching Two Levers

- Attach the top and bottom levers to pair the chassis.

Installation Instructions

14. Attaching the Wine Cellar's Top Cover

The light intensity sensor is attached to the top cover. The wine cellar does not use the light intensity sensor, therefore do not connect the sensor connector.

1. Connect the wires for electric parts from around the Auto Door Open kit, and then insert the wires in the rectangular pipe.

CAUTION

Be careful not to damage the wires.

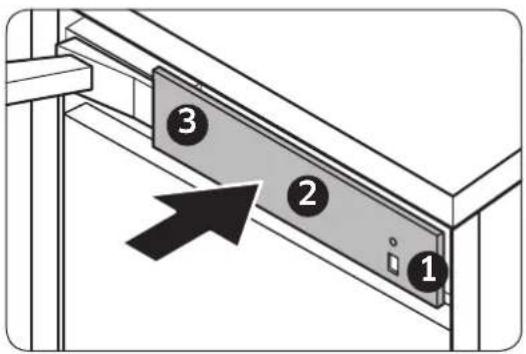

1. To attach the top cover, fix the hooks in the order of the numbers as shown in the figure.

English46

15. Securing the Wine Cellar

Secure the refrigerator to its enclosure with (TH) M4x16 screws (6 screws per side, as shown in the graphic).

CAUTION

Make sure the appliance is level. If the appliance is not level, the wine rack may slide in or out.

Isometric line drawing of a refrigerator with airflow arrows indicating internal movement (no text or symbols)

Fixed location

chassis spacers

Top View

(TH) M4x16 12 ea

Installation Instructions

16. Attaching the Custom-Door-Panel Brackets

Attach the panel brackets to the top and bottom of the panel.

Custom Panel: STS

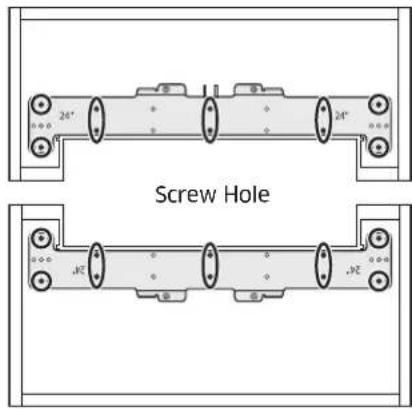

Drive 10 screws each to the top and bottom brackets as shown in the graphic. (The other holes on each side of the bracket are for a different application.)

(FH) M4x14 20 ea

Custom Panel: Wood, Other

• The template informs you the position of the bracket and holes.
• Mark hole positions on every corner of the panel according to the template and drive the screws into the holes.

English48

Custom Panel: Recessed Back, Other

If, by the nature of its design, the panel cannot be attached at the center of the bracket, use the whichever suitable screw holes on the sides of the bracket to attach the panel.

Installation Instructions

17. Hanging a Custom Panel

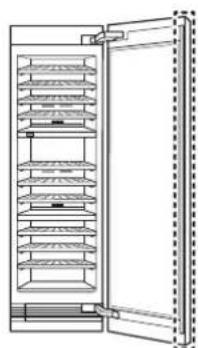

WARNING

If you install a custom panel before fixing the appliance to the cabinet, the custom panel can tip over. To prevent this, you must follow the installation instructions.

- Hang the panel bracket on the height adjustment screw. (See the graphic.)

Diagram showing two views of a door panel with arrows indicating assembly or installation (no text or symbols present)

English50

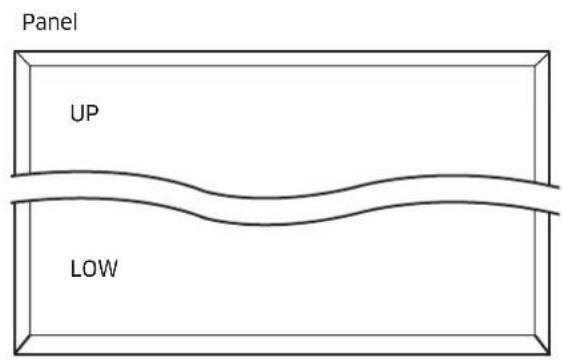

18. Preparing the Panel for Adjustment

Diagram showing a vertical panel with two slots and a magnified inset of the main view (no text or symbols)

1. Fix the custom panel temporarily onto the side of the door by tightening the screw in the center of the panel.

2. Loosen-but do not remove-the six screws on the side of the door so you can adjust the custom panel vertically.

(PW) M4x16

12 ea

Installation Instructions

19. Aligning the Panel

NOTE

Each custom panel comes with 12 dedicated screws for fine-tuning. Use a minimum number of screws to fine-tune the custom panel with the cabinet. Once fine-tuning is complete, fix the custom panel with the top nut.

There are two panel-adjustment mechanisms at the top and two at the bottom of the door. Adjust the panel so it aligns with the surrounding cabinetry.

The gap between the cabinet and the panel must be:

• 1/8" (3 mm) on top
  • 1/8" (3 mm) on the side for single installation
• 5/32" (4 mm) on the side for pair installation

English52

The gap between the glass door and the panel must be same on all sides (top, bottom, left, and right) or the difference should be no more than 2/32" (2 mm). (For example, if A is 2 mm, B should not exceed 4 mm.)

Top of the Door

1. Use the double-threaded bolts to align the door panel.
2. Engage a side screw (see the graphic) to shift the panel side to side.
3. Engage Screw 1 (see the graphic) to shift the panel forward/backward; engage Screw 2 to set the panel in place.

Installation Instructions

1. Engage Double Threaded Bolt (see the graphic) to shift the panel up and down.
2. Engage a side screw (see the graphic) to shift the panel side to side.

CAUTION

Be careful not to damage the wires when fastening the side screw.

1. Engage Screw (backward) (see the graphic) to shift the panel forward/backward; engage Screw (forward) to set the panel in place.

Panel-adjustment mechanisms

Pure diagram of a refrigerator interior layout with arrows indicating flow direction (no text or symbols)

Each 12 screws per Door M6x12 12 ea

Panel-Adjustment Mechanism

English54

Top of Door

Diagram of a screwdriver inserted into a mechanical component (no text or symbols visible)

Diagram of a screwdriver inserted into a bracket with mounting hardware (no text or symbols)

Bottom of Door

Diagram showing a screwdriver inserted into a bracket with an arrow indicating the direction (no text or symbols present)

Attaching the Panel to the Door

1. Screw nuts snugly onto the double-threaded bolts.
2. Fasten the screws to assemble the panel and the door as shown in the figure.

Technical illustration of a mechanical assembly with a tool and bracket (no text or symbols)

Two nuts per set

M13

Diagram of a door handle assembly with a screwdriver inserted, showing rotational motion (no text or symbols)

Six screws per side (into the door)

Diagram of a screwdriver installing or adjusting a door panel (no text or symbols visible)

Six screws per side (into the panel)

Installation Instructions

20. Attaching the Door's Interior Covers

Upper Door Cover

Diagram of a mechanical or electrical component with two connectors and wiring, showing internal wiring and connection points (no text or symbols)

1. Connect the humidity sensor connector, and then arrange the wires as shown in the figure.

Technical line drawing of an electrical enclosure with wiring and components (no text or symbols)

1. Assemble the inner cover.

Diagram of a device with an arrow pointing to a component, no visible text or symbols

1. Insert both side rings of the door cap of the upper door cover into the fixer.

English56

1. Fasten the 2 screws to fix the upper door cover.

Installation Instructions

Lower Door Cover

1. Attach the air guide to the lower door cover (2 screws per set).
2. Attach the lower door cover by driving the screws from the front (2 screws per set).
3. Attach the caps over the screw holes.

Technical illustration of a mechanical assembly with a tool inserted into a bracket (no text or symbols)

Lower Door Cover

(FH) M4x14 2 ea

English58

21. Attaching Grill, Kickplate and Toe Kickplate (optional)

Attaching grill

- Drive the screws tightly on both sides to attach the grill. Otherwise, the door may not close fully.

Line drawing of a mechanical device with two cylindrical components mounted on a tray, no text or symbols present

Technical diagram showing a mechanical assembly with two tool holders and a rotating component (no text or symbols)

Attaching kickplate

- Drive the screws on both sides to attach the kickplate.

Kickplate

M4x8 2 ea

Installation Instructions

Attaching Toe kickplate

• The height of the product can be adjusted between 83 3/8" \~ 84 3/8".
• If you want to use the provided Dacor toe kickplate (4"), note that it was designed for a product height of 83 7/8" and cabinet height of 84".
• If you want to use a toe kickplate not provided by Dacor, adjust the height of the toe kickplate accordingly.
• You can extend the bracket to move the kickplate by a max of 32 mm to the front.

Factory default 32 mm to the front

English60

22. Attaching the Wine Cellar Trim

1. Cabinet-side trim: Attach the trim between the refrigerator and the cabinet.

WARNING

Please check again if there is any problem after installation.

1. Door-side trim: Attach trim to the door's side bracket.

2. Refer to figure 1-① and secure the door side trim to the bracket. Make sure the trim is properly seated.

3. Refer to figure 2-② and secure the door side trim to the door cover rib. Make sure the trim is properly secured without any gap in between on both the top (figure 2-③) and the bottom (figure 2-④).

WARNING

Please check again if there is any problem after installation.

Technical line drawing of a vertical cabinet with multiple shelves and an open door (no text or symbols)

Figure 1 Figure 2

English 61

Installation Instructions

1. (Side-by-side installation only) Center trim: Attach the trim between the refrigerator chassis.

WARNING

Please check again if there is any problem after installation.

Line drawing of an open refrigerator with multiple shelves and doors, no text or symbols present

23. Attaching Trim Top Cover

Attach the Trim Top Cover on the bottom of the Top Cover.

- For pair installation, cut to fit the Trim Top Cover width and attach.

Simple line drawing of a cabinet or shelf with an arrow pointing to the front panel (no text or symbols)

English62

24. Assembling the Wine Rack

1. Remove the packaging of the bottom wine shelf, and then place it on the bottom of the wine cellar.

2. Remove the rail fixer.

Installation Instructions

Illustration of hands installing a rack frame with directional arrows indicating movement (no text or symbols)

Diagram showing a ladder structure with arrows indicating force or movement, and an inset close-up of a mechanical component (no text or symbols present)

Diagram of a mechanical device with hands operating a base, showing a circular component and directional arrows (no text or symbols)

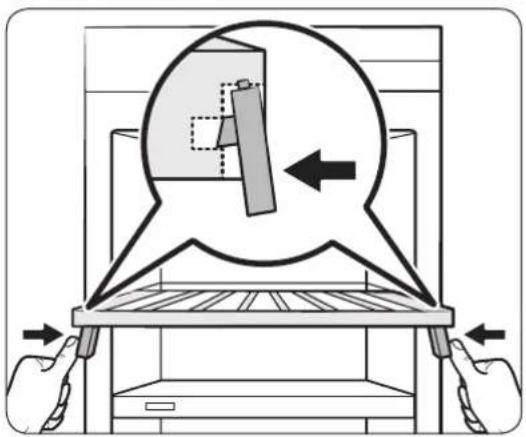

1. Hold the front part of the wine rack and the rail, and then push the wine rack so that the hook on the back of the rail is inserted into the hole on the back of the wine rack as shown in the figure.

NOTE

Make sure the hooks on the both rails are properly inserted into the rack.

1. Fix the front part of the wine rack by placing the rack on the front of the rail so that two pins on the top and side of the rack is inserted into the holes on the front part of the rack as shown in the figure.

NOTE

Make sure the pins on the both rails are properly inserted into the holes on the rack.

English64

Diagram of a horizontal shelf with two circular insets showing internal components (no text or symbols)

Isometric line drawing of a wine bottle resting on a tray with plastic bags (no text or symbols)

Simple line drawing of a storage cabinet with an upward arrow inside (no text or symbols)

1. Place 3 Bottle Presenter on the wine rack of the Presentation Zone.

2. Slide in the wine rack until you hear a clicking sound.

Installation Instructions

WARNING

• Make sure the appliance is level. If the appliance is not level, the wine rack may slide in or out.
  • Make sure the wine rack is firmly fixed.

25. Disassembling the Wine Rack

Simple line drawing of a box with a downward arrow inside, no text or symbols present

1. Pull the wine rack.

Line drawing of hands holding a rectangular object with arrows indicating direction (no text or symbols)

1. Gently spread the racks and lift the front part to release from the pins.

Illustration of a hand using a tool to cut a metal tray (no text or symbols visible)

1. Pull the wine rack to remove.

English66

26. Adjusting the Door Spring

Adjust the tension of the door spring according to the product size.

With a star-head screwdriver, turn the adjusting screw.

I = maximum spring tension

0 = no spring tension

Line drawing of a refrigerator with open door and multiple shelves (no text or symbols)

27. Cleaning

Remove the protective vinyl.

Installation Instructions

28. Installation Checklist

Ensure the wine rack functions properly and that the custom door panel aligns with the surrounding cabinetry.

WARNING

• The following checklist should be completed by the installer to ensure that the wine rack is safely and correctly installed, functions properly, and that no part of the installation has been overlooked.
• Proper installation is the responsibility of the homeowner. The importance of proper installation of your Dacor appliance cannot be overemphasized.

Installation Checklist

☐ Has the unit been inspected for cosmetic damage?
☐ Is the unit properly aligned with the adjacent cabinets?
☐ Do all doors, drawers and shelves operate smoothly, without interference?
☐ Has all packaging, tape, and literature been removed from inside and outside of the appliance?
☐ Is the power cable connected to a three-prong grounded electrical outlet that meets the electrical specifications?
□ Has the unit been properly leveled?
☐ Is the gap between the glass door and the panel appropriate? (Please refer to page 53.)
☐ Has the anti-tip bracket been properly installed?
☐ Has the auto door open system been function properly?
☐ Do all refrigerator components function properly?
□ Has the warranty been activated on-line or the warranty card filled out and mailed?
□ Is the appliance level?
□ Is the wine rack firmly fixed?
☐ Have you demonstrated to the user how to assemble and disassemble the wine rack according to the user manual?

English68

Memo

Memo

Memo

dacor®

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Illustration of a plug connected to an electrical outlet with three socket covers (no text or symbols)

Three black spiky spikes above a horizontal line, no text or symbols present

Riesgo de explosión

1 9/16" (40 mm) 7 7/8" (200 mm)

Leyenda 24"
W1	23 3/4" (603 mm)
W2	3 9/32" (83.5 mm)
W3	17 5/32" (436 mm)
H1	79 7/8" (2029 mm)
H2	7 23/32" (196 mm)
H3	62 25/32" (1594.5 mm)
H4	9 3/8" (238.5 mm)
Grosor del panel	3/4" (19 mm)
Peso máximo	55.0 lb (25 kg)

Illustration of an electric plug connected to a wall socket with three socket holes (no text or symbols)

Diagram of an electrical panel assembly with a black arrow indicating a component (no text or symbols present)

Diagram of an electrical connector with wiring and a magnified inset showing three connected components (no text or symbols)

Mechanical assembly diagram showing a cutting tool interacting with a base plate, with an inset close-up of the component (no text or symbols visible)

Line drawing of a two-panel refrigerator unit with front and back panels (no text or symbols)

Mechanical bracket with a rod inserted, showing alignment lines and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with two circular features and two vertical pins (no text or symbols)

(FH) M4x14 20 uds.

SUP : 10 uds / INF: 10 uds.

Español48.

Diagram showing two views of a door frame with arrows indicating assembly or installation (no text or symbols present)

Español50

Diagram showing a vertical panel with a magnified inset of the panel edge detail (no text or symbols)

Illustration of a screwdriver inserted into a wall-mounted bracket with mounting hardware (no text or symbols)

Vista superior

(PW) M4x16
12 uds.

Español52

Pure diagram of a rectangular frame with directional arrows and small circular elements at the bottom (no text or symbols)

Illustration of a screwdriver inserted into a mechanical component (no text or symbols visible)

Diagram showing a screwdriver inserted into a bracket with electrical components (no text or symbols)

Diagram showing a screwdriver inserted into a bracket with an inset close-up of the component (no text or symbols)

Technical illustration of a CNC machining operation on a workbench (no text or symbols visible)

Diagram of a screwdriver inserted into a door handle, showing mechanical assembly (no text or symbols)

Diagram of a screwdriver inserted into a door handle, showing the tool's application (no text or symbols present)

Technical diagram showing a tool interacting with a bracket or rail structure (no text or symbols present)

Line drawing of a mechanical device with two cylindrical components mounted on a base plate (no text or symbols)

Technical diagram showing a mechanical assembly with a tool and two cylindrical components (no text or symbols)

Technical line drawing of a vertical shelf or rack cabinet with open door (no text or symbols)

Diagram of an open refrigerator with shelves and doors, showing internal compartments (no text or labels)

Simple line drawing of a cabinet or shelf with an arrow pointing to the front panel (no text or symbols)

Español62

Illustration of hands using a tool to adjust a grid structure, with an inset showing a mechanical component (no text or symbols present)

Diagram showing a mechanical assembly with arrows indicating force or movement, no text or symbols present

Illustration of a mechanical device with hands operating a tray, showing a circular component and directional arrows (no text or symbols)

Diagram of a horizontal shelf with two circular insets showing internal components (no text or symbols)

Isometric line drawing of a wine bottle resting on a tray with plastic bags (no text or symbols)

Simple line drawing of a storage cabinet with an upward arrow inside (no text or symbols)

Simple line drawing of a box with a downward arrow inside, no text or symbols present

Line drawing of hands supporting a laptop with arrows indicating left and right motion (no text or symbols)

Illustration of a hand using a tool to cut or install a wooden tray (no text or symbols visible)

Line drawing of a refrigerator with open door and side shelves (no text or symbols)

27. Limpieza

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Illustration of a plug connected to a wall socket with three socket holes (no text or symbols)

Three black spikes on a white background, no text or symbols present

Risque d'explosion

1 9/16" (40 mm) 7 7/8" (200 mm)

Désignation 24"
W1	23 3/4" (603 mm)
W2	3 9/32" (83,5 mm)
W3	17 5/32" (436 mm)
H1	79 7/8" (2029 mm)
H2	7 23/32" (196 mm)
H3	62 25/32" (1594,5 mm)
H4	9 3/8" (238,5 mm)
Épaisseur du panneau	3/4" (19 mm)
Hauteur maximale	55,0 lb (25 kg)

Illustration of a plug connected to an electrical outlet with three socket covers (no text or symbols)

NE COUPEZ ET NE RETIREZ JAMAIS LA TROISIÈME BROCHE (MISE À LA TERRE) DU CORDON D'ALIMENTATION.

Diagram of an electrical panel assembly with a black arrow indicating a component (no text or symbols present)

Diagram of an electrical connector with wiring and a magnified inset showing three connected components (no text or symbols)

Mechanical assembly diagram showing a cutting tool interacting with a base plate, with an inset close-up of the component (no text or symbols visible)

Technical line drawing of a two-door refrigerator with open doors and side grilles (no text or symbols)

Français38

Mechanical clamp or bracket assembly with a rod inserted, showing alignment lines and a black arrow indicating direction (no text or symbols)

Français42

Pure mechanical component diagram without any text, numbers, or symbols

Avant Arrière
Arbre ajustable
(10 mm)

Diagram of a refrigerator with airflow arrows indicating internal movement (no text or symbols)

Emplacement fixe

Technical diagram showing a door panel being lifted by two different mounting brackets, with arrows indicating the process (no text or symbols present)

Français50

Diagram showing a vertical panel with two slots and a magnified inset of the main view (no text or symbols)

Français52

Pure diagram of a refrigerator interior layout with directional arrows indicating flow or movement (no text or symbols)

Diagram of a screwdriver inserted into a bracket with a magnified view showing internal components (no text or symbols)

Diagram showing a screwdriver inserted into a bracket with mounting hardware (no text or symbols)

Diagram showing a screwdriver inserted into a bracket with an inset close-up of the component (no text or symbols)

Technical illustration of a CNC machining operation on a workbench, showing tool path and alignment (no text or symbols)

Diagram of a screwdriver adjusting a door lock mechanism (no text or symbols present)

Diagram of a screwdriver inserted into a door handle, showing the tool's application (no text or symbols present)

Technical diagram showing a screwdriver inserted into a bracket with an arrow indicating force direction (no text or symbols present)

Line drawing of a mechanical assembly with two cylindrical components mounted on a base plate (no text or symbols)

Technical diagram showing a mechanical assembly with two tool holders and a rotating component (no text or symbols)

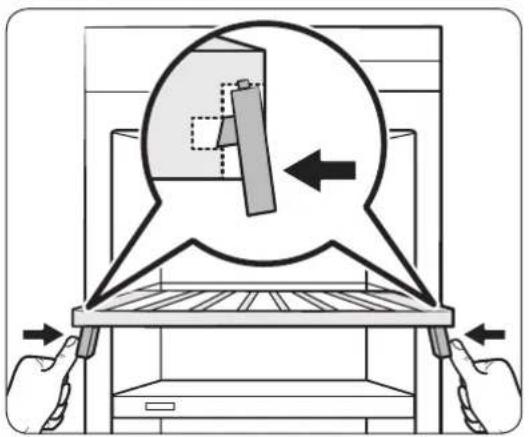

Fixation de la plinthe

Line drawing of an open refrigerator with multiple shelves and a dashed vertical divider (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Habillage central

Simple line drawing of a cabinet or shelf with an arrow pointing to the front panel (no text or symbols)

Français62

Illustration of hands using a tool to adjust a grid structure, with an inset showing a mechanical component (no text or symbols present)

Technical diagram showing a mechanical assembly with arrows indicating assembly direction (no text or symbols present)

Diagram of a mechanical device with hands operating a tray, showing a circular component and directional arrows (no text or symbols)

Diagram of a horizontal shelf with two circular insets showing internal components (no text or symbols)

Isometric line drawing of a wine bottle resting on a wooden tray with plastic containers (no text or symbols)

Simple line drawing of a storage cabinet with an upward arrow inside (no text or symbols)

Simple line drawing of a box with a downward arrow inside, no text or symbols present

Line drawing of hands supporting a laptop with arrows indicating left and right motion (no text or symbols)

Illustration of a hand using a tool to cut or install a wooden tray (no text or symbols visible)

Line drawing of a refrigerator with open door and multiple shelves (no text or symbols)

27. Nettoyage

Retirez le vinyle de protection.
