Brand	Florabest
Model	Z30688
Product Type	LED Parasol Lamp
Intended Use	Table illumination under sun umbrellas and similar structures
Light Source	24 LEDs (non-replaceable)
Power Supply	3 x 1.5 V AA batteries (included)
Protection Rating	IP44 (splash-proof)
Clamp Diameter	Approx. 28–48 mm
Material	Plastic (estimated)
Weight	Approx. 0.3 kg (estimated)
Battery Life	Varies with usage (not specified)
ON/OFF Switch	Yes, press to toggle
Lock Mechanism	Yes, clamp fastening with lock
Battery Compartment	Accessible with screwdriver
Included Accessories	3 AA batteries, operating instructions
Safety Features	Do not look into beam; keep away from children; battery safety warnings
Cleaning	Wipe with dry soft cloth; no liquids or detergents
Maintenance	Remove batteries if not used for long periods
Disposal	Batteries and product must be recycled separately
Compliance	CE marks, EMC, IP44
Manufacturer Contact	c/o Milomex Services, Hilltop Cottage, Barton Road, Pulloxhill, Bedfordshire, MK45 5HP, UK
Model Number	Z30688
Version	01/2012

Frequently Asked Questions - Z30688 FLORABEST

How do I install the batteries in the Florabest Z30688 lamp?

Open the battery compartment using a crosshead screwdriver. Insert three new AA batteries (1.5 V) with correct polarity as shown inside the compartment. Close the compartment and tighten the screw.

Can the LEDs be replaced if they burn out?

No, the 24 LEDs are not replaceable. If they fail, the entire lamp must be replaced.

How do I attach the lamp to my umbrella?

Open the lock, place the clamp around the umbrella pole (diameter 28-48 mm), and close the lock to secure it. Ensure it is tightly fastened.

Is the Florabest Z30688 suitable for outdoor use?

Yes, it has an IP44 rating, meaning it is protected against splashing water. It is designed for use with sun umbrellas outdoors.

How do I turn the lamp on and off?

Press the ON/OFF switch once to turn the lamp on, and press it again to turn it off.

What type of batteries does the Z30688 use?

It requires three AA (1.5 V) batteries. Alkaline batteries are recommended for best performance.

How should I clean the lamp?

Clean only the exterior with a soft, dry cloth. Do not use any liquids or detergents as they may damage the device.

What should I do if the lamp stops working?

First check the batteries: ensure they are inserted correctly and have charge. Replace all three if needed. If still not working, the lamp may be defective; contact the manufacturer.

Can I leave the batteries in the lamp when not in use?

It is recommended to remove the batteries if the lamp will not be used for a prolonged period to avoid leakage and damage.

How do I dispose of the lamp and batteries?

Dispose of spent batteries at a local collection point (they are hazardous waste). The lamp itself should be recycled according to local regulations; do not put in household waste.

USER MANUAL Z30688 FLORABEST

Operation and Safety Notes

FI

GB / IE Operation and Safety Notes Page 4

Circular diagram with five circular components and a central rectangular structure, no text or symbols present

Table of Contents

Intended use......Page 5

Included items Page 5

Description of parts and features......Page 5

Technical data......Page 5

Safety Information......Page 5

Safety Instructions for Batteries Page 6

Start of operation

Inserting / replacing the batteries ...... Page 6

Switching on / off Page 6

Cleaning and Maintenance....Page 7

Disposal Page 7

LED Parasol Lamp

- Intended use

The product is intended for use with sun umbrellas and the like to provide bright table illumination. The device is intended for use in private domestic environments only and not for commercial use.

- Included items

1 LED Garden Parasol Light
3 1.5 V=---, AA batteries
1 Operating instructions

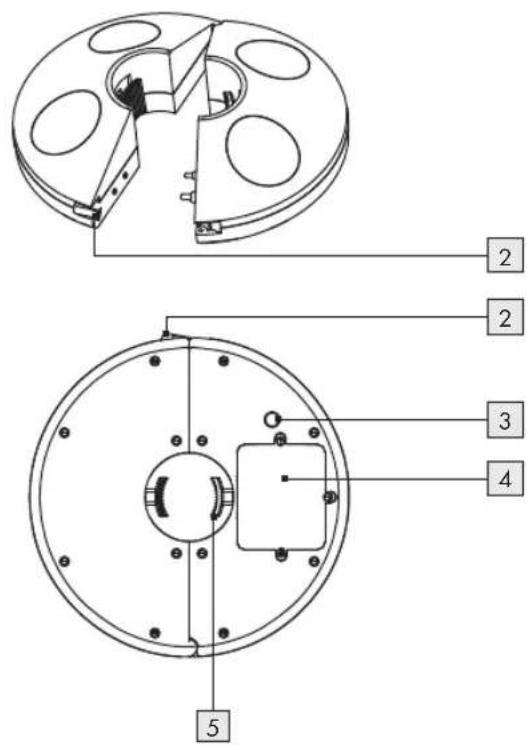

● Description of parts and features

1 LED light
2 Lock
3 ON/OFF switch
4 Battery compartment
5 Clamp fastening

- Technical data

Operating voltage: 3 x 1.5 V ---

Bulbs: 24 LEDs (the LEDs cannot be

replaced)

Batteries: 3 x 1.5 V ——, AA (included)

System of protection: IP44

Safety Information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

DANG WARNING!

DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the device at all times.

This device is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this device.
Children or other individuals who do not know or have no experience of handling this device, or whose physical, sensory or mental abilities are restricted, must not use the device without supervision or instruction by an individual responsible for their safety. Children must be supervised in order to ensure that they do not play with the device.
- Do not look directly into the beam of light and do not point it at people or animals. The beam of light can lead to injuries.
- Do not shine the beam of light onto a mirror or other reflective surfaces. The uncontrolled deflected beam could injury people or animals.

Safety Information / Start of operation

■ Switch the beam of light off before you put the device down.
- Do not use the device if it is damaged. Damaged devices represent a danger of death!
■ Under no circumstances should you take the device apart. Improper repairs may place the user in considerable danger. Repairs should only be carried out by specialist personnel.

● Safety Instructions for Batteries

DANGER TO LIFE! Batteries could be swallowed, which could pose a lethal hazard. If a battery has been swallowed, seek medical help immediately.

■ Remove the batteries from the device if they are not going to be used for a prolonged period.
CAUTION! DANGER OF

EXPLOSION! The batteries must never be recharged!

• When inserting the batteries, ensure the correct polarity! This is shown in the battery magazine.
  If necessary, clean the batteries and device contacts before inserting the batteries.
  ■ Remove spent batteries immediately from the device. There is an increased danger of leaks!
  ■ Batteries must not be disposed of in the normal domestic waste!
  ■ Every consumer is legally obliged to dispose of batteries in the proper manner!
• Keep batteries away from children; do not throw them in the fire, short-circuit them or take them apart.
  If the above instructions are not complied with, the batteries may discharge themselves beyond their end voltage. There is then a danger of leaking. If the batteries have leaked inside your

device, you should remove them immediately in order to prevent damage to the device!

• Avoid contact with the skin, eyes and mucous membranes. Any parts of the body coming into contact with battery acid should be rinsed off with copious amounts of water and / or a doctor contacted if necessary!
  ■ Always replace all batteries at the same time and only use the same type of batteries.
  ■ LED cannot be replaced.

- Start of operation

Note: Before first use, remove the insulation strip using a crosshead screwdriver.

- Inserting / replacing the batteries

☐ Open the battery compartment 4 using a crosshead screwdriver.
□ Remove the used batteries.
☐ Insert three new batteries type 1.5 V ≠AA.

Note: Make sure you fit the batteries the right way round (polarity). The correct polarity is shown inside the battery compartment 4.

☐ Close the battery compartment ☐ using a crosshead screwdriver.

- Switching on/off

Open the lock 2 and attach the sun umbrella lamp by the clamp fastening 5 to the sun umbrella pole. Close the lock 2 (the diameter

Start of operation/Cleaning and Maintenance/Disposal

of most sun umbrella posts is approx. 28 to 48 mm).

☐ Press the ON / OFF switch 3 to switch the lamp on.
☐ Press the ON / OFF switch 3 again to switch the lamp off.

● Cleaning and Maintenance

■ Under no circumstances should you use liquids or detergents, as these will damage the device.
☐ The device should only be cleaned on the outside with a soft dry cloth.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

EMC C€ IP 44

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006/66/EC. Please return the batteries and / or the device to the available collection points.

Sisällysluettelo

c/o Milomex Services

Hilltop Cottage

Barton Road

Pulloxhill

Bedfordshire

MK45 5HP

UK

Model No.: Z30688

Version: 01/2012
