Brand	Candy
Model	CVBNM 6182XP/S
Product type	Freezer
Refrigerant	R600a (isobutane)
Power supply voltage	220-240 V / 50 Hz
Defrost technology	Automatic (No Frost)
Fast freeze function	Yes (150 minutes to 2°C)
Temperature adjustment	5 speeds (SET touch panel)
Door reversibility	Yes (reversible left or right)
Interior lighting	Yes (bulb replaceable by professional)
Interior accessories	Adjustable glass shelves, vegetable bin
Climate class	Ambient temperature up to 42°C
Recommended cleaning	Baking soda and warm water solution
Child safety	Lockable door (for disposal)
Condenser maintenance	Cleaning with soft brush vacuum
Leveling feet	2 adjustable front feet
Handling	Hold by the sides or base

Frequently Asked Questions - CVBNM 6182XP/S CANDY

How to reverse the door opening of the Candy CVBNM 6182XP/S freezer?

To reverse the door, remove the joint cover and the top and center hinges. Disassemble the freezer compartment door and reassemble the bottom hinge on the left side. Assemble the freezer door on the bottom hinge, then the center hinge on the left. Finally, assemble the refrigerator door and replace the joint cover.

How to adjust the freezer temperature?

Use the SET touch panel to choose among 5 refrigeration speeds. Speed 1 is the least cold, speed 5 the coldest. For the freezer compartment, a separate control (NORMAL, COLD, COLDER) is available.

What to do during a power outage?

Do not open the door. If the outage lasts less than 20 hours, frozen food should not be affected. Beyond that, check the food and consume it quickly or refreeze after cooking.

How to clean the inside of the freezer?

Remove the shelves and the vegetable bin. Clean the interior with a weak baking soda and water solution, rinse with warm water using a sponge or cloth. Dry thoroughly before replacing the accessories.

My freezer makes unusual noises, is this normal?

Yes, most noises are normal: refrigerant circulation, compressor operation. A hum at start or stop is common. If the noise is intense, check that the appliance is level and that parts are correctly placed.

How to defrost the freezer?

This model is equipped with automatic defrost (No Frost). No manual defrosting is necessary. In case of excessive frost, contact a professional.

What types of food should not be placed in the freezer?

Do not place bottles or sealed containers of liquids like beer and carbonated drinks: they could explode. Avoid flammable substances (ether, gas, pure alcohol).
Also avoid hot foods.

How to save energy with this freezer?

Install the appliance away from heat sources and sunlight. Do not put hot food inside. Do not open the door unnecessarily. Defrost regularly (if frost appears) and remove dust from the rear condenser.

The interior light bulb does not work, what should I do?

Check that the freezer is plugged in. If the bulb is defective, it must be replaced by a qualified professional. Do not attempt to change it yourself.

How to store the appliance during a long absence?

Unplug the appliance, empty it and clean it. Leave the door ajar to prevent bad odors.

USER MANUAL CVBNM 6182XP/S CANDY

English 3

Italiano 16

Español 33

Deutsch 50

Portoguese 67

Français 84

Čeština 101

Slovenský 116

Ελληνικά 132

Magyar 149

Nederlands 163

Dansk 179

Suomi 192

Norsk 205

Svenska 218

English

Contents

1. SAFETY INFORMATION......4

2. INSTALLATION 6

2.1 Location....6
2.2 Door Handle Install Illumination (optional)....6
2.3 Reversing the Door Swing 7
2.4 Door Space Requirements....8
2.5 Levelling the Unit 8
2.6 Cleaning Before Use....9
2.7 Before Using Your Unit 9
2.8 Interior Accessories 10

3. PRODUCT OVERVIEW .... 10

4. OPERATION 11

4.1 Operation Instructions.... 11
4.2 Noise Inside the Unit! 13
4.3 Tips for Keeping Food in the Unit 13
4.4 Change the Light Bulb 13

5. CLEANING....13

5.1 Defrosting.... 13
5.2 Cleaning the Interior and the Exterior of the Unit.... 13
5.3 Cleaning Tips 13

6. MAINTENANCE 14

6.1 Changing the Internal Light.... 14
6.2 Care When Handling / Moving Your Unit.... 14
6.3 Servicing 14
6.4 Switching Off for Long Periods of Time 14
6.5 Do not shield positions of air outlet and return air inlet of the refrigerator.... 14
6.6 Do not keep foods of higher temperature close to temperature sensor 14
6.7 Take out drawer of freezing chamber of refrigerator and put foods directly on the glass partition....14

7. TROUBLE SHOOTING....14

7.1 Warm tips: 15

8. TIPS FOR ENERGY SAVING 15

9. SCRAPPING OLD APPLIANCES 15

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
  -on farms, by clientele of hotels, motels and other environments of a residential type
  -at bed and breakfasts (B & B)
• for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

1. SAFETY INFORMATION

The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable.

We recommend that you follow the following regulations so as to avoid situations dangerous to you:

Before performing any operation, unplug the power cord from the power socket.

• The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.
• If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.
• Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.
• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or

inflammable materials.

• Do not use extension cords or adapters.
• Do not excessively pull or fold the power cord or touch the plug with wet hands.
• Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
• Do not use mechanical devices or other equipment to hasten the defrosting process.
• Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
• Do not use or store inflammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.
• Do not store medicine or research materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.

• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

• Do not place objects and/or containers filled with water on the top of the appliance.

• Do not perform repairs on this Wine Coolers. All interventions must be performed solely by qualified personnel.
• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

- Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision

2. INSTALLATION

2.1 Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

When installing the unit, ensure that 10 cm of free space is left at both sides, 10 cm at the rear and 30 cm at the top of the unit. This will allow cold air to circulate around the wine cooler and improve the efficiency of the cooling process.

2.2 Door Handle Install Illumination (optional)

1) Take out the screw caps from the door handle holes.
2) Put the handles into the screw holes and then hit them to fix.
3) Cap the screw caps on the handle screws.
4) Take out the screw caps from the handle screw holes.
5) Remove the screws and take the handles down.
6) Cap the screw caps on the door handle holes again.
7) Install the handles into the door handle holes of the other side in accordance with the handle installation instructions.

2.3 Reversing the Door Swing

1) Take off knuckle guard.

3) Take off the door of refrigerating chamber.

4) Take off middle hinge with a screw driver.

2) Take off top hinge.

7) Assemble the door of freezer chamber on the lower hinge.

8) Assemble middle hinge assembly to left side of the cabinet.

5) Take off the door of freezing chamber.

6) Take off hinge assembly with a screw driver, Assemble lower hinge assembly to left side of the cabinet with a screw driver.

9) Assemble the door of refrigerating.

10) Take on knuckle guard.

2.4 Door Space Requirements

The unit's door must be able to open fully as shown.

W×D≥990×1025mm

2.5 Levelling the Unit

To do this adjust the two levelling feet at the front of the unit.

If the unit is not level, the door and magnetic seal alignments will not be covered properly.

Make sure that the foot touches the ground before use.

Look down from the top, clockwise and counterclockwise loosening, tightening.

2.6 Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information, refer to the Cleaning section.

2.7 Before Using Your Unit

The refrigerator adopts 220\~240V/50Hz AC power, voltage fluctuations over the range of 187\~264V will cause malfunction or even damage.

Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires.

This product is household refrigerators and shall be only suitable for the storage of foods.

According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs or biological products.

Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled. Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires.

This product is household refrigerators and shall be only suitable for the storage of foods.

According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs or biological products.

Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Before Plugging in

You must check that you have a socket which is compatible with the plug supplied with the unit.

Before Turning On!

Do not turn on until two hours after moving the unit.

2.8 Interior Accessories

Various glass or plastic storage shelves are included with your appliance - different models have different combinations.

You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swiveled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a different height.

In order to make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves, drawers, out of the appliance, according to your daily use.

3. PRODUCT OVERVIEW

*Dotted line represents the position of air outlet and return air inlet.

*All images in this instruction manual are for indication only; please refer to your individual unit for details.

4. OPERATION

4.1 Operation Instructions

Temperature control

• Temperature control of fresh food storage compartment.

External display

Key

A.SET: gear setting key.

Display screen

1 Gear 1
2 Gear 2
3 Gear 3
4 Gear 4
5 Gear 5

Display

For the first power-on, the display screen (including the key light) will be displayed in full for 3s, and then the gear in the middle displays the state of running.

Display of normal running

On the occurrence of a failure, the corresponding LED light will give a combined display of failure code (loop display);

Where there is no failure, the LED light will display the current running gear of the refrigerator.

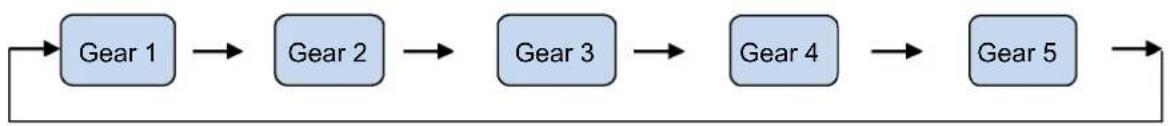

Gear setting

The gear will be changed once every time when you press the key SET. Then, the refrigerator will run under the setting value after 15s.

Fast cool function

Enter: Circulating modulation rapid cooling mode.

Operate: Indicator of rapid cooling lights up, and the refrigerator operates at 2°C.

Exit: 1. Operate 150min under the rapid cooling mode.

1. Temperature adjustment can exit from the rapid cooling mode.

• Temperature control of freezing chamber

The freezing temperature is relatively low in "COLDER" position, while the freezing temperature is relatively high in "COLD" position, thus, "NORMAL" position is generally used.

When ambient temperature is high in summer, the temperature shall be in the range from "NORMAL" to "COLD". If the ambient temperature is above 35° C, then "COLD" position shall prevail.

When ambient temperature is low in winter, the temperature shall be in the range from "NORMAL" to "COLDER". If the ambient temperature is below 10°C , then "COLDER" position shall prevail.

4.2 Noise Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

4.3 Tips for Keeping Food in the Unit

♦ Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
To prevent transfer of favours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
◆ Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

4.4 Change the Light Bulb

Lamp replacement by professionals

5. CLEANING

5.1 Defrosting

Auto-defrost for Frost-free Refrigerator

5.2 Cleaning the Interior and the Exterior of the Unit

Remove all the shelves and the salad bin. To remove the salad bin first remove the lower door shelf.
- Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a "wrung-out" sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.
Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
- The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

5.3 Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe of any moisture residue. If the problem continues, please contact a qualified technician for assistance.

6. MAINTENANCE

6.1 Changing the Internal Light

Lamp replacement by professionals.

6.2 Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

6.3 Servicing

The unit should be serviced by an authorized engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualitatively technician.

6.4 Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

6.5 Do not shield positions of air outlet and return air inlet of the refrigerator

6.6 Do not keep foods of higher temperature close to temperature sensor

6.7 Take out drawer of freezing chamber of refrigerator and put foods directly on the glass partition

7. Trouble shooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Inoperation	Whether the freezer is plugged and connected to power; Low voltage;Failure power or tripping circuit
Odor	Odorous foods should closely wrapped; Whether foods are rotten;Whether the interior shall be cleaned.
Long-term operation of compressor	It is normal that refrigerator operates for longer time in summer when the ambient temperature is higher;Do not put too much food in the freezer at one time;Do not put foods until they are cooled;Frequent opening of refrigerator door.
Illuminating light does not shine	Whether the refrigerator is connected to power, whether the illuminating light is damaged.
The refrigerator door can not be properly closed.	The freezer door is stuck by food packages; Too much food; Tilt refrigerator.
Loud noises	Whether the food is leveled, whether the refrigerator is balanced;Whether the refrigerator parts are properly placed.

7.1 Warm tips:

The refrigerator enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.
Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
♦ Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.

8. TIPS FOR ENERGY SAVING

For better energy saving we suggest :

Installing tge appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roo.

Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuos functionaliting of the compressor.

Do not excessively stuff foods so as to ensure proper air circulation.

Defrost the appliance in case there is ice to facilitate the transfer of cold.

In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.

Open or keep the doors of the appliance open as little as possible

Avoid adjusting the setting to temperatures too cold.

Remove dust present on the rear of the appliance

9. SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Italiano

Indice

2) Smontare la cerniera superiore.

2.4 Tür Platzbedarf

Retire os parafusos e remova as pegas.

2) Retire a dobradiça superior.

(Incorporado)

- farmy, v hotely, motely a jiné typy residencí

- noclehárny (B & B)

3) Vyberte dvere chladiacej komory.

7) Namontujte dvere chladiacej komory na dolný záves.

5) Vyberte dvere mraziacej komory.

6) Pomocou skrutkovača odstráňte zostavu závesu. Zostavu dolného závesu namontujte pomocou skrutkovača k l'avej strane skrinky.

9) Namontujte dvere chladničky.

10) Nasad'te kryt kíbu.

5)

10) Bevestig de bescherming van de knokkels.

Frysertemperaturen er relativet lav i positionen "KOLDERE", mens frysertemperaturen er relativt høj i positionen "KOLD", derfor bruges positionen "NORMAL" generelt.

5) Irrota keskisarana ruuvitaltalla.

2) Irrota yläsarana.

4) Asenna pakastinosaston ovi alempaan saranaan.

7) Irrota pakastinosaston ovi.

10) Sett på på plass knokebeskyttelsen.

Tast

Dette produktet er merket i samsvar med det europeiske 2012/19/EC-direktivet om avfallshåndtering for elektriske og elektroniske produkter (WEEE).

3) Montera ner dörren till kylen.

8) Montera kylens dörr.
