Product Type	Lawn mower
Brand	Mountfield
Model	SP53H
Cutting Width	53 cm (21 inches)
Engine Type	4-stroke petrol engine
Engine Power	Approx. 2.8 kW (3.8 HP)
Fuel Type	Unleaded petrol
Fuel Tank Capacity	Approx. 1.5 litres
Drive Type	Self-propelled (rear wheel drive)
Cutting Height Adjustment	Central lever, 6 positions (25-75 mm)
Grass Collector Capacity	70 litres
Mulching Function	Yes (requires mulching plug)
Weight	Approx. 38 kg
Dimensions (L x W x H)	Approx. 160 x 55 x 105 cm
Safety Features	Operator presence control (dead man's handle)
Maintenance	Check oil level before use; clean air filter regularly; sharpen blade annually
Cutting Deck Material	Steel
Wheel Size	Rear: 280 mm, Front: 200 mm
Start Type	Recoil (manual pull start)
Noise Level	Approx. 96 dB(A)

Frequently Asked Questions - SP53H MOUNTFIELD

What type of oil should I use for the Mountfield SP53H?

Use a high-quality SAE 30 or 10W-30 4-stroke engine oil. Check the oil level before each use.

How do I adjust the cutting height?

The cutting height is adjusted using a central lever located near the rear wheels. Move the lever to one of the 6 positions to set the desired height between 25 mm and 75 mm.

Why won't my lawn mower start?

Common causes: empty fuel tank, old fuel, faulty spark plug, or low oil level. Ensure the fuel is fresh, the spark plug is clean, and the oil is at the correct level.

How often should I sharpen the blade?

Sharpen the blade at least once per season or after every 25 hours of use. A dull blade tears grass instead of cutting it, leading to an uneven lawn.

Can I use the Mountfield SP53H for mulching?

Yes, the SP53H supports mulching if you install the mulching plug (optional accessory). This chops the grass finely and returns it to the lawn.

What is the grass collector capacity?

The grass collector has a capacity of 70 litres. Empty it regularly to maintain optimal performance.

How do I clean the lawn mower after use?

Use a brush or cloth to remove grass clippings from the underside of the deck. Do not use a pressure washer as it may damage engine components.

Is the Mountfield SP53H self-propelled?

Yes, it is a self-propelled model with rear-wheel drive. Engage the drive lever to move forward without pushing.

What type of fuel should I use?

Use unleaded petrol with a minimum octane rating of 95 (RON). Avoid using ethanol-blended fuels as they can damage the engine.

Where can I find spare parts for the Mountfield SP53H?

Spare parts are available from authorized Mountfield dealers or online retailers. Common parts include blades, air filters, spark plugs, and drive belts.

USER MANUAL SP53H MOUNTFIELD

Please Read These Instructions Before Using Your Mower

Mountfield

Operating Instructions

for model SP535 Lawnmower with Honda GCV135 engine

Product Code: 299536838/BQ

Call our Helpline if you have any problems:-

0845 600 2912

Open from 9:00am to 5:00pm Monday to Saturday 10.00am to 4.00pm on Sunday

• Safety precautions....12-15
• How to get mowing....16-18
• Fault Finding....19

GUARANTEE....20

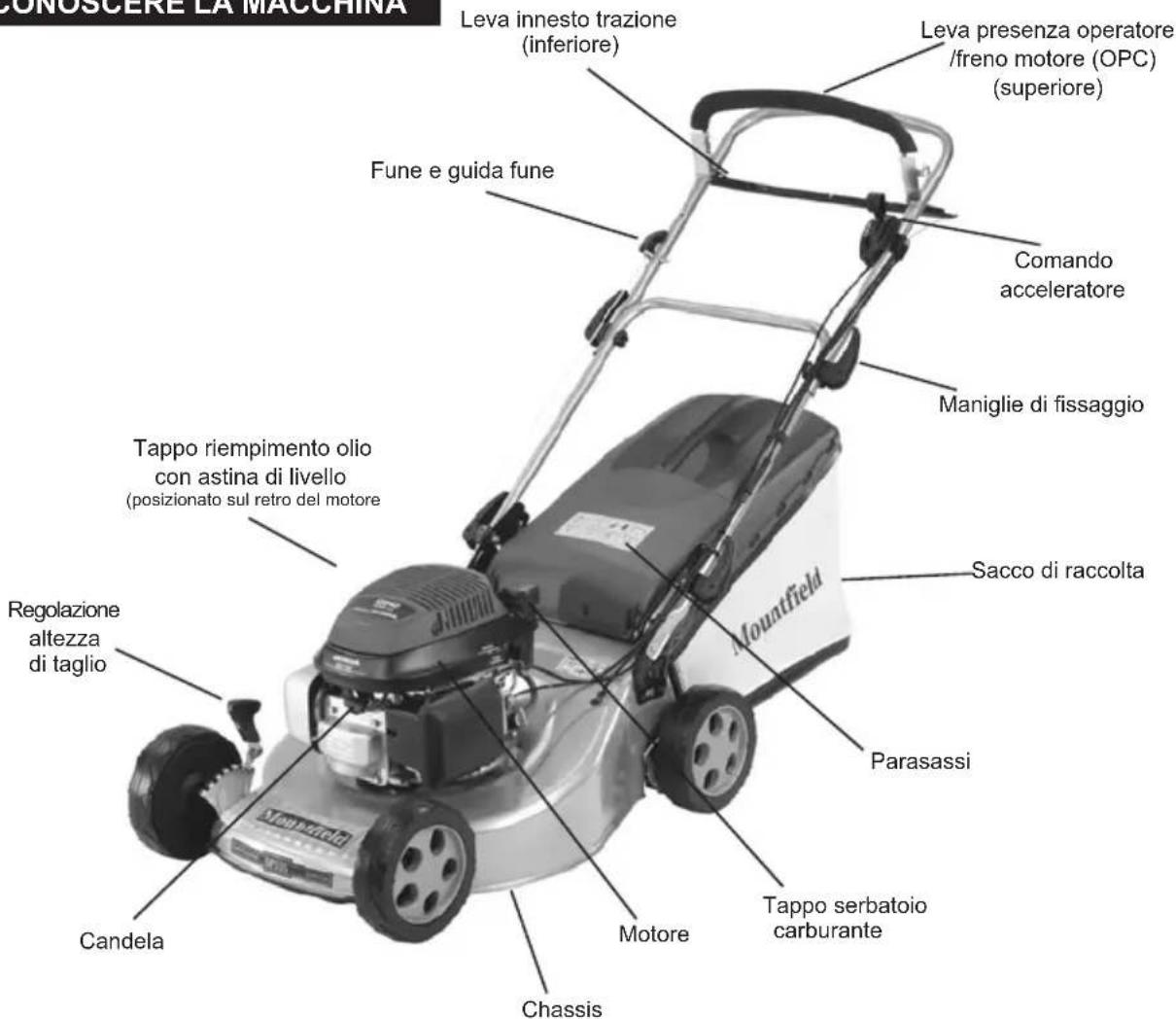

CONOSCERE LA MACCHINA

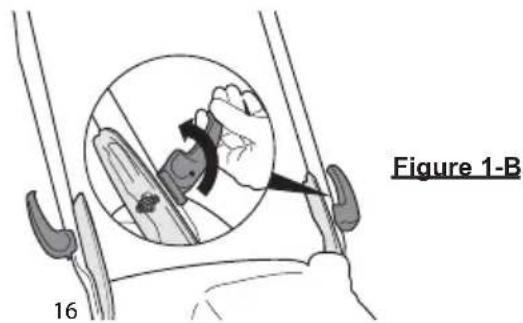

Figura 1-B

Figura 1-D

SACCO DI RACCOLTA

Figura 5

PRIMA DI OGNI UTILIZZO

Thank you for purchasing a Mountfield lawnmower. This machine will give you many years of safe and reliable service if operated in accordance with these instructions. Please read and understand these Operating Instructions before using your mower, failure to do so could result in personal injury or damage to the equipment.

NEVER TIP THE MOWER ON ITS SIDE AS THIS WILL FLOOD THE AIR FILTER WITH OIL.

To access the underside, lift the front wheels by lowering the handle until it rests on the ground.

SAFETY PRECAUTIONS

Your lawnmower should be used with due care and attention. Symbols have therefore been placed on various parts of the machine to remind you of the main precautions to be taken. Their meaning is explained below. You are also asked to carefully read the safety regulations in the applicable chapter of this handbook.

1. Warning: Read the instruction manual before using the machine.
2. Beware of thrown objects: Keep other people at a safe distance whilst working.
3. Warning: Disconnect the spark plug cap before carrying out any repairs or maintenance.
4. Beware of cutting: Moving blades. Do not put hands or feet near the blades.

DESCRIPTION OF SYMBOLS ON CONTROLS

1. Slow 6. Fast 7. Choke 8. Engine stop 9. Drive on

Maximum noise and vibration levels

Operator ear noise pressure level (according to regulation 81/1051/EEC)...... db(A) 82,7 - Measurement uncertainty (2006/42/EC - EN 27574)...... db(A) 0,3

Measured acoustic output level (according to directive 2000/14/EC, 2005/88/EC)...... db(A) 96,6 - Measurement uncertainty (2006/42/EC - EN 27574)...... db(A) 0,3

Guaranteed acoustic output level (according to directive 2000/14/EC, 2005/88/EC)...... db(A) 98

Vibration level (according to the standard EN 1033).... m/s ² 6,54 - Measurement uncertainty (2006/42/EC - EN 12096).... m/s ² 0,8

1. Acoustic power level according to directive 2000/14/EC.
2. Conformity mark according to directive 98/37/EEC (2006/42/EC from 29/12/2009).
3. Type of lawnmower..
4. Model of lawnmower.
5. Serial number.
6. Name and address of Manufacturer.
7. Article code.
8. Year of manufacture.

As soon as you have purchased the machine, do not forget to write the identification numbers (8-5-7) in the spaces on the last page of the manual.

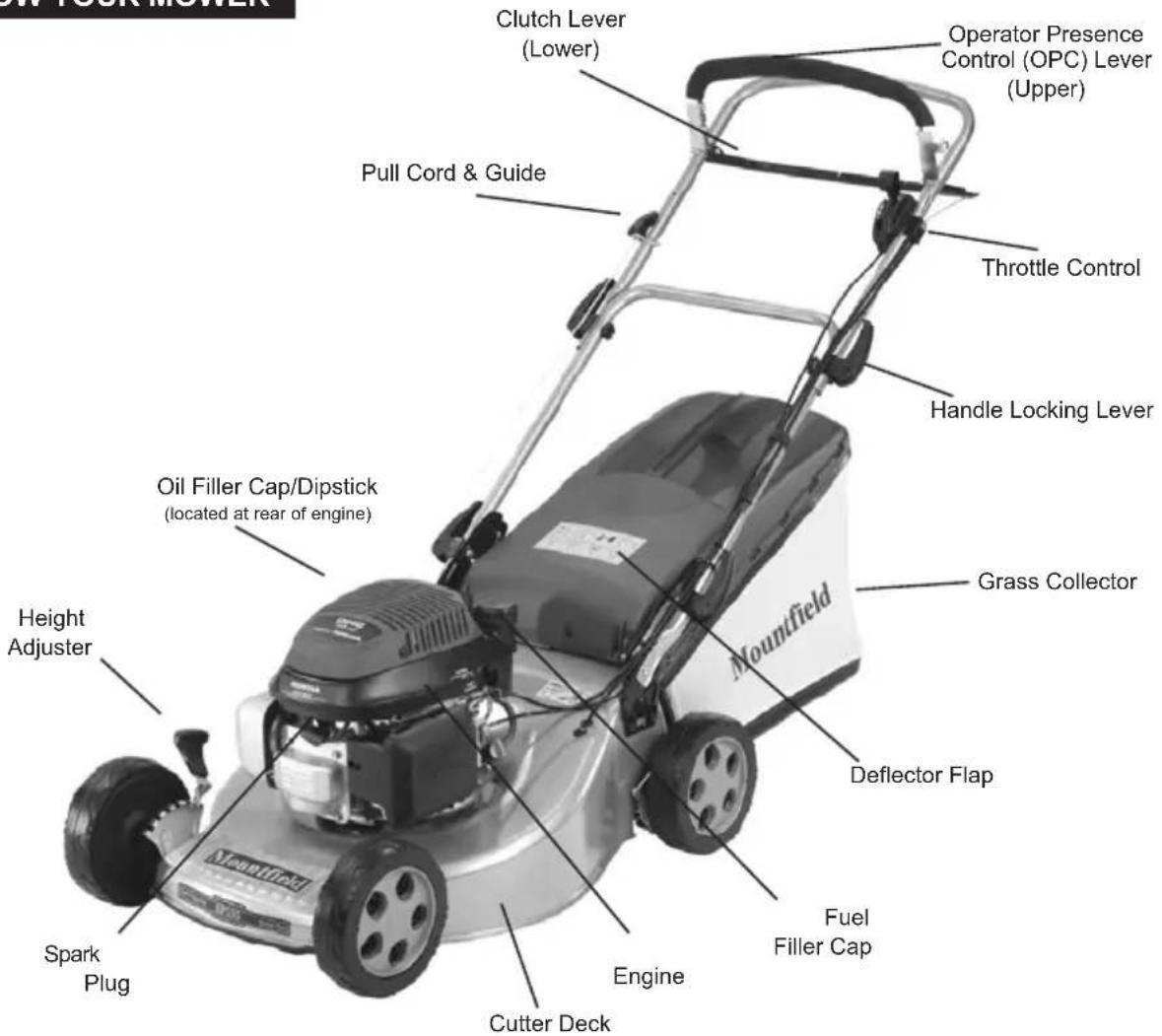

KNOW YOUR MOWER

The following safety precautions must be observed at all times. Please read them very carefully.

TRAINING

1) Read the instructions carefully. Get familiar with the controls and proper use of the equipment. Learn how to stop the engine quickly.
2) Only use the lawnmower for the purpose for which it was designed, i.e. for cutting and collecting grass. Any other use can be hazardous, causing damage to the machine. Examples of improper use may include, but are not limited to:

—transport of people, children or animals on the machine;
—being transported by the machine;
—using the machine to tow or push loads;
—using the machine for leaf or debris collection;
—using the machine to trim hedges, or for cutting vegetation other than grass;
-use of the machine by more than one person;
—using the blade on surfaces other than grass.

3) Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations may restrict the age of the operator.
4) Never use the lawnmower:

-When people, especially children, or pets are nearby.

-If the operator has taken medicine or substances that can affect his ability to react and concentrate.

5) Remember that the operator or user is responsible for accidents or hazards occurring to other people or their property.
6) Never put your hands, feet or any implement under the cutter deck or inside the rear discharge chute. The cutter blade will continue to rotate for some time after the engine is switched off.

PREPARATION

1) While mowing, always wear sturdy footwear and long trousers. Do not operate the equipment when bare foot or wearing open sandals. Avoid loose clothing that may snag on moving parts.
2) Thoroughly inspect the area where the equipment is to be used and remove all objects which may be thrown by the machine or damage the cutter assembly and the engine (stones,sticks, metal wire,bones, etc.).
3) WARNING: DANGER! Engine fuel is highly flammable:

-Store fuel in containers specifically designed for this purpose.

-Refuel using a funnel and outdoors only. Do not smoke while refuelling or whenever handling the fuel.

- Add fuel before starting the engine. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot.

- If fuel is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until the fuel has evaporated and the vapour has dispersed.

-Replace all fuel tanks and containers caps securely.

4) Substitute faulty silencers. Never use the machine without a silencer.
5) Before use, always inspect the machine, especially the condition of the blades, and check that the screws and cutting assembly are not worn or damaged.

Replace worn or damaged blades and screws in sets to preserve balance.

6) Before mowing, attach the discharge opening guards (grass-catcher or stone-guard).

OPERATION

1) Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.
2) Mow only in daylight or good artificial light.
3) If possible avoid operating the equipment on wet grass.
4) Always be sure of your footing on slopes.
5) Walk, never run and do not allow yourself to be pulled along by the lawnmower.
6) Mow across the face of slopes, never up and down.

7) Exercise extreme caution when changing direction on slopes.
8) Do not mow on slopes of more than 20 degrees.
9) Exercise extreme caution when pulling the lawn mower towards you.
10) Stop the blade if the lawnmower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the lawnmower to and from the area to be mown.
11) Never operate the lawnmower with defective guards, or without safety devices, such as the stone-guard and/or grass-catcher, in place.
12) Do not change the engine governor settings or over rev the engine.
13) On power-driven models, disengage the drive clutch before starting the engine.
14) Start the engine carefully, following the instructions and keeping feet well away from the blade.
15) Do not tilt the lawnmower when starting the engine. Start the engine on a flat surface that is free of obstacles and tall grass.
16) Do not put your hands or feet near or under rotating part. Keep clear of the discharge opening at all times.
17) Never pick up or carry a lawnmower while the engine is running.
18) Stop the engine and disconnect the spark plug wire:

—Before carrying out any work underneath the cutting deck or before unclogging the chute;

—Before checking, cleaning or working on the lawnmower;

—After striking a foreign object. Inspect the lawnmower for damage and make repairs before restarting and operating the lawnmower;

- If the lawnmower begins to abnormally vibrate (Immediately look for the cause of the vibrations and take for necessary controls at a Specialised Centre).

19) Stop the engine:

• Whenever you leave the lawnmower unattended. Remove the key from models with electric starters.
  —Before refuelling.
  —Every time you remove or replace the grass-catcher.
  —Before adjusting the grass cutting height.

20) Reduce the throttle before turning off the engine and turn the fuel off when you have finished mowing, following the in-structions in the engine handbook.

21) When mowing, always keep to a safe distance from the rotating blade. This distance is the length of the handle.

MAINTENANCE AND STORAGE

1) Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. Regular maintenance is essential for safety and performance.
2) Never store the equipment with fuel in the tank inside a building where vapour may reach a flame or a spark or a source of extreme heat.
3) Allow the engine to cool before storing in an enclosed space.
4) To reduce the fire hazard, keep the engine, exhaust silencer, battery compartment and fuel storage area free of grass, leaves, or excessive grease. Do not leave containers with grass cuttings in rooms.
5) Check the stone-guard and the grass-catcher frequently for wear and deterioration.
6) If the fuel tank has to be drained, this should be done outdoors and when the engine is cool.
7) Wear strong work gloves when removing and reassembling the blade.
8) Keep the blade balanced during sharpening. All operations on the blade (dismantling, sharpening, remounting balancing, and/or replacing) require a certain familiarity and special tools. For safety reasons, these jobs are best carried out at a specialized centre.
9) For safety reasons, never use the machine when it has worn or damaged parts. Parts are to be replaced and not repaired. Use genuine spare parts. Parts that are not of the same quality can damage the equipment and impair your safety.

TRANSPORTATION AND HANDLING

1) Whenever the machine is to be handled, raised, transported or tilted you must:

—wear strong working gloves;

—grasp the machine at the points that offer a safe grip, taking account of the weight and its distribution.

-use an appropriate number of people for the weight of the machine and the characteristics of the vehicle or the place where it has to be placed or collected.

2) During transport, fasten the machine securely with ropes or chains.

HOW TO GET MOWING

Your Mountfield lawnmower does not contain petrol or oil and these must be added before use. Running the mower with insufficient oil can cause serious damage to the engine and will invalidate your warranty.

NEVER TIP THE MOWER ONTO ITS SIDE AS THIS WILL FLOOD THE AIR FILTER WITH OIL. To access the underside of the machine lift the front wheels by lowering the handle to the ground.

Carefully remove the mower from the carton and read these Operating Instructions. An Owner's Manual for the engine is also included, please read this before starting the engine.

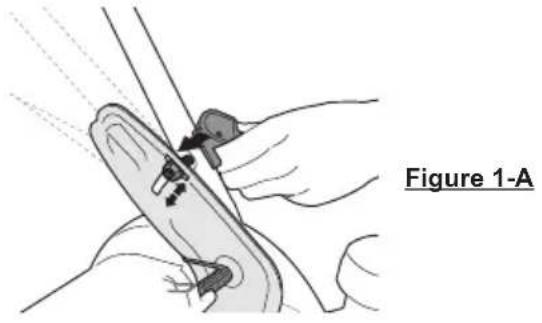

HANDLE ASSEMBLY

• Move the handle's lower part, already preassembled, to the working position, making sure the two nuts are correctly inserted in the openings on the two side chassis supports (Figure 1-A).
• Move the handle's grip to the desired height and block the lower clamps (Figure 1-B).
• Attach the upper part and tighten the handle's two parts with the upper clamps (5) (previously removed from their holes). The washers on the handles must be mounted so they keep the top part firmly fixed to the lower section of the handle, without too much effort required to tighten or release them. (Figure 1-C).
• Engage the Operator Presence Control (OPC) lever to release the engine brake. Pull the starter cord and fit it into the cord guide. Fit the cord guide to the upper handle using a 10mm spanner (Figure 1-D).
• Use cable ties to fit the OPC cable (and clutch cable if fitted) to the handle assembly.

GRASS COLLECTOR

• Turn the top upside down and fit the frame to it as shown using the screws and washers supplied.
• Fit the cloth base by fastening the plastic bars onto the frame, it may help to use a screwdriver as shown in the drawing to do this. Then click the edge into the groove in the top starting 5-7mm from an end (Figure2).
  • To fit the grass collector onto the mower, lift the rear safety deflector flap and hook the collector onto the pegs.

Figure 2

STARTING YOUR MOWER

Read and understand the Safety Precautions before using your mower.

• Put an SAE 10W-30 oil, in the oil filler (Figure 3). Do not overfill, the oil tank capacity is 0.55 litre.
• Fill the fuel tank with UNLEADED petrol. Use only clean, fresh petrol - stale fuel may contain deposits that will clog the carburettor. Do not overfill, the petrol level should be below the bottom of the fuel tank neck..
• Ensure that the spark plug lead is securely connected to the spark plug.

Figure 3

• Turn on the fuel tap which is located beside the air filter. (Close up in Figure 3).
- Move the throttle control to the "Choke" position (Figure 4).
- Pull and hold the Operators Presence Control (OPC) lever against the handle to disengage the engine brake. THE ENGINE WILL NOT START, OR CONTINUE TO RUN, UNLESS THE OPC LEVER IS HELD AGAINST THE HANDLE.
• Pull the starter cord with a strong smooth pull. Do not remove the pull cord from the guide.
- When the engine starts move the throttle control from "Choke" to the "Fast" position.
- To engage the drive to the rear wheels on Power Driven models, pull and hold the clutch lever against the handle. To stop the drive, release the clutch lever.

NOTE: Using the choke is usually unnecessary when starting a warm engine. However, in cool weather it may still be necessary to use the choke to start the engine.

STOPPING YOUR MOWER

- Release the Operators Presence Control (OPC) lever; this will engage the engine brake and operate the ignition safety cut out device.

Figure 5

ADJUSTING THE HEIGHT OF CUT

The height of cut adjustment not only determines the length of the cut grass, it also controls the airflow which carries clippings into the collector. If the discharge chute becomes blocked, increase the airflow by raising the height of cut. To prevent blockages when cutting long, thick grass, set the adjustment to the highest setting and cut the grass; then cut it again on a lower setting.

To adjust the height of cut:

• stop the engine and disconnect the spark plug.
• put the mower on a level surface.
• adjust the cutting height levers by pulling outwards and moving into the required position (Figure 5)
- check the cutter deck is level after adjusting the levers, i.e. that they are all set at the same height.

BEFORE EACH USE

• Always ensure that the mower is in a safe working condition. Inspect the cutter blade for damage; check safety devices and guards; check that all nuts, bolts and screws are secure.
• Check the oil level as follows:

a) Remove the Oil Filler/Dipstick and wipe the dipstick clean (Figure
6). Refit the dipstick without screwing it down.
b) Remove the dipstick again and check the oil level is at the Maximum mark.
c) If necessary top up using a SAE 10W-30 oil. Do not overfill; the oil level should not be above the Maximum mark or below the Minimum mark. The oil tank capacity is about 0.55 litre.
Fill the fuel tank with unleaded petrol. Do not overfill; the level should be below the bottom of the fuel tank neck.

MAINTENANCE

Figure 6

Stop the engine and disconnect the spark plug lead before working on the machine. DO NOT TIP THE MOWER ONTO ITS SIDE AS THIS WILL FLOOD THE AIR FILTER WITH OIL. To access the underside of the machine, lift the front wheels by lowering the handle until it rests on the ground.

CUTTER BLADE

Examine the cutter blade regularly for wear or damage.

• A slightly worn blade can be re-sharpened by your local dealer.
• If the blade is damaged it should be replaced. Replacement blade kits are available from your Mountfield

stockist. The part number for the blade kit is MS1198 If in doubt refer to your dealer, or telephone [phone]. Blades must always be marked

81004381/1.

CLUTCH CABLE ADJUSTMENT (Self Propelled model only)

• Make sure that the clutch lever is fully released.

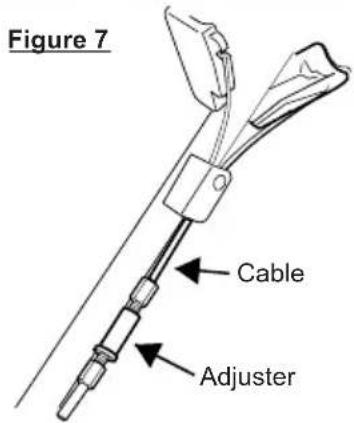

• Lengthen the cable adjuster by unscrewing it a couple of turns. (Figure 7)
- Engage the clutch lever and check that the rear wheels lock when the mower is pulled backwards.
- Start the mower and ensure it does not drive when the lever is disengaged.

ENGINE

An engine manufacturer's Owner's Manual is supplied with your mower. Please read this, it provides detailed information on engine operation and maintenance.

Repair work other than routine maintenance, should be carried out by an authorised dealer.

STORAGE

A little time spent on your mower after use will ensure many years of reliable mowing. To access the underside of the cutter deck, ensure the spark plug lead is disconnected, then lift the front wheels by lowering the handle until it rests on the ground. Do not tip the mower onto its side, as this will flood the air filter with oil.

AFTER EACH USE

• Remove any grass pulp from the underside of the cutter deck using a non-metallic instrument such as a piece of wood. Take care not to damage the paintwork.
• Examine the cutter blade for any damage. A damaged blade may upset the balance of your mower and cause excessive vibration, if in doubt refer to your dealer.
• Inspect the grass collector and clean it if necessary. If the mesh becomes clogged airflow will be reduced and impair grass collection.
• The handle can be folded down to reduce the amount of storage space required. Take care not to trap any of the operating cables when folding or unfolding the handle.
  • Store the mower in a clean, dry area well away from any naked flames, sparks or heat source.

LONG TERM - If you are not using your mower for more than 28 days.

• Give the machine a thorough clean, paying particular attention to the underside.
• Lubricate all moving parts.
- At the end of the season, empty the fuel tank either by running the mower out of fuel or tip the machine backwards and onto the back right wheel to drain the fuel into a suitable container. Drain the carburettor by loosening the drain screw, retighten the drain screw.

FAULT FINDING

PROBLEM	SOLUTION
Engine will not start	Check there is ample clean, fresh fuel in the tank.
	Check the cutter blade is not fouling the ground preventing free rotation.
	Electric key start models - recharge the battery overnight.
Engine will not stop	Check the Operators Presence Control (OPC) lever is fully released.
	Remove spark plug lead to stop engine using insulated gloves and refer to dealer.
Failure to cut grass properly	Stop the engine and disconnect the spark plug lead using heat resistant gloves.
	Check blade attachment bolt is tight.
	Check condition of blade. If seriously worn or damaged replace with a new one.
Failure to collect grass properly	Stop the engine and disconnect the spark plug lead using heat resistant gloves.
	Check and make sure there is no build up of grass inside the casing.
	Check grass collector is allowing air to flow through the fabric: if it is clogged it should be washed carefully.
	If the grass collector is not clogged raise the height of cut to increase airflow.
	Check to ensure the engine is running at the correct speed (approximately 3,000rpm).
	If conditions are too severe to use the grass collector, remove it and work with the defector in position.
Machine vibrates excessively	This will certainly indicate that the blade has become badly damaged. Stop the engine, disconnect the spark plug lead and examine the blade assembly. Refer to your local dealer.

CERTIFICATE OF CONFORMITY

A certificate of conformity is enclosed with the documentation as separate document. An EXAMPLE is shown below.

DEC. APATION DE COMPORMITE • EC DECLARATION OF COMPORMITY • EQ-KITFORRITATSERKLARUNO • DICHIARAZIONE DI CONFORMITA CEE • EES VERKLARING VON OVEREENSTEIMNK • DEL LARACION "CE" DE CONFORMIDAD • DECLARAÇÃO DE DE CONFORMIDADE • ΔΗΟΣ έΥΜΙΝΟΡΑΩΗΣΕ BE • AET UTIGUNLUX BEYANNAMESI • ΔΕΚΑΡΑΙΛΙΑ ZA YOOTRAIC ENOCT GO BY • E U-DAKOVARDEERKLARUNO • EQ-CORRALANSO FOR OBTENENDOAMSELUS • EEO • UVERENEDOEMELDODERKLARUNO • EQ-TEURNEARUASOU DO UROTO DO • EQ TRUPLADEN U OTUCE • EUE - DIAVILA JAO-DOGAROSZ YTMVOSALIPE • EEG 8260479017050000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000	GDP. BALY 23833 Cast.	SPA. Via del Lambro, S Branco V to (TV)/TALY
La soare • The company • Di Malta • La soceita • Net brand • La soceita • A socialista • H model • [green • Komayyata • Firmar • Fentage • Firmar • Tinto • Epilechott • Spoka • Alaniati Vitorai • Prapaprine • Tyru • Ordo • Pradapine • Spokohoe • I doo • I do o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o u o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o a unico de piso com motor • EMD. e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e cunso de piso com motor • EMD. e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e e cunso de piso com motor • Escola de sercicola motor • Hyor or rossolagamom motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redra motor • redr. de sercicola motor • Escola de sercicola motor • Hyor or rossolagamom motor • Redra motor • Hyor or rossolagamom motor • Redra motor • Hyor or rossolagamom motor • Redra motor • Hyor or rossolagamom motor • Redra motor • Hyor or rossolagamom motor • Redra motor • Hyor or rossolagamom motor • Redra motor • Hyor or rossolagamom motor • Redra motor • Hyor or rossolagamiom motor • Redra motor • Hyor or rossolagamiom motor • Redra motor • Hyor or rossolagamiom motor • Redra motor • Hyor or rossolagamiom motor • Redra motor • Hyor or rossolagamiom motor • Redra motor • Hyor or rossolagamiom motor • Redra motor • Hyor or rossolagamiom motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redr. de sercicola motor • Hyor or rossolagamom motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Redra motor • Hyor anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumone motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realz anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderuman motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realize anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumono motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realaze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumnon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realzee anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumons motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Real ze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderum on motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Reale anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumnion motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • RealZE anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumonal motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realzena anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumonic motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realizandar anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumoni motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realza anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumlon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realzeit anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumondial molar • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realzeanderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumonmotor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anerumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon motor • Realze anderumon/ulmole / 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%.

GuaranteeGuarantee

GGP UK Limited undertakes to provide a full guarantee against defective materials or workmanship for two years from the date of purchase.

If the machine is used for commercial purposes; i.e. for hire; or by contractors, caravan sites or similar users, this guarantee period shall be 90 days.

If any part or parts are found to be defective within the guarantee period, GGP UK Limited, via their authorised dealer, will effect the repair or replacement at no charge to the owner providing that the fault is reported direct to the dealer. All repairs must be carried out by an authorised Mountfield dealer. Delivery and collection of the machine is the owner's responsibility and not covered under the terms of this guarantee.

This guarantee is not transferable. Proof of purchase will be required in the event of a claim.

This guarantee does not apply to the routine replacement of parts that are subject to normal wear and tear – or to normal service and maintenance parts. This guarantee does not cover faults caused by neglect or misuse.

The engine manufacturer guarantees the engine fitted to this machine.

This guarantee is in addition to, and does not detract from, the contractual rights of the owner under statute or common law.

On delivery of your new Mountfield mower, we suggest that you complete the box to the right.

The information for your machine is on the serial number label, which is fixed on the cutter deck at the base of the handles. You will be asked for these details if you have any problems or require spare parts.

Please keep your receipt, proof of purchase will be required in the event of a claim.

Model:....

Type:....

(Year)....S/N°....

CE

Service Record

1st Service

Date of Service:

Next Service Due:

Dealer's Signature:

Dealer's Stamp:

2nd Service

Date of Service:

Next Service Due:

Dealer's Signature:

Dealer's Stamp:

GGP UK LIMITED

Unit 8, Bluewater Estate, Bell Close, Plympton, Plymouth, Devon, PL7 4JH, England.

manufactured by GGP ITALY SpA Via del Lavoro, 6 I-31033 Castelfranco Veneto (TV) Italy
