Product Type	Interactive Whiteboard
Brand	SMART Technologies
Model	Board 4075
Display Size	75 inches (diagonal)
Resolution	4K UHD (3840 x 2160)
Touch Technology	Infrared (IR) touch
Connectivity	HDMI, USB, VGA, Audio, Ethernet, RS-232
Power Consumption	250 W (typical)
Input Voltage	100-240 V AC, 50/60 Hz
Dimensions (W x H x D)	65.2 x 43.8 x 3.9 in (165.7 x 111.2 x 9.9 cm)
Weight	110 lb (50 kg)
Operating Temperature	5°C to 35°C (41°F to 95°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Operating Humidity	20% to 80% non-condensing
Main Functions	Interactive touch, annotation, screen sharing, whiteboarding
Cleaning	Soft dry cloth; mild detergent; avoid abrasives and liquids
Safety	Use grounded outlet; keep ventilation clear; avoid liquids
Spare Parts Available	Pen, power cable, mounting kit
Repairability	Authorized service centers; user replaceable pens and cables
Regulatory Compliance	FCC, CE, RoHS
Warranty	3 years (standard)

Frequently Asked Questions - Board 4075 SMART Technologies

How do I calibrate the touch on the SMART Board 4075?

To calibrate, press the Calibrate button on the onboard menu or use the remote. Follow the on-screen crosshair prompts. For precise alignment, touch each crosshair accurately.

How can I connect a laptop to the Board 4075?

Connect your laptop using an HDMI or VGA cable. For touch interactivity, also connect a USB cable from the board to your laptop. Select the correct input source via the remote or side buttons.

What is the best way to clean the screen?

Use a soft, lint-free cloth slightly dampened with water or a mild screen cleaner. Avoid abrasive pads, paper towels, or harsh chemicals. Spray cleaner onto the cloth, not directly on the screen.

What is the input lag and response time?

The input lag is typically very low, around 10-20 ms for touch and display. The touch response time is instant, supporting up to 10 simultaneous touch points.

Does the Board 4075 support 4K resolution?

Yes, the Board 4075 supports 4K UHD (3840 x 2160) resolution at 60 Hz via HDMI. This provides sharp, detailed images for presentations and collaboration.

How do I mount the Board 4075 on a wall?

Use the included wall mount kit. Ensure the wall can support the weight (110 lb). Follow the mounting instructions: attach bracket to wall, then secure the board. For safety, use M8 bolts (not included) if needed.

How to update the firmware?

Download the latest firmware from the SMART Technologies support website. Save it to a USB drive, insert into the board’s USB port, navigate to Settings > About > Update, and follow prompts. Do not power off during update.

What operating system does the Board 4075 run?

The Board 4075 runs Android 8.0 (or later) embedded, allowing use of apps like SMART Notebook and Microsoft Office without a computer. It also supports Windows and macOS via connected PC.

Why is there no signal on my Board 4075?

Check that the correct input source is selected. Ensure cables are securely connected. Verify the connected device is powered on and outputting video. Try a different cable or port. If using a laptop, check its display settings (e.g., extend/duplicate).

How to use the pen and touch features?

The board supports finger touch and pen input. Use the pen for precise writing. The pens are passive (no battery). To enable touch, ensure touch driver is installed (if using a PC). For annotation, use SMART Ink or SMART Notebook software.

USER MANUAL Board 4075 SMART Technologies

Line drawing of two open-framed rectangular panels with no text or symbols

SMART Board® 4000 series interactive flat panels

USER'S GUIDE

FOR MODELS SPNL-4055, SPNL-4065, SPNL-4075 AND SPNL-4084

Product registration

If you register your SMART product, we'll notify you of new features and software upgra

Register online at smarttech.com/registration.

Keep the following information available in case you need to contact SMART Support.

Serial number:

Date of purchase:

Licenses

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

FCC warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Trademark notice

SMART Board, SMART Notebook, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of SMART Technologies ULC in the U.S. and/or other countries. Windows is either a registered trademark or a trademark of Microsoft Corporation in the U.S. and/or other countries. All other third-party product and company names may be trademarks of their respective owners.

Copyright notice

© 2013–2016 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.

This product and/or use thereof is covered by one or more of the following U.S. patents:

www.smarttech.com/patents

09-2016

Important information

WARNING

• Failure to follow the installation instructions shipped with the interactive flat panel could result in injury and product damage which may not be covered by the warranty.
• Do not open or disassemble the interactive flat panel. You risk electrical shock from the high voltage inside the casing. Opening the casing also voids the warranty.
• Do not stand (or allow children to stand) on a chair to touch the surface of the interactive flat panel. Rather, mount the product at the appropriate height.
• To reduce the risk of fire or electric shock, do not expose the interactive flat panel to rain or moisture.
• If the interactive flat panel requires replacement parts, make sure the service technician uses replacement parts specified by SMART Technologies or parts with the same characteristics as the original.
• Ensure that any cables that cross the floor to the interactive flat panel are properly bundled and marked to avoid a trip hazard.
• Use only extension cords and outlets that can fully accommodate the interactive flat panel's polarized plug.
• Use the power cable provided with the interactive flat panel. If a power cable is supplied with the interactive flat panel, please contact your supplier. Use only power that match the AC voltage of the power outlet and that comply with your country's standards.
• If the glass is broken, do not touch the liquid crystal. To prevent injury, handle glass fragments with care when disposing of them.
• Use only VESA®-approved mounting hardware.
• Do not insert objects inside the cabinet ventilation holes, because they could touch dangerous voltage points and cause electric shock, fire or product damage which may be covered by the warranty.
• Do not place any heavy objects on the power cable. Damage to the cable could be shock, fire or product damage which may not be covered by the warranty.

- Disconnect all the interactive flat panel's power cables from the wall outlet and seek assistance from qualified service personnel if any of the following occurs:

• The power cable or plug is damaged
• Liquid is spilled into the interactive flat panel
• Objects fall into the interactive flat panel
• The interactive flat panel is dropped
• Structural damage, such as cracking, occurs

The interactive flat panel behaves unexpectedly when you follow operating instructions

Contents

Important information...i....

Chapter 1: About your interactive flat...panel...1.....

SMART Board 4055 interactive flat panel feature highlights 1

SMART Board 4065 interactive flat panel feature highlights...2....

SMART Board 4075 interactive flat panel feature highlights 3

SMART Board 4084 interactive flat panel feature highlights...3.....

Included accessories 4

Other documentation and resources...5.

Chapter 2: Mounting your interactive flat...panel...7.....

Before mounting the interactive flat..panel..7.

Choosing a mounting location.... 9

Choosing a mounting height 9

Chapter 3: Connecting power and devices 11

Connecting your interactive flat panel.... 11

Cable management 13

Configuring touch and display settings for your interactive...flat...panel.....

Configuring your computer's screen resolution 14

Setting up multiple displays.... 16

Chapter 4: Using your interactive flat..panel....19

Using the control panel 20

Using the remote control.... 21

On-screen display menu for SPNL-4055, SPNL-4065 and select SPNL-4084... 2

On-screen display menu for SPNL-4075 and select SPNL-4084 26

Multi Media mode 28

Cleaning the interactive flat panel 29

Cleaning the touch sensors 30

Chapter 5: Troubleshooting your interactive flat panel 31

Locating the serial number.... 31

Resolving common touch control and resolution issues with Windows and Mac operating

systems 32

Resolving image issues 35

Appendix A: Calibrating your interactive flat..panel.... 37

Calibrating your interactive flat panel with Windows 7, 8 and 10

Calibrating your interactive flat panel with Mac operating system...software...

CONTENTS

Appendix B: Hardware environmental compliance 39

Waste Electrical and Electronic Equipment and Battery regulations (WEEE and

Battery Directives) .39

Batteries 39

More information...39....

Index .41

Chapter 1

SMART Board 4055 interactive flat panel feature highlights...1

SMART Board 4065 interactive flat panel feature highlights 2

SMART Board 4075 interactive flat panel feature highlights...3....

SMART Board 4084 interactive flat panel feature highlights 3

Included accessories 4

Pen and pen tray 4

Remote control.... 4

Included cables 4

Other documentation and resources 5

Specifications 5

Installation instructions.... 5

Training 5

Knowledge base 5

This chapter describes the features of your SMART Board ^® 4000 series interactive flat pane provides information about product parts and accessories.

SMART Board 4055 interactive flat panel feature highlights

Designed for classrooms, the SMART Board® 4055

interactive flat panel combines a premium touch

experience with the power of SMART Notebook®

collaborative learning software on a 55" (139.7 cm)

The high-definition LED display features low friction coated glass that enables fingers to get smoothly over the surface, creating a natural touch experience. The interactive flat panel eliminates glare and provides an optimal view from any angle in the classroom. It delivers unparalleled viewing and writing experience and offers the best value for classrooms. With simultaneous touch points for Windows, multiple students can use gestures, like zoom, rotate flip, at the same time.

SMART Board 4065 interactive flat panel feature highlights

Designed specifically for classrooms, the SMART Board 4065 interactive flat panel combines a premium touch experience with the power of SMART Notebook collaborative learning software on a 65" (164.5 cm) display.

The high-definition LED display features low-friction coated glass that lets fingers glide smoothly over the surface, creating a natural touch experience. The SMART Board 4065 interactive flat panel virtually eliminates glare and provides an optimal view from an angle in the classroom. It delivers an unparalleled viewing and writing experience, and offers the best

value for classrooms. With eight simultaneous touch points for Windows, multiple students gestures, like zoom, rotate and flip, at the same time.

SMART Board 4075 interactive flat panel featur highlights

Designed specifically for classrooms, the SMART Board 4075 interactive flat panel combines a premium touch experience with the power of SMART Notebook collaborative learning software on a 75" (190.5 cm) LED display.

The interactive flat panel's 4K ultra-high-definition display provides optimal image clarity and features low-friction coated glass that lets fingers glide smoothly over the surface, creating a natural touch experience. The SMART Board 4075 interactive flat panel virtually eliminates glare and provides an optimal view from any angle in the classroom. It delivers an unparalleled viewing and writing experience, and offers the best value for classrooms. With 10 similar touch points for Windows operating systems and one touch point for Mac computers, mul students can use gestures, such as zoom, rotate and flip, at the same time.

SMART Board 4084 interactive flat panel feature highlights

Designed specifically for classrooms, the SMART Board 4084 interactive flat panel combines a premium touch experience with the power of SMART Notebook collaborative learning software on a 84" (213.4 cm) display.

The 4K ultra-high-definition resolution display provides optimal image clarity and features low-friction coated glass that lets fingers glide smoothly over the surface, creating a natural touch experience. The SMART Board 4084 interactive flat panel virtually eliminates glare and provides an optimal view from any angle in the classroom. It delivers an unparalleled viewing and

writing experience, and offers the best value for classrooms. With 10 simultaneous touch Windows operating systems and one touch point for Mac computers, multiple students can gestures, such as zoom, rotate and flip, at the same time.

CHAPTER 1

ABOUT YOUR INTERACTIVE FLAT PANEL

Included accessories

The following accessories are included with your interactive flat panel.

Pen and pen tray

Two pens are included with your interactive flat panel.

Technical line drawings of two cylindrical components and a rectangular tray (no text or symbols)

Remote control

The remote control enables you to access the on-screen menus and to change the disp input settings.

Included cables

VGA - RGB video input

Power cable for your region: AU/NZ, NA, UK or EU

USB cable - touch interface

CHAPTER 1

ABOUT YOUR INTERACTIVE FLAT PANEL

Other documentation and resources

In addition to this guide, SMART provides a variety of resources for people who install interactive flat panels.

Specifications

Your interactive flat panel's specifications list the product's dimensions, weight, recommended operating and storage temperatures, power requirements and consumption and other importa information for installation and maintenance.

Model Specifications

SPNL-4055	smarttech.com/kb/170809
SPNL-4065	smarttech.com/kb/170802
SPNL-4075	smarttech.com/kb/171098
SPNL-4084	smarttech.com/kb/170998

Installation instructions

The interactive flat panel comes with installation instructions. These installation instructions e how to unpack, assemble and mount the interactive flat panel and how to connect it to and other devices. If you misplaced these installation instructions, you can download a P from smarttech.com/kb/170799.

Training

The SMART training website (smarttech.com/training) includes an extensive library of training

resources you can refer to when first learning to set up or use the interactive flat par

Knowledge base

The Support center (smarttech.com/support) includes a knowledge base that you can refer to while maintaining or troubleshooting your interactive flat panel.

Chapter 2

anel

Before mounting the interactive flat..panel..7....

Choosing a mounting location 9

Choosing a mounting height 9.

To mount your interactive flat panel on a wall, you require a team of professional insta

This chapter is intended for installers. Installers should read this chapter along with the instructions included with the interactive flat panel before they mount the interactive flat p

WARNING

Improper mounting of the interactive flat panel can result in personal injury and product

Before mounting the interactive flat panel

Perform these tasks before mounting your interactive flat panel:

• Review the environmental requirements in the interactive flat panel's specifications (see Specifications on page 5).
• Save all product packaging so that it's available if you need to transport the interactive flat panel. If the original packaging isn't available, you can purchase new product packagir your authorized SMART reseller (smarttech.com/where).
• Refer to local building codes to ensure the wall can support the weight of the interactive flat panel and mounting equipment.

Model	Weight
SPNL-4055	116	lb	13	oz (53 kg)
SPNL-4065	153		lb (69.4 kg)
SPNL-4075	189		lb (86 kg)
SPNL-4084	238		lb (108 kg)

- Use a standard VESA mounting plate (not included) to mount the interactive flat panel on a wall.

Model	Mounting	plate
SPNL-4055	600	mm × 400 mm
SPNL-4065	600	mm × 400 mm
SPNL-4075	1000	mm × 600 mm
SPNL-4084	600	mm × 600 mm

- Use M8 screws to fasten the wall bracket.

CAUTION

Do not over-tighten the screws.

Model	Screw	length	Fasten torque
SPNL-4055	25	mm and	where the total wall mount bracket 97.36–177.01 is less than 7 N·m)	in-lb.	(11–20
SPNL-4065	30	mm and	where the total wall mount bracket 97.36–177.01 is less than 7 N·m)	in-lb.	(11–20
SPNL-4075	See	the SMART Board 4000 series installation guide for more information.		97.36–177.01 N·m)	in-lb.	(11–20
SPNL-4084		See the SMART Board 4000 series installation guide for more information.		97.36–177.01 N·m)	in-lb.	(11–20

- Because the receptacles might not be easily accessible after the installers mount the interactive flat panel, consider connecting cables for power, computers and other devices while the interactive flat panel is still in its packaging (see Chapter 3: Connecting pc devices on page 11).

Choosing a mounting location

Consider the following when you select a location for the interactive flat panel:

• Choose a location for the interactive flat panel that's far from bright light sources, such as windows and strong overhead lighting. IR lighting can cause issues with the performar the cameras and can lead to unintentional or missed touches.
• The wall must be strong enough to support the interactive flat panel and the mounti equipment. See the table below for the weights of the various 4000 series interactive panel models:

Model Weight

SMART Board 4055 116 lb (53 kg)

SMART Board 4065 153 lb (69.4)

SMART board 4075 189 lb (86 kg)

SMART Board 4084 238 lb (108 kg)

- Select a wall with a flat, regular surface and sufficient clearance to accommodate you interactive flat panel. Mount the interactive flat panel in a location that's central to y audience's viewing direction.

For mobile or adjustable installation options, contact your authorized SMART reseller (smarttech.com/where).

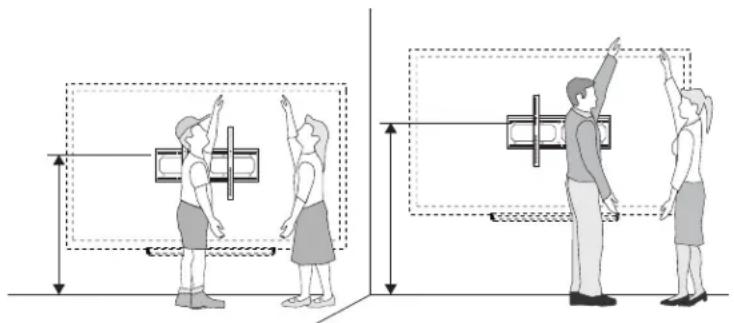

Choosing a mounting height

Consider the general height of the user community when you choose the height for the flat panel.

The flat panel height is based on the midpoint between the reach of the students and

Chapter 3

Connecting your interactive flat panel...11.

Cable management 13

Configuring touch and display settings for your interactive..flat..panel..13....

Graphics card configuration 14

Panel settings...14....

Configuring your computer's screen resolution 14

Recommended computer screen resolution 14

Windows 7, 8 and 10 operating systems .... 15

OS X operating system software 15

Setting up multiple displays 16

Windows 7, 8 or 10 operating systems ....16

OS X operating system software 17

This chapter describes how to connect the interactive flat panel to power, computers and other devices.

Connecting your interactive flat panel

The connector panel is at the bottom of the interactive flat panel.

NOTE

The power, PC-RGB (VGA) and USB cable are included with your interactive flat panel.

CHAPTER 3

CONNECTING POWER AND DEVICES

No. Connector Details

1 AC power AC power pass-through

2 USB B receptacle Computer to interactive flat panel touch interface

3 Video in Component video receptacle

4 Service port WARNINGDo not use this connector. This service connector for the interactive flat panel must be used only by a qualified technician.

5 Audio out Audio receptacle (SPNL-4075 and SPNL-4084)

6 USB A Media port (see Multi Media mode on page 28)

7 Video in Composite video receptacle

No. Connector Details

8 Video in PC-RGB (VGA)

IMPORTANT

If the display flickers or is not sized correctly, press the Auto button to resolve the issue. Ensure that you use the recommended resolution for best performance.

9 Audio in Stereo 3.5 mm connector (from computer)

10 Video in HDMI®

Cable management

When you connect cables to the interactive flat panel from a computer and other periph devices, ensure that the cables aren't a trip hazard. Use channels and raceways to safel and hide cables. Contact your authorized SMART reseller for these accessories.

IMPORTANT

Do not connect the power cable to a power outlet until you have connected all cable interactive flat panel.

Configuring touch and display settings for your interactive flat panel

• If you're using multiple displays or a laptop connected to the interactive flat panel, ensure that they are set up correctly.
• Check the graphics card configuration (see Graphics card configuration on the next page).
• Check the panel settings (see Panel settings on the next page).
• Calibrate or clear previously set calibration data.

CHAPTER 3

CONNECTING POWER AND DEVICES

Graphics card configuration

If you're using an unsupported graphics card configuration, you may experience display pro or issues with touch accuracy. For example, you may experience issues if your graphics scaling option is set to something other than full-screen.

IMPORTANT

If you're using an ATI video card, go to the ATI Catalyst Control panel's Flat Panel menu, select Pixel Format and change it to RGB 4:4:4 timing.

Panel settings

Ensure that you set Screen Mode to 16:9 or Full, and that you select the correct input

To select input

Press Input on the interactive flat panel's side panel or remote control, and then us arrows to select the correct input source.

To set Screen Mode

1. Press Menu on the remote control or on the side panel.
   The on-screen display menu appears.
2. Press the up and down buttons and select Setup.
3. Press the right button on the remote control or VOL- to select Screen Mode.
4. Select 16:9 if not already selected.

Configuring your computer's screen resolution

When you connect a computer to the interactive flat panel, you may have to adjust the screen resolution to achieve the best image quality and touch performance.

Recommended computer screen resolution

NOTE

SMART recommends using 3840 × 2160, 1920 × 1080 or 1280 × 720 screen resolutions image quality and touch performance.

The interactive flat panel can use the following screen resolutions:

CHAPTER 3

CONNECTING POWER AND DEVICES

3840 × 2160 (for SPNL-4075 and SPNL-4084 when using HDMI and a computer that supports 4K UHD)	1280 × 960
	1280 × 768
	1280 × 720
1920 × 1080	1024 × 768
1600 × 1200	800 × 600
1280 × 1024	640 × 480
1360 × 768

Windows 7, 8 and 10 operating systems

To configure your computer's screen resolution

NOTE

This procedure varies depending on your version of the Windows operating system and system preferences.

1. Right-click the desktop and then select Screen Resolution.
2. From the Display drop-down menu, select your interactive flat panel.
3. From the Resolution drop-down menu, select a screen resolution. See Recommended computer screen resolution on the previous page for more information.
4. Click OK.

Your computer applies the new screen resolution

OS X operating system software

To configure your Mac computer's screen resolution

1. Select the Apple (✗) menu > System Preferences.

The System Preferences dialog box appears.

1. Click Displays.

2. Select a screen resolution from the list. Refer to Recommended computer screen resc on the previous page for more information.

Your computer applies the new screen resolution.

Setting up multiple displays

When you use your interactive flat panel with multiple displays (your computer has an monitor or a built-in display), you must ensure that your display settings are configured for your operating system.

Windows 7, 8 or 10 operating systems

To set up the interactive flat panel as your touch screen

NOTES

• Ensure that the display resolution has been set to recommended settings before calibration.

• Calibration may not be required. See Appendix A: Calibrating your interactive flat panel on page 37 for more information.

• Click Start > Control Panel > Tablet PC Settings.

The Tablet PC Settings dialog box appears.

1. In the Display tab, select your interactive flat panel from the display drop-down menu.

2. Click Setup.

The Identify pen or touch input screens dialog box appears.

1. Click Touch input.

A message appears on the interactive flat panel: "Touch this screen to identify it as touchscreen."

1. If necessary, press ENTER until the message appears on your touch screen.

2. Tap your touchscreen two or three times until the text changes.

3. Press ENTER to skip any remaining screens until the window closes.

NOTE

Do not touch any further touch screens as the correct association between the sele display and touch screen will be lost.

1. Click OK.

IMPORTANT

If you have difficulty with the above procedure, set up your interactive flat panel as primary monitor (or main display) and try again. You can switch your main display I original setting after you have successfully identified the interactive flat panel as the screen.

OS X operating system software

When you use your interactive flat panel in a multiple display environment (that is, your has an additional monitor or a built-in display), you must ensure that the display settings configured properly for the operating system.

To extend the desktop

1. Make sure the additional display is properly connected and turned on.
2. From the Apple menu, choose System Preferences.
3. From the View menu, choose Displays.
4. Click the Arrangement tab.
5. Clear the Mirror Displays check box.

To mirror the desktop

1. Make sure the additional display is properly connected and turned on.
2. From the Apple menu, choose System Preferences.
3. From the View menu, choose Displays.
4. Click the Arrangement tab.
5. Select Mirror Displays.

Chapter 4

Using the control panel..20....

Using the remote control 21

On-screen display menu for SPNL-4055, SPNL-4065 and select ..SPNL-4084...23... Picture settings 23

Sound 23

Setup settings 24

Time settings.... 24

On-screen display menu for SPNL-4075 and select SPNL-4084

Picture settings.... 26

Sound settings 27

Setup settings.... 27

Multi Media mode 28

Compatible file formats 28

Video 28

Audio 28

Images 28

Cleaning the interactive flat panel 29

Preventing condensation 29

Cleaning the touch sensors.... 30

This chapter describes the basic operation and setup of your interactive flat panel.

Using the control panel

Use the control panel on the right side of your interactive flat panel to access the on menu and adjust settings.

Button Details

Power	Turn the interactive flat panel on or turn off
UP	Move the highlighted area up to select items in the on-screen display menu
DOWN	Move the highlighted area down to select items in the on-screen display menu
VOL +	Move the highlighted area left to select items in the on-screen display menu, increase the audio output level or increase a valu
VOL -	Move the highlighted area right to select items in the on-screen display menu, decrease the audio output level or decrease a value
MENU	Display the on-screen display menu
INPUT	Select a video input for the interactive flat panel

CHAPTER 4

USING YOUR INTERACTIVE FLAT PANEL

Using the remote control

Use the remote control to access on-screen menus and to change the interactive flat pa settings.

No. Button Details

1 PC Selects the VGA input
2 HDMI Select the HDMI input
3 [Number buttons]	Press buttons on the number pad to change channels
4 VOL +/-	Increase or decrease the audio output level
5 [Up and down buttons]	Select a menu option in the on-screen display menu

No. Button Details

6	MENU Display the on-screen display menu
7	[Left and right buttons]	Select an option in the on-screen display menuUse the right button to increase a valueUse the left button to decrease a value
8	INFO Display the current video source
9	STILL Turn still picture mode on or off
10	AUTO	Automatically adjusts the VGA video inputIMPORTANTThis automatically adjusts the image to match the settings the display adapter is sending. In most cases, this will solve touch issues. You can adjust the display settings of the interactive flat panel if needed.
11	[Media buttons]	For use in Multi Media mode
12	S.MODE	Switch between stereo and mono sound
13	P.MODE	Switch between color modes
14	EXIT	Close the on-screen display menu
15	INPUT	Switch video inputs
16	MUTE	Mute the sound
17	CH +/-	Change channels
18	P.SIZE Select the video aspect ratio
19	SLEEP	Set the sleep timer
20	VIDEO	Select the RCA input
21	Power	Turns the interactive flat panel on or off
22	Multi Media button	Display the Multi Media mode

On-screen display menu for SPNL-4055, SPNL-4065 and select SPNL-4084

NOTE

SMART Board 4084 interactive flat panels can have one of two versions of on-screen c (OSD) menu.. This section applies to SMART Board 4084 panels with a serial number in of M101IW02E3001 to M101IW12E3126.

You can access the on-screen display (OSD) menu by pressing MENU on the side panel of your

interactive flat panel or on the remote control. To exit the OSD menu, press MENU on interactive flat panel's side panel, or press EXIT on the remote control.

Picture settings

Option	Value	Function
Picture Mode	Custom Standard Mild Vivid	Sets the picture mode
Brightness	0-100	Sets the overall brightness of the image and background
Contrast	0-100	Sets the brightness of the image in relation to the background
Tint	0-100	Sets the tint of the screen
Color	0-100	Sets the image color intensity
Sharpness	0-100	Sets the image sharpness
Color Temp	Normal Warm Cold	Sets the color temperature

Sound

Option Value Function
Surround	[N/A]	Turns	the	surround	sound	on	or	off

Option	Value	Function
Sound	Mode	Music	Sets	the	audio	mode
		Standard
		User
		News
		Movie
Auto Volume	[N/A]		Turns	the	automatic	volume	adjustment	on	or	off

Setup settings

Option Value Function
Menu Language [Languages] Sets the on-screen display menu's language
Menu Trans. [N/A] Sets the on-screen display menu's transparency
Screen Mode 16:94:3Zoom1Zoom2Full	Sets the image size
Reset [N/A] Resets all Setup options
Software Update [N/A]	NOTESoftware updates should be performed only by a administrator. Please contact your authorized SMART reseller if you require further assistance.

Time settings

Option Value Function
Time mode	Automatic Manual	Sets the time mode
Time	[N/A]	Sets the time manually
Sleep Time	[N/A] Sets	the sleep timer
On Timer	[N/A]	Turns on the On Time function
On Time	[N/A]	Sets a time when the interactive flat panel turns on
Volume	0-100	Sets the volume when the interactive flat panel turns on

CHAPTER 4

USING YOUR INTERACTIVE FLAT PANEL

Option Value Function

Off	Timer	[N/A]	Turns on the Off Time function
Off	Time	[N/A]	Sets a time when the interactive flat panel turns off

On-screen display menu for SPNL-4075 and select SPNL-4084

NOTE

There are two versions of the SMART Board 4084 on-screen display (OSD) menu. This si applies to SMART Board 4084 panels with a serial number of M101IW12E3127 and greater.

You can access the OSD menu by pressing MENU on the side panel of the interactive flat panel or on the remote control. To exit the OSD menu, press MENU on the interactive flat panel, or EXIT on the remote control.

Picture settings

Option	Value	Function
Picture Mode	Standard Dynamic Mild User	Sets the picture mode
Color temperature	Medium Warm Cool User	Sets the color temperature
Screen (when connected with VGA)	[N/A] Sets the size and position of the picture
Aspect ratio	Full 4:3 16:9 Zoom 1 Zoom 2 Just scan	Sets the aspect ratio
Color range	0 ~ 255 16 ~ 235	Sets the image color intensity

Sound settings

Option	Value	Function
Sound	Mode	Standard	Sets the audio mode
		Music
		Movie
		Sports
		User
Balance	0–100	Sets the audio balance
Auto Volume	[N/A]	Turns the automatic volume adjustment on or off
Surround sound	[N/A]	Turns surround sound on or off
SPDIF	mode	PCM	Sets the digital sound output
		RAW
EQ 120 Hz			Sets the parametric equalizer adjustments for specific frequency bands
Internal speaker	[N/A]		Tums the internal speaker on or off

Setup settings

Option	Value Function
Menu Language	[Languages]	Sets the on-screen display menu's language
Menu Trans.	[N/A]	Sets the on-screen display menu's transparency
Screen Mode	16:94:3Zoom1Zoom2Full	Sets the image size
Reset	[N/A]	Resets all Setup options
Software Update	[N/A]	NOTESoftware updates should be performed only by a system administrator. Contact your authorized SMART reseller if you require further assistance.

Multi Media mode

You can play video files, view images and listen to music stored on a USB drive. Use control to pause, fast-forward and rewind videos.

Compatible file formats

The interactive flat panel can play the following file types.

Video

Category Code
MPEG1 MPEG1
MPEG2 MPEG2
MPEG4 AVC
	MPEG-4 Visual
	DivX5
	DivX4
	DivX3
	XviD
	MS-MEG4 V3
	WMV3
MJPEG M-JPEG

Audio

• AC-3
• AAC
  • MP3
• PCM

Images

• JPEG
• BMP
• PNG
• GIF
  • TIFF

To access content on a USB drive

1. Turn on the interactive flat panel.
2. On the remote control, press the Multi Media button.
3. Connect a USB drive to the USB A receptacle on the bottom connector panel. See Connecting your interactive flat panel on page 11.
4. Using the remote control, select a file.
5. Press the Play button on the remote control to play or view the file.

Cleaning the interactive flat panel

Follow these instructions to clean the interactive flat panel without damaging its anti-glare or other product components.

CAUTION

• Do not use permanent or dry-erase markers on the screen. If dry-erase markers are the screen, remove the ink as soon as possible with a lint-free, non-abrasive cloth.
• Do not rub the screen with a dense or rough material.
• Do not apply pressure to the screen.
• Do not use cleaning solution or glass cleaner on the interactive flat panel screen, because they can deteriorate or discolor the screen.

To clean the screen

1. Press the power button to turn off the display.
2. Wipe the screen with a lint-free, non-abrasive cloth.

Preventing condensation

The interactive flat panel screen contains layers of glass that can collect condensation, es in the following conditions:

• Temperature extremes with high humidity
- Rapid changes in humidity, which can occur when you operate the product near water (such as a pool, kettle or air conditioner ventilator)

CHAPTER 4

USING YOUR INTERACTIVE FLAT PANEL

• Direct exposure to sunlight
• Cold air output from an air conditioner towards the bottom of the interactive flat panel.

To evaporate condensation from the interactive flat panel

1. Remove the humidity source from the interactive flat panel, if possible.
2. Turn off the interactive flat panel.
3. Remove any moisture from the interactive flat panel with a smooth, dry cloth.
4. Leave the interactive flat panel turned off for 48 hours.

Cleaning the touch sensors

The interactive flat panel uses infrared (IR) transmitters and sensors around perimeter between screen and the frame. Dust buildup on the protective plastic can impair touch performance, these areas for dust and clean them every week.

CAUTION

• Do not use compressed air to clean the sensors or borders.
• Do not use water or cleaning agents to clean the touch sensors.
• Don't apply too much pressure when cleaning the interactive flat panel because you damage the plastic causing performance issues.

To clean the IR transmitters and sensors

1. Using a clean lint-free cloth, gently wipe the protective plastic between the screen a frame around the perimeter the interactive flat panel screen.
2. If dirt still remains, use 50% isopropyl alcohol (IPS) solution to clean the protective between the screen and the frame.

Chapter 5

flat

panel

Locating the serial number 31.

Resolving common touch control and resolution issues with Windows and Mac operating systems 32

Resolving image issues...35.....

This chapter provides information necessary for solving simple issues that occur with your interactive flat panel. If issues persist, or aren't covered in this chapter, contact SMART Su (smarttech.com/support) or your authorized SMART reseller (smarttech.com/where).

Locating the serial number

If you contact SMART Support, you might be asked to provide the interactive flat panel's number. The serial number is located under the front right bezel.

Resolving common touch control and resolution issues with Windows and Mac operating system

Problem Cause Solution
Resolution and/or touch inaccuraciesNOTEThe recommended resolutions for the interactive flat panel are:3840 × 2160 (for SPNL-4075 and SPNL-4084 using HDMI and a computer that supports 4K UHD)1920 × 10801280 × 720See Configuring your computer's screen resolution on page 14 for more information and settings.	The display's resolution is set to the recommended setting.	Press theAutobutton ontheremotecontrol. This adjusts the image to match the settings the display adapter is sending. In most cases this will help or solve touch issues. You can manually adjust display settings if needed. See Configuring your computer's screen resolution on page 14.
The interactive flat panel doesn't turn on.	The interactive flat panel connected to a power source	Connect your interactive flat panel to a power outlet.
	The interactive flat panel Sleep mode.	Press the Power button on the menu control panel or on the remote control.

CHAPTER 5

TROUBLESHOOTING YOUR INTERACTIVE FLAT PANEL

Problem Cause Solution
Touch isn't working as expected.	The USB cable between computer and the interactive flat panel could be loose.	Check all cable connections
	The interactive flat panel need to be turned off and turned on.	Ifyn the interactive flat panel and then turn it on.
	Bright lights are interfering with the interactive flat panel. halogen lights and LEDs.	Close blinds or shades or dim.
	Your interactive flat panel calibrated properly.	You't interactive flat panel need to be re-calibrated.See Appendix A: Calibrating your interactive flat panel on page 37 for more information.IMPORTANTThe interactive flat panels are pre-calibrated and oriented at the factory. Calibration should be performed only by an administrator.
	Pen and touch setting may be selected.	For Windows operating systems, openControl Panel > Pen and Touch.2. Select theTouch tab.3. Ensure that the following options are selected:Use your finger as an input device and Enable multi-touch gestures and inking.4. ClickApplyand/or OK.
	The required drivers for Windows operating system were not installed.	Ensure that Windows automatically installed the required device drivers. The interactive flat panel and AFO TCM10X-700 HID should be listed under WindowsDevices and Printers.
	If you're using multiple displays, the pen and touch settings may be incorrect.
	The screen may be dirty.	Wipe the screen with a non-abrassive cloth.

Resolving image issues

Problem Causes Solution
When the video source is HDMI, the image and audio are low quality.	The cable between the HDMI source and the interactive panel could be loose.	HDMi ck all cable connections. flat
	The HDMI cable could be long.	Ensure that the length of cable doesn't exceed 9' (3 m).
		Use a certified active HDMI extender for longer cables.
The image is poor quality and/or doesn't fit on the screen.	The computer's screen resolution is incorrect.	See Configuring your computer's screen resolution on page 14 to select the screen resolution.

Appendix A

panel

If your SMART Board interactive flat panel has an inaccurate touch or the touch is not may need to calibrate it. Follow the instructions below to calibrate your SMART Board inte flat panel.

IMPORTANT

• The SMART Board interactive flat panel is factory calibrated. We recommend that you resolve touch inaccuracy through configuration before calibration (see Configuring touch and display settings for your interactive flat panel on page 13).
• Calibration should only be performed by an administrator.

Calibrating your interactive flat panel with Windows 7, 8 and 10

When you calibrate the IFP for the first time in Windows 7, the screen uses 16 referer. Initial calibration applies to all users of the interactive flat panel. Later calibrations use or and apply only to your user account (see http://windows.microsoft.com/en-ca/windows7/getting-more-out-of-your-tablet-pc).

To calibrate your interactive flat panel

1. Open Control Panel > Tablet and PC Settings.

NOTE

If you're using multiple monitors, ensure that you have identified the interactive flat the touch screen with Windows 7, 8 and 10 operation systems (see step Setting up displays on page 16).

1. Ensure that the Display tab is visible. Select the interactive flat panel from the display drop down menu.

2. Click Calibrate.

3. Tap each crosshair as they appear.

NOTE

It may take several attempts to register your tap.

1. Click OK on the Tablet and PC settings page to save the changes.

NOTE

If you make a mistake (such as tapping somewhere other than the crosshair), repeat procedure.

TIP

To clear your calibration data, click Reset.

Calibrating your interactive flat panel with Ma operating system software

Before you calibrate your interactive flat panel, ensure that you have installed the require See smarttech.com/E70and40xxSoftware for product drivers and software.

To calibrate your interactive flat panel

1. Press the Notebook icon and select SMART settings.

The SMART Settings dialog box appears.

1. In the Tasks area, press Orient/Align the SMART product.

The orientation screen appears.

1. If the orientation screen appears on your computer, click Next.

OR

If the orientation screen appears on your interactive flat panel, press the cross.

1. Press and hold the cross until a circle appears around the cross and the circle turn

2. Press and hold each cross as it appears.

IMPORTANT

If you're using multiple displays, the orient screen automatically moves to the next of this other display is not an interactive flat panel, touch screen press ESC. If you are touch the flat panel while the orient screen is on this display, you will have to no procedure above.

Appendix B

compliance

SMART Technologies supports global efforts to ensure that electronic equipment is manufactured and disposed of in a safe and environmentally friendly manner.

Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery Directives)

Electrical and electronic equipment and batteries contain substances that can be harmful to the environment and to human health. The crossed-out wheeled bin symbol indicates that products should be disposed of in the appropriate recycling stream and not as regu waste.

Batteries

Remote contains 2 AAA batteries. Recycle or dispose of batteries properly.

More information

See smarttech.com/compliance for more information.

Index

A

accessories

included, 4

Audio settings, 23, 27

B

batteries, 39

F

file formats

compatible, 28

|

Included cables, 4

installation

choosing a location, 9

L

light sources, 9

location, 9

M

Menu control panel, 20

Multi Media mode, 28

O

on-screen display menu, 23, 26

P

pen, 4

Picture settings, 23, 26

projector

installing, 7

R

Recommended computer screen

resolution, 14

remote control, 4

S

serial number

locating, 31

Setup settings, 24, 27

T

Time settings, 24

tray, 4

W

WEEE and Battery Directives, 39

SMART TECHNOLOGIES

smarttech.com/support

smarttech.com/contactsupport

smarttech.com/kb/170800
