Product type	Baby crib and co-sleeping bed
Brand	Lionelo
Model	Theo
Dimensions (L x W x H)	120 x 60 x 76 cm (estimated)
Weight	8 kg (estimated)
Power supply	None (mechanical product)
Main materials	Plastic, textile, metal
Number of height levels	5
Maximum mattress height	Indicated by a red line inside the crib
Attachment to parental bed	Yes, with adjustable straps (2 foot length positions)
Wheels / non-slip	Non-slip rear bases, no wheels
Recommended age	From birth until the child can sit, kneel, or pull up
Usage	Standard baby crib or attachable bedside sleeper
Safety standards	EN 1130:2019+AC:2020, EN 16890:2017+A1:2021
Frame care	Clean with a damp cloth
Mattress care	Damp cloth and natural products; hand wash up to 30°C
Washing instructions	Do not bleach, do not iron, do not dry clean, do not tumble dry
Spare parts	Available from the manufacturer (contact: [e-mail])
Warranty	Detailed terms on the manufacturer's website

Frequently Asked Questions - Theo Lionelo

How to assemble the Theo Lionelo crib?

First, assemble the two frame legs with the connecting tube (Fig. 1). Use an Allen key to tighten the safety screws (Fig. 2). Join the base frame with the cradle frame (Fig. 3). Then attach the front rail and close the side zippers (Fig. 4).

How to attach the Theo crib to the parental bed?

Fully open the side zippers to open the wall (Fig. 8). Move the crib close to the parental bed and adjust the height. Use the included straps to secure the crib: pass the strap around the parental bed frame and tighten the buckle (Fig. 9, 10). Make sure there is no gap between the mattresses.

How to adjust the height of the Theo crib?

Press the height adjustment button (handle C) and choose from 5 available levels (Fig. 5). You can also set different heights on each side. To adjust the foot length, press the button and slide the foot out (2 positions, Fig. 6).

What mattress thickness is recommended for the Theo crib?

The maximum mattress thickness is indicated by a red line inside the crib. Do not use a mattress thicker than this limit. Use only one mattress in the crib.

How to clean the Theo crib and its mattress?

Clean the plastic parts with a damp cloth. The mattress can be cleaned with a damp cloth and natural preparations. Do not use bleaching agents. Hand washing is possible up to 30°C. Do not iron, do not dry clean, do not tumble dry.

Up to what age can I use the Theo crib?

The crib can be used from birth until the child is able to sit, kneel, or pull up. Once the child reaches this stage, stop using the product.

Is the Theo crib compliant with safety standards?

Yes, the product has been tested and meets the requirements of standards EN 1130:2019+AC:2020 (baby cribs) and EN 16890:2017+A1:2021 (mattresses).

Can I use the Theo crib in an inclined position?

No, it is forbidden to use the bedside sleeper in an inclined position. The maximum allowable tilt is a difference of 2 levels between sides, with the child's head always on the higher side.

What if a part of the Theo crib is missing or damaged?

Do not use the crib if any component is missing, broken, or damaged. Contact Lionelo at [e-mail] for replacement parts and instructions. Do not replace components yourself.

Can I use the Theo crib with a water bed or round bed?

No, the bedside sleeper is intended only for standard adult beds with straight sides. Do not use with water beds or round-shaped beds.

USER MANUAL Theo Lionelo

Lionelo baby crib with adjustable legs and wheels (no text or symbols visible)

Diagram showing three different types of baby crib arrangements: a simple bed, a close-up view of the box, and a flat-screen rack (no text or symbols present)

Illustration of a small mechanical device with a magnified inset showing a lever mechanism (no text or symbols)

Dear Customer!

Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [e-mail]

Producer:

BrandLine Group Sp. z o. o.

WARNINGS IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Do not use this product without reading the instructions for use first.
2. Stop using the product as soon as the child can sit or kneel or pull itself up.
3. Placing additional items in the product may cause suffocation.
4. Do not place the product close to another product, which could present a danger of suffocation or strangulation, e.g. strings, blind/curtain cords, etc.
5. Do not use more than one mattress in the product.
6. Product should be placed on horizontal floor.
7. Young children should not be allowed to play unsupervised in the vicinity of the crib.
8. The crib should be locked in the fixed position when the child is left unattended.
9. All assembly fittings should always be tightened properly and care should be taken that no screws are loose, because

a child could trap parts of the body or clothing (e.g. strings, necklaces, ribbons for babies' dummies, etc) which would pose a risk of strangulation.

1. The maximum thickness of the mattress is marked by a red lining on the inside of the crib. Do not use a mattress thicker than indicated.
2. Be aware of the risk of burning cigarettes, open fires and other sources of strong heat, such as electric bar fires, gas fires, etc. In the near vicinity of the crib.
3. DO NOT use crib if any parts are missing, damaged, or broken. Contact Lionelo for replacement parts and instructional literature if needed. DO NOT substitute parts

WARNINGS for mattress:

1. Do not use the mattress if any part is broken, torn, or missing, use only spare parts approved by manufacturer.
2. Do not use more than one mattress in the cot.
3. Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the cot.

WARNINGS for bedside sleepers:

1. DO NOT use bedside sleeper if any parts are missing, damaged, or broken. Contact Lionelo for replacement parts and instructional literature if needed. DO NOT substitute parts.
2. The height from the floor of the adult's bed for which the bed is de sleeper is suitable: 50 - 63 cm.
3. The bedside sleeper is intended for standard type adult beds only. Do not use the product with waterbeds or bed and mattresses with rounded corners.
4. Do not use attachment systems other than those described in the manual.
5. Bedside sleepers shall never be used in an inclined position.

6. To prevent a suffocation hazard from entrapment, the bedside sleeper shall be properly secured to the adult bed using the attachment system.

7. There shall never be a gap between the lower side of the bedside sleeper and the mattress of the adult bed.

8. Check the tightness of the attachment system before each use by pulling the bedside sleeper in a direction away from adult bed.
9. If there is a gap between the bedside sleeper and the adult bed DO NOT use the product.
10. Gaps should not be filled with pillows, blankets and other items.
11. DANGER! Always completely raise the drop side when not attached to the adult's bed.
12. WARNING: To avoid hazards from the child's neck being caught on the top rail on the side that is next to the adult bed, the top rail must not be higher than the adult bed mattress.
13. WARNING: To avoid risk of your child being strangled the attachment system to the adult's bed shall always be kept away from and out of the crib.

Installation instructions

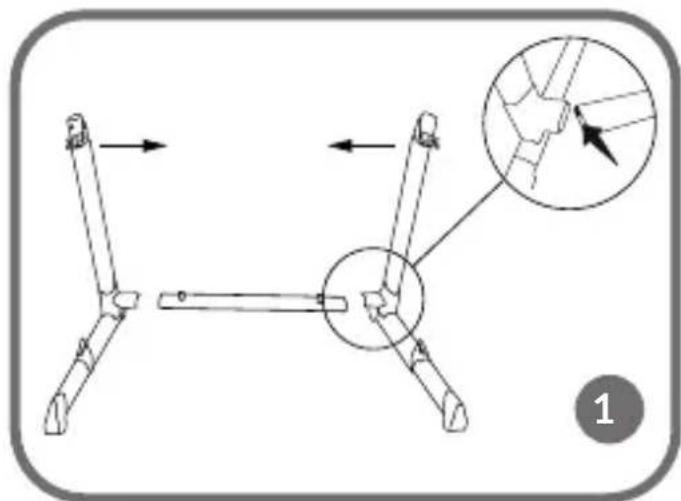

1. Combine both frame legs with a connection tube (fig. 1).

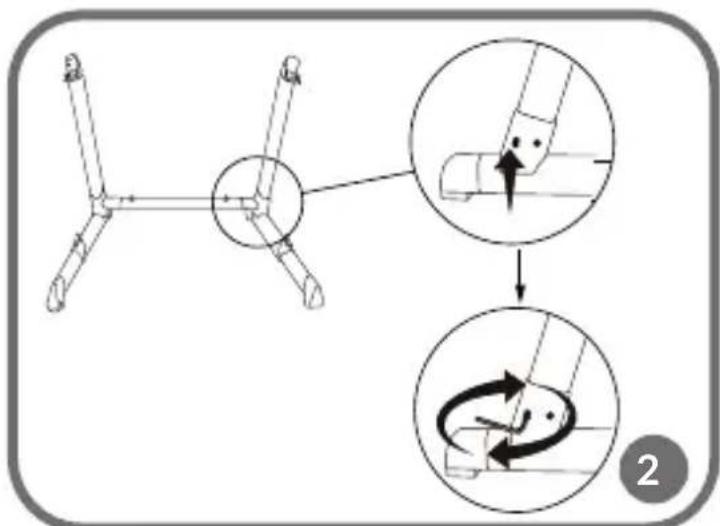

2. The connectors have special screw holes. Use an Allen key to tighten the screws (fig. 2).

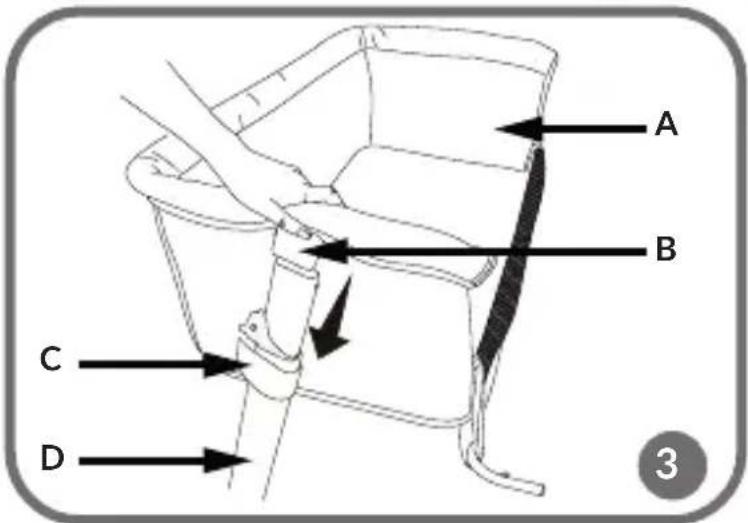

3. Connect the base frame with the gondola frame (fig. 3).

A. Gondola

C. Height adjustment button

B. Gondola frame connector

D. Bed frame

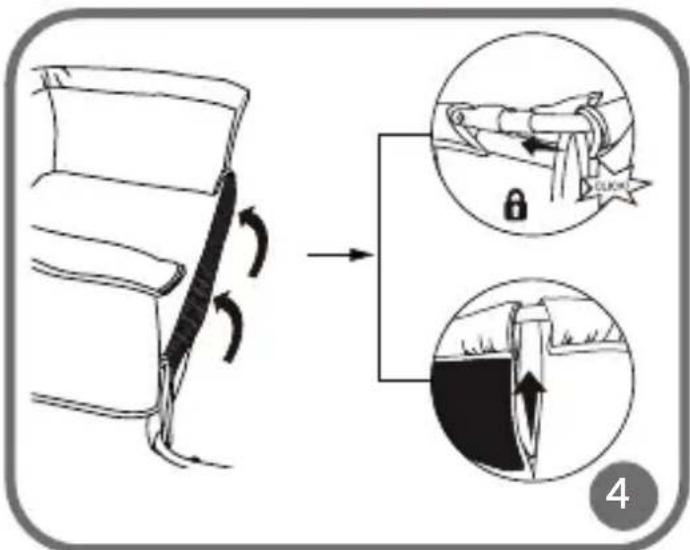

1. Attach the front rail to the gondola frame, and then fasten the side zippers (fig. 4).

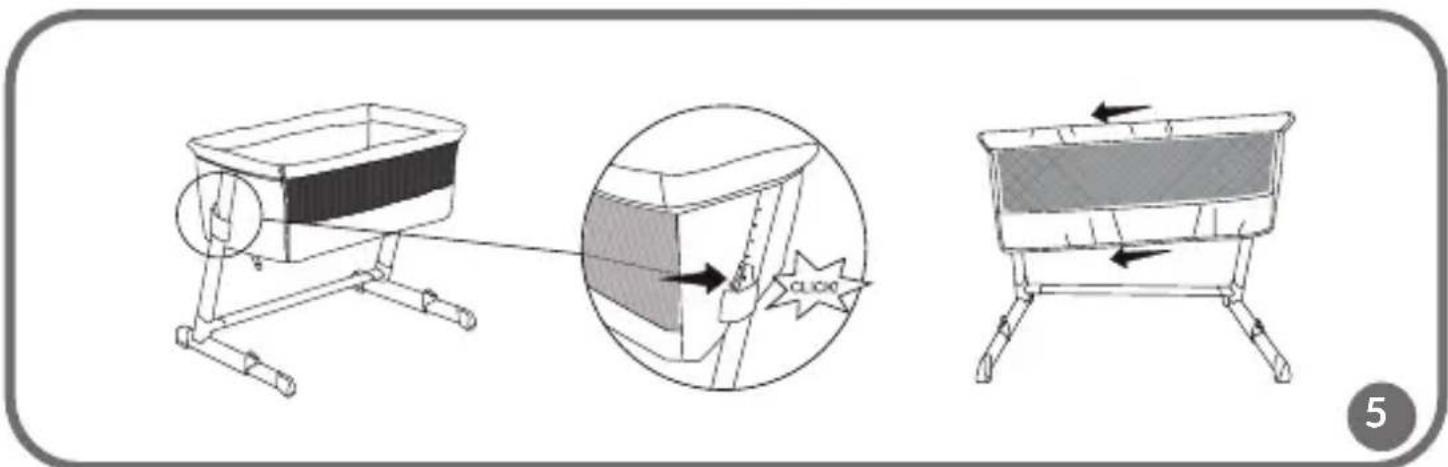

2. Press the height adjustment button and set a desirable height level. The bed can be positioned in one of 5 height levels available. It is also possible to set different height at each side (fig. 5).

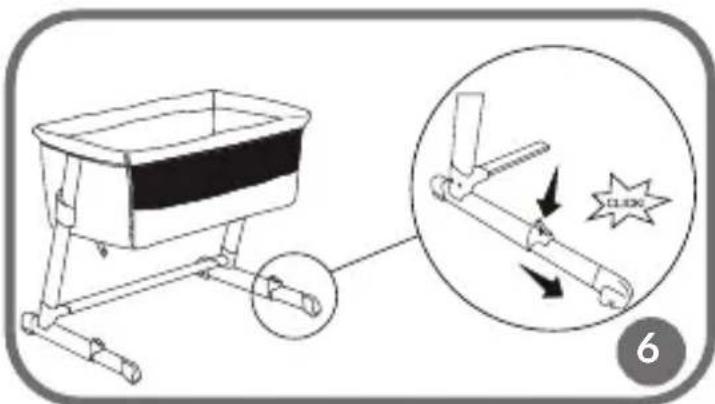

3. Press the button down and pull the leg out/in to adjust its length. There are two positions available (fig. 6).

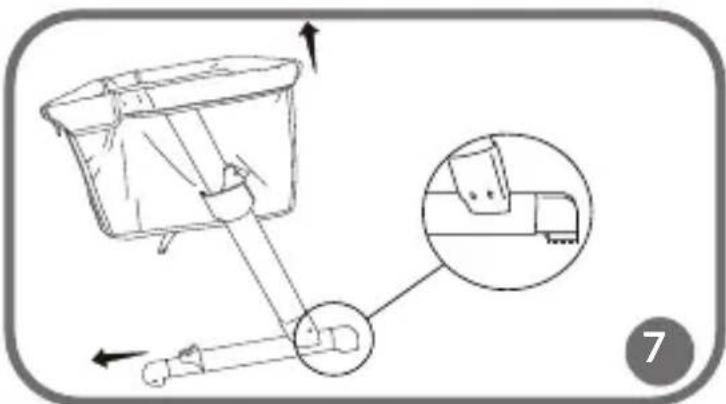

7. Moving the bed

Hold the back rail of the gondola, then lift and push it to move the bed. The rear

leg caps are non-slip, which prevents the baby bed from undesirable moving (fig. 7).

8. Attaching to a bed

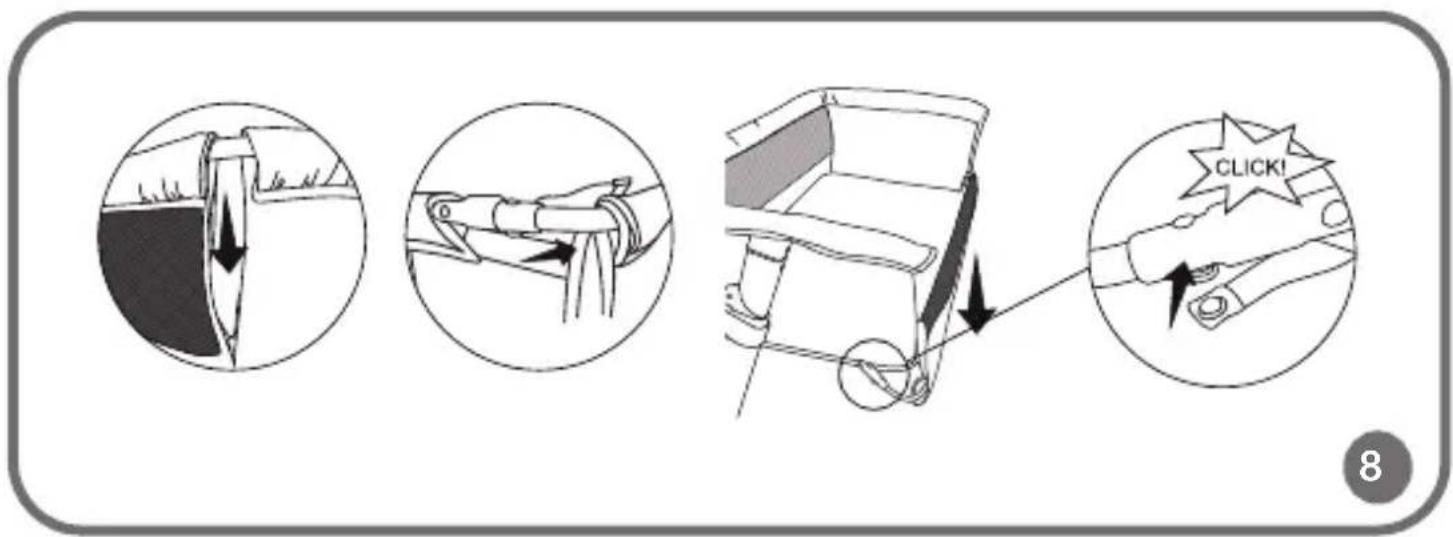

The baby bed can be attached to a parents' bed. In order to do so, unzip the side zippers completely, open the side of the baby bed and slide the rail out of the mounts, as shown in the picture (fig. 8).

1. Move the baby bed to a parents' bed and check the height of the baby bed in relation to the parents' mattress.

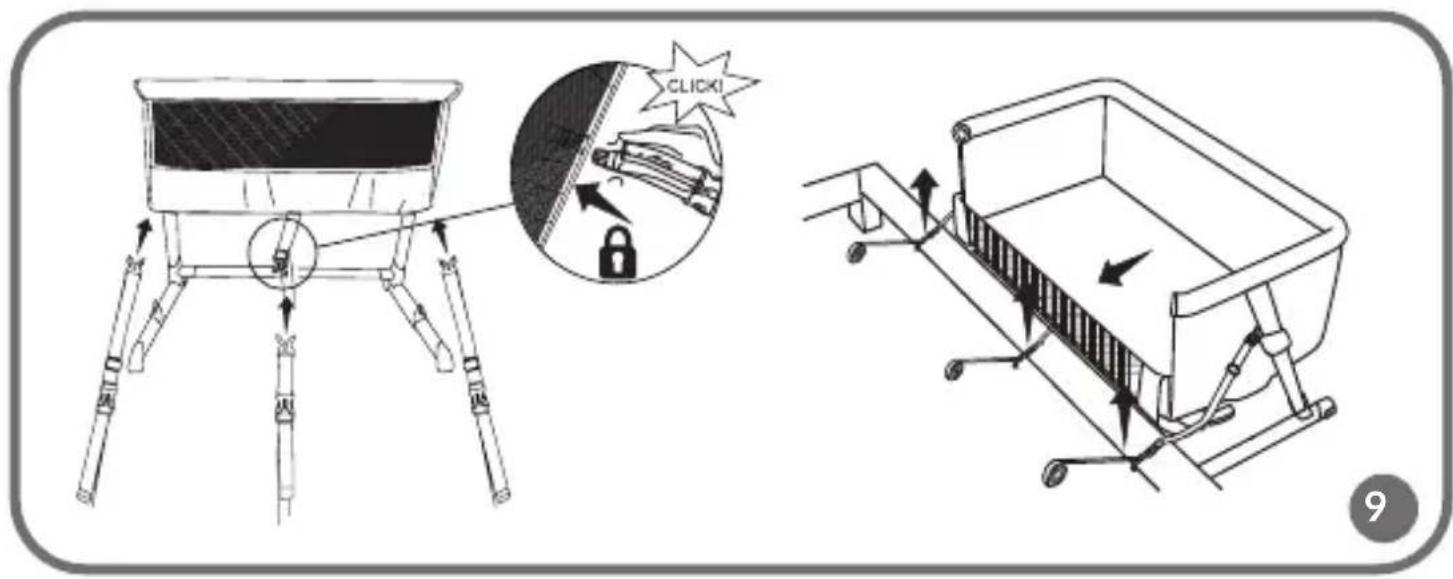

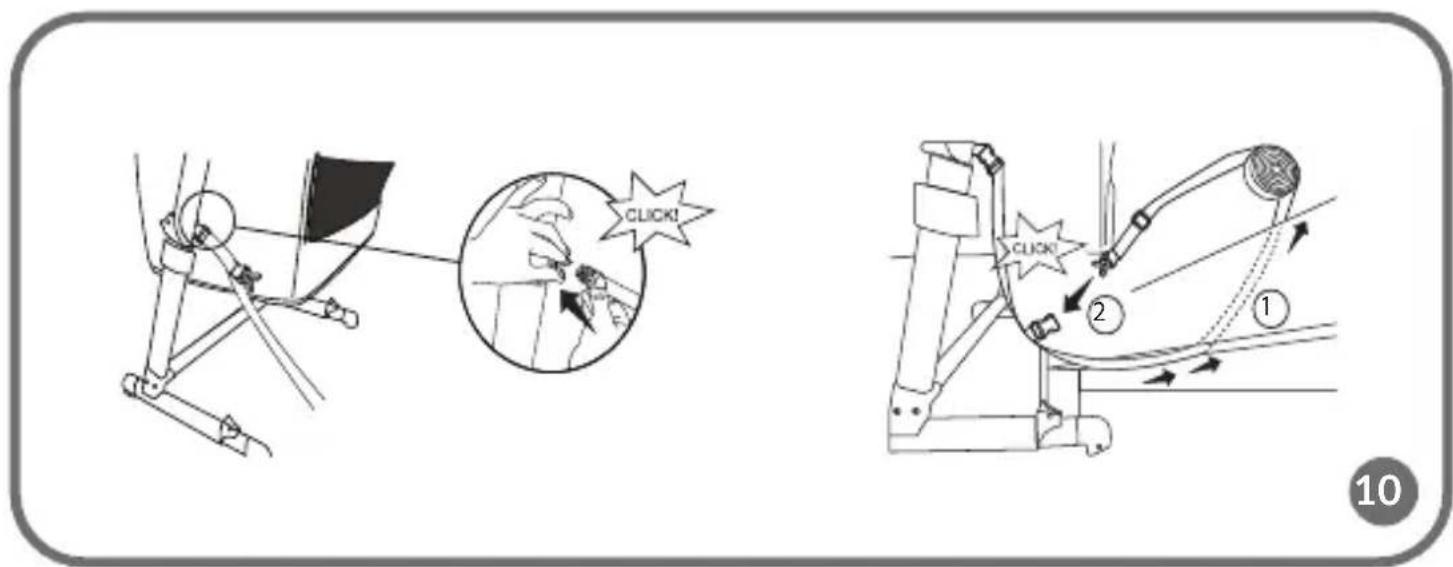

2. Use the included belts to attach the baby bed to a parent's bed. Place the buckle in the connector plug at the bottom of the gondola, run the belt from bottom to top around the parents' bed construction, and then fasten the buckle. The loop should be as tight as possible. You can adjust the length of the belt with the clip in the middle. Repeat it for the other belts (fig. 9, 10).

CAUTION: Before each use, make sure there is no gap between the parents' mattress and the side wall of the baby bed.

WARNING: The product can ONLY be attached to beds and/or mattresses with straight sides. Do NOT use the product with round or water beds and/or mattresses.

WARNING: The maximum permissible inclination of the baby's bed is a difference of 2 levels. The child's head must always be higher than other parts of the body

Maintenance

• Clean the plastic parts with a soft cloth.
• The mattress can be cleaned with a damp cloth and natural cleaners.
• Do not use bleach to clean the product.
• Do not iron.
• Do not dry clean.
• Do not tumble dry.
• The fabric parts can be washed by hand (in up to 30°C).

The product has been tested and meets all the requirements of the following standards: EN 1130:2019+AC:2020, EN 16890:2017+A1:2021

The pictures in this manual are for illustrative purposes only. Therefore, they may differ from the actual product.
