Ronny 316690000 - Toaster Eta - Free user manual and instructions

Product Type	Toaster
Brand	Eta
Model	Ronny 316690000
Dimensions (mm)	177 x 175 x 274
Weight (kg)	1.2
Protection Class	I
Power Cord Length	Approx. 0.8 m
Number of Slices	2
Browning Levels	7 (1-7)
Defrost Function	Yes
Reheat Function	Yes
Stop Button	Yes
Crumb Tray	Removable, pull-out
Housing Material	Plastic
Color	White
Auto Shut-off	Yes
Grounded Plug	Yes
Usage	Household only

Frequently Asked Questions - Ronny 316690000 Eta

How do I toast bread?

Select the desired browning level using the revolving regulator (1 for light, 7 for dark). Place bread slices in the slots, push the toasting guide down until it locks. The STOP button will light up and toasting begins automatically. When done, the guide pops up.

How do I use the defrost function?

For frozen bread, first select the toasting level, then push the guide down and press the defrost button. Its control light will come on. The toasting time will be extended to defrost and then toast the bread.

How do I use the reheat function?

To reheat cooled toast or finish half-done toast, insert the bread, push the guide down, and press the reheat button. The control light will come on and the toaster will warm the bread with a shorter cycle.

How do I clean the toaster?

Unplug the toaster and let it cool completely. Remove the breadcrumbs tray from the bottom and empty it. Wipe the exterior with a soft, damp cloth. Do not immerse in water or use abrasive cleaners.

What safety precautions should I follow?

Keep the toaster away from flammable materials (at least 500 mm in heat direction, 100 mm others). Do not cover, immerse in water, or insert metal objects. Never leave unattended. Children under 8 must be kept away.

Can I toast frozen bread without using the defrost function?

It is recommended to use the defrost function for frozen bread to ensure even toasting. Using a normal setting may result in burnt outside and cold inside.

Why does smoke come out during first use?

This is normal. The heating elements may have protective residues. Run the toaster empty at level 3 for 4-5 cycles with the window open, then allow it to cool.

What should I do if bread gets stuck?

Unplug the toaster and let it cool. Use a wooden or plastic utensil to gently loosen the bread. Never use metal tools or insert fingers.

Can I toast bagels or other pastries?

Only toast flat bread slices. Avoid sugary or fatty pastries as they may melt and cause a fire hazard. Do not wrap bread in foil or paper.

How do I adjust the browning level for a single slice?

When toasting one slice, set a lower browning level than for two slices to prevent over-toasting. The revolving regulator allows precise control.

USER MANUAL Ronny 316690000 Eta

White standard Kiosk with a flat-screen grater and control knobs (no visible text or symbols)

Topinkovač

eta 3166

Ronny

NÁVOD K OBSLUZE

Dear customer, thank you for buying our product. Before putting the appliance into operation, read carefully these instructions for use and store this manual properly together with the certificate of warranty, a cash voucher and possibly with the package and the internal contents of the package.

I. SAFETY WARNING

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Before replacing accessories or accessible parts, before assembly and disassembly, before cleaning or maintenance and after use turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

- Pay careful attention when handling the appliance to avoid injury, (e.g. burns, scalding).

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water.

- The bread may catch on fire, do not use the toaster near or underneath flammable materials, such as curtains.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Never immerse the appliance into water (even its parts)!

- Do not use the appliance for heating a room! It is not intended for outdoors use.

- The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).

- Do not plug the fork of the supply cord into the power outlet and do not unplug the cord with wet hands or by pulling by the supply cord!

- Do not place any objects on the appliance.

- Never leave the appliance unsupervised and check it during the whole time of preparing meals!

- When the appliance is switched on for the first time, short and slight smoke can come out that does not mean any defect and it is not a reason for claiming a defect of the appliance.

- Do not place the appliance on unstable, fragile or flammable surfaces (e.g. glass, paper, plastic, wooden varnished boards and various fabric/table cloths).

- Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.) and wet surfaces (e.g. sinks, wash basins, etc.).

- The space above the toaster must be free. It has to be made sure that air can circulate around the toaster.

- Do not put any sugar-coated or fatty pastry in the toaster as it tends to melt and run.

- Never cover the toasting slot and do not put fingers or metal tools into it.

- Clean the breadcrumbs container regularly, thus you will prevent possible fire.

- Do not toast bread or pastry wrapped e.g. in an aluminum foil, paper, etc.

- Spontaneous ignition of prepared food may occur during grilling. Unplug the appliance from the mains and put out the fire in case of sudden ignition.

- To avoid injury (burning), do not move the appliance when it is hot!

- With regards to fire safety, the appliance complies with EN 60 335–2–6. Within the intention of the standard, this appliance can be operated on a table or on a similar surface while safe distance must be maintained from flammable materials of at least 500 mm in the direction of the main heat radiation and 100 mm in the other directions.

- Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!

- The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.

- Check the condition of the power cord of the appliance regularly.

- In order to ensure safety and proper function of the appliance, use only original spare parts and accessories approved by the manufacturer.

- WARNING: Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.

- Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.

- The producer does not undertake any responsibility for damage caused by improper use of the appliance (e.g. deterioration of food, injury, burning, scalding, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warning above.

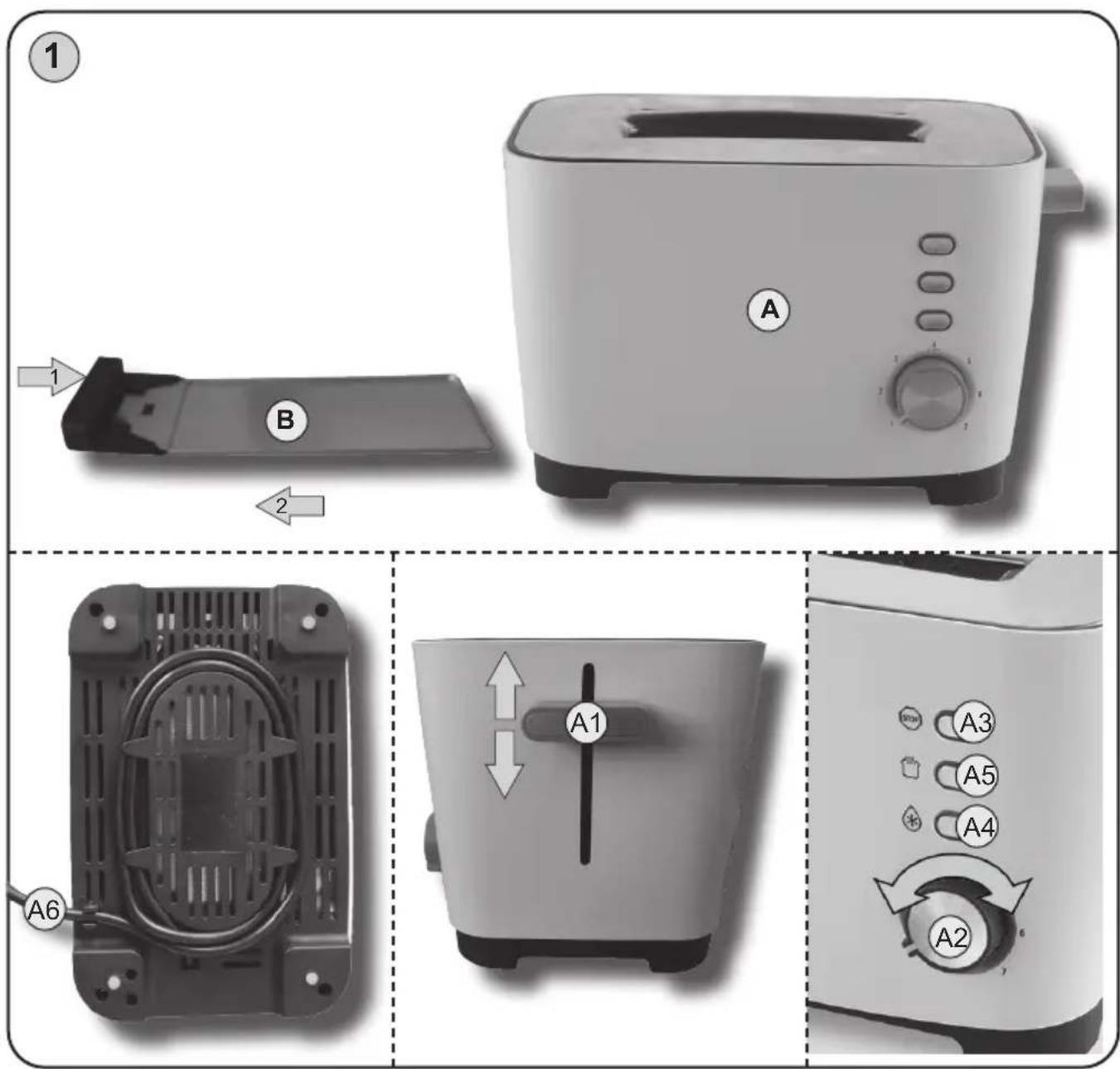

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)

A – toaster

A1 – toasting guide

A2 – revolving regulator

A3 - STOP button with control light

A4 – defrost button with control light

A5 – reheat button with control light

A6 – power supply

B – breadcrumbs tray

Note

When the control light is on, it signals that the function is on.

III. PREPARATION FOR USE

Remove all the packing material and take out the appliance. Remove all possible adhesion foils, stick-on labels or paper from the toaster. Place the toaster on a suitable flat and dry surface, in the height of at least 85 cm, out of reach of children. The electric socket must be easily accessible so that the appliance can be easily disconnected from power supply if danger appears. Plug the power cord connector A6 to an electric socket. When you put the appliance into operation for the first time, set the revolving regulator to level 3 and switch on the toaster at least 4-5 times (without any bread in) with a window open and then leave to cool down. Now the appliance is ready for operation.

Toasting regulator (A2)

Set the required toasting level by turning the regulator clockwise. If in doubt, start from the lowest level.

Level 1 – the shortest toasting time, the toasted bread is the lightest.

Level 2–3 – slightly toasted bread.

Level 4–6 – moderately toasted bread.

Level 7 – the longest preparation time, the toasted bread is the darkest.

Warning

If you toast one slice of bread only, set a lower level of toasting than for two slices.

STOP button (A3): by pressing the button you stop the set function of the toaster.

Defrost button (A4): intended for preparation of frozen slices of bread.

Reheat button (A5): intended for warming cooled down toasts or finishing half-done toasts.

IV. INSTRUCTIONS FOR USE

Toasting bread

Select the toasting level by the regulator A2. Put slices of bread to the toasting slot. Push A1 guide down so that it is secured in the lower position. The operation control light A3 comes on and the appliance starts toasting immediately. After the set time the appliance is turned off automatically and the guide goes up. For easier removal of a smaller slice of bread, move the guide upwards.

Warming function

The function is not dependent on setting the toasting regulator and the time of preparation is shorter than in toasting at level 1. Follow the same procedure as in paragraph Toasting bread, and after pushing the guide A1 down push the reheat button A5 (the control light will come on).

Defrosting function

When this function is selected, the preparation time at the selected level will be longer as the bread will be defrosted first and then baked. Follow the same procedure as in paragraph Toasting bread, and after pushing the guide A1 down push the defrost button A4 (the control light will come on).

V. MAINTENANCE

Clean the appliance only when it has cooled down! Clean the appliance regularly after each use. Do not use rough and aggressive detergents (e.g. sharp objects, peelers, caustic agents for cleaning ovens, or other solvents). Pull out the breadcrumbs tray B from the lower part of the appliance and remove the remaining pastry. Do not turn the appliance upside down and do not throw out the breadcrumbs in this way. Push the tray in properly. For cleaning the cover, use detergents for cleaning plastic surfaces. Clean the surface by wiping it with a soft and wet cloth. If the power cord is soiled, wipe it with a wet cloth. It is normal that the colour of the surface changes in the course of time. This change does not change the features of the surface in any way and thus is not a reason for sales return of the appliance!

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

VI. ENVIRONMENT

If the dimensions allow, there are marks of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at the special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authority or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation, after disconnecting it from power supply we recommend its cutoff and in this way it will not be possible to use the appliance again.

VII. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance

Input (W) shown on the type label of the appliance

Weight about (kg) 1.2

Protection class of the appliance I.

Size of the product (mm) 177 x 175 x 274

Input in off mode is 0.00 W.

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

HOT. DO NOT COVER. HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The ⚠ symbol indicates a WARNING.

WARNING: HOT SURFACE
