Storio 9166 90020 - Toaster Eta - Free user manual and instructions

Product type	Toaster
Model	Storio 9166 90020
Dimensions (H x W x D)	155 x 190 x 265 mm
Weight	1.3 kg (approx)
Mains voltage	220-240 V ~
Power consumption	850 W (typical)
Number of slots	2
Toasting levels	7 (1 lightest, 7 darkest)
Functions	Toasting, defrost, reheat, stop
Automatic shut-off	Yes
Crumb tray	Removable (bottom)
Cleaning	Wipe exterior with damp cloth; empty crumb tray regularly
Safety features	Auto shut-off, thermal protection, cool-touch housing (not specified but typical)
Accessories included	Crispy pastry baking tools
Protection class	I
Material	Plastic housing (typical)
Color	Black/white (not specified, typical)
Power cord length	Approx. 0.8 m (typical)
Residual heat indicator	None (not specified)
Usage	Household only

Frequently Asked Questions - Storio 9166 90020 Eta

How do I set the toasting level?

Turn the revolving regulator (A2) clockwise from level 1 (lightest) to level 7 (darkest). If unsure, start at a lower level.

How do I use the defrost function?

Insert frozen bread, push the guide (A1) down, then press the defrost button (A4). The appliance will defrost and then toast at the selected level.

How do I reheat toast?

Insert the toast, push the guide down, and press the reheat button (A5). The heating time is shorter than the lowest toasting level.

What should I do if the toaster stops working?

First, check that it is plugged in and the socket is working. If it still doesn't work, contact a qualified service technician. Do not attempt to repair it yourself.

How do I clean the toaster?

Unplug and let it cool completely. Remove the crumb tray (B) and empty it. Wipe the exterior with a damp soft cloth and dry it. Do not immerse in water.

Can I toast more than two slices at once?

No, the toaster has two slots and can toast two slices at a time. Do not force extra bread into the slots.

Is the toaster safe to leave unattended?

No, never leave the toaster unattended while in use. It could cause a fire. Always stay nearby and monitor the toasting process.

What is the function of the STOP button?

Pressing the STOP button (A3) immediately cancels the current operation and the toast will pop up.

Can I use the toaster near curtains or flammable materials?

No, keep a safe distance of at least 500 mm in the direction of main heat radiation and 100 mm elsewhere from flammable materials to prevent fire.

What should I do if bread catches fire inside the toaster?

Unplug the toaster immediately and do not open the slots. Use a fire extinguisher or smother the flames. Do not use water.

USER MANUAL Storio 9166 90020 Eta

Black and white photo of a standard 3D render of a standard 3D toaster with visible branding (no text or symbols on the device body)

1

Topinkovač

eta 9166

Storio

NÁVOD K OBSLUZE

Dear customer, thank you for buying our product. Before putting the appliance into operation, read carefully these instructions for use and store this manual properly together with the certificate of warranty, a cash voucher and possibly with the package and the internal contents of the package.

I. SAFETY WARNING

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Before replacing accessories or accessible parts, before assembly and disassembly, before cleaning or maintenance and after use turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

- Pay careful attention when handling the appliance to avoid injury, (e.g. burns, scalding).

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water.

- The bread may catch on fire, do not use the toaster near or underneath flammable materials, such as curtains.

- CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.

- NOTICE – Some parts of this product may become very hot and cause burns. Take special care when children or handicapped persons are present.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- Never immerse the appliance into water (even its parts)!

- The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Do not plug the fork of the supply cord into the power outlet and do not unplug the cord with wet hands or by pulling by the supply cord!

- Do not use the appliance for heating a room! It is not intended for outdoors use.

- The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).

- Do not place any objects on the appliance.

- Never leave the appliance unsupervised and check it during the whole time of preparing meals!

- Do not place the appliance on unstable, fragile or flammable surfaces (e.g. glass, paper, plastic, wooden varnished boards and various fabric/table cloths).

- Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.) and wet surfaces (e.g. sinks, wash basins, etc.).

- The space above the toaster must be free. It has to be made sure that air can circulate around the toaster.

- Never cover the toasting slot and do not put fingers or metal tools into it.

– Clean the breadcrumbs container regularly, thus you will prevent possible fire.

- Spontaneous ignition of prepared food may occur during grilling. Unplug the appliance from the mains and put out the fire in case of sudden ignition.

- To avoid injury (burning), do not move the appliance when it is hot!

- With regards to fire safety, the appliance complies with EN 60 335–2–6. Within the intention of the standard, this appliance can be operated on a table or on a similar surface while safe distance must be maintained from flammable materials of at least 500 mm in the direction of the main heat radiation and 100 mm in the other directions.

- Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!

- The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.

- In order to ensure safety and proper function of the appliance, use only original spare parts and accessories approved by the manufacturer.

- WARNING: Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.

- Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.

- The producer does not undertake any responsibility for damage caused by improper use of the appliance (e.g. deterioration of food, injury, burning, scalding, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warning above.

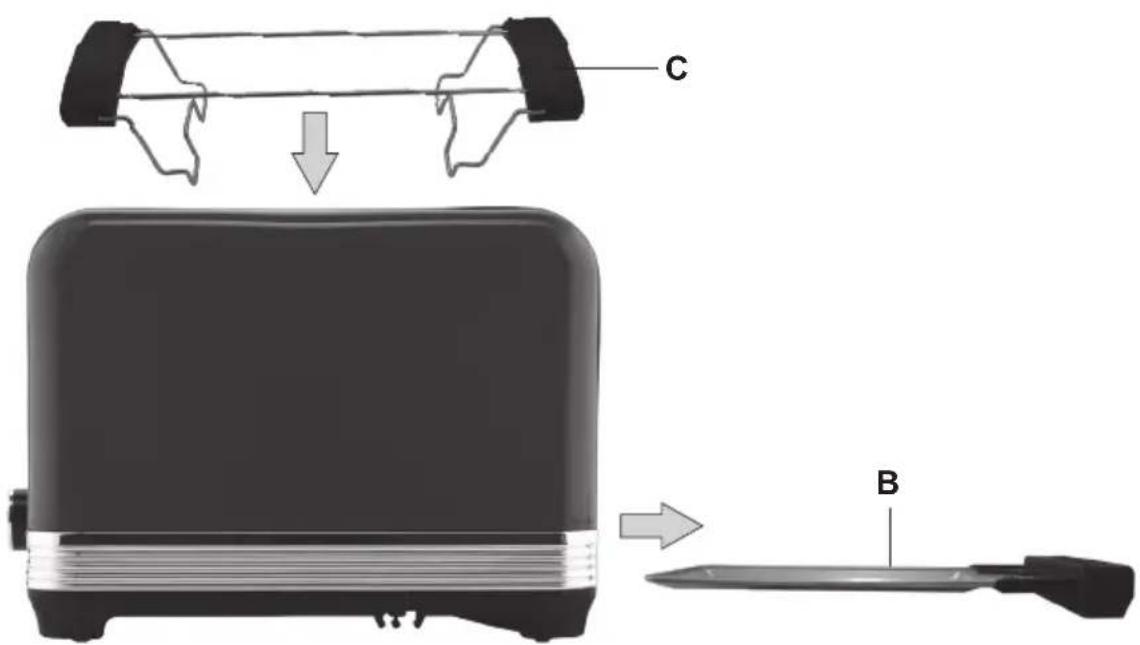

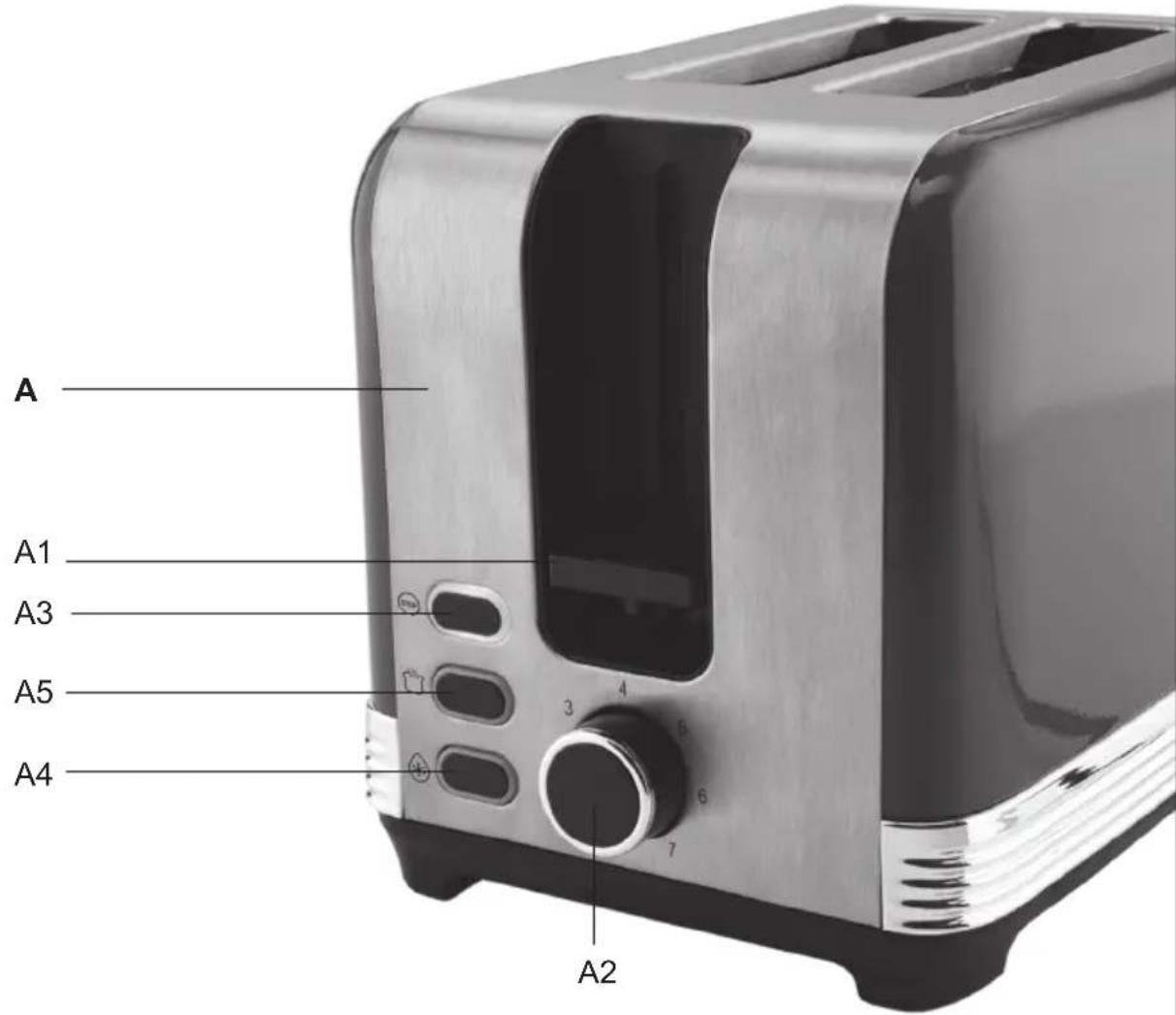

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)

A – toaster

A1 – toasting guide

A2 – revolving regulator

A3 - STOP button with control light

A4 - defrost button with control light

A5 – reheat button with control light

B – breadcrumbs tray

C – crispy pastry baking tools

III. PREPARATION FOR USE

Plug the power cord connector to an electric socket. When you put the appliance into operation for the first time, set the revolving regulator to level 3 and switch on the toaster at least 4–5 times (without any bread in) with a window open and then leave to cool down.

Toasting regulator (A2)

Set the required toasting level by turning the regulator clockwise. If in doubt, start from the lowest level.

Level 1 – the shortest toasting time, the toasted bread is the lightest.

Level 2–3 – slightly toasted bread.

Level 4–6 – moderately toasted bread.

Level 7 – the longest preparation time, the toasted bread is the darkest.

STOP button (A3): by pressing the button you stop the set function of the toaster.

Defrost button (A4): intended for preparation of frozen slices of bread.

Reheat button (A5): intended for warming cooled down toasts or finishing half-done toasts.

IV. INSTRUCTIONS FOR USE

Toasting bread

Select the toasting level by the regulator A2. Put slices of bread to the toasting slot. Push A1 guide down so that it is secured in the lower position. The operation control light A3 comes on and the appliance starts toasting immediately. After the set time the appliance is turned off automatically and the guide goes up.

Warming function

The function is not dependent on setting the toasting regulator and the time of preparation is shorter than in toasting at level 1. Follow the same procedure as in paragraph Toasting bread, and after pushing the guide A1 down push the reheat button A5 (the control light will come on).

Defrosting function

When this function is selected, the preparation time at the selected level will be longer as the bread will be defrosted first and then baked. Follow the same procedure as in paragraph Toasting bread, and after pushing the guide A1 down push the defrost button A4 (the control light will come on).

V. MAINTENANCE

Clean the appliance only when it has cooled down! Clean the appliance regularly after each use. Do not use rough and aggressive detergents (e.g. sharp objects, peelers, caustic agents for cleaning ovens, or other solvents). Pull out the breadcrumbs tray B from the lower part of the appliance and remove the remaining pastry. Do not turn the appliance upside down and do not throw out the breadcrumbs in this way. Push the tray in properly. Clean the outside of the appliance gently with a damp and soft cloth, and then wipe it with a dry cloth. Clean the surface by wiping it with a soft and wet cloth.

If the power cord is soiled, wipe it with a wet cloth. It is normal that the colour of the surface changes in the course of time. This change does not change the features of the surface in any way and thus is not a reason for sales return of the appliance!

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

VI. ENVIRONMENT

If the dimensions allow, there are marks of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at the special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authority or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation, after disconnecting it from power supply we recommend its cutoff and in this way it will not be possible to use the appliance again.

VII. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance

Input (W) shown on the type label of the appliance

Weight about (kg) 1.3

Protection class of the appliance I.

Size of the product (mm) 155 x 190 x 265

Input in off mode is 0.00 W.

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

HOT. DO NOT COVER. HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT

A TOY.

The ⚠ symbol indicates a WARNING.

WARNING: HOT SURFACE
