CHBL310 - Blender Champion - Free user manual and instructions

Product Type	Blender
Brand	Champion
Model	CHBL310
Jar Capacity	1.5 L
Jar Material	Glass
Voltage	220-240 V ~50/60Hz
Power	600 W
Protection Class	Class II
Speed Settings	3 speeds (1, 2, 3) + Pulse (P)
Control Type	Rotary knob
Maximum Continuous Operation	10 seconds
Safety Interlock	Lid must be securely locked before operation
Motor Unit Cleaning	Damp sponge only, do not immerse
Dishwasher Safe Parts	Glass bowl, blade, lid (upper basket)
Warranty	2 years (Sweden, Norway, Denmark, Finland)
Intended Use	Domestic only
Included Accessories	Measuring cup
Designed In	Sweden
Assembled In	China

Frequently Asked Questions - CHBL310 Champion

Can I blend hot liquids or ingredients?

No, do not put hot ingredients into the bowl. Allow food to cool for a few minutes before blending.

What is the maximum continuous operation time?

The maximum continuous operation time is 10 seconds. Use pulses with intermediate 10-second pauses.

Can I wash the blender parts in the dishwasher?

Yes, the glass bowl, blade, and lid can be cleaned in the dishwasher (upper basket). The motor unit must only be wiped with a damp sponge.

How should I clean the motor unit?

Use only a damp sponge to clean the motor unit. Never place it in water or under running water.

What is the warranty period and coverage?

Champion Nordic offers a 2-year warranty against manufacturing defects in Sweden, Norway, Denmark, and Finland. It covers home use only.

Can I use this blender for commercial purposes?

No, this blender is designed for domestic use only. Commercial use voids the warranty.

Why does my blender stop during operation?

The blender may stop if it exceeds the maximum continuous operation time (10 seconds) or if it is overloaded. Let it rest and reduce the quantity of ingredients.

What is the pulse function (P) used for?

The Pulse function provides short bursts of power for precise control, ideal for chopping or achieving desired consistency without over-processing.

Are the blades removable and how should I handle them?

Yes, the blade is removable for cleaning. Handle with caution as the blades are extremely sharp.

How do I properly lock the glass bowl onto the base?

Place the bowl onto the main body and turn it clockwise until it locks securely. Lift it slightly to check.

USER MANUAL CHBL310 Champion

Chamber of a modern kitchen blender with clear glass casing and control knob (no visible text or symbols)

EN - English

SV - Svenska

DA - Danske

NO - Norsk

FI - Suomi

Important Safeguards

EN

When using electrical appliances, to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including the following:

WARNING: The blades of the knife are extremely sharp. Handle them with caution.

1. Read all instructions carefully.
2. To protect against electric shock, do not place cord, plug or appliance in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless instructions concerning use of the appliance by a person responsible for their safety.
5. Unplug from outlet when not in use and before cleaning.
6. Do not operate any appliance with a damaged cord or plug, in case of appliance malfunctions or if the appliance has been damaged in any manner.
7. The use of accessory attachments not recommended by manufacturer may cause malfunctions.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter or touch hot surfaces.
10. Do not place the appliance on or near hot gas or electric burner, or in a heated oven.
11. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and guarantee is no more valid.
12. Do not use your food processor if any part is broken.
13. Do not put the appliance, the power cord or the plug into water or any other liquid.
14. Make sure that the cover is securely locked in place before operating the appliance.
15. Never place ingredients in the container by hand and while the appliance is in use. Always use the food pusher.
16. The blade and discs are sharp. Handle carefully. Store out of reach of children.
17. If the power cord or the plug are damaged, do not use your appliance.
18. For your own safety, please use only the original accessories and spare parts which are suitable for your appliance.
19. Never remove the lid until the knife has stopped completely.
20. This appliance is designed to process small quantities. Do not exceed the quantities indicated in these instructions for use.
21. Do not use this appliance to mix glutinous food or substance.
22. Do not use appliance for other than intended use.

Please read carefully and keep the instruction well.

Technical specification

Item number: CHBL310

Jar: 1,5L Glass

Voltage: 220-240V\~50/60Hz

Power: 600W

Class: II

Description

1. Measuring Cup
2. Lid
3. Glass Bowl
4. Blade
5. Glass Bowl Holder
6. Body
7. LED Indicator Light
8. Start Knob
9. Rubber Feet

EN

Using Your Appliance

Before first use, clean the glass jar and lid parts of the appliance.

Notes:

The start knob allows you to use 3 speeds and Pulse function:

Speed 1 (slow): rotate to position 1

Speed 2 (medium): rotate to position 2

Speed 3 (fast): rotate to position 3

P (Pulse function): rotate to position P

Mincing and Blending

1. Pour in the ingredients and cover the glass bowl (Fig. 1).

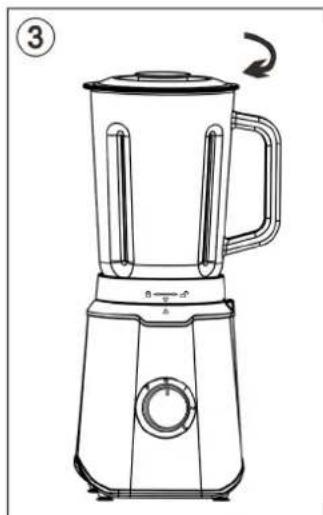

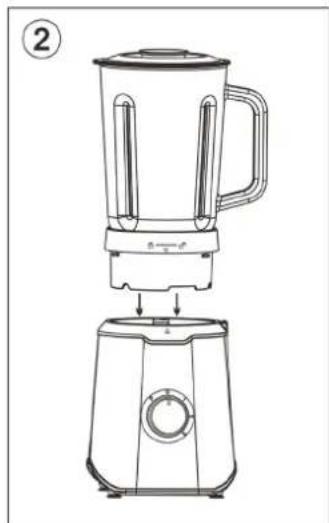

2. Then place the bowl into the main body (Fig. 2) and turn clockwise (Fig. 3). Lift the glass bowl to check that it is locked properly.
3. Plug in the appliance and rotate the start knob to which speed you need.
4. At the end of preparation, rotate the start knob to position 0, unplug the appliance and wait until the blades come to a complete stop.
5. Remove the glass bowl and take off the lid, then pour out the ingredients.

Line drawing of a blender with handle and lid, no text or symbols present

Line drawing of a blender with handle and side panel, showing top and bottom views (no text or symbols)

Line drawing of a kitchen blender with handle and control knob (no text or symbols)

Note: When mixing dry ingredients some extra liquid, e.g. water/milk/broth, may be required to allow ingredients to mix properly.

CAUTION: Maximum time of processing should not exceed 10 second continuous use. In order to achieve below processing times, use the appliance with pulses and intermediate 10 second pauses.

CAUTION: Never remove lid when appliance is working.

CAUTION: Do not add ingredients when appliance is working.

CAUTION: Do not operate the unit when empty.

CAUTION: Do not put hot ingredients into the bowl. Before food preparation, allow food to cool down for a few minutes.

CAUTION: Before you eat or serve blended food, always check for ingredients that might have not been blended adequately.

GENERAL: For better results, make sure that the quantity of ingredients fully covers the blade while chopping solid food.

Care & Cleaning

• Always unplug the appliance before cleaning.
- Only use a damp sponge to clean the motor unit. Never place it in water, or under running water.
- The bowl, the blade and the lid can all be cleaned in the dishwasher (upper basket).

Warranty

Champion Nordic guarantees that this product is free from manufacturing defects in terms of materials and workmanship during a period of 2 years in Sweden, Norway, Denmark and Finland. This warranty period begins on the day the product is purchased or delivered. Champion Nordic has no obligation to repair or replace products that are not accompanied by a valid proof of purchase. This warranty applies only to products purchased and used for home use and does not cover damage resulting from abuse, failure to comply with the instructions from Champion Nordic, cases in which the product has been modified or subjected to unauthorized repair, improper packaging on the part of the owner, normal wear and tear, or improper handling on the part of a transport company.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

Champion®

Makadamgatan 14 | 254 64 Helsingborg | Sweden [e-mail]

Designed in Sweden | Assembled in China

Line drawing of a blender with lid and handle, no text or symbols present

Line drawing of a blender with handle and side panel, showing top and bottom views (no text or symbols)

Line drawing of a blender with handle and control knob, no text or symbols present

Designed in Sweden I Assembled in China

DA

Brug af dit apparat

Line drawing of a blender with handle and lid, no text or symbols present

Line drawing of a blender with handle and lid, showing top and side views (no text or symbols)

Line drawing of a modern blender with handle and control knob (no text or symbols)

Designed in Sweden | Assembled in China

Bruk av apparatet

Line drawing of a blender with handle and lid, no text or symbols present

Line drawing of a blender with handle and side panel, showing top and bottom views (no text or symbols)

Line drawing of a blender with handle and side blades, no text or symbols present

Merk: Når du blander sammen tørre ingredienser kan det være nødvendig med litt ekstra væske, f.eks. vann/melk/buljong, for å blande ingrediensene ordentlig sammen.

Designed in Sweden | Assembled in China

FI

Line drawing of a blender with lid and handle, no text or symbols present

Line drawing of a blender with handle and side panel, showing top and bottom views (no text or symbols)

Line drawing of a blender with handle and control knob, no text or symbols present

Designed in Sweden | Assembled in China
