CHDS050 - Vacuum Cleaner Champion - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Champion
Model	CHDS050
Design Type	Canister Vacuum
Color	Black
Power Supply	Mains (120V / 230V, 50/60Hz)
Power Consumption	1200 W (typical)
Power Cord Length	5 m (optimal length marked in yellow)
Dust Collection Type	Disposable Dust Bag
Dust Capacity	2 L (approx.)
Suction Control	Manual slider on hose
Filtration	Washable foam filter (outlet), dust bag filter
Accessories Included	Floor brush (with retractable bristles), crevice nozzle
Floor Brush Modes	Hard floor (bristles extended) / Carpet (bristles retracted)
Weight	5 kg (approx.)
Dimensions (L x W x H)	30 x 25 x 45 cm (approx.)
Cable Rewind	Automatic with button
Intended Use	Household only
Safety Features	Thermal overload protection (implied by safety instructions)
Maintenance	Replace dust bag regularly; wash/air-dry foam filter; clean exterior with damp cloth
Repairability	Authorized service center for repairs; do not tamper
Warranty	Refer to sales conditions

Frequently Asked Questions - CHDS050 Champion

How do I attach the hose to the vacuum cleaner?

First unplug the vacuum cleaner. Slide the intake duct cover, insert the flexible tube into the air intake duct, and press until it clicks into place.

How do I replace the dust bag?

Unplug the vacuum. Press the locking block to open the front cover. Pull out the old dust bag by the card. Insert a new, clean bag and close the cover.

How often should I clean the filters?

When the filter is visibly full of dust, wash it with water (do not use washing machine) and let it air dry completely before reinstalling. Replace if damaged.

How do I rewind the power cord?

Press the cable rewind button. If the cord does not rewind completely, pull it out a little and press again; repeat until fully rewound.

What is the maximum cable length I should use?

Do not extend the cable beyond the red mark. The yellow mark indicates the optimal length for use.

Can I vacuum water or wet substances?

No. This vacuum is for dry use only. Never vacuum water, moist substances, or any liquids.

How do I switch between hard floor and carpet cleaning?

On the floor brush, extend the bristles for hard floors and retract them for carpet by sliding the selector.

What should I do if the suction seems weak?

Check if the dust bag is full and replace if necessary. Also clean the filters. Ensure the hose and tube are not blocked.

The vacuum cleaner stopped working. What could be wrong?

Check if it is plugged in and the power switch is on. If the cord is damaged or the motor overheats, do not use it; contact an authorized service center.

How should I clean the exterior of the vacuum?

Wipe with a soft cloth dampened with water and mild soap. Do not use petrol, oil-based cleaners, or allow water to enter the appliance.

USER MANUAL CHDS050 Champion

Black vacuum cleaner with coiled hose and handle, isolated on white background (no text or symbols visible)

EN - English

SE - Svenska

DK - Danske

NO - Norsk

FI - Suomi

Safety precautions

Before using this appliance, carefully read the instructions. Keep this manual with the appliance for future consultation.

EN

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Do not let children play with the packaging! Keep the plastic bag out of the reach of children - risk of suffocation!
4. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person to avoid any hazard.
5. This item is intended for household use only.
6. Before connecting the appliance, check that the technical data match the mains supply.
7. Do not use the vacuum cleaner for absorbing detergent, kerosene, glass, needle, cigarette ash, water etc.
8. Before the first operation, make sure the dust cup or the dust bag is properly installed.
9. Change the dust bag immediately if it is damaged.
10. The appliance should not be exposed to heat.
11. Do not vacuum any moist or liquid substances and never immerse the appliance into water.
12. Unplug the appliance from the mains supply socket by gently pulling the plug. Do not pull the cord, this can cause damage to the cord.
13. Do not put any large object in front of the openings. If any openings are blocked don not use the product.
14. Always keep the openings free from dust, hair etc.
15. Do not use the vacuum cleaner without dust container or dust filter in place.
16. Never immerse into water.
17. This appliance must be used only for the purpose for which it was designed, namely as a vacuum cleaner for home use. Any other use is considered not compliant and therefore dangerous.
18. Do not use the appliance with wet hands.
19. Do not pull the power cable or the appliance itself to remove the plug from the socket.
20. Do not expose the appliance to humidity or weather conditions (rain, sun, etc.).
21. Always disconnect the appliance from the mains supply before cleaning or performing maintenance and when the appliance is not in use.
22. If the appliance is defective, switch it off and do not tamper with it. Any repairs must only be carried out by an authorized technical service center
23. If the power cable is damaged it must be replaced by an authorized technical service center, to prevent all risks.
24. Never pull or lift the appliance by its cable.
25. Never point the flexible hose, pipe or any other accessory towards another person.
26. The power cable must always be fully unwound to prevent hazardous overheating.
27. Do not store or use the machine close to high temperature places.

Main Part identifications

A. Handle

B. Hose

C. Wind force adjuster

D. Tube

E. Floor brush

F. Cup clasp

G. Hose connector

H. Power switch

I. Cable rewind button

EN

How to use

Assembling the vacuum cleaner:

• Always remove the plug from the power socket before removing or fitting any accessories.

Fitting the flexible tube:

- Insert the flexible tube into the air intake duct on the appliance. To do this, slide the intake duct cover, insert the tube and press until it clicks into position.

Remove the flexible tube:

- Remove the plug from the power socket. To release the flexible tube, press the button on the end of the tube firmly.

Technical line drawing of two mechanical components with directional arrows indicating movement or assembly (no text or symbols present)

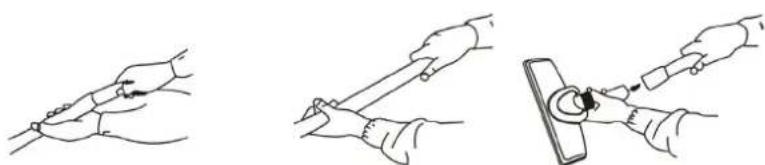

Removing the extension tube and accessories

- Pull firmly apart.

Three-step line drawings showing hand positioning and tool application (no text or symbols)

Using the machine

1. Pull the wire to suitable length. The YELLOW mark indicates the optimal length. To rewind the power cable, press the rewind button.
2. Insert the plug into power socket.
3. Press the ON/OFF button. The vacuum cleaner begins to work.
4. Press the switch to stop the machine.

Note: Don't extend the cable beyond the RED mark.

Note: If the power cable can't rewind completely, pull out the power cable a little bit and press the cord-rewinder button again. You can repeat the rewinding step until the cable is reinvinded completely

Line drawing of a vacuum cleaner connected to a wall socket and cable, with no text or symbols present.

Using the accessories

• Bristles extended for hard floor.
• Bristles retracted for carpet.
- Narrow nozzle is for cleaning corners, edges of drawers, curtains etc.

Line drawing of a tool applying material to a surface with grid background (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and base plate (no text or symbols)

Line drawing of a tool interacting with stacked rectangular objects (no text or symbols)

Simple line drawing of a hand holding a tool, no text or symbols present

How to clean the dust cabin

1. Press the locking block to open the front cover.
2. Pull out the dust bag by pulling the card.
3. Install a new, clean bag.
4. Close the cover.

Line drawing of a hand holding a small vacuum cleaner with a handle, showing internal components and a downward arrow indicating motion (no text or symbols present)

Line drawing of a handheld device with a handle and screwdriver, no text or symbols present

Maintenance

1. The dust-bag should be often replaced to avoid barrier.
2. When the filter is full of dust it should be washed or replaced. Don't wash the filter in the washing machine or dry it with electrical heater, re-fix it after drying the filter in the air
3. To clean or replace the air outlet filter, first detach the grille by pulling firmly away from the appliance.
4. Remove the filter from the appliance. Clean or replace the filter.
5. Don't clean the outer-shell of vacuum cleaner in petrol oil-like liquid. Rub it with water and soft soap liquid.

Note: Don't clean the machine with the cloth full of water. Don't let the water flow into the vacuum cleaner.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

CHAMPION

Champion®

Makadamgatan 14 | 254 64 Helsingborg | Sweden [e-mail]

Designed in Sweden | Assembled in China

SE

Användning

Technical line drawings of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Three line drawings showing hands performing a manual task: pulling a cable, adjusting a tool, and using a magnifying glass (no text or symbols)

Line drawing of a vacuum cleaner connected to a wall socket and cable, with no text or symbols present.

Line drawing of a tool applying material to a surface with a magnified inset (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and base plate (no text or symbols)

Line drawing of a tool interacting with a stack of books (no text or symbols present)

Simple line drawing of a hand holding a handheld device (no text or symbols)

Line drawing of a hand holding a small vacuum cleaner with a handle and ventilation slots (no text or symbols)

Line drawing of a handheld device with a handle and screwdriver, no text or symbols present

Underhåll

Designed in Sweden | Assembled in China

DK

Anvendelse

Technical line drawings of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Three-step line drawings showing hand positioning and tool application (no text or symbols)

Brug af maskinen

Line drawing of a vacuum cleaner connected to a wall socket and cable (no text or symbols)

Brug af tilbehør

Line drawing of a tool applying material to a surface with grid lines (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and base plate (no text or symbols)

Line drawing of a tool interacting with stacked rectangular objects (no text or symbols)

Simple line drawing of a hand holding a tool, no text or symbols present

Line drawing of a hand holding a small vacuum cleaner with a handle, showing internal components and a downward arrow indicating motion (no text or symbols present)

Line drawing of a handheld device with a hand adjusting its grip (no text or symbols)

Vedligeholdelse

Designed in Sweden | Assembled in China

Sikkerhetstiltak

NO

Bruksanvisning

Sett sammen støvsugeren:

Technical line drawing of a mechanical device with two views showing internal components and directional arrows (no text or symbols)

Three-step line drawing showing a hand holding a tool, then adjusting the tool with a magnifying glass (no text or symbols)

Bruk av maskinen

Line drawing of a hand holding a cable connected to a small electrical outlet (no text or symbols)

Bruk av tilbehør

Line drawing of a tool applying material to a surface with grid lines (no text or symbols)

Technical line drawing of a tool applying material to a grid-patterned surface (no text or symbols)

Line drawing of a mechanical component interacting with stacked vertical bars (no text or symbols)

Simple line drawing of a hand holding a device with motion lines indicating movement (no text or symbols)

Line drawing of a hand holding a small vacuum cleaner with a handle and ventilation grille (no text or symbols)

Line drawing of a handheld device with a hand adjusting its grip (no text or symbols)

Vedlikehold

Champion ® Makadamgatan 14 | 254 64 Helsingborg | Sweden [e-mail] Designed in Sweden | Assembled in China

Turvaohjeita

FI

Käyttöohjeet

Technical line drawings of a mechanical device with two views (no text or symbols)

Three-step line drawings showing a hand holding a tool, a close-up of the tool, and a magnifying glass (no text or symbols)

Line drawing of a hand holding a cylindrical tool next to a vacuum cleaner connected to a wall socket (no text or symbols)

Illustration of a hand using a tool to lift a circular object on a flat surface (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and base plate (no text or symbols)

Line drawing of a tool interacting with a stack of books (no text or symbols present)

Line drawing of a hand holding a handheld device with motion lines indicating movement (no text or symbols)

Line drawing of a hand holding a small device with a handle and ventilation slots (no text or symbols)

Line drawing of a handheld device with a handle and screwdriver, no text or symbols present

Huolto

Designed in Sweden | Assembled in China
