Product Type	Freezer
Brand	Eta
Model	136090010
Height (cm)	85
Width (cm)	60
Depth (cm)	60
Weight (kg)	30
Energy Class	F
Annual Energy Consumption (kWh)	220
Voltage (V)	220-240
Frequency (Hz)	50
Net Capacity (L)	100
Freezing Capacity (kg/24h)	10
Storage Time During Power Failure (h)	12
Climate Class	N
Noise Level (dB)	40
Defrosting Method	Manual
Reversible Door	Yes
Adjustable Feet	Yes
Interior Light	No
Temperature Control	Dial
Refrigerant Type	R600a
Suitable for Outdoor Use	No
Spare Parts Availability	7 years
Manual Languages	CS, EN, HU, SK

Frequently Asked Questions - 136090010 Eta

What is the ideal temperature setting for my Eta freezer?

The recommended temperature for freezing is -18°C. Adjust the dial accordingly. For optimal performance, keep the freezer at this temperature.

How often should I defrost the freezer?

Defrost when frost reaches 5-10 mm thickness. Manual defrosting is required. Unplug the unit, remove food, and let ice melt naturally. Do not use sharp tools.

What does the energy class F mean?

Energy class F indicates a standard efficiency level. Annual consumption is around 220 kWh. To save energy, keep the freezer full and avoid frequent door openings.

Is the door reversible?

Yes, the door can be reversed to open from the left or right. Refer to the manual for step-by-step instructions on changing the door swing.

Why is my freezer making unusual noises?

Normal operating sounds include humming from the compressor, clicking from the thermostat, and gurgling from refrigerant. If noise is excessive, check leveling and ensure it‘s not touching walls.

How do I clean the freezer?

Unplug and remove food. Wash interior with mild detergent and warm water. Rinse and dry thoroughly. Clean exterior with a damp cloth. Avoid abrasive cleaners.

Can I store frozen food during a power outage?

The freezer can keep food frozen for up to 12 hours if unopened. Keep the door closed. After power returns, check food condition and discard any thawed items.

What is the freezing capacity?

The maximum amount of fresh food that can be frozen in 24 hours is 10 kg. Do not exceed this limit to maintain temperature.

Where can I find spare parts?

Spare parts are available for 7 years after purchase. Contact Eta customer service or authorized dealers. Common parts include shelves and thermostat.

How do I adjust the feet for leveling?

Turn the adjustable feet clockwise to raise or counterclockwise to lower the freezer. Use a spirit level to ensure stability. This reduces vibration and noise.

USER MANUAL 136090010 Eta

Exterior view of a modern stainless steel refrigerator with dual doors and a digital display (no visible text or symbols)

CZ I. BEZPEČNOSTNÍ INFORMACE 3

II. VYOBRAZENÍ 8

III. DEMONTÁŽ DVEŘÍ 8

IV. INSTALACE 10

V. KAŽDODENNÍ POUŽÍVÁNÍ 11

Technical line drawing of a refrigerator with three circular insets showing internal components (no text or symbols)

Line drawing of a rectangular refrigerator with a right-pointing arrow indicating direction (no text or symbols)

Pure mechanical assembly diagram showing a lever and bracket (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with mounting brackets and a hand holding a tool (no text or symbols)

Line drawing of a door with open lid and side door (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted (no text or symbols)

Technical line drawing of a dual-side container mechanism with wheels and a central tank (no text or symbols)

Line drawing of a hand cleaning or filtering a shelf with a tool (no text or symbols)

Simple line drawing of a container with two upward arrows indicating flow or movement (no text or symbols)

Diagram of a dual-chamber air conditioner unit with two circular gauges and heat exchangers (no text or symbols)

Line drawing of a rectangular cabinet with two circular components on one side (no text or symbols)

Technical line drawing of a mechanical device with two circular insets showing top and front views (no text or symbols)

Line drawing of a refrigerator with a right-pointing arrow indicating direction (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a handle (no text or symbols)

Line drawing of a door with open lid and side panel, no text or symbols present

Technical line drawing of a mechanical assembly with a screwdriver inserted (no text or symbols)

Technical line drawing of a dual-side container mechanism with wheels and a horizontal base (no text or symbols)

Line drawing of a hand cleaning or adjusting a shelf with a tool (no text or symbols)

Simple diagram of a container with two upward arrows inside, no text or symbols present

Diagram of a dual air conditioner unit with cooling fans and heat exchangers (no text or symbols)

• In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.
• For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

!

WARNING!

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

!

WARNING!

Do not damage the refrigerant circuit.

!

WARNING!

Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

!

WARNING!

Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

!

WARNING!

When positioning the appliance, ensure the supply cord is not trapped or damaged.

!

WARNING!

Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

!

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition

• thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
  • This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

!

WARNING!

Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

!

WARNING!

The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

1) If there is a light in the compartment.
2) If there is a freezer compartment.
3) If there is a fresh-food storage compartment.

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp. ^1)
• This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. 2)
• Store pre-packed frozen food in accordance with the frozen food, manufacture s instructions. 2)
• Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^2)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^2)

To avoid contamination of food, please respect following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces, that can come into contact with food and accessible drainage systems.
• Clean water tanks, if they have not been used for 48 h, flush the water system connected to a water supply, if water has not been drawn for 5 days (if they are presented in the appliance).
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
  • One-, two- and three-star compartments (if they are presented in the
• Appliance) are not suitable for freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^2)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in te bottom of the appliance. ^3)

Installation

IMPORTANT!

For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
  • The appliance must not be located close to radiators or cookers.
  • Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energysaving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating:
• Make sure food don't touch the back of the compartment(s):
• If electricity goes off, don't open the door(s):
• Don't open the door(s) frequently:
• Don't keep the door(s) open for too long time:
• Don't set the thermostat on exceeding cold temperatures:
• Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

1) If there is a light in the compartment.
2) If there is a freezer compartment.
3) If there is a fresh-food storage compartment.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

- The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1) Disconnect the mains plug from the mains socket.
2) Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using, service and disposal.

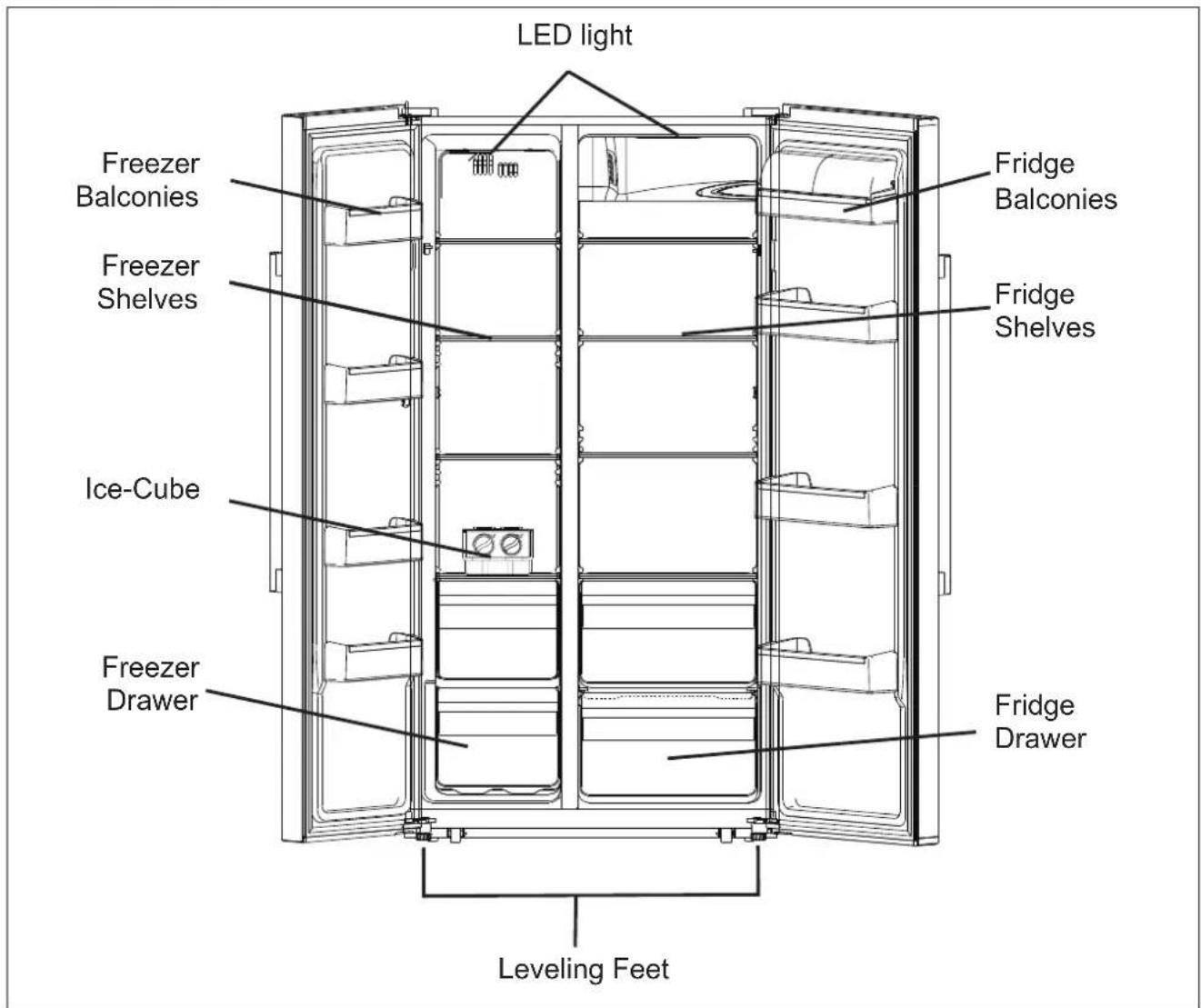

II. OVERVIEW

Note: Above picture is for reference only. Real appliance may be a little bit different.

III. REMOVE THE DOORS

If kitchen door is not wide enough to pass the refrigerator, handle and doors can be removed according to bellow process.

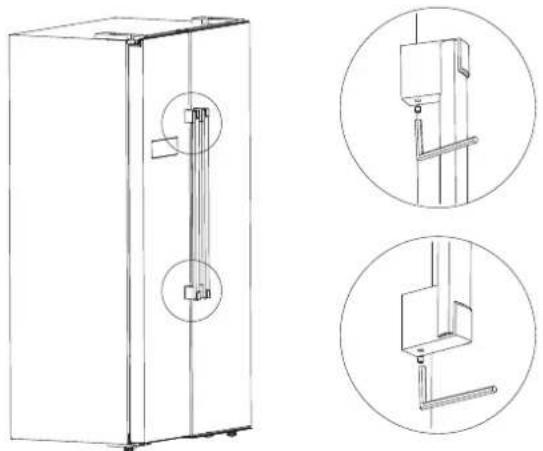

Remove the handles

Toolrequired: hex wrench in accessory bag.

• Ensure the unit is unplugged and empty.

• All parts removed must be saved to do the reinstallation of the door.

• Unscrew handles with Hex wrench.

Technical line drawing of a refrigerator with three circular insets showing internal components (no text or symbols)

1. Pull the handles to remove them.

Line drawing of a rectangular cabinet with a right-pointing arrow indicating direction (no text or symbols)

1. After the appliance is positioned, install the handles as reversed process.

Remove the doors

Tool required: Philips screwdriver, Flat bladed screwdriver.

• Ensure the unit is unplugged and empty.

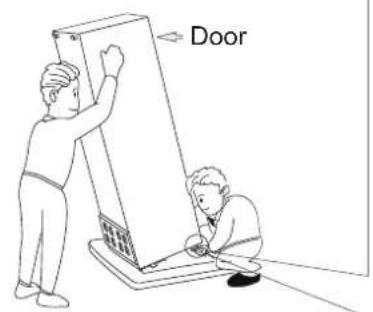

• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid
  • so that it will not slip during the door removing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.

• Unscrew hinge cover by Philips screwdriver.

Pure mechanical assembly diagram showing a lever and base plate without any text or symbols

1. Disconnect the harness.

Pure technical line drawing of a mechanical assembly or bracket (no text or symbols)

1. Unscrew top hinge.

Technical line drawing of a mechanical assembly with mounting holes and structural supports (no text or symbols)

1. Lift the door and place it on a soft pad. Then remove another door as same process.

Line drawing of a door with open lid and side panel, no text or symbols present

1. Unscrew bottom hinges.

Technical line drawing of a mechanical assembly with a screwdriver inserted (no text or symbols)

1. After the appliance is positioned, install the doors as reversed process.

IV. INSTALLATION

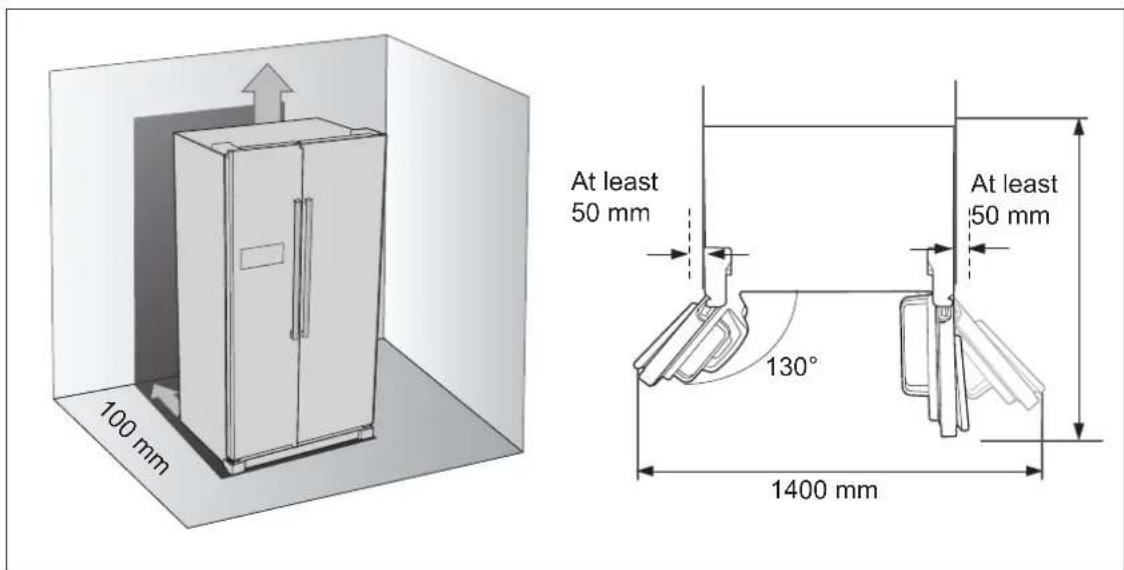

Space Requirement

• Select a location without direct exposure to sunlight;
• Select a location with enough space for the refrigerator doors to open easily;
• Select a location with level (or nearly level) flooring;
• Allow sufficient space to install the refrigerator on a flat surface;
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.

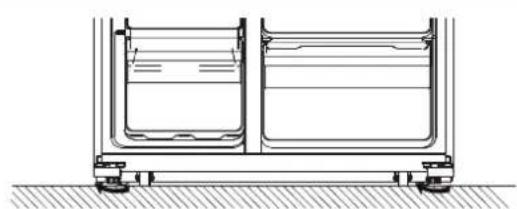

Levelling and anchor the refrigerator

Technical line drawing of a dual-side container mechanism with wheels and a horizontal base (no text or symbols)

Leveling and anchor the refrigerator by adjust the feet.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class Ambient temperature
SN +10 °C	to +32 °C
N +16 °C	to +32 °C
ST +16 °C	to +38 °C
T +16 °C	to +43 °C

WARNING!

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

!

Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
• The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

V. DAILY USE

First use / cleaning the interior

- Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

IMPORTANT!

Do not use detergents or abrasive powders, as these will damage the finish.

!

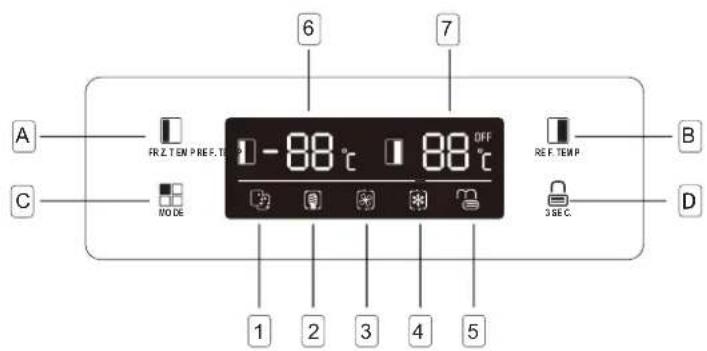

Using the Control Panel

Buttons

A Press to adjust temperature of freezer compartment (left side) from -14 C to -22 C.
B Press to adjust temperature of fridge compartment (right side) from 2 C to 8 C and "OFF". If select "OFF", fridge compartment will be turned off.
C Press to select running mode from SMART, ECO, SUPER COOLING, SUPER FREEZING and USER'S SETTING (no symbol in display).
D Press 3 SEC. button and hold for 3 seconds to lock other three buttons.
Press it and hold for 1 second to unlock other three buttons.

Display

1 SMART mode, the refrigerator sets the temperature of two compartments automatically according to internal temperature and ambient temperature.
2 ECO mode, the refrigerator runs in lowest energy consumption setting.
3 SUPER COOLING cools the fridge compartment to the lowest temperature for approx.
2 hours. Then the temperature set before super mode is automatically restored.
4 SUPER FREEZING cools the freezer compartment to the lowest temperature for approx. 6 hours. Then the temperature set before super mode is automatically restored.
5 LOCK, the symbol will light on if buttons are locked.
6 Display the setting temperature of freezer compartment.
7 Display the setting temperature of fridge compartment.

Door Open Alarm

If one door keeps open for 90 seconds, periodical alarm will be arisen until the door is closed.

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment (if the appliance contains more than one partition in the freezer).
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance be set in super freezing mode (if available on your appliance).

IMPORTANT!

In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time" (see: "Time of storage in case of the power interruption...), the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand holding a shelf with a tray (no text or symbols)

Positioning the door balconies

To permit storage of food packages of various sizes, the door balconies can be removed. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free.

Diagram of a container with two upward arrows indicating flow or movement (no text or symbols)

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

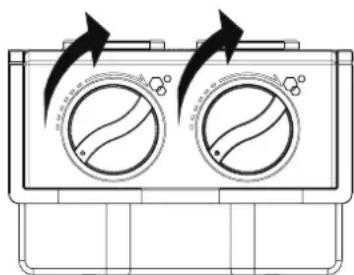

Use ICE-CUBE: 1)

1. Slide the ice trays out of the ice box and then remove the cover.
2. First using, please clean the ice-cube totally.
3. Fill the ice trays with potable water and them attached the cover.
4. Carefully slide the ice trays to ice box and then put ice-cube on one glass shelf of freezer compartment.
5. Wait until the ice form in the ice-cube. Rotate the knob as right picture and then ice will fall into the ice box.

Diagram of a washing machine with two circular gauges and directional arrows indicating motion (no text or symbols)

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• Make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
• Not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavour
• Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Position different food in different compartments according to below table

Refrigerator compartments Type of food
Door or balconies of fridge compartment	* Food with natural preservatives, such as jams, juices, drinks, condiments* Do not store perishable foods
Crisper drawer (salad drawer)	* Fruit, herbs and vegetables should be placed separately in the crisper bin* Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf - bottom Chiller (box/drawer)	* Raw meat, poultry, fish (for short-term storage)
Fridge shelf - middle * Dairy products, eggs
Fridge shelf - top	* Foods tha do not need cooking, such as ready-to-eat foods, deli meats, leftovers

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

CAUTION!

The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

IMPORTANT!

Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact qualified technician.

Defrosting of the freezer

• This appliance is equipped with NO FROST technology, so the frost cover is not appearing inside of the freezer.
• The appliance is maintenance free from this perspective. Any excess moisture from the freezer (and cooler) is removed automatically.

VI. TROUBLESHOOTING

CAUTION!

Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

!

IMPORTANT!

There are some sounds during normal use (compressor, refrigerant circulation). These sounds are not a reason for complaint!

!

Problem Possible cause Solution

Appliance does not work	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective (circuit breaker is OFF).	Check fuse, replace if necessary (switch ON the circuit breaker).
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Problem Possible cause Solution
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much Temperature is set too cold.		Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	Appliance is not level. Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

VII. INFORMATION LETTER

Brand	ETA
Model 136090010
Type of appliance3)	7
Energy class(A - low consumption,G - high consumption)	A+
Consumption for 365 days1)	401
Net capacity total(I) 517
thereof : fridge compartment (I) 345
thereof : freezer compartment(I) 172
Designation of freezer compartment * (***)
Time of storage in case of the power interruption (hrs)	8,3
Freezing capacity (kg/24 hrs) 10
Climatic class2)	ST
Noise level dB (A) 43

1)

Consumption of energy in kWh/year, based on the results of the 24hrs-standard test. Real consumption depends on the way of use and on the allocation of the appliance.

2)

SN : surround. temp. from + 10 °C to + 32 °C N : surround. temp. from + 16 °C to + 32 °C ST : surround. temp. from + 16 °C to + 38 °C T : surround. temp. from + 16 °C to + 43 °C

3)

3 = fridge with low-temp. compartments 4 = fridge with low-temp. compartments (*) 5 = fridge with low-temp. compartments (**) 7 = fridge with low-temp. compartments * (***) 8 = freezer 9 = freezer

This refrigerator must be used in ambient temperature between +16 °C and +38 °C, if the refrigerator is located in ambient temperature out of the given range, may not function properly).

We reserve the right to change technical specifications.

For any further information, please write to: [e-mail]

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE ACT IS UNDER A DANGEROUS TENTION.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

HOUSEHOLD USE ONLY

DO NOT IMMERSE IN WATER OR OTHER LIQUIDS

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

Hütöszekrény

eta 136090010

I. BIZTONSÁGI INFORMÁCIÓK

Line drawing of a rectangular cabinet with two circular components on one side (no text or symbols)

Technical line drawing of two mechanical components with mounting brackets and a vertical rod, shown in circular views (no text or symbols)

Line drawing of a rectangular cabinet with a right-pointing arrow indicating direction (no text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure technical line drawing of a mechanical assembly or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a handle (no text or symbols)

Line drawing of a door with open lid and side door, no text or symbols present

Technical line drawing of a mechanical assembly with a tool and component (no text or symbols)

Technical line drawing of a dual-side container mechanism with wheels and a horizontal base (no text or symbols)

Illustration showing a hand cleaning a shelf and pouring liquid into a container with upward arrows (no text or symbols)

Diagram of a dual air conditioner unit with two circular gauges and directional arrows indicating airflow or movement (no text or symbols)
