Product Type	Freestanding Refrigerator-Freezer
Brand	Concept
Model	LA8983SS
Energy Class	A+
Annual Energy Consumption	362 kWh
Total Volume	517 L
Refrigerator Volume	377 L
Freezer Volume	70 L + 70 L (two drawers)
Freezing Capacity	15 kg / 24 h
Storage Time During Power Failure	15 h
Climate Class	SN/N/ST/T
Noise Level	42 dB (A)
Dimensions (H x W x D)	1935 x 833 x 745 mm
Weight	115 kg
Power Input	262 W
Voltage / Frequency	220–240 V ~ 50 Hz
Refrigerant	Not specified (standard R600a or similar)
Control Panel	Touch sensor with digital display
Temperature Settings (Refrigerator)	2 °C to 8 °C
Temperature Settings (Freezer)	-16 °C to -24 °C
Variable Zone Temperature Range	-18 °C to 7 °C (with off option)
Special Functions	Super Cool, Super Freeze, Vacation, Control Lock
Door Alarm	Yes, after 2 minutes open
Defrosting	Automatic (no frost) in freezer? Actually manual defrost mentioned? But typical frost-free. Not specified clearly so omit.
Cleaning	Non-abrasive, lukewarm water, soft cloth
Installation Clearance	10 cm from back and sides, 30 cm above

Frequently Asked Questions - LA8983SS Concept

How do I set the temperature of the freezer?

Unlock the control panel by pressing and holding sensor E for 3 seconds. Then press sensor C to adjust the temperature in 1 °C steps. The freezer temperature range is -16 °C to -24 °C.

What is the Super Freeze function and how long does it last?

Super Freeze automatically sets the freezer to -24 °C for rapid freezing. The default duration is 48 hours, but you can change it to 6 hours by pressing and holding sensor C for 5 seconds.

How do I lock the control panel?

Press and hold sensor E for 3 seconds to manually lock the panel. The panel also locks automatically after 30 seconds of inactivity.

What does the Vacation function do?

The Vacation function sets the freezer to -16 °C and switches off the refrigerator (or the entire appliance?) Actually it sets freezer to -16°C and switches off the refrigerator compartment.

How long should I wait before plugging in after installation?

After installation, let the appliance stand still for at least 4 hours before connecting to the mains to allow refrigerant gases to settle.

What are the error codes and what do they mean?

Error codes include: E1 (refrigerator sensor), E2 (freezer sensor), E3 (variable zone sensor), E4 (refrigerator defrost sensor), E5 (freezer defrost sensor), E6 (communication failure), E7 (ambient temperature sensor), E8 (variable zone defrost sensor), EH (humidity sensor). Contact service if an error appears.

Can I use the appliance without the variable zone?

Yes, you can switch off the variable zone completely by pressing and holding sensor B for 5 seconds.

What type of cleaning products should I use?

Use non-abrasive products like clear lukewarm water with a soft sponge or paper towel. Avoid alcohol, acetone, oil, toothpaste, or any abrasive cleaners. Do not use boiling water or a stream of water.

How do I defrost the freezer?

The manual does not specify a manual defrost process. It likely has automatic defrost (no frost). For manual defrost, typically you would unplug, remove food, and let ice melt. Follow general recommendations.

What is the recommended clearance around the appliance?

Keep at least 10 cm from the wall at the back and both sides. There should be about 30 cm free space above the appliance for proper ventilation.

USER MANUAL LA8983SS Concept

PODĚKOVÁNÍ

POPIS OVLÁDACÍHO PANELU

POPIS OVLÁDACIEHO PANELU

OPIS PANELU STEROWANIA

VADĪBAS PANELA APRAKSTS

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using this product is familiar with the instructions.

TABLE OF CONTENTS

TECHNICAL SPECIFICATIONS....35

IMPORTANT SAFETY INFORMATION....36

PRODUCT DESCRIPTION....38

CONTROL PANEL DESCRIPTION....38

USER'S MANUAL 39

CLEANING AND MAINTENANCE 41

SERVICE CENTRE 41

ENVIRONMENTAL PROTECTION 42

TECHNICAL SPECIFICATIONS
Energy class A+
Annual power consumption 362 kWh
Daily power consumption 0.99 kWh
Total volume 517 l
Usable volume (refrigerator/freezer) 377 l / 70 + 70 l
Freezing capacity 15 kg / 24 hours
Freezer accumulation time 15 hours
Climate class SN / N / ST/ T
Noise level 42 dB (A)
Height 1935 mm
Width 833 mm
Depth 745 mm
Input 262 W
Voltage	220–240 V ~ 50 Hz
Weight 115 kg

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

IMPORTANT SAFETY INFORMATION

Upon a delivery of a freestanding refrigerator freezer

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to get cut when handling an uninstalled unit.
• Do not install the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any other way than as described in this manual.
  • Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance.
  • This appliance can be used in households and similar places like:

- kitchen cabinets in shops, offices and other workplaces

• appliances used in agriculture
• appliances used by guests in hotels and other areas in a hotel environment

• appliances used in a Bed and Breakfast environment

• Do not use the appliance if you are barefoot.

• Do not touch the appliance with wet hands.
• Do not stand or sit on the open door of the appliance.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
  • Children should not play with the appliance.
• Pay extra attention if the appliance is used near children.
• Do not allow the appliance to be used as a toy.
• This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.
• If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not immerse the power cord or the plug in water or any other liquid.
• Check the appliance and the power cord for damage regularly.
• Do not switch on the appliance if it has been damaged.
• Do not use the appliance if the door or the door seals are damaged. Call the authorised service centre.
• Do not use any accessories other than those recommended by the manufacturer.
• Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.
• Before switching on, let the appliance stand still for at least 4 hours to settle the refrigerant gases in the compressor after shipping.
• Use the appliance in a room with temperatures between +10^ C and +32^ C .
• Do not place the appliance near heat sources, it may increase its consumption and shorten the service life.
  • Make sure there is enough free space around the appliance for free circulation of air.
• Do not place any objects on the top of the appliance, as it could damage the appliance.
• Do not place any electrical devices such as mixers and others in the appliance.
• Do not store explosive substances such as aerosol cans with a flammable substance in the appliance,
• Before use, it is necessary to wipe the inside of the appliance with a solution of baking soda dissolved in tepid water. After cleaning, dry all parts thoroughly.
  • Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
• NOTICE! Do not use mechanical devices or other means to speed up the defrosting process other than those recommended by the manufacturer.

• Place the appliance on a flat place in a well-ventilated are.

• Do not place the appliance under the direct sun shine.

• The appliance should be at least 10 cm from the wall at the back and both sides. There should be a free space of approximately 30 cm above the appliance as it needs to ventilate freely.

CAUTION!

To avoid injury, open the oven door only for a short period of time to insert or remove food. Children may lock themselves inside the appliance (risk of suffocation) or be exposed to other dangers.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs, the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

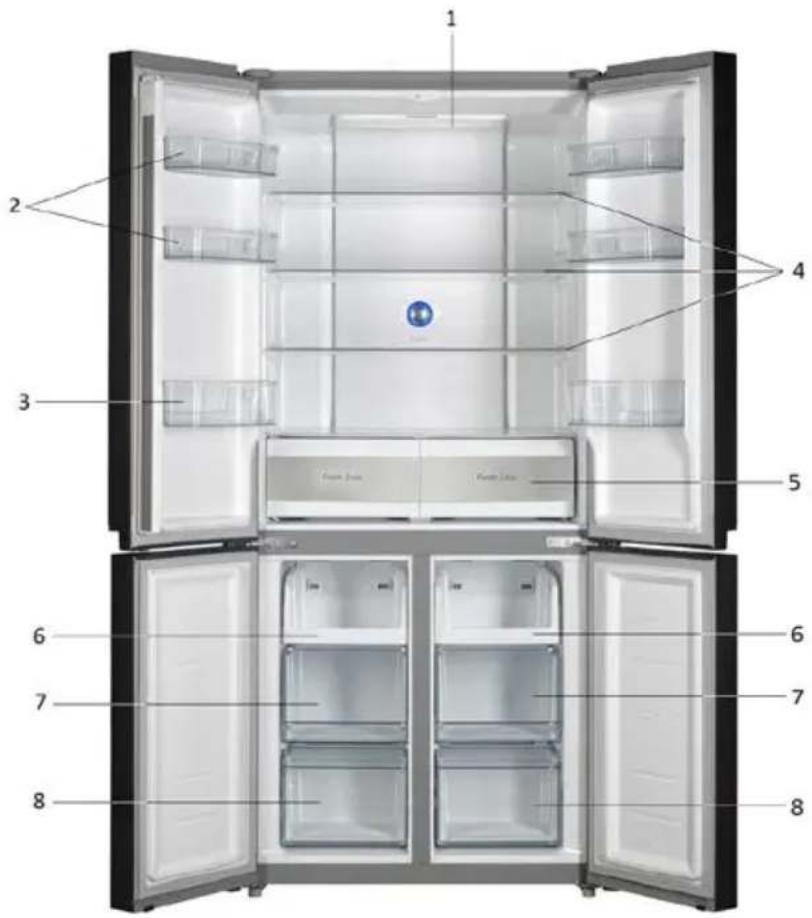

PRODUCT DESCRIPTION

1 Refrigerator lighting
2 Butter and cheese compartment
3 Bottle compartment
4 Glass shelves
5 Fruit and vegetable drawers
6 Upper freezer drawer
7 Middle freezer drawer
8 Lower freezer drawer

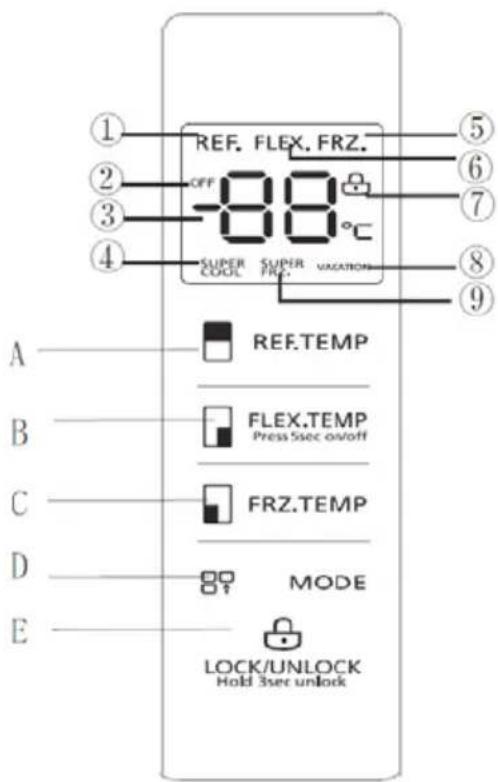

CONTROL PANEL DESCRIPTION

Display with icons

1 Cooling icon
2 Off icon
3 Display - temperature
4 Super Cool icon
5 Freezing icon
6 Setting the Temperature Variable Zone icon
7 Control Panel Lock/Unlock icon
8 Vacation function icon
9 Super Freeze icon

Control buttons of the panel

A Sensor button - refrigerator temperature setting
B Sensor button - variable zone temperature setting
C Sensor button - freezer temperature setting
D Sensor button - selecting additional functions
E Sensor button - locking/unlocking the control panel

Display

The display lights for 3 seconds, when the appliance is connected to the mains. After that, a beep sound occurs and the display switches splayed in operation mode. In operation mode, the actual set temperature of each zone is displayed. Default temperatures for the individual zone are pre-set at 5 °C / -18 °C / -18 °C.

If an error occurs, the error code will be shown on the display. If the door does not get open opened and any other activity is not done within 30 seconds, the control panel gets locked. After another 30 seconds of inactivity, the display goes off completely. The display lights up again when any of the buttons on the control panel is pressed or the door is opened.

USER'S MANUAL

Before first use

Before first use you should wipe the outside and inside of the appliance with a damp cloth for hygiene reasons. Wash all removable parts with warm soapy water.

After installing the refrigerator, leave the appliance standstill for at least 4 hours before connecting to the mains. It is necessary to allow the cooling gases to set down. Then you can connect the refrigerator to the mains and let it run for 2-3 hours to stabilize a normal operating temperature. Then put fresh or frozen food inside the appliance.

Note: If a power failure occurs during the first run, wait for at least 5 minutes before switching on again or connecting to the mains.

Setting the Temperature of Refrigerator Zone

• Press and hold the sensor "E" for 3 seconds to unlock the control panel.
• Use the sensor "A" to adjust the temperature by 1 °C steps.
• The temperature of the refrigerator zone can be set between 2 and 8^ .

Setting the Temperature of Freezer Zone

• Press and hold the sensor "E" for 3 seconds to unlock the control panel.
• Use the sensor "C" to adjust the temperature by 1 °C steps.
• The temperature of the freezer zone can be set between -16 and -24 °C.

Setting the Temperature of the Variable Zone

• Press and hold the sensor "E" for 3 seconds to unlock the control panel.
• Use the sensor "B" to adjust the temperature by 1^ steps.
• The temperature of the variable zone can be set between -18 and 7 °C.
• To completely switch off the variable zone, hold the "B" sensor for 5 seconds.

Locking/Unlocking of the Control Panel

• Press and hold the sensor "E" for 3 seconds to unlock the control panel.
  • The control panel gets locked automatically after a short period of inactivity to prevent accidental resetting.
• You can lock the control panel manually by pressing the "E" button for 3 seconds.

Door Alarm

• The refrigerator is equipped with a sound alarm which is triggered every time the door gets opened.
• If the door does not get closed within 2 minutes from opening, a beep sounds will occur every minute until the door is completely closed.

Adding Functions

• Press and hold the sensor "E" for 3 seconds to unlock the control panel.
• Press the sensor "D" to select between Super Cool, Super Freeze, Vacation functions.

Super Cool Function

• The super cool function automatically sets the temperature of the refrigerator zone to 2^ C .
• Turn off the function to return the set temperature values.

Super Freeze Function

• The super freeze function automatically sets the temperature of the refrigerator zone to -24 °C.
• The super freeze function lasts for 48 hours as default.
- Press and hold the sensor "C" for 5 seconds to set the period to 6 hours.
• The display will show "6" instead of "48".
- When the function turns of automatically to temperature will return to set values.

Vacation Function

- The Vacation function automatically sets the freezer to -16^ and switches off the refrigerator.

Tips for use

• Each time you open the appliance door, a warm air gets inside. That creates an under pressure inside the appliance. It may take a few moments before the pressure gets equalised and it will be possible to open the door easily.
• We do not recommend putting hot food or fluids that are still evaporating inside the appliance. It will increase the humidity inside the refrigerator.
• Food intended for refrigerating should be wrapped or covered. It is recommended to use plastic bags, kitchen foil or food paper. Liquids should be stored in closed containers or bottles.

It can be caused by expanding and shrinking of the items inside the refrigerator and freezer.

Short cracking

It can be heard when the thermostat turns on and off the compressor.

Noise of the compressor

Running compressor produces noise. After the installation of the appliance, the compressor may be a little louder for a short time.

Bubbling and flowing

This sound is generated when the refrigerant is flowing through the appliance pipes.

Sound of running water

Water flows into the evaporator groove during the defrosting process and it is audible throughout the defrosting process.

Connection to the mains

• Be sure that the voltage and current match the values on the appliance rating plate. We recommend using a separate outlet with a 16 A circuit breaker.
• Only use grounded sockets.
• Do not use multiple sockets, plugs and extension cords. There is a risk of overheating.
• The plug of the power cord on the appliance must be freely accessible even after the installation.
  • Changes in a connection may only be performed by a qualified professional.
• Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.
• The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.
• The power cord must be positioned in a way it does not come into contact with hot parts of the appliance and it is not being deformed or excessively bent.

CLEANING AND MAINTENANCE

• Disconnect the power cord from the wall outlet or switch off the circuit breaker of the appliance before cleaning and maintenance.
• Dust and dirt on the appliance on the wall and on the ground should be regularly cleaned for trouble-free operation and energy savings.
  • The inside of the refrigerator should be cleaned according to the frequency of use to avoid unpleasant odours.
• For cleaning, we recommend using non-aggressive products; preferably clear lukewarm water along with a soft sponge or paper towel.
• When the cleaning is done, let the appliance open to dry out naturally.
• For cleaning, we do not recommend cleaning agents such as alcohol, acetone, oil, toothpaste or any other abrasive products.
  • We do not recommend rough brushes, hard wipes or steel brushes.
  • We do not recommend using boiling water as it may cause damage to the appliance.
• We do not recommend cleaning the appliance with a stream of water that could interfere with the insulation or cause a short circuit of some electronic components of the appliance.

SERVICE CENTRE

CAUTION!

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

Error Messages:

E1 - Error of the refrigerator sensor
E2 - Error of the freezer sensor
E3 - Error of the variable zone sensor
E4 - Error of the refrigerator defrosting sensor
E5 - Error of the freezer defrosting sensor
E6 – Communication failure
E7 - Error of the ambient temperature sensor
E8 - Error of the variable zone defrost sensor
EH - Error of the humidity sensor

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
  • The transport box may be disposed of as sorted waste.
  • Polyethylene bags shall be handed over for recycling.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

CONCEPT POLSKA sp. z o.o.

Ostrowskiego 30, 53-238 Wroclaw Tel.: [phone], Fax: [phone] www.my-concept.pl

Verners VT Ltd.

Piedrujas iela 5a, Riga, Latvia Tel. + 371 67021021, fakss + 371 67021000 e-pasts: [e-mail], www.verners.lv
