Product Type	Freestanding Dishwasher
Brand	Eta
Model	238190010
Capacity	12 Place Settings
Energy Class	A++

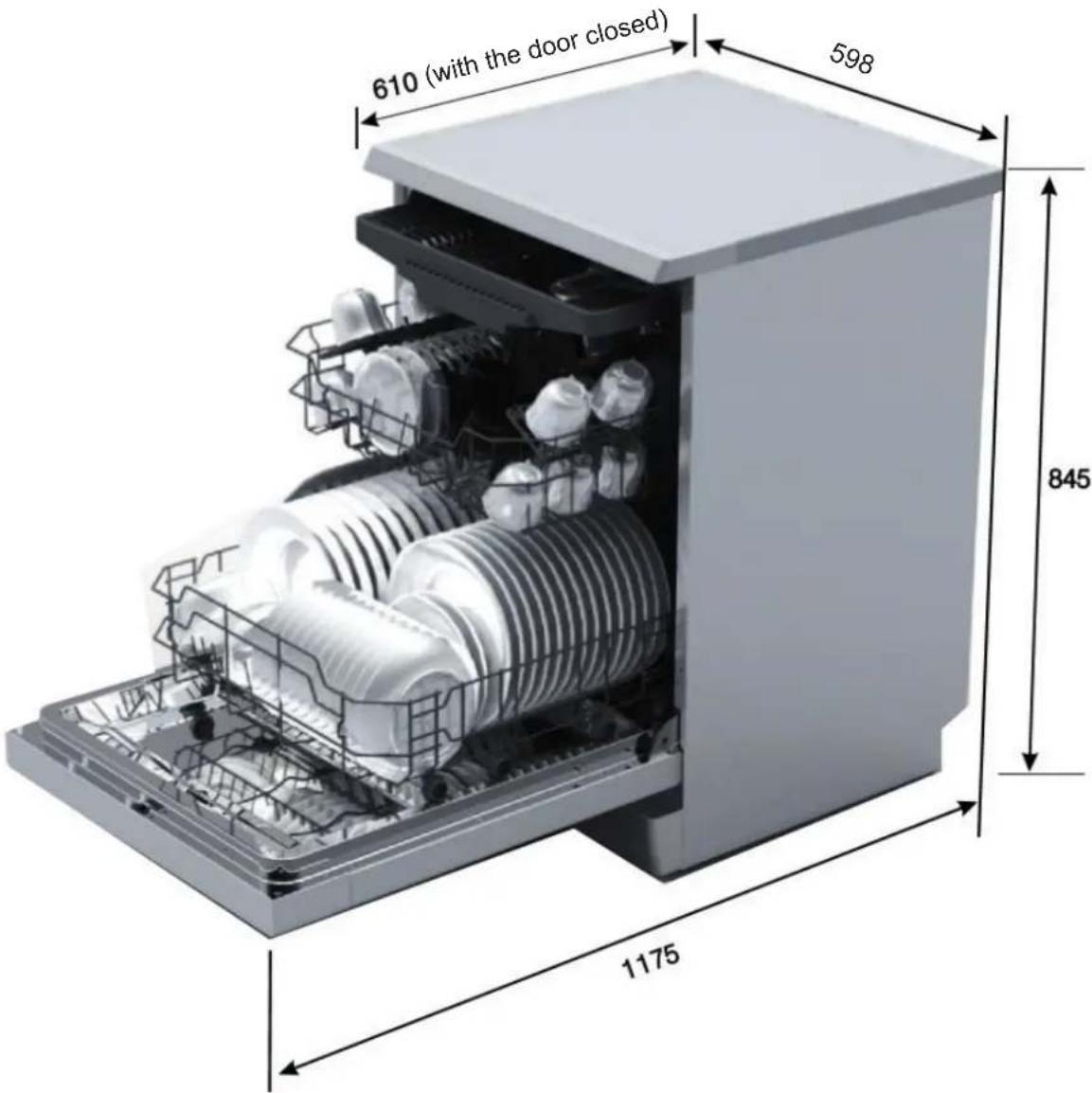

Width	60 cm
Height	85 cm
Depth	60 cm
Weight	45 kg
Power Supply	220-240 V, 50 Hz, 10 A
Water Connection	Cold water only
Programs	Eco, Intensive, Quick, Glass, Pre-wash
Drying System	Condensation drying
Noise Level	46 dB
Water Consumption	9.5 L per cycle (Eco)
Energy Consumption	0.92 kWh per cycle (Eco)
Delay Start	Up to 24 hours
Safety Features	Child lock, overflow protection
Spare Parts Availability	At least 10 years after purchase
User Manual Language	English, Czech, Slovak, Hungarian
Repairability Index	8.2/10

Frequently Asked Questions - 238190010 Eta

How do I start the dishwasher?

Load the dishes, add detergent, close the door, select a program, and press the start button. Refer to the manual for specific program details.

What does the 'Eco' program mean?

The Eco program is an energy-saving cycle that operates at a lower temperature (50°C) and uses less water, making it environmentally friendly.

How can I clean the filter?

Remove the lower basket, twist and pull out the filter assembly, rinse under running water, and replace. Clean regularly to maintain performance.

Why is the dishwasher not draining?

Check the drain hose for kinks, clean the filter, and ensure the sink drain is clear. If persists, the drain pump may need inspection.

Can I use regular dish soap?

No, only use dishwasher detergent (powder, gel, or tablets). Regular soap causes excessive suds and damage.

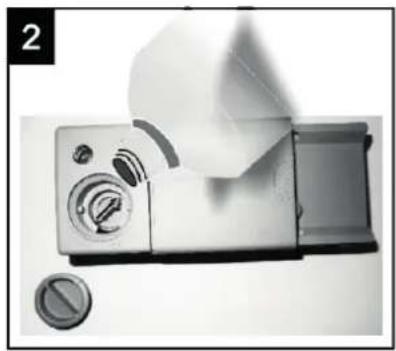

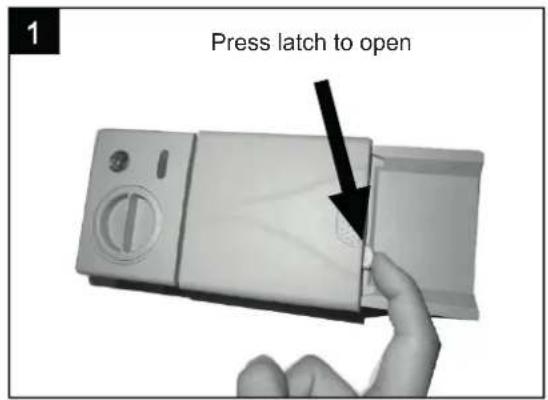

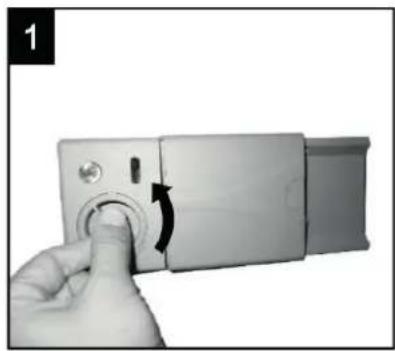

How do I add rinse aid?

Open the rinse aid dispenser on the door, fill to the 'max' line, and close. Adjust the setting for drying performance.

The dishes are not drying properly.

Ensure rinse aid is filled, select a program with drying, and use high-temperature rinse. Also, leave the door ajar after cycle.

What do the error codes mean?

Common codes: E1 (water inlet), E4 (overflow). Refer to the troubleshooting section of the manual for specific codes.

How to install the dishwasher?

Position near water supply and drain, connect hoses, level the feet, and plug in. For built-in, secure under countertop. See installation guide.

Where can I get spare parts?

Contact Eta customer service or authorized dealers. Use model 238190010 to order filters, racks, or pumps.

USER MANUAL 238190010 Eta

Cutaway view of a white kitchen appliance showing internal components like washing machines and dishwashers (no text or symbols visible)

Myčka na nádobí

Interior view of a vehicle showing a large 'B' on the roof and a smaller vehicle inside (no visible text or symbols)

Interior view of a server rack with coiled cable and grid base (no visible text or symbols)

Illustration of a hand using a tool to clean or wash material on a tray, with a small container nearby (no text or symbols)

Exterior view of a modern office building (no signage)

Hand inserting a button into a device (no text or symbols visible)

Close-up of a kitchen appliance with a lid and handle, no visible text or symbols

Hand inserting a button into a device (no text or symbols visible)

White appliance with circular control knob and labeled 'A' (no visible text or symbols beyond the label)

Two technical diagrams showing structural steel framework with embedded components and pipe connections (no text or symbols)

Dolní poloha

Industrial machinery setup with multiple circular components and piping (no visible text or symbols)

Horní poloha

Interior view of a mechanical or electrical cabinet with multiple circular components and wiring (no visible text or symbols)

Kolečka

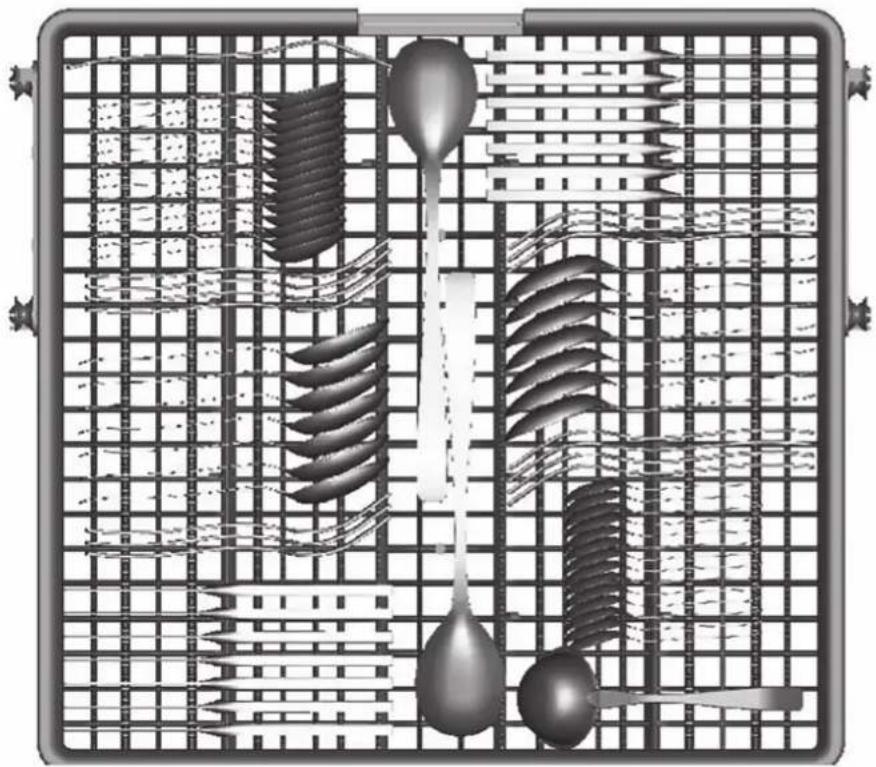

Příborová zásuvka

Grid-based mechanical component with four metallic parts (squares, rods, and droplets) arranged in a patterned layout (no text or symbols visible)

VI. SPUŠTĚNÍ MYCÍHO PROGRAMU

POZNÁMKA

Mechanical component diagram showing a cylindrical assembly with two arrows pointing to it, no text or symbols present.

1) Hlavní filtr

3D rendered mechanical component with a black arrow pointing to a feature (no text or symbols visible)

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no text or symbols visible)

Pure technical diagram of a mechanical component with two side supports and dimension arrows (no text or symbols)

Line drawing of a hand holding a faucet with a threaded handle (no text or symbols)

Illustration of a food tray with chopsticks, spoons, and a spoon (no text or symbols)

Interior view of a server rack with a coiled cable and mesh grid base (no visible text or symbols)

Illustration of a hand using a tool to clean or wash food on a tray, with a small bowl and utensil nearby (no text or symbols)

Exterior view of a modern office building (no signage)

Hand pressing a button on a device with an arrow indicating rotation (no text or symbols visible)

Close-up of a kitchen appliance with a lid and control panel (no visible text or symbols)

Hand pressing a button on a device (no visible text or symbols)

White portable air conditioner unit with control panel and labeled 'A' (no visible text or symbols beyond the label)

Interior view of a vehicle showing the letter B on the roof (no text or symbols visible)

Industrial machinery setup with metal racks and circular components (no visible text or symbols)

Industrial machinery setup with metal frame and circular components (no visible text or symbols)

Kolieska

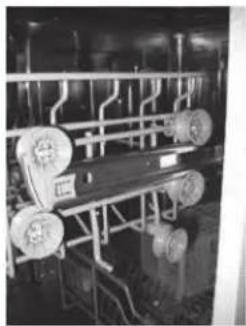

Sklopenie políc na šálky

Structural engineering diagram showing steel framework and rebar framework (no text or labels)

Mechanical assembly diagram showing interconnected pipes and valves (no text or labels)

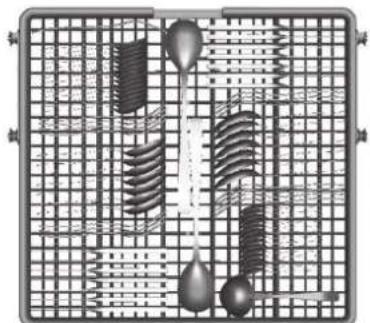

Príborová zásuvka

Grid-based mechanical component with four metallic parts (squares, gears, and droplets) arranged in a V-shape pattern (no text or symbols)

⚠ UPOZORNENIE

• Dbajte, aby žiadny kus nevyčnieval cez dno.
• Ostré náčinie vkladajte vždy ostrím smerom dole!

VI. SPUSTENIE UMÝVACIEHO PROGRAMU

POZNÁMKA

( ) znamená, že je treba do dávkovača leštiaceho prostriedku pridat' leštiaci prostriedok.

1) Hlavný filter

3D rendered mechanical component with a lever and base plate (no text or symbols visible)

3D rendered mechanical component with a black arrow pointing to a feature (no text or symbols visible)

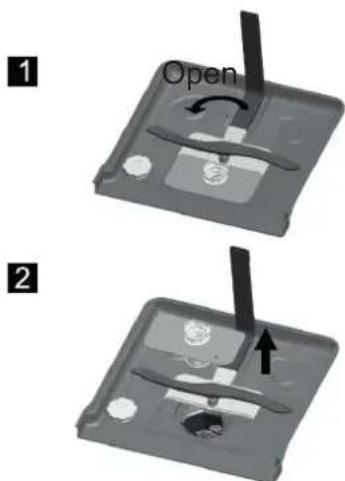

Krok 2: Vytiahnite filter smerom hore.

⚠ POZNÁMKA

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no visible text or symbols)

Pure technical line drawing of a mechanical component with two circular arrows indicating rotation (no text or symbols)

Line drawing of a hand holding a pipe fitting with a handle (no text or symbols)

Diagram of a grid-based mechanical or electrical component with four components: screw, spring, drop, and spoon (no text or symbols)

• LVD 2006/95/ES
• EMC 2004/108/ES
• EUP 2009/125/ES

For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance	Press the On/Off button to switch on the appliance, Open the door.
↓

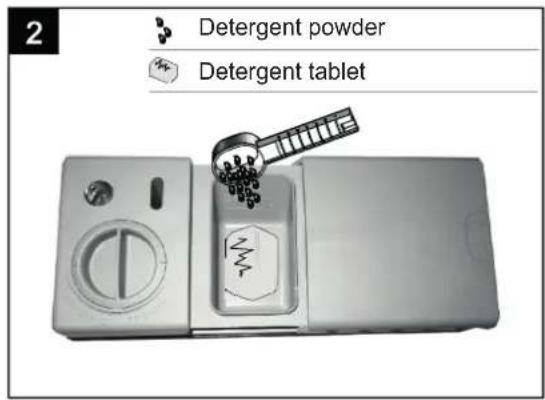

Fill the detergent dispenser	Compartment A: With each wash cycle.
	Compartment B: For programmes with pre-wash only. (Follow the user instructions!)
↓

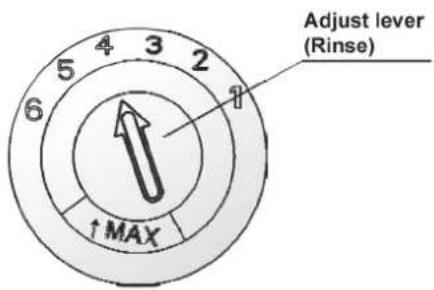

Check the rinse aid level	Mechanical Indicator C. Electric indicator on control panel (if provided).
↓

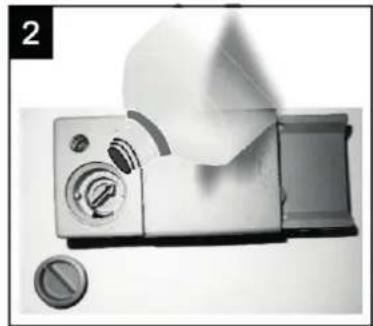

Check the regeneration salt level	(On models with water softener system only.)Electric indicator on control panel (if provided). If there is no salt warning light in the control panel (for some models), you can estimate when to fill the salt into the softener by the number of cycles the dishwasher has run.
↓

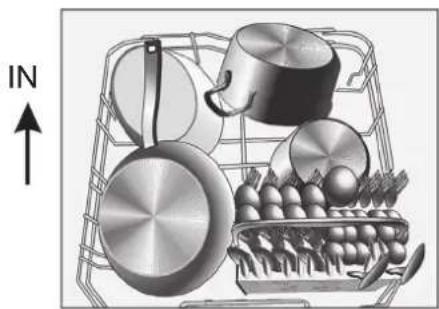

Load the baskets	Scrape off any large amount of leftover food. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.
↓
Select a programme	Close the door, press the Programme Button until the selected programme lights up. ( See the section entitled “Operation instruction”)
↓
Running the dishwasher	Turn on the water tap and press the Start/Pause Button. The machine will start working after about 10 seconds.

Changing the programme	1) A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispenser must be refilled.2) Press the Start/Pause button, press the program button more than 3 seconds, then you can change the program to the desired cycle setting
Add forgotten dishes in the dishwasher.	1) Press the Start/Pause Button to stop the washing.2) Open the door a little.3) After the spray arms stop working, you can open the door completely.4) Add forgotten dishes.5) Close the door6) Press the Start/Pause Button, the dishwasher will run after 10 seconds.
If the appliance is switched off during a wash cycle.	If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on state).

Switch off the appliance

Close the door, press the Programme Button until the selected programme lights up. ( See the section entitled “Operation instruction”)

Turn off the water tap, unload the baskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break. They will also dry better. Unload the appliance, starting from the lower basket.

READ THIS MANUAL

Dear Customer,

This appliance is in tended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

• Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
• Keep it as a refer in the later days.
  • Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

BEFORE CALLING FOR SERVICE

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.

If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information 65
2) Disposal 66
3) Operation Instructions 67

Control Panel 67

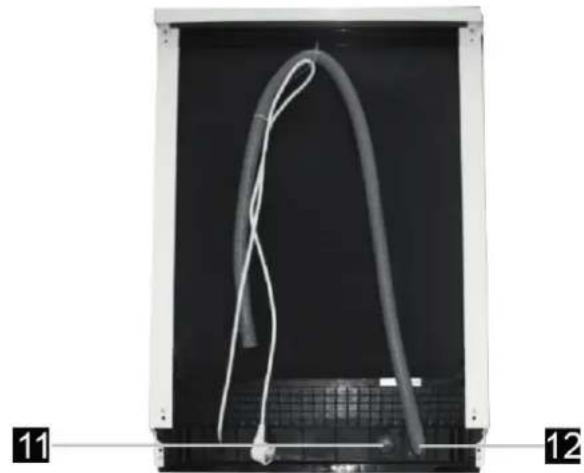

Dishwasher Features 68

4) Prior using for the first time 68

A) Water Softener 68
B) Loading the Salt into the Softener 70
C) Fill the Rinse Aid Dispenser 71
D) Function of Detergent 72

5) Loading the Dishwasher Basket 74

Attention before orafter loading

the Dishwasher Baskets 74

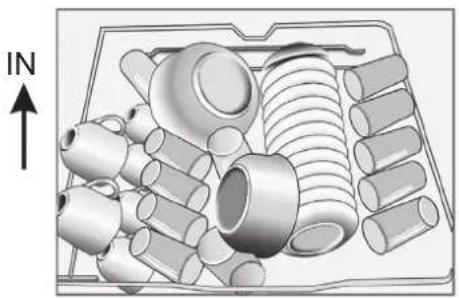

The Method Loading Normal Dishware 75

6) Starting a washing programme 77

Wash Cycle Table 77
Turning on the Appliance 77
Change the Programme 78
At the end of the Wash Cycle 78

7) Maintenance and cleaning 79

Filtering System 79
Caring for the Dishwasher 80

8) Installation instruction 81

Positioning the Appliance 81
About Power Connection 82
Water Connection 82
Start of dishwasher 84

9) Troubleshooting Tips 84

Before calling for service 84
Error codes 85
Technical information 86

Loading the baskets according to En50242

I. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING

When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

- This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper connection of the equipment-grounding conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

- Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

- Do not touch the heating element during or immediately after use. (This instruction is only applicable to machines with a visual heating element.)

- Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.

- Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

- When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the doorseal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

- When using your dishwasher, you should prevent plastic items from coming into contact with the heating element. (This instruction is only applicable to machines with a visual heating element.)

- Check that the detergent comparment is empty after completion of the wash cycle. - Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

- Use only detergent and rinse additives designed for an automatic dishwasher.

• Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.
• Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.

• The door should not be left open, since this could increase the risk of tripping.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in orderto avoid a hazard.

• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
• Please dispose of packing materials properly.
• Use the dishwasher only for its intended function.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
• The maximum permissible inlet water pressure is 1 Mpa.
• The minimum permissible inlet water pressure is 0.04 Mpa.

READAND FOLLOWIHIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

II. DISPOSAL

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

■ PE - for polyethylene, e.g. sheet wrapping material
■ PS - for polystyrene, e.g. padding material
■ POM - polyoxymethylene, e.g. plastic clips
■ PP - polypropylene, e.g. Salt filler
■ ABS - Acrylonitrile Butadiene Styrene, e.g. Control Panel

WARNING

■ Packaging material could be dangerous for children!
■ For disposing of package and the appliance please go to a recycling centre.
Therefore cut off the power supply cable and make the door closing device unusable.
■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
■ By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
■ For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

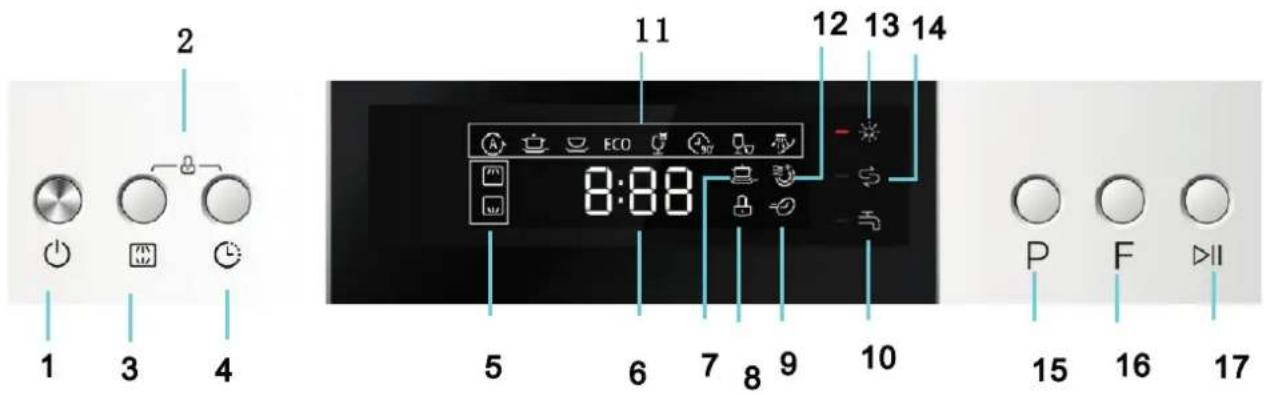

CONTROL PANEL

1. On/Off Button: to switch On/Off the appliance;

2. Child lock function: press Delay button and Alt button simultaneously to lock the program;

3. Alt Button: Dual zone wash function, press the button to select either upper basket or lower basket loaded;

4. Delay Button: Press the button to add the delay time;

5. Upper spray indicator and Lower spray indicator;

6. Display screen: to show the reminding time and delay time, error codes etc.;

7. Extra cleaning indicator (activate in case you need to increase the washing efficiency of the selected washing program);

8. Child lock indicator;

9. Express indicator (activate in case you need to decrease the washing time of the selected washing program);

10. Water faucet indicator (showing weak or no water pressure at the inlet of the dishwashing machine);

11. Program indicator: to show program which you have chose

12. Extra drying indicators: To show Extra drying function (activate in case you need to increase the drying efficiency of the selected washing program);

13. RinseAid indicator: Indicates when the dispenser needs to be refilled;

14. Add salt indicator: Indicates when the dispenser needs to be refilled;

15. Program Button: To Press the button to select appropriate Program;

16. Function button: To select Extra drying, Extra cleaning or Express. Additional functions can be used in all the washing programs except of the „AUTO“, „Rapid“ and „Soak“. First select the washing program and than the additional function;

17. Start /Pause button: To start the selected washing program or pause the washing program when the machine is working starting up or not.

DISHWASHER FEATURES

Front view

Back View

Interior view of a computer monitor case with visible cord and keyboard (no text or symbols)

1. Top spray arm
2. Cutlery rack
3. Upper basket
4. Inner pipe
5. Lower basket

6. Salt container

7. Dispenser

8. Cup shelf
9. Spray arms
10. Filter assembly
11. Inlet pipe connector
12. Drain pipe

IV. PRIOR USING FOR THE FIRST TIME

Before using your dishwasher for the first time:

A Set the water softener
B Add 1.5 Kg dishwasher salt and then full fill the salt container with water
C Fill the rinse aid dispenser
D Fill in detergent

A. WATER SOFTENER

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area.

Your local Water Authority can advise you on the hardness of the water in your area.

ADJUSTING SALT CONSUMPTION

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

1) Close the door, switch on the appliance;
2) Press the Start/Pause button for more than 5 seconds to start the water softener set model within 60 seconds after the appliance was switched on (The Saltand Rinse aid warning lights will be on periodically when it get in the set model);

3) Press the Start/Pause button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
4) Press the On/Off button to end the set up model.

WATER HARDNESS				Selector Position	Salt consumption (gram/cycle)
°dH °fH °C	Clarke mmol/l
0 ~ 5 0 ~ 9	0 ~ 6 0 ~ 0.94	H1 0
6 - 11 10 -	20 7 - 14 1.0 - 2	.0 H2 9
12 - 17 21 -	30 15 - 21 2.1 -	3.0 H3 12
18 - 22 31 -	40 22 - 28 3.1 -	4.0 H4 20
23 - 34 41 -	60 29 - 42 4.1 -	6.0 H5 30
35 - 55 61 -	98 43 - 69 6.1 -	9.8 H6 60

Note:1

1 dH = 1.25 Clarke = 1.78 fH = 0.178 mmol/l

DH: German degree

fH: French degree

Clark: British degree

Note:2

The manufactory setting: H3 (EN 50242)

Contact your local water board for information on the hardness of your water supply.

NOTE

If your model does not have any water softener, you may skip this section.

WATER SOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. LOADING THE SALT INTO THE SOFTENER

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

ATTENTION!

• Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the useofunsuitable salt the manufacturer doesnot give any warranty nor is liable for any damages caused.
• Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

Illustration of a hand using a tool to clean or wash food on a tray, with a small bowl and spoon nearby (no text or symbols)

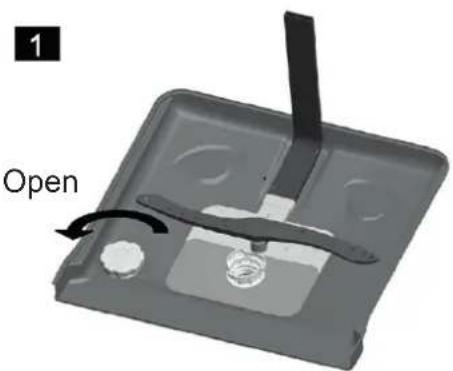

A After the lower basket has been removed, unscrew and remove the cap from the salt container. 1

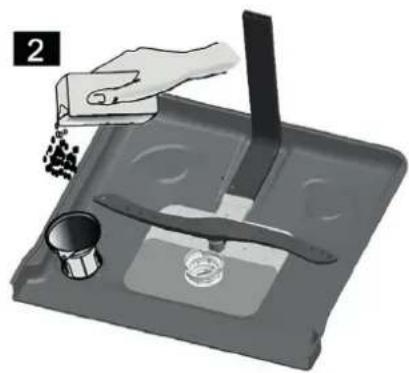

B Place the end of the funnel (supplied) into the hole and introduce about 1.5 kg of dishwasher salt. 2
C Full fill the salt container with water, It is normal for a small amount of water to come out of the salt container.
D After filling the container, screw the cap tightly back clockwise.
E The salt warning light will stop being after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE

• The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.
• If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

C. FILL THE RINSE AID DISPENSER

RINSE AID DISPENSER

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume ofthe rinse aid container is about 110 ml.

FUNCTION OF RINSE AID

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

ATTENTION!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

WHEN TO REFILL THE RINSE AID DISPENSER

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. C (Rinse-Aid indicator)

Full
3/4 full
1/2 full
- 1/4 full (Should refill to eleiminate spotting)
Empty

Hand pressing a button on a silver remote control panel (no text or symbols visible)

Black-and-white photo of a digital camera with control panel and lens, no visible text or symbols

Exterior view of a modern office building (no signage)

Hand inserting a button into a device (no text or symbols visible)

1 To open the dispenser, turn the cap to the „open“ (left) arrow and lift it out.

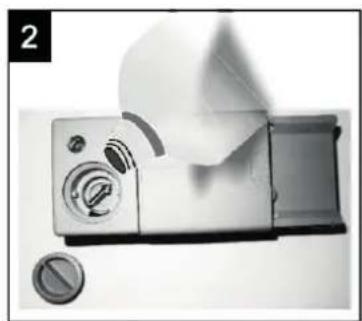

2 Pourthe rinse aid into the dispenser, being careful notto overfill.
3 Replace the cap by inserting it aligned with „open“ arrow and turning it to the closed (right) arrow.

NOTE

Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

ADJUSTING RINSE AID DISPENSER

The rinse aid dispenser has six settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the a mount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes ora bluish film on glassware or knife blades.

D. FUNCTION OF DETERGENT

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it outof the dishwasher. Mostof the commercial quality detergents are suitable for this purpose.

Attention!

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.

DETERGENTS

There are 3 sorts of detergents

1) With phosphate and with chlorine
2) With phosphate and without chlorine
3) Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6^ dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little.

Strong and coloured spots will not be removed completely. In this case please choose a program with ahighertemperature.

CONCENTRATED DETERGENT

Based on their chemical composition, detergents can be split in two basic types:

• conventional, alkaline detergents with caustic components
- low alkaline concentrated detergents with natural enzymes

DETERGENT TABLETS

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

DETERGENT DISPENSER

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

AMOUNT OF DETERGENT TO USE

NOTE

• If the lid is closed: press release button. The lid will spring open.
  • Always add the detergent just before starting each wash cycle.
• Only use branded detergent aid for dishwasher.

WARNING

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

FILL IN DETERGENT

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A The place of main wash cycle detergent placed.
B The place of pre-wash cycle detergent placed (pour the detergent directly on the lower part of the open door).

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

White portable air conditioner unit with control panel and labeled 'A' (no visible text or symbols beyond the label)

Interior view of a vehicle showing a large 'B' on the roof and a smaller vehicle inside (no visible text or symbols)

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE

• You find information about the amount of detergent for the single programme on the last page.
• Please aware, that according to the level soiling and the specific hardness of water differences are possible.
• Please observe the manufacturer's recommendations on the detergent packaging.

V. LOADING THE DISHWASHER BASKETS

RECOMMENDATION

• Consider buying utensils which are identified as dishwasher-proof.

• Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.

• For particular items, select a program with as low a temperature as possible.

• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

FOR WASHING IN THE DISHWASHER THE FOLLOWING CUTLERY/DISHES

Are not suitable

• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts that are not temperature resistant
  • Bonded cutlery items or dishes
• Pewter or cooper items
• Crystal glass
  • Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres

Are of limited suitability

• Some types of glasses can become dull after a large number of washes
  • Silver and aluminum parts have a tendency to discolour during washing
• Glazed patterns may fade if machine washed frequently

ATTENTION BEFORE OR AFTER LOADING THE DISHWASHER BASKETS

(For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1) Items such as cups, glasses, pots/pans, etc. are faced downwards.
2) Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3) All utensils are stacked securely and can not tip over.
4) All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE

Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
• To avoid damage to glasses, they must not touch.
• Load large items which are most difficult to clean into the lower basket.
• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups
• Long bladed knives stored in an upright position are a potential hazard!
• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

REMOVING THE DISHES

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

THE METHOD LOADING NORMAL DISHWARE

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in orderto avoid blocking the rotation of the top spray arm.

3D mechanical assembly diagram showing bolt, nut, and housing components with an upward arrow labeled 'IN' (no text or symbols on the diagram itself)

Illustration of a kitchen utensil with cooking panes and a basket, no text or symbols present

Please be reminded that:

• Pots, serving bowls, etc, must always be placed topdown.
• Deep pots should be slanted to allow water to flow out.

The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

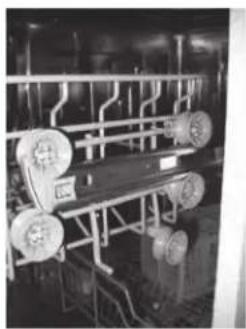

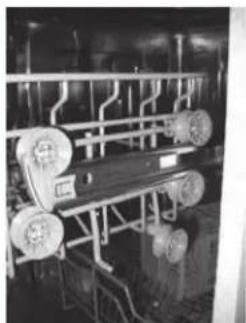

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms.

Folding back the cup shelves

For better stacking of pots and pans, the spikes can be folded down as shown in the picture right.

Technical line drawing of a structural framework with no visible text or symbols

Mechanical assembly diagram showing interconnected rods and gears (no text or symbols)

Lower position Upper position

Industrial machinery setup with metal racks and circular components (no visible text or symbols)

Industrial machinery setup with spools and wiring (no visible text or symbols)

Wheels

Cutlery rack

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

WARNING

• Do not let any item extend through the bottom.
  • Always load sharp utensils with the sharp point down!

Grid-patterned object with four metallic spoons and a central vertical bar (no text or symbols)

VI. STARTING A WASHING PROGRAM

NOTE

( ) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
	Auto sensing wash, lightly, normally or heavily soiled crockery, with or with out dried-on food	Pre-wash (45°C) Autowash(45-55°C) Rinse Rinse (65°C) Drying	5/30g(Or3in1)	150	0.9~1.3	11~15
Intensive	For heaviest soiled crockery, and normally soiled pots、 pans、 dishes etc with dried on soiling.	Prewash (50°C) Wash (60°C) Rinse Rinse Rinse (70°C) Drying	5/30g(Or3in1)	175	1.6	17.5
Normal	For normally soiled loads, such as pots, plates, glasses and lightly soiled pans.	Prewash(45°C) Wash (55°C) Rinse Rinse (65°C) Drying	5/30g(Or3in1)	185	1.3	13.5
ECO (*EN 50242)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.	Prewash Wash (45°C) Rinse(65°C) Drying	5/30g(Or3in1)	266	0.93	10
Glass [422T]	For lightly soiled crockery and glass	Pre-wash wash(40°C) Rinse Rinse(60°C) Drying	5/30g(Or3in1)	130	0.9	13
90 Min	For normally soiled loads that need quick wash.	Wash (65°C) Rinse Rinse (65°C) Drying	35g	90	1.35	12.5
Rapid [23CW]	A shorter wash for lightly soiled loads that do not need drying.	Wash (45°C) Rinse(50°C) Rinse (55°C)	25g	30	0.75	11
Soak [20WK]	To rinse dishes that you plan to wash later that day	Prewash		15	0.02	4

NOTE

*EN50242: This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

• Capacity: 14 setting
• Position Upper basket: upper wheels on rails
• Rinse aid setting: 6
  • The power consumption of off-mode is 0.45 W
  • The power consumption of left-on mode is 0.49 W

Left-on mode duration: Power will be cut off automatically after program finished for 30 minutes.

TURNING ON THE APPLIANCE

Starting a cycle wash

- Draw out the lower and upper basket, load the dishes and push them back.

It is commended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher").

• Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").
• Insert the plugin to the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10 A 250 VAC. Make sure that the water supply is turned on to full pressure.
• Close thedoor, press the ON/OFF Button, and the display will turn on.
• Press the program Button, the wash program will be changed as follows direction: ECO->Glass->90min->Rapid->Soak->Auto->Intensive->Normal

If a program is selected, the response lightwill light. Then pressthe Start/Pause button, the dishwasher beginsto start.

CHANGE THE PROGRAM...

Premise:

1) A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2) Press the START/PAUSE button, the machine will pause, press the program button more than 3s then you can changethe program to the desired cycle setting (see the section entitled "Starting a wash cycle...").

NOTE

If you open the door during a wash cycle, the machine will pause. the LED display window "8-8" will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

If your model has broken remember function, the machine will go on to finish the selected program afterthe powercut.

FORGOT TO ADD A DISH?

A forgotten dish can be added any time before the detergent cup opens.

1) Press the Start/Pause Button to stop the washing.
2) Open the door a little.
3) After the spray arms stop working, you can open the door completely
4) Add forgotten dishes.

5) Close the door
6) Press the Start/Pause Button, the dishwasher will run completely after 10 seconds.

AT THE END OF THE WASH CYCLE

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

- Switch Off the Dishwasher

The program light is on but is not blinking, only in this case the programme has ended.

1) Switch off the dishwasher by pressing the ON/OFF button.
2) Turn off the water tap!

- Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool downaround 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

- Unloading the dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING

It is dangerous to open the door wlien washing, because the hot water may scald you.

VII. MAINTENANCE AND CLEANING

FILTERING SYSTEM

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

1) Main filter

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down

to drain.

2) Coarse

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

3) Fine filter

This filter holds soil and food residues in the sumparea and prevents it from being redeposit on the dishes during wash cycle.

FILTER ASSEMBLY

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, itisa goodideato remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING

• The dishwasher must never be used without the filters.
• Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Step 1: Turn the filter in anti-clockwise direction
Step 2: lift the filter assy up

NOTE

When following this procedure from step1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

REMARKS:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

WARNING

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

CARING FOR THE DISHWASHER

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sureto dry it thoroughly.

For the exterior, use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

CLEANING THE DOOR

Interior view of a rectangular electronic device with internal components and an arrow pointing to a section (no visible text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

NOTE

• Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
• Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

PROTECT AGAINST FREEZING

please take frost protection measures on the dishwasher in winter.

Every time after washing cycles, please operate as follows:

1) Cut off the electrical powerto the dishwasher.
2) Turn off the water supply and disconnect the water inlet pipe from the water valve.
3) Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4) Reconnect the water inlet pipe to the water valve.
5) Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE

If your dishwasher cannot work because of the ice, please contact professional service persons.

CLEANING THE SPRAY ARMS

• It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.
• To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.
  -To remove the lower spray arm, pull out the spray arm upward.
• Wash thearmsinsoapy and warm water and use a soft brush to clean thejets. Replace them after rinsing them thoroughly.

HOW TO KEEP YOUR DISHWASHER IN SHAPE

• After Every Wash After every wash, turn off the water supply to the appliance and leavethe door slightly open sothat moisture and odours are not-trapped inside.
- Remove the Plug Before cleaning or performing maintenance, always remove the plug from the socket.
- No Solvents or Abrasive Cleaning To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots orstains from the surface of the interior, use a cloth dampened with water and a little vinegar, ora cleaning product made specifically for dishwashers.

• When not in Use for a LongTime It is recommend that you run a wash cycle with the dishwasher empty and then remove the plugf rom the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.
• Moving the Appliance If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.
  • Seals One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with adamp sponge will prevent this from occurring.

VIII. INSTALLATION INSTRUCTION

POSITIONING THE APPLIANCE

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation

LEVELLING THE APPLIANCE

Pure mechanical diagram showing a bracket with two curved arrows indicating rotational motion (no text or symbols)

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2".

ABOUT POWER CONNECTION

WARNING

For personal safety:

• DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
- DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING CONNECTION FROM THE POWER CORD.

ELECTRICAL REQUIREMENTS

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

ELECTRICAL CONNECTION

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate forthe plug, replace the socket, rather than using a adaptors orthe like as they could cause overheating and burns

WARNING

Insure proper ground exists before use

GROUNDING INSTRUCTIONS

- This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING

• Improper connection of the equipment earthing conductor can result in the risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.
• Do not modify the plug provided with the appliance. If the plug does not fit properly to the outlet, please have a qualified electrician to install a proper outlet.

WATER CONNECTION

Cold Water Connection

Line drawing of a hand holding a faucet handle (no text or symbols)

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear.

This precaution is needed to avoid the riskofthe waterinlet to be blocked and damage the appliance.

WARNING

Please close the hydrant after using.

DRAIN HOSE CONNECTION

Insert the drain hose into a drain pipe with a minimum diameter of 40 mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000 mm.

WARNING

PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B.

HOW TO DRAIN EXCESS WATER FROM HOSES

Ifthesinkis 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable containerthatis held outside and lowerthanthesink.

WATER OUTLET

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

EXTENSION HOSE

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SYPHON CONNECTION

The waste connection must be at a height less than 1000 ~mm (maximum) from the bottom of the dish. The water drain hose should be fixed.

START OF DISHWASHER

The following things should be checked before starting the dishwasher.

1) The dishwasher is level and fixed properly
2) The inlet valve is open
3) There is a leakage at the connections of the conducts
4) The wires are tightly connected
5) The power is switched on
6) The inlet and drain hoses are knotted

7) All packing materials and printings should be taken out from the dishwasher

ATTENTION

After installation, please make sure to keep this manual. The content of this manual is very helpful to the users.

IX. TROUBLESHOOTING TIPS (BEFORE CALLING FOR SERVICE)

Review the charts on the following pages may save you from calling for service.

Technical problems	Problem Possible Causes	What To Do
	Dishwasher doesn't start	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
		Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
		Water pressure is low	Check that the water supply is connected properly and the water is turned on.
		Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
	water not pumped form dishwasher	Kink in drain hose Check drain hose.
		Filter clogged	Check coarse the filter(see section titled "Cleaning The Filter")
		Kitchen sink clogged	Check the kitchen sink to make sureit is draining well. If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers
General problems	Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step.Open the door after draining is stop and check if the suds is disappeared.Repeat if necessary.
		Spilled rinse-aid Always wipe up rinse-aid spills immediately.
	Stained tub interior Detergent with colourant was used		Make sure that the detergent is the one without colourant.
	White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
	There are rust stains on cutlery	The affected items are not corrosion resistant.
		A programme was not run after dishwasher salt was added.Traces of salt have gotten into the wash cycle.	Always run the quick wash programme without any crockery in the dishwasher and without selecting the Turbo function (if present), after adding dishwasher salt.
		The lid of the softer is loose Check the lip.Ensure the fix is fine.
Noise	Problem Possible Causes	What To Do
	Knocking noise in the wash cabinet	A spray arm is knocking against an item in a basket	Interrupt the programme, and rearrange the items which are obstructing the spray arm.
	Rattling noise in the wash cabinet	Items of crockery are loose in the wash cabinet	Interrupt the programme and rearrange the items of crockery.
	Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function. if in doubt, contact a suitably qualified plumber.
Unsatis - factory washing result	The dishes are not clean	The dishes were not loaded correctly. See notes in “Loading the Dishwasher Baskets”.
		The programme was not powerful enough.	Select a more intensive programme. See“ Wash Cycle Table „
		Not enough detergent was dispensed. Use more detergent, or change your detergent.
		Items are blocking the path of spray arms.	Rearrange the items so that the spray can rotate freely.
		The filter combination in the base of wash cabinet is not clean or is not correctly fitted. This may cause the sp ay arm jets to get blocked.	Clean and/or fit the filter combination correctly. Clean the sp ay arm jets. See „Cleaning the Spray Arms".
	Cloudiness on glass-ware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
	Black or gray marks on dishes	Aluminum utensils have rubbed again-st dishes.	Use a mild abrasive cleaner to eliminate those marks.
	Detergent left in dispenser cups	Dishes block detergent cups. Re-loading	the dishes properly.
Unsatis - factory washing result	The dishes are not drying	Improper loading	Load the dishwasher as suggested in the directions.
		Too little rinse-aid	Increase the amount of rinse-aid/refill the rinse-aid dispenser
		Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once t he dishes are barely warm to the touch. Empty the low basket first. This prevents water form dropping off dishesin the upper basket.
		Wrong program has been selected	In short program the washing temperature is lower. This also lowers cleaning performance. Choose a program with a long washing time.
		Use of cutlery with a low-quality coating	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

ERROR CODES

When some malfunctions come on, the appliance will display error codes to warn you:

Codes Meanings Possible Causes
E1 Longer inlet time.		Faucets is not opened, or water intake is restricted, or water pressure is too low.
E4 Overflow.		Some element of dishwasher leaks .
E8 Divider valve failed Divider valve failed

WARNING

• If overflow occurs, turn off the main water supply before calling a service.
• If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

X. TECHNICAL INFORMATION

Height: 845mm
Width: 598 mm
Depth: 610 mm (with the door closed)
Water pressure: 0.04 - 1.0MPa
Power supply: see rating label
Capacity: 14 place settings

XI. LOADING THE BASKETS ACCORDING TO EN50242

1. Upper basket

2. Lower basket

3. Cutlery rack

Illustration of a grid-based object with four metallic components, including spoons and coiled springs (no text or symbols)

1	Soup spoons
2	Forks
3	Knives
4	Teaspoons

5	Dessert spoons
6	Serving spoons
7	Serving forks
8	Gravy ladles

Information for comparability tests in accordance with EN 50242

Capacity: 14 place settings

Position of the upper basket: lower position

Programme: ECO

Rinse aid setting: 6

Softenersetting: H3

XII. INFORMATION LETTER

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer ETA
Type / Description ETA238090000 / ETA238190010
Standard place settings 14
Energy efficiency class 1	A++
Annual energy consumption 2	266 kWh
Energy consumption of the standard cleaning cycle 0,93 kWh
Power consumption of off-mode 0,45 W
Power consumption of left-on mode 0,49 W
Annual water consumption 3	2800 liter
Drying efficiency class 4	A
Standard cleaning cycle 5	ECO
Program duration of the standard cleaning cycle 195 min
Noise level 44 dB(A) re 1 pW
Mounting Free standing
Could be built-in Yes
Height 84,5 cm
Width 59,8 cm
Depth (with connectors) 61 cm
Power consumption	1930 W
Rated voltage/frequency	230 V ~ / 50 Hz
Water pressure (flow pressure)	0.4 - 10 bar = 0.04 - 1 Mpa

We reserve the right to change technical specifications.

1) A+++ (highest efficiency) to D (lowest efficiency)
2) Energy consumption "266" kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3) Water consumption "2800" litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4) A (highest efficiency) to G (lowest efficiency)
5) This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

• LVD 2006/95/EC
• EMC2004/108/EC
• EUP 2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc. The manual is based on the European Union's standards and rules.

For any further information, please write to: [e-mail]

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

Mosogatógép

Black-and-white photo of a medical device with a curved white cable and mesh base, labeled 11 and 12 (no text or symbols on the device itself)

Exterior view of a modern office building (no signage)

Hand pressing a button on a device (no text or symbols visible)

Close-up of a kitchen vacuum cleaner with a cloth cover and control knob, next to a coin for scale (no text or symbols visible)

Hand inserting a button into a device (no text or symbols visible)

White portable phone with a circular dial and a black 'A' button (no visible text or symbols beyond the letter)

Interior view of a vehicle showing a labeled component 'B' (no other text or symbols visible)

3D structural diagram of a steel rebar framework with internal components (no text or labels)

Mechanical assembly diagram showing interconnected pipes and valves (no text or labels)

Alsó pozíció

Industrial machinery setup with multiple rollers and piping (no visible text or symbols)

Felső pozíció

Interior view of an industrial facility with machinery and circular components (no visible text or symbols)

Kerekek

Evőeszköz rekesz

Grid-based mechanical device with four components (no visible text or symbols)

VI. PROGRAM INDÍTÁSA

MEGJEGYZÉS

3D diagram of a mechanical component with two arrows pointing to it, no text or symbols present

1) Fő szűrő

3D rendered mechanical component with a black arrow indicating direction (no text or symbols)

Interior view of a rectangular electronic device with a black arrow pointing to a component (no visible text or symbols)

Mechanical diagram showing a lever mechanism with rotational arrows and an upward arrow (no text or symbols)

MOSOGATÓGÉP KARBANTARTÁSA

Pure technical line drawing of a mechanical component with two downward arrows indicating rotation (no text or symbols)

Line drawing of hands holding a pipe fitting (no text or symbols)

Illustration of a food tray with chopsticks, spoons, and a spoon (no text or symbols)

• LVD 2006/95/ES
• EMC 2004/108/ES
• EUP 2009/125/ES
