VCEA23GLR - Vacuum Cleaner GORENJE - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Gorenje
Model	VCEA23GLR
Dimensions (L x W x H)	42.5 x 28.5 x 24.5 cm
Weight	5.2 kg
Power Consumption	700 W
Dust Capacity	2.0 L
Filtration System	HEPA 13 filter
Cord Length	5.0 m
Noise Level	75 dB(A)
Cleaning Radius	8.0 m
Suction Power Control	Electronic slider
Floor Nozzle	Combination floor nozzle for hard floors and carpets
Accessories Included	Crevice tool, dusting brush, upholstery nozzle
Dust Bag Type	Reusable fabric dust bag
Filter Maintenance	Washable HEPA filter; replace every 6 months
Power Cord Rewind	Automatic cord rewind
Energy Class	A
Safety Features	Overheating protection, motor protection filter
Repairability Index	7.5 / 10
Manual Languages	English, German, French, Italian, Spanish, and more

Frequently Asked Questions - VCEA23GLR GORENJE

How do I change the dust bag in my Gorenje VCEA23GLR vacuum cleaner?

To change the dust bag, first unplug the vacuum. Open the front cover by pressing the release button. Remove the full dust bag and dispose of it. Insert a new dust bag (Gorenje type A) until it clicks into place. Close the cover securely.

What type of filter does the VCEA23GLR use and how do I clean it?

The vacuum uses a HEPA 13 filter. To clean it, remove the filter from the unit and tap it gently to remove dust. For thorough cleaning, rinse under running water and let it air dry completely for 24 hours before reinserting. Replace every 6 months.

The suction power seems weak. What can I do?

First, check if the dust bag is full and replace if needed. Ensure the filter is clean. Inspect the hose and nozzle for blockages. Also verify that the suction power slider is set to maximum. If problems persist, contact Gorenje support.

Can I use the vacuum without a dust bag?

No, the VCEA23GLR is designed to operate with a dust bag. Using it without a bag can damage the motor and void the warranty. Always use a genuine Gorenje dust bag.

How do I rewind the power cord?

The cord rewinds automatically when you press the cord rewind button located on the top of the vacuum. Hold the plug gently and press the button to rewind smoothly. Avoid letting the cord whip.

What is the correct way to store the vacuum?

Store the vacuum in a dry place away from direct heat. Wrap the cord around the cord hooks, if available. For upright storage, ensure the unit is stable. Keep accessories in the integrated storage compartments.

How often should I replace the HEPA filter?

The HEPA filter should be replaced every 6 months for optimal performance. If you have pets or allergies, consider replacing it every 3 months. The filter change indicator on the unit may also alert you.

My vacuum overheated and turned off. What should I do?

This is a safety feature. Unplug the vacuum and let it cool down for at least 30 minutes. Check for blockages in the hose, filter, or dust bag. Remove any obstructions. Once cool, it can be restarted.

Where can I purchase replacement parts or accessories?

Replacement dust bags, filters, and accessories are available from authorized Gorenje dealers or online at the Gorenje web store. Always use genuine parts to maintain performance and warranty.

What does the VCEA23GLR warranty cover?

The vacuum comes with a standard 2-year warranty covering manufacturing defects. It does not cover wear and tear parts like dust bags, filters, or the hose. Register your product online to extend the warranty.

USER MANUAL VCEA23GLR GORENJE

Red and black vacuum cleaner with black handle and white base, displayed against white background (no text or symbols visible)

VCEA23GLR

Navodila za uporabo	SI
Upute za uporabu	BIH HR
Uputstvo za upotrebu	BIH SRB MNE
Упатства за употреба	MK
Instruction manual	EN
Instrucțiuni de utilizare	RO
Návod k obsluze	CZ
Návod na obsluhu	SK
Instrukcja obsługi	PL
Használati útmutató	HU
Инструкции за употреба	BG
Інструкція з експлуатації	UK
Руководство по эксплуатации	RUS
Gebrauchsanweisung	DE
Instructionsmanual	DK
Käyttöuhjeet	FI
Bruksanvisning	NO
Bruksanvisning	SV

SI Navodila za uporabo .... 3

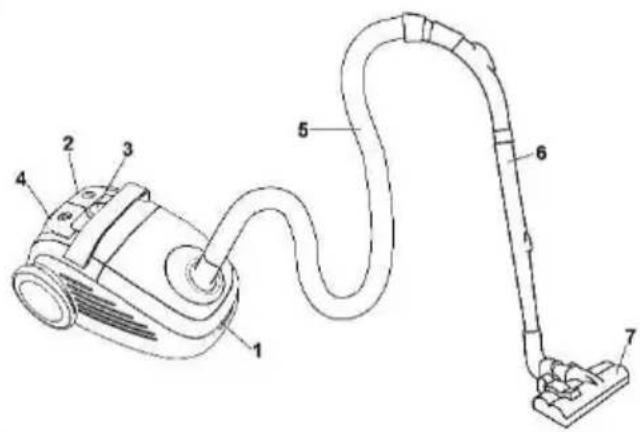

Opis sesalnika

1. Zapiralo pokrova
2. Stikalo za vklop/izklop
3. Stikalo za nastavitev sesalne moči
4. Stikalo za navijanje priključne vrvice
5. Upogljiva cev
6. Teleskopska cev
7. Talna krtača

POMEMBNA OPOZORILA

Technical line drawing of a vacuum cleaner's internal structure showing open lid, vent, and mounting components (no text or labels)

1. Vrečko zamenjajte z novo, kadar je polna.
2. S pritiskom zaprite pokrov dokler se ne zaklene.

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Opis usisavača

Technical line drawing of a vacuum cleaner's internal structure with arrows indicating assembly direction (no text or symbols)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Opis usisivača

1. Zatvarač poklopca
2. Prekidač za uključivanje/isključivanje
3. Dugme za podešavanje snage usisavanja
4. Prekidač za namotavanje priključnog kabla
5. Elastična cev
6. Teleskopska cev
7. Podna četka

Važna upozorenja

Technical line drawing of a vacuum cleaner's internal structure showing open casing, housing, and mounting components (no text or labels)

1. Kad se kesica napuni prašinom, zamenite je novom.
2. Pritiskom zatvorite poklopac da se čujno zabravi.

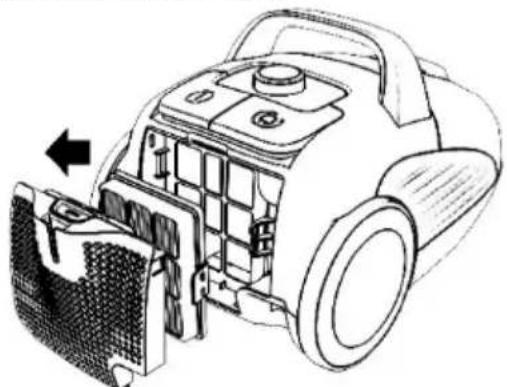

2. Zamena filtera

1. Otvorite zatvarač filtra.
2. Otvarajući zatvarač filtra, pomoću dva prsta povucite plastični nosač.
3. Odstranite istrošeni filtar i zamijenite ga čistim filtrom.
4. Zatvorite zatvarač filtra.

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Čišćenje i nega aparata

Technical line drawing of a car interior showing open lid, internal compartments, and directional arrows indicating movement (no text or symbols)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

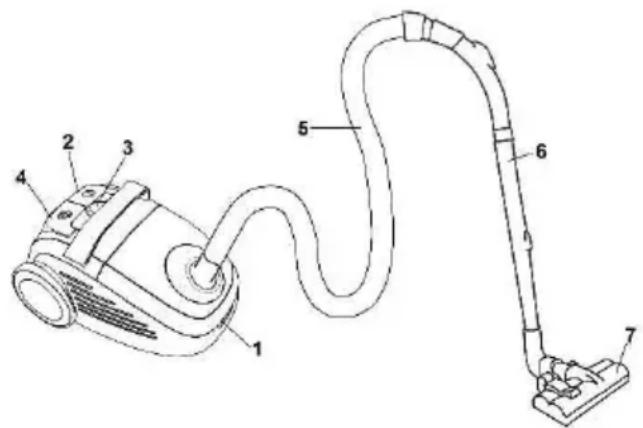

Description

1. Snap-on lock for opening cover
2. On/Off button
3. Power control button
4. Cord rewind button
5. Hose
6. Extension tube
7. Floor brush

Important safeguards

When using this appliance, basic precautions should always be followed:

• Please read the safety instructions carefully and use the appliance only in accordance with these instructions.
  • Do not leave the appliance unattended during use.
• Caution: Assemble the appliance carefully before using it.
• Do not leave the appliance unattended when it is plugged in. Pull the plug after use or when performing maintenance work.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• The appliance is only to be used indoors, in dry rooms. The appliance must not be used for liquids.

• Operate the appliance only with parts recommended by the manufacturer.
• Do not use the device if it has been dropped, damaged, kept outdoors, or has fallen into water.
• Do not pull or carry the appliance by holding the cable only. Protect the cable from hot surfaces or other damages and do not wedge it.
• Do not pull the cable to unplug the appliance.
• Do not operate or touch the appliance or cable with wet hands.
• Do not insert any object into the openings.
• Keep the opening free from dust, hairs or other objects which might reduce the cleaning power.
• Keep your hair, loose clothes, fingers and any other body parts away from openings or moving parts.
• Switch out the device before pulling the plug.
• When cleaning stairs apply particular attention.
• Do not use the vacuum cleaner for: embers, burning cigarette stubs, matches, ect.-liquid materials (e.g.wet carpet foam)-hard, sharp objects (e.g.splinters of glass).
• Do not use the appliance in connection with a non-permissible extension cable.
• Keep the suction hose opening and other openings away from your face and body.
• Do not use the vacuum cleaner without a dust bag, outlet air filter or motor filter.
• The appliance is to be stored indoors, in dry rooms only, put the appliance aside after use.

• Hold the plug when using the automatic cable reminder.

• Switch out the device when connecting or changing the suction hose or nozzles.

• The appliance is not to be used for toner dust or similar materials.
• During use keep the suction tube, suction hose and nozzles away from your head to prevent injuries.
• For longer use pull out at least 2/3 of the cable length to awed overheating and damage.
• The appliance fulfils the applicable German and European electrical standards as well as the radio interference suppression regulation.
• Never use your vacuum cleaner for vacuuming the building material (such as fine sand, lime, cement dust etc.). Absorbed building material can damage your appliance.
• When you are using the vacuum cleaner together for several hours, pull the connecting cable to the end.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
  Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.
  • Noise level: Lc < 65 dB(A)
• To prolong the lifespan of your vacuum cleaner, the device is equipped with thermal protection. In cases of extended or inappropriate use, full dust bag, full dust container or clogged filter, the vacuum cleaner will automatically turn off due to overheating. After 30 – 90 minutes, when it cools down to a normal temperature, your vacuum cleaner will automatically switch back on. If you walk away from the

vacuum cleaner during the cooling period, please unplug your vacuum cleaner from the outlet.

CAUTION: Never use the vacuum cleaner without the filters.

Vacuum cleaner use only for home and in the inner rooms!

Do not use a vacuum cleaner in very dirty places, it will immediately obstruct HEPA filter!

Connection to the mains supply

Check, please, whether the voltage stated on the data plate comply with the data of your house mains supply.

Supply cord

If the supply cord is damaged, it must be replaced with the suitable cord, or a set for coiling the cable, which you can get in the nearest Gorenje's service outlet. If the mains cord is damaged, you must have it replaced by Gorenje, a service centre authorised by Gorenje or similarly qualified persons in order to avoid a hazard.

Data on compliance with european standards

Test for this type of appliance confirmed that it complies with the following European directives:

• 2014/35/EU
• 2014/30/EU
• 2009/125/ES
• 2011/65/EU
• 666/2013/EU

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Elimination of the appliances and environment

If one day you decide to change your appliance, or you just do not need it any more, think about the environmental protection.

Vacuum cleaner assembling

Always remove the plug from the power supply before fitting or removing accessories. Before

putting the appliance into service, please check if all filters are inserted correctly.

ASSEMBLY OF THE SUCTION HOSE

- Insert the flexible suction hose into the connection opening at the top of the housing until you can feel it lock.

HOSE REMOVING

- To remove flexible hose from the vacuum cleaner, press the buttons situated on the flexible hose base, then pull to remove it from the attachment point.

ROLLING THE CABLE OUT AND UP

- Pull out the cable to such a length that easy working is ensured. Now connect the appliance to the main supply. Press the switch to activate the automatic rewinder and hold on the mains plug for safety reason.

FITTING TUBE AND ACCESSORIES

• Extend the tube to the desired length by pressing on button.
• Insert a flexible hose into a tube.
• Fit a nozzle to tube:
• Floor brush is intended for cleaning bare floor and floor coverings.
• 3 pcs. set of nozzles are appropriate for cleaning corners and other small, inaccessible places.
• Carpet brush is appropriate for cleaning carpets, carpetings and other similar surfaces.

Instruction for use

• Before using the appliance, unwind a sufficient length of cord and insert the plug into the power supply.
• Press the On/Off button to switch the unit on. To stop it press the On/Off button again.
• You can adjust the air flow using the air flow regulator on the flexible hose:
• decrease power for cleaning curtains, books, furniture, etc.
• increase power for cleaning bare floor.

To rewind the cord, press the rewind button and guide the cord with hand to ensure that it does not whip causing damage.

Maintenance

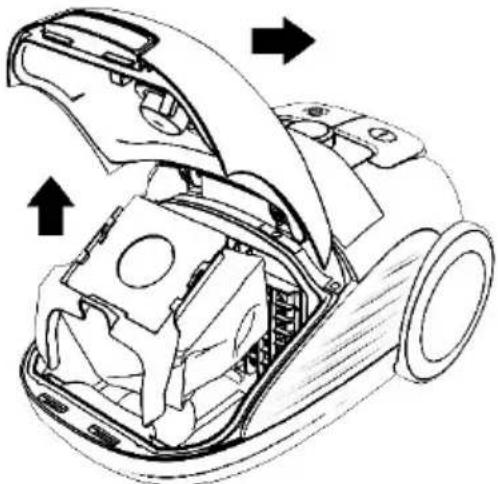

1. Changing of the dust bag

• Always operate the cleaner with dust bag installed.

• If you forget to attach the dust bag or attach it in the wrong manner, the dust cover may not close completely.

• After removing the flexible tube, open the front cover.

• Rotate the support of the bag to the correct position.
• Remove the dust bag.

Technical line drawing of a robotic vacuum cleaner's internal structure, showing open lid, vented chamber, and mounting components (no text or labels)

1. Replace the bag when it is full of dirt and put in a new one.

2. Close the cover by passing down unitil it is locked.

2. Cleaning filter

1. Open the cover for HEPA filter.
2. When open the cover for HEPA filter, use your two fingers pulling ouch for HEPA, then pulling HEPA up.
3. Take the HEPA out and change a clean one.
4. Close the cover for HEPA filter.

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Care and cleaning

Switch off the appliance and pull out the plug from the power supply. Clean the outside of the appliance with a soft cloth with mild detergent. Harsh or abrasive detergent will damage the outside surface. Never immerse the appliance or cord into water and other liquids.

CAUTION:

When the dust bin full indicator reaches the middle of the window, clean the dust bin. Never use the appliance without filters. Do not use a washing machine to rinse filters. Do not use a hair drier to dry them.

Storage

Parking system serves for parking suction tube/floor nozzle during short-term interruptions. For this purpose, please insert the holder of the floor nozzle into parking rail of the device.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

DIAGRAM

Descriere

Technical line drawing of a vacuum cleaner's internal structure showing open casing, vented cavity, and mounting components (no text or labels)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Technical line drawing of a mechanical device showing internal components and directional arrows (no text or symbols)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Údržba a čištění

Technical line drawing of a vacuum cleaner's internal structure showing open lid, casing, and mounting holes (no text or labels)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Údržba a čistenie

Opis

Technical line drawing of a car interior showing internal components and directional arrows (no text or symbols)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Ismertetés

Technical line drawing of a car's internal components, showing open lid, internal compartments, and directional arrows (no text or symbols)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Technical line drawing of a vacuum cleaner's internal structure showing open lid, internal compartments, and mounting points (no text or symbols)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Почистване

Technical line drawing of a car interior showing open lid, internal compartments, and directional arrows indicating movement (no text or symbols)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Чищення та догляд

Technical line drawing of a car interior showing open and closed compartments with directional arrows indicating movement (no text or symbols)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Уход и чистка

Technical line drawing of a mechanical device with open lid and internal components, showing directional arrows (no text or symbols)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Beskrivelse

Technical line drawing of a car's internal components with arrows indicating movement or assembly (no text or symbols present)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Kuvaus

Technical line drawing of a mechanical device showing internal components and directional arrows (no text or symbols)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Hoito ja puhdistus

Beskrivelse

Technical line drawing of a robotic vacuum cleaner's internal components (no text or symbols)

1. Skift ut posen när den er full, og sett på en ny.
2. Lukk dekslet ved å trykke ned til det låses.

2. Rengjøre filteret

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Stell og rengjøring

GORENJE ∅NSKER DEG LYKKE TIL MED DET NYE APPARATET

DIAGRAM

Beskrivning

RULLA UT OCH IN SLADDEN

Technical line drawing of a vacuum cleaner's internal structure with arrows indicating parts (no text or symbols)

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

1805001
