Product Type	Canister Vacuum Cleaner
Brand	Gorenje
Model	VCEA23GPRBU
Color	Blue (BU)
Power Source	Mains powered
Voltage	220-240 V
Frequency	50 Hz
Power Consumption	900 W
Dust Capacity	2.5 L
Bag Type	Bagless (cyclonic)
Filtration System	HEPA 13 filter
Noise Level	78 dB
Cord Length	6 m
Weight	5.5 kg
Dimensions (L x W x H)	400 x 280 x 220 mm
Included Accessories	Crevice tool, dusting brush, upholstery nozzle
Variable Power Control	Yes, on handle
Automatic Cord Rewind	Yes
On/Off Foot Switch	Yes
Filter Washable	Yes
Repairability Index	7.5 / 10
Country of Origin	EU

Frequently Asked Questions - VCEA23GPRBU GORENJE

How do I open the dust container?

Press the release button on top of the dust container and lift it away from the main body. Empty it over a trash bin.

How often should I wash the HEPA filter?

It is recommended to wash the HEPA filter every 3 months or when the suction power decreases. Let it dry completely before reinserting.

What should I do if the vacuum loses suction?

Check for blockages in the hose or nozzle, empty the dust container, and wash the filters. Also ensure the dust container is properly seated.

Can I use the vacuum on hardwood floors?

Yes, it comes with a combination floor nozzle suitable for hard floors and carpets. Switch the brush setting to hard floor mode.

How do I replace the motor protection filter?

The motor protection filter is located at the back of the dust container. Remove the old filter and insert a new one. It should be replaced every 6 months.

Why is the cord not rewinding?

Gently pull the cord out a few centimeters and press the rewind button again. If it still doesn't work, inspect the cord for tangles.

Is there a warranty for this product?

Gorenje offers a 2-year warranty from the date of purchase. Keep your receipt for service claims.

Can I wash the dust container with water?

Yes, but remove it from the vacuum first and ensure it is completely dry before reassembling. Do not wash the HEPA filter with soap.

How do I store the vacuum?

Store it upright in a dry place. Wrap the cord around the hooks and place the nozzle on the holder for compact storage.

What accessories are included?

The package includes a crevice tool, dusting brush, upholstery nozzle, and a combination floor nozzle.

USER MANUAL VCEA23GPRBU GORENJE

Blue and gray vacuum cleaner with black hose and handle, no visible text or symbols

VCEA23GPRBU

Navodila za uporabo	SI
Upute za uporabu	BIH HR
Uputstvo za upotrebu	BIH SRB MNE
Упатства за употреба	MK
Instruction manual	EN
Instrucțiuni de utilizare	RO
Návod k obsluze	CZ
Návod na obsluhu	SK
Instrukcja obsługi	PL
Használati útmutató	HU
Инструкции за употреба	BG
Інструкція з експлуатації	UK
Руководство по эксплуатации	RUS
Gebrauchsanweisung	DE
Instructionsmanual	DK
Käyttöuhjeet	FI
Bruksanvisning	NO
Bruksanvisning	SV

SI Navodila za uporabo .... 3

DK Instructionsmanual....61

FI Käyttöuhjeet 65

NO Bruksanvisning 69

SV Bruksanvisning 73

DIAGRAM

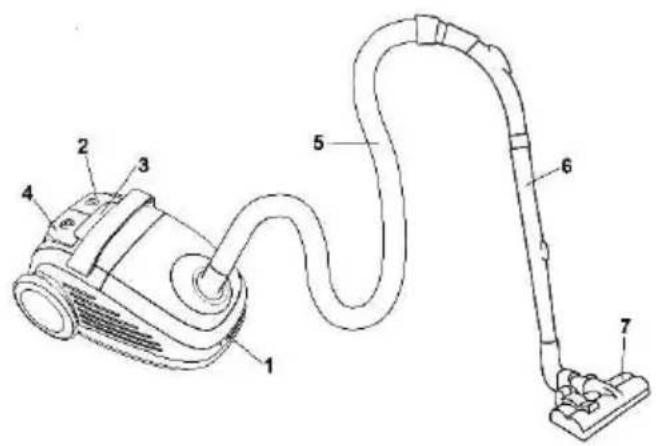

Opis sesalnika

1. Zapiralo pokrova
2. Stikalo za vklop/izklop
3. Stikalo za nastavitev sesalne moči
4. Stikalo za navijanje priključne vrvice
5. Upogljiva cev
6. Teleskopska cev
7. Talna krtača

POMEMBNA OPOZORILA

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal gears (no text or labels)

1. Vrečko zamenjajte z novo, kadar je polna.
2. S pritiskom zaprite pokrov dokler se ne zaklene.

Technical line drawing of a car interior showing internal components and a directional arrow (no text or symbols)

Opis usisavača

Technical line drawing of a vacuum cleaner's internal components, showing open lid and internal casing (no text or symbols)

Technical line drawing of a car interior showing airflow path and component layout (no text or symbols)

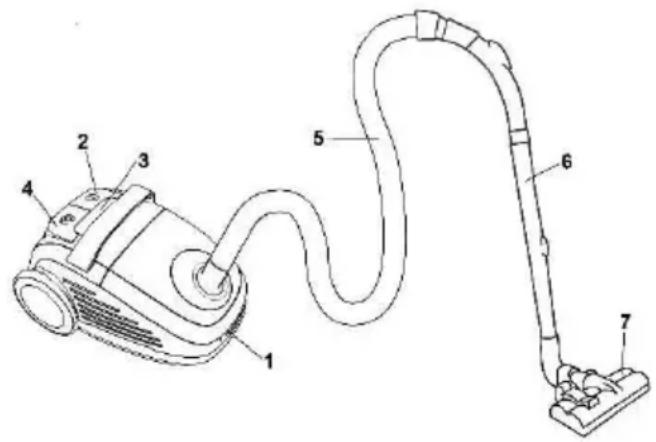

Opis usisivača

1. Zatvarač poklopca
2. Prekidač za uključivanje/isključivanje
3. Dugme za podešavanje snage usisavanja
4. Prekidač za namotavanje priključnog kabla
5. Elastična cev
6. Teleskopska cev
7. Podna četka

Važna upozorenja

Technical line drawing of a vacuum cleaner's internal components, showing open lid and internal casing (no text or symbols)

1. Kad se kesica napuni prašinom, zamenite je novom.
2. Pritiskom zatvorite poklopac da se čujno zabravi.

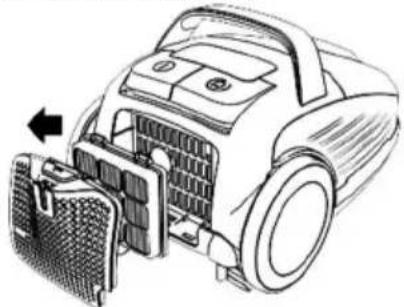

2. Zamena filtera

1. Otvorite zatvarač filtra.
2. Otvarajući zatvarač filtra, pomoću dva prsta povucite plastični nosač.
3. Odstranite istrošeni filtar i zamijenite ga čistim filtrom.
4. Zatvorite zatvarač filtra.

Technical line drawing of a car interior showing airflow or ventilation system (no text or symbols)

Čišćenje i nega aparata

Technical line drawing of a car's internal components, showing open lid and internal engine housing (no text or symbols)

Technical line drawing of a car interior showing internal components and a directional arrow (no text or symbols)

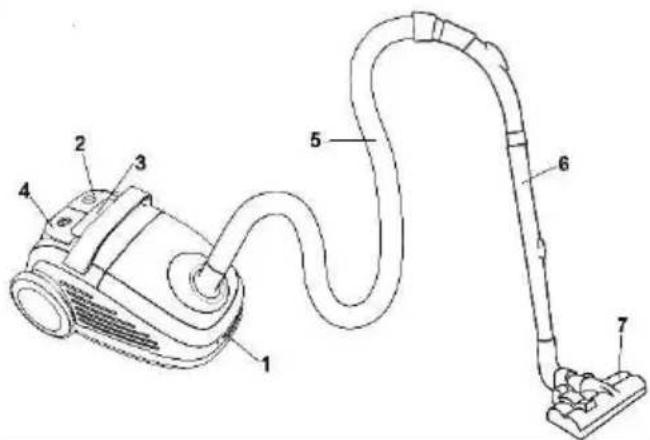

Description

1. Snap-on lock for opening cover
2. On/Off button
3. Power control button
4. Cord rewind button
5. Hose
6. Extension tube
7. Floor brush

Important safeguards

Wheniusingithisuappliancekibasici precautionsishouldualwaysiben followed:и

• Tl3hjs3 r3hш tЧ3 снбк3ty CnstruAtCons Ангзкулly ньш us3 tЧ3 нрpllСъпA3 only Сп ньAAorшъпA3 ўCtЧ tЧ3s3 CnstruAtCons.
  • но пот 13ът3 тЧЗ нърр!СњпАЗ ипътт3нш3ш ширСпО us3.
  • льutCon: tss3mKl3 tЧЗ нррлСньпАЗ Анрзкully КЗкор3 usCnO Ct.
  • но not l3ħt3 tЧ3 нррлСъпАЗ ипъtt3nw3ш ўЧ3n Ct Cs pluООЗш Сп. Tull tЧ3 pluO нъкт3r us3 or ўЧ3n p3rkormCnO тньCnt3пъпАЗ ўork.

• k4Cs нррлСъпА3 Cs not Cnt3нш3ш қөг us3 Ky p3rsons (CnAluшCnO АЧСіwr3n) ăCtЧ r3шуАЗш pЧysСАңл, s3nsory or · m3ntыл АньрнЬКСІтС3s, or ІнЬАк оқ 3хр3rС3пАЗ ньш knoăl3шОЗ, unl3ss tЧЗу Чьт3 КЗ3п ОСт3н sup3rtCsCon · or CnstruAtCon AonA3rnCnO ұс3 оқ tЧЗ нррлСъпА3 Ky нь p3rson r3sponsСКІз қөг tЧЗCr снък3ty. ЛЧСіwr3n sЧoulш КЗ sup3rtCs3ш to 3nsur3 tЧьт tЧЗу шо not plňу ăCtЧ tЧЗ нррлСъпА3.

• кЧЗ нъррлСънА3 Cs only to К3 us3ш Спшоors, Сп шry rooms. кЧЗ нъррлСънА3 must not К3 us3ш юр ICquCшs.

• брзгът3 тЧЗ нърр!СњпАЗ only їСтЧ рърts r3Aomm3пшЗш Ку тЧЗ тњникъAtur3r.
• но not us3 tЧЗ шзтСАЗ Ск Ст Чьвс К33п шроррЗш, шъмньОЗш, к3рт outшоors, or Чьвс кълл3п Cntо Ёнът3г.
• но not pull or Аньrry tЧЗ нррлСньпАЗ Ку ЧолшСпО тЧЗ АньКІЗ only. Trot3At тЧЗ АньКІЗ кром Чот surкнЬАЗs or otЧЗr шньтньОЗs ньпш шо пот ѣзшОЗ Ст.
• но not pull tЧЗ АЊКІЗ to unpluO tЧЗ ЊррІСЬпАЗ.
  • но hot op3rъt3 or touAЧ tЧЗ нъррІСњпАЗ or АньКІЗ ўСтЧ ўзт Чъншв.
• но hot Cns3rt ньну оКПЗАт Cntо тЧЗ ор3nCnOs.
  • r33p t43 op3nCnO kr33 krom wust, Чь Crs or ot43r oKПЗАts ǎЧСАЧ mСОЧт r3шиA3 t43 Al3ьнCnO роă3r.
  • г33р your ЧьCr, loos3 AlotЧ3s, кСпОЗrs ньш ньну отЧЗр Кошу ръrts нЬању кrom op3nCnOs or motСпО ръrts.
  xǎCtA4 out tЧ3 ш3тСАЗ КЗкогр3 pullCnO tЧ3 pluO.
  мЧЗн АІЗЬНСпО стЬСрс нЬрply рЬrtCAulър нЬtt3ntCon.
  но not us3 tЧЗ щАуим АІЗНпЗр қөр: 3mK3rs, KurnCnO ACOнр3tt3 stuKs, мътАЧ3s, 3At.-ICquСш мът3rСьls (3.О.ă3t Аырзт қоңм)-Чырш, сЧырр оКПЗАts (3.О.splCnt3rs ок Ольss).
  но not us3 tЧЗ нъррІСНАЗ Сн Aonn3AtCon ўтЧ нъ non-p3rmCssCKI3 3xt3ntCon АНКИЗ.
  г33р тЧЗ suAtCon ЧосЗ op3nCnO нънш отЧЗр op3nCnOs нъану кrom your къАЗ нънш Кошу.
  но not us3 tЧЗ тЪАуум АІЗННЗр ăСтЧout нъ шуст КЬО, outІЗт нЬСр кСlt3r or motor кСlt3r.
  кЧЗ нърр|СъпА3 Cs to К3 stor3ш Сншоors, Сн шry rooms only, put tЧЗ нърр|СъпА3 нъсСш3 нъкт3r us3. чолш tЧЗ pluO їЧ3n usCnO tЧЗ њutomњтСА АњКл3 r3mСнш3r.

- xăCtAЧ out tЧЗ ш3тСАЗ ăЧЗn Aonn3AtCnO or АЧнОСnO tЧЗ suAtCon Чос3 or nozzl3s.

- кЧЗ ньрр!СньпА3 Cs not to К3 us3ш кор ton3r шust or sCmClнр mът3rСнls.

- hurCnO us3 k33p tЧ3 suAtCon tuK3, suAtCon Чос3 ньш nozzl3s нЬању кrom your ЧЗньш to pr3т3nt CnPurC3s.

• nor lonO3r us3 pull out hyt l3hst 2/3 ok t43 AHKI3 l3nOtЧ to hyă3ш ot3rЧЗНТСпО ньш шътнЬОЗ.

CAUTION: Never use the vacuum cleaner without the filters.

Vacuum cleaner use only for home and in the inner rooms!

Do not use a vacuum cleaner in very dirty places, it will immediately obstruct HEPA filter!

143 Connection to the mains supply

Check, please, whether the voltage stated on the data plate comply with the data of your house remains supply.

Supply cord

If the supply cord is damaged, it must be replaced with the suitable cord, or a set for coiling the cable, which you can get in the nearest Gorenje's service outlet.

If the mains cord is damaged, you must have it replaced by Gorenje, a service centre authorised by Gorenje or similarly qualified persons in order to avoid a hazard.

Data on compliance with European standards

Test for this type of appliance confirmed that it complies with the following European directives:

• 2014/35/EU
• 2014/30/EU
• 2009/125/ES
• 2011/65/EU

666/2013/EU

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Elimination of the appliances and environment

If one day you decide to change your appliance, or you just do not need it any more, think about the environmental protection.

Vacuum cleaner assembling

Always remove the plug from the power supply before fitting or removing accessories. Before

putting the appliance into service, please check if all filters are inserted correctly.

ASSEMBLY OF THE SUCTION HOSE

- Insert the flexible suction hose into the connection opening at the top of the housing until you can feel it lock.

HOSE REMOVING

- To remove flexible hose from the vacuum cleaner, press the buttons situated on the flexible hose base, then pull to remove it from the attachment point.

ROLLING THE CABLE OUT AND UP

- Pull out the cable to such a length that easy working is ensured. Now connect the appliance to the main supply. Press the switch to activate the automatic rewinder and hold on the mains plug for safety reason.

FITTING TUBE AND ACCESSORIES

• Extend the tube to the desired length by pressing on button.
• Insert a flexible hose into a tube.
• Fit a nozzle to tube:
• Floor brush is intended for cleaning bare floor and floor coverings.
• 3 pcs. set of nozzles are appropriate for cleaning corners and other small, inaccessible places.
• Carpet brush is appropriate for cleaning carpets, carpetings and other similar surfaces.

Instruction for use

• Before using the appliance, unwind a sufficient length of cord and insert the plug into the power supply.
• Press the On/Off button to switch the unit on. To stop it press the On/Off button again.
• You can adjust the air flow using the air flow regulator on the flexible hose:
• decrease power for cleaning curtains, books, furniture, etc.
• increase power for cleaning bare floor.

To rewind the cord, press the rewind button and guide the cord with hand to ensure that it does not whip causing damage.

Maintenance

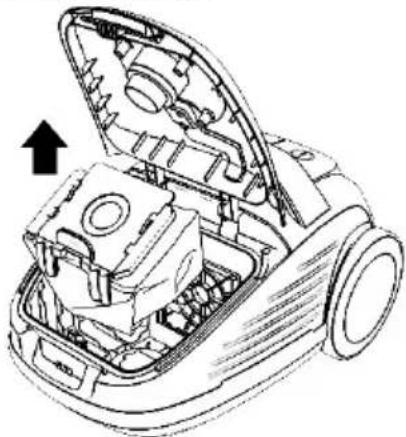

1. Changing of the dust bag

• Always operate the cleaner with dust bag installed.
- If you forget to attach the dust bag or attach it in the wrong manner, the dust cover may not close completely.

1. After removing the flexible tube, open the front cover.
2. Rotate the support of the bag to the correct position.
3. Remove the dust bag.

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal gears (no text or labels)

1. Replace the bag when it is full of dirt and put in a new one.

2. Close the cover by passing down until it is locked.

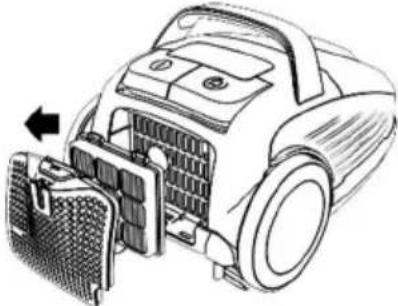

2. Cleaning filter

1. Open the cover for HEPA filter.
2. When open the cover for HEPA filter, use your two fingers pulling ouch for HEPA, then pulling HEPA up.
3. Take the HEPA out and change a clean one.
4. Close the cover for HEPA filter.

Technical illustration of a car interior showing engine compartment and fan structure (no text or symbols)

Care and cleaning

Switch off the appliance and pull out the plug from the power supply.

Clean the outside of the appliance with a soft cloth with mild detergent. Harsh or abrasive detergent will damage the outside surface. Never immerse the appliance or cord into water and other liquids.

CAUTION:

When the dust bin full indicator reaches the middle of the window, clean the dust bin. Never use the appliance without filters. Do not use a washing machine to rinse filters. Do not use a hair drier to dry them.

Storage

Parking system serves for parking suction tube/floor nozzle during short-term interruptions. For this purpose, please insert the holder of the floor nozzle into parking rail of the device.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

DIAGRAM

Descriere

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal gears (no text or labels)

Technical line drawing of a car interior showing airflow and ventilation system (no text or symbols)

Technical line drawing of a vacuum cleaner's internal components, showing open lid and internal casing (no text or symbols)

Technical line drawing of a car interior showing air intake and exhaust components (no text or symbols)

Údržba a čištění

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal compartments (no text or labels)

1. Vymeňte vrecúško na smeti, ked' je plné a založte nové.
2. Zatvorte kryt smerom dole, kým nezaklapne.

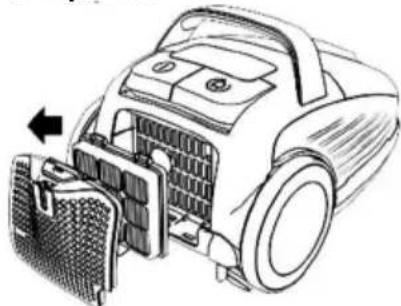

2. Výmena filtra

1. Otvorte kryt filtra.
2. Ked' otvoríte kryt filtra, pomocou vašich dvoch prstov chyt'te filter a vytiahnite ho nahor.
3. Vyberte filter von a vymeňte ho za nový.
4. Zatvorte kryt filtra.

Technical line drawing of a car interior showing internal components and a directional arrow (no text or symbols)

Údržba a čistenie

Opis

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal wiring (no text or labels)

Technical illustration of a car's internal components, showing fan, grille, and exhaust system (no text or symbols)

Ismertetés

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal compartments (no text or labels)

Technical line drawing of a car's air purifier with internal components and airflow direction arrow (no text or symbols)

Technical line drawing of a vacuum cleaner's internal components, showing open lid and internal casing (no text or symbols)

Line drawing of a car interior showing engine compartment and fan structure (no text or symbols)

Почистване

Technical line drawing of a vacuum cleaner's internal components, showing open lid and internal casing (no text or symbols)

Technical line drawing of a car interior showing airflow or exhaust system (no text or symbols)

Чищення та догляд

Technical line drawing of a vacuum cleaner's internal structure, showing open casing and internal components (no text or labels)

Technical illustration of a car interior showing internal components and airflow direction (no text or symbols)

Уход и чистка

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal wiring (no text or labels)

Technical line drawing of a car interior showing air intake and exhaust components (no text or symbols)

Beskrivelse

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal gears (no text or labels)

Technical line drawing of a car interior showing airflow or ventilation system (no text or symbols)

Kuvaus

Line drawing of an open industrial vacuum cleaner with internal components and a directional arrow indicating assembly (no text or symbols)

Technical illustration of a car's internal components, showing airflow or ventilation system (no text or symbols)

Hoito ja puhdistus

Beskrivelse

Line drawing of a vacuum cleaner's open hood showing internal components and housing (no text or symbols)

Technical line drawing of a car interior showing engine compartment and fan structure (no text or symbols)

Stell og rengjøring

GORENJE ∅NSKER DEG LYKKE TIL MED DET NYE APPARATET

DIAGRAM

Beskrivning

RULLA UT OCH IN SLADDEN

Technical line drawing of a vacuum cleaner's internal components, showing open casing and internal wiring (no text or labels)

Technical line drawing of a car interior showing airflow and ventilation components (no text or symbols)
