HCD17884A2I - Freezer Hanseatic - Free user manual and instructions

Product Type	Upright Freezer
Brand	Hanseatic
Model	HCD17884A2I
Total Gross Capacity	178 L
Net Capacity	165 L
Energy Efficiency Class	A+
Annual Energy Consumption	248 kWh/year
Climate Class	SN-T (10°C to 43°C)
Noise Level	40 dB(A)
Dimensions (H x W x D)	85 cm x 60 cm x 65 cm
Weight	50 kg
Number of Drawers	6
Defrost Type	Manual
Fast Freeze Function	Yes
Temperature Control	Mechanical dial
Power Supply	220-240 V ~ 50 Hz
Power Consumption	0.68 kWh/24h
Refrigerant	R600a
Installation Type	Freestanding
Door Hinge	Right, reversible
Interior Light	Yes, LED
Maintenance	Clean condenser every 6 months
Cleaning	Use mild soap and water
Safety Features	Temperature alarm, door open alarm
Spare Parts Availability	Available from manufacturer

Frequently Asked Questions - HCD17884A2I Hanseatic

What is the optimal freezer temperature?

The recommended temperature for optimal food preservation is -18°C. Use the dial to adjust and a thermometer to verify.

How often should I defrost the freezer?

Defrost when ice build-up reaches 5-10 mm. This typically occurs every 6-12 months depending on usage and humidity.

Can I change the door opening direction?

Yes, the door is reversible. Refer to the manual for step-by-step instructions on reversing the hinge.

What does the temperature alarm mean?

The alarm sounds if the internal temperature rises too high, indicating a door left open or a malfunction. Check the door seal and ensure proper closure.

How do I clean the freezer?

Unplug the unit, remove food, and clean the interior with a mild detergent and water. Do not use abrasive cleaners or sharp objects to remove ice.

Why is my freezer producing excessive noise?

Normal sounds include humming from the compressor and gurgling from refrigerant. If unusual, ensure the freezer is level and not touching walls. Strong vibrations may indicate loose components.

How long does it take to reach temperature after first plugging in?

Allow at least 24 hours for the freezer to stabilize at -18°C. Avoid adding large amounts of unfrozen food during this time.

Can I store hot food in the freezer?

No, let hot food cool to room temperature before freezing to avoid raising the internal temperature and overworking the compressor.

What should I do if the freezer stops working?

Check the power supply and circuit breaker. Ensure the temperature dial is not set to 0 (off). If still not working, contact service.

Are spare parts available for this model?

Yes, spare parts like shelves, drawers, and door seals can be ordered directly from Hanseatic or authorized service centers.

USER MANUAL HCD17884A2I Hanseatic

Line drawing of a four-door refrigerator with a refrigerator lid and front panel, no text or symbols present

Gebrauchsanleitung

Line drawings of a refrigerator and its internal components including a baking tray, a cup, and a storage bin (no text or symbols)

Lieferumfang

Simple line drawing of a rectangular frame with a central recess and side supports, labeled 'D' at the bottom (no text or symbols within the diagram itself)

Line drawing of a four-door refrigerator with a refrigerator lid and front panel, no text or symbols present

User manual

Fridge-freezer with water dispenser and ice maker

Table of contents

Delivery.... EN-3

Package contents ..... EN-3

Check the delivery ..... EN-3

Appliance parts and control panel . . . EN-4

Safety EN-7

Intended use..... EN-7

Explanation of terms ..... EN-7

Explanation of symbols ..... EN-7

Safety notices EN-8

Operation EN-13

Stand-by mode EN-13

Switching the appliance

on and off....EN-13

Locking/unlocking

the control panel ..... EN-13

Setting the temperature ..... EN-14

Quick freezing and

Quick refrigerating ..... EN-15

Holiday mode ..... EN-18

Door alarm.... EN-18

Rearranging the shelves ..... EN-18

Filling the water tank ..... EN-19

Using the water dispenser ..... EN-19

Chilling food EN-20

Filling the fridge ..... EN-20

Maintaining quality ..... EN-21

Freezing foods /

storing frozen foods ..... EN-22

Freezing food ..... EN-23

Storing frozen food ..... EN-24

Defrosting food EN-24

Making ice cubes ..... EN-25

Care and maintenance ..... EN-27

Checking and

cleaning the door seals ..... EN-27

Clean exterior EN-27

Defrosting EN-27

Cleaning the fridge ..... EN-28

Cleaning the freezer . . . . . . . . . EN-28

Cleaning the water tank ..... EN-29

Cleaning the valve of

the water dispenser ..... EN-29

Cleaning the ice cube maker ..... EN-30

Interior lighting ..... EN-30

Start-up EN-31

Before starting to use the appliance ..... EN-31

Transporting, unpacking and setup.... EN-31

Setting up the appliance ..... EN-33

Connecting the appliance to the power supply ..... EN-33

Troubleshooting table ..... EN-35

Service EN-37

Advice, order and complaint ..... EN-37

Repairs and spare parts ..... EN-37

Environmental protection ..... EN-38

Disposing of old electrical devices in an environmentally friendly manner .... EN-38 Our contribution to the protection of the ozone layer .... EN-38

Product fiche concerning EU Directive no. 1060/2010 ..... EN-39

Technical specifications ..... EN-40

You can find more information on installation and start-up from page EN-31.

Please read through the safety instructions and user manual carefully before using the appliance. This is the only way you all the functions safely and relia-

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Delivery

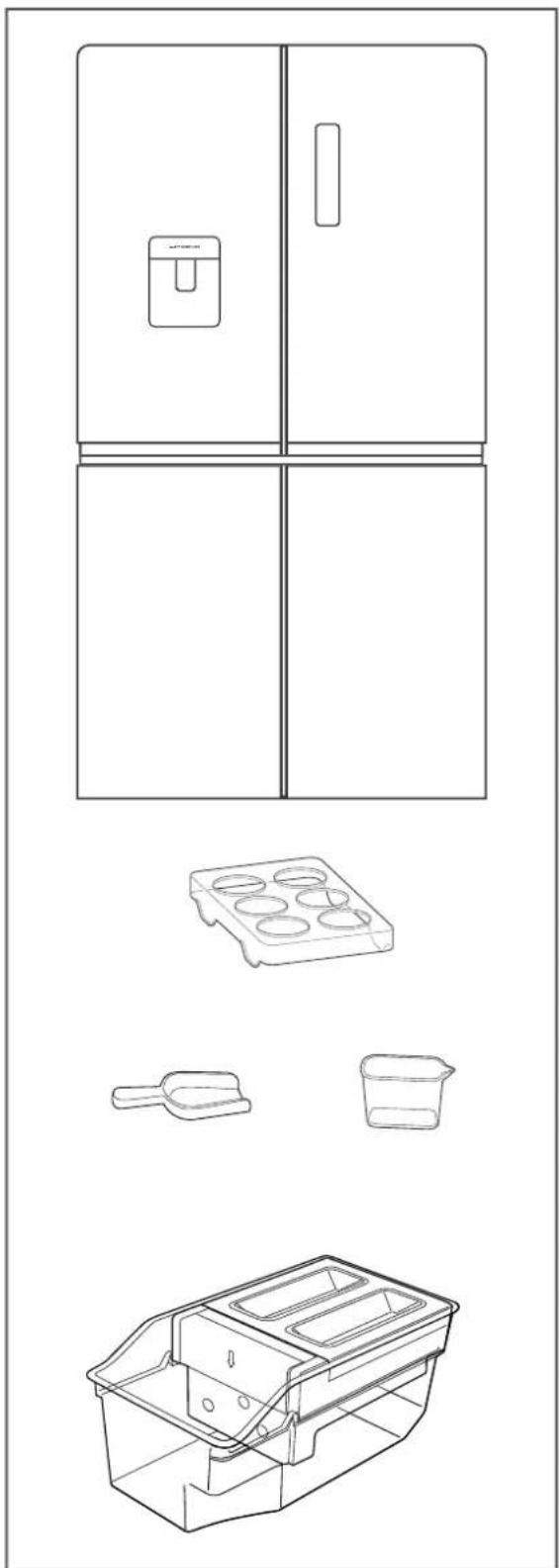

Line drawings of a refrigerator and its internal components including a baking tray, a cup, and a storage bin (no text or symbols)

Package contents

1× Fridge-freezer

Fridge

2× Glass shelf, adjustable

1× Glass shelf as cover of large fruit/ vegetable drawer

2× Fruit/vegetable drawer

5× Door shelf

Freezer

2× Glass shelf

2× Freezer drawer, large

4× Freezer drawer, small

1× Egg tray

1× Ice cube maker

1× Ice cube scoop

1× Measuring cup, 100 ml

1× User manual

Check the delivery

1. Move the appliance to a suitable place and unpack it (see "Start-up" on page EN-31).
2. Check that the delivery is complete.
3. Check whether the appliance was damaged during transit.
4. If the delivery is incomplete or the appliance has been damaged during transit, please contact our service department (see "Service" on page EN-37).

WARNING!

Risk of electric shock! Never use a damaged appliance.

Appliance parts and control panel

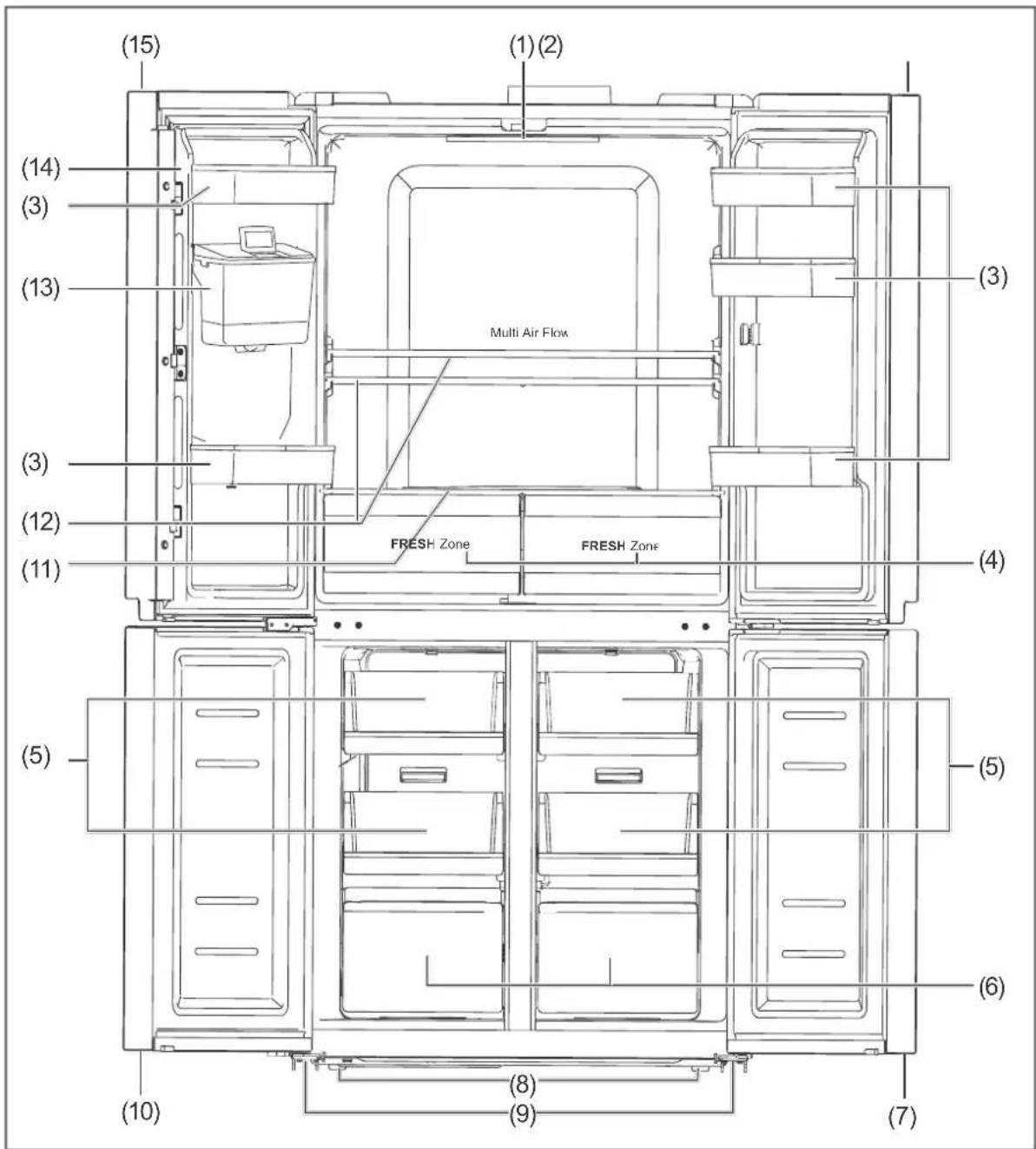

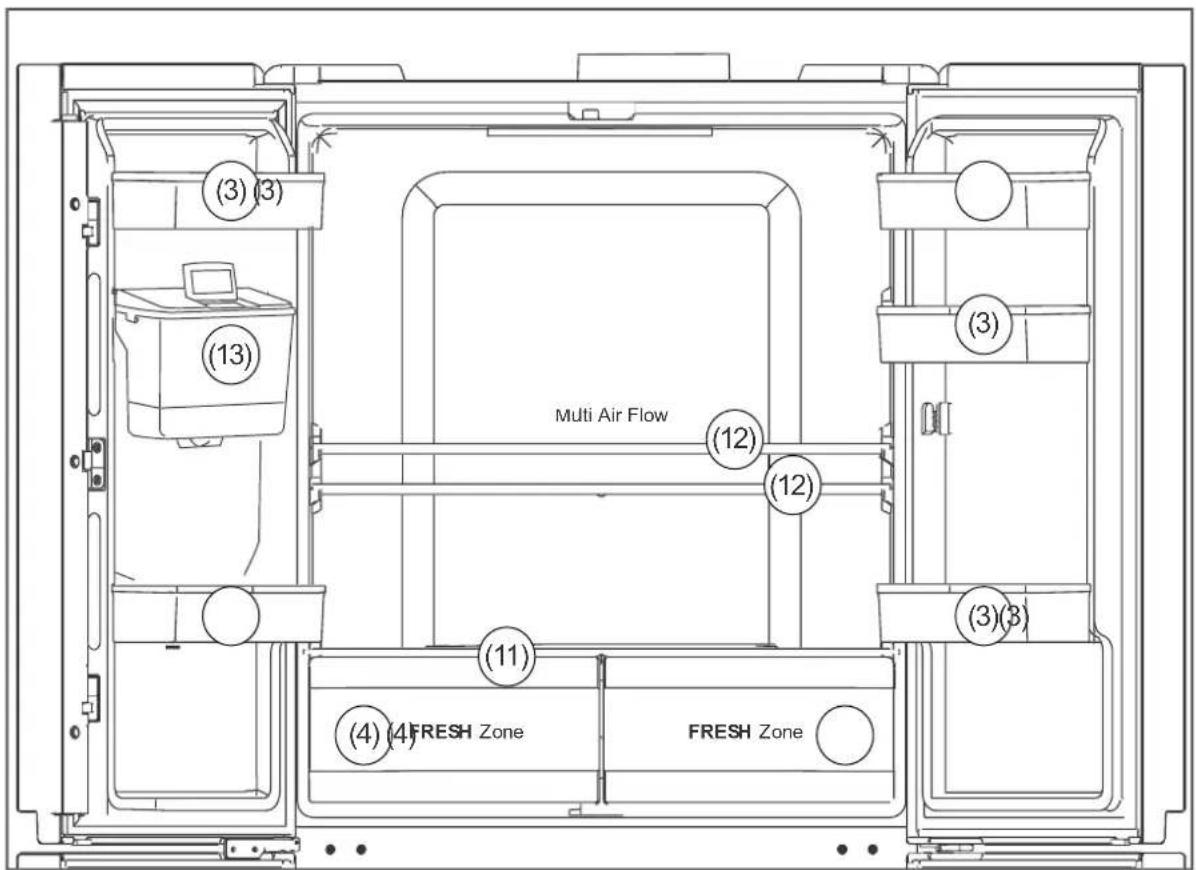

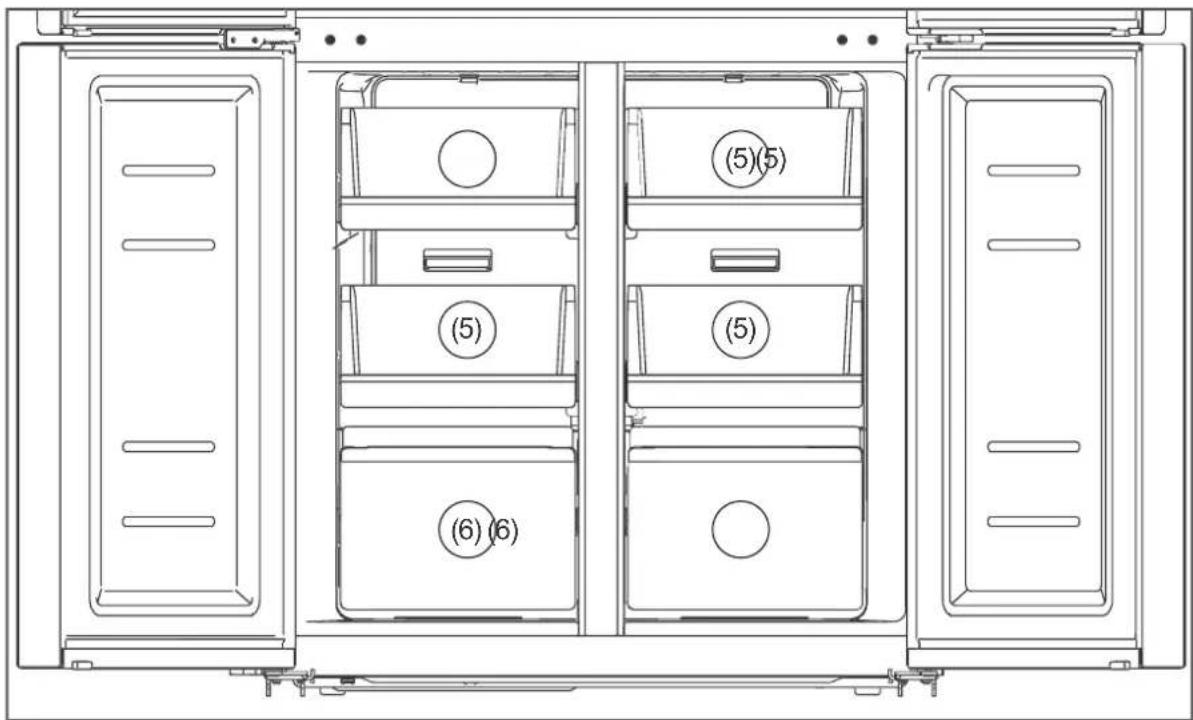

Appliance doors opened

(1) Interior lighting
(2) Right fridge door
(3) 5× door shelves
(4) 2× fruit/vegetable drawers
(5) 4× small freezer drawers
(6) 2× large freezer drawers
(7) right freezer door

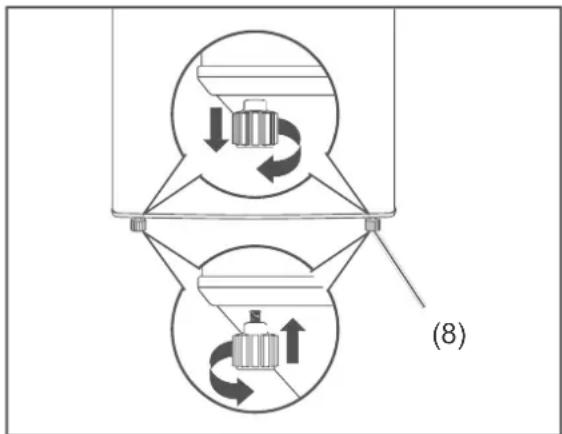

(8) 2× adjustable screw feet
(9) 2× front wheels
(10) left freezer door
(11) Glass cover above fruit/vegetable drawers
(12)2×glass shelves

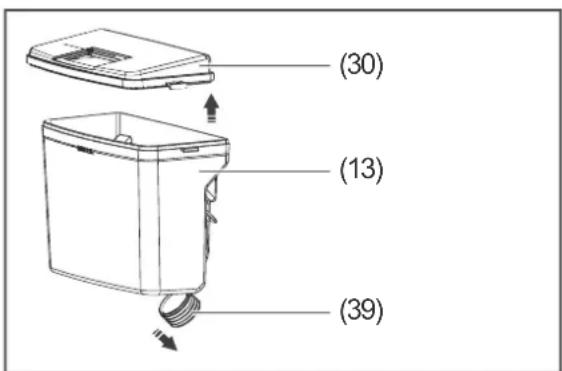

(13)Water tank
(14) Sealing strip
(15)Left fridge door

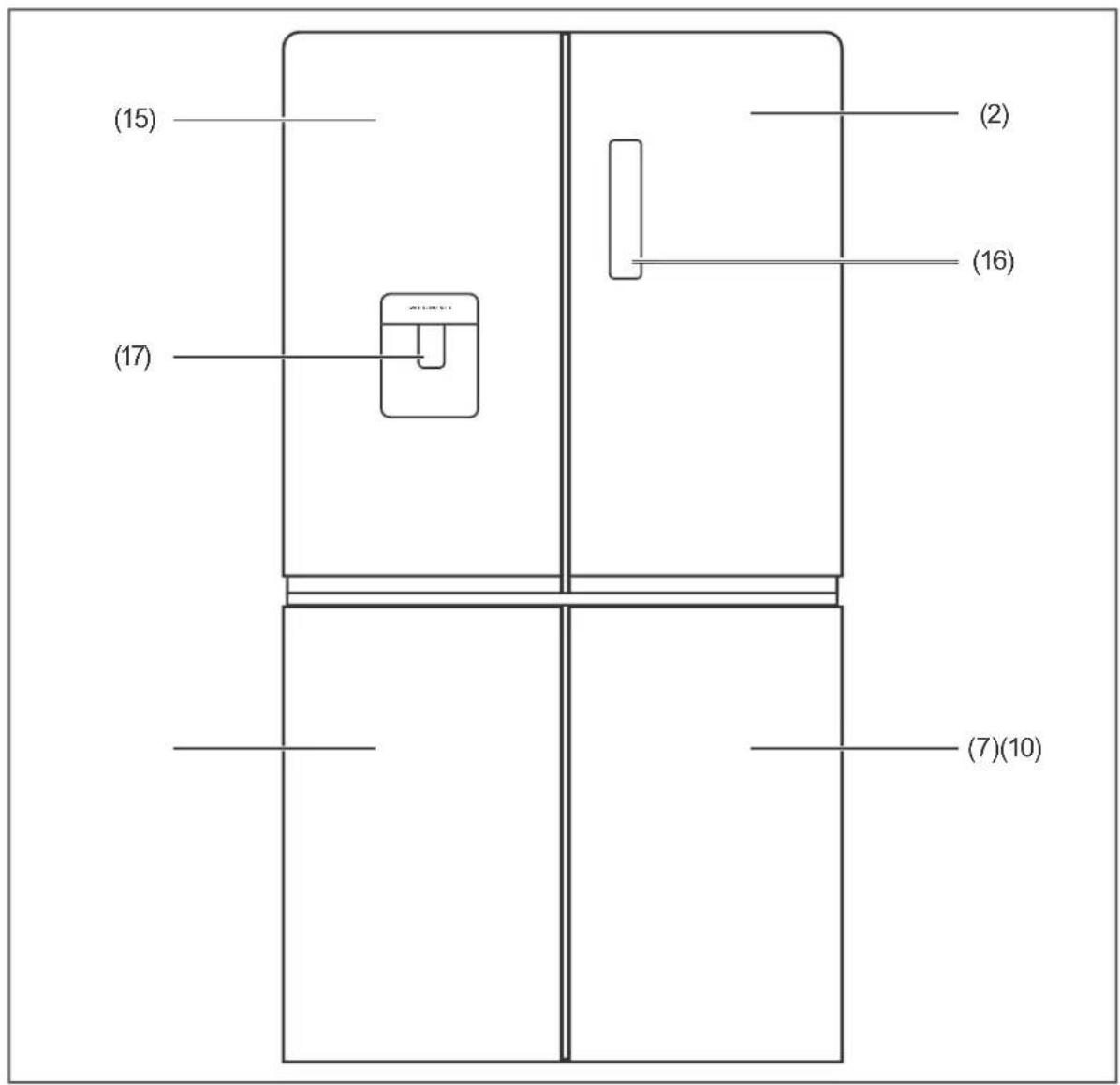

Appliance doors closed

(2) Right fridge door
(16) Control panel and display
(7) right freezer door
(10) left freezer door

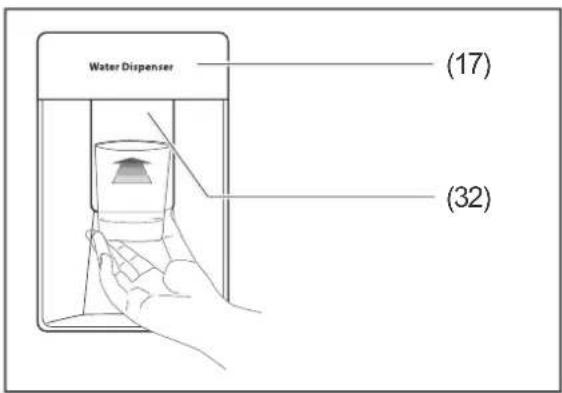

(17)Water dispenser
(15)Left fridge door

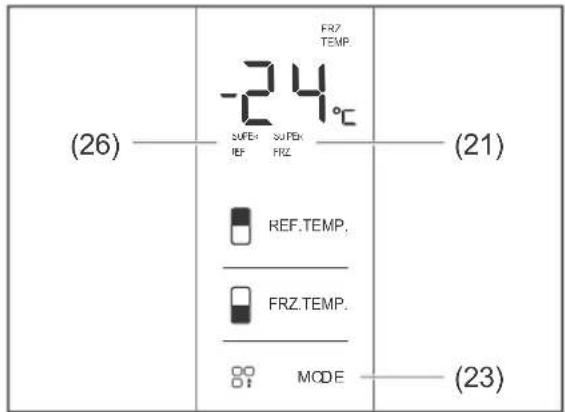

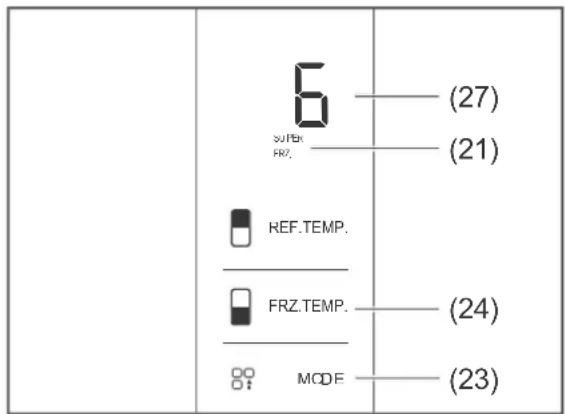

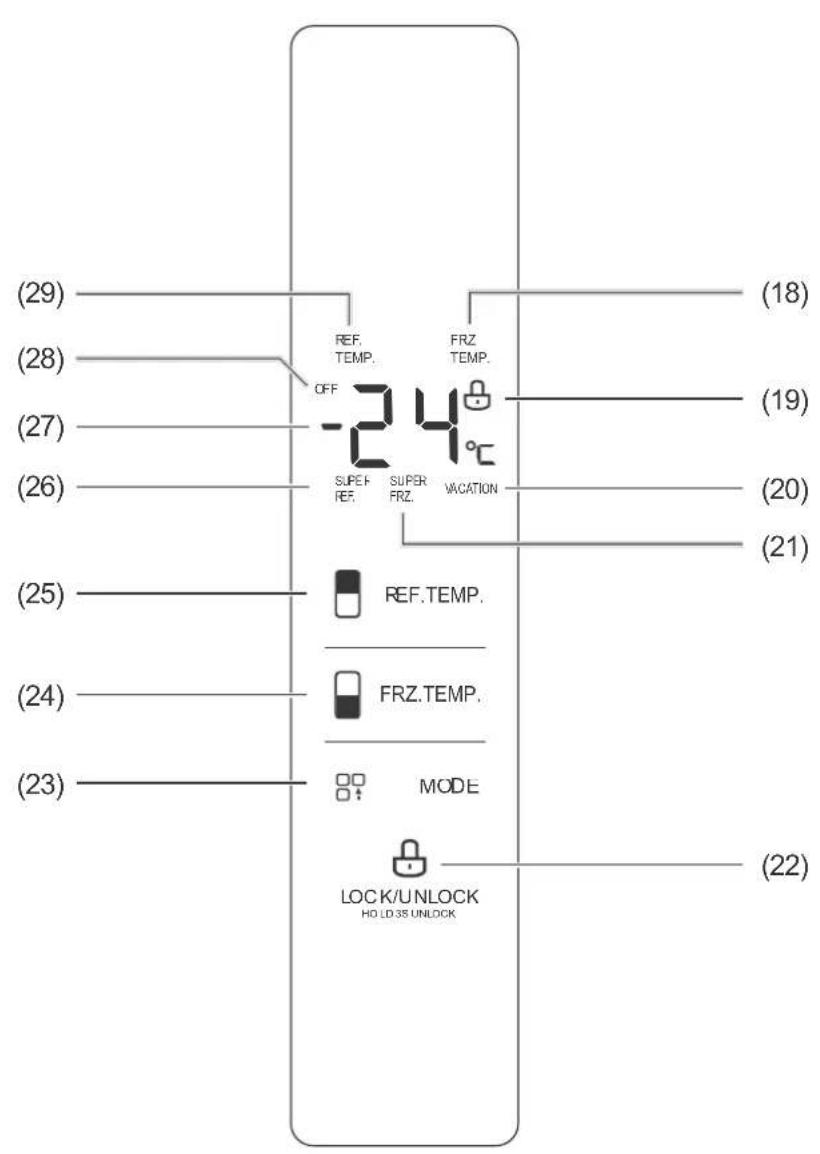

Control panel and display

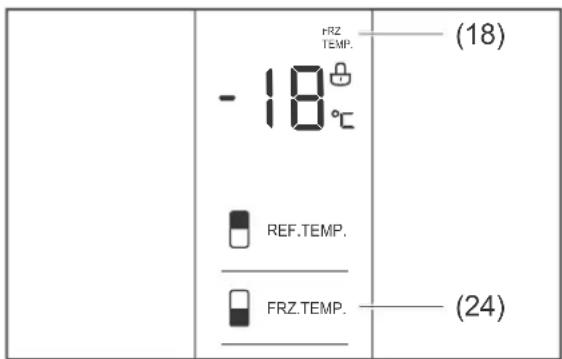

(18)Indicator FRZ.TEMP.: lights up when the freezing temperature is being displayed.

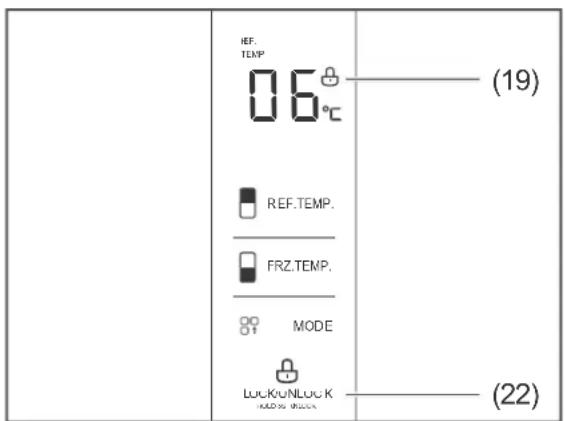

(19) Indicator ⚙: lights up when the indicator is locked.

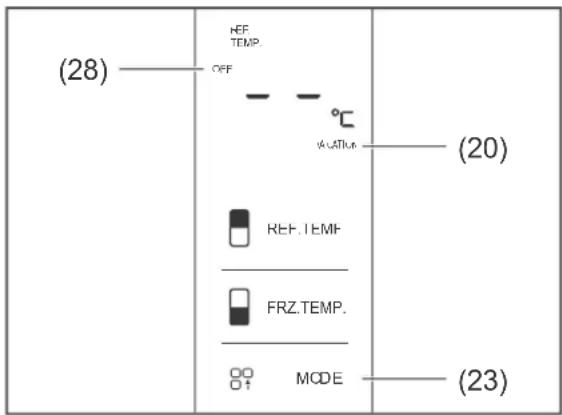

(20)Indicator VACATION.: lights up when "holiday mode" setting is selected,

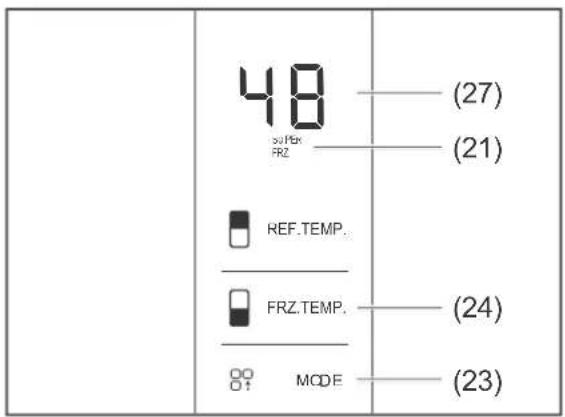

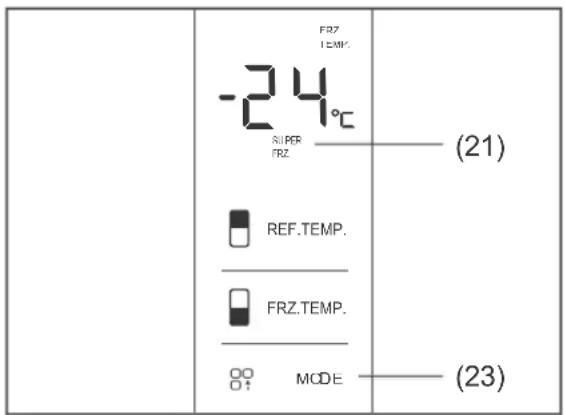

(21)Indicator SUPER FRZ.: lights up when "Quick freeze" is selected.

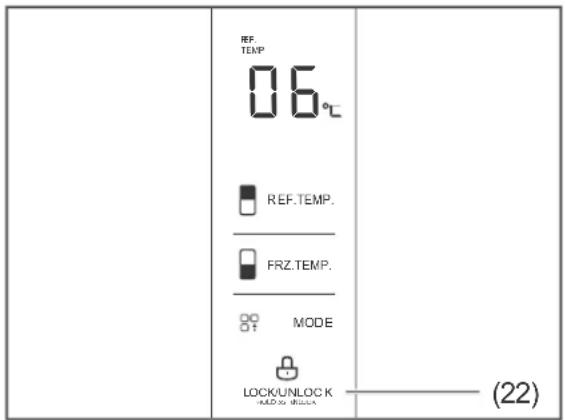

(22)Button LOCK/UNLOCK button for locking/unlocking the display.
(23)Button MODE for setting the functions.
(24)Button FRZ.TEMP. for setting the temperature in the freezer.

(25)Button REF. TEMP. for setting the temperature in the fridge.
(26)Indicator SUPER REF.: lights up if "Quick cool" is selected.
(27) Display-indicator
(28)Indicator OFF: lights up when the fridge is switched off.
(29)Indicator REF. TEMP.: lights up when the cooling temperature is being shown.

Safety

Intended use

This appliance is suitable for chilling fresh food, storing commercially frozen food, for freezing fresh, room-temperature foods and for making ice.

The appliance is intended solely for domestic use. It is not designed for commercial use.

Use the appliance solely as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

The interior lighting is intended exclusively for lighting the fridge and freezer. It is not suitable for lighting a room.

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful addi-l information.

Explanation of symbols

Warning: Risk of fire/flammable materials!

"4 star" symbol: Freezer at -18 °C or colder

This appliance complies with the relevant European and national guidelines. This is confirmed with the CE label (corresponding explanations are available from the manufacturer).

Safety notices

In this chapter you will find general safety instructions which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on start-up, operation, set-up, etc.

WARNING

Risks in handling household electrical appliances

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance if

– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
– it makes unfamiliar noises.

In such cases, remove the mains plug from the socket or unscrew/isolate the fuse and contact our service department (see page EN-37).

■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been installed properly. When connecting, make sure that the voltage is correct. You can find more detailed information about this on the nameplate.

• Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
  ■ The appliance can only be completely disconnected from the power supply by pulling out the mains plug. The appliance must therefore be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of breakdown.
• If the mains plug is no longer accessible after installation, an all-pole disconnecting device complying with overvoltage category III must be connected to the house wiring with a contact gap of at least 3 mm; this includes fuses, circuit breakers and contactors.
• When installing the appliance, ensure that the mains cable does not become pinched or damaged.
• Do not kink or pinch the mains cable or lay it over sharp edges. This can result in a break in the cable.
• Keep the appliance, mains plug and mains cable away from naked flames and hot surfaces.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
  ■ Always hold the mains plug itself, not the mains cable.
  ■ Never touch the mains plug with wet hands.
  ■ Never immerse the mains cable or plug in water or any other liquids.
  ■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Inspections and repairs to the appliance may only be carried out by authorised specialists. Contact our service team if necessary (see page EN-37).
■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair a defective or suspected defective appliance yourself.
■ This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger. Only parts corresponding to the original appliance specifications may be used for repairs.
- In the event of a fault, as well as before extensive cleaning, pull out the mains plug or isolate/unscrew the fuse.
- Do not put any objects in or through the housing openings, and also make sure that children cannot insert any objects into them.
- Check the appliance regularly for damage.

Risks to children

Risk of suffocation!

Children can become entangled in the packaging film or swallow small parts and suffocate.

■ Do not allow children to play with the packaging film.
■ Prevent children from pulling small parts from the device or taking them out of the accessory bag and putting them in their mouths.

Risks when dealing with chemical substances

Danger of explosion!

Improper handling of chemical substances can lead to explosions.

• Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.
  ■ Never use defrosting sprays to defrost. They can generate explosive gases.

CAUTION

Risks for certain groups of people

Dangers for children and people with limited physical, sensory or mental capacity!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision..
  ■ Make sure children do not have unsupervised access to the appliance.

Risks when dealing with fridge and freezer appliances

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Only connect the appliance to a properly installed and earthed electric socket.
- Do not connect to a multi-socket extension cable or a multi-socket plug.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Do not place the appliance directly against the wall. Observe the minimum spacing intervals (see “Setting up the appliance” on page EN-33).

Dangers from the refrigerant!

Your appliance's refrigeration circuit contains the environmentally friendly, but flammable refrigerant R600a (isobutane).

■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
- Do not damage the refrigerant circuit, for example, by piercing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, cutting open the insulation, etc.
■ Refrigerant is flammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.
■ To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have

a minimum size of 1 m^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found in the data sheet at the end of this user manual.

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Ask another person to help with moving and installation.
- Check that entry route and installation location are free of obstacles (e.g. closed doors or objects lying on the floor).
■ Bases, drawers, doors, etc. must not be used as steps or for support purposes.
■ Do not place heavy objects on the appliance, as they could fall down and cause injuries.
■ Lay out the mains cable in such a way that it does not become a trip hazard.

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ Clean the water tank if it has not been in use for 48 hours; rinse out the water system if water has not been dispensed for 5 days.

■ Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
■ Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
■ One-, two- and three-star compartments are not suitable for the freezing of fresh food.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

• In particular, pack raw meat and fish carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
  ■ Abide by the storage times recommended by food manufacturers.
  ■ Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).
• In case of prolonged power failure or appliance malfunction, remove stored frozen food from the appliance and store it in a sufficiently cool place or in another refrigerating appliance (maximum storage time in case of malfunction: 15 hours).
  ■ After a malfunction, check whether the stored food is still edible. Con-

sume thawed and defrosted foods immediately; do not refreeze.

■ Use only drinking water to make ice cubes.
■ Use only fresh drinking water to fill the water tank. Do not fill the water tank with any other fluids.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

- Always adhere to the prescribed ambient temperature (see “climate classes” in the data sheet at the end of this user manual).

Risk of injury from frozen goods! Improper handling of the appliance may result in injury. There is a risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
- Let ice cubes or ice lollies thaw a little before eating, do not put into your mouth straight from the freezer.

! NOTICE

Risk of damage!

If the refrigerating appliance has been transported horizontally, lubricant from the compressor may make its way into the cooling circuit.

■ Transport the appliance only in a vertical position.

- Allow the refrigerating appliance to stand upright for 2 hours before start-up. The lubricant will flow back into the compressor during this time.

Improper handling of the appliance can lead to property damage.

• Do not pull or lift the appliance by its doors or door handles.
• The appliance must only be placed on a level and firm surface. The surface must be strong enough to support the appliance's weight when fully laden.
• Do not use sharp or pointed objects to unpack it.
• When unpacking the appliance, never damage the insulation material on the back of the appliance.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  ■ The interior light must be used only to illuminate the interior of the appliance. It is not suitable for lighting a room.
• Do not store glass or metal containers containing water, lemonade, beer etc. Water expands when frozen and can burst the container.
  ■ Defrost the appliance in a timely manner, before it forms a layer of ice and frost of more than 5 mm. Excessive ice formation increases power consumption, the drawers become

difficult to open and the door may not close completely.

• Do not use any mechanical devices or means other than those recommended by the manufacturer to accelerate defrosting. For example, do not use any electric heating equipment, knives or devices with an open flame such as a candle. The thermal insulation and the interior are scratch and heat-sensitive and can melt.
  ■ When cleaning, please note:

• Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.

• Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
  – Use only soft cloths for cleaning.

• Wait 5 minutes after switching off. Only then switch the appliance on again.
  ■ Only use original accessories.

• Do not wash individual appliance parts in a dishwasher. They are not dishwasher-safe.
  ■ Never spray the appliance with a water jet (e.g. high-pressure cleaner).
  ■ Make sure that no water gets into the electrical parts of the appliance.

Operation

Before getting started

• Read chapter "Safety" from page EN-7 and all the safety notices.
• Set up and connect the appliance as described in chapter "Start-up" from page EN-31.

Stand-by mode

If no button is pressed for 30 seconds, all indicators on the display will switch off and the control panel locks automatically.

To make the indicators light up again,

• push any button.
• open a door.

To unlock the control panel, press and hold the LOCK/UNLOCK button (22) for 3 seconds until the ⏻ indicator (19) goes out.

Switching the appliance on and off

! NOTICE

Risk of damage!

If the refrigerating appliance has been transported horizontally, lubricant from the compressor may make its way into the cooling circuit.

- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting.

Switching on

1. Insert the mains plug into an easily accessible socket (220–240 V\~ / 50 Hz).
2. When you open one of the appliance doors, the interior of the appliance is lit up.

- The compressor starts to work, the refrigerant flows through the pipes and a quiet humming sound can be heard. The appliance is switched on.

1. If the appliance makes unusual noises, check that it is on a solid base and remove any objects that are on top of the appliance.

The appliance and its functions are checked before being delivered. The most recently made settings are retained. If the appliance was switched into "holiday mode" during the functional test, the fridge will also be switched off upon being plugged in for the first time.

Switching off

1. Pull the mains plug out of the socket.
   – The signals on the control panel go out.
2. When you open one of the appliance doors, the lights inside the appliance (1) remain switched off.
   – The compressor is switched off. The appliance doesn't refrigerate.
3. Empty the appliance and clean it (see "Care and maintenance" on page EN-27).
4. Leave the appliance doors slightly open to prevent mould from forming.

Locking/unlocking the control panel

The fridge-freezer is protected against unintentional changes in settings. If any button is pressed, you will hear a beeping sound and the indicator (19) will flash. The control panel is locked. The indicator is illuminated constantly on the display, until after 30 seconds the control panel automatically closes.

Unlocking

- Press the LOCK/UNLOCK button ⏻ (22) for 3 seconds.

The indicator will go out and a tone will sound. The control panel buttons are now released.

Locking

- Press the LOCK/UNLOCK button ☑ (22) for 3 seconds.

A tone will sound and the indicator ⚙will appear on the display.

If no button is pressed for 30 seconds, the control panel will lock automatically.

Setting the temperature

WARNING

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature in the fridge and freezer.

■ Always abide by the prescribed ambient temperature (see ‘Climate categories’ on page EN-39).

Using the FRZ.TEMP. button (24) and REF. TEMP. button (25), you can set the temperature in the freezer and the fridge independently of one another.

• First select a medium setting.
• If, for example in summer, the ambient temperature increases, select a lower setting accordingly.

The appliance is checked for functionality before being delivered. The most recently made settings are retained. If

the appliance was switched into “holiday mode” during the functional test, the fridge will also be switched off upon being plugged in for the first time.

Freezer

The temperature range of the freezer lies between -24^ and -16^ .

1. Unlock the control panel (see "Locking/unlocking the control panel" on page EN-13).
2. Press the FRZ.TEMP. button (24) once.
3. The FRZ.TEMP. indicator (18) will light up. It indicates that the temperature of the fridge is being shown.
4. Press the FRZ.TEMP. button (24) repeatedly until the desired temperature is displayed. The temperature is reduced by 1 °C with every press. If you reach -24 °C, the temperature of the freezer jumps up again to -16 °C.
5. Once the indicator stays illuminated, the temperature has been set.
6. After 30 seconds, the control panel will lock automatically.

The ideal temperature for the freezer is -18^ .

Fridge

The temperature range of the fridge is between +2 °C and +8 °C.

1. Unlock the control panel (see "Locking/unlocking the control panel" on page EN-13).
2. Press the REF.TEMP. button (25) once.
3. The REF.TEMP. indicator (29) will light up. It indicates that the temperature of the fridge is being shown.
4. Press the REF.TEMP. button (25) repeatedly until the desired temperature is displayed. The temperature is reduced stepwise by 1 °C with every press. If you reach +2°C, the temperature of the fridge jumps back to +8°C. Once the indicator lights up permanently, the temperature has been set.
5. After 30 seconds, the control panel will lock automatically.

The ideal temperature in the fridge is +6 °C.

Quick freezing and Quick refrigerating

The appliance lets you select the lowest refrigerating and/or freezing temperature quickly and easily via the "Quick freezing" and "Quick refrigerating" modes.

The “Quick freezing” mode will automatically shut off after 6 or 48 hours, depending on the duration set. The appliance will then automatically return to the previously set temperature (see “Setting the duration of the “Quick freezing” mode” on page EN-16).

After 2.5 hours, the appliance will automatically exit the “Quick refrigerating” mode and return to the previously set fridge temperature.

You can also end "Quick freezing" and "Quick refrigerating" manually at any time.

Quick freezing

The SUPER FRZ. mode ("Quick freezing") enables you to pre-chill the freezer before storing frozen food or freezing fresh food.

1. Unlock the control panel.(see "Locking/unlocking the control panel" on page EN-13).

2. Press the MODE button ☐ (23) repeatedly until the SUPER FRZ. indicator (21) appears on the display.

The (27) display-indicator shows the temperature setting -24^ for the freezer. The freezer will cool down to -24^ .

• Once the freezer temperature reaches -18^ (check with a fridge/freezer thermometer), you can store frozen food in the freezer.
• Once the freezer temperature reaches -22^ , you can store fresh food in the freezer. The temperature in the freezer rises temporarily.

At the end of the set duration, the appliance will exit the SUPER FRZ. mode and return to the previously set temperature (see "Setting the duration of the "Quick freezing" mode" on page EN-16).

Another way to switch off "Quick freezing" is to press the FRZ.TEMP. button (24) to adjust the temperature.

Setting the duration of the "Quick freezing" mode

The appliance enables you to set how long the SUPER FRZ. ("Quick freezing") mode stays active.

Switching on

1. Press the MODE button 8(23) repeatedly until the SUPER FRZ. indicator appears on the display. The (27) display-indicator shows the temperature setting -24 °C for the freezer.

1. Press the FRZ.TEMP. button for 3 seconds. (24). The number "6" will appear on the display. The SUPER FRZ. indicator (21) will flash. The indicator shows the duration of the function. The appliance is set to SUPER FRZ. mode for 6 hours.

1. To set the duration of the SUPER FRZ. mode to 48 hours, press again the FRZ. TEMP. button (24).

The number "48" appears on the display-indicator. The appliance is set for 48 hours at SUPER FRZ. ("Quick freeze").

At the end of the set duration, the appliance will automatically exit the SUPER FRZ. mode and return to the previously set temperature.

Switching off

You can switch off the function SUPER FRZ. manually at any time.

- Press the MODE button ☐ (23) repeatedly until the SUPER FRZ. indicator (21) is no longer shown on the display. "Quick freezing" is switched off.

Another way to switch off "Quick freezing" is to press the FRZ.TEMP. button (24) to adjust the temperature.

Quick refrigerating

Choose the SUPER REF. mode (26) ("Quick refrigerating"), for example, when you would like to cool a can more quickly in the fridge.

1. Press the MODE button (23) repeatedly until the SUPER REF. indicator (26) appears on the display. The display indicator (27) shows the temperature setting 2 °C for the fridge.

2. The function SUPER REF. switches itself off automatically after 2.5 hours.

3. You can end the SUPER REF. function manually as soon as the contents of the fridge are sufficiently cooled. Press the MODE button (23) repeatedly until the SUPER REF. indicator(26) is no longer shown on the display. SUPER REF. is switched off.

Another way to switch off "Quick refrigerating" is to press the REF.TEMP. button (25) to adjust the temperature.

Quick freezing and Quick refrigerating at the same time

You can set "Quick freezing" and "Quick refrigerating" at the same time.

• Press the MODE button (23) repeatedly until the SUPER REF. indicator (26) and the SUPER FRZ. indicator (21) appear on the display.
• To switch off "Quick freezing" and "Quick refrigerating", press the MODE button repeatedly until the SUPER REF. indicator (26) and the SUPER FRZ. indicator (21) are no longer shown on the display.

Holiday mode

WARNING

Health hazard!

Stored food can spoil from insufficient cooling. This could lead to a risk of food poisoning when consumed.

■ Note that the shelf life of stored food may be shortened due to a rise in the temperature inside the appliance.
- Remove stored food from the appliance – even when only switching off the appliance temporarily – and store it in a sufficiently cool place or in another refrigerating appliance.
■ Consume thawed and defrosted foods immediately; do not refreeze.

You can switch off the fridge (e.g. while on holiday) without interrupting the power supply. The freezer will stay cold. The temperature in the freezer is automatically set to -18^ C.

Switching on

• Press the MODE button 8(23) repeatedly until VACATION (20) and OFF (28) appear on the display.
  The temperature indicators show -18 ^ for the freezer and “--” for the fridge.

Switching off

You can turn off "Holiday mode" manually.

• Press the MODE button 89 (23) repeatedly until the VACATION indicator (20) is no longer shown on the display.
• Alternatively, press either the FRZ.TEMP. button (24) or the REF.TEMP. button (25) to set the temperatures.
  "Holiday mode" is now switched off.

Door alarm

The use of energy and the temperature inside the appliance can increase if the doors are opened often or for long periods of time.

To avoid an excessive loss of cooling, a tone will sound when one or both doors of the fridge-freezer have been open for more than 2 minutes.

- Close the open door(s).

When you open the door of the refrigerator, you will hear a beeping sound.

Rearranging the shelves

The glass shelves (12) can be removed and rearranged if necessary.

1. Lift up the glass shelf and remove it.
2. Place the glass tray in the new position.

The door shelves (3) can also be taken out and repositioned.

1. Press the left and right sides of the door shelves lightly together. Lift the door shelves up and take them out.
2. Insert the door shelf from above.

Filling the water tank

The appliance has a water tank (13) which is fixed to the inside of the left door of the fridge.

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Use only fresh drinking water to fill the water tank. Do not fill the water tank with any other fluids.
■ Clean the water tank if it has not been used for 48 hours; rinse out the water system if water has not been dispensed for 5 days.

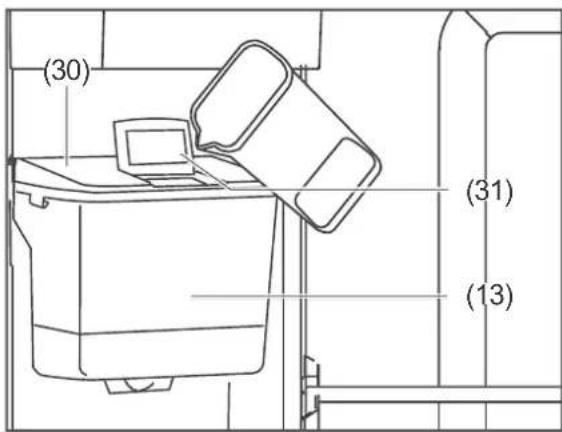

• Open the closing cap (31) on the lid (30) of the water tank (13). Pour fresh cold tap water into the water tank (13), and close the closing cap (31) again.

Using the water dispenser

- Push a container against the dispenser pad (32) of the water dispenser (17).

Chilled water will begin to pour into the container.

Water will stop being dispensed when you remove the container from the dispenser guide (32) or when there is no more water in the water tank (13).

Chilling food

Filling the fridge

WARNING

Danger of explosion!

Improper handling of the appliance can lead to explosions.

- Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.

CAUTION

Health hazard!

Contaminated food can cause health problems.

■ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
■ Clean the water tank if it has not been in use for 48 hours; rinse out the water system if water has not been dispensed for 5 days.
■ Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

■ Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
■ One-, two- and three-star compartments are not suitable for the freezing of fresh food.
■ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- Fill the fridge in such a way that the temperature conditions inside are used to their full potential:

• Place spreadable butter and cheese on the upper large door shelf (3) The temperature is highest there.
• Store jam, glass jars and eggs in the door shelves (3). Use the egg shelf to store the eggs.
• Place drink cartons and bottles in the door shelves (3). To reduce the load of the door hinges, place full containers closer to the door hinge.
• Store small bottles and tubes in the door shelves (3).
• Place cooked and baked foods on the glass shelves (12).
• Place fresh meat, game, poultry, bacon, sausage and raw fish on the glass cover (11) directly above the fruit/vegetable drawers (4). This is where the temperature is lowest.

• Place fresh fruit and vegetables in the fruit/vegetable drawers (4).

• Store strong alcohol only standing upright and closed tightly.

• Allow hot food to cool before placing it in the fridge.
• If you intend to refill the fridge with large amounts of food, set “Quick refrigerating” about 2 hours before you fill it.

If you intend to refill the fridge with large amounts of food, set “Quick refrigerating” about 2.5 hours before you fill it (see page EN-17).

Maintaining quality

• To maintain the flavour and freshness of food in the fridge, only place packaged food in the fridge.
  Use special plastic containers for food or customary films.
• Place the food

– in the fridge in a way that allows the air to circulate freely. Do not cover the shelves with paper or anything similar;

– and not directly against the rear wall. Otherwise it may freeze onto the rear wall.

Freezing foods / storing frozen foods

WARNING

Danger of explosion!

Improper handling of the appliance may lead to an explosion.

- Do not store explosive substances or spray cans with flammable propellants inside the appliance, as they may cause ignitable gas-air mixtures to explode.

WARNING

■ Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!
- In particular, pack raw meat and fish carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
■ Abide by the storage times recommended by food manufacturers.

■ Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).
- In the event of prolonged power failure or appliance malfunction, remove stored frozen food from the appliance and store it in a sufficiently cool place or in another refrigerating appliance (maximum storage time in case of malfunction: 15 hours).
■ After a malfunction, check whether the stored food is still edible. Consume thawed and defrosted foods immediately; do not refreeze.
■ Use only drinking water to make ice cubes.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury. Risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature.
Never touch them with wet hands. This can cause injury to the skin.
Skin damage can occur even with dry skin.
- Let ice cubes or ice lollies thaw a little before eating, do not put into your mouth straight from the freezer.

Freezing food

Freezing means reducing the core temperature of fresh, room-temperature food to frozen as quickly as possible – for best results, "flash-frozen". If not cooled quickly enough, the food will be 'killed by frost', i.e. the structure will be destroyed. A constant storage temperature of -18^ C is needed to maintain the food's consistency, taste and nutritional value.

If you are freezing a large quantity of food at once, set "Quick freezing" 2 hours beforehand (see page EN-16).

Be sure to take note of the maximum freezing capacity (see “Product fiche concerning EU Directive no. 1060/2010” on page EN-39).

- Place food to be frozen in the freezer compartments (5) and (6).

Preparing food

• Only freeze high quality food.
• Freeze fresh and prepared food dry and unseasoned. Unsalted foods are more durable.
• Allow prepared food to cool before freezing. This not only saves power, but also prevents excessive frost formation in the freezer.
• Carbonated drinks are not suitable for freezing because the carbon dioxide escapes during freezing.

Selecting suitable packaging

Packaging is important when freezing. This will protect against oxidation, penetration by microbes, transfer of odours and flavourings and drying out (freezer burn).

- Only use packaging material that is strong, impermeable to air and liquid, not too stiff and labelled. It should be designated as suitable for freezer use.

Portioning food

• Create flat portions if possible; these freeze through to the core faster.
• Expel the air from the freezer bag as this causes the contents to dry out and takes up space.
• Use plastic clips, rubber bands or adhesive tapes to seal.
• Fill liquid containers no more 34 full, because liquids expand when frozen.
• Do not store any glass or metal containers containing liquid. These containers could break.
  • Always store strong alcoholic drinks upright and tightly closed.
• Label the frozen food by type, quantity, amount and expiry date. Use waterproof marker pens or adhesive labels wherever possible.

Maximum freezing capacity

For appliances with energy efficiency class A++ the maximum freezing capacity is 18 kg. Information about 'Freezing capacity in kg/24 hours' can be found on the data sheet on page EN-39.

- Do not fill the appliance with more than 18 kg of load.

Freeze smaller quantities

- up to 18 kg:

Once the freezer temperature is -18^ C, you can freeze fresh, room-temperature foods.

The temperature in the freezer briefly rises after placing fresh goods inside. After 24 hours, the goods are frozen to the core.

Storing frozen food

The deep-freeze chain must not be broken between the manufacturer and your freezer. The temperature of the frozen food must always be at least -18^ C.

• Therefore, do not buy any goods that

– are in frosty, over-icy chests.
- are stacked above the stipulated high-load marker.
– partially clumped (particularly easy to identify with berries and vegetables).
– have snow and juice traces.

• Transport frozen foods in special styrofoam boxes or insulated bags.
• Observe the storage conditions and storage times on the packaging.
• You can store frozen goods in the entire freezer.

Defrosting food

Observe the following basic rules when defrosting food:

• To defrost food, remove it from the freezer and allow it to defrost at room temperature or in the refrigerator for best results.
• To defrost food quickly, use the defrost function on your microwave, for example. Observe the manufacturer's instructions and note that bacteria and germs can multiply in this way.
• Cook or use thawed foods as soon as possible.
• Dispose of the defrosting liquid.
• If you want to defrost only part of a pack, remove the portion you need and immediately close the rest of the pack. In this way, you will avoid “freezer burn” and will reduce ice formation on the remaining foods.
  • Always defrost meat, poultry and fish in the refrigerator. Make sure that the frozen food is not immersed in its own thawing liquid.

Making ice cubes

Your appliance has an ice cube maker (35) with a lid (33), two ice cube trays (34) and an ice cube collecting container (37). You can remove the ice cubes from the ice cube trays using the ejector (36).

CAUTION

Health hazard!

Consuming ice cubes prepared using impure or standing water can endanger your health. Incorrect handling can cause food poisoning.

■ Use only fresh drinking water to make ice cubes.

Filling the ice cube maker

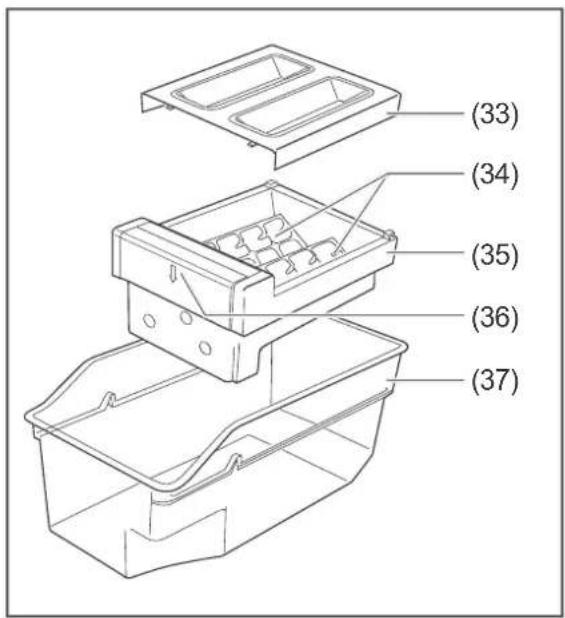

1. Take the ice cube maker (35) out of the ice cube collecting container (37).

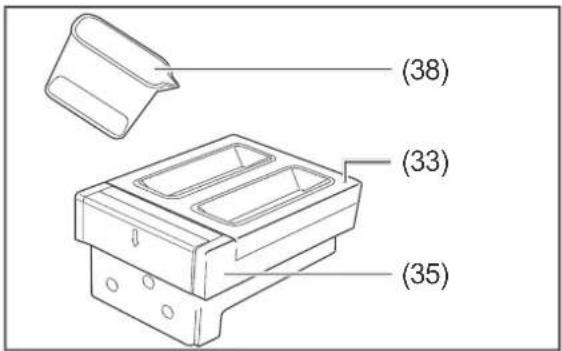

1. Fill the measuring cup (38) for each ice cube tray (34) up to the 55 ml mark with cold, fresh tap water.
2. Using the measuring cup (38), fill the water in the ice cube trays (34) via the lid (33). The lid has funnel-shaped openings that guide the water into the ice cube trays (34).

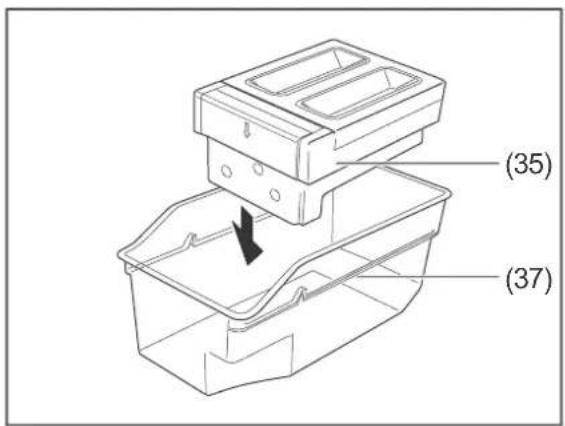

1. Place the ice cube maker (35) back on the ice cube collecting container (37).

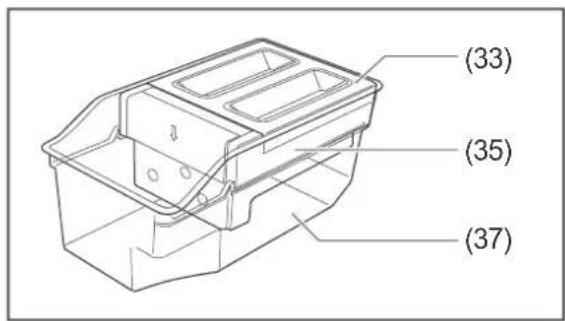

2. Put the ice cube maker (35) in a small freezer drawer (5) with the ice cube collecting container (37).

Dispensing ice cubes

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury. Risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin.
Skin damage can occur even with dry skin.
■ Let ice cubes or ice lollies thaw a little before eating, do not put into your mouth straight from the freezer.

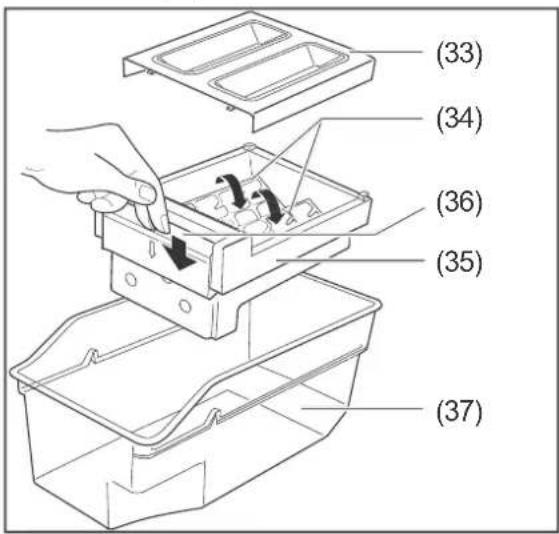

1. Take the ice cube maker (35) out of the freezer drawer with the ice cube collecting container (37).

1. Press the ejector (36) of the ice cube maker firmly downwards in the direction of the arrow. Make sure that you press the ejector all the way down.

The ice cube trays (34) turn. The ice cubes will fall into the ice cube collection container (37).

1. Use the small scoop provided to take the ice cubes out of the ice cube collecting container.

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, unplug the mains plug from the socket or isolate/un-screw the fuse. Always take hold of the mains plug itself rather than the mains cord.

CAUTION

Dangers for children and people with limited physical, sensory or mental capacity!

■ Cleaning and user maintenance shall not be made by children without supervision.

NOTICE

The surfaces and appliance parts can become damaged through unsuitable handling.

■ Never use harsh, soda, acid, solvent or abrasive cleaners.
These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
■ Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
■ Only use soft cloths.
- Do not wash individual appliance parts in a dishwasher. They are not dishwasher-safe.
■ Never spray the appliance with a water jet (e.g. high-pressure cleaner).
■ Make sure that no water gets into the electrical parts of the appliance.

Checking and cleaning the door seals

The door seals must be checked regularly so that no air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Carefully warm the seal in the affected places with a hair dryer and pull it out slightly with your fingers.
3. Only clean dirty seals with clean water.

Clean exterior

– Painted surfaces: Use only light pH-neutral soapy water.
- Stainless steel surfaces: Use special stainless steel cleaner from a specialist shop. Never use polish.

Defrosting

The fridge and freezer remain ice-free thanks to the air-cooling. Defrosting is not necessary; it occurs automatically.

Cleaning the fridge

For hygiene reasons, it is important to clean the inside of the appliance, including the internal fixtures, regularly.

Keep the door to the freezer closed during cleaning so that it does not up. The frozen food can withstand rural hours like this.

Should you need a longer time to clean, remove the frozen goods from the freezer. Ensure that your food is kept cool enough.

Emptying the fridge

1. Disconnect the mains plug from the socket or switch off the fuse.
2. Remove the chilled goods and store in a cool room.
3. Remove the door shelves (3), the glass shelves (12) and the fruit/vegetable drawers (4).

Cleaning

1. Wash the internal fixtures in warm water with washing-up liquid and dry thoroughly.
2. Wipe down the inside with warm water and washing-up liquid.
3. When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
4. Only clean the door seals with clean water; they are sensitive to oil and fat.
5. Wipe the interior dry and leave the door open a while to air.

Using the appliance again

1. Re-insert the removed internal fittings.
2. Connect the mains plug to the socket or switch on the fuse again.
3. Place the food back in the fridge.

4. Switch the SUPER REF. and SUPER FRZ. on simultaneously (see page EN-17).

5. As soon as the fridge and freezer are sufficiently cooled, switch off SUPER REF. and SUPER FRZ.

6. Set the desired fridge and freezer temperature (see page EN-14).

Cleaning the freezer

WARNING

Danger of explosion!

Improper handling of the appliance can lead to deflagration or explosion.

■ Never use defrosting sprays. They can generate explosive gases.

NOTICE

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. For example, do not use any electric heating equipment, knives or devices with an open flame such as a candle. The thermal insulation and the interior are scratch and heat-sensitive and can melt.

Preparation

To ensure the frozen goods have a cold reserve and do not defrost so quickly, set to "Quick refrigerating" and "Quick freezing" at least 3 hours before cleaning.

- Press the MODE button (23) enough times until the indicators SUPER FRZ. (21) and SUPER REF (26) appear on the display.

Keep the door to the fridge closed during cleaning so that no warm air enters ridge. Refrigerated food can withstand ral hours in this way.

Should you need a longer time to clean, remove the refrigerated goods from the fridge.

Ensure that your food is kept cool enough.

Emptying the freezer

1. Disconnect the mains plug from the socket or switch off the fuse.
2. Remove the frozen food from the freezer.
3. Wrap the frozen food thickly in newspaper and store it in a cool room. To do this, you can use the fridge section of the appliance, for example.
4. Remove the internal fixtures from the freezer: Glass shelves (12), ice cube maker (35), ice cube collecting container (37) and the freezer drawers (5) and (6).

Cleaning

1. Clean the ice cube container (35) as described in section „Cleaning the ice cube maker“ on page EN-30.
2. Wash the internal fixtures in warm water with washing-up liquid and dry thoroughly.
3. Wipe down the inside with warm water and washing-up liquid.
4. When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
5. Clean the door seal with clean water only. It is sensitive to oil and grease.
6. Rub everything completely dry, including the door seals, and allow to air briefly.

Using the appliance again

1. Re-insert the internal fittings.
2. Connect the mains plug to the socket or switch on the fuse again.

3. To quickly cool the fridge and freezer, switch on SUPER FRZ ('Quick freezing') and SUPER REF ('Quick refrigerating') at the same time (see page EN-17).

4. Place the frozen food back into the freezer once the freezer has reached a temperature of -18^ and switch off 'Quick refrigerating' and 'Quick freezing'.

5. Set the desired fridge and freezer temperature (see page EN-14).

Cleaning the water tank

1. Remove the water tank (13) from the holder. Hold it firmly at both sides. Push it upwards firmly and towards yourself at the same time.

1. Remove the lid (30) and the sealing ring (39) of the water tank (13).
2. Wash the water tank (13), the lid (30) and the sealing ring (39) with warm water. Rinse thoroughly with clear water and allow the parts to dry completely.
3. Push the sealing ring (39) back onto the outlet of the water tank.
4. Place the lid (30) back onto the water tank (13). Make sure that the lid is clicked in on both sides of the water tank.

Cleaning the valve of the water dispenser

You will find the valve of the water dispenser on the inside of the left fridge compartment door when the water tank has been removed.

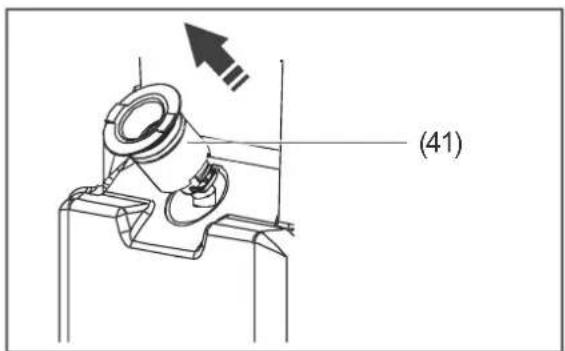

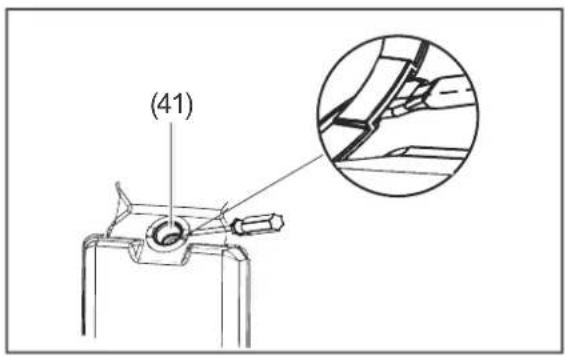

1. Lift the valve of the water dispenser a little with the help of a thin, flat tool.

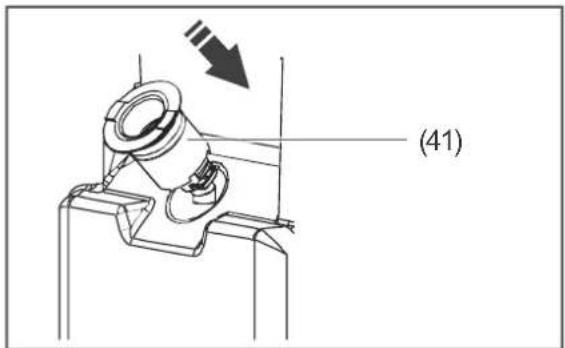

1. Pull the valve out with your hand.

2. Wash the water valve (41) with warm water. Rinse thoroughly with clear water and allow it to dry completely.

1. Press the water valve (41) back into the left fridge door, until you hear a click. To do this, position the valve at the slit.

2. Place the water tank back into the holder in the left fridge door. Push the water outlet with sealing ring into the water valve. Check whether the sealing ring sits correctly in the water valve and is properly clicked in.

Cleaning the ice cube maker

1. Take the ice cube maker (35) and the ice cube collecting container (37) out of the freezer.
2. Remove the cover (33) of the ice cube container.
3. Wash the ice cube maker (35), the ice cube collecting container (37) and the lid (33) with warm water.
4. Rinse thoroughly with clear water and allow everything to dry completely.

Interior lighting

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not remove the covers from the interior lighting.
■ Do not try to replace the interior lighting or lighting at the ice/cold water outlet yourself.

The interior lighting (1) switches on automatically when the door is opened and goes out when the door is closed.

Maintenance-free LEDs are used to illuminate the appliance. If the lighting fails, contact an authorised professional (see "Service" on page EN-37).

Start-up

Before starting to use the appliance

- Read chapter "Safety" from page EN-7, in particular all the safety notices.

Transporting, unpacking and setup

WARNING

Risk of suffocation!

Children can become entangled in the packaging film or swallow small parts and suffocate.

■ Do not allow children to play with the packaging film.
■ Prevent children from pulling small parts from the device or taking them out of the accessory bag and putting them in their mouths.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Seek the help of another person during transport and setup.
- Do not pull or lift the appliance by its doors or door handles.
■ Bases, drawers, doors, flaps, etc. must not be used as steps or for support purposes.

Dangers from the refrigerant!

- Do not damage the refrigeration circuit, for example by piercing the refrigerant channels of the condensate

vaporiser with sharp objects, cutting off the tubing, etc.

• To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m ^3 per 8 g of refrigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found on the data sheet (see “Technical specifications” on page EN-40).
  ■ Refrigerant is flammable when spurting out and can damage the eyes. If this happens, rinse eyes with clean water and seek medical assistance immediately.

NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ If possible, do not tilt the appliance horizontally.
- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting.
■ Do not use sharp or pointed objects to unpack it.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Make sure that the intended ambient temperature is maintained (see “Climate Categories” on page EN-39).

1. Move the appliance using a wheeled platform for furniture and with a second person.
2. Unpack the appliance and carefully remove all packaging, plastic profiles, adhesive strips, protective film and foam pad-

ding from the inside, outside and reverse of the appliance.

1. Select a suitable location and adhere to the stipulated minimum distances and ambient temperatures (see below).

Simple line drawing of a rectangular frame with a central rectangle and side supports, labeled 'D' at the bottom (no text or symbols within the diagram itself)

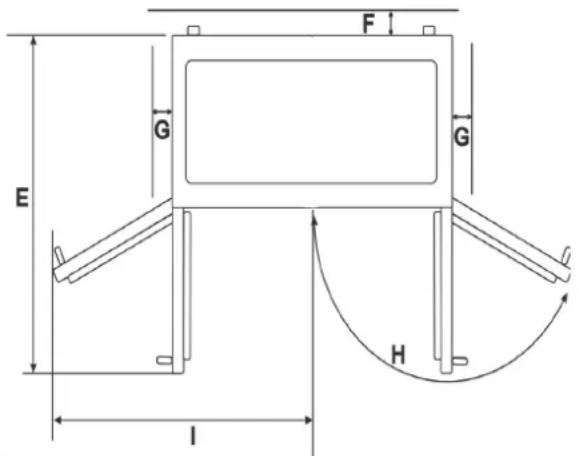

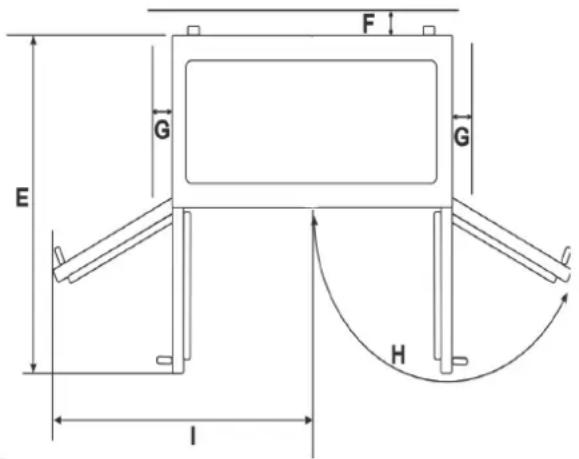

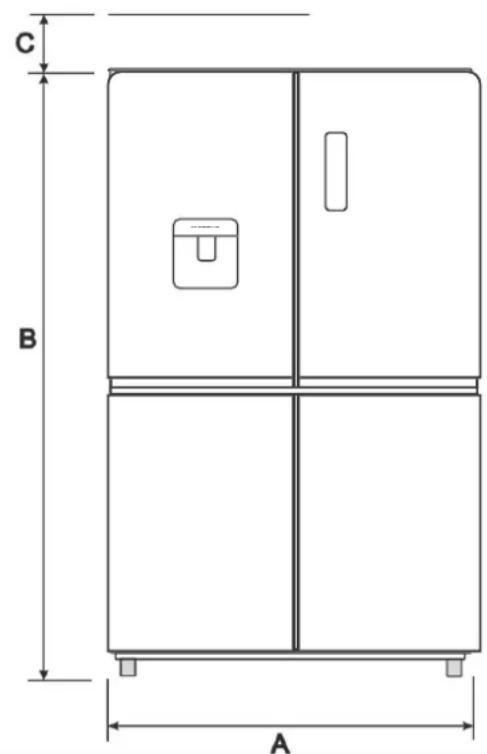

Space requirement diagram (when the door is open and when the door is closed)

Space required according to the appliance dimensions

A: 833 mm B: 1775 mm

C: 300 mm D: 740 mm

E: 1085 mm F: 100 mm

G: 100 mm H: 130°

I: 720 mm

To prevent the formation of a flammable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have the following minimum size:

– for appliances of 70 g refrigerant 9 m ^3

– for appliances of 90 g refrigerant 12 m ^3

You will find information about the indicated amounts of refrigerant on the data sheet on page EN-40.

Suitable locations are dry, well-ventilated areas that are cool if possible. Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.

The following minimum distances must be maintained:

– from electrical hobs 10 cm
– from oil and coal burning stoves 10 cm
– from other cooling appliances 10 cm
– from washing
machines/dishwashers 10 cm

If underfloor heating is installed at the set-up location, place the appliance on an insulation plate made from solid material.

The use of energy depends on the appliance location selected. The use of energy can increase if the temperature is higher or lower than the prescribed room temperature.

Setting up the appliance

1. Place the appliance upright on as flat and as firm a base as possible.

2. To ensure adequate air circulation,

3. maintain a minimum distance of 7.5 cm to the rear wall;

4. maintain a distance of at least 10 cm at the sides;
5. keep free an area of at least 30 cm above the appliance;
   – do not place any objects on the appliance;
   – do not place the appliance on carpeted flooring.

Aligning the appliance

1. Check the position with a spirit level.

1. Level out any unevenness on the ground using the two front screw feet (8).

2. Close the doors.

3. Tilt the appliance backwards slightly and screw/unscrew the screw feet.

4. Stand the appliance back up again and check the alignment with a spirit level.

5. Repeat the process until the appliance is standing up vertically. The appliance should not move when opening the doors.

Cleaning before use

To remove the odour that comes with all new appliances, clean the appliance before using it (see "Cleaning the fridge" and "Cleaning the freezer" on page EN-28).

Connecting the appliance to the power supply

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate or continue to operate the appliance if

– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
- it makes unfamiliar noises.

In such cases, remove the mains plug from the socket or unscrew/isolate the fuse and contact our service department (see page EN-37).

■ Never connect to a timer or a separate remote-controlled system for distance monitoring and control.
- If the mains plug is no longer accessible after installation, an all-pole disconnecting device complying with overvoltage category III must be connected to the house wiring with a contact gap of at least 3 mm; this includes fuses, circuit breakers and contactors.

• Do not kink or pinch the mains cable or lay it over sharp edges. This can result in a break in the cable.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

- Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

NOTICE

Risk of damage!

If the refrigerating appliance has been transported horizontally, lubricant from the compressor may make its way into the cooling circuit.

■ If possible, do not tilt the refrigerating appliance horizontally.
- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting. This allows the lubricant enough time to flow back into the compressor.

- Insert the mains plug into an easily accessible socket (220-240 V\~ / 50 Hz).

When you open the door of the refrigerator, you will hear a beeping sound and the appliance's interior will light up.

The appliance is checked for functionality before being delivered. The most recently made settings are retained. If

the appliance was switched into “holiday mode” during the functional test, the fridge will also be switched off upon being plugged in for the first time.

You will find all important information about operation from page EN-13.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips, explanations
Compressor and interior lighting off.	Socket has no electricity supply.	Check the socket with another appliance.
	Mains plug is loose. Check the tightness of the mains plug.
Compressor off, interior light on.	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically switches on.
Appliance cools too quickly.	Temperature has been set too low.	Select a higher setting (see “Setting the temperature” on page EN-14).
The appliance doesn’t cool sufficiently.	Temperature has been set too high.	Select a lower setting (see “Setting the temperature” on page EN-14).
	Door is not tightly closed or door seal is not completely tight.	See “Checking and cleaning the door seals” on page EN-27.
	The appliance is near a heat source.	Place insulation plate between the appliances or change location.
	Food has been stored warm.	Only store cooled foods.
	Too many goods frozen. Freeze no more than 18 kg at any one time.
	Ambient temperature is too low or too high.	Adjust the ambient temperature to the climate category (see “Product fiche concerning EU Directive no. 1060/2010” on page EN-39).
	Compressor seems defective.	Set “Quick freezing” SUPER FRZ (see page EN-15).If the compressor does not switch on within an hour, please contact our Service department (see page EN-37).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Unusual noises. Check that it	is stable.
		Remove any objects from the appliance.
		Remove any foreign matter from the back of the appliance.

Fault code

If a fault occurs, the corresponding fault code (e.g. E5) will be displayed until the fault has been fixed. To fix the fault, please contact our Service Centre (see page EN-37).

Fault code Affected areas of the appliance Solutions, tips
E1	Fault with the temperature sensor in the fridge	Please contact our Service Centre (see page EN-37).
E2	Fault with the temperature sensor in the freezer
E4	Fault with the defrost sensor of the fridge
E5	Fault with the defrost sensor of the freezer
E6	Communication fault between display and control panel
E7	Fault with the surrounding temperature sensor
EH	Fault with the moisture sensor

Service

In order for us to help you quickly, please tell us:

Name of appliance Model Colour	Order number
hanseatic Fridge-freezer HCD1	7884A2I Stainless	steel look 4233 4316

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

Customers in Germany

– Please contact our technical service: Telephone [phone]

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note:

You are responsible for the condition of the appliance and its proper use in the household. If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period. Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

Environmental protection

Disposing of old electrical devices in an environmentally friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

CAUTION

Fire hazard!

Cooling appliances, which contain refrigerants and gases in the cooling systems and insulation, have to be properly disposed of. Refrigerant leakage may cause a fire hazard.

■ Until the point of proper disposal, ensure that none of the cooling fins or tubes on a cooling appliance are damaged.

Our contribution to the protection of the ozone layer

100% CFC and HFC-free refrigerants and foaming agents were used in this appliance. This protects the ozone layer and reduces the greenhouse

effect.

Our packaging is made of environmentally-friendly, recyclable materials:

– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Product fiche concerning EU Directive no. 1060/2010

Trade mark	hanseatic
Model identifier	4233 4316 / HCD17884A2I
Category of the household refrigerating appliance model	7, Refrigerator-freezer
Energy efficiency class on a scale from A+++ (most efficient) to D (least efficient)	A++
Energy consumption 311 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located
Storage volumeRefrigerator	327 L
Storage volumeFreezer (frost- free) / Star rating	140 L70 L / 4 star70 L / 4 star
Power cut safe	15 h
Freezing capacity	18 kg / 24 h
Climate class: SN-N-ST-T . This appliance is intended to be used at an ambient temperature between +10 °C and +43 °C.
Airborne acoustical noise emissions	42 dB(A) re 1 pW
Built-in appliance	no

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 62552.

Technical specifications

Item number	4233 4316
Name of appliance	Side by side fridge freezer
Model identifier	HCD17884A2I
Device measurements (Height × Width × Depth with connections)	1775 mm × 833 mm × 740 mm
Unloaded weight	106 kg
Refrigerant	R600a
Filling capacity refrigerant	77 g
Foaming agent	cyclopentane
Rated power	135 W
Supply voltage / frequency / rated current / lamp power	220 - 240 V / 50 Hz / 1,9 A max 4 W
Protection class	I
