Product type	Circular saw
Brand	Black & Decker
Model	KS865KN
Power	1300 W
No-load speed	4000 rpm
Max cutting depth	65 mm
Blade diameter	184 mm
Blade arbor diameter	16 mm
Weight	4.2 kg
Power supply	Mains, two-phase cable
Double insulation	Yes
Sound pressure level	92.7 dB(A)
Sound power level	102.1 dB(A)
Hand-arm vibration level	< 2.5 m/s²
Mitre cut	Up to 45°
Parallel guide	Yes, adjustable
Riving knife	Yes, adjustable
Blade guard	Yes, with retraction lever
Optical guidance system	Yes, window and orange guide
Dust extraction	Vacuum cleaner outlet
Replaceable carbon brushes	Yes, by pair
Warranty	2 years parts and labor
Recommended materials	Wood (not metal or stone)

Frequently Asked Questions - KS865KN BLACK & DECKER

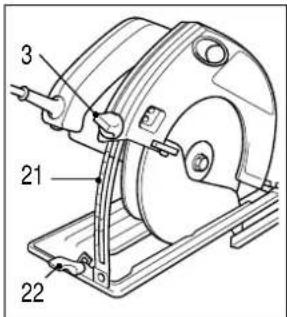

How to adjust the cutting depth on the KS865KN circular saw?

Unplug the tool. Loosen the cutting depth adjustment knob (3) located under the scale. Move the saw along the scale to the desired depth (indicated on scale 21). Tighten the knob. The depth must be 3 mm greater than the thickness of the workpiece.

How to replace the blade on the KS865KN saw?

Unplug the tool. Remove the blade guard (7). Insert a screwdriver through the blade hole to lock it. Loosen the screw (5) counterclockwise with a 13 mm wrench, remove the outer washer (24) and the blade. Install the new blade respecting the rotation direction (arrow). Replace the outer washer (raised part outward), screw the screw (5) and tighten clockwise with the wrench.

How to adjust the parallel guide?

Unplug the tool. Loosen the locking screw (15) at the front of the base. Slide the parallel guide (8) along the scale to the desired dimension. Tighten the screw (15).

How to perform a mitre cut (angle)?

Unplug the tool. Loosen the mitre locking screw (13) and the locking lever (22) if present. Tilt the saw on the mitre scale (12) to the desired angle (max 45°). Tighten the screw (13) and lever (22).

How to clean the optical guidance window?

Unplug the tool. Slide the window lever (2) forward to expose the dirty part. Wipe with a clean, lint-free cloth. If necessary, use a mild soapy solution. Avoid harsh chemicals. Replace the lever.

What accessories are compatible with the KS865KN saw?

Use only saw blades that meet specifications: diameter 184 mm, arbor 16 mm, appropriate thickness. Do not use HSS steel blades, metal blades, or stone blades. Original Black & Decker accessories are recommended for optimal performance.

How to replace the motor brushes?

Unplug the tool. Unscrew the brush holders (11). Remove the brushes and their retainers. Insert new brushes (always in pairs) into the retainers, then replace everything into the holders and screw back. Respect the original placement.

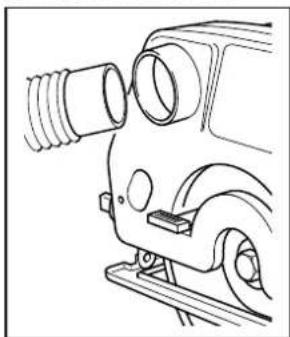

Can I connect a vacuum cleaner to the saw?

Yes, the saw is equipped with a dust extraction outlet. You can connect a vacuum cleaner with a standard flexible hose to suck up dust during cutting.

What are the noise levels of the KS865KN saw?

The sound pressure level is 92.7 dB(A) and the sound power level is 102.1 dB(A). It is recommended to wear hearing protection if the level seems high.

What is the warranty period and how to apply it?

The Black & Decker warranty is 2 years parts and labor from the date of purchase. To apply, return the unopened product to an authorized service center with proof of purchase (receipt or completed warranty certificate). Excluded are products repaired by third parties and failures due to misuse.

USER MANUAL KS865KN BLACK & DECKER

Australia DeWalt Industrial Power Tool Company (Distributors of Tel: [phone] Black & Decker products), 7 Clarice Road, Box Hill, Victoria 3128 Fax: [phone]

Belgique/België Black & Decker Belgium NV Tel: [phone] Weihoek 1, 1930 Zaventem Fax: [phone]

Danmark Black & Decker Tlf: 70-20 15 10 Hejrevang 26 B, 3450 Allerød Fax: [phone]

Deutschland Black & Decker GmbH Tel: [phone]Black & Decker Straße 40, 65510 Idstein Fax: [phone]
Ελλάς	Black & Decker (Ελλάς) AEΛεωφ. Συγγρού 154Αθήνα 176 71	Τηλ: 01 9242870-75Service: 01 9242876-7Fax: [phone]
España	Black & Decker de España SACtra. de Acceso a Roda de Bará, km 0,743883-Roda de Bará, Tarragona	Tel: [phone]Tlx: 56631 BLADE EFax: 977 299139
France	Black & Decker (France) Sarl Tel: [phone]Le Paisy69570 Dardilly, Lyon	Tlx: 300 250Fax: [phone]
Helvetia	Black & Decker AG ElektrowerkzeugeRütistraße 14, CH-8952 SchlierenSchweiz/Suisse	Tel: [phone]Tlx: 54462 BDZH CHFax: 01 730 70 67
Italia	Black & Decker Italia SpAViale Elvezia 2, 20052 Monza (Mi)	Tel: [phone]Fax: [phone]Numero verde: 167 21 39 35
Maroc	Ets Louis Guillard & Cie31, Rue Pierre Parent, Casablanca	Tel: [phone]Fax: [phone]E-mail: [e-mail]
Nederland	Black & Decker (Nederland) BVFlorijnstraat 10, 4879 AH Etten-Leur	Tel: [phone]Fax: [phone]
New Zealand	Black & Decker483 Great South Road, Penrose, Auckland	Tel: [phone]Fax: [phone]
Norge	Black & Decker (Norge) A/S Tel: [phone]Strømsveien 344, 1081 Oslo	Fax: [phone]
Österreich	Black & DeckerWerkzeugevertriebs GmbHErlaaerstraße 165, Postfach 69, 1230 Wien	Tel: [phone]Tlx: 13228 BLACK AFax: 0222 66 116 14
Portugal	Black & DeckerRua Egas Moniz 173, Apartado 19S. João do Estoril, 2768 Estoril, Codex	Tel: [phone]Tlx: 16 607 BLADEC PFax: 467 15 80
South Africa	Black & Decker South Africa (Pty) LtdSuite no 107, PostNet X65, Halfway House 1685	Tel: [phone]Fax: [phone]
Suomi	Black & Decker OyRälssitie 7 C, 01510 Vantaa	Puh: 09-825 45 40Fax: [phone]
	Frälsevägen 7 C01510 Vanda	Tel: [phone]Fax: [phone]
Sverige	Black & Decker ABBox 603, 421 26 Västra Frölunda, Besöksadr. Ekonomivägen 11	Tel: [phone]Fax: [phone]
Tunis	Brico-Center60, Rue du 18 Janvier, 1001 Tunis	Tel: [phone]Fax: [phone]
Türkiye	Black & Decker Elektrikli Ev (Aletleri Türkiye Distribütörü):Vestel Dayanıklı Tüketim, Malları Paz. A.Ş., Eski BüyükdereCad. İETT Garaji Yani, 80650 4. Levent - İstanbul	Tel: [phone] (10 hat)Fax: [phone]
United Kingdom	Black & Decker210 Bath Road, Slough Tlx: 848317 BAND MHBerkshire SL1 3YD	Tel: [phone]Fax: [phone]

DANMARK

KÆRE KUNDE,

On the purchase of your Black & Decker product.

To ensure the best results from your power tool please read these safety and usage instructions carefully. If you have any questions or queries after reading this user manual please do not hesitate to call our Service and Information Centre, whose number you will find towards the back of this user manual, or one of our Authorised Repair Agents. A list of these Agents and further information is available on the Internet at www.2helpU.com.

ESPANÓL

¡ENHORABUENA!

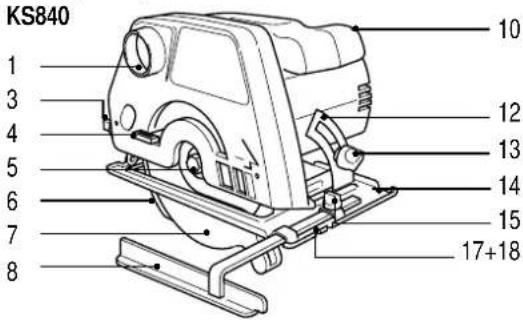

KS846N, KS850N, KS855N, KS865E/N/KN, 374456N

Line drawing of hands holding a ruler and sheet of paper (no text or symbols)

Diagram of a hand pressing a button on a device (no text or symbols visible)

UDSKIFTNING AF KNIVEN

Line drawing of a person using a tool to cut a saw blade (no text or symbols present)

Line drawing of hands operating a saw cutting machine on a metal workbench (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a car's front wheel assembly with no text or symbols

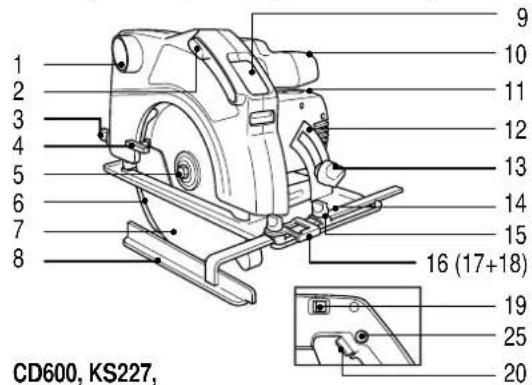

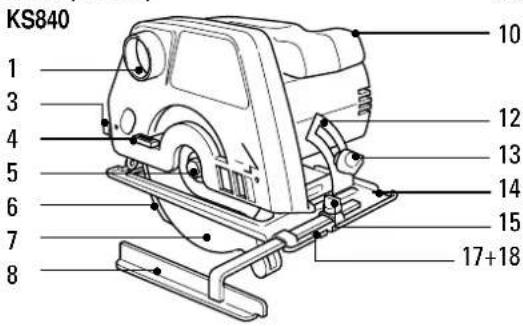

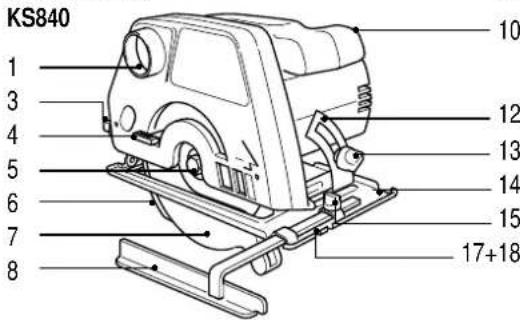

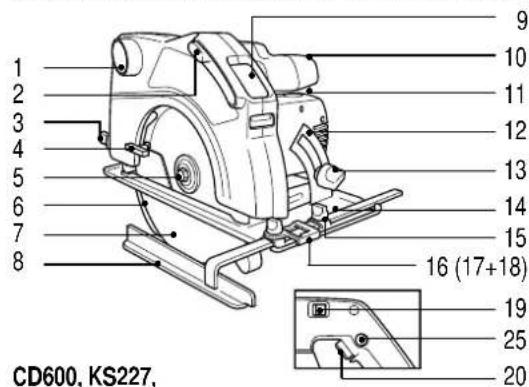

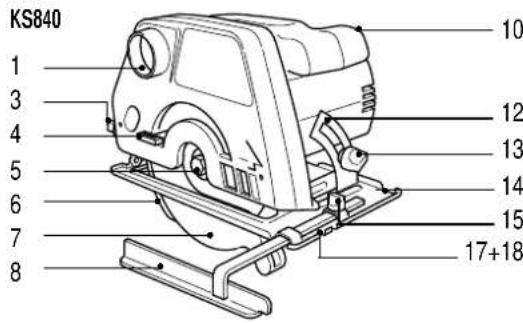

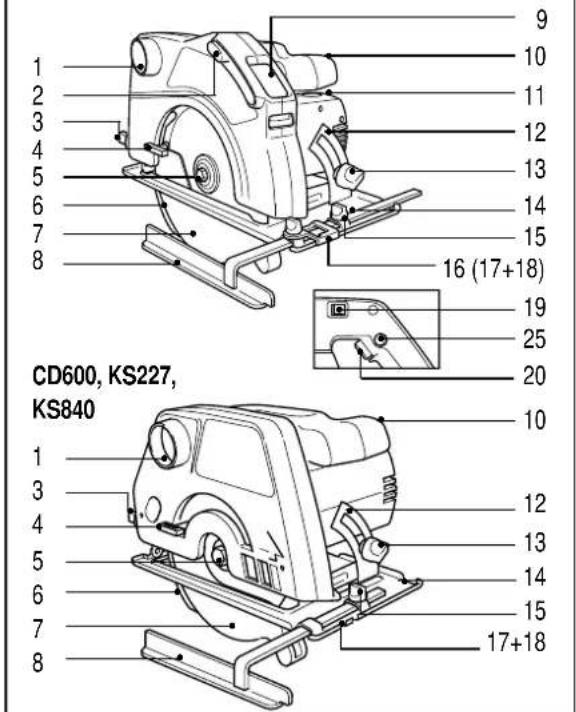

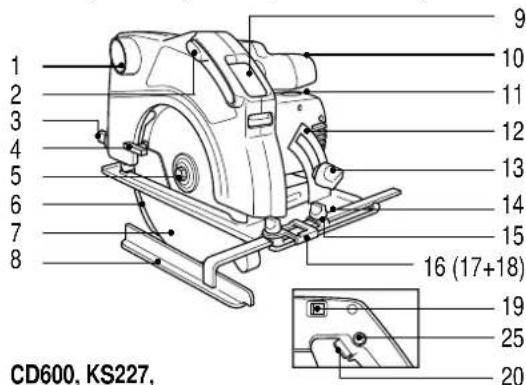

CD600, KS227, KS840, KS846N, KS850N, KS855N,

KS865N, KS865KN, 374456N er i overensstemmelse med

89/392/EEC, 89/336/EEC, EN55014, 73/23/EEC,

EN55104, EN50144, EN61000

Brian Cooke - Director of Engineering

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG, United Kingdom

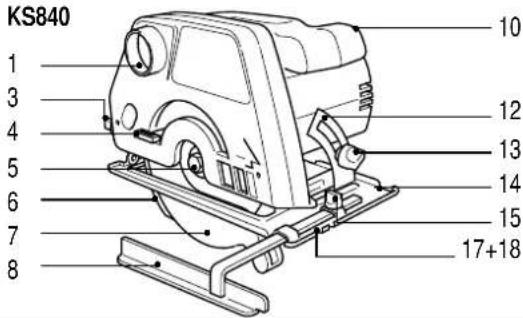

KS846N, KS850N, KS855N, KS865E/N/KN, 374456N

DIE BLACK & DECKER GARANTIE (SCHWEIZ)

Line drawing of hands holding a ruler and sheet of paper (no text or symbols)

Diagram of a hand holding a device with arrows indicating movement or force (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a car with two pipes and wheels, mounted on a platform (no text or symbols)

Brian Cooke - Director of Engineering Black & Decker, Spennymoor, Co Durham DL16 6JG UK

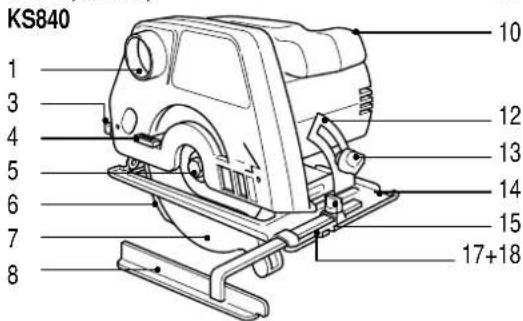

KS846N, KS850N, KS855N, KS865E/N/KN, 374456N

Line drawing of hands holding a ruler over a sheet of paper (no text or symbols)

Diagram of a hand pressing a button on a device (no text or symbols visible)

Line drawing of a hand using a tool to cut a circular saw blade (no text or symbols)

Line drawing of hands operating a saw blade assembly (no text or symbols)

Line drawing of a hand using a tool to adjust or install a car component (no text or symbols visible)

Line drawing of a car's front view showing engine and wheel components (no text or symbols)

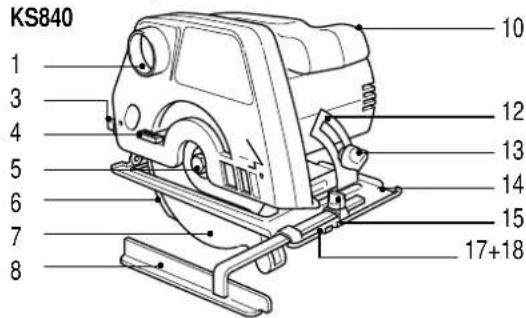

Circular saws user manual

SAFETY INSTRUCTIONS

Warning! When using electric tools, the following basic safety precautions should always be taken to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate the product and save this booklet.

For safe operation:

• Keep the work area clean. Cluttered areas and benches invite injuries.
• Consider the work area environment. Do not expose the power tool to rain and do not use in damp or wet locations. Keep the work area well lit. Do not use the power tool where there is a risk to cause fire or explosion.
• Guard against electric shock. Avoid body contact, where possible, with earthed or grounded surfaces (e.g. pipes, radiators, ranges and refrigerators).
• Keep children away. Do not let visitors touch the tool or extension cord. All visitors should be kept away from the work area.
• Store idle tools. When not in use, tools should be stored in a dry, high or locked place, out of reach of children.
• Do not force the tool. It will do the job better and more safely at the rate for which it was intended.
• Use the right tool. Do not force small tools or attachments to do the job of a heavy duty tool. Do not use the tool for purposes not intended; for example, do not use a circular saw to cut tree limbs or logs.
• Dress properly. Do not wear loose clothing or jewellery as they can be caught in moving parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.
• Use safety glasses. Use a face or dust mask as well, if the operation is dusty or if the tool is being used in enclosed spaces.
• Connecting dust extraction equipment. If devices are provided for the connection of dust extraction and collection ensure these are connected and properly used, especially in confined areas.
• Do not abuse the cord. Never carry the tool by its cord or yank it to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges.
• Secure the work. Use clamps or a vice to hold the work. It is safer than using a hand and it frees both hands to operate the tool.

• Do not overreach. Keep proper footing and balance at all times.

• Maintain the tool with care. Keep a cutting tool sharp and clean for better and safer performance. Follow the instructions for lubricating and changing accessories. Inspect the tools cord periodically and, if damaged, have repaired by an authorised service facility. Inspect the extension cord periodically and replace if damaged. Keep the handles dry, clean and free from oil and grease.

• Disconnect the tool when not in use, before servicing and when changing accessories such as blades, bits and cutters.
• Remove adjusting keys and wrenches. Form the habit of checking to see that keys and adjusting wrenches are removed from the tool and replaced in the storage area before switching on.
• Avoid unintentional starting. Do not carry a plugged-in tool with a finger on the switch. Ensure the switch is off when plugging in.
• Use an outdoor extension cord. When a tool is used outdoors, only use an extension cord intended for outdoor use and so marked.
• Stay alert. Watch what you are doing, use common sense and do not operate the tool when tired.
• Check damaged parts. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine whether it will operate properly and perform its intended function. Check for alignment of moving parts, free running of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorised service centre unless otherwise indicated in the product booklet. Have defective switches replaced by an authorised service agent. Do not use the tool if the switch does not turn it on and off.
• Warning! The use of any accessory or attachment, other than recommended in the product booklet, may present a risk of personal injury.
• Have the tool repaired by a qualified person. The electrical tool is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise, this may result in considerable danger to the user.

ADDITIONAL SAFETY INSTRUCTIONS FOR CIRCULAR SAWS

Plugging into the mains, switching on and off

• Always ensure that the power tool is switched off before plugging into the mains.

ENGLISH

• Make sure that you remove the blade-changing spanner from the saw blade locking screw before you switch on the circular saw.
- Do not switch off the power tool unless the saw blade is running freely.

When sawing

• Only hold your saw by the handles provided. Do not hold your saw in a position that could result in a poor grip and control of the saw.
  • Always ensure that there is sufficient clearance below the material being cut and the bench or support to allow the safety guard to rotate fully.
• All nails and metal objects must be removed from the workpiece before you commence sawing.
• Do not attempt to saw extremely small workpieces.
  • After switching off, never attempt to stop the saw blade by pressing against the side of the blade.
• Never put the circular saw down on a table or work bench unless you have previously switched off.
• Never operate the circular saw with the saw blade turned upwards or to the side.

Operational protection devices

• Ensure that all devices screening the saw blade are in perfect working order.
• Never jam the saw guard.
• Free a jammed saw guard immediately and do not use the saw if the guard is jammed.
• Only use the guard retracting lever provided should the blade guard need to be moved when commencing a cut.
  • The riving knife must not be removed.
  • The riving knife should be correctly set.

Checking and changing the saw blade

• Only saw blades conforming to the specifications contained in these operating instructions may be used.
• Saw blades whose main part is thicker or whose pitch is smaller than the riving knife's thickness should not be used.
• Saw blades made of high alloy, high speed steel (HSS steel) should not be used.
• Only sharp saw blades in perfect working condition should be used; cracked or bent saw blades should be discarded and replaced at once.
• Ensure that the saw blade is securely fixed and turns in the correct direction.
• Metal cutting and stone cutting discs should not be used with this saw.

Save these instructions!

DOUBLE INSULATION

The tool is double insulated. This means that all the external metal parts are electrically insulated from the mains power supply. This is done by placing insulation barriers between the electrical and mechanical components making it unnecessary for the tool to be earthed.

Note: Double insulation does not take the place of normal safety precautions when operating the tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

ELECTRICAL SAFETY

Be sure the supply is the same as the voltage given on the rating plate. The tool is fitted with a two-core cable and plug.

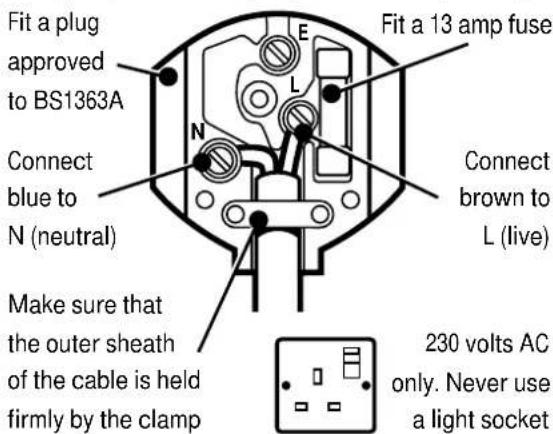

MAINS PLUG REPLACEMENT (UK ONLY)

Should the mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact a Black & Decker service agent or a qualified electrician.

• Disconnect the plug from the power supply.
• Cut off the plug and dispose of safely. A plug with bared copper conductors is very dangerous if engaged in a live socket outlet.
• Only fit BS1363A approved plugs fitted with the correctly rated fuse.
  Note: Fuses do not give personal protection against electric shock.
• The cable wire colours, or a letter, will be marked at the connection point of most good quality plugs. Attach the wires to their respective points in the plug (see diagram). Brown is L (live) and blue is N (neutral).

- Before replacing the top cover of the plug ensure that the cable restraint is holding the outer sheath of

ENGLISH

the cable firmly and that the two leads are correctly fixed at the terminal screws. If the fuse cover is missing or damaged do not use the plug. For replacement or detachable fuse covers, contact a Black & Decker service agent.

Warning! Never connect live or neutral wires to the earth pin marked E or ⊥

MAINS PLUG REPLACEMENT

(AUSTRALIA AND NEW ZEALAND ONLY)

Should the mains plug or cordset of the product be damaged, it must only be replaced by an authorised Black & Decker service agent because special purpose tools are required.

EXTENSION CABLES

Up to 30m (100ft) of 3-core extension cable can be used without undue loss of power. Note: An extension cable should not be used unless absolutely necessary. Use of an improper extension cable could result in a risk of fire and electric shock. If an extension cable must be used, make sure it is properly wired, contains the correct rated fuse as recommended in its literature and is in good electrical condition.

UNWANTED TOOLS AND THE ENVIRONMENT

Should you find one day that the tool needs replacement or is of no further use, think of the protection of the environment. Black & Decker service agents will accept old tools and will dispose of them in an environmentally safe way.

THE BLACK & DECKER GUARANTEE

(UK, AUSTRALIA AND NEW ZEALAND ONLY)

If the Black & Decker product becomes defective due to faulty materials and workmanship, within 24 months from the date of purchase, we guarantee to either replace all defective parts or at our discretion, replace the unit free of charge provided that:

• The product is returned to us or our authorised repairers with evidence of date of purchase.
  • The product has not been used for trade, professional or hire purposes.
  • The product has not been subjected to misuse or neglect.
• The product has not sustained any damage through foreign objects, substances or accidents.
  • Repairs have not been attempted by anyone other than our own service staff or authorised repair distributors.

This guarantee is offered as an extra benefit and is additional to the customers statutory rights.

AFTER SALES SERVICE FOR YOUR BLACK & DECKER PRODUCT (UK, AUSTRALIA AND NEW ZEALAND ONLY)

Black & Decker offers a nationwide network of authorised service agents. The use of other than genuine Black & Decker accessories and parts may damage or reduce the performance of your Black & Decker product and may also endanger the user. The terms and conditions of the warranty may also be effected.

OUR AFTER SALES SERVICE POLICY (UK, AUSTRALIA AND NEW ZEALAND ONLY)

It is our aim that all Black & Decker customers should be totally satisfied with their Black & Decker product and after sales service, but if help or advice is needed please contact your local Black & Decker authorised repair agent who will be happy to help. Full details of our after sales service and a list of these agents can be found on the Internet at www.2helpU.com. Alternatively, call our Service and Information Centre whose number you will find towards the back of this manual.

ACCESSORIES

The performance of any power tool is dependant upon the accessory used. Black & Decker accessories are engineered to high quality standards and are designed to enhance the performance of your tool. Buying a Black & Decker accessory will ensure that you get the very best from your Black & Decker tool. For full details of blades and accessories available, please consult your nearest stockist or service centre.

TECHNICAL DATA

The level of sound pressure of the tool is in accordance with EEC legislation. Use ear protection as the sound power of your circular saw exceeds 85dB (A).

KS227 KS840 KS846N KS850N KS855N 374456N CD600 KS865N
KS865KN

Watts (W) 500 550 1020 1100 1200 1300
No load speed (rpm)3500 3500 4000 4000 4000 4000
Max depth of cut (mm)40 40 46 50 55 65
Blade diameter (mm)140 140 140 160 160 184
Blade bore (mm)12.7 12.7 12.7 16 16 16
Weight (kg)	2.5	2.5	3.0	3.7	3.7	4.2

Note: This user manual also covers more than one catalogue number within this product group.

Refer to your rating plate for details of your product.

ENGLISH

FEATURES

1. Sawdust outlet
2. Window lever
3. Depth of cut adjustment
4. Guard retracting lever
5. Saw blade locking screw
6. Riving knife
7. Blade guard
8. Parallel fence
9. Window
10. Front handle
11. Carbon brush cover
12. Mitring angle scale
13. Locking screw for mitring adjustment
14. Saw shoe
15. Locking screw for parallel fence
16. Sight guide
17. Mark for straight cut
18. Mark for mitring cut
19. Electronic switch
20. On/off switch
21. Depth of cut scale
22. Secondary locking lever for mitring adjustment
23. Inner washer
24. Outer washer
25. Lock-off button
26. Blade

KS846N, KS850N, KS855N, KS865E/N/KN, 374456N

Your product includes some or all of these features.

SAFETY WARNING

Your saw is designed for use with wood cutting blades only. Do not use stone cutting or metal cutting discs.

PREPARING YOUR CIRCULAR SAW

SETTING THE DEPTH OF CUT ADJUSTMENT

Proceed as follows:

Disconnect the plug from the electricity supply.

Loosen the depth of cut adjustment (3) at the bottom of the scale.

Move your circular saw up the scale until the desired depth of cut is indicated on the scale (21). Tighten the screw (3). The depth of cut should be 3mm greater

than the thickness of the workpiece.

SETTING THE SIGHT GUIDANCE SYSTEM (NOT CD600/KS227/KS840)

The window and 'sight guide' are designed to enable accurate cutting every time the saw is used. To prepare the guide system for first time use, proceed as follows:

Line drawing of hands holding a ruler and sheet of paper (no text or symbols)

Mark a straight line on your workpiece to represent the desired path of the saw blade.

Diagram of a hand holding a device with arrows pointing to a keyhole (no text or symbols present)

Whilst viewing through the saw guard window align the saw blade teeth with the intended line of cut drawn on the workpiece.

Whilst keeping the saw in this position, place the orange 'sight guide' (16) onto the shoe of your circular saw. Align the 'sight guide' with the line drawn on the workpiece

and secure in place with the screw provided.

- At the start of every cut align the blade as described and whilst cutting keep the 'sight guide' in line with the intended line of cut drawn on the workpiece.

ENGLISH

- When attempting mitre cuts, follow the same procedure detailed above, however, use the area marked 45° on the 'sight guide'.

ADJUSTING THE PARALLEL FENCE

Your circular saw includes a parallel fence. This permits the sawing of a straight line parallel to the edge of the workpiece. To assemble and adjust the parallel fence, proceed as follows:

Disconnect the plug from the electricity supply.

Loosen the locking screw (15) at the forward end of the saw base. Slide the parallel fence (8) along its guide until the desired

measurement is indicated. Tighten the locking screw (15).

SETTING THE MITRING ADJUSTMENT

Your circular saw can cut at angles up to 45°. To adjust the angle of your circular saw, proceed as follows: Disconnect the plug from the electricity supply.

Loosen the locking screw (13). Loosen the locking lever (22) if fitted on your product. Move your circular saw around the mitre scale (12) until the desired angle is

indicated. Tighten the locking screw (13). Tighten the locking lever (22) if fitted on your product.

CHANGING THE BLADE

Proceed as follows:

Disconnect the plug from the electricity supply.

Retract the blade guard (7). Insert a screwdriver through the hole in the blade to prevent rotation of the blade.

Unlock and remove screw (5). Loosen anticlockwise using a 13mm spanner, remove the outer washer (24) and remove the blade. Insert the new blade, ensuring that the arrow

on the blade points in the same direction as the arrow on the body of your circular saw. Fit the outer washer (24) with the raised centre portion pointing away from the blade. Ensure that this washer is correctly located on the flats of the spindle. Fit the saw blade locking screw (5). Insert a screwdriver through the hole in the blade to prevent rotation of the blade. Tighten the sawblade locking screw clockwise using a 13mm spanner.

ADJUSTING THE RIVING KNIFE

The riving knife (6) prevents the saw blade from jamming during rip sawing operations. You must check the position of the riving knife whenever the saw blade is replaced, or whenever the clearance is affected. Proceed as follows:

Disconnect the plug from the electricity supply.

Through the opening in the blade guard, locate the two riving knife screws.

Line drawing of a hand using a tool to cut a mechanical component (no text or symbols)

If your circular saw does not have an opening in the blade guard, adjust the cutting depth to locate the riving knife screws. Loosen the two riving knife screws. Adjust the

riving knife to give a radial clearance of 2-3mm and a tooth peak clearance of 2-3mm. Tighten the two riving knife screws.

Your saw is now ready for use.

Line drawing of hands operating a saw cutting machine (no text or symbols)

To switch your circular saw on, depress the lock-off button (25) and squeeze the on/off trigger switch (20). To stop your circular saw, release the trigger switch.

HOLDING YOUR CIRCULAR SAW

The front handle (10) makes it easier to guide the saw properly. Switch the machine on before you start sawing the workpiece. Guide the saw without pushing

ENGLISH

it and give the blade time to pursue its path. Use the mark (17) for straight cuts or the mark (18) for mitring cuts, to keep to the line you have drawn.

From time to time, it may become necessary to remove cutting debris/dust from the inside of your circular saw window.

To do this, proceed as follows:

Disconnect the plug from the electricity supply.

Illustration of a hand using a tool to adjust or install a car wheel (no text or symbols visible)

Slide the window lever (2) forward to expose the soiled portion of the window.

Take a clean, lint free cloth and proceed to wipe the exposed part of the window as required.

When finished, simply slide the lever back towards the rear of the saw guard in order to restore the window into its operating position.

Note: If necessary, use only mild soap to clean your saw as many household cleaners contain chemicals which could seriously damage the plastic. Also, do not use petrol, turpentine, laquer or paint thinners or similar products. Never let any liquid get inside your circular saw and never immerse any part of it into liquid.

REPLACING THE CARBON BRUSHES

Proceed as follows:

Disconnect the plug from the electricity supply. Unscrew the brush cover (11). Withdraw the carbon brush and holder. Remove the carbon brush from the brush holder. Insert the new carbon brush in the brush holder. Insert the carbon brush and brush holder in the housing. Fit the brush covers.

Note: Replace the brushes in pairs and ensure used brushes and brush holders are fitted in the same positions as when removed.

SAWDUST REMOVAL

Line drawing of a car with mounted sensors and a vehicle (no text or symbols)

For sawdust removal, you can use a vacuum cleaner with a conventional flexible connection inserted in the dust collection outlet.

HANDY HINTS

Some splintering is inevitable on the topside line of cut. It is therefore desirable to cut on the side of the workpiece where splintering is acceptable. This is especially important when cutting laminates.

TOOL CARE

• Guide your circular saw but do not force it through the work. Applying excessive pressure can cause your circular saw to overheat. If your circular saw becomes too hot, operate it off-load for 2 minutes.
  • Always keep the air cooling vents on the motor housing clear.

EC DECLARATION OF CONFORMITY

We declare that units:

CD600, KS227, KS840, KS846N, KS850N,

KS855N, KS865N, KS865KN, 374456N

conform to 89/392/EEC, 89/336/EEC, EN55014, 73/23/EEC, EN55104, EN50144, EN61000

A weighted sound pressure 92.7dB (A)

A weighted sound power 102.1dB (A)

Hand/arm weighted vibration <2.5m/s²

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG United Kingdom

The Black & Decker policy is one of continuous improvement to our product and as such we reserve the right to change the product specification without prior notice.

KS846N, KS850N, KS855N, KS865E/N/KN, 374456N

CD600, KS227,

Line drawing of hands holding a ruler and sheet of paper (no text or symbols)

Diagram of a hand operating a mechanical device with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to cut a mechanical component (no text or symbols)

Line drawing of a person operating a large saw blade on a metal base (no text or symbols)

Illustration of a hand using a tool to adjust or install a car component (no text or symbols visible)

Line drawing of a car's front-mounted sensor or camera module (no text or symbols)

CD600, KS227, KS840, KS846N, KS850N,

KS855N, KS865N, KS865KN, 374456N

89/392/CEE, 89/336/CEE, EN55014,

73/23/CEE, EN55104, EN50144, EN61000

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG, RU

KS846N, KS850N, KS855N, KS865E/N/KN, 374456N

Line drawing of hands holding a ruler and pen on a sheet of paper (no text or symbols)

Diagram of a hand pressing a button on a device (no text or symbols present)

Line drawing of a hand using a tool to cut a saw blade (no text or symbols)

Line drawing of hands operating a manual cutting machine on a metal base (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

EVACUATION DES SCIURES

Line drawing of a car's front wheel and side arm (no text or symbols)

Line drawing of hands holding a pen over a ruler on a flat surface (no text or symbols)

Diagram of a hand holding a device with arrows indicating a process or operation (no text or symbols present)

Line drawing of a hand using a tool to cut a mechanical component (no text or symbols)

Line drawing of a hand operating a large saw on a metal base (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a car's front-mounted camera with attached lenses and mounted sensors (no text or symbols)

CD600, KS227, KS840, KS846N, KS850N, KS855N, KS865N, KS865KN, 374456N

Brian Cooke - Director of Engineering

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG, United Kingdom

KS846N, KS850N, KS855N, KS865E/N/KN, 374456N

VEILIGHEIDSWAARSCHUWING

Line drawing of hands holding a ruler over a blank sheet (no text or symbols)

Diagram of a hand holding a device with arrows indicating movement or force (no text or symbols present)

Line drawing of a hand using a tool to cut a mechanical component (no text or symbols)

Line drawing of a hand operating a large saw blade on a metal base (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a car's front wheel assembly with attached pipes (no text or symbols)

Brian Cooke - Hoofd Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

KS846N, KS850N, KS855N, KS865E/N/KN, 374456N

Line drawing of a hand holding a ruler over a blank sheet (no text or symbols)

Tegn en rett linje på arbeidsflaten for å markere det ønskede sagsnittet.

NORGE

Diagram of a hand holding a device with arrows pointing to a keyhole (no text or symbols present)

Line drawing of a hand using a tool to cut a circular mechanical component (no text or symbols)

Line drawing of a hand operating a large saw blade assembly (no text or symbols)

Når du skal slå på sirkelsagen, trykker du ned låseknappen (25) og klemmer på strømbryteren (20). Slipp strømbryteren når du skal stanse sagen.

HOLDE SIRKELSAGEN

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a car with two large cylindrical components mounted on a platform (no text or symbols)

CD600, KS227, KS840, KS846N, KS850N, KS855N, KS865N, KS865KN, 374456N

er overens med 89/392/EEC, 89/336/EEC, EN55014,

73/23/EEC, EN55104, EN50144, EN61000

Brian Cooke - Director of Engineering

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG, United Kingdom

Manual do utilizador de serras circulares

INSTRUÇÕES DE SEGURANÇA

Line drawing of a hand holding a pen over a ruler, poised to write on paper (no text or symbols present)

Diagram of a hand holding a device with arrows indicating a process or operation (no text or symbols present)

Line drawing of a person using a tool to cut a circular mechanical component (no text or symbols)

Line drawing of a hand operating a saw cutting machine on a metal base (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a car's front view showing engine and exhaust pipes (no text or symbols)

CD600, KS227, KS840, KS846N, KS850N, KS855N, KS865N, KS865KN, 374456N

estão de acordo com 89/392/EEC, 89/336/EEC, EN55014, 73/23/EEC, EN55104, EN50144, EN61000

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG, United Kingdom

Line drawing of a hand holding a pen over a blank sheet (no text or symbols)

Diagram of a hand holding a device with arrows indicating movement or force (no text or symbols present)

Line drawing of a mechanical device with a tool inserted, no text or symbols present

Line drawing of a hand operating a saw cutting machine on a metal base (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a car's front view showing engine and exhaust pipes (no text or symbols)

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

KS846N, KS850N, KS855N, KS865E/N/KN, 374456N

Line drawing of hands holding a ruler and pen on a sheet of paper (no text or symbols)

Diagram of a hand holding a device with arrows indicating movement or force (no text or symbols present)

Line drawing of a person using a tool to cut or install a mechanical component (no text or symbols present)

Line drawing of a hand operating a saw blade assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a car's front-mounted optical system with lenses and sensors (no text or symbols)

CD600, KS227, KS840, KS846N, KS850N, KS855N,

Brian Cooke - Director of Engineering

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG, United Kingdom

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Pure geometric lines with crosshair markers, no text or symbols present

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Pure geometric lines with crosshair markers, no text or symbols present

Part no: 373341-03 2/99.2

Forhandler adresse

Händleradresse
