Product Type	Portable Gas Barbecue
Model	BBQ-160
Article Number	31-6046
Brand	Clas Ohlson
Gas Type	Butane, Propane or mix (MSF-1A) – cartridge sold separately
Burner Power	1.9 kW
Dimensions (L × W × H)	455 × 325 × 100 mm
Gas Consumption	150 g/h
Weight	Not specified, approximately 2.5 kg (estimate)
Intended Use	Outdoor cooking only
Safety Features	Gas canister locking lever, automatic ignition, gas control knob, overheat protection (by keeping distance)
Ignition	Piezo ignition via control knob (IGNITION position)
Construction	Portable with cooking plate, drip tray, and gas canister compartment
Cooking Surface	Removable cooking plate with grid pattern
Drip Tray	Removable, washable
Cleaning Instructions	Wipe with damp cloth, mild detergent; avoid solvents; wash drip tray
Storage	Cool, dry, dust-free environment, out of children's reach
Disposal	Recycle as electronic waste (WEEE symbol)
Warranty	Not specified; contact customer service
Accessories	Gas canister (sold separately)

Frequently Asked Questions - BBQ-160 Clas Ohlson

What type of gas can I use with the BBQ-160?

You can use butane, propane, or a mix of these gases (MSF-1A). The gas cartridge is sold separately.

How do I install the gas canister?

Open the cover, squeeze the canister indicator, lift it up. Align the canister so the spring-loaded guide fits into the slot on the collar. Ensure the control knob is OFF, then slide the lever down to LOCK position.

How do I ignite the BBQ?

Turn the gas control knob to the IGNITION position. The piezo igniter will spark and light the burner. Adjust the flame with the knob.

Is the BBQ safe to use indoors?

No, the product is intended for outdoor use only. Never use it in tents, awnings, or any enclosed area due to risk of gas accumulation.

What should I do if I smell gas?

Immediately turn off the product, find the cause of the leak, and repair before using again. If the leak persists, do not use the BBQ.

How do I clean the BBQ?

Allow the BBQ to cool completely. Wipe with a damp cloth and mild cleaning agents. Avoid solvents. Pull out the drip tray and wash it if necessary.

Can I use a pan on the cooking plate?

Yes, but ensure the pan does not boil over. If it does, switch off immediately, clean the BBQ, and reignite.

How do I store the BBQ when not in use?

After use, remove the gas canister, let the BBQ cool, clean it, and store in a dry, dust-free place out of children's reach.

Can I transport the BBQ with the gas canister attached?

No. Remove the gas canister before moving or transporting the BBQ. The canister indicator helps remind you to check.

What is the minimum clearance around the BBQ?

Keep at least 30 cm clearance on all sides from combustible materials and other gas appliances. Ensure free space above.

USER MANUAL BBQ-160 Clas Ohlson

Line drawing of a portable electric stove with grating and control panel (no text or symbols)

Art.no

31-6046

Model

BBQ-160

Ver. 20181113

Portable Gas BBQ

Art.no 31-6046 Model BBQ-160

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

Warning:

• The product is intended for outdoor use only.
• As certain parts of the BBQ can become very hot during use, keep children away from the product.
• Never use the product close to combustible materials. Never use the product near petrol or other flammable liquids. Keep the product a safe distance away from items made of paraffin or wax.
• Never move or transport the product when it is turned on.
• Never move or transport the product when the gas canister is fitted.
• After use, push the locking lever up to the Unlock position and remove the gas canister.
• Never use the product unless the cooking plate is fitted.
• If the locking lever is difficult to move or cannot be pushed down at all, find out the cause and make sure that the gas canister is correctly fitted. Never use force to push the locking lever down, it should be easy to manoeuvre.
• Make sure that the product is always clean and free of deposits.
• The distance between the product and other gas-driven products should be 30 cm.

• Never use the product in areas such as tents, awnings, etc. Make sure you use it outdoors to avoid the risk of igniting unburned gas.

• Do not use the product if it is leaking gas, operates incorrectly, or is damaged in any way.
  • Always place the product on a firm, flat and fire-proof surface.

• Never smoke when you are changing the gas canister and make sure you are outdoors away from any sparks, naked flames, patio heaters or other sources of heat.
• If you detect a smell of gas during use, turn off the product immediately, find out the cause of the smell and undertake any repairs before the product is used again.
• Never throw an empty gas canister near to or into naked flames or fire.
• If you use a pan on top of the cooking plate, make sure that it doesn't boil over. Should it boil over, switch the product off immediately and clean it before you turn it on again.
• Do not use the BBQ in strong winds. Ensure that you are in a sheltered spot when barbecuing.
• Do not leave the product in direct sunlight for long periods. Never place the product on sand or other unstable surfaces.
• Never use the product for drying clothes or other materials. Fire hazard.
• If something unexpected happens during use, turn off the product immediately and remove the gas canister.
• Make sure you have free space above the product during use and at least 30 cm clearance at the sides.
• Never use two barbecues beside each other due to the risk of overheating.
• Ensure that the gas canister is mounted correctly and that you don’t have any gas leaks before you turn on the BBQ.

Instructions for use

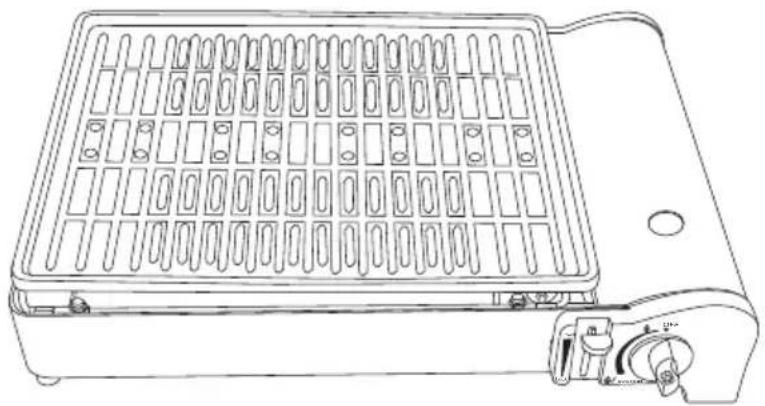

1. Unpack and remove the product from the packaging and insert the cooking plate.

Line drawing of a portable electric stove with grid grilles and control panel (no text or symbols)

Line drawing showing a hand adjusting a component on a grid-patterned panel, with arrows indicating motion (no text or symbols)

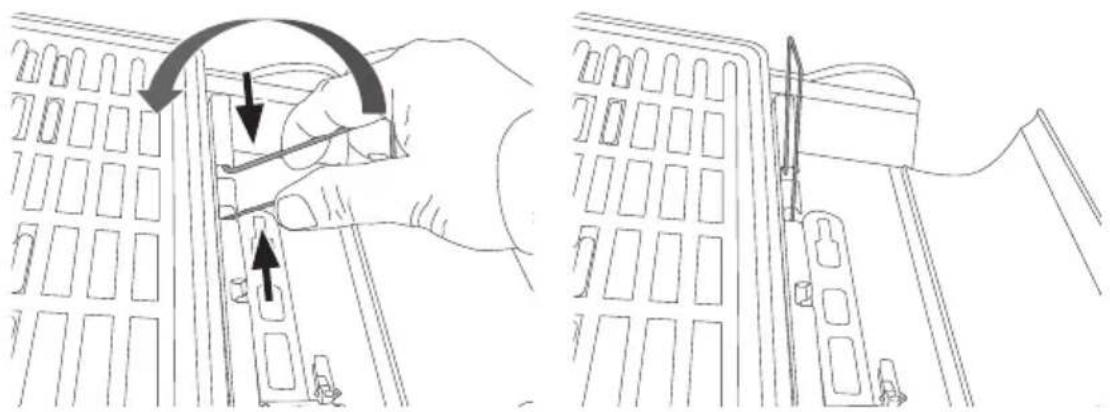

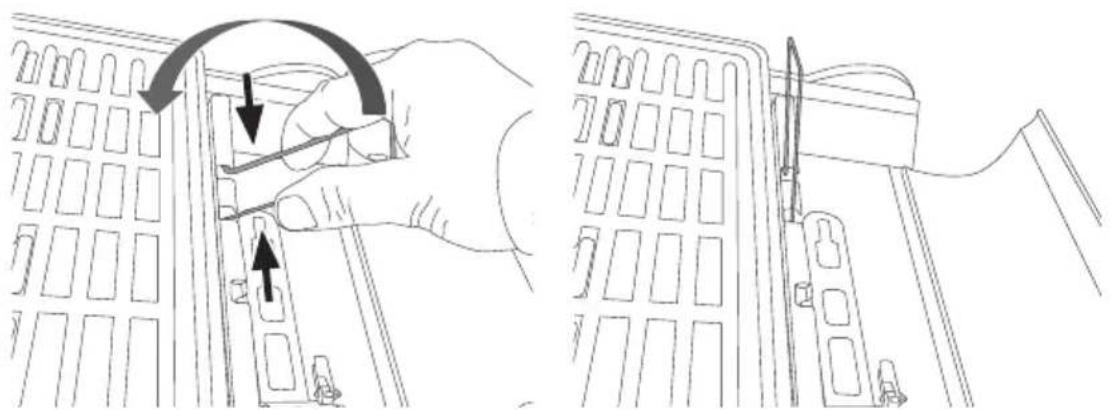

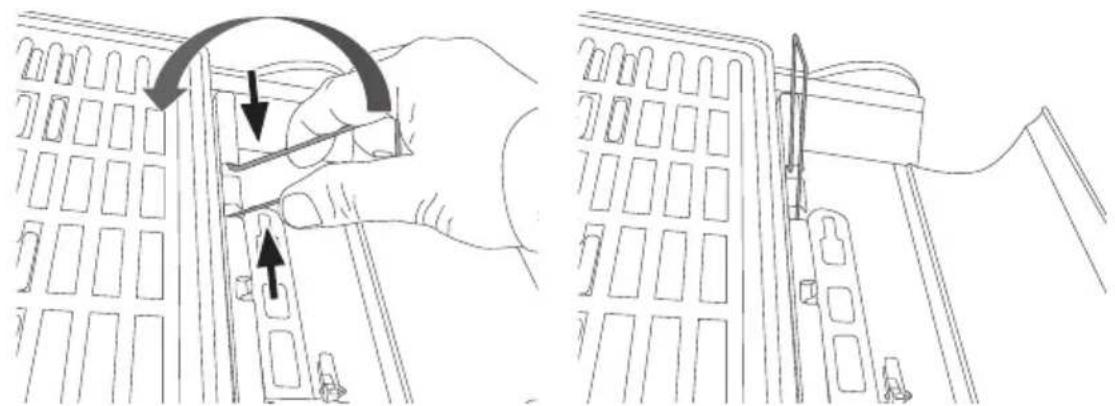

1. Open the cover over the gas canister area. Squeeze the sides of gas canister indicator together slightly, then fold it up and release it into the slots.

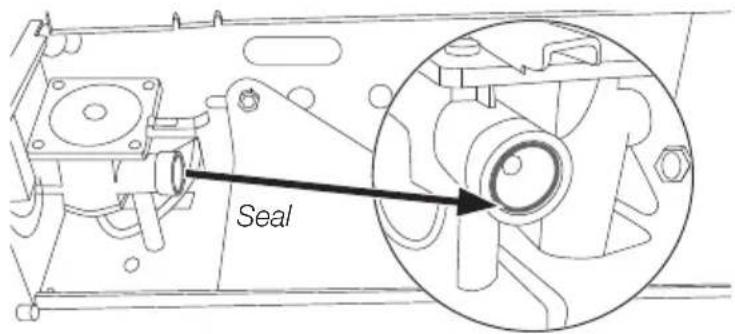

△ Make sure that the seal between the gas canister and the connection valve is intact and in place before fitting the gas canister.

When the cover is closed the raised canister indicator shows that the gas canister might be fitted. This is to remind you that you need to check whether or not the gas canister is fitted before transporting the BBQ. If the cover is closed and the canister indicator is folded down, then you know that the gas canister is not fitted.

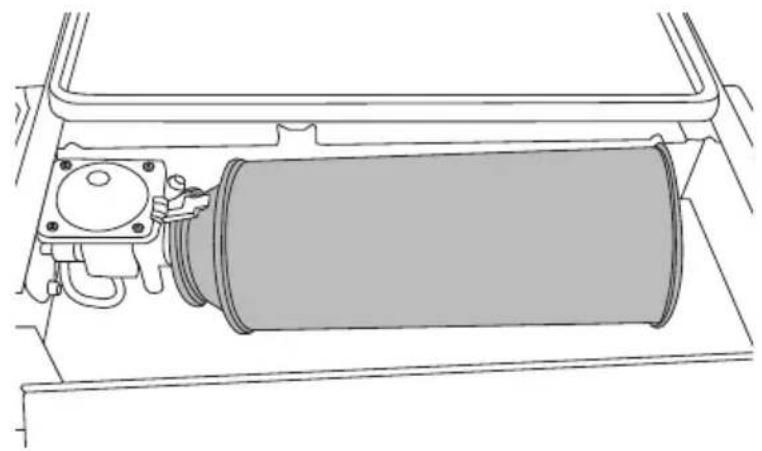

1. Correctly fit the gas canister (sold separately).

Technical line drawing of a cylindrical mechanical component inside a housing (no text or symbols)

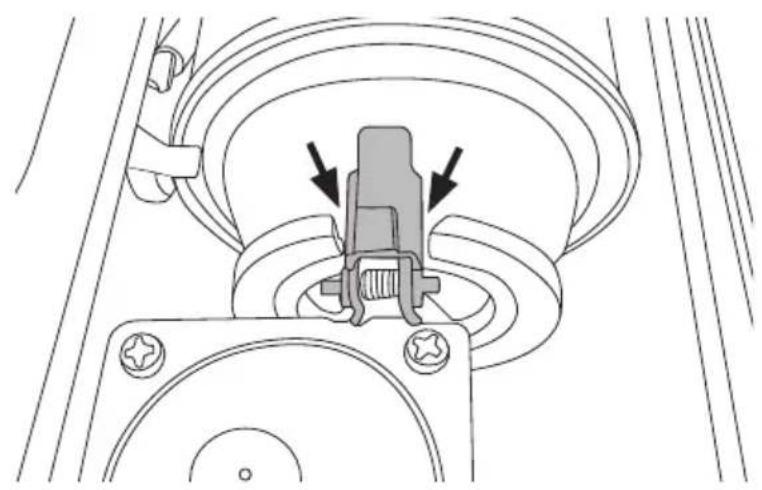

Align the canister so that the spring-loaded guide on the valve fits into the slot in the collar on the neck of the canister.

Mechanical assembly diagram showing a clamping mechanism with two arrows indicating motion direction (no text or symbols present)

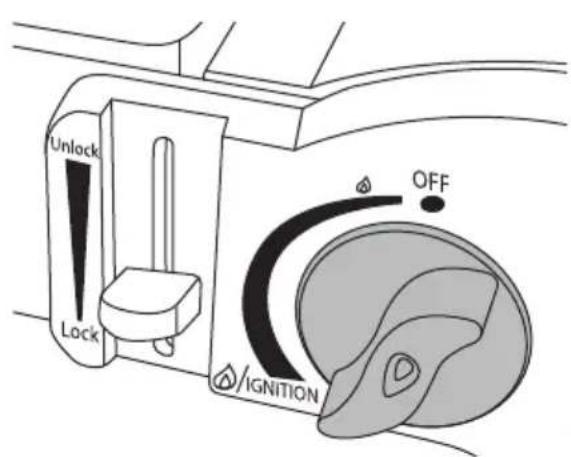

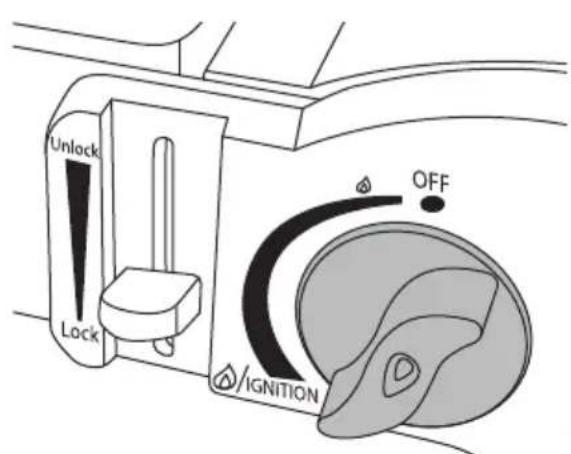

1. △ Ensure that the knob for igniting the BBQ and controlling the flow of gas is set to OFF. Slide the lever down to the LOCK position. The gas canister is now locked against the gas valve.

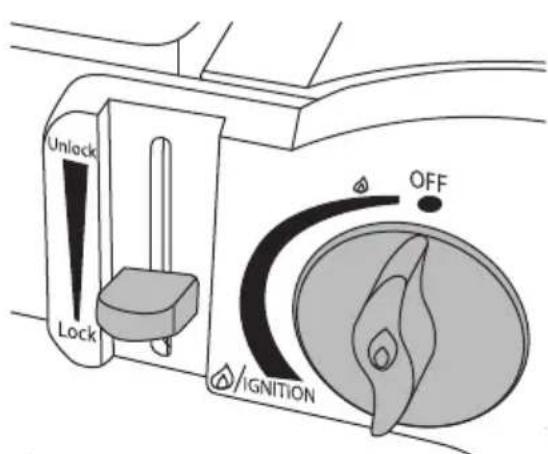

2. Ignite the BBQ by turning the gas control knob down to the IGNITION position. Use the same knob to adjust the flow of gas once the BBQ is lit.

When you are finished barbecueing

1. Turn off the gas by turning the control knob to OFF.
2. Push up the lever that locks the gas canister in place to the Unlock position.
3. Remove the gas bottle and let the BBQ cool down.

Care and maintenance

• Once the bbq has completely cooled down, clean it by wiping with a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Always let the bbq cool completely before putting it away for storage. Store the bbq in a dry, dust-free environment out of children's reach whenever it is not to be used for a long time.

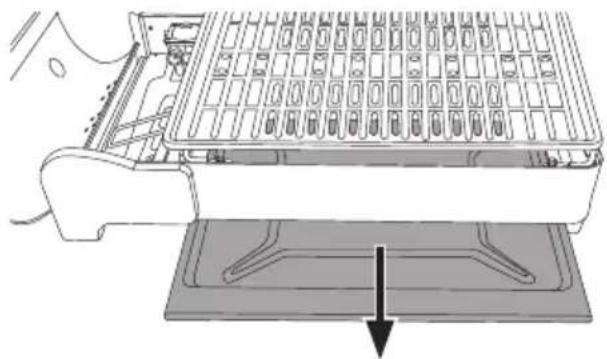

- Pull out the drip tray and wash it if necessary.

Line drawing of a mechanical device with a grid-patterned panel and base platform, no text or symbols present

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Specifications

Type of gas Butane, Propane or mix gases (MSF-1A) (aerosol nozzle gas cartridge sold separately)

Burner 1.9 kW

Dimensions 455 × 325 × 100 mm

Gas consumption 150 g/h

Portabel gasgrill

Art.nr 31-6046 Modell BBQ-160

Line drawing of a portable electric stove with grid grilles and control panel (no text or symbols)

Line drawing showing a hand adjusting a component into a grid structure, with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component inside a housing (no text or symbols)

Technical line drawing of a mechanical assembly with two arrows indicating motion or force directions (no text or symbols present)

Diagram of a mechanical device with internal grid structure and a downward arrow indicating force or movement (no text or symbols)

Avfallshantering

Symbol of a trash bin with crossed lines indicating no waste or restriction, accompanied by a solid black rectangle below (no text or labels)

Specifikationer

Line drawing of a portable electric stove with grating and control panel (no text or symbols)

Line drawing showing a hand using a tool to adjust or install a grid structure, with no visible text or symbols.

Technical line drawing of a cylindrical mechanical component inside a housing (no text or symbols)

Technical line drawing of a mechanical assembly with two arrows indicating motion or force directions (no text or symbols present)

Line drawing of a portable electronic device with grid layout and base platform (no text or symbols)

Avfallshåndtering

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Spesifikasjoner

Type gass Butan, Propan eller blandingsgass (MSF-1A) (gassflaske selges separat)

Brenner 1,9 kW

Mål 455 × 325 × 100 mm

Gassforbruk 150 g/h

Line drawing of a portable electric stove with grid grilles and control panel (no text or symbols)

Line drawing showing a hand adjusting a component on a grid-patterned panel, with no text or symbols present.

Technical line drawing of a cylindrical mechanical component inside a housing (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with two arrows indicating motion direction (no text or symbols present)

Line drawing of a mechanical device with a grid-patterned panel and base platform, no text or symbols present

Kierrättäminen

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Tekniset tiedot

Line drawing of a portable electric stove with grid grilles and control panel (no text or symbols)

Line drawing showing a hand using a tool to adjust or install a grid structure, with no visible text or symbols.

Technical line drawing of a cylindrical mechanical component inside a housing (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with two arrows indicating motion (no text or symbols present)

Line drawing of a mechanical device with a base plate and internal grid structure (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Technische Daten
