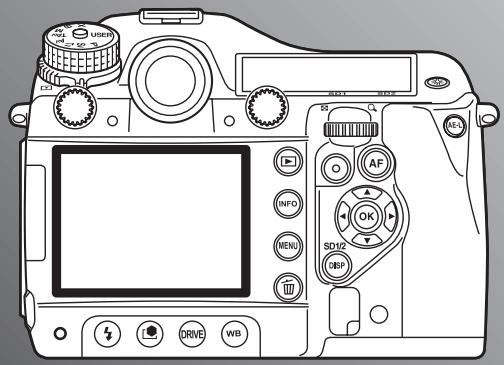

645D - Medium format camera PENTAX - Free user manual and instructions

Product type	Medium format digital camera
Brand	PENTAX
Model	645D
Dimensions (W × H × D)	Approx. 156 × 117 × 119 mm (without protrusions)
Weight	1,400 g (body only), 1,480 g (with battery and two SD cards)
Power supply	Rechargeable lithium-ion battery D-LI90; AC adapter K-AC50 (optional)
Sensor	Medium format CCD 40 megapixels (7264 × 5440 pixels)
Lens mount	PENTAX 645AF (compatible with D FA645, FA645, 645 lenses with A position)
ISO range	200 - 1000 (expandable to 100 - 1600)
Shutter	Electronic focal plane, 1/4000 to 30 sec, Bulb mode, X-sync at 1/125 sec
Viewfinder	Pentaprism, 98% coverage, 0.62× magnification, diopter adjustment -3.5 to +2.0 m⁻¹
Monitor	3.0-inch TFT LCD, 921,000 dots, adjustable brightness and color
Storage	Dual SD/SDHC memory card slots
File formats	JPEG (L/M/S, 3 quality levels), RAW (PEF/DNG), RAW+JPEG
Exposure modes	P (Hyper-program), Sv, Tv, Av, TAv, M (Hyper-manual), B, X
Light metering	TTL multi-zone (77 zones), center-weighted, spot
Autofocus	SAFOX IX+ phase-detection AF (11 points, AF.S/AF.C modes, selectable)
Continuous shooting	Approx. 1.1 fps (up to 13 frames in RAW/JPEG high resolution)
White balance	Auto, presets (daylight, shade, etc.), manual (3 memories), color temperature (3 memories), fine adjustment
Special functions	Bracketing (exposure, advanced), double exposure, intervalometer, mirror lock-up, digital filters, image customization
Outputs	USB 2.0 Hi-Speed, HDMI, composite video (NTSC/PAL), X-sync terminal, remote control and power terminal
Maintenance	Exterior cleaning with a soft cloth; lens and viewfinder with a brush; sensor: contact PENTAX service center
Safety	Do not disassemble, avoid impact, do not look at the sun through the viewfinder, use only recommended battery and charger
Warranty	12 months against manufacturing defects; service recommended every 1 to 2 years
Included accessories	Hot shoe cover, mount cap, CD-ROM software, sync terminal cover, tripod adapter, charger D-BC90, standard eyecup, strap O-ST107, power cord, instruction manual, reference guide

Frequently Asked Questions - 645D PENTAX

How to charge the battery of the Pentax 645D?

Use the included D-BC90 charger. Connect the power cord, insert the D-LI90 battery with the ▲ mark facing up. The indicator lights up during charging and turns off when complete (approx. 390 minutes). Only use this charger for this battery.

Which lenses are compatible with the 645D?

The D FA645, FA645, and 645 lenses with A (Auto) aperture position are recommended. A/FA645 lenses with accessories (extension tubes, converters) work partially. Refer to the compatibility table on p.26 for restrictions.

How to insert an SD memory card?

Turn off the camera, open the card slot cover, insert the card with the label facing the screen until it clicks. To remove, push it to eject. The camera will not turn on if the cover is open. Use SD/SDHC cards formatted in the camera.

How to set white balance manually?

Press the WB button, select manual mode (1-3), then press ▲▼ to choose the slot. Point the camera at a white surface and press the shutter button fully. You can also fine-tune the adjustment using the G-M and B-A axes.

How to use exposure bracketing?

Press the  (Bracketing) button and turn the dial to select 2, 3, or 5 frames, with a step of 1/3 or 1/2 EV. Then each shutter release takes a series of underexposed, correct, and overexposed photos.

How to clean the sensor?

The 645D has an ultrasonic vibration system (dust removal) that can be activated automatically at startup. For professional cleaning, contact PENTAX after-sales service (fee required). Never use aerosol sprays.

What are the available exposure modes?

The modes are: P (Hyper-program), Sv (sensitivity priority), Tv (shutter priority), Av (aperture priority), TAv (shutter and aperture priority), M (Hyper-manual), B (Bulb), and X (flash sync at 1/125 sec). The USER mode allows saving custom settings.

How to transfer photos to a computer?

Use the included I-USB107 USB cable to connect the camera to the computer. Install the PENTAX Digital Camera Utility 4 software (provided on CD-ROM) to manage and develop RAW files. The connection mode can be set to MSC (mass storage) or PTP.

What to do if the camera does not turn on?

Check that the battery is charged and inserted correctly. Make sure the card slot cover is closed (the camera will not turn on if open). If the problem persists, remove the battery, wait a few seconds, and reinsert it. Refer to the error message section (p.97).

How to use interval shooting?

In the menu, set the interval (from 2 sec to 24 h) and the number of shots (1 to 999). You can set a start time. Enable the intervalometer via the DRIVE button. The camera will take photos automatically according to the set parameters.

USER MANUAL 645D PENTAX

Batterie lithium-ion rechargeable D-LI90

CEilleton large 645 O-EC107

Cable USB I-USB107

oohd ddeed eonrnnnne

③ Bouton (Correction IL)

Imitation effects fibre

Oeilleton large 645 O-EC107 (*)

Dépoli interchangeable

Position vertical 16

Prévisualisation 63

Superposer zone AF. 45

For customers in USA

STATEMENT OF FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Perchlorate Material-special handling may apply. The lithium battery used in this camera contains perchlorate material, which may require special handling. See www.dtsc.ca.gov/hazardouswaste/perchlorate

Declaration of Conformity

According to 47CFR, Parts 2 and 15 for

Class B Personal Computers and Peripherals

We: PENTAX Imaging Company A Division of PENTAX of America, Inc.

Located at: 600 12^th Street, Suite 300 Golden, Colorado 80401 U.S.A.
Phone: [phone]
FAX: [phone]

Declare under sole responsibility that the product identified herein complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on the statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR §15.101 to §15.109.

Product Name: Lens-interchangeable medium-format digital SLR (Single Lens Reflex) Camera

Model Number: 645D

Contact person: Customer Service Manager

Date and Place: March, 2010, Colorado

m = 311 ;

PENTAX Imaging Systems Division

2-36-9, Maeno-cho, Itabashi-ku, Tokyo 174-8639, JAPAN

(http://www.pentax.jp)

PENTAX Europe Imaging Systems S.A.S.

(European Headquarters)

112 Quai de Bezons - BP 204, 95106 Argenteuil Cedex, FRANCE

(HQ - http://www.pentaxeurope.com)

(France - http://www.pentax.fr)

PENTAX Imaging Systems GmbH

Julius-Vosseler-Strasse, 104, 22527 Hamburg, GERMANY

(http://www.pentax.de)

PENTAX Imaging Systems Limited

PENTAX House, Heron Drive, Langley, Slough, Berks SL3 8PN, U.K.

(http://www.pentax.co.uk)

PENTAX Imaging Company

A Division of PENTAX of America, Inc.

(Headquarters)

600 12th Street, Suite 300 Golden, Colorado 80401, U.S.A.

(PENTAX Service Department)

250 North 54th Street Chandler, AZ 85226, U.S.A.

(http://www.pentaximaging.com)

PENTAX Canada Inc.

1770 Argentina Road Mississauga, Ontario L5N 3S7, CANADA

(http://www.pentax.ca)

PENTAX Trading (SHANGHAI) Limited

23D, Jun Yao International Plaza, 789 Zhaojiabang Road,

Xu Hui District, Shanghai, 200032 CHINA

(http://www.pentax.com.cn)

Copyright © HOYA CORPORATION 2010

FOM 01.12.2010 Printed in Europe
