DIR-X1860 - Router D-LINK - Free user manual and instructions

Product Type	Wireless Router
Brand	D-Link
Model	DIR-X1860
Wi-Fi Standard	802.11ax (Wi-Fi 6)
Bands	2.4 GHz and 5 GHz
Ports	1 Gigabit Internet port, 4 Gigabit LAN ports
Antennas	4 external antennas
Power Supply	12 V / 1 A power adapter
Dimensions (L x W x H)	Approximately 232 x 150 x 40 mm
Weight	Approximately 300 g
Main Functions	Internet connection sharing, firewall, parental control, QoS, guest network
Security	WPA3, WPA2, AES encryption, SPI firewall
Configuration	D-Link Wi-Fi mobile app or web browser (http://dlinkrouter.local./)
Reset	Reset button on rear panel (hold 10 s)
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% non-condensing
Maintenance and Cleaning	Clean with a dry, soft cloth. Do not use chemical products.
Spare Parts and Repairability	Not available. Device not repairable by user.

Frequently Asked Questions - DIR-X1860 D-LINK

How to set up the router using the D-Link Wi-Fi mobile app?

Download the D-Link Wi-Fi app from the App Store or Google Play. Launch the app, tap Install a New Device, then scan the QR code provided in the packaging. Follow the on-screen instructions to complete the setup.

How to set up the router using a web browser?

Connect your computer to the router's Wi-Fi network (default SSID on the label). Open a browser and type http://dlinkrouter.local./ in the address bar. Follow the on-screen instructions.

What to do if I forgot the Wi-Fi password or the admin password?

You need to reset the router to factory settings. Locate the Reset button on the back, press and hold it for 10 seconds with a paperclip, then release. All settings will be erased.

Why can't I access the web configuration utility?

Check that the address http://dlinkrouter.local./ is typed correctly. Make sure your computer is connected to the router's network (same IP subnet). You do not need to be connected to the Internet to access the utility.

Why can't I access the Internet after setup?

Restart the router by unplugging it and plugging it back in. If the problem persists, contact your Internet service provider.

How to restore the router to factory settings?

With the router powered on, use a paperclip to press and hold the Reset button (rear panel) for 10 seconds. Release it. The router will restart with default settings.

Where to find the Wi-Fi network name (SSID) and default password?

They are printed on the Quick Installation Card provided in the packaging, or on the label attached to the bottom of the router.

How to connect devices to the Wi-Fi network?

Use the Wi-Fi name (SSID) and password that you set during setup. If you did not change the settings, use the default ones on the label.

Does the router support Wi-Fi 6?

Yes, the DIR-X1860 model complies with the 802.11ax (Wi-Fi 6) standard, offering higher speeds and better management of connected devices.

Where to get technical support or additional documentation?

Visit the D-Link website (www.dlink.com) for technical support, user guides, and other information.

USER MANUAL DIR-X1860 D-LINK

OPTION 1 D-LINK WI-FI APP SETUP

1 /

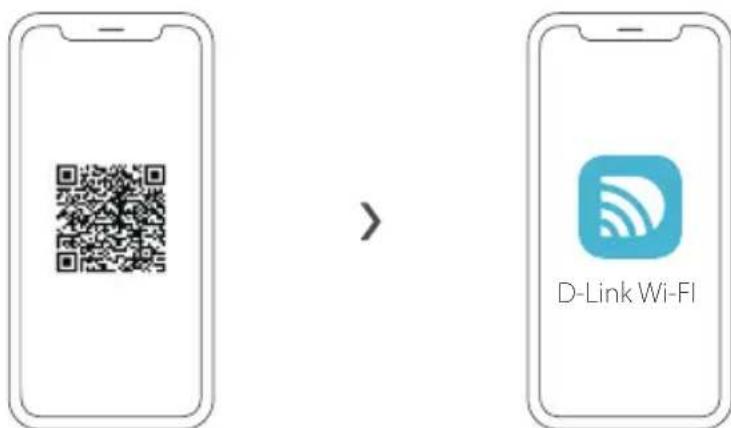

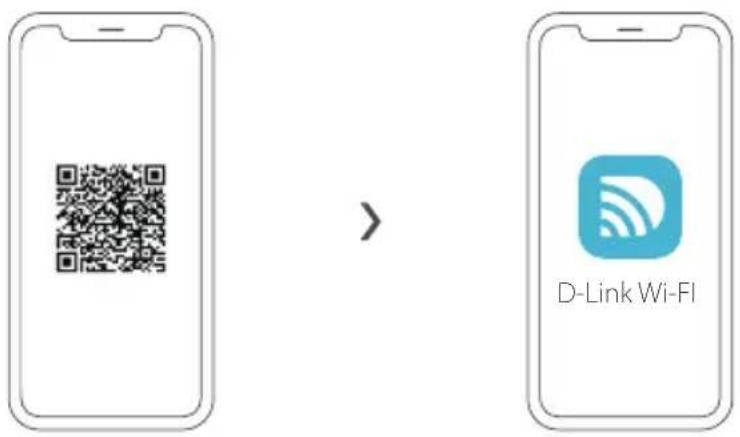

Scan the QR code above to download the D-Link Wi-Fi app from the App Store or from Google Play and launch it.

Note: Please check the app store for device requirements and compatibility. Not all D-Link products are supported by the D-Link Wi-Fi app.

2 /

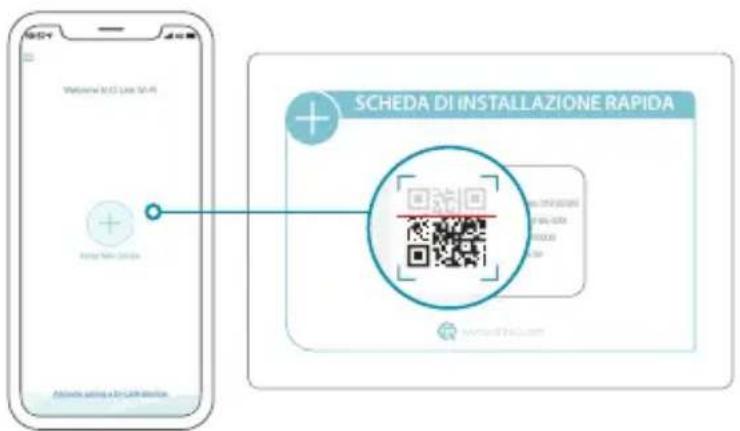

Tap Install New Device. Tap Scan the QR code. Scan the code on the Quick Installation Card provided in the packaging of your product. Follow the on-screen instructions to complete the setup.

ENJOY!

You're all good to go! Connect devices to your network using the Wi-Fi Name (SSID) and password that you created during the setup process.

OPTION 2 WEB BROWSER SETUP

1 Install the antennas. If the antennas are already fixed, position your router near your Internet-connected modem and computer. Keep the router in an open area for better wireless coverage.

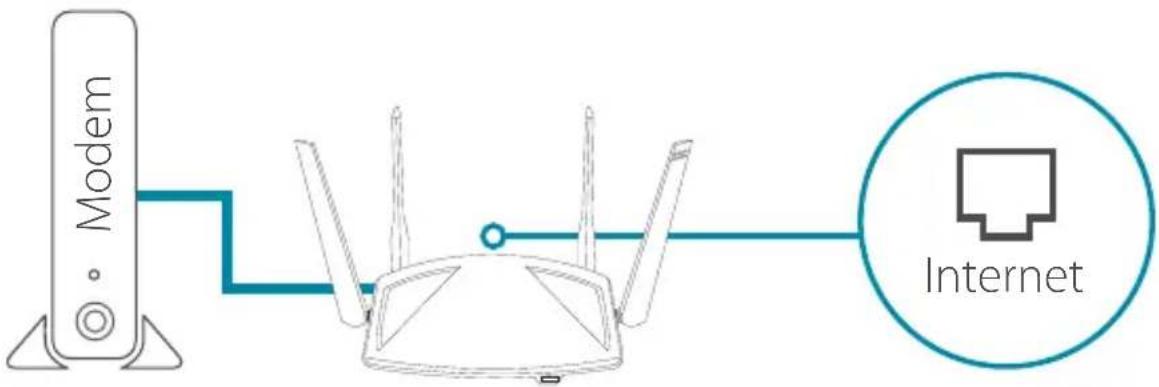

2 / Plug an Ethernet cable from your modem into the port labeled INTERNET on the router.

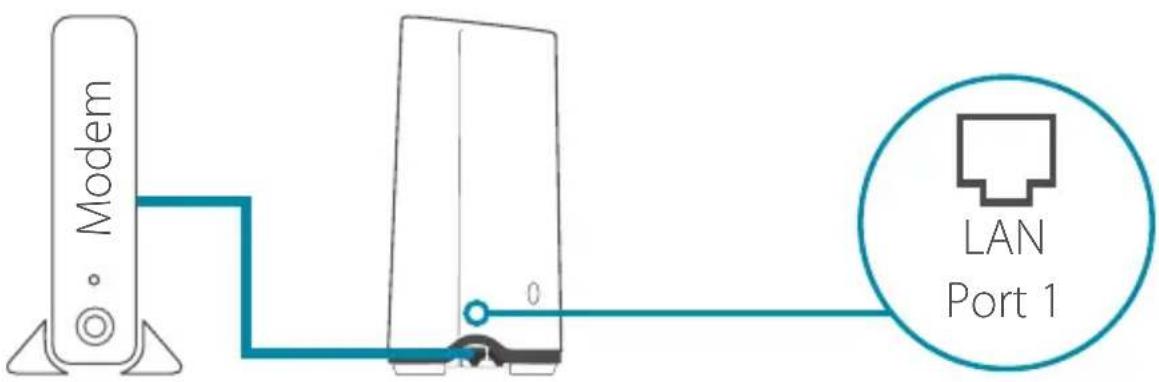

Note: If your router does not have a port labeled as INTERNET, plug the Ethernet cable into LAN Port 1.

3 / Plug the router into a power source to power on the router. Make sure that the power button is in the ON configuration.

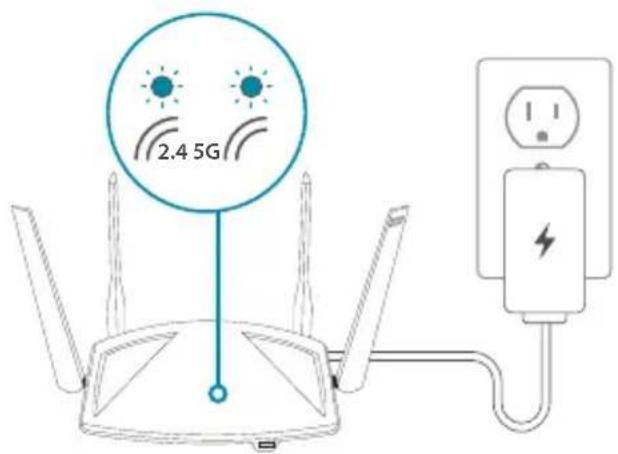

4 Wait for the 2.4 GHz and 5 GHz wireless LEDs to turn on.

4 / Note: If your router does not have 2.4 and 5G wireless LEDs, refer to the User Manual for LED behaviour.

5 / Connect your computer to the Wi-Fi name and password printed on the Quick Installation Card, or on the device label on the bottom of the device.

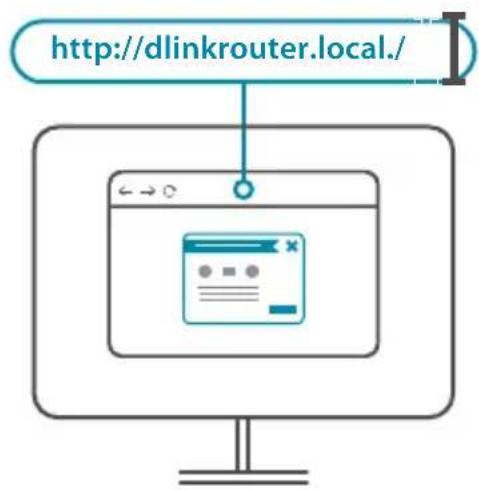

6 / Type http://dlinkrouter.local./ into the address bar of a web browser. Follow the on-screen instructions to complete the setup.

ENJOY!

You're all good to go! Connect devices to your network using the Wi-Fi Name (SSID) and password that you created during the setup process.

FREQUENTLY ASKED QUESTIONS

Why can't I access the web-based configuration utility?

Verify that http://dlinkrouter.local./ is correctly entered into the browser. At this stage, you are not connecting to a website, nor do you have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be connected to the router's network and in the same IP subnet to connect to the web-based utility.

Why can't I access the Internet?

Verify that your router is working by rebooting the router. If you still can not connect to the Internet, contact your Internet service provider.

What do I do if I forgot my device password / my wireless network password?

If you forgot your password, you must reset your router. This process will change all your settings back to the factory defaults.

How do I restore the router to its factory default settings?

Locate the reset button on the rear panel of the unit. With the router powered on, use a paper clip to hold the button down for 10 seconds. Release the button and the router will go through its reboot process.

For technical support, product documentation and other information, please visit our website.

https://eu.dlink.com/support

https://eu.dlink.com/support

OPTION 1 CONFIGURATION DE L'APPLICATION WI-FI D-LINK

1 /

https://eu.dlink.com/support

https://eu.dlink.com/support

https://eu.dlink.com/support

OPTIE 1 D-LINK WI-FI APP SETUP

1 /

https://eu.dlink.com/support

OPCJA 1 KONFIGURACJA APLIKACJI D-LINK WI-FI

1 /

https://eu.dlink.com/support

MOŽNOST 1 NASTAVENÍ APLIKACE D-LINK WI-FI

1 /

https://eu.dlink.com/support

1. LEHETŐSÉG BEÁLLÍTÁS A D-LINK WI-FI ALKALMAZÁSSAL

1 /

https://eu.dlink.com/support

ALTERNATIV 1 KONFIGURERING | D-LINK WI-FI-APP

1 /

https://eu.dlink.com/support

MULIGHED 1 OPSÄTNING AF D-LINK WI-FI APP

1 /

Scan QR-koden ovenfor for at downloade D-Link Wi-Fi-appen fra App Store eller Google Play og starte den.

https://eu.dlink.com/support

VAIHTOEHTO 1 D-LINK WI-FI -SOVELLUKSEN ASENNUS

1 /

https://eu.dlink.com/support

ALTERNATIV 1 INSTALLATION AV D-LINK WI-FI-APP

1 /

https://eu.dlink.com/support

https://eu.dlink.com/support

https://eu.dlink.com/support

OPCIJA 1 POSTAVLJANJE D-LINK WI-FI APLIKACIJE

1 /

Skenirajte QR kod iznad ovog teksta kako biste preuzeli D-Link Wi-Fi aplikaciju iz trgovine App Store ili Google Play i pokrenite tu aplikaciju.

Napomena: Provjerite zahtjeve za uređaj i kompatibilnost u trgovini App Store. D-Link Wi-Fi aplikacija ne podržava sve D-Link proizvode.

2,

Dodirnite Instaliraj novi uređaj. Dodirnite Skeniraj QR kod. Skenirajte kod na kartici za brzu instalaciju isporučenoj u pakiranju vašeg proizvoda. Slijedite upute na zaslonu kako biste dovršili postavljanje.

UŽIVAJTE!

Sada ste spremni za akciju! Povežite uređaje na vašu mrežu koristeći naziv Wi-Fi mreže (SSID) i zaporku koju ste izradili tijekom postupka postavljanja.

OPCIJA 2 POSTAVLJANJE POMOĆU WEB PREGLEDNIKA

https://eu.dlink.com/support

MOŽNOST 1 NAMESTITEV APLIKACIJE D-LINK WI-FI

1 /

3 / Usmerjevalnik priključite v vir napajanja, da zagotovite napajanje. Preverite, ali je gumb nastavljen na ON (Vklopljeno).

Počakajte, da zasvetita lučki LED za brezžično povezavo 2,4 GHz in 5 GHz.

https://eu.dlink.com/support

OPTIUNEA 1 CONFIGURARE APL. D-LINK WI-FI

1 /

https://eu.dlink.com/support

1. MOŽNOST: INŠTALÁCIA APLIKÁCIE D-LINK WI-FI

1 /

3 / Zapojte smerovač do elektrickej zásuvky, aby sa zapol. Uistite sa, či je vypínač na smerovači v polohe ON (ZAPNUTÉ).

https://eu.dlink.com/support
