Product Type	Blender
Brand	Wilfa
Model	Knus 1400 WBLB-1400S
Power	1400 W
Power Supply	AC 220-240V, 50/60 Hz
Jar Material	Heat-resistant borosilicate glass (up to 90°C)
Jar Capacity	Approx. 1.5 L
Control Panel	ON/OFF switch, speed control (MIN-MAX), quick-select buttons (Crush Ice, Smoothie, Pulse/Auto Clean)
Functions	Blending, crushing ice, smoothie making, pulse/auto clean
Safety Features	Built-in safety lock (requires correct assembly), overheating protection (manual reset thermostat), sharp blade caution
Maximum Continuous Operation	3 minutes, then allow to cool to room temperature
Ice Crushing Capacity	Maximum 8 ice cubes (20x20x20 mm each)
Cleaning	Removable parts dishwasher safe or hand wash; motor base wipe with dry cloth
Accessories Included	Measuring cup, lid, sealed ring, blade assembly unit, glass jar
Disposal	WEEE compliant - do not dispose with household waste

Frequently Asked Questions - Knus 1400 WBLB-1400S WILFA

How do I assemble the blender?

Place the sealed ring on the blade assembly unit, then place the blade assembly unit on the interface and screw it onto the glass jar bottom until fixed. Place the jar onto the motor unit, ensuring the handle can be on the left or right side. Finally, connect to mains power.

How do I clean the blender?

Disconnect power and disassemble all removable parts. Clean them in the dishwasher or in lukewarm water with dishwashing liquid. Wipe the motor base with a dry cloth. Be careful of the sharp blades.

What safety features does the blender have?

A built-in safety lock prevents operation unless the jar is correctly attached. The motor has a manual reset thermostat to protect from overheating. Always handle the sharp blades with care.

Can I crush ice in this blender?

Yes, use the Crush Ice quick-select button. Do not add more than 8 ice cubes (20x20x20 mm each) at a time. The appliance will stop automatically after 30 seconds.

How do I use the Smoothie function?

Turn the knob to ON, then press the Smoothie button. The blender runs a pre-set speed profile for one minute and stops automatically. Press again to stop earlier.

What should I do if the blender stops during use?

If the motor overheats, the manual reset thermostat will activate. Unplug the appliance and wait about 5 minutes, then plug it back in to reset. Ensure the jar is correctly assembled.

What is the maximum continuous operating time?

Do not operate the blender for more than 3 minutes continuously. Let it cool to room temperature before using again.

Can I blend hot liquids?

Be cautious: hot liquid can be ejected due to sudden steaming. The glass jar tolerates up to 90°C, but always start at low speed and use the lid with measuring cup.

How do I replace the blade assembly?

Disconnect power. Unscrew the blade assembly unit interface from the glass jar. Replace with a new unit, ensuring the sealed ring is in place. Tighten securely. Contact Wilfa service for replacement parts.

Is the blender dishwasher safe?

Yes, all removable parts (jar, lid, measuring cup, blade assembly unit) are dishwasher safe. The motor base should only be wiped with a dry cloth.

USER MANUAL Knus 1400 WBLB-1400S WILFA

Exterior view of a modern kitchen blender with clear glass body and control knob (no text or symbols visible)

Wilfa Knus 1400

Blender

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

BLB-1400S

Blender

Advarsel 3

1. Sett knivbladenheten på knivenhetsadapteren.

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

Line drawing of a blender with an arrow indicating compression or lifting process (no text or symbols)

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with no text or symbols present.

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

Line drawing of a pitcher with an arrow pointing to its base, no text or symbols present

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

1. Anslut stickkontakten.

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with no text or symbols present.

Simple line drawing of a lamp with a downward arrow indicating light or illumination (no text or symbols)

Line drawing of a blender with an arrow pointing to its base (no text or symbols)

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with no text or symbols present.

Simple line drawing of a lamp with a downward arrow and base, no text or symbols present

Line drawing of a blender with an arrow pointing to its base (no text or symbols)

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a bucket falling into a roof, with no text or symbols present.

Using the appliance 7

How to assemble the appliance 9

How to use the blender jar 10

Cleaning 11

Technical Data 13

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Warning

■ Never leave the appliance unattended when it is connected to the mains.
■ Never immerse the appliance in water.
■ Is the cable damaged, it must be replaced by authorized service personnel to avoid a hazard.
■ Is there damage to the device or that it does not work, it must be serviced only by authorized personnel.
■ Connect the appliance only to a properly installed wall socket with a voltage matching the technical data of the appliance.
■ Do not let the cord hang over edge of the table or counter or touch hot surface.
■ The motor must not come into contact with water or any other liquid, as there is the danger of an electric shock. Therefore, do not use the appliance near to a wash Basin, not with wet hands or while standing on a wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.
■ Do not use the appliance outdoors.
■ This product is intended for household use and not for commercial use.
■ Use the appliance only for the purpose it was designed for.

■ Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.

■ Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

■ This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

■ Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

■ This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

■ Children shall not play with the appliance.

Caution

■ There is a potential injury from misuse. The care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

■ To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.

■ Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

■ The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

■ Be careful is hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

We are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

Safety precautions for your table blender

■ Operate the blender with lid closed
■ Blades are very sharp. Handle with care.
■ Only remove the jar while motor is off.
■ Avoid overwork of motor.
■ Handle carefully with glass jar.
■ Never place your hands into the glass jar while the motor is on.
■ Avoid contact with moving parts.

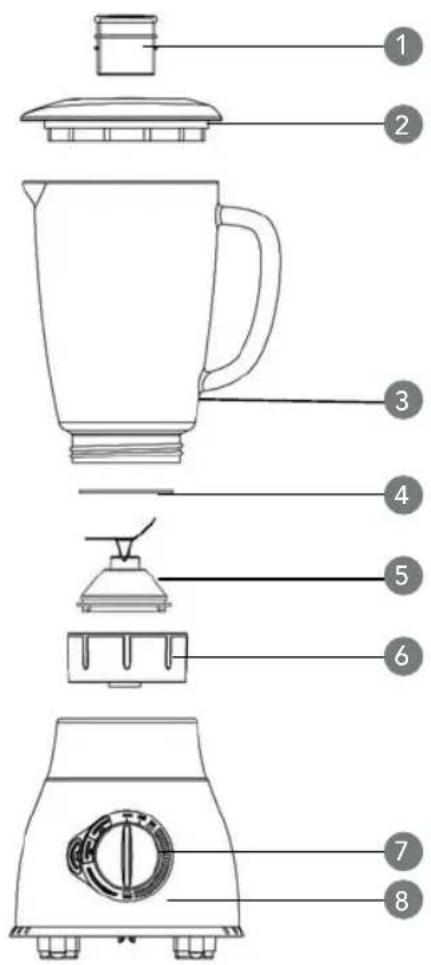

Parts description

1 Measuring cup
2 Lid
3 Glass jar with level indication
4 Sealed ring
5 Blade assembly unit
6 Blade assembly unit interface
7 Control panel
8 Motor unit

Built-in safety lock

This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the accessories have been fixed properly, the unit can only be switched on. (i.e. Built-in safety lock function is disabled at this moment)

Before fi rst use

Clean the unit and parts thoroughly before you use the appliance for the first time.

Using the appliance

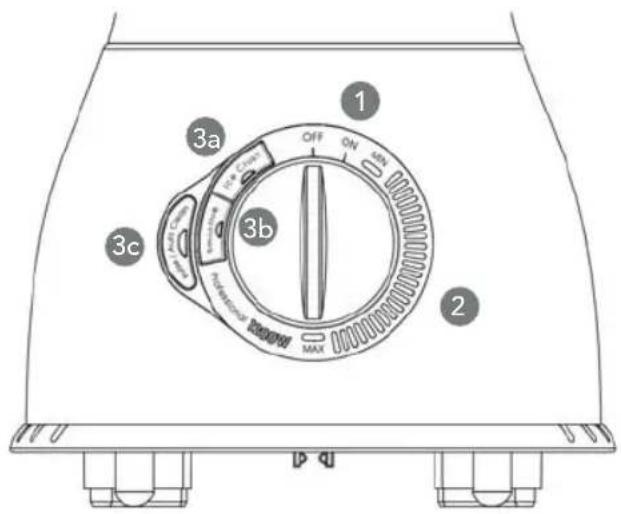

Control panel

1 ON/OFF switch
2 Speed control (MIN -> MAX)
3 Quick-select button

a) Crush ice button
b) Smoothie button
c) Pulse/Auto clean button

To switch on the appliance, turn the knob to "ON" position. The "ON" light will be illuminated.

To control the speed, turn the knob at between "MIN" & "MAX" position. The light will be illuminated at the desired position.

To use the quick function, turn the knob to "ON" position. The light on the three buttons will start to blink.

Crush ice button

Press this button to crush ice. The appliance starts crushing according to the pre-set speed profi le.

Press the button again to stop the process or wait for the unit to stop automatically after running for 30 seconds.

Warning:

Do not add more than 8pcs ice cubes (less than 20 x 20 x 20mm size of the ice) in glass jar at a time.

Smoothie button

Press this button to make delicious smoothies. The appliance starts mixing according to the pre-set speed profile. Press the button again to stop the process or wait for the unit to stop automatically after running for one minute.

Pulse/Auto clean button

Press the button to run the Auto mode. The appliance starts operating according to the pre-set speed profi le. Press the button again to stop the process or wait for the unit to stop automatically after running for one minute.

This function can be used to clean the product; you have to use water in the jar.

How to assemble the appliance

1. Place the sealed ring on the blade assembly unit.

1. Place the blade assembly unit on the interface.

Simple diagram showing a lamp with a downward arrow and a base component (no text or symbols)

1. Screw the unit interface onto the glass jar bottom until it is fixed properly.

Line drawing of a blender with a red arrow pointing to its base (no text or symbols)

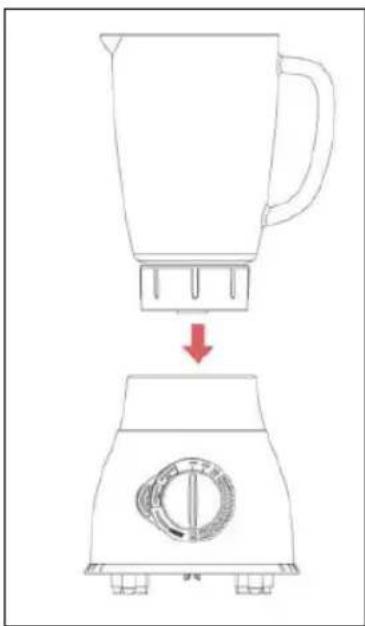

1. Place the glass jar with blade assembly unit interface on the motor unit. The handle can be placed in two positions: either located at the right hand side or left hand side.

Line drawing of a blender with a handle and lid, showing a drop from top to bottom (no text or symbols)

1. Connect to main power supply.

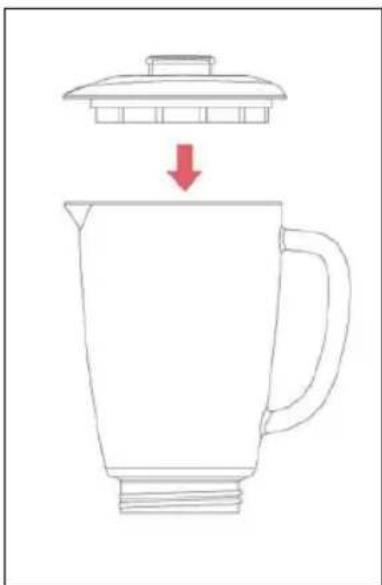

How to use the glass jar

1. Place the ingredients in the glass jar.

2. Place the lid on the jar and close it tightly.

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

1. Insert the measuring cup into the lid opening.

Simple line drawing showing a container dropping into a roof, with a red arrow indicating downward motion (no text or symbols)

1. Select the speed by turning the control knob or press the Quick-select button.

Note: Do not let the appliance to operate more than 3 minutes continuously. Let the appliance to cool down to room temperature before continue operating the appliance.

After using the blender

1. Disconnect the power from main supply.
2. Remove the lid (together with measuring cup) from the jar.
3. Remove the jar (together with blade assembly unit interface) from the motor part.
4. Detach the blade assembly unit interface from the bottom of the jar.

Note: Always clean the removable parts immediately after use.

Note: It is recommended to cut the meat or other food into smaller pieces before putting them in the jar. Do not operate with large quantities of food at one time.

Cleaning

Always clean the removable parts immediately after use.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

1. Disconnect the power from main supply.
2. Disassemble all removable parts before cleaning.
3. Clean all removable parts in dishwasher or in lukewarm water with dishwashing liquid.
4. Use dry cloth to clean the main body.

How to clean the different parts:

Remarks

Note that the blender has a protection device:

Manual resettable thermostat

The thermostat will be activated when the motor is overheated. The device will be re-set by unplug and re-plug the power plug to the socket around 5 minutes.

Heat-resistant borosilicate glass jar

Tolerates up to 90 °C.

Technical Data

Model: BLB-1400S

Power Supply: AC 220V-240V 50/60Hz

Output: 1400W

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.
