Smooth BL-1000S - Blender WILFA - Free user manual and instructions

Product Type	Blender
Brand	Wilfa
Model	Smooth BL-1000S
Power	1000 W
Voltage	220-240 V, 50/60 Hz
Capacity	1.5 L
Speed Settings	Variable speed with pulse function
Blade Material	Stainless steel
Jug Material	BPA-free Tritan plastic
Dimensions (HxWxD)	40 x 18 x 18 cm
Weight	2.5 kg
Cord Length	1.2 m
Safety Features	Safety lock system, non-slip feet, overload protection
Dishwasher Safe Parts	Jug and lid are dishwasher safe
Cleaning	Self-cleaning cycle with soapy water
Warranty	2 years
Spare Parts Availability	Replacement jug and blades available
Repairability	Moderate; motor unit serviceable by qualified technician
Included Accessories	Blender jug, lid with measuring cap, user manual

Frequently Asked Questions - Smooth BL-1000S WILFA

What is the maximum capacity of the Wilfa Smooth BL-1000S?

The blender jug has a maximum capacity of 1.5 liters, suitable for making smoothies, soups, and sauces.

Can I crush ice with this blender?

Yes, the 1000W motor and stainless steel blades can crush ice cubes effectively. Use the pulse function for best results.

Is the blender jug dishwasher safe?

Yes, the jug and lid are dishwasher safe. For optimal care, rinse immediately after use.

How do I clean the blender properly?

After use, fill the jug halfway with warm water and a drop of dish soap, then run the blender on high for 30 seconds. Rinse thoroughly.

What safety features does the BL-1000S have?

It includes a safety lock system that prevents operation unless the jug is properly locked, non-slip feet for stability, and overload protection.

Can I blend hot liquids?

It is recommended to let hot liquids cool to below 60°C before blending to avoid pressure buildup and potential splashing. Always use the lid properly.

What is the cord length?

The power cord is approximately 1.2 meters long.

How long is the warranty?

The Wilfa Smooth BL-1000S comes with a 2-year warranty covering manufacturing defects.

Can I replace the blade or jug?

Yes, spare parts such as replacement jug and blades are available for purchase. Contact Wilfa customer service for genuine parts.

What should I do if the blender stops working?

First, check the power connection and ensure the jug is locked properly. If it still doesn't work, check the overload protection reset. If the issue persists, contact Wilfa support.

USER MANUAL Smooth BL-1000S WILFA

Exterior view of a modern min-max blender with control buttons (no text or symbols on the device itself)

Wilfa SMOOTH

BLENDER

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

BL-1000S

BL6B-P1000

BL6W-P1000

Blender

Advarsel 3

Simple diagram of concentric circles with a central dot, labeled '3a' above (no text or symbols within the circles)

PULSE

Simple diagram with concentric circles and a labeled circle '3b' (no text or symbols within the circles)

ICE CRUSHING

SMOOTHIE

1 PÅ-/AV-bryter
2 Hastighetskontroll (MIN -> MAX)
3 Hurtigvalgsknapp

a) Puls
b) Knapp for isknusing
c) Smoothie knapp

Line drawing of a blender with handle and lid, showing internal structure and directional arrows (no text or symbols)

Diagram showing a mechanical assembly with a cylindrical component and a downward arrow, no text or symbols present.

PULSE

Simple diagram with concentric circles and a labeled circle '3b' above (no text or symbols within the circles)

ICE CRUSHING

SMOOTHIE

1 Strömbrytare (ON/OFF)
2 Hastighetsreglage (MIN -> MAX)
3 Snabbvalsknapp

Line drawing of a blender with handle and lid, showing internal structure and directional arrows (no text or symbols)

The image contains only background ruled lines. According to Rule 2, these lines must be ignored. There is no actual text content to extract.

Therefore, the corrected OCR output is:

[Empty String]

GARANTI

Line drawing of a blender with handle and lid, showing internal structure and directional arrows (no text or symbols)

Model: BL-1000S, BL6B-P1000, BL6W-P1000

Strømforsyning: Vekselstrøm 220V-240V 50/60Hz

Effekt: 1000W

Line drawing of a blender with handle and lid, showing internal structure and downward arrows indicating flow or movement (no text or symbols)

Diagram showing a vehicle moving down a vehicle chassis (no text or symbols present)

Malli: BL-1000S, BL6B-P1000, BL6W-P1000

Using the appliance 7

How to assemble the appliance 9

How to use the blender jar.... 10

Cleaning 11

Technical Data.... 13

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Warning

• Never leave the appliance unattended when it is connected to the mains.
• Never immerse the appliance in water.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Is there damage to the device or that it does not work, it must be serviced only by authorized personnel.
• Connect the appliance only to a properly installed wall socket with a voltage matching the technical data of the appliance.
• Do not let the cord hang over edge of the table or counter or touch hot surface.
• The motor must not come into contact with water or any other liquid, as there is the danger of an electric shock. Therefore, do not use the appliance near to a wash Basin, not with wet hands or while standing on a wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.
• Do not use the appliance outdoors.
• This product is intended for household use and not for commercial use.
• Use the appliance only for the purpose it was

designed for.

• Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.
  • Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

Caution

We are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

• There is a potential injury from misuse. The care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

- Be careful is hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

Safety precautions for your table blender

- Operate the blender with lid closed

- Blades are very sharp. Handle with care.

- Only remove the jar while motor is off.

- Avoid overwork of motor.

- Handle carefully with glass jar.

- Never place your hands into the glass jar while the motor is on.

- Avoid contact with moving parts.

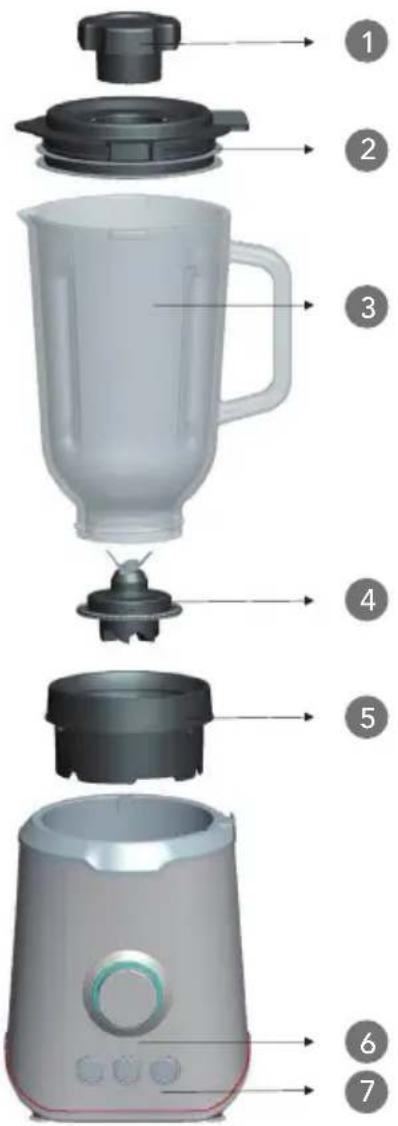

Parts description

1 Measuring cup
2 Lid
3 Glass jar with level indication
4 Blade assembly unit
5 Blade assembly unit interface
6 Control panel
7 Motor unit

Installation of jug

Place the glass jug on the unit and turn clockwise until the glass jug locks. When the jug is properly assembled, the unit can be turned on. (ie then the security lock is activated). Turn counterclockwise to remove the glass jug. Before first use

Before first use

Clean the unit and parts thoroughly before you use the appliance for the first time.

Using the appliance

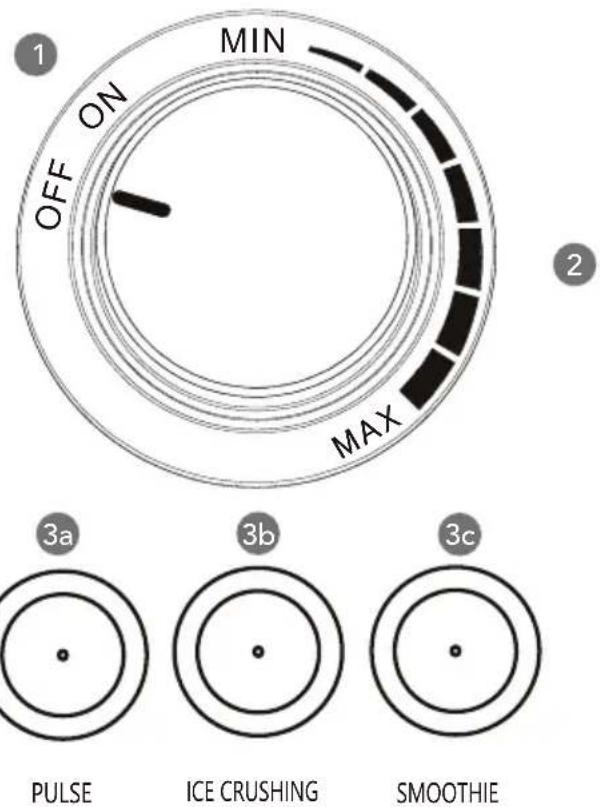

Control panel

1 ON/OFF switch
2 Speed control (MIN -> MAX)
3 Quick-select button

a) Pulse
b) Crush ice button
c) Smoothie button

To switch on the appliance, turn the knob to "ON" position.

To control the speed, turn the knob at between "MIN" & "MAX" position.

The light will be illuminated at the desired position.

To use the quick function, turn the knob to "ON" position. The light on the three buttons will start to light.

Crush ice button

Press this button to crush ice. The appliance starts crushing according to the pre-set speed profile.

Press the button again to stop the process or wait for the unit to stop automatically after running for 60 seconds.

Warning:

Do not add more than 8pcs ice cubes (less than 20 x 20 x 20mm size of the ice) in glass jar at a time.

Smoothie button

Press this button to make delicious smoothies. The appliance starts mixing according to the pre-set speed profile. Press the button again to stop the process or wait for the unit to stop automatically after running for one minute.

Pulse button

Press and hold until the desired result is reached.

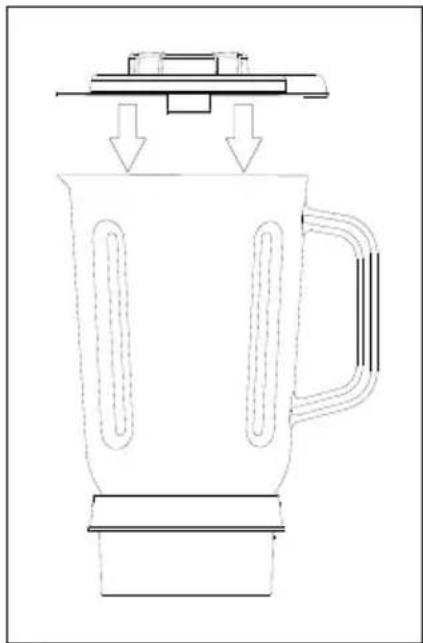

How to use the glass jar

1. Place the ingredients in the glass jar.
2. Place the lid on the jar and close it tightly.

Line drawing of a blender with handle and lid, showing internal structure and directional arrows (no text or symbols)

1. Insert the measuring cup into the lid opening.

1. Select the speed by turning the control knob or press the Quick-select button.

Note: Do not let the appliance to operate more than 1 minute continuously. Let the appliance to cool down to room temperature before continue operating the appliance.

After using the blender

1. Disconnect the power from main supply.
2. Remove the lid (together with measuring cup) from the jar.

3. Remove the jar (together with blade assembly unit interface) from the motor part.

4. Detach the blade assembly unit interface from the bottom of the jar.

Note: Always clean the removable parts immediately after use.

Note: It is recommended to cut the meat or other food into smaller pieces before putting them in the jar. Do not operate with large quantities of food at one time.

Cleaning

Always clean the removable parts immediately after use.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

1. Disconnect the power from main supply.
2. Disassemble all removable parts before cleaning.
3. Clean all removable parts in lukewarm water with dishwashing liquid.
4. Use dry cloth to clean the main body.

Remarks

Note that the blender has a protection device:

The thermostat will be activated when the motor is overheated. The device will be re-set by unplug and re-plug the power plug to the socket around 30 minutes.

Technical Data

Model: BL-1000S, BL6B-P1000, BL6W-P1000

Power Supply: AC 220V-240V 50/60Hz

Output: 1000W

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

GUARANTEE

Wilfa issues a 5 years guarantee on this product from the day purchase is done. Guarantee covers production failure or defects that arise during guarantee period. Buying receipt of the product is proof of guarantee. When claiming guarantee, the shop where the product is bought is to be contacted.

Guarantee is valid only for products that is bought and used in private household. Guarantee is not valid if the product is used commercially. Guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. Guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

- Overloading of product

- Damage on glass

- Parts which is normally worn

These instructions are also available at our website www.wilfa.com

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.
