Product type	Corner aquarium with cabinet (optional)
Brand	Ferplast
Model	Dubai Corner 90 Black
Capacity	Approximately 90 litres
Dimensions (L x D x H)	Approximately 60 x 60 x 50 cm (estimation)
Weight	Approximately 25 kg (empty, estimation)
Power supply	220-240 V, 50 Hz
Lighting	Neon tubes with built-in timer
Filtration	BLUWAVE internal filter with mechanical, biological and adsorbent filtration
Heating	Built-in BLUCLIMA automatic heater
Pump	BLUPOWER pump with adjustable outlet nozzle
Filter volume	BLUWAVE 05 (for Dubai 80-100-90 corner)
Material	Glass and plastic
Color	Black
Removable doors	Yes, for external hose passage
Access hatch	Yes, removable
Timer	Manual setting of lighting hours
Water level	Between MIN and MAX on filter, 1.5 cm below neon
Safety	30 mA automatic switch recommended, ceiling light non-submersible
Maintenance	Bottom siphoning, water replacement, sponge cleaning, lamp replacement
Spare parts	Sponges, lamps, rotor available in specialized stores
Warranty	On manufacturing defects, excluding wear parts and misuse
Intended use	Indoor, freshwater or marine aquarium (depending on equipment)

Frequently Asked Questions - Dubai Corner 90 Black Ferplast

What is the capacity of the Dubai Corner 90 Black aquarium?

The capacity is approximately 90 litres. It is a corner aquarium suitable for freshwater or marine fish.

How to install the BLUWAVE filter?

Attach the hooks to the filter, position it in the tank by sliding it into the guide. Ensure the water level is between MIN and MAX and that the access grilles are not obstructed.

How to adjust the lighting timer?

Turn the knob to align the arrow with the current time. Position the indicator tabs outward to set the lighting hours. Use the switch on T (timer), ON (on) or OFF (off).

How to replace the neon lamps?

Unplug the aquarium. Move the hatches, slide the ceiling light. Unscrew the end caps, turn the lamp a quarter turn to remove it. Insert the new one by turning it until it clicks, then screw the end caps back on.

How often to clean the filter sponges?

Rinse the mechanical filtration sponges every 2-3 weeks. Replace them every 6 months. The adsorbent sponge is replaced every 2-3 weeks or every 6 months if used as mechanical.

How to clean the pump?

Unplug the aquarium. Remove the filter cover and the pump-sponge-tube assembly. Detach the pump, remove the rotor and clean it with a soft brush. Do not use detergents.

What temperature to set for a tropical aquarium?

Set the BLUCLIMA heater to approximately 25-26°C for a tropical freshwater aquarium. Adjust according to species.

Can I use an additional external filter?

Yes, the removable doors allow passage of hoses for an optional external filter like the BLUEXTREME.

How to prepare the aquarium before introducing fish?

Add BLUSTART activators to the filter, wait 10-12 days for maturation. Check water parameters with a tester. Introduce fish gradually.

What to do in case of power outage?

The timer must be reset after each outage. Readjust the time and indicator tabs.

USER MANUAL Dubai Corner 90 Black Ferplast

ferplast

DUBAI AQUARIUMS

Manualed'uso

User's manual

L = 81 cm L = 101 cm
W=36 cm W=41 cm
H = 51 cm H = 53 cm
≈125 L ≈190 L
6 mm
L = 101 cm
W=41cm
H = 53 cm
≈190 L
8 mm

L = 121 cm
W = 41 cm
H = 56 cm
≈ 240 L
8 mm

L = 66 cm
W = 93 cm
H = 57 cm
≈ 180 L
8 mm

Top-down view of a blue plastic enclosure containing two white cylindrical components with no visible text or symbols.

24W 39W
T5 T5
(x 2) (x 2)

39W
T5
(x 2)

24W
T5
(x 2)

BLUWAVE

05 05 07

05

Filtering materials BLUMEC, BLUCLEAR, BLUBALLS, BLURINGS

Heater BLUCLIMA 200

200 W

Pump BLUPOWER 900

900 l/h max

Filtering materials BLUMEC, BLUCLEAR, BLUBALLS, BLURINGS

Close-up of a blue mechanical component with a cylindrical pin inserted (no visible text or symbols)

Close-up of a white plastic mechanical component with a blue background (no visible text or symbols)

Close-up of a blue metal keyhole on a dark surface, no text or symbols visible

Blue transparent container with a lid, no visible text or symbols

6

DUBAI aquariums

3D mechanical component diagram showing internal structure with arrows indicating direction (no text or symbols)

Technical line drawing of mechanical components including a cylindrical housing and a flanged housing (no text or symbols)

STAND

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Check that all parts are undamaged (lights, heater, glass and plastic parts, etc.). Ferplast uses strong, secure packaging and checks each aquarium individually, but we recommend you also check that no accidental damage has occurred during transport, storage or sale which could affect its watertight seal and safe use.

DUBAI: discovering its great qualities

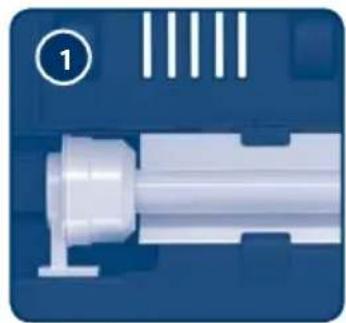

1 Lamps

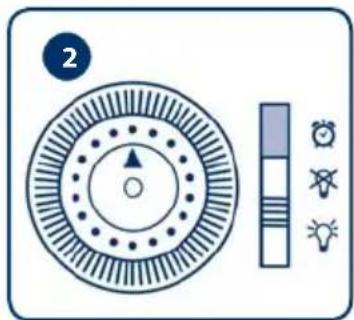

2 Timer

Timer for setting the lights to switch on and off:

a set the arrow to the right time by turning the timer wheel;
b Set the time for the lights to come on by moving the pins towards the outside;
c Set the timer switch onto one of the positions:

T = lights controlled by timer.

OFF = lights always off.

ON = lights controlled by timer.

N.B. Remember that the timer must always be reset whenever the electric power supply is switched off.

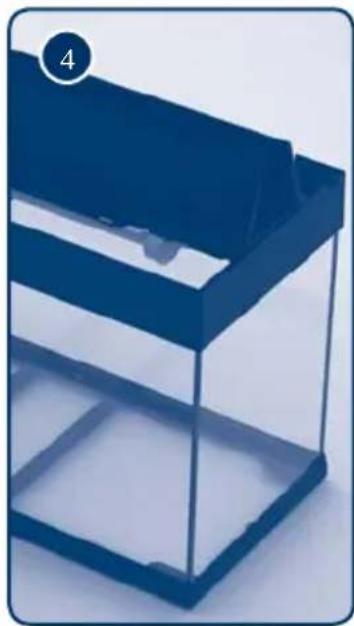

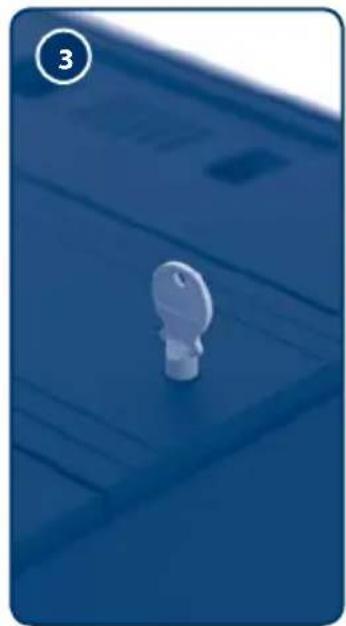

3 Key

Allow the overtak lamp to be fixed to the frame.

4 Hatches

Opening and fully removable robust hatches.

5 Snap-off plugs

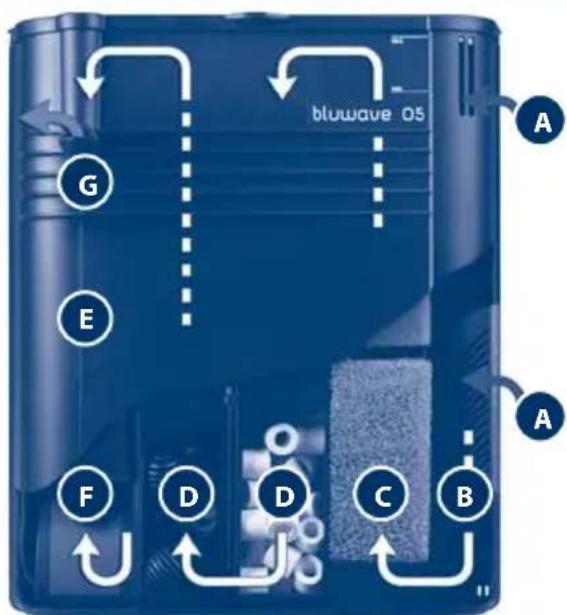

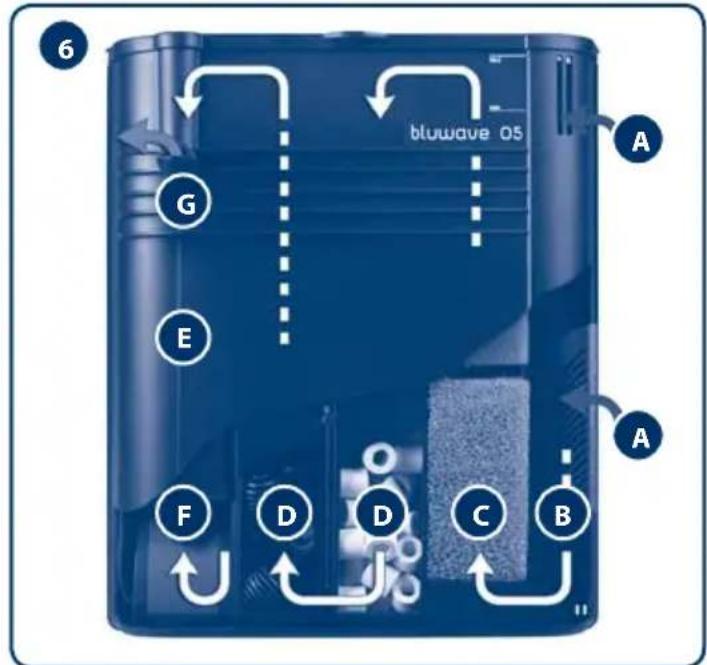

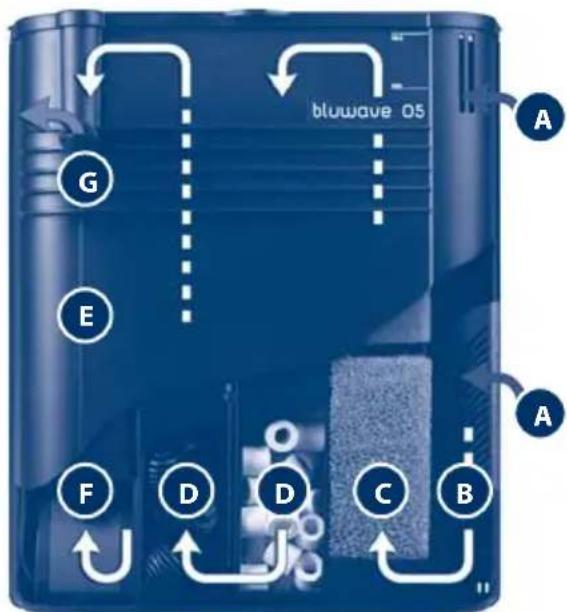

6 Internal filter system BLUWAVE, equipped with:

A- Double water intake;

B- BLUCLIMA heater

(to adjust it, just re-set the selector on the top of the heater to the required temperature);

F- BLUPOWER pump;

G- Adjustable circulation jet.

The BLUWAVE filter ensures 3 filtration stages:

• Mechanical filtration (C)
• Biological filtration (D)
• Adsorbent filtration (E).

These can be easily removed to fit the intake and return pipes of an external pump (BLUEXTREME optional).

Close-up of a blue mechanical component with a cylindrical pin inserted (no visible text or symbols)

Close-up of a white mechanical component with a blue background (no visible text or symbols)

Circular diagram with concentric rings and a vertical scale bar, no text or symbols present

Close-up of a blue metal door with a key inserted, no visible text or symbols

Blue transparent container with a lid, no visible text or symbols

DUBAI aquariums

Preliminary warnings

• Ensure that the voltage shown on the all electrical components corresponds to that of your home electrical power supply.
  • The aquarium is intended only for indoor use.
• Before switching on make sure your home is protected by an automatic safety breaker switch (or individual breaker plug) with an operating current of no more than 30 mA.
• Do not connect the aquarium to the power supply before correctly completing all the installation procedures, including filling with water.
  • Always disconnect all appliances from the electric power supply before carrying out any maintenance.
• Remember that the protection of the lights from water and dust is guaranteed only when the fluorescent tubes are correctly inserted and the ring nuts perfectly tightened.
• The tubes and the overtank lamp must never be submerged.
• The power cable has Y-type wiring, so if damaged it must be replaced by a qualified electrician.
• All special maintenance work must be carried out by a qualified electrician.
  'Special maintenance' means any kind of work not included in the paragraph 'Maintaining the DUBAI aquarium' and 'Maintaining the BLUWAVE filter'. 'Qualified electrician' means any qualified member of the register of installer.
• Never remove the heater (if present) from the water when it is connected to the electric power supply. Before removing the heater, disconnect it and leave it to cool inside its housing for at least 5 minutes.
• Check that the Bluwave filter intake grilles are not blocked.
• Always ensure that the water level stays above the minimum level and below the maximum; both are marked on the front of the BLUWAVE filter. Remember that the water level should always be between the MIN and MAX levels, both shown on the front of the BLUWAVE filter and always at 1.5 cm distance from the lamp.

IMPORTANT

• THE OVERTANK LAMP MUST NEVER BE SUBMERGED;
- do not pour liquid onto the overtank lamp because it contains electrical parts:
- do not damage the silicone cord with scissors, pliers, brushes or scrapers;
- do not use detergents, solvents or chemical products (descaler, ammonium-based products, etc.) to clean the glass, as they could damage the silicone, causing it to become detached (possibly some time later);
- do not use adhesives or adhesive tape near the silicone when applying backgrounds.

Moreover, you should always use a spirit level to make sure that the aquarium is placed on a perfectly flat surface in both directions (length and depth), so as not to break the glass or damage the silicone.

Positioning the DUBAI aquarium

• The aquarium should be placed on a solid flat base with a smooth even surface.
• Position the aquarium in a protected area not exposed to direct sunlight (which could cause overheating and a proliferation of algae), away from sources of heat (e.g. heating radiators), cold air and drafts.
• Position the aquarium away from electrical equipment that could be wet by splashes of water.
• Connect the plugs to your electric power supply leaving a loop in the cable below the electrical socket to prevent drops of water running down the cable and into the power supply (7).

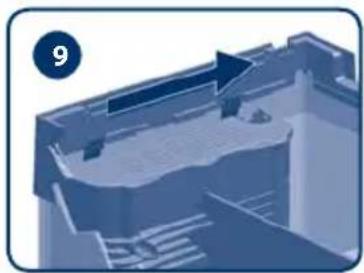

Setting up the DUBAI aquarium

1 Fix the supplied hooks to the BLUWAVE filter (8).
2 Position the internal BLUWAVE filter inside the tank in the preferred position (sideways or backwards) sliding it along the special guides on the frame (9).

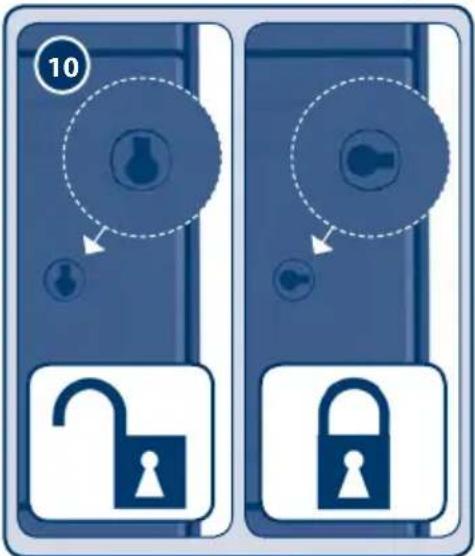

3 place the overtank lamp on the tank and fix it by using the special key or a screwdriver (10).
4 Ensure that the ring nuts on the lights are tightened.

3D mechanical component diagram showing internal structure with no visible text or symbols

5 Furnish the aquarium according to your taste (your local aquarium shop will be able to help and advise you).

6 Set the required heater temperature (where fitted) according to the type of fish and plants used (e.g. for freshwater tropical fish the average temperature is about 25-26oC).

7 Put the BLUSTART (bacterial activator) in the first BLUWAVE filter compartment: 1 capsule for BLUWAVE 5 (DUBAI 80-100-30 CORNER) and 2 capsules for BLUWAVE 07 (DUBAI 120).

8 Set the required lighting period with the timer and only now should you connect the plug to the electric power supply and check all the equipment is working correctly. In case of problems, contact your retailer.

9 We recommend lighting the aquarium for about 8 hours a day: If there are signs of excessive algae development, reduce the lighting to 7 hours; if the plants have difficulty growing, increase to 9-10 hours.

10 If live plants are being used, we recommend laying about 1 cm of fertilized gravel on the bottom of the tank and 2 cm of gravel. Fill the aquarium by pouring water onto a flat dish placed on the bottom to prevent the material used to create the base from being moved about. In general, it is advisable to mix tap water with about 50% demineralised water for aquariums; however, this percentage may vary according to the chemical contents of your tap water.

11 To care for and protect your fish, it is strongly advised to wait until the filter has matured: the first fish should only be introduced 10-12 days after the addition of BLUSTART filter activator capsules. Before doing so, it is in any case advisable to check the readings and chemical levels of the water using the special MULTISTICK TESTER by Ferplast. Your local retailer will be able to advise you on the ideal water temperature, hardness etc., according to the type of fish and plants you have decided to keep in your DUBAI aquarium. It is advisable to repeat these tests regularly.

12 During the filter maturing period, add a small quantity of dry food each day: this will help the formation of bacterial flora.

13 When adding the fish, insert the remaining BLUSTART filter activator capsules in the first filter compartment.

14 We recommend not putting too many fish into the aquarium all at once, but building up to the maximum population gradually.

15 Your retailer will be able to advise you on the choice of fish to keep in your DUBAI aquarium, the quantity and type of food to use and the feeding frequency.

DUBAI aquarium maintenance

The main maintenance procedures we recommend, in addition to the daily provision of food and regular checking of the temperature and chemical levels, are:

A Siphoning the bottom when required using the special aquarium gravel cleaner BLU 9025/9027 on sale at your local retailer.

B Adding demineralised water to replace that which is lost by evaporation. Remember that the internal filter m submerged.

C Replacing 5-10% of the water with demineralised water at least monthly.

D Replacing the fluorescent tube at least every year to retain an optimum light spectrum.

To replace a tube (11):

• remove the hatches and slide the overtank lamp until you can access to the tubes;
• remove the plug from the electric power socket;
• unscrew the two watertight ring nuts on the light fitting (11 a/b);

- remove the tube by rotating it a quarter turn until the pins are both lined up with the slit in the lamp holder (11 c);

- insert the new tube in the same way, rotating it a quarter turn (you'll hear a small click);

• carefully tighten the ring nuts.

E Cleaning the inside of the aquarium using floating magnetic brushes BLU 9031/9036/9038/9039 designed by Ferplast.

DUBAI aquariums

BLUWAVE filter maintenance

The main maintenance procedures we recommend are:

A Rinsing all the mechanical filtration sponges at least every 2-3 weeks (12); you can easily access to the sponges by sliding the overtank lamp.
B Replacing the mechanical filtration sponges at least every 6 months.
C The effect of the adsorbent sponge ceases in about 2-3 weeks; we therefore advise, if necessary, replacing it with a Ferplast replacement sponge available from leading retailers or leaving it in the filter to perform a mechanical function. In any case, it should be changed at least every 6 months (13).
D During periods when the fish are being treated with a solution added to the water for illness or disease, the adsorbent sponge should be removed from the filter (so this does not reduce the beneficial effects of the treatment). When the treatment is over, we recommend putting in a new sponge.
E Always keeping the filter intake grilles clean.

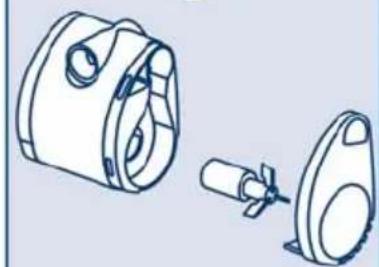

F Checking the pump at least every 6 months and cleaning it when necessary in the following way:
- remove the hatches and slide the overtank lamp to access the pump compartment:
- unscrew the filter top;
- remove the pump unit, adsorbent sponge and return pipe from the filter, pulling it upwards (13);
- remove the pump from the return pipe, remove the front section and remove the rotor (14);
- remove any lime scale or impurities with the soft brush BLU 9037 (never use detergents or chemical substances);
- re-assemble the unit following these instructions in reverse.

IMPORTANT. The biological materials should not be washed. Therefore, we suggest never removing them from the filter so they retain their active bacterial properties.

STAND

We recommend using a Ferplast Stand, especially designed to support a DUBAI aquarium, ensuring a solid, smooth even surface.

Adjustable feet

Warranty

Ferplast guarantees the DUBAI aquarium and its accessories within the limits of the present clause and of the current legal regulation. The guarantee is valid only against manufacturing faults and it includes free product repair or replacement. The guarantee is not valid for damage and/or faults caused by negligence, wear, improper use, accidents, tempering, incorrect repairs, purchase not confirmed by receipt. The fluorescent tubes, starter, sponges and filtering materials are not covered by guarantee. Installing non-Ferplast parts nullifies the guarantee.

IMPORTANT

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Within the European Union the barred rubbish container symbol indicates that the product, at the end of its lifecycle, needs to be sent to separate collection point for electrical and electronic waste and cannot be disposed of together with domestic solid waste.

To ensure correct product disposal, please dispose of this product in compliance with the law provisions of the country where the product is found.

A- Double aspiration.

Close-up of a blue mechanical component with a cylindrical pin inserted (no visible text or symbols)

Close-up of a white mechanical component with a blue background (no visible text or symbols)

Close-up of a blue metal key inserted into a dark surface, no text or symbols visible

Blue 3D model of a transparent container or tank with a lid, shown in perspective view (no text or symbols visible)

6
        direction TB
        A -->|Upward Flow| B
        B -->|Downward Flow| C
        C -->|Upward Flow| D
        D -->|Downward Flow| E
        E -->|Upward Flow| F
        F -->|Downward Flow| G
    end

3D diagram of a mechanical or architectural component with directional arrows, no visible text or symbols

Technical line drawing of mechanical components including a cylindrical housing and flange (no text or symbols)

STAND

Blue cabinet with two doors, no visible text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Close-up of a blue mechanical component with a cylindrical port and lever (no visible text or symbols)

Close-up of a white mechanical component with a blue background (no visible text or symbols)

Close-up of a blue metal door with a metallic key inserted (no text or symbols visible)

Blue plastic container with transparent frame and lid, no visible text or symbols

6

DUBAI aquariums

Warnhinweise

3D mechanical component diagram showing internal structure with arrows indicating direction (no text or symbols)

Technical line drawing of mechanical components including a cylindrical housing and a flanged housing (no text or symbols)

STAND

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Close-up of a blue mechanical component with a cylindrical pin and lever (no visible text or symbols)

Close-up of a white mechanical component with a blue background (no visible text or symbols)

Close-up of a blue metal key inserted into a dark surface, no text or symbols visible

Blue transparent laboratory container with a lid, labeled with number 4 (no text or symbols on the container itself)

6

DUBAI aquariums

3D mechanical component diagram showing internal structure with arrows indicating direction (no text or symbols)

Technical line drawing of mechanical components including a cylindrical housing, flange, and a small cylindrical component (no text or symbols)

STAND

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Close-up of a blue mechanical component with a cylindrical pin inserted (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

Close-up of a blue metal key inserted into a dark surface, no text or symbols visible

Blue transparent container with a lid, no visible text or symbols

6

DUBAI aquariums

3D mechanical component diagram showing internal structure with arrows indicating direction (no text or symbols)

Diagram of a hand inserting a plug into a container with an arrow indicating upward motion (no text or symbols)

ba b a

Technical line drawing of mechanical components including a cylindrical housing and a flanged housing (no text or symbols)

STAND

Blue metal cabinet with two doors, no visible text or symbols

Symbol of a trash bin crossed with no visible text or labels

Close-up of a blue mechanical component with a metallic cylindrical pin (no visible text or symbols)

Close-up of a white mechanical component with a blue background (no visible text or symbols)

Close-up of a small key inserted into a blue metal panel (no text or symbols visible)

Blue plastic container with transparent frame and lid, no visible text or symbols

6

DUBAI aquariums

Úvodné upozornenia

3D mechanical component diagram showing internal structure with no visible text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Close-up of a blue mechanical component with a cylindrical pin inserted (no visible text or symbols)

Close-up of a white plastic mechanical component with no visible text or symbols

Close-up of a blue metal door with a metallic key inserted (no text or symbols visible)

Blue transparent container with a lid, no visible text or symbols

6

DUBAI aquariums

3D architectural cutaway view of a building facade with structural elements and a directional arrow (no text or symbols)

    subgraph Section 1
        D["12 Pump"] --> E["13 Water Collection"]
    end

    subgraph Section 2
        F["13 Water Collection"] --> G["14 Collection"]
    end

    subgraph Section 3
        H["13 Water Collection"] --> I["14 Collection"]
    end

STAND

Close-up of a blue mechanical component with a cylindrical pin inserted (no visible text or symbols)

Close-up of a white mechanical component with a blue background (no visible text or symbols)

Close-up of a blue metal key inserted into a dark surface, no text or symbols visible

Blue transparent container with a lid, no visible text or symbols

6
        direction TB
        A -->|Upward Flow| B
        B -->|Downward Flow| C
        C -->|Upward Flow| D
        D -->|Downward Flow| E
        E -->|Upward Flow| F
        F -->|Downward Flow| G
    end

DUBAI aquariums

ALLÍTHATÓ KERINGÉSI SZÍVÓCSŐ

3D mechanical component diagram showing internal structure with arrows indicating direction (no text or symbols)

Close-up of a blue mechanical component with a cylindrical pin inserted (no visible text or symbols)

Close-up of a white mechanical component with a blue background (no visible text or symbols)

Close-up of a blue metal key inserted into a dark surface, no text or symbols visible

Blue transparent container with a lid, no visible text or symbols

6

DUBAI aquariums

3D mechanical component diagram showing internal structure with arrows indicating direction (no text or symbols)

Blue metal cabinet with two doors, no visible text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Close-up of a blue mechanical component with a cylindrical pin inserted (no visible text or symbols)

Close-up of a white mechanical component with a blue background (no visible text or symbols)

Close-up of a blue metal key inserted into a dark surface, no text or symbols visible

Blue transparent container with a lid, no visible text or symbols

6
        direction TB
        G --> H
        E --> H
        F --> H
        D --> H
        C --> H
        B --> H
        A --> H
    end

DUBAI aquariums

Advarsler

3D mechanical component diagram showing internal structure with arrows indicating direction (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Close-up of a blue mechanical component with a cylindrical port and flange (no visible text or symbols)

Close-up of a white mechanical component with a blue background (no visible text or symbols)

Circular diagram with concentric rings and a vertical bar, accompanied by icons for light, star, and sun (no text or symbols)

Close-up of a blue metal key inserted into a dark surface, no text or symbols visible

Blue transparent container with a lid, no visible text or symbols

6
        direction TB
        G -->|Pathway| G
        E -->|Pathway| E
        F -->|Pathway| F
        D -->|Pathway| D
        C -->|Pathway| C
        B -->|Pathway| B
        A -->|Pathway| A

DUBAI aquariums

3D mechanical component diagram showing internal structure with no visible text or symbols

Diagram of a hand pressing down on a cylindrical object with an upward arrow, no text or symbols present

ba b a

13

Illustration of a hand holding a container with an upward arrow indicating motion (no text or symbols)

14

Technical line drawing of two mechanical components: a cylindrical housing and a flanged housing (no text or symbols)

STAND

Blue cabinet with two doors, no visible text or symbols

perулируемый

Для установки

аквариума мы

рекомендуем

использовать

тумбы компании

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Close-up of a blue mechanical component with a cylindrical pin inserted (no visible text or symbols)

Close-up of a white mechanical component with a blue background (no visible text or symbols)

Close-up of a blue metal keyhole on a dark surface, no text or symbols visible

Blue transparent container with a lid, no visible text or symbols

6

DUBAI aquariums

ZASADY BEZPIECZEŃSTWA

3D architectural cutaway view of a building facade with structural elements and a directional arrow (no text or symbols)

Diagram of a hand inserting a plug into a container with an upward arrow indicating force (no text or symbols present)

ba b a

Illustration of a hand holding a container with an upward arrow indicating motion (no text or symbols)

Technical line drawing of mechanical components (no text or symbols)

STOLIK

Wodoodporny blat

Blue metal cabinet with two doors, no visible text or symbols

Underwater scene with a dense coral reef and fish swimming in the water (no text or symbols visible)
