Product Type	Upright Freezer
Brand	LG
Model	GC-349SQF
Dimensions (H x W x D)	1850 x 600 x 650 mm (estimated)
Weight	70 kg (estimated)
Energy Consumption	300 kWh/year (estimated)
Freezer Capacity	200 L (estimated)
Temperature Range	-15°C to -23°C
Defrost Type	Automatic
Refrigerant	R600a (isobutane)
Voltage / Frequency	220-240 V / 50 Hz
Functions	Super Freeze, Vacation Mode, Child Lock, Self-Test
Ice Making	Ice cube tray included
Reversible Doors	Yes
Anti-Condensation Pipe	Yes
Interior Light	Incandescent lamp (replaceable)
Cleaning	Soft cloth with mild detergent; unplug first
Installation Clearance	At least 2 inches (5 cm) from rear wall
Leveling Feet	Adjustable front leveling screws
Warranty on Door Reversal	Not covered

Frequently Asked Questions - GC-349SQF LG

How do I set the freezer temperature?

Press the temperature control buttons on the display panel. The temperature can be adjusted in a cycle from -15°C to -23°C depending on the model. Use the LED 88 or LED BAR type indicators to see the current setting.

What is the Super Freeze function and how do I use it?

Super Freeze quickly freezes food by running the freezer at maximum power for about 3 hours. Press the 'SUPER FRZ' button once to activate; the lamp turns on. It automatically returns to the previous temperature setting after the cycle ends. Press again to manually stop.

How do I activate Vacation mode?

Press the 'VACATION' button. This puts the freezer into a power-saving mode to reduce energy consumption while you are away. Press again to deactivate. The lamp indicates when the mode is active.

Why is there frost on my frozen food?

Frost inside packages is normal. If excessive frost forms, it may be due to frequent door openings, leaving the door ajar, or a package blocking the door seal. Ensure the door closes properly and avoid opening it too often.

How do I clean the freezer?

Unplug the appliance first. Use a soft cloth soaked in warm water or mild liquid detergent for both exterior and interior. Avoid abrasive cleaners, benzene, thinner, or boiling water. Wipe dry afterwards.

What does the Child Lock function do?

The Child Lock prevents accidental changes to settings. Press and hold the 'CHILD LOCK' button for 2 seconds to lock or unlock. When locked, other buttons will not respond.

How do I reverse the door?

The doors are reversible. First, remove food and accessories. Use a torque wrench or spanner. Follow the step-by-step procedure in the manual, which involves removing handles, hinges, and installing parts on the opposite side. Note: door reversal is not covered by warranty.

What should I do during a power failure?

A power failure of 1-2 hours does not harm stored food. Avoid opening the door frequently to maintain cold temperature. If the power is out longer, food may need to be consumed or discarded.

How do I replace the interior lamp?

Unplug the freezer. Remove fridge shelves (if any). Use a flat-head screwdriver to pry off the lamp cover. Turn the lamp counterclockwise to remove. Replace with a lamp of the same specification. Reassemble in reverse order.

Why is my freezer not cooling properly?

Check that the power plug is securely inserted, the circuit breaker hasn't tripped, and the temperature control is set correctly. Ensure the appliance is not near a heat source and that there is adequate clearance around it. Also check if the door is closing fully.

USER MANUAL GC-349SQF LG

Please read this User's Guide carefully before operating and keep it handy for reference at all times.

USER'S GUIDE FOR REFRIGERATOR/FREEZER

Introduction	Registration	4
	Important Safety Instruction	4
	Identification of Parts	7
Installation	Installation	8
	Starting	8
Operation	Temperature Control	9
	• Refrigerator	9
	• Freezer	9
	Function	11
	• Super Freezer	11
	• Vacation	11
	• Lock	12
	• Self Test	12
	Ice Making	12
	Defrosting	12
Aggestion On Food storage	Storing Food	13
Care and Maintenance	General Information	14
	Lamp Replacement	14
	Cleaning	15
able Shooting	Trouble Shooting	16

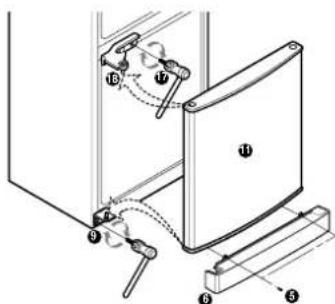

To Reverse the Doors	To Reverse the Doors	18

Introduction

Introduction

Registration

The model and serial number are found on the rear of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.

Date of Purchase : ____

Dealer Purchased From :

Dealer Address :

Dealer Phone No. :

Model No. :

Serial No. :

Precaution

Important Safety Instruction

This fridge-freezer must be properly installed and located in accordance with the Installation Instruction before it is used.

Never unplug your fridge-freezer by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet.

When moving your appliance away from the wall, be careful not to roll over or damage the power cord.

After your fridge-freezer is in operation, do not touch the cold surfaces in the freezer compartment, particularly when your hands are damp or wet. Skin may adhere to these extremely cold surfaces.

Children should be supervised to ensure that they do not play with the appliance.

Introduction

Important Safety Instructions

Precaution

Pull out the power plug prior to cleaning the fridge-freezer.

Never damage, severely bend, pull out, or twist the power cord because power cord damage may cause a fire or electric shock. Never place glass products in the freezer because they may break when their contents are frozen.

Do not modify or extend the power cord length.

Do not use an extension cord.

It will cause electric shock or fire.

Accessibility of Supply Plug

If possible, connect the fridge-freezer to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload.

Supply Cord Replacement

The supply plug of the refrigerator-freezer should be placed in an easily accessible position for quick disconnection in an emergency.

Danger

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Risk of child entrapment. Before you throw away your old refrigerator or freezer: Take off the doors.

Leave the shelves in place so that children may not easily climb inside.

Don't store

Don't store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Grounding (Earthing)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current. In order to prevent possible electric shock, this appliance must be grounded. Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

⚠ Warning

Important Safety Instruction

Keep vent openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ⚠️ Do not damage the refrigerant circuit. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. The refrigerant insulation blowing gas used in the appliance requires special disposal procedures. When disposing, please consult with a service agent or a similarly qualified person.

This appliance contains a small amount of isobutane refrigerant (R600a), a natural gas with high environmental compatibility, but it is combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause eye injury. If a leak is detected, avoid any open flames or sources of ignition and air out the room where the appliance is located for several minutes.

In order to avoid the creation of a flammable air

The room in which the appliance is placed should be well ventilated, depending on the amount of refrigerant used. The room must be at least 1 m² in size for every 8 g of R600a refrigerant inside the appliance. The amount of refrigerant in a particular appliance is shown on the identification plate on the appliance.

Prevent any signs of damage. If in doubt, consult your dealer.

Identification of Parts

Note

If you find some parts missing from your unit, they may be parts only used in other models.

Installation

Installation

1. Select a good location. Place your fridge-freezer where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. There must be proper air circulation around your fridge-freezer to keep it operating efficiently.
4. To avoid vibration, the unit must be leveled. If required, adjust the leveling screws to compensate for the uneven floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws counterclockwise ( ) to raise the unit, clockwise ( ) to lower it.
5. Clean your fridge-freezer thoroughly and wipe off all dust accumulated during shipping.
6. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
7. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
8. To ensure proper air circulation around the fridge-freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.

Starting

When your fridge-freezer is installed, allow it 2-3 hours to stabilize at normal operating temperature prior to filling it with fresh or frozen foods.

If the power plug is disconnected, allow a 5-minute delay before restarting.

Your fridge-freezer is now ready for use.

Operation

Temperature Control

Refrigerator

Your fridge-freezer has two controls that let you regulate the temperature in the fridge and freezer compartments.

• Initially set the TEMP. CONTROL at "4". Then adjust the compartment temperature according to your desire.
• If you want an inside temperature slightly less cold or colder, turn the knob towards MIN or MAX, respectively. When the surrounding temperature is low, adjust the TEMP.

TEMP. CONTROL

Freezer

Display Panel For Temperature Control

	LED(88)	LED(BAR)
Function display board

Operation

- The initial temperature of the freezer compartment is -18°C. You can now adjust the temperature of the compartment as you want.

< LED 88 Type >

< LED BAR Type >

- When you press the temperature control buttons, the temperature of the freezer compartment changes in the following order.

LED 88 Type Freezer Compartment:

-18°C → -19°C → -20°C → -21°C → -22°C → -23°C → -15°C → -16°C → -17°C

LED BAR Type Freezer Compartment:

-19°C → -21°C → -23°C → -15°C → -17°C

Note

The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not the actual temperature within the refrigerator.

Refrigeration function is weak in the initial time. Please adjust temperature as above after using the refrigerator for a minimum of 2~3 days.

Operation

Super Freezer

Function

• Please select this function for prompt freezing.

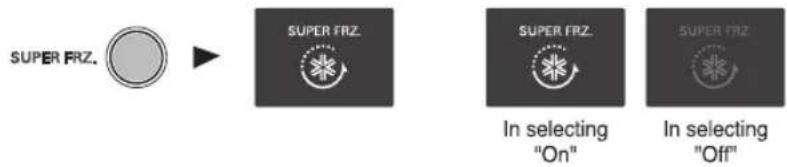

• This function is used when you want to freeze foods quickly. Press the 'SUPER FRZ' (Super Freezer) button once, and then the quick freeze operation starts with the lamp on.
• The Super Freeze operation takes about 3 hours. When its operation ends, it automatically returns to the previous temperature setting. If you want to stop the quick freeze operation, press the 'SUPER FRZ' button once more, the lamp goes out, and the Super Freeze operation stops and the refrigerator returns to the previous temperature setting.

Vacation

- This function makes the fridge-freezer work in a power saving mode which is useful for when you are away on holiday, by reducing energy consumption as much as possible.

Pressing 'VACATION' starts operation with lamp on and pressing it again stops the operation.

Operation

Lock

• Pressing this button stops operation of other buttons.
• "Locking" or "Un-Locking" is repeated whenever pressing the 'CHILD LOCK' button. (For "Locking" or "Un-Locking" press the 'CHILD LOCK' button for 2 secs.)
• When 'CHILD LOCK' is activated, pressing the other buttons would not work.

Self Test

This function allows you to check for operational problems. If you think you have a problem with your fridge-freezer, then press the temperature control button:

• If the indicate lights move up or down, then there is no problem with your fridge-freezer.
• If the indicate lights do not move up or down, then please leave the power connected and call your nearest service agent.

Ice Making

• To make ice cubes, fill the ice tray to the water level and place it in the freezer. - If ice cubes are required fast, press the 'SUPER FRZ.'button. • To remove ice cubes, hold the tray at its ends and twist gently.

Tip

To remove ice cubes easily, run water on the tray before twisting.

Defrosting

Defrosting takes place automatically.

The defrosting water flows down to the evaporating tray and is evaporated automatically.

Suggestions on food storage

Storing Food

Storing Food

• Do not store food which goes bad easily at low temperature, such as banana, and melon.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• When storing the food, use a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.
• To adjust the temperature control easily, do not store food near the temperature control dial.
• Never keep too many foods in door rack, as this may stop the door from fully closing.
• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.

Note

If you keep the fridge-freezer in a hot, and humid place, frequently open its door or put a lot of vegetables in it, dew may form in it, which has no effect on its performance.

Remove the dew with dust cloth free from care.

Care and Maintenance

Power Failure

If You Move

Anti Condensation Pipe

General Information

• 1~2 hour power failure does no harm to the foods stores. Try to avoid opening and closing the door too frequently. • Take out foods from the fridge-freezer and firmly fix the loose items with tape.
• Turn the leveling screws until they stop before moving the fridge-freezer. Otherwise the screw may scratch the floor or the fridge-freezer cannot move.

- The Anti-Condensation pipe is installed around the front side of fridge-freezer as well as on the partition between fridge compartment and freezer compartment to prevent dewing.

- Especially after installation or when ambient temperature is high, the fridge-freezer may feel hot, which is quite normal.

Anti-Condensation Pipe

Lamp Replacement

1. Unplug the power cord from the outlet.
2. Remove fridge shelves.
3. To remove the lamp cover, insert a flathead screwdriver into the underside of the lamp cover and pull it out forwards.
4. Turn the lamp counterclockwise.
5. Assemble in reverse order of disassembly. Replacement lamp must be the same specification as original.

- You must check the O-RING, which is made of rubber and prevents electric sparks.

Care and Maintenance

Cleaning

Before Cleaning

Be sure to unplug the power.

Exterior

Clean the outside of the fridge-freezer with a soft cloth soaked with hot water or liquid detergent. If you use a detergent, be sure to wipe it with a clean wet cloth.

Interior

As above.

After Cleaning

Check that the power cord is not damaged, the power plug has not overheated, and that the power plug is tightly inserted into the outlet.

Warning

Be sure to dry the appliance with a cloth after washing it with water.

Do not use abrasive, petroleum, benzene, thinner, hydrochloric acid, boiling water, rough brush, etc., as they may damage parts of the fridge-freezer.

Troubleshooting

Problem

Fridge-Freezer does not operate

Fridge or Freezer Compartment Temperature too warm

Vibration or Rattling or Abnormal Noise

Frost or Ice Crystals on frozen Food

Moisture forms on Cabinet Surface

Troubleshooting

Before calling for service, check this list. It may save you both time and expense.

This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

Possible Causes

• Power plug may be unplugged from the electric outlet. Plug it in securely.
• House fuse has blown or circuit breaker has tripped. Check and/or replace fuse and reset circuit breaker. • Power cut. Check house lights. • Temperature control not set on proper position. Refer to Temperature Control section.
• Appliance is placed close to heat source.
• Warm weather-frequent door openings.
• Door left open for a long time.
• Package holding door open or blocking air duct in freezer compartment.

- The floor on which the fridge-freezer is installed may be uneven or the fridge-freezer may be unstable. Make it even by rotating the leveling screw.

- Unnecessary objects placed in the back side of the fridge-freezer.

• Door may have been left ajar or package holding door open.
• Too frequent or too long door openings.
• Frost within package is normal.

- This phenomenon is likely to occur in a wet space. Wipe it with a dry towel.

Trouble Shooting

Problem Possible Causes

Moisture collects inside

Fridge has odor

Door not closing properly

Interior light does not work

• Too frequent or too long door openings.
• In humid weather, air carries moisture into fridge when doors are opened.
• Foods with strong odors should be tightly covered or wrapped.
• Check for spoiled food.
• Interior needs cleaning. Refer to CLEANING section

- Food package is keeping door open. Move packages that keep door from closing.

- Fridge-freezer is not level. Adjust the leveling screws.

- The floor on which the fridge-freezer is installed may be uneven or the fridge-freezer may be unstable. Slightly raise the front side with the leveling screw.

• No power at outlet. • Light lamp needs replacing. Refer to the Lamp Replacement section

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

To Reverse the Doors

Your fridge-freezer is designed with reversible doors, so that they may open from either the left or right hand side to suit your kitchen design.

Precaution

1. Before reversing the door, first of all, you should take out food and accessories like shelves or trays which are not fixed in the fridge-freezer.
2. Use Torque Wrench or Spanner to fix or remove the bolt.
3. Do not lay the fridge-freezer down. This will cause problems.
4. Be careful not to drop the doors in disassembling or assembling.

How to Reverse the Door

1. Separate the screw ③ after separating the n 2t on the left of the refrigerator door handle ①, then separate the refrigerator door handle ①. Separate the freezer of handle ④ in the order in which you separating the refrigerator door handle ①. (The hidden handle does not needshi procedure)
2. Separate the screw ⁵ and bottom cover, then separate the cap ⁷ of bottom cover and install it on the corresponding position on the right side. Separate the hinge lower right ⁹ and the pin ¹⁰ after separating the screw ⁸. Install the pin ¹⁰ into the corresponding left hole on the hinge lower. Separate the freezer door, then remove the cap ¹² on the door and install it on the corresponding position on the right side. Separate the door stop ¹⁴ after separating the screw ¹³, then install door stop on the corresponding position on the left.
3. Separate the cover of hinge upper ¹⁵, separate the two wires ¹⁶. Separate the screw ¹⁷, separate the hinge middle ¹⁸, then separate the refrigerator door ¹⁹. Separate 24p and install it on the corresponding position on the right. Separate the door stop ²² after separating the screw ²¹, then install the door stop on the corresponding position on the left. Separate the screw ²³, then separate the hinge upper right ²⁴.

1. Destroy the two small caps on the front of the cover front with a screwdriver, then separate the screw and . Separate the cover front. Move the wire to left, install the cover front and the screw. Take the small caps out of the alternate bag, then install the small cap.
2. Remove the small cap of the refrigerator door, then separate the small cap. Move the cap from left to the corresponding position on the right. Install the small cap then install the small cap on the corresponding position on the right.
3. Install the hinge lower and the freezer door, then install the hinge middle. Separate the cap on upper left. Install the refrigerator door, take the hinge upper out of the alternate bag and install it on upper left. Pull out the walls from the individual holes and connect these cables. Take the small caps out of the alternate bag, then install the small caps. Install base cove.
4. Separate the cap on the right side of the door, then install it into the left screw hole (you can see this hole after the left hand is removed). Install the handle and the screw which previously separated on the corresponding position on the right (the hidden handle does not need this procedure). Then installation is completed.

Note

Reversing the doors is not covered by the warranty.

Memo

Table of Contents

Introduction

Registration 22

- Quick Freezing 29

TIPS

Maintenance

Cleaning

Before Cleaning

Exterior

Disconnect the power cord from the socket.

DISPOSE OF THE OLD APPLIANCE

NOTE

Reversing the doors is not covered by the warranty.

Memo

Tips

Care instructions

Before cleaning

Outside

Cleaning

Note:

Tip

Maintenance

Cleaning

Before cleaning

Note

FOOD STORAGE RECOMMENDATIONS

Food storage

Care and maintenance

Cleaning

Before cleaning

Disconnect the plug from the power outlet.

Outer casing

Note
