Product type	Jigsaw
Brand	Ferm
Model	CSM1034
Voltage	230 V
Frequency	50 Hz
Power consumption	1200 W
No-load speed	5500/min
Blade dimensions	∅185 x ∅20 x 2.4 mm
Blade teeth	Z24
Max cutting depth at 90°	65 mm
Max cutting depth at 45°	43 mm
IP protection rating	IP20
Weight	3.47 kg
Sound pressure level (Lpa)	92.8 ± 3 dB(A)
Sound power level (Lwa)	103.8 ± 3 dB(A)
Vibration value	3.787 ± 1.5 m/s²
Main functions	Straight cuts, bevel cuts (0-45°), depth adjustment, cutting guide
Package contents	Jigsaw, cutting guide, TCT blade ∅185 mm, Allen key, carbon brushes
Power supply	Mains (power cord)
Maintenance	Regular cleaning, replacement of carbon brushes (every 30 h), no lubrication required
Safety	Double insulation (class II), safety switch, anti-kickback device, blade guard
Spare parts and repairability	Carbon brushes, saw blades, cutting guide; after-sales service via warranty card
General information	Warranty included, recyclable packaging, disposal in compliance with environmental standards

Frequently Asked Questions - CSM1034 Ferm

How to change the blade of the CSM1034 jigsaw?

Use the arbor lock button (13) to lock the rotation. Loosen the hexagon socket screw (6) with the Allen key, remove the retaining ring and the blade. Clean or replace the blade, then reassemble in reverse order.

How to adjust the cutting depth?

Loosen the depth adjustment knob (3), move the base plate downward, read the depth on the side of the safety plate, then retighten the knob.

How to adjust the cutting angle for a bevel?

Loosen the two knobs (12), pivot the base plate between 0° and 45°, then retighten the knobs. The angle is indicated on the angular clamping key (14).

What to do if the saw does not start?

Check the electrical circuit and that the plug is properly connected. If the problem persists, the switch may be faulty; contact after-sales service.

Why does the blade get very hot?

The blade may be overloaded by a workpiece that is too thick or feed rate too fast. Saw more slowly and let the motor cool down. If overheating persists, check if the blade is blunt.

How to install the cutting guide?

Loosen the knob (11), insert the cutting guide into the provided slots, adjust the desired cutting width, then retighten the knob.

When should the carbon brushes be replaced?

The brushes should be checked every 30 hours of service. If they are shorter than 4 mm, replace them with new ones. Remove the screws (17), take out the worn brushes and insert the new ones.

Can I use HSS blades with this saw?

No, only use blades that comply with the dimensions and specifications indicated in the manual. HSS blades are prohibited.

How to maintain safety during use?

Always hold the saw with both hands, never place your hands under the workpiece, use a guide for long cuts, and ensure the blade guard works properly.

How to clean the jigsaw?

Clean the housing with a soft cloth after each use. For stubborn dirt, use a cloth dampened with soapy water. Do not use solvents.

USER MANUAL CSM1034 Ferm

Exterior view of a modern office building (no signage)

EN	Original instructions	03
DE	Übersetzung der Originalbetriebsanleitung	08
NL	Vertaling van de oorspronkelijke gebruiksaanwijzing	14
FR	Traduction de la notice originale	20
ES	Traducción del manual original	26
PT	Tradução do manual original	32
IT	Traduzione delle istruzioni originali	38
SV	Översättning av bruksanvisning i original	44
FI	Alkuperäisten ohjeiden käännös	49
NO	Oversatt fra orginal veiledning	54
DA	Oversættelse af den originale brugsanvisning	59

CE

CIRCULAR SAW

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

The pictures mentioned in the text are corresponding with the pictures at page 2

For your own safety and for the safety of others, please read these instructions carefully before using this appliance. It will help you understand your product more easily and avoid unnecessary risks. Keep this instruction manual in a safe place for future use.

Contents

1. Machine data
2. Safety instructions
3. Assembly and adjusting instructions
4. Operation
5. Maintenance

1. MACHINE DATA

Technical specifications

Voltage 230 V

Frequency 50 Hz

Power input 1200 W

No load speed 5500/min

Saw blade dimensions ∅185x∅20x2.4 mm

Number of teeth Z24

Max sawing depth 90° 65 mm

Max sawing depth 45° 43 mm

IP Class IP 20

Weight 3,47 kg

Lpa (sound pressure level) 92.8+3 dB(A)

Lwa (sound power level) 103.8+3 dB(A)

aw(vibration value) 3.787+1.5 m/s²

Vibration level

The vibration emission level stated in this

instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Product information

Fig. A

1. Handgrip
2. On/off switch
3. Cut depth clamping knob
4. Power cord
5. Saw blade safety guard
6. Hexagon screw
7. Soleplate
8. Retaining ring
9. Saw blade
10. Rip fence
11. Rip fence clamping knob
12. Sawing angle clamping knob
13. Shaft locking knob
14. Protractor
15. Knob
16. Safety switch
17. Carbon brush screw

Contents of packing

1 Circular handsaw
1 Rip fence
1 TCT Saw blade ∅185 mm
1 Allen key
1 Set carbon brushes

Check first whether or not the delivery has been damaged by transport and/or whether all the parts are present.

2.SAFETY INSTRUCTIONS

Explanation of the symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

Keep bystanders away

Wear ear and eye protection

Wear a dust mask. Working with wood, metals and other materials may produce dust that is harmful to health. Do not work with material containing asbestos

Danger

a) Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.
e) Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and shock the operator.
f) When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
g) Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h) Never use damaged or incorrect blade

washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

Causes and operator prevention of kickback

Kickback is a sudden reaction to a pinched, • bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;

When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;

If the blade becomes twisted or misaligned in • the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
e) Do not use dull or damaged blades.

Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.

f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when making a "plunge cut" into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.

Safety instructions lower guard

a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) Lower guard should be retracted manually only for special cuts such as "plunge cuts" and "compound cuts." Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.
d) Always observe that the lower guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

Before using the circular saw

Check the following points:

Does the voltage of the motor correspond with the mains voltage (appliances for a mains voltage of 230 V

Are the mains lead and the mains plug in • a good condition: solid, without any loose ends or damage;

Is the saw blade missing any teeth or showing any cracks, it so must be

replaced immediately.

Make sure the blade is secure.

Use this circular saw to saw only wood, • wood-like products.

Do not use circular saw blades wich are • deformed or damaged.

Do not use HSS blades.

• Only use blades meeting the required dimensions, as well as data and descriptions;
• Never apply any blades of which the thickness is greater than that of the riving knife.
• Do not stop the blade of a circular saw by pressing the blade from the side.
• Check that the blade guard can freely move and fully closes.
  • Never lock-up the guard in the open position.
• Never put sideward pressure on the blade. This may cause the blade to break.
• Be careful when cutting wood with knots, nails or cracks in it and/or dirt on it, as these can cause the blade to get stuck.
  • Never leave the circular saw unattended.
• Use this circular saw to saw only wood or wood-like products.

Using the machine

• Use clamps or a vice to hold the work.
- Never remove wood chips and saw dust that is close to the saw blade with your hands. If there are small pieces of wood left between the fixed and the movable parts, the circular saw will have to be stopped. The plug needs to be removed from the socket, before any left piece can be removed.
- Check that the blade is suitable for the spindle speed of the circular saw. Do not attempt to cut before the circular saw has reached full speed. Make sure the circular saw runs without load (i.e. is not in contact with the work) when you switch it on. The circular saw must have reached its full speed first.
- Never cut wood that is thicker than the depth of the saw blade.
- When cutting in wooden walls or floors, check there is no wiring or piping where you intend to cut.
- Switch off the tool and wait until the blade has stopped completely before moving the saw away from the work or putting it down.

Hearing protection should be worn when using circular saw.

Switch off the machine immediately when you

discover:

A defective mains plug or mains lead;•

A defective switch.

Overheating of the circular saw.

Smoke or odeur caused by scorched insulation.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions. Keep these instructions in a safe place!

Always check that the power supply corresponds to the voltage on the rating plate.

Class II machine – Double insulation – You don't need any earthed plug.

Replacing cables or plugs

If the mains cable becomes damaged, it must be replaced with a special mains cable available from the manufacturer or the manufacturer's customer service. Dispose of old cables or plugs immediately after replacing them with new ones. It is dangerous to connect the plug of a loose cable to a socket.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm^2 . When using a cable reel always unwind the reel completely.

3. ASSEMBLY AND ADJUSTING INSTRUCTIONS

Before adjusting the saw, make sure the plug is removed from the socket.

Setting the sawing angle (bevel)

Loosen both knobs (12).• Rotate the soleplate to the correct position ( 0^ - 45^ ), and tighten the knobs. The sawing angle (bevel) can be read on the protractor (14).

Fitting the ripfence

Loosen knob (11).

Insert the rip fence into the slots provided. Set the correct cut width and tighten the knob (11).

Setting the cutting depth

Loosen knob (3).• Move the soleplate (7) downwards.

• The cut depth of the saw blade can be read off on the side of the safety guard.
• Tighten the clamping knob (3) once the correct depth is set.

Exchanging or cleaning the saw blade

• Use the shaft locking knob (13) to prevent the shaft from rotating.
• Next loosen the hexagon screw (6) in the centre of the saw blade, using the Allen key provided.
• Turn the safety guard to the rear, and hold it there with the aid of the knob (15).
• Withdraw the retaining ring and the saw blade, and clean the saw blade, or replace it with a new one.
  • Again place the saw blade back on the shaft.
• Allow the safety guard to return over the saw blade by releasing the knob (15).
• Press the shaft locking knob (13) back in, refit the retaining ring (8) and tighten the hexagon screw (6) firmly once more.

4. OPERATION

Use of hearing protection is recommended while operating the circular saw.

Switching On/Off

• Press knob (16) with your right-hand thumb and keep it depressed.
• Press knob (2) to start the saw.
  • Release knob (2) to stop the saw.

Operation

• Hold the work using clamps or a vice to have both hands free to operate the saw.
• Switch on the saw and place the bottom plate on the work.
• Slowly move the saw towards the previously drawn cutting line and slowly press the tool forward.
• Firmly press the bottom plate on the work, otherwise the circular saw may start to

vibrate, causing the blade to break more easily.

Let the saw do the job. Do not put undue pressure on the circular saw.

5. MAINTENANCE

Make sure that the machine is not live when carrying out maintenance work on the motor.

The machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Troubleshooting

Below we have listed a few probable causes and solutions to which you can refer if your circular saw does not function properly.

1. The temperature of the electric motor exceeds 70^ C.

The motor has been overloaded by working it • too hard.

Cut more slowly and allow the motor to • cool down.

The motor is defective.

Please contact the service address on • the warranty card.

2. The tool does not work when switched on.

Damaged cord and/or plug.

Check cord and/or plug.

Defective switch.

Please contact the service address on • the warranty card.

3. When cutting it is very difficult to move the work forward in a straight line and the cut is not clean.

The blade is bent or blunt.

Replace the blade.

4. The circular saw makes a lot of noise and/or does not run smoothly.

The carbon brushes are worn.

Please contact the service address on • the warranty card.

Cleaning

Keep the ventilation slots of the machine clean to prevent overheating of the engine.

Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt.

If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc.

These solvents may damage the plastic parts.

Replacing hte carbon brushes

• Remove the screws (17).
• Withdraw the carbon brushes (18) from the circular handsaw and inspect them for wear.
• Place the carbon brushes back in the brush holders provided.
• Check that the copper contact on the carbon brushes makes good contact with the copper part in the brush holder.
• Replace the screws (17) and tighten them firmly.

Frequent use will cause the carbon brushes to wear down. Regular inspection, after every 30 hours of use, is essential. If the brushes have worn down to less than 4 mm, replace.

Lubrication

The machine requires no additional lubrication.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Warranty

The warranty conditions can be found on the separately enclosed warranty card.

KREISSÄGE

• De motor is defect.

Interruptor Marcha/Parada

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

Spare parts list

Position Description No.

5 Switch 300755

6 Powerplug + cord 300756

15 + 16 Carbon brush set + cap 300757

29 + 39 + 41 + 46 Flange set complete 300758

35 + 62 till 67 Baseplate complete 300759

68 Parallel guide 300760

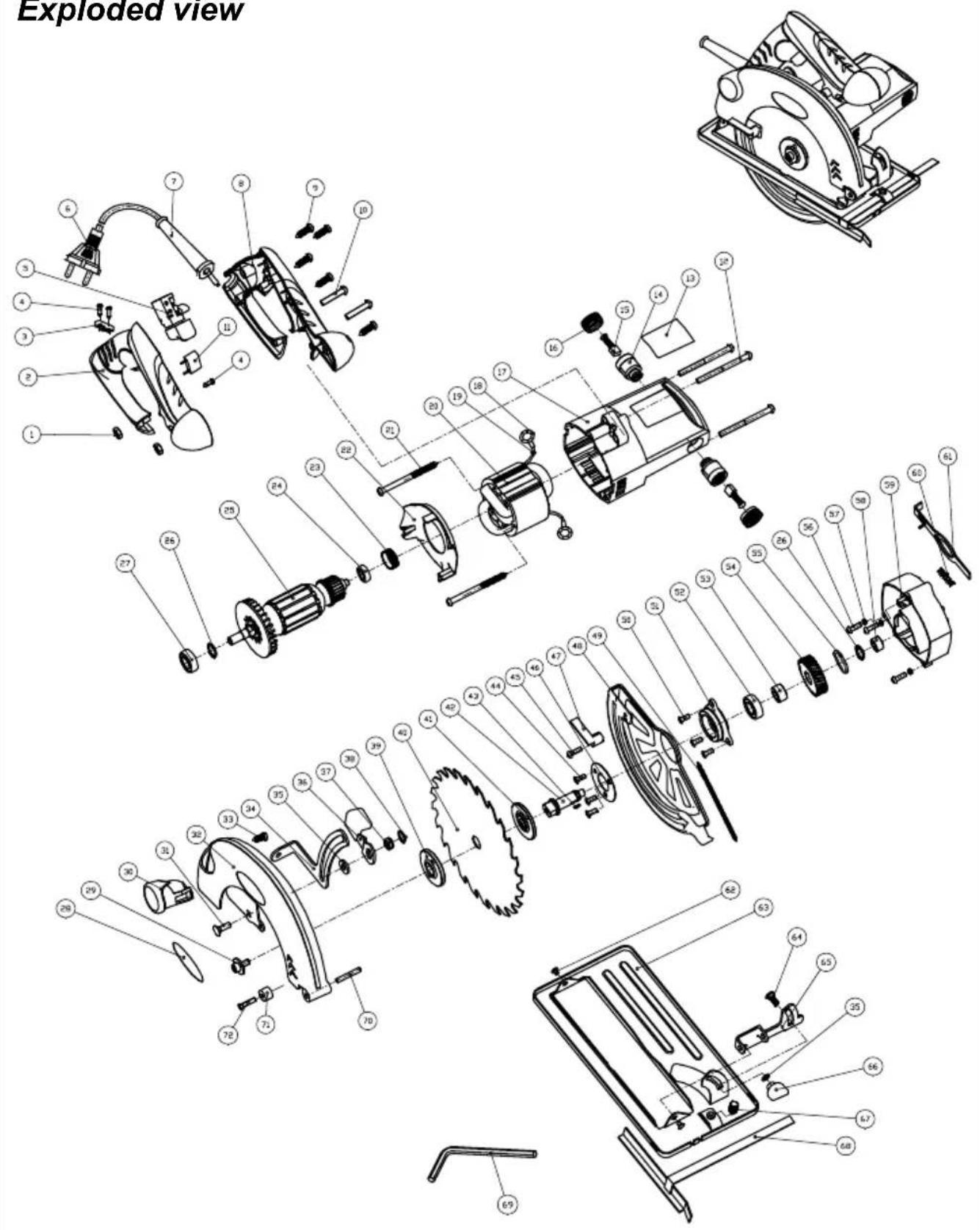

Exploded view

GB Subject to change
