SFW 100 C3 - Foot bath SILVERCREST - Free user manual and instructions

Product Type	Foot Warmer
Model	SFW 100 C3
Type	FW 10 S
Power Supply	220-240 V ~ 50-60 Hz
Power Input	100 W
Dimensions (W x H x D)	Approx. 26 x 26 x 30 cm
Protection Class	II (double insulated)
Water Protection (Foot Warmer)	IP X1 (drip-resistant)
Water Protection (Control Unit)	IP X0 (no moisture protection)
Material (Surface)	100% Polyester
Material (Removable Teddy Lining)	100% Polyester
Temperature Levels	6 (0 off, 1-6)
Rapid Heating	Yes, within 15 minutes at highest setting
Automatic Switch-off	After approx. 90 minutes
Safety System	Electronic sensor for automatic shut-off in case of fault
Suitable Users	Adults and children 8+; children 3-8 only under supervision; not for children 0-3 or persons insensitive to heat
Care Instructions	Do not wash; spot clean only; control unit wipe with dry cloth
Warranty	3 years from date of purchase
Manufacturer	MGG Elektro GmbH, Steinstraße 27, 40210 Düsseldorf, Germany

Frequently Asked Questions - SFW 100 C3 SILVERCREST

Can I use the foot warmer with shoes on?

No, never use the foot warmer with shoes as it reduces sensitivity to heat and soils the product. Use it barefoot or with socks.

Can I wash the foot warmer or its removable lining?

No, the entire foot warmer including the removable teddy lining must not be washed, dry-cleaned, or machine-washed. Only spot clean with a damp cloth and mild detergent. The control unit must never get wet.

Is it safe to use with a pacemaker?

The electromagnetic fields are within safe limits (max. 5000 V/m, 80 A/m, 0.1 mT). However, consult your doctor and pacemaker manufacturer before use.

How do I select the temperature?

Use the control unit's 6-level selector. Level 0 is off, level 1 is minimum heat, level 6 is maximum heat. For rapid warming, start at level 6 for 15 minutes then adjust.

Does the foot warmer turn off automatically?

Yes, it switches off after approximately 90 minutes. The function display will flash. To restart, turn the selector to 0, wait 5 seconds, then set the desired level.

What should I do if the safety system activates?

If the foot warmer shuts off due to a fault and the function display is off, unplug the device immediately and return it to the service address for inspection. Do not use it again until repaired.

Can children use this foot warmer?

Very young children (0-3 years) must not use it. Children aged 3-8 may use it only if the control unit is set by a parent and they are supervised. Children 8+ and persons with reduced capacities may use it with supervision.

How should I clean the control unit?

Always unplug before cleaning. Use a dry, lint-free cloth only. Never immerse the control unit in water or use chemical cleaners.

What is the warranty period and how do I claim?

The warranty is 3 years from purchase for material and manufacturing defects. Proof of purchase is required. Contact the service hotline: UK 0800 93 10 319, Ireland 1800 93 92 35, or email [e-mail].

Can I use the foot warmer with wet feet or when it's damp?

No, do not use when wet as this poses a risk of electric shock. Ensure your feet and the foot warmer are dry before operation.

USER MANUAL SFW 100 C3 SILVERCREST

Close-up of a knitted sock with mesh texture and a small medical device connected to its side (no visible text or symbols)

FOOT WARMER SFW 100 C3

GB IE NI

FOOTWARMER

Operating instructions and safety advice

GB IE NI

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

List of pictograms used....Page 6

Introduction......Page 6

Proper use....Page 7

Description of parts....Page 7

Included items Page 7

Technical data......Page 7

Important safety instructions....Page 7

Safety system....Page 9

Preparing the product for use....Page 9

Switching on/off/Selecting the temperature....Page 10

Temperature levels....Page 10

Automatic switch-off....Page 10

Cleaning and care....Page 10

Storage Page 11

Disposal Page 11

Warranty / Service centre Page 11

Declaration of Conformity Page 12

List of pictograms used
	Read the instructions!		6 Temperature levels
	Volt (AC) Illuminated function display
	Hertz (mains frequency)		Breathable
	Watts (effective power)		"Turbo" rapid heating function
	Safety class II Do not wash.
	Observe caution and safety notes! Hand	g
	Not suitable for very small children age 0-3 years!		Do not use bleach.
	Do not insert pins! Do not dry in a tumbler
	Do not use folded or rucked! Do not iron.
	Caution - electric shock!Danger to life!		Do not dry-clean.
	The textiles used in this foot warmer meet the strict human ecological requirements of Oeko-Tex Standard 100, as verified by the German Hohenstein Research Institute.		Dispose of the packaging and the foot warmer in an environmentally friendly manner!
	Automatic switch-off

Foot Warmer

Introduction

Please make yourself familiar with the foot warmer before preparing it for use or using it for the first time. Please read

the following operating instructions and the important safety instructions carefully. Always use the foot warmer only as described and for the stated areas of use. Keep these instructions in a safe place. If you pass the foot warmer on to anyone else, please ensure that you also pass on all the documentation.

Properuse

This foot warmer is intended for applying heat to the human body. Do not use the foot warmer wearing shoes, as this would reduce your sensitivity to heat and also soil the foot warmer. This foot warmer is not intended for use in hospitals or for commercial use. In particular it must not be used for babies or infants, persons who are insensitive to heat, helpless persons, or animals. Any use other than that described here or modification to the foot warmer is not permitted and could lead to injury and / or damage to the product. The manufacturer accepts no liability for any damage caused by improper use.

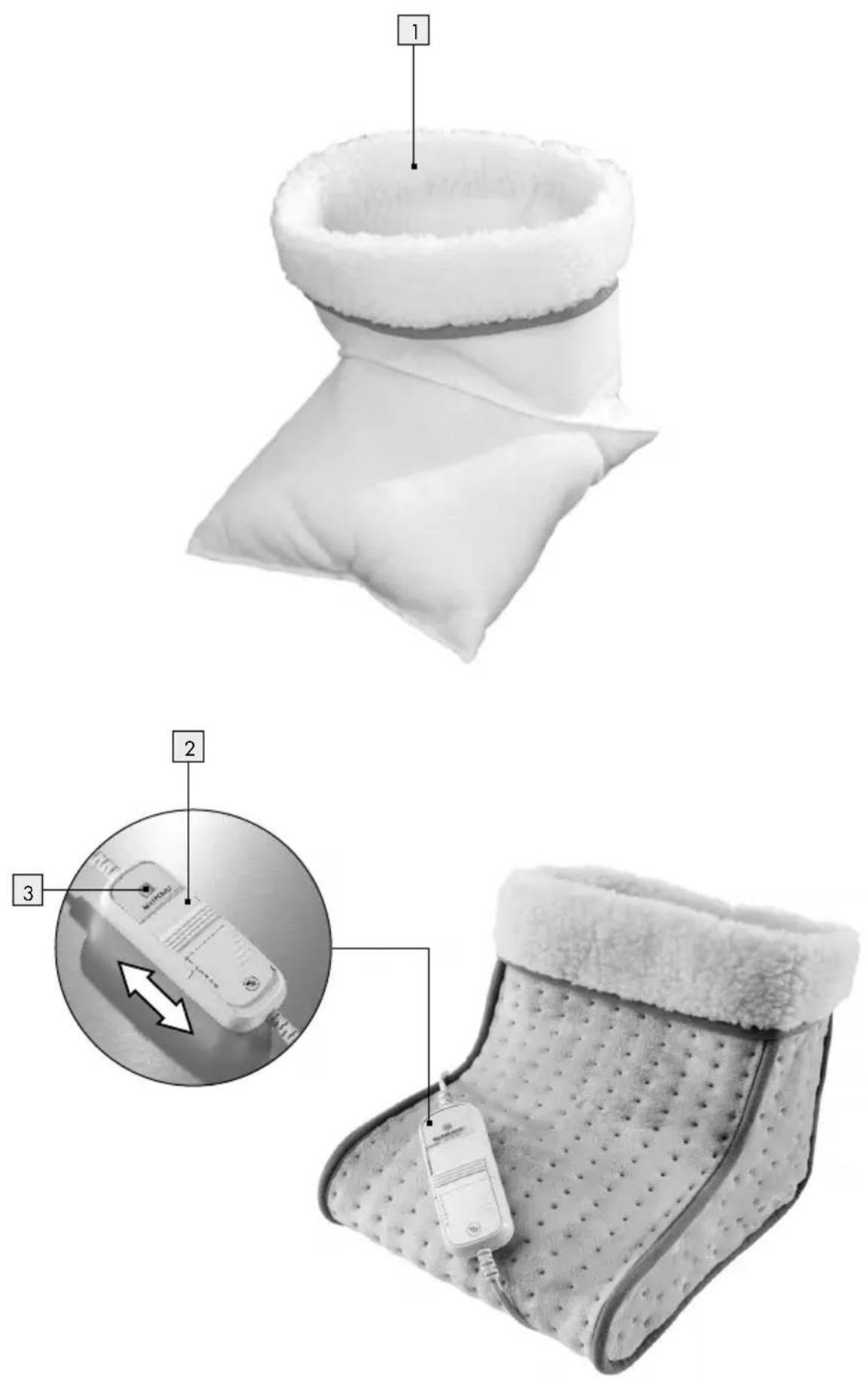

• Description of parts

1 Teddy lining, removable
2 Control unit
3 Function indicator

- Included items

Immediately after unpacking, check that all the items are present and that the product is in perfect condition.

1 Foot warmer with removable teddy lining and control unit
1 Set of operating instructions

- Technical data

Model: SFW 100 C3

Type: FW 10 S

Power supply: 220-240 V/50-60 Hz

Power input: 100 W

Dimensions: approx. 26 x 26 x 30 cm (W x H x D)

Protection class: II/☐

Protection class

(water protection): Foot warmer: IP X1, drip-resistant Control unit: IP X0, no moisture protection

Electric field strength: max. 5000V/m

Magnetic field strength: max. 80A/m

Magnetic flux density: max. 0.1 milli-Tesla

Material:

Surface of foot warmer: 100 % polyester Teddy lining: 100% polyester

Manufacturer:

MGG Elektro GmbH

Steinstraße 27

40210 Düsseldorf, Germany

IMPORTANT INSTRUCTIONS – KEEP FOR FUTURE REFERENCE!

Important safety instructions

WARNING! Failure to comply with the following instructions can cause personal injury or material damage (electric shock,

skin burns, fire). The following advice on safety and hazards is intended to protect your health and that of other people as well as to protect the foot warmer. Please observe these safety instructions and make sure that you pass on this

manual together with the foot warmer.

CALDINGHAZARD!

This foot warmer may not be used by persons insensitive to heat and other persons in need of protection who do not respond to overheating (e.g. diabetics, persons with skin changes caused by illness or scarred skin areas in the application area, after using analgesics or alcohol). There is a risk of receiving skin burns.

WARNING!

foot warmer may not be used for very young children (0–3 years), as they are unable to react to overheating. There is a risk of skin burns.

This foot warmer may not be used by young children (3–8 years) unless the control unit was set by a parent or a supervising person and the child was adequately instructed on the safe use of the foot warmer. There otherwise is a risk of burns.

This foot warmer may be used by older children age 8 and up and persons with diminished physical, sensory or mental capacities or lacking experience and knowledge when

supervised and instructed on the safe use of the foot warmer and understand the associated risks.

■ Children must be supervised to prevent them from playing with the foot warmer. There is a risk of injury.

■ Children must not perform clean or maintain the product without supervision. There is a risk of injury.

This foot warmer is not intended for use in hospitals or for commercial use. This poses a risk of injuries and/or damage to the foot warmer.

- Do not use this foot warmer to warm up animals.

- Do not use this foot warmer with shoes to prevent soiling.

WARNING! not poke needles or

other pointy objects into the foot warmer. There is a risk of electric shock.

WARNING! not switch on the foo

warmer whilst folded or bunched up. The foot warmer may otherwise be damaged.

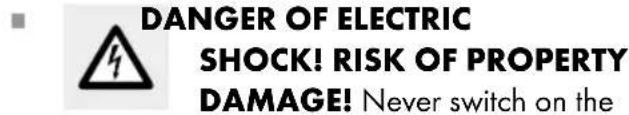

- Do not use when wet! Otherwise there is a risk of electric shock.

■ Under certain circumstances, the electrical and magnetic fields emitted from the foot warmer could interfere with the proper functioning of your heart pacemaker. However, the levels are far below the permissible limits: electric field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 milli-Tesla. Ask your doctor and, if relevant, the manufacturer of your heart pacemaker before you use this foot warmer.
- Do not pull, twist or kink the cables. The foot warmer may otherwise be damaged.
■ Regularly check the foot warmer for signs of wear or damage. If signs thereof are detected, the foot warmer was used improperly or will no longer heat up, it must first be inspected by the manufacturer before being switched on again.
If the mains power cable of this foot warmer is damaged, it must be replaced by the manufacturer or its service department, or a similarly qualified person, to prevent hazards.
■ The electronic components inside the control unit will heat up

whilst operating the foot warmer. For this reason, the control unit may not be covered or be lying on the foot warmer during operation. This poses a risk of injuries and/or damage to the foot warmer.

■ Always observe the information on start-up, cleaning and care, and storage.
If you have additional questions on using our products, please contact our Customer Service Department.

- Safety system

Note: This foot warmer is equipped with a safety system. The electronic sensor technology prevents the entire surface of the foot warmer from overheating by automatically switching off in the event of a fault. If the safety system switches the foot warmer off automatically due to a fault, then the function display 3 on the control unit 2 is no longer illuminated, even if the heating pad is switched on.

☐ Please note that, for safety reasons, the foot warmer must not be used after a fault and must be returned to the service address indicated.

● Preparing the product for use

Note: When the foot warmer is used for the first time, you may notice a smell of plastic; however, this will disappear after a short time.

• Switching on/off/Selecting the temperature
  ☐ Insert the mains plug into the mains socket.

Switching on:

☐ Set level 1, 2, 3, 4, 5 or 6 on the control unit 2 to switch the foot warmer on.

Note: The function display 3 illuminates after the foot warmer is switched on.

Note: This foot warmer features rapid heating, which allows it to heat up within the first 15 minutes of operation.

Switching off:

☐ Set level 0 on the control unit 2 to switch the foot warmer off.

Note: The function display 3 ceases to illu- minate.

Selecting the temperature:

☐ Just before using the foot warmer, set it to the highest temperature setting (setting 6). This will cause the foot warmer to warm up quickly.
☐ The foot warmer can of course be used at any time if it is switched off. Its teddy plush lining will warm your feet even if an electric socket is nowhere near.

WARNING! When operating the foot warmer for several hours, we recommend setting the control unit to the lowest temperature setting to prevent overheating of the feet and subsequent potential skin burns.

Temperaturelevels

Set the required temperature level on the control unit 2.

Level 0: off

Level 1: minimum heat

Level 2-5: customised heat

Level 6: maximum heat

• Automatic switch-off

Note: The foot warmer switches itself off automatically after about 90 minutes. The function display 3 then starts to flash.
☐ Then select the setting 0 and after about 5 seconds, reset the foot warmer to the desired temperature setting to switch it on again.

Note:

Switch the foot warmer off (setting 0) and pull the mains plug out of the mains socket if the foot warmer is not to be used after it has switched off automatically.

- Cleaning and care

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK! Always remove the power plug from

the socket before cleaning the foot warmer. Otherwise there is a risk of electric shock.

Use a dry, lint-free cloth for control unit cleaning and care.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY!

Never immerse the control unit 2

in water or other liquids. It may otherwise be damaged.

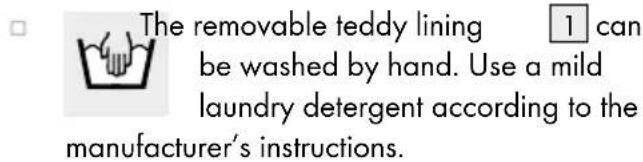

Use a damp cloth and if necessary a little mild detergent to clean small stains on the foot warmer.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Do not use chemical cleaning or scour

ing agents to clean the foot warmer and control 2. The foot warmer and control unit 2 may otherwise be damaged.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY!

Please note that the foot warmer

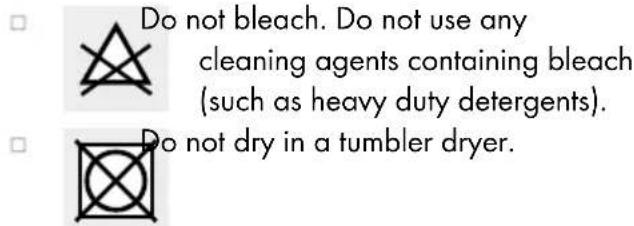

must not be washed in a machine, dry-cleaned, wrung out, tumble-dried, mangled or ironed. The foot warmer may otherwise be damaged.

Do not wash.

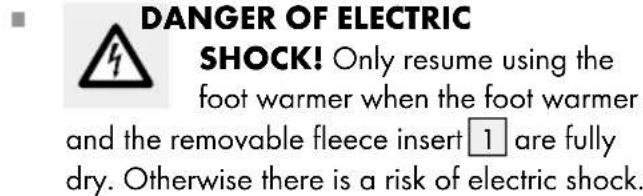

foot warmer to dry. Otherwise there is a risk of electric shock.

Storage

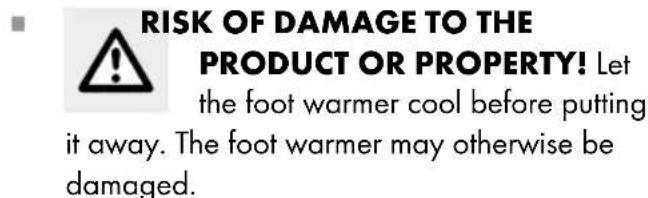

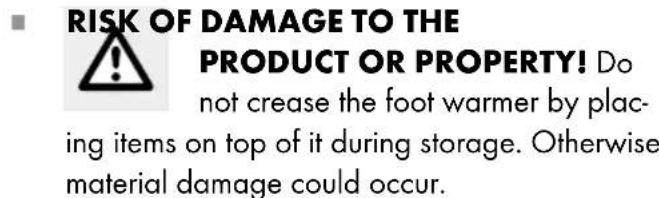

☐ If you do not intend to use the foot warmer for any length of time, store it in the original packaging in a dry environment and without weighing it down.

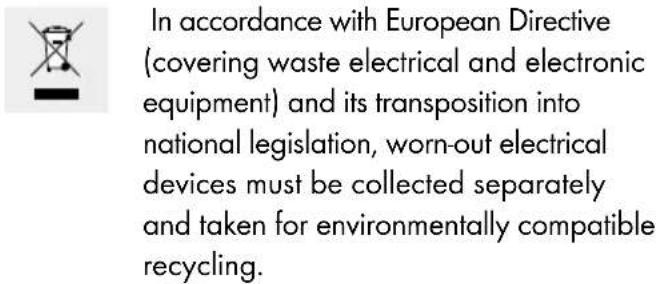

●Disposal

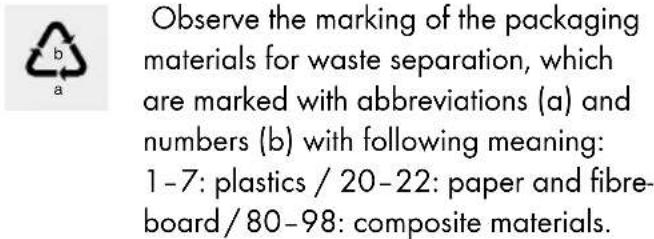

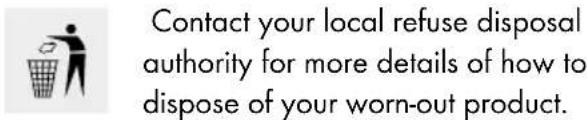

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

● Warranty / Service centre

We provide a 3-year warranty from the date of purchase for defects in material and manufacture of the foot warmer.

The warranty does not cover:

- Damage from improper use.

.Wearparts.

- Damage caused by the customer.

If the device has been opened by an unauthorised repair shop.

This warranty does not affect the customer's legal rights. The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Warranty claims must be filed with MGG Elektro GmbH, Düsseldorf, Germany within 3 years from the date of purchase.

In the event of a claim, please contact our Service Department listed below:

Service Hotline (toll-free):

GB

∅ 0800 93 10 319

(Mon-Fri: 8 am-6 pm)

[e-mail]

IE NI

∅ 1800 93 92 35

(Mon-Fri: 8 am-6 pm)

[e-mail]

If we ask you to return the defective foot warmer, please send it to the following address:

NU Service GmbH

Lessingstraße 10b

89231 Neu-Ulm

GERMANY

IAN 290494

● Declaration of Conformity CE

This foot warmer complies with the requirements of the relevant European and national guidelines.

This is confirmed by the CE mark.

The relevant declarations are held by the manufacturer.

NU Service GmbH

Lessingstraße 10 b

D-89231 Neu-Ulm

GERMANY

Last Information Update: 06 / 2017

Ident.-No.: 750.430-062017-GB/IE/NI
